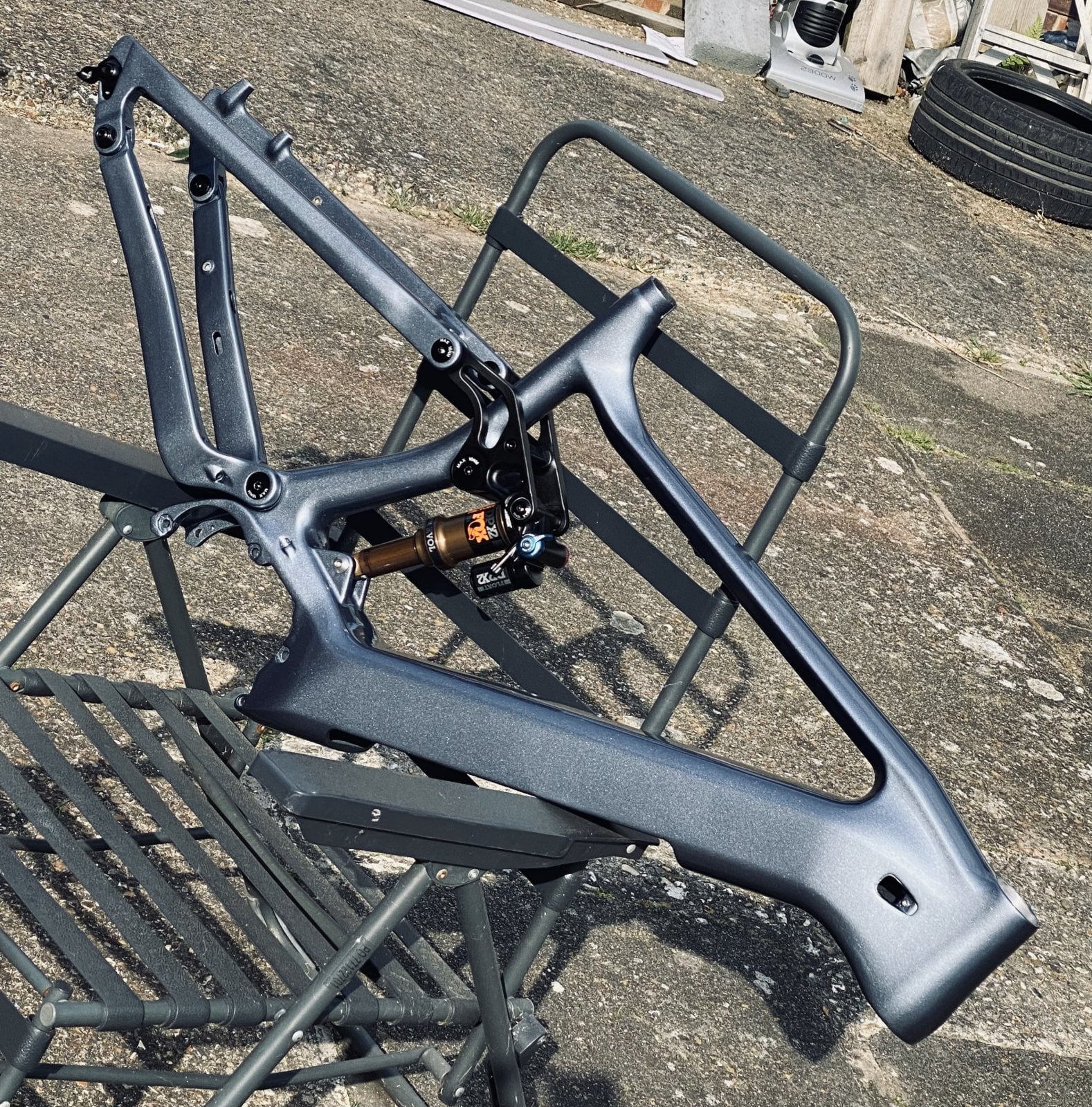

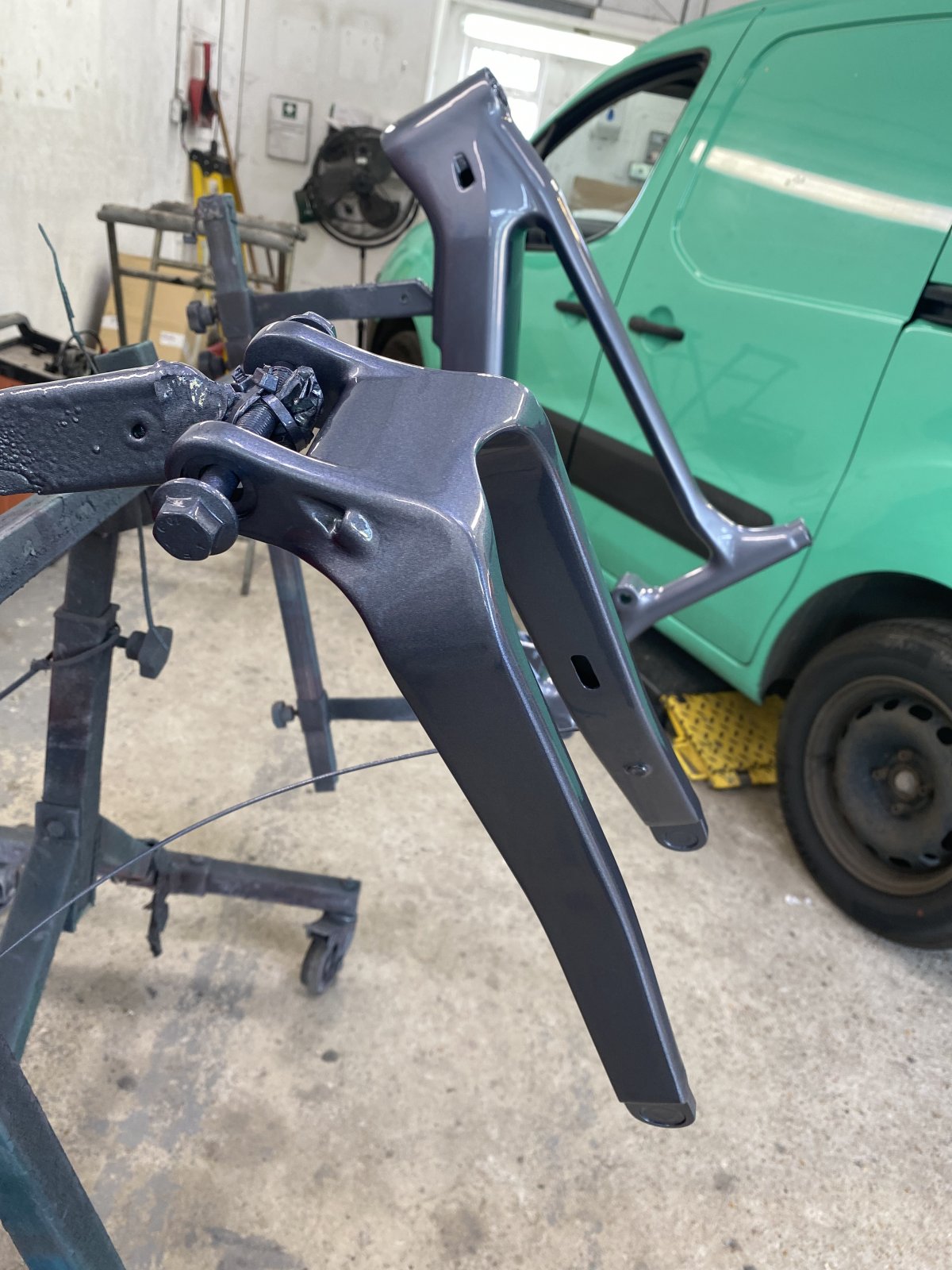

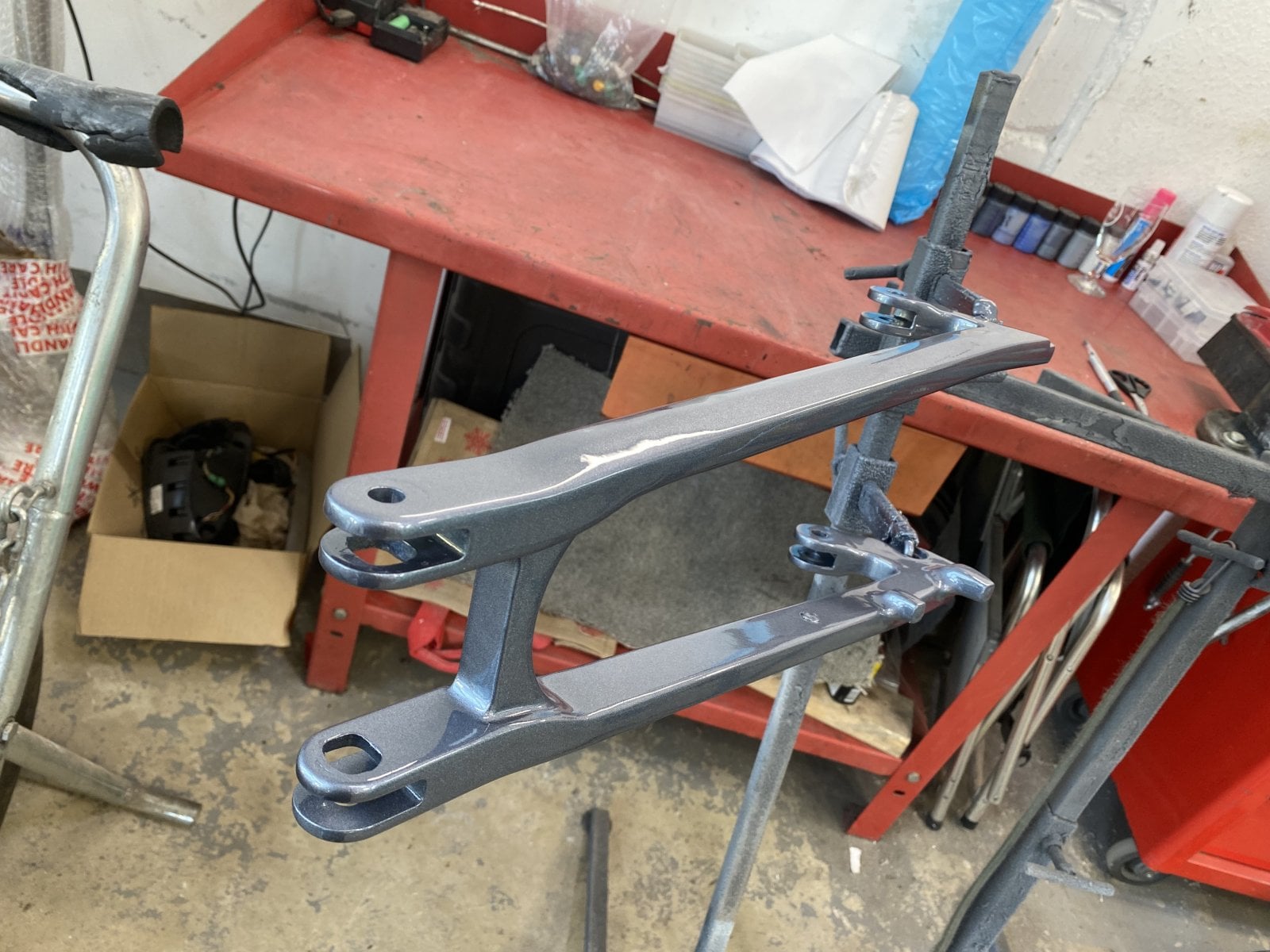

Fantastic morning in the paint shop.
Next week my project will be well underway
71416E8E-5B50-40F6-99A4-22641EB1A1B7.jpeg E4DF1498-5A5C-461E-AE92-0A1B2DCA5F41.jpeg C7C92E0F-FD9B-41D3-B130-C68A2B43EB97.jpeg 15B605E3-22BC-45B8-BFF6-E5D57C0120D3.jpeg


nofroyo

New Member
Apr 25, 2022
3
2
usa
Nice paint job. I am interested in purchasing this frame and motor and just transfering a bunch of my non-e mtb stuff to here.
Where did you get the motor?


Dave Rand

Active member
Jan 25, 2022
111
140
Kent Uk

Dave Rand

Active member
Jan 25, 2022
111
140
Kent Uk
Continuing on the wiring tonight.

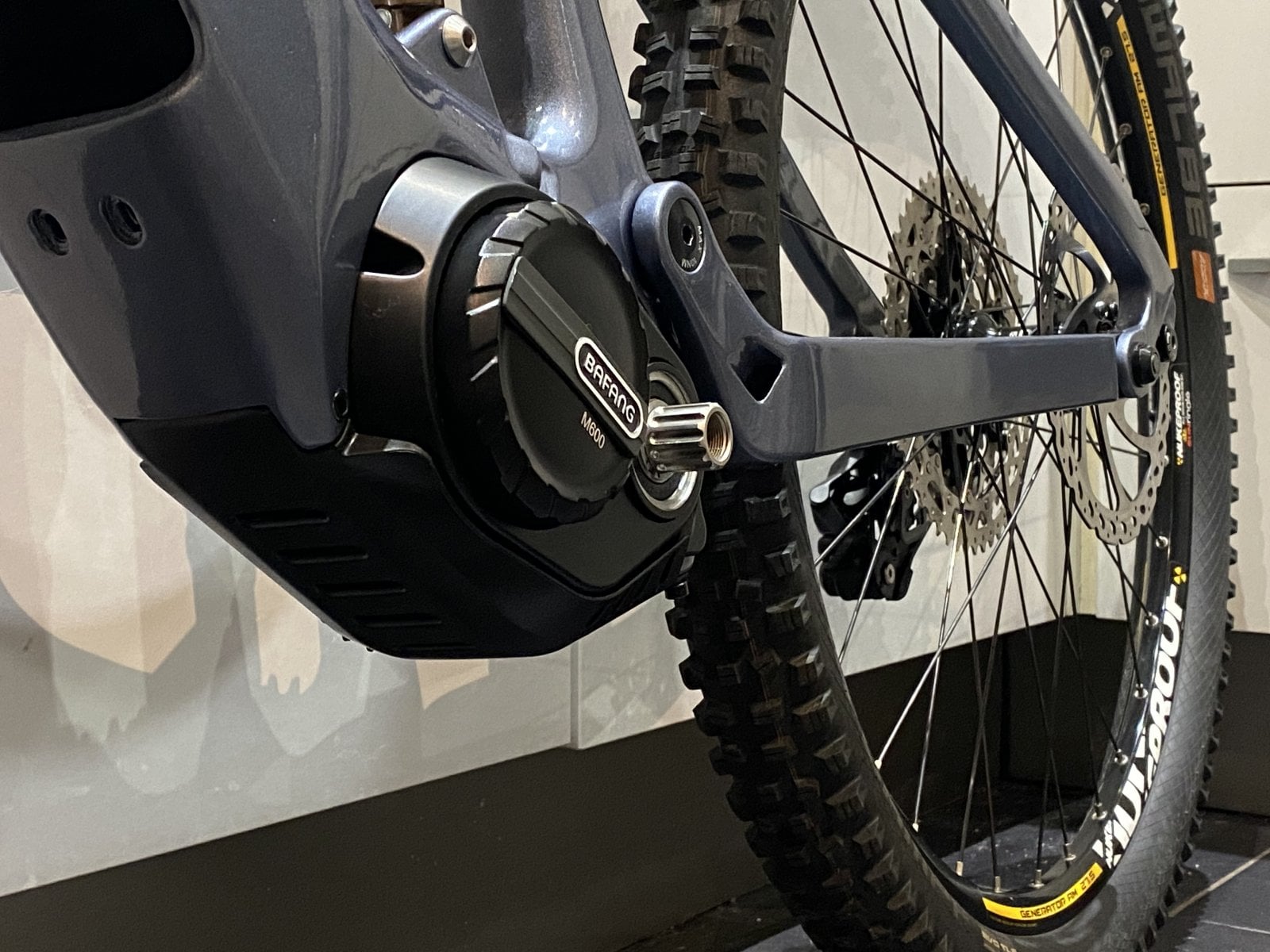

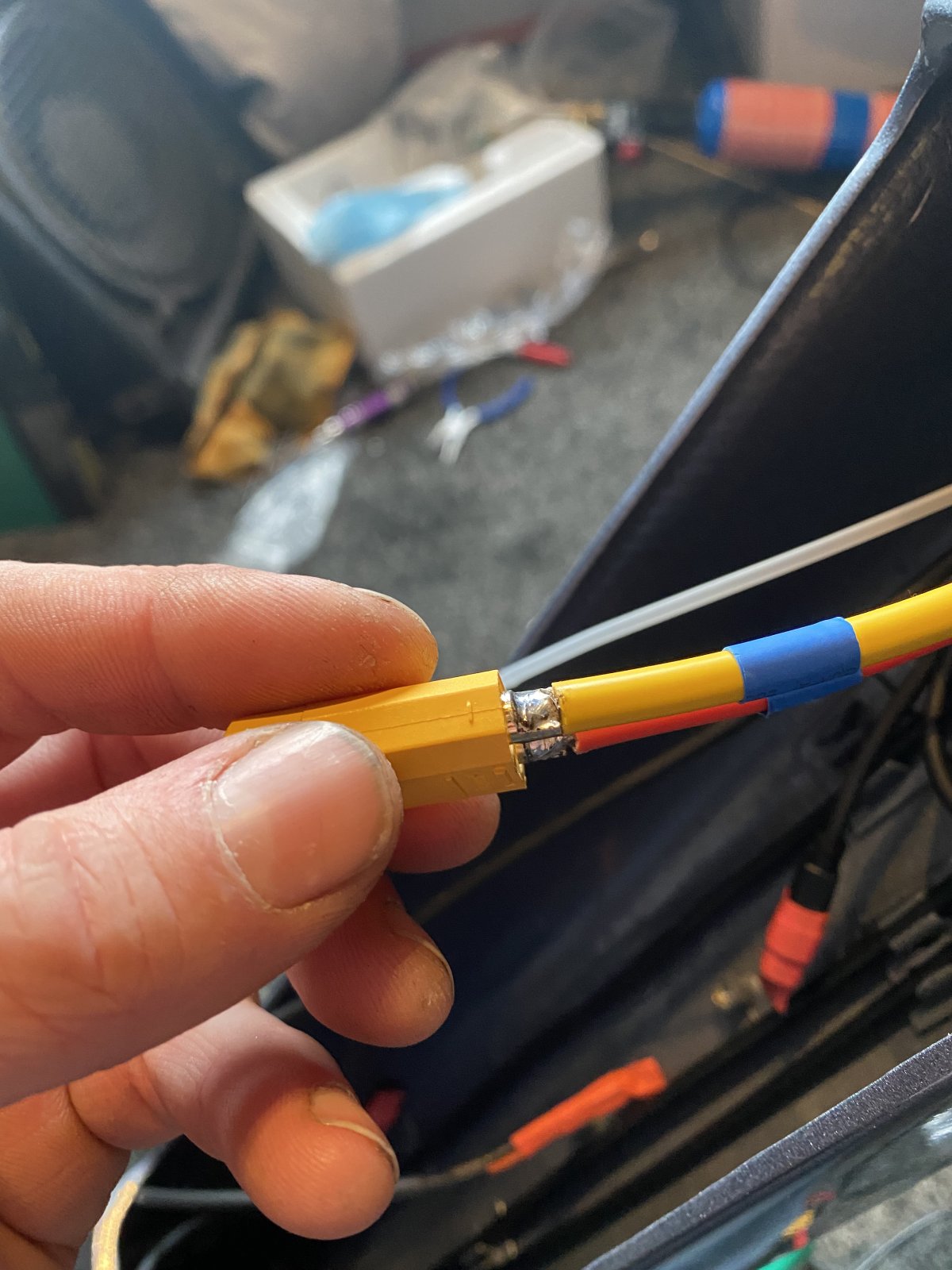

Motor side done and motor bolted in. Using a smear of dielectric grease on the connectors, I’m not one for riding in the wet but I live in the Uk so there’s always a muddy puddle 😂 😡.

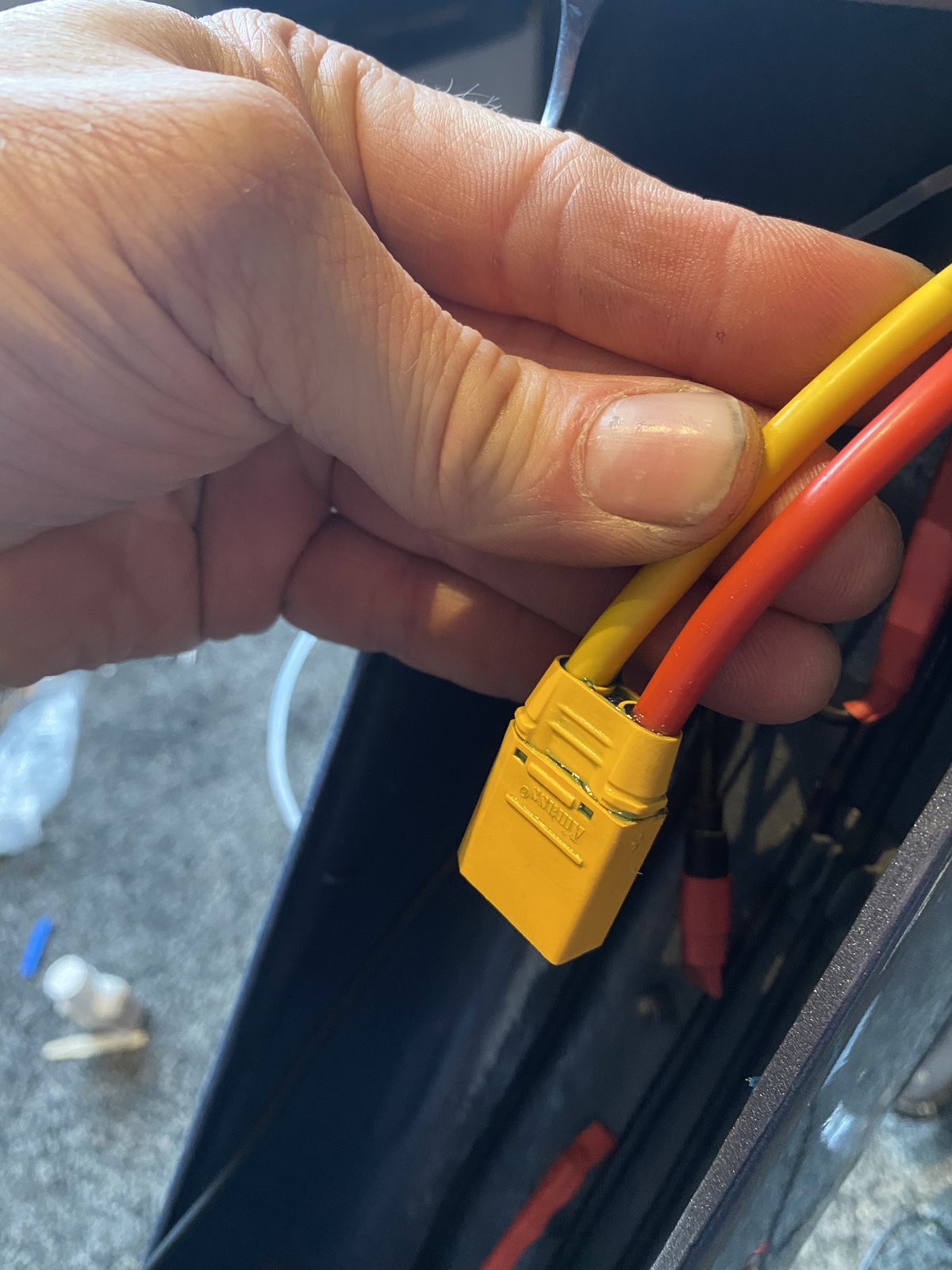

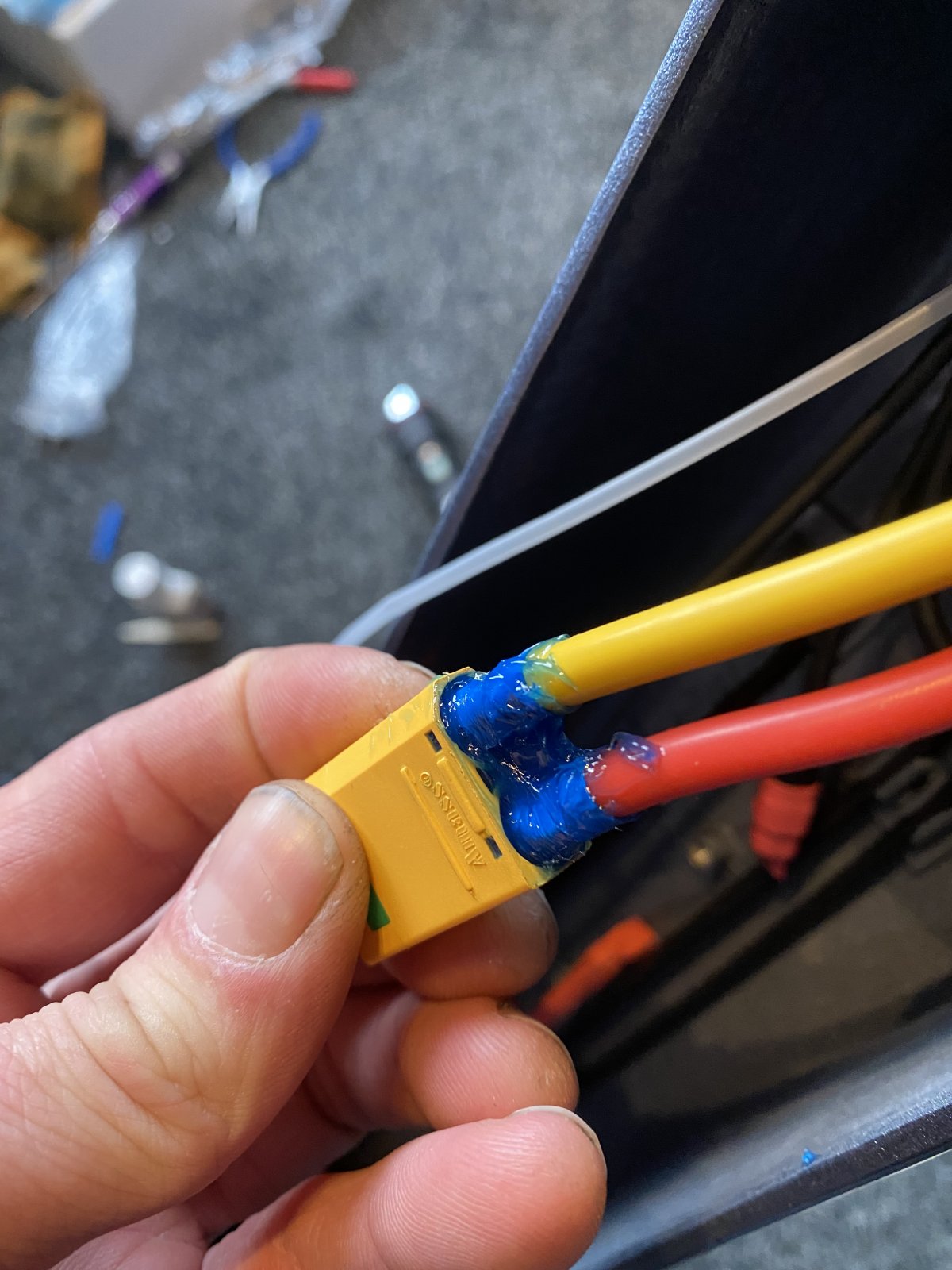

Pucker 10gauge silicon wire and spark arrest Xt90 for the battery connection.
do not like the Xt60 plug design on the motor tho 🤷‍♂️

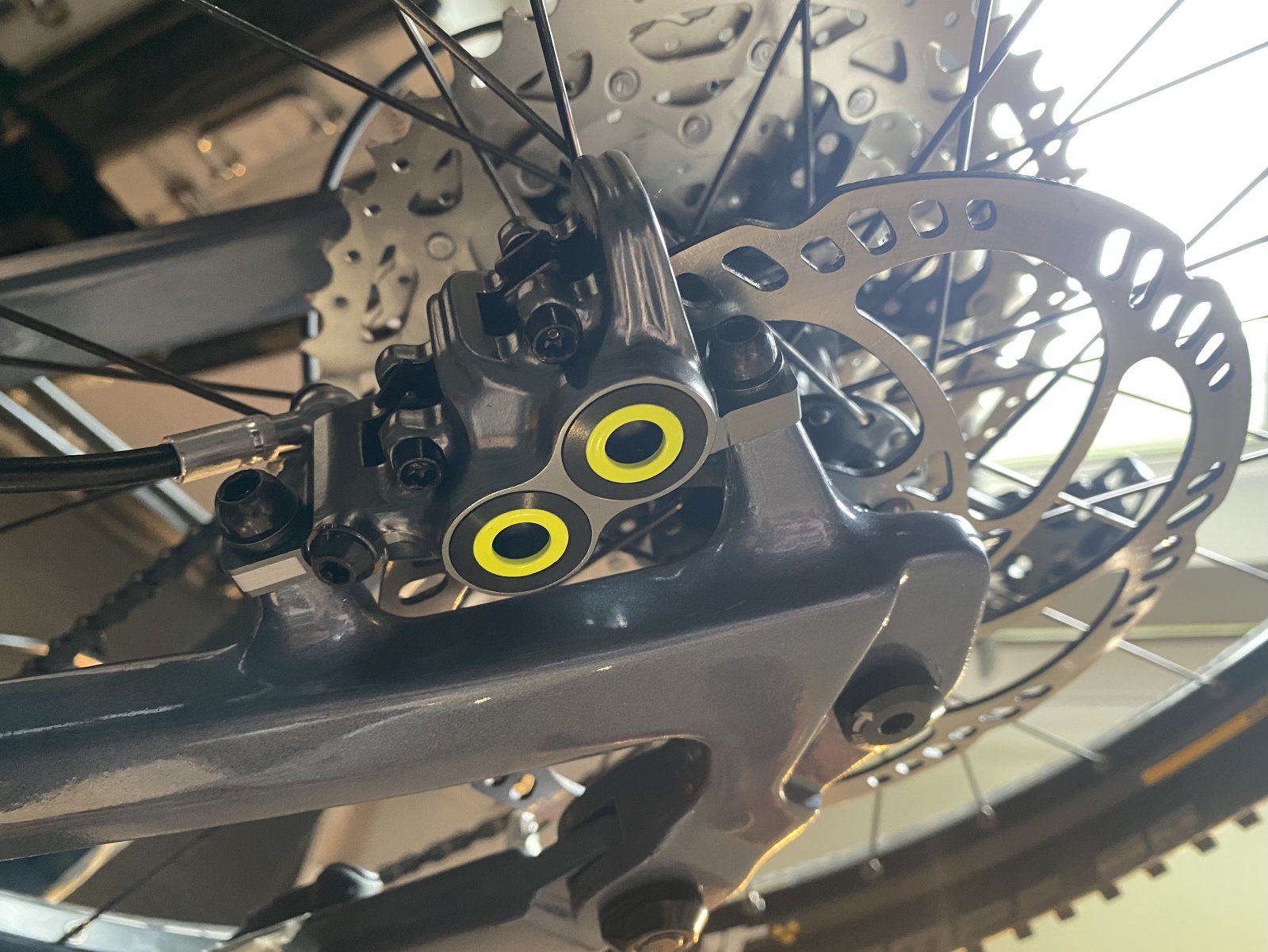

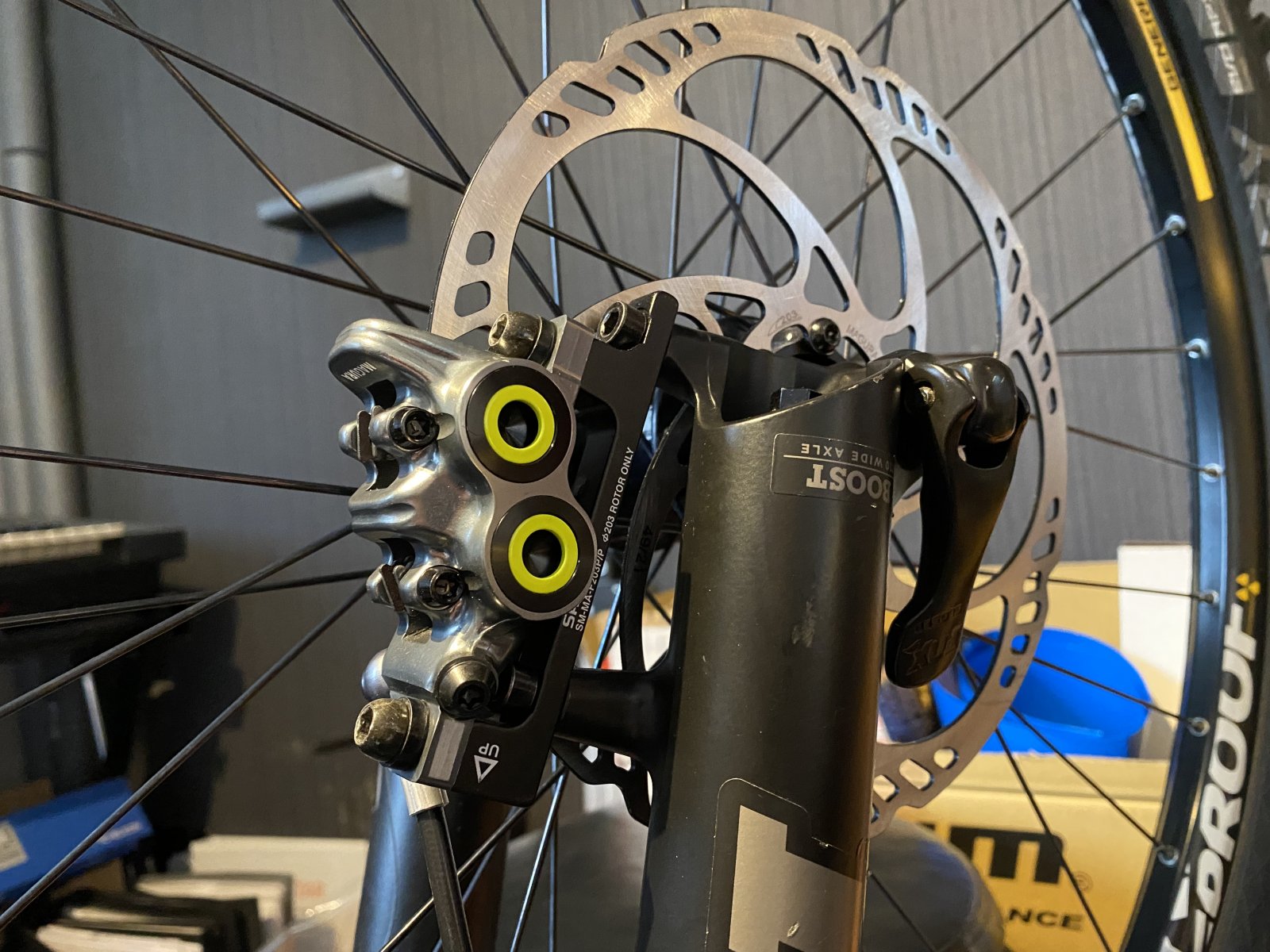

Hit the button on some new Magura Mt7 brakes as my old Hays nine brake line wasn’t long enough 🥳🥳, didn’t take much to convince me tho 😂.

Finalised the battery tray design, so that’ll be a nice job for the weekend.

My Fox DPX2 needed a service so that’s at TFtuned being sorted next week.

All coming along nicely 😎





Dave Rand

Active member
Jan 25, 2022
111
140
Kent Uk
Do like these Xt90s 🙂

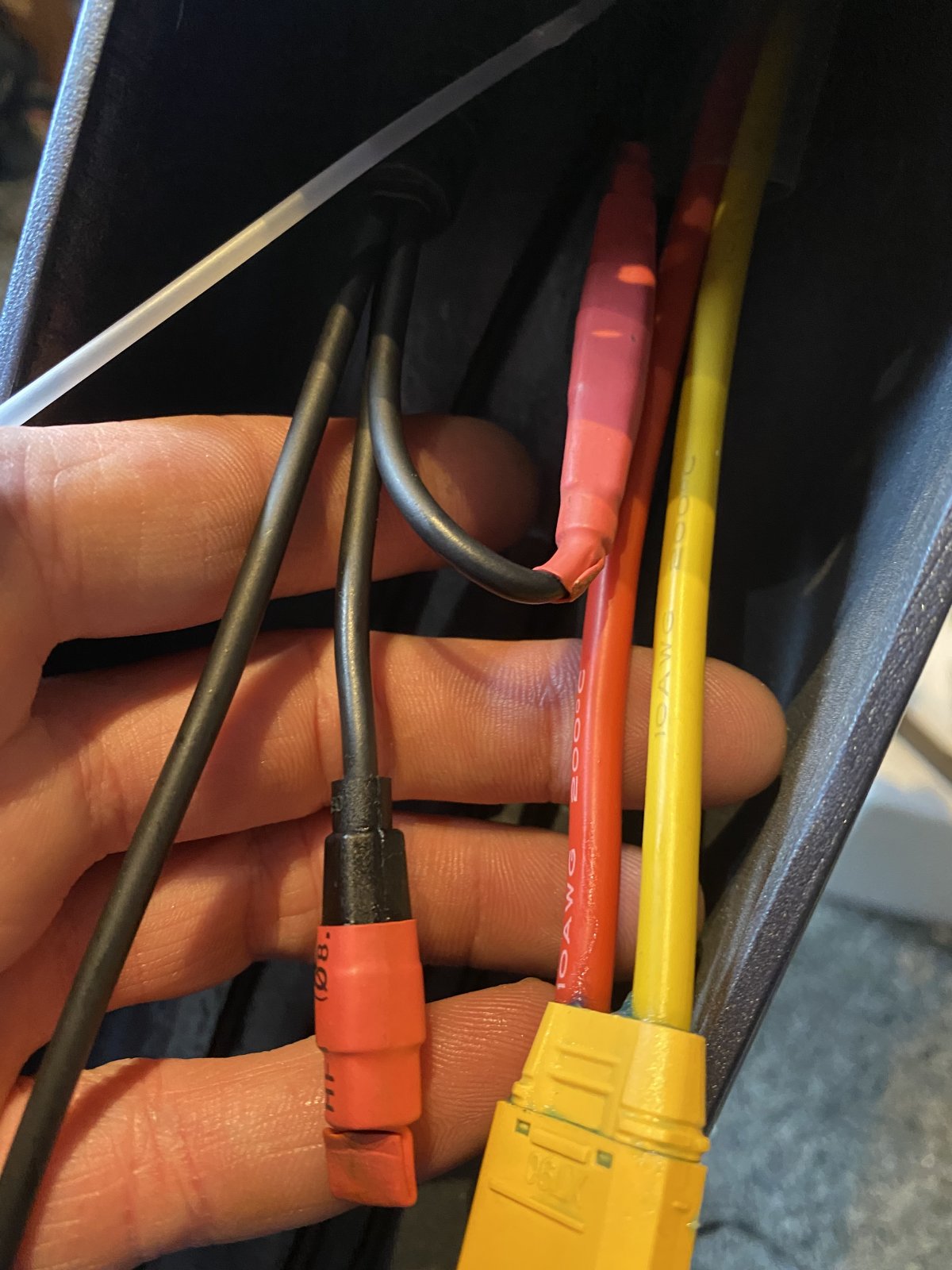

Tested and all good, bit of cable management and that’s the wiring finished.











Waynemarlow

Well-known member
Dec 6, 2019
855
656
Bucks
Nice workmanship there, pity we can’t source the XT60 with the same tail covers, they can handle the current OK and not quite so bulky.


Dave Rand

Active member
Jan 25, 2022
111
140
Kent Uk
Yeah, I used heat shrink over the whole Xt60 (and the grease) 😔.
I hate the Xt60 built into the motor case, I’d rather a nice 10gauge silicon wire and nice rubber seal.


Nice workmanship there, pity we can’t source the XT60 with the same tail covers, they can handle the current OK and not quite so bulky.


Dave Rand

Active member
Jan 25, 2022
111
140
Kent Uk

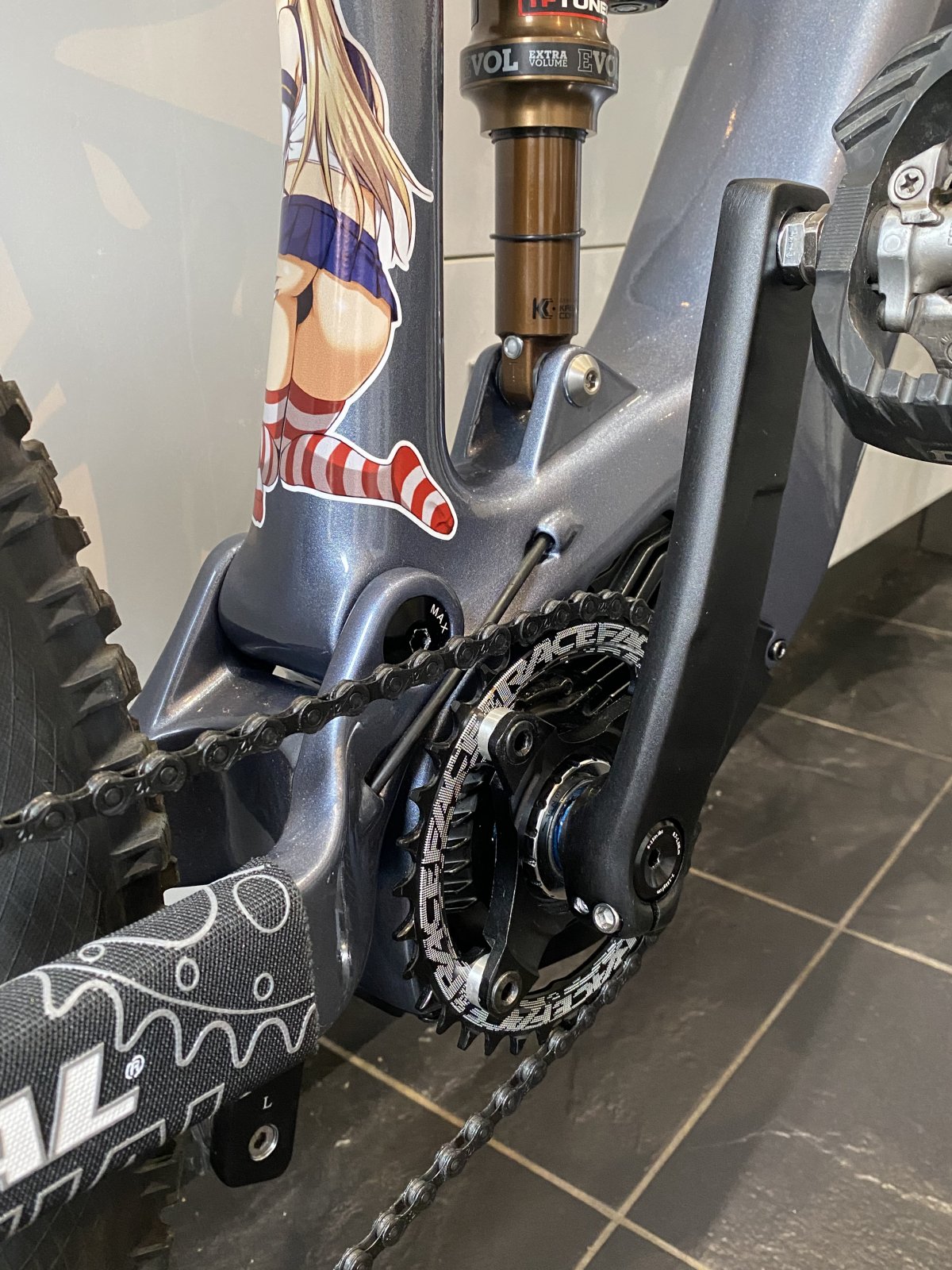

🙂 I have a nice new chain wheel on the way that’s a Narrow,wide version. I also found a small upper chain guide I’m going to fit.

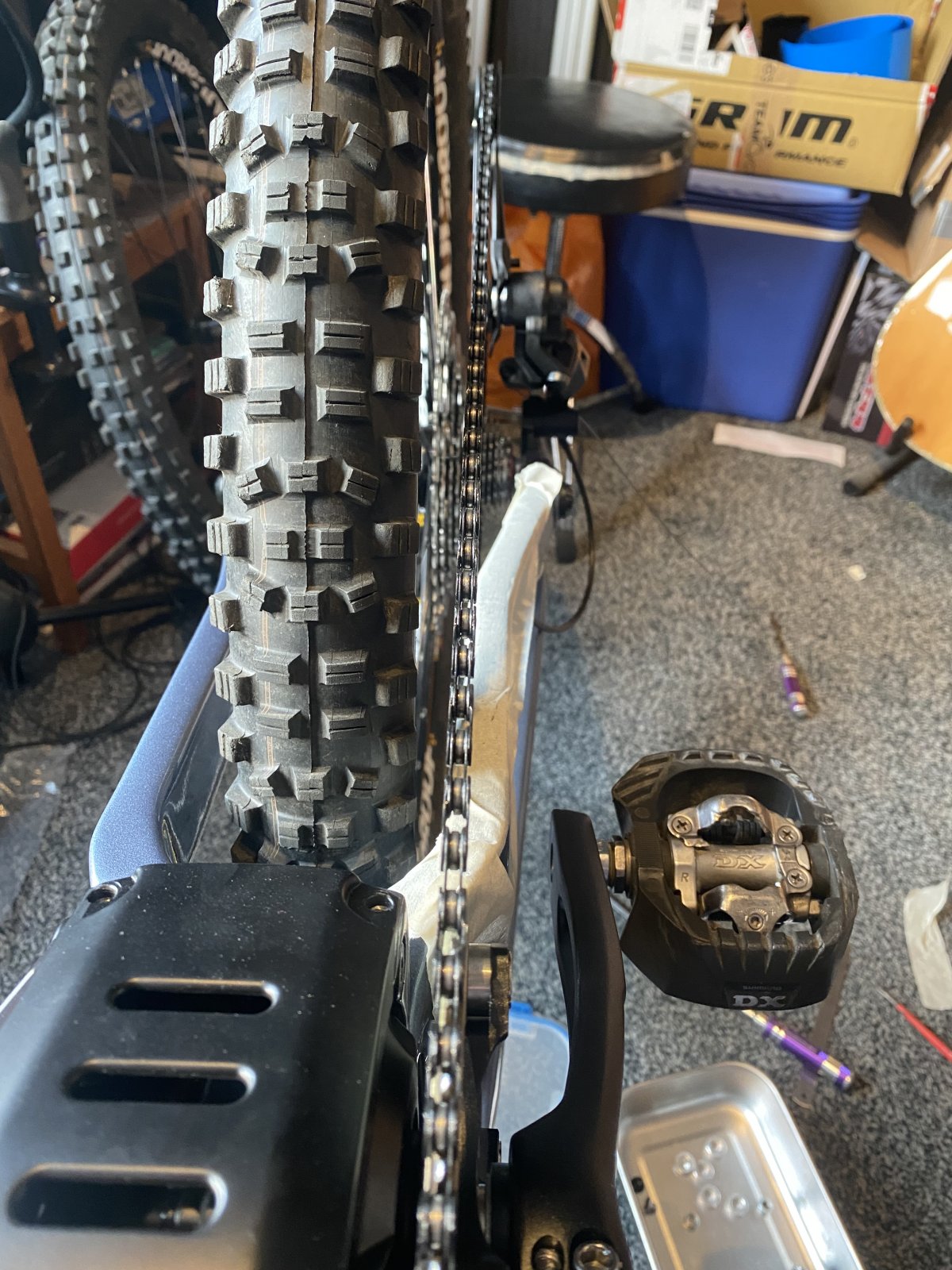

I wanted to fit the chain and get the length right and make sure the chain line would work.


It is seem you don't use narrow wide plate. take care to install an chain guide


Slaine

New Member
Apr 12, 2022
34
9
France
🙂 I have a nice new chain wheel on the way that’s a Narrow,wide version. I also found a small upper chain guide I’m going to fit.

I wanted to fit the chain and get the length right and make sure the chain line would work.

which standard of chain guide is it possible to use ?
regards


Dave Rand

Active member
Jan 25, 2022
111
140
Kent Uk
Mixed weekend of emotions.
Lows = my new Renthall chainring doesn’t work with a 12speed chain so that’s got to go back.

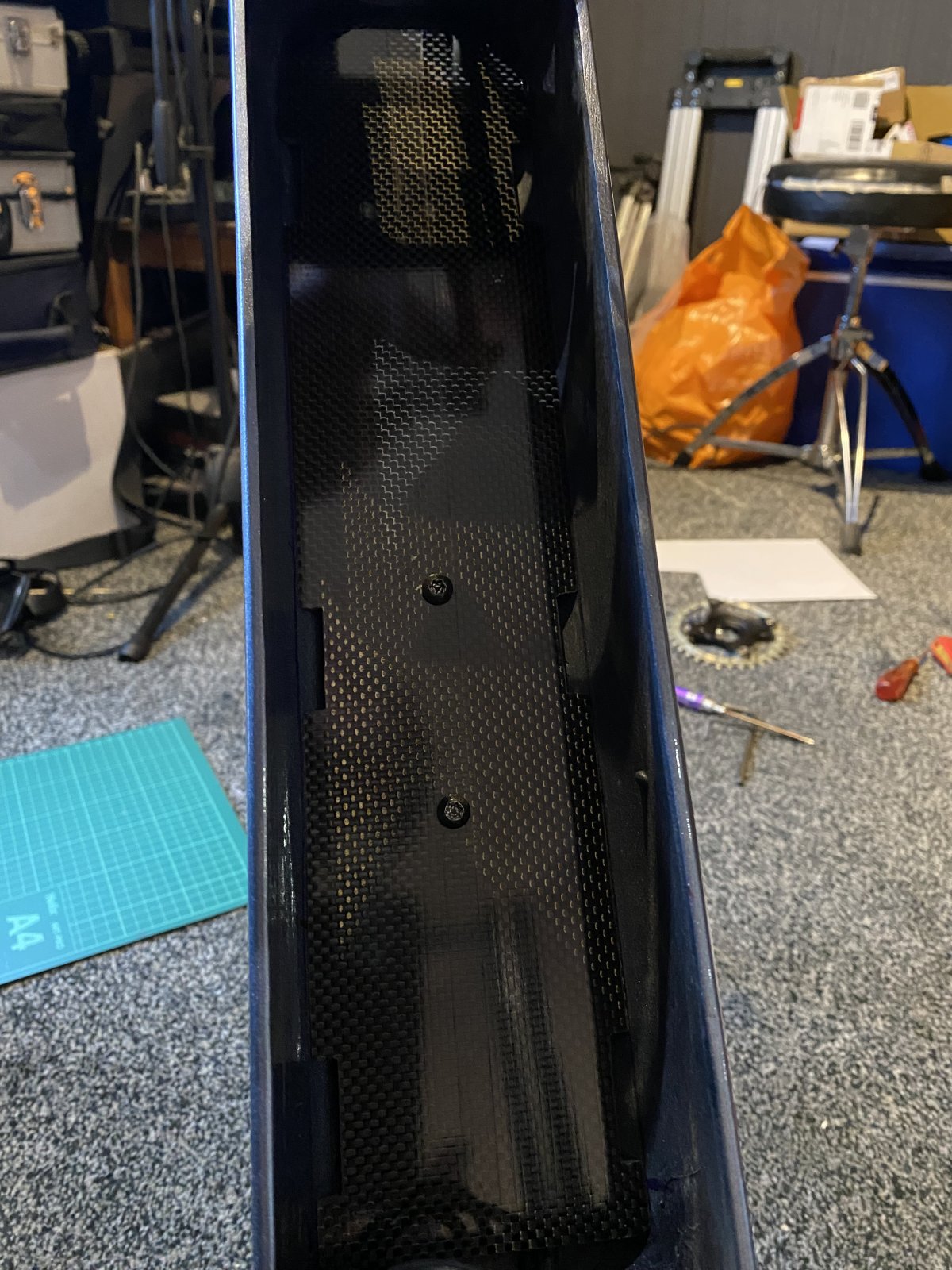

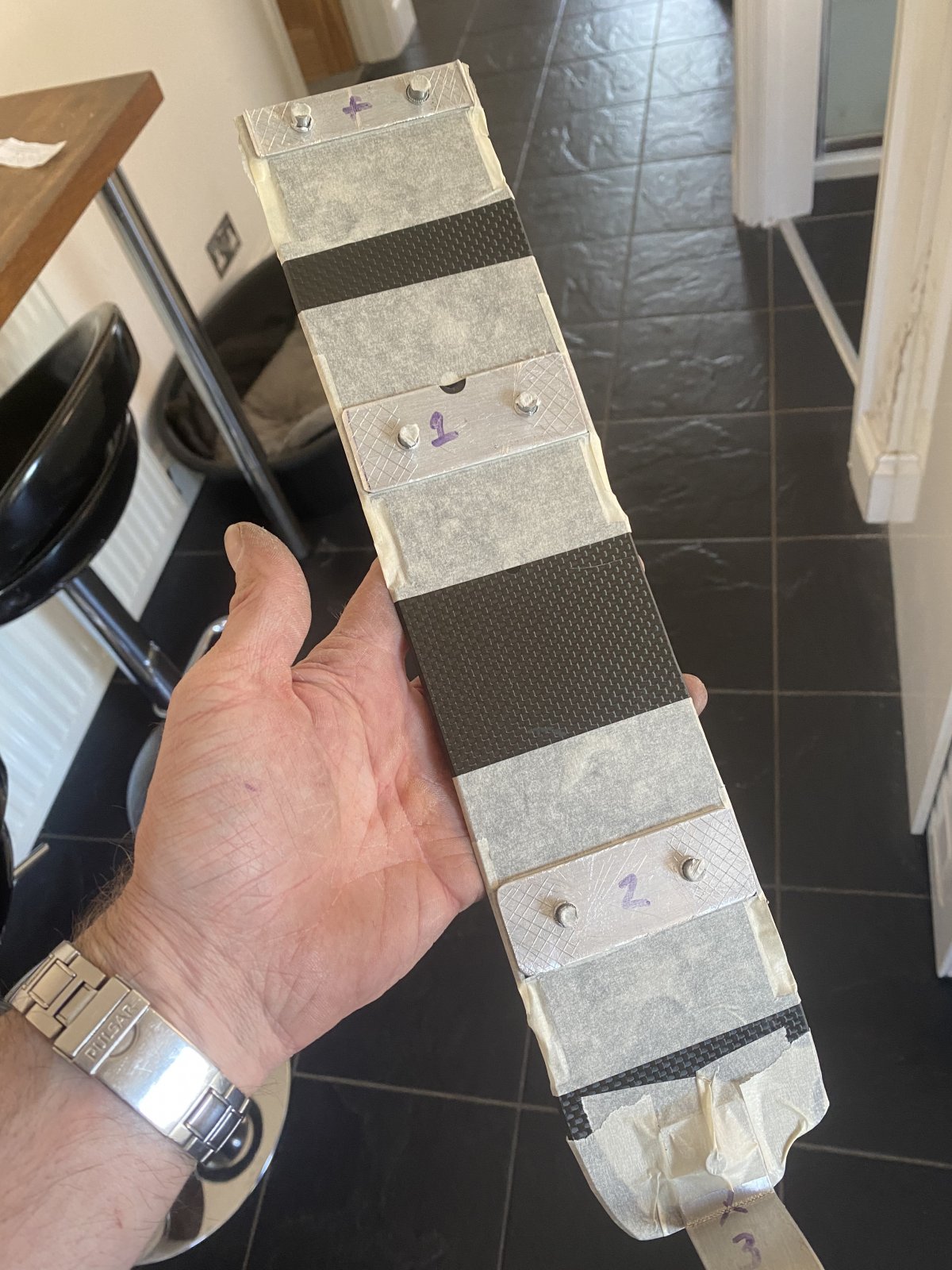

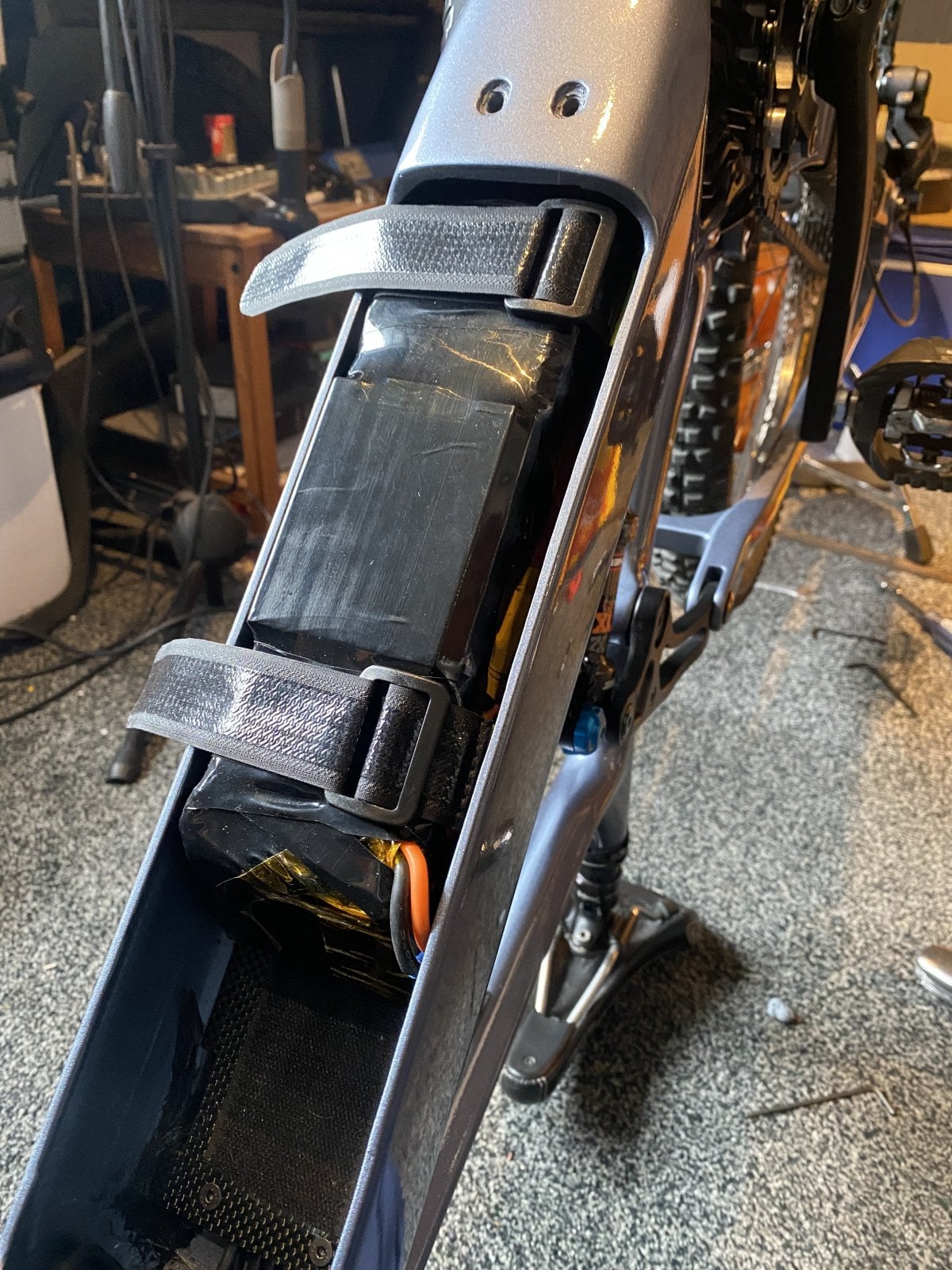

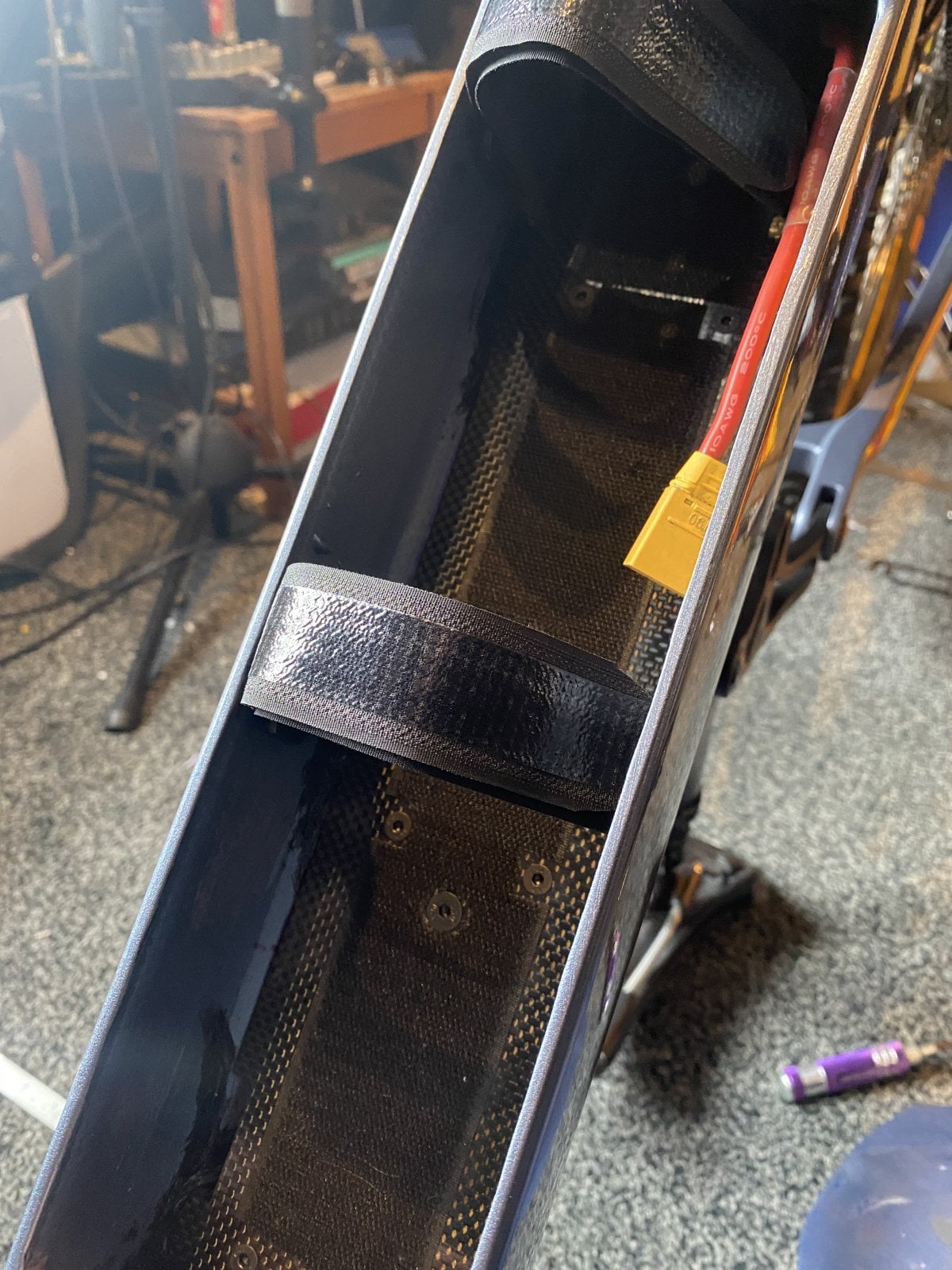

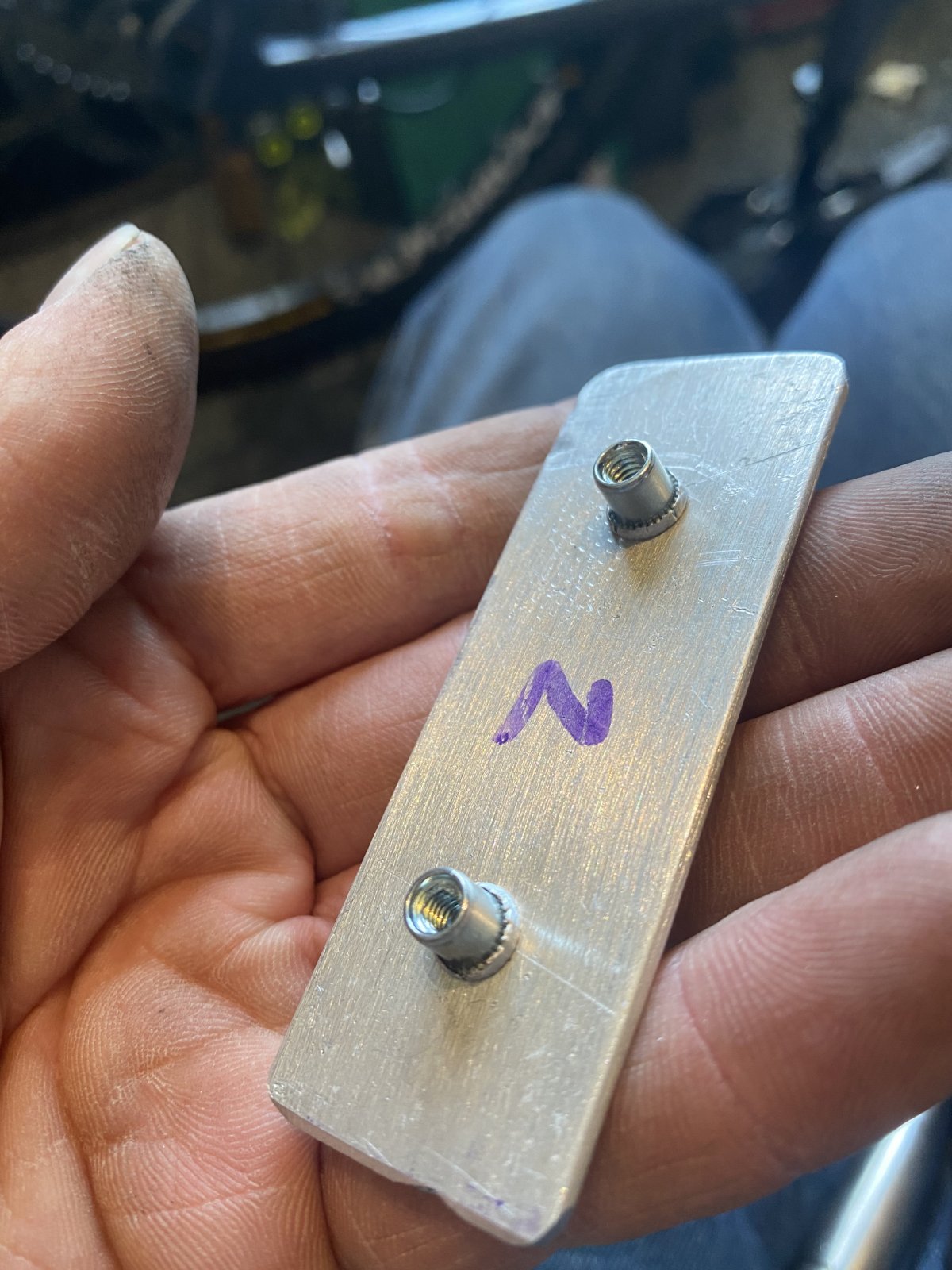

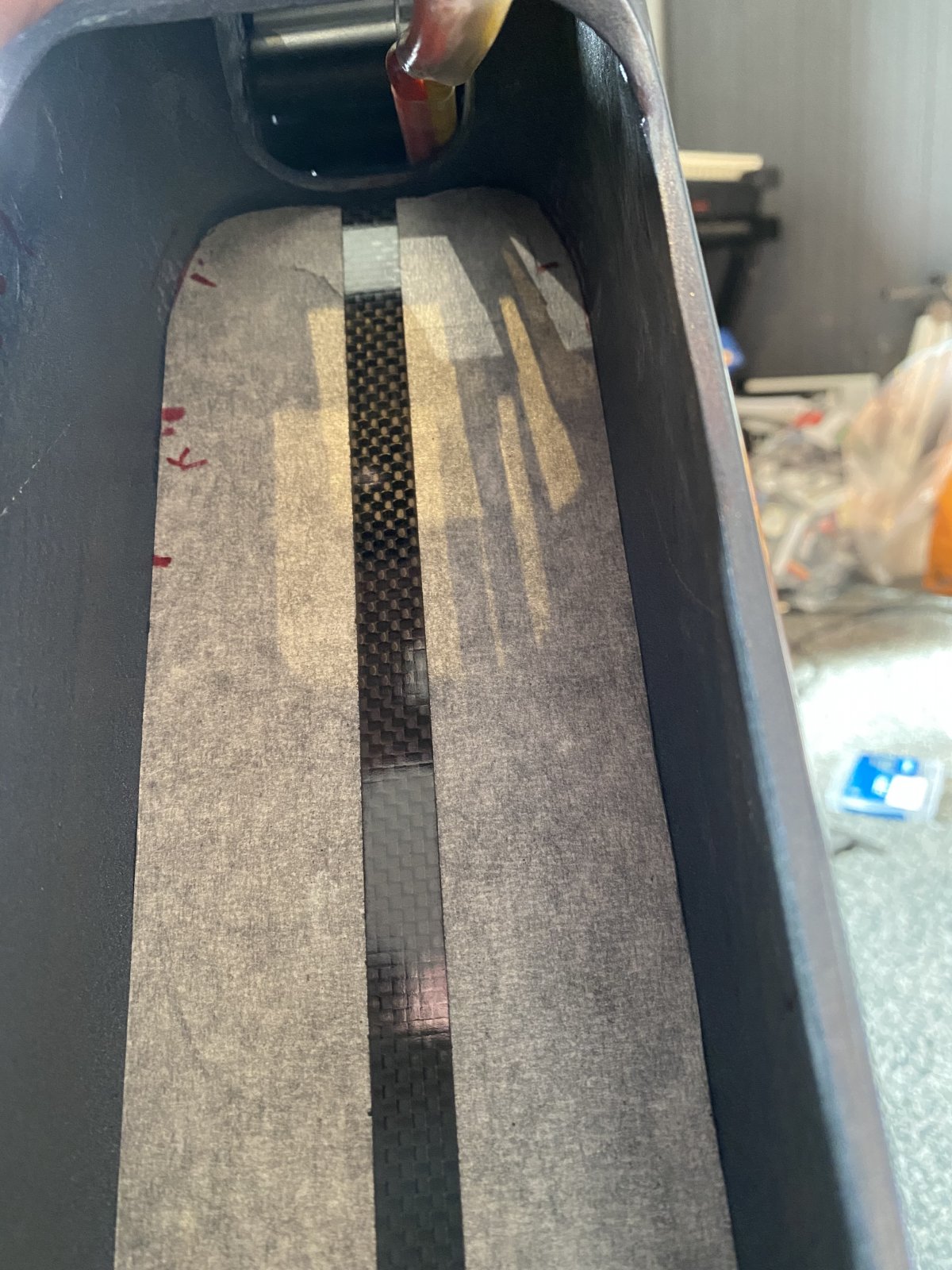

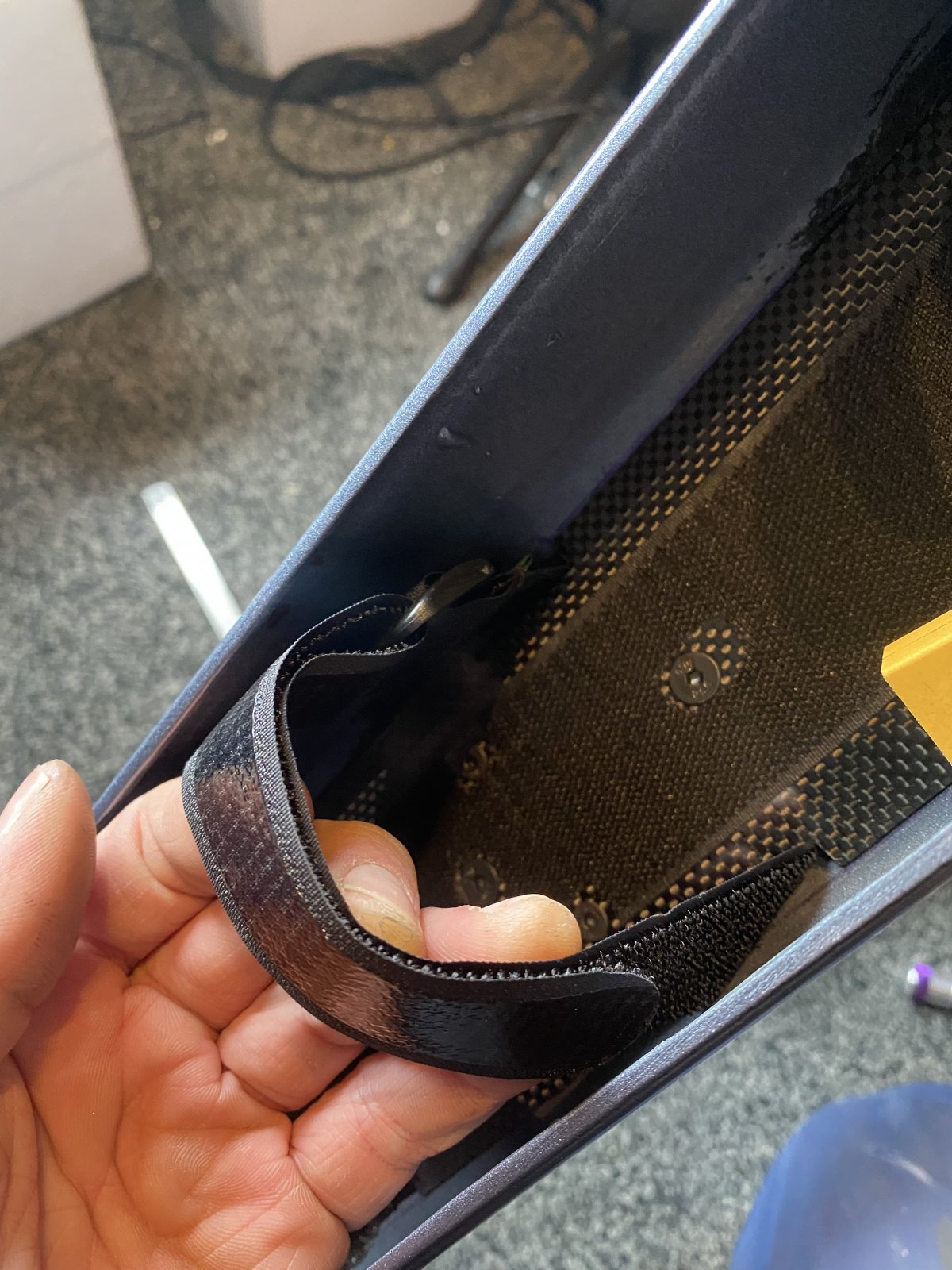

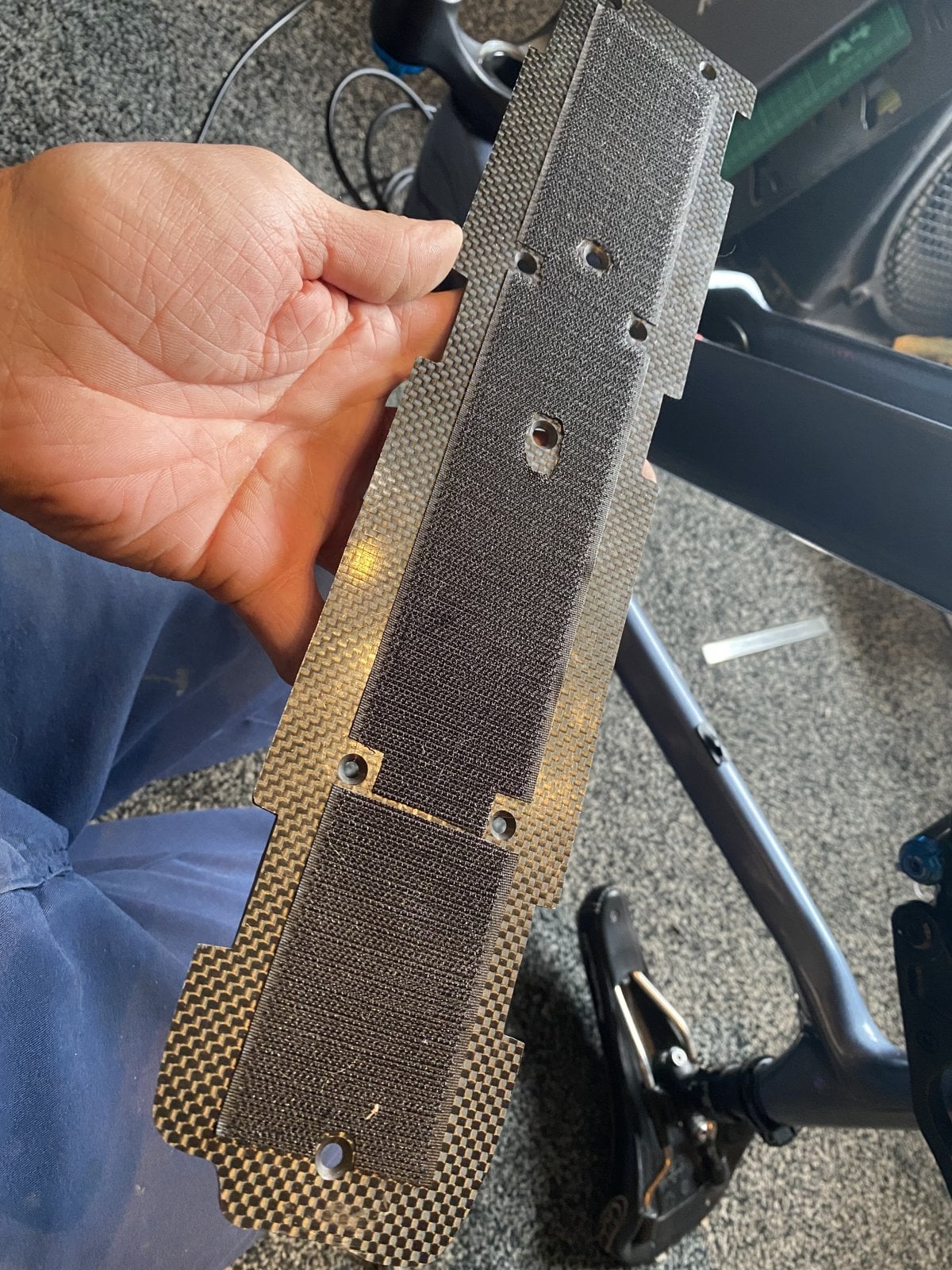

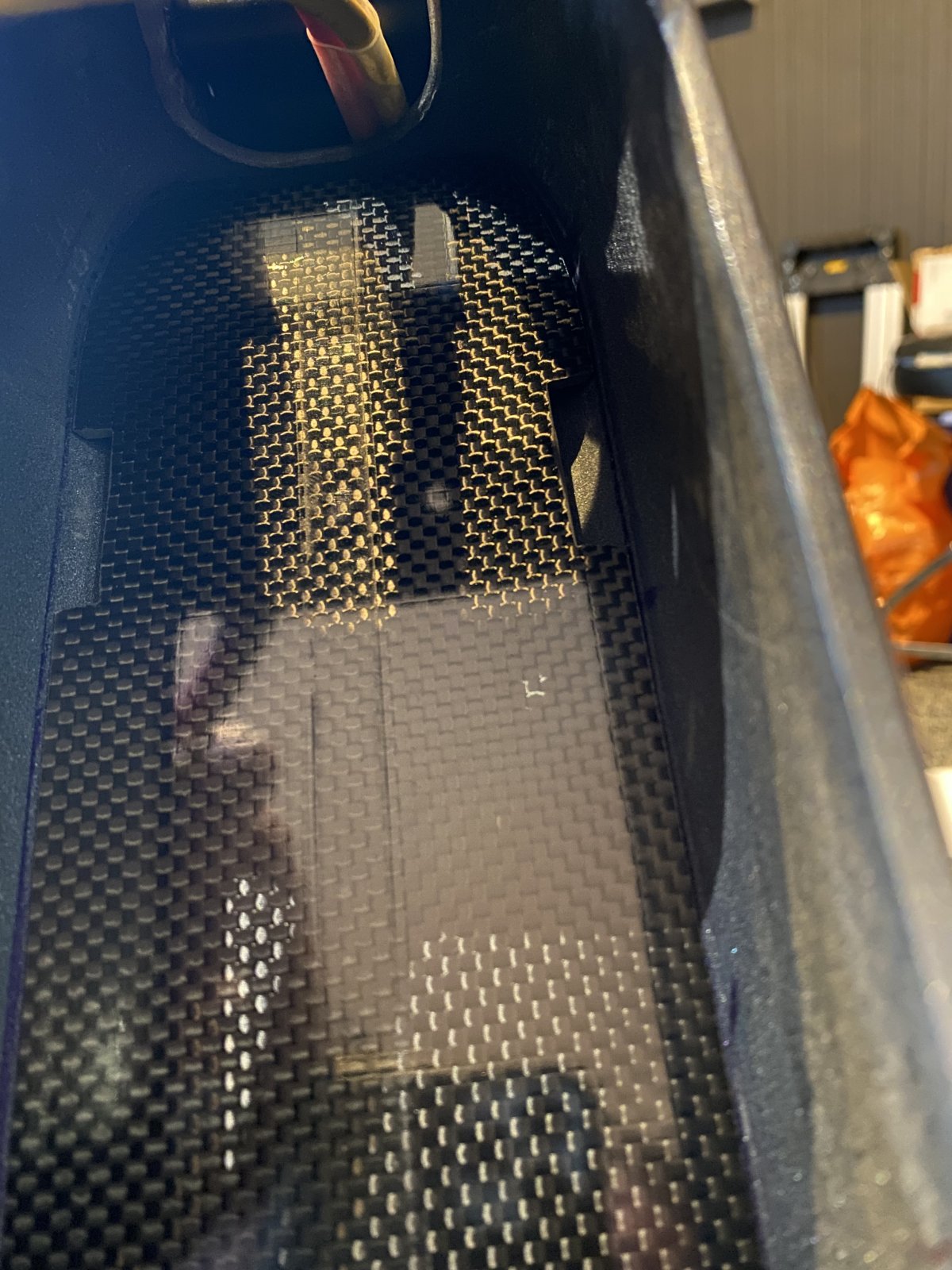

Highs = started work on the battery mount. Carbon plate is done. Tomorrow making the ally supports that I’ll bond to the frame, the Carbon plate will then bolt to those. Found a long wide strip of Velcro, just need to find some nice straps and the battery not going anywhere.

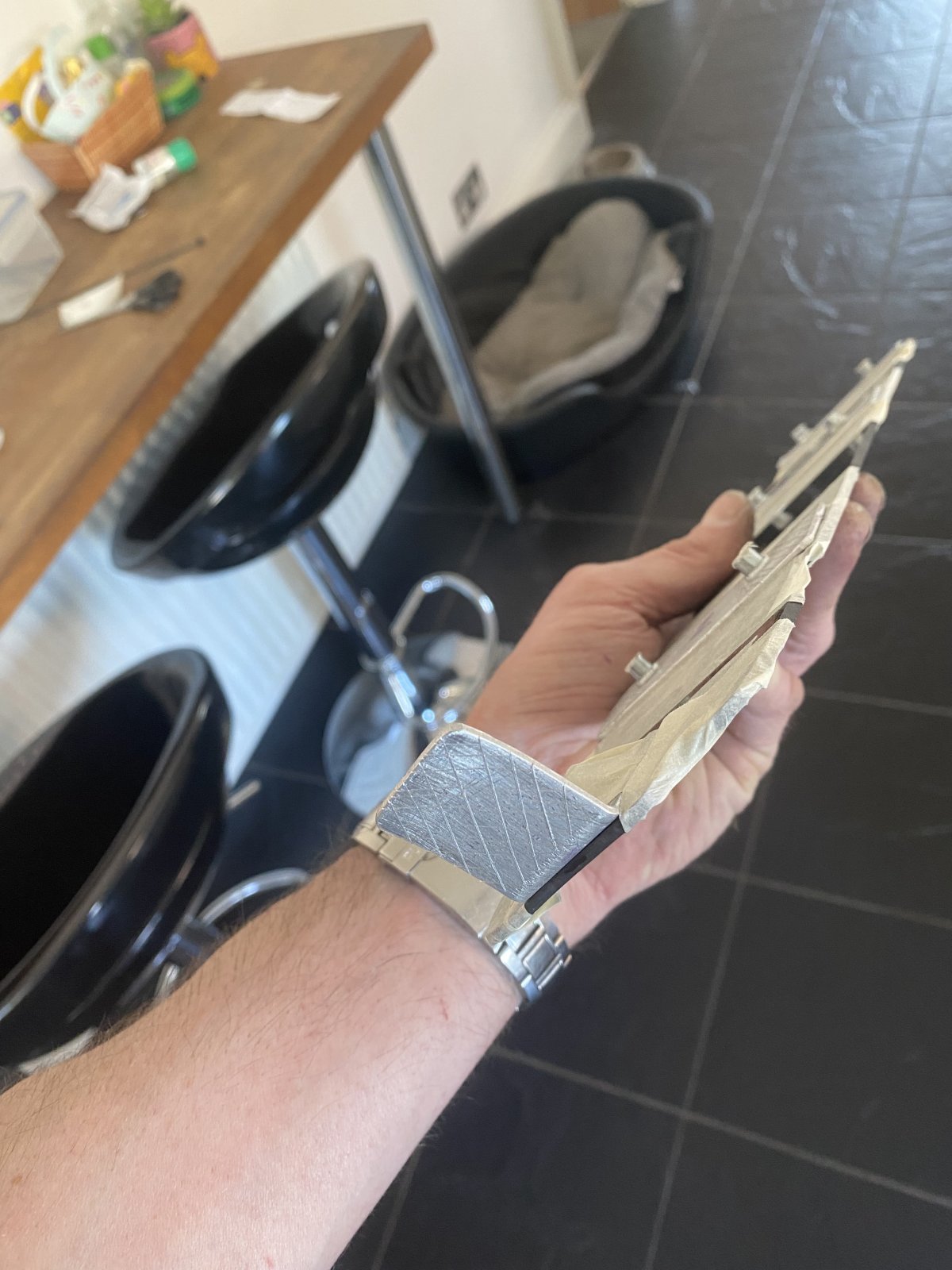

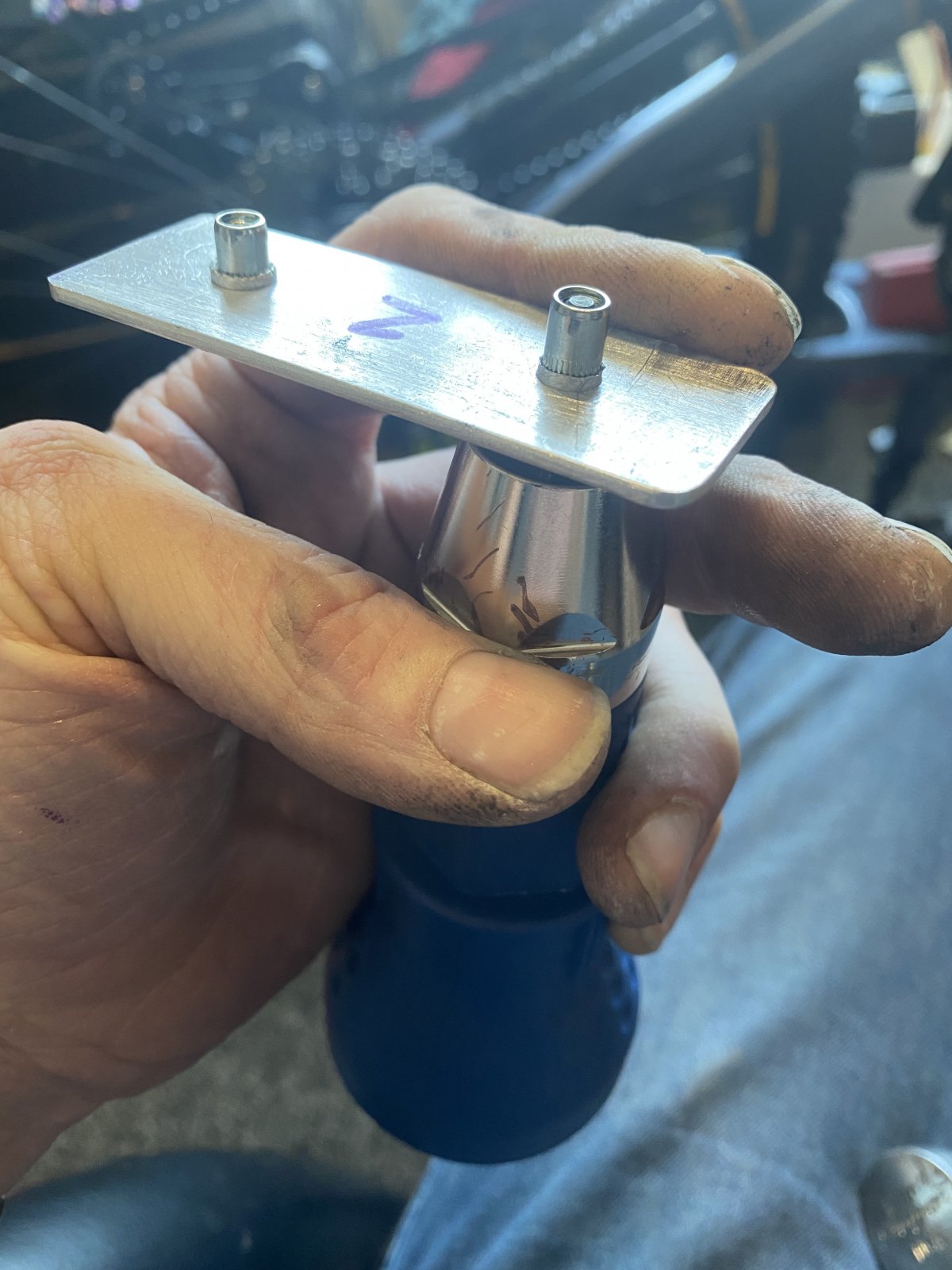

Started drawing up the Chain guide plate in CAD so I’ll cut some Frp ones to check fitment.


Hopefully my brakes will arrive tomorrow 🙏







Waynemarlow

Well-known member
Dec 6, 2019
855
656
Bucks
which standard of chain guide is it possible to use ?
regards
Don't bother to fit a guide if you are using a Narrow Wide chain ring, used mine like that right through the winter mud and slop and now on the faster trails without a hiccup any where. With the guide the UK mud would gather in the guide and almost derail the chain, every thing it was supposed to not do.


Dave Rand

Active member
Jan 25, 2022
111
140
Kent Uk
Cheers,

I’m little old school, so when we ditched the front derailleur back in the day! It was a given you ran a guide.

This is actually the first bike I’ve built with a wide/narrow chainring 😆


Don't bother to fit a guide if you are using a Narrow Wide chain ring, used mine like that right through the winter mud and slop and now on the faster trails without a hiccup any where. With the guide the UK mud would gather in the guide and almost derail the chain, every thing it was supposed to not do.


Slaine

New Member
Apr 12, 2022
34
9
France
Don't bother to fit a guide if you are using a Narrow Wide chain ring, used mine like that right through the winter mud and slop and now on the faster trails without a hiccup any where. With the guide the UK mud would gather in the guide and almost derail the chain, every thing it was supposed to not do.
is the original M500/M510 Bafang chainwheel is narrow wide?


Dave Rand

Active member
Jan 25, 2022
111
140
Kent Uk

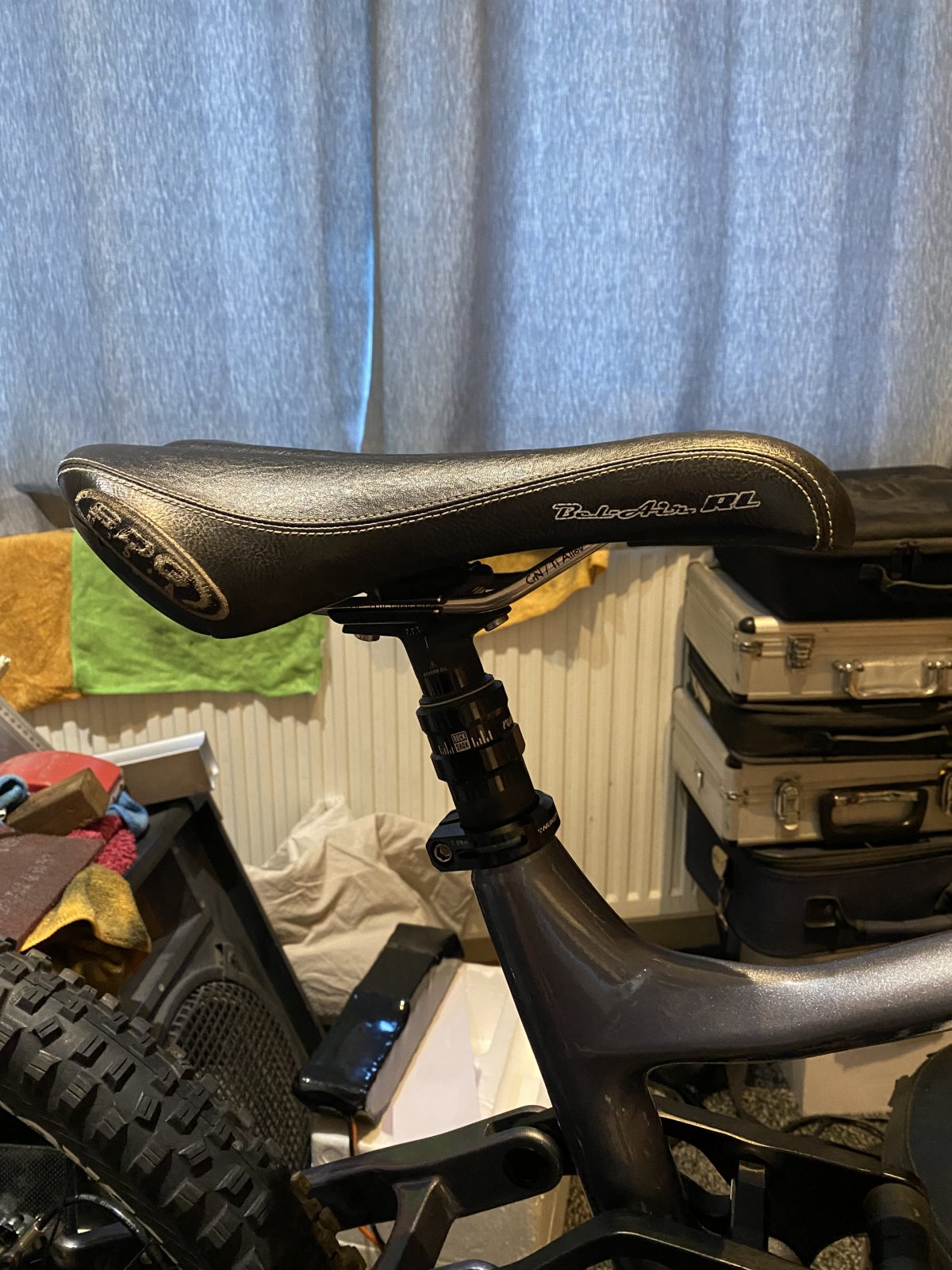

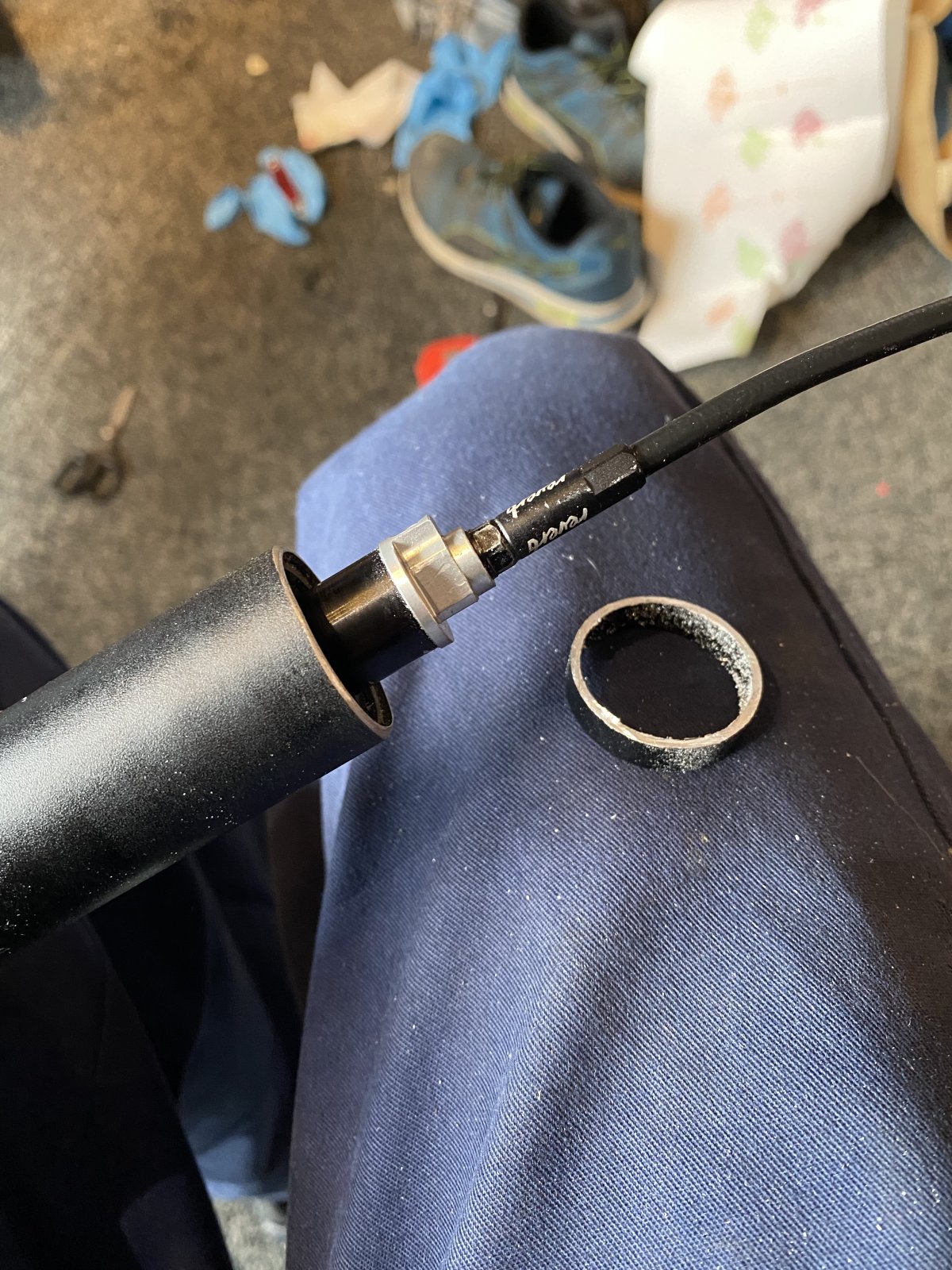

Cut down my dropper post as much as I could 🙂 think I’ve got it low enough not to annoy me!

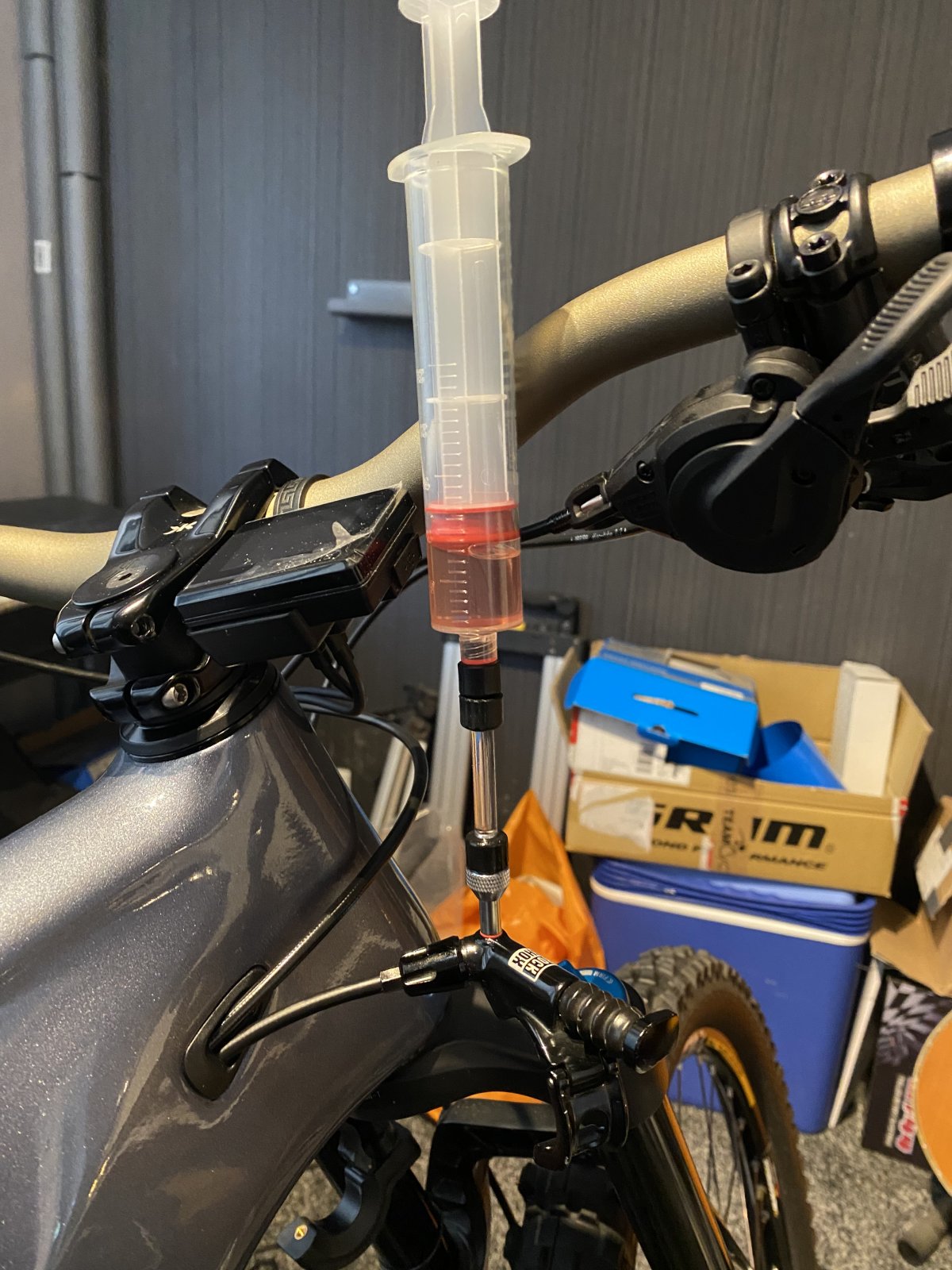

New hose as old one was too short and bleed!

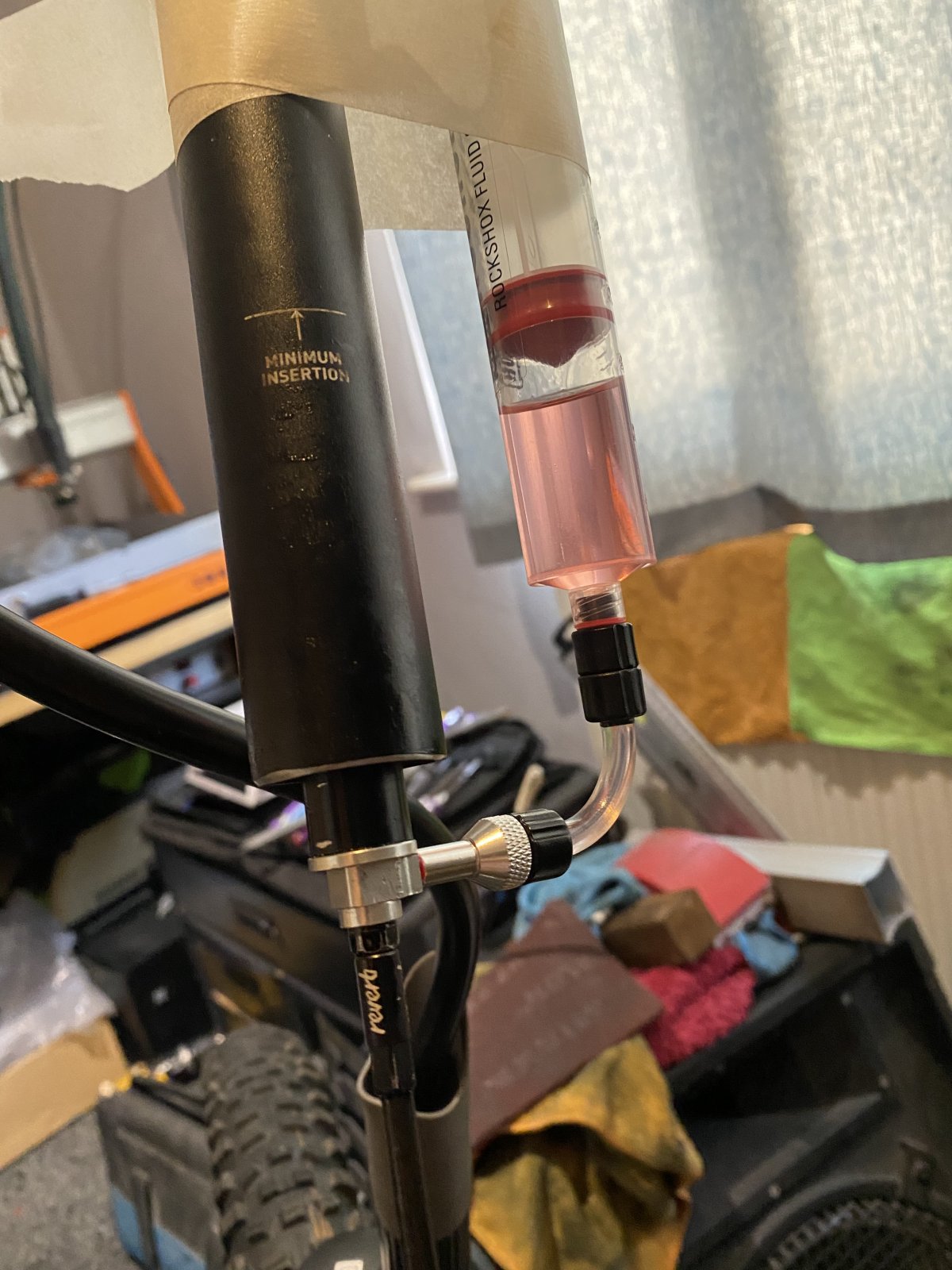

So much easier with a quality bleed kit.









Dave Rand

Active member
Jan 25, 2022
111
140
Kent Uk
Fox DPX2 is back from TF Tunned.

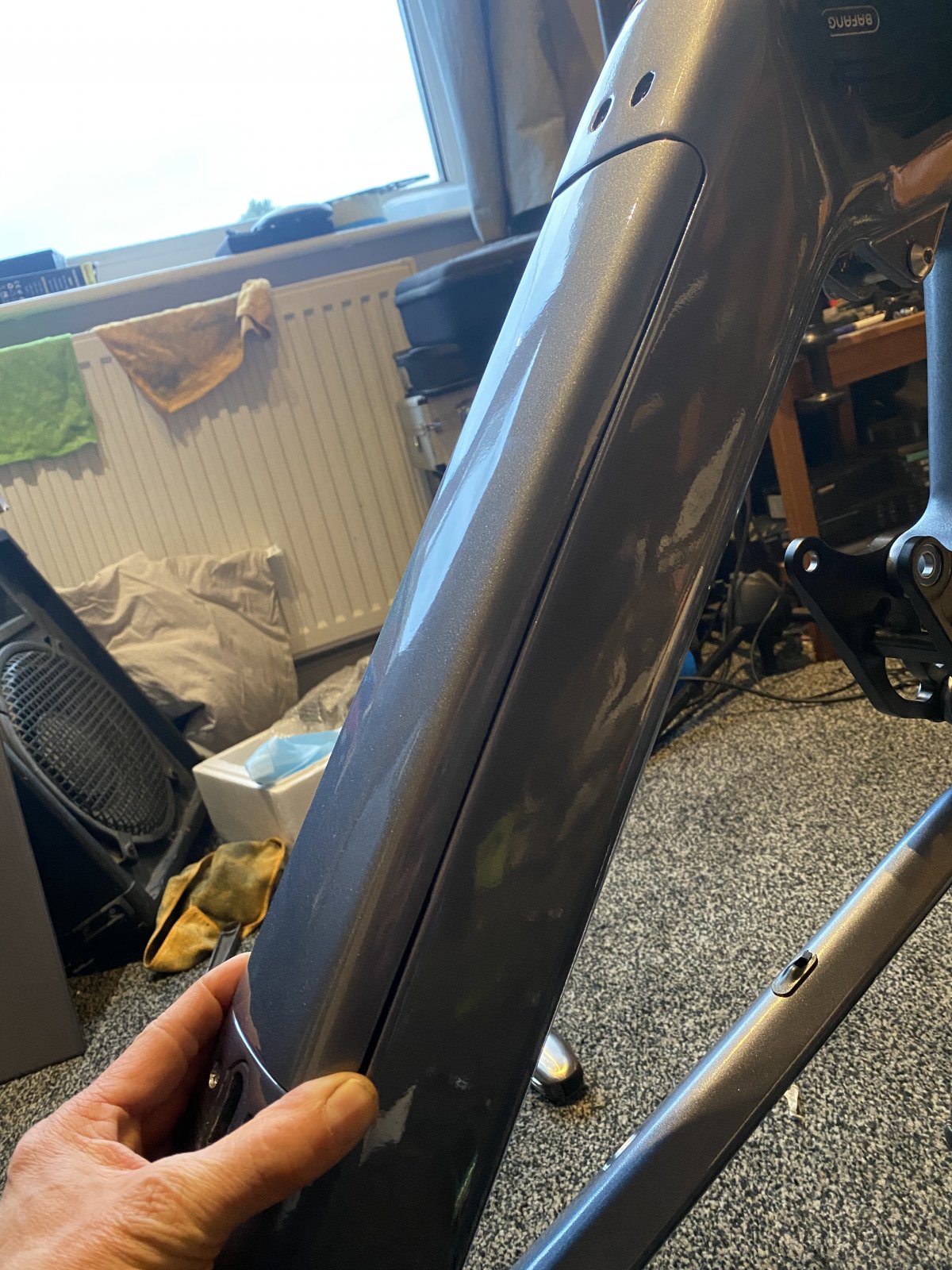

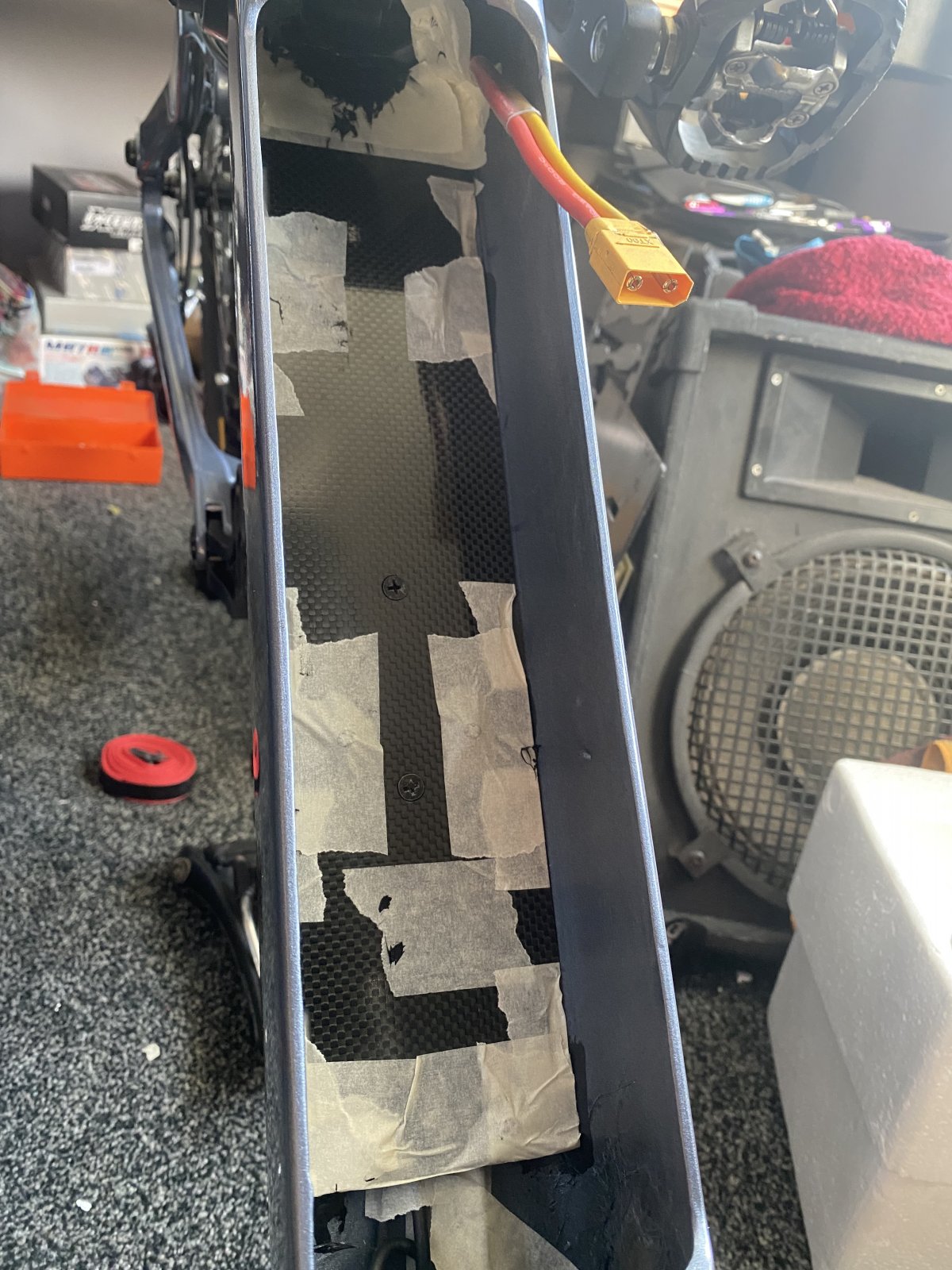

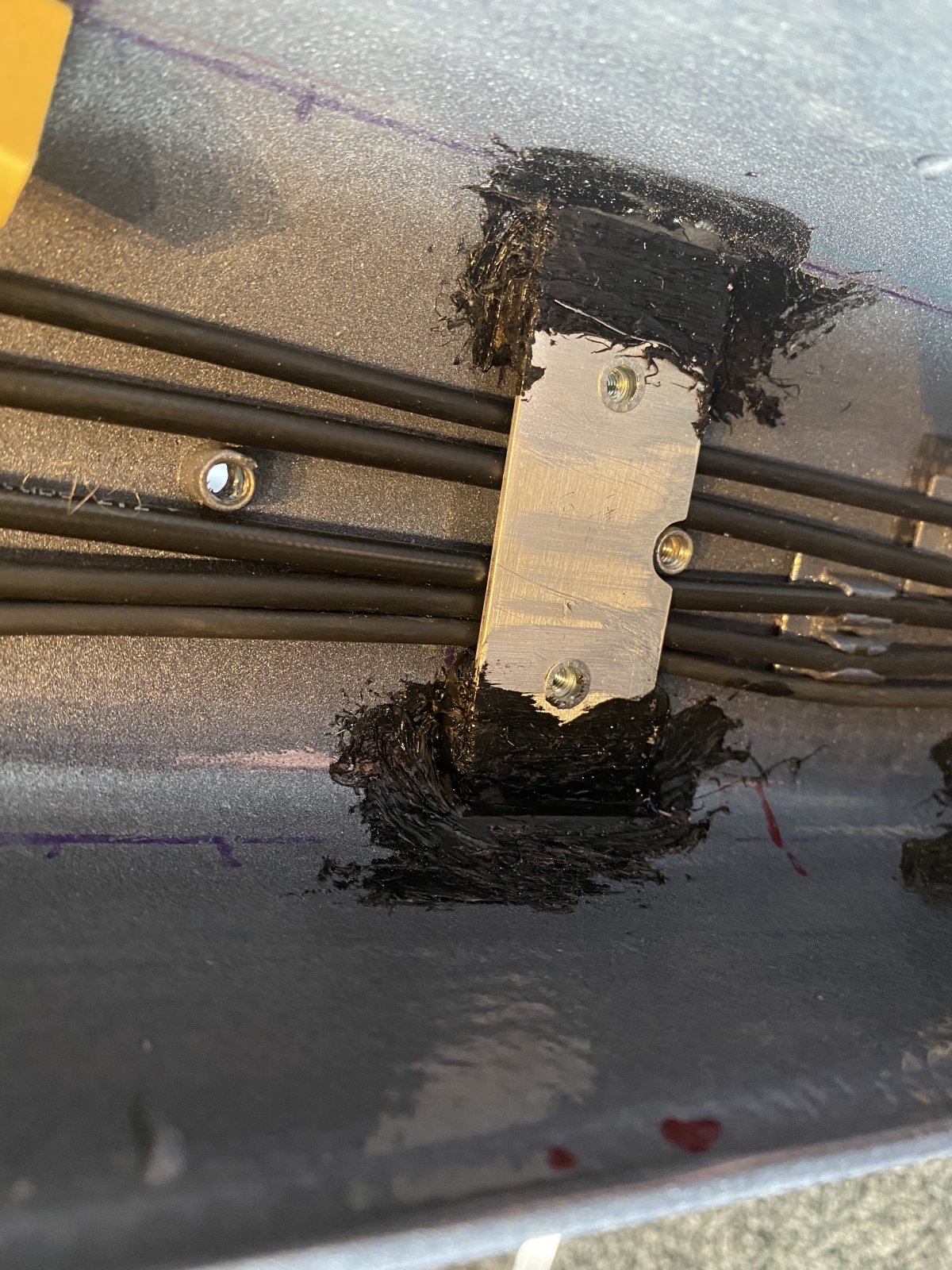

Mounting plates are bonded into the frame and Carbon plate bolted in.
Unfortunately waiting for some bits from Germany (😡 gutted I didn’t twig it was a German shop, in the Uk we avoid buying from Eu countries now! China all the way 🥰)

But had a little ride around the garden 😎













Dave Rand

Active member
Jan 25, 2022
111
140
Kent Uk

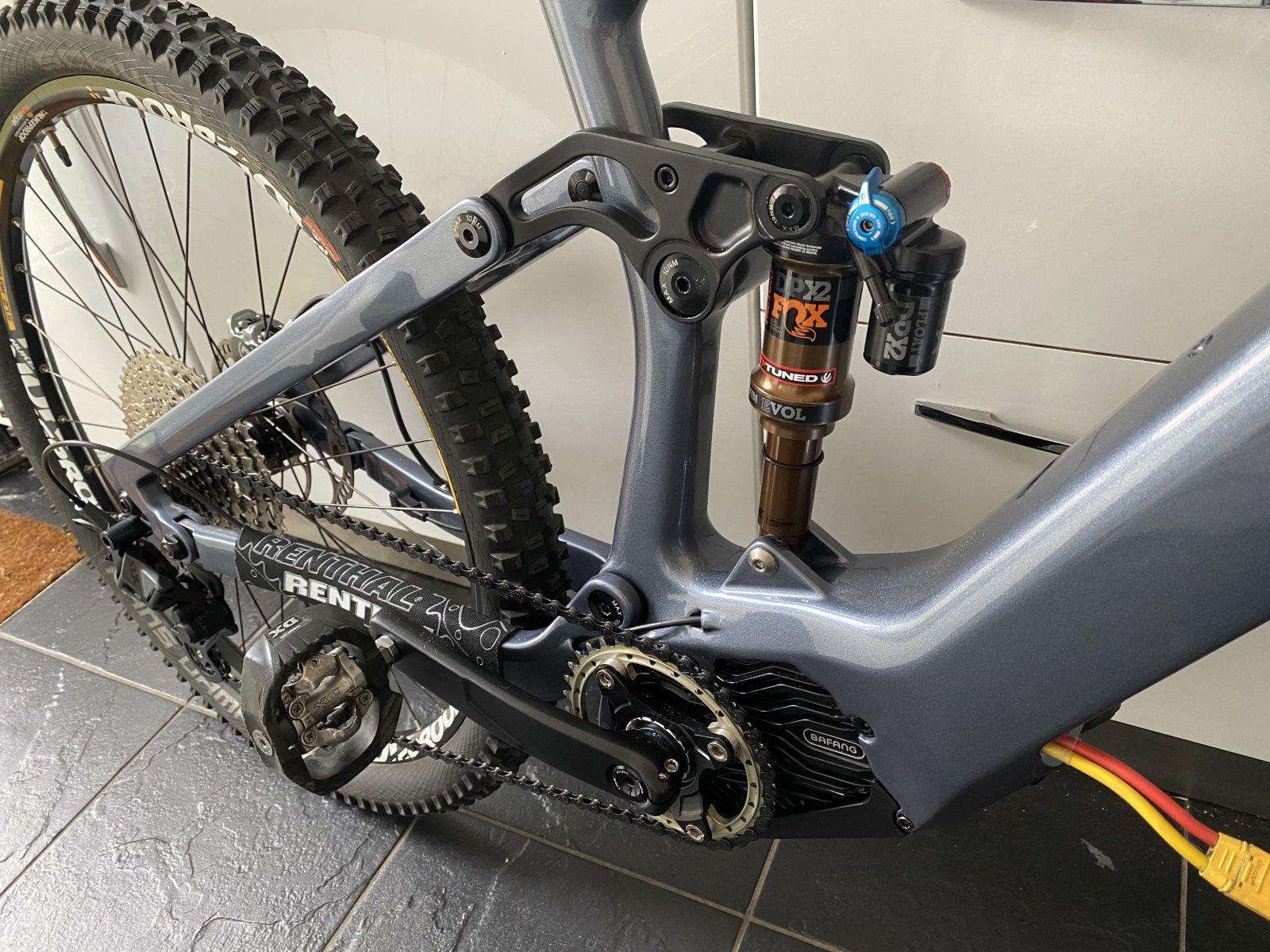

Great few days! My Lc4 had its first run around the block 🥳!
Felt very fast @ 28mph 😂
Surprised how light she is will weigh her later on.

Few jobs left to do!
Shorten front Brake pipe.
Battery cover upper clip.
Frame protection kit.
Lube the chain


Hopefully a proper trail ride on Saturday 🙏
