Bafang M500 and M600 motors

[ficorama]

Hello everyone. Does anyone have a good firmware for the M500 36v? thank you



[vikino1]

Hello everyone. Does anyone have a good firmware for the M500 36v? thank you

I think the best one is 17A from Github.



[ficorama]

Anyone use m500 on 36 volt?



[vikino1]

Yes, me and with it 17A FW.



[krokan]

Hi,
is the nylon gear in M500 the same as the nylon gear in M600?
Yesterday I broke some teeths on my M500 gear and now I can't find any seller on Aliexpress selling for M500, only for M600 (Aliexpress search engine sucks).
Does enybody know where to buy this gear for M500?



[Kyokushin]

They are different. Look at CNEBIKES. I got spares there a year ago.



[temon10]

Hi,
is the nylon gear in M500 the same as the nylon gear in M600?
Yesterday I broke some teeths on my M500 gear and now I can't find any seller on Aliexpress selling for M500, only for M600 (Aliexpress search engine sucks).
Does enybody know where to buy this gear for M500?


View attachment 113605

Try contact Flora : [email protected]



[vikino1]

Here is the whole set, the last piece: Vnitřní ozubená kola s ložisky pro Bafang M500 – ELEKTROKOLA ZLÍN



[reka123]

Hi guys, I have a problem with my Bafang M500. It turned off during mountain riding and I can't turn it on. I was thinking It's to hot, and after few minutest it will works again, but already not. I've checked battery, and main power supply to controller (yellow plug). It's ok. ~40V, full 36V battery. I also checked all connection and replace wire between motor and display (I had spare one). How can I check controller (maybe some fuses on it?) Could you help?



[Dado]

Hello.

Seems like controller is gone. Have you tried to swapp display and buttons? Most probably wont help though.
If you skilled, I can tell you which pin short to ground to check if controller starting (if you dont have spare display).



[reka123]

Hello.

Seems like controller is gone. Have you tried to swapp display and buttons? Most probably wont help though.
If you skilled, I can tell you which pin short to ground to check if controller starting (if you dont have spare display).

Could you tell which pins? I don't have spare display. This is CAN version. Do I need Besst Tool when replace controller? I also do this test and after push the power button, voltage droped to ~2-3V so it seems, fuse in controller should be ok?



[Dado]

Mate, you doing wrong conclusions, because you dont know how the power up works. Why u so surprised it is discharging capacitors, when u press power button? Press also minus and plus, one of it will be discharging also. There is resistor on buttons which is grounding battery.

Why u wont put down controller and inspect first pcb? Its 1 minute. That part with finns, no need to open whole motor. You look skilled. I would say you would find something blown or greenish rust on battery voltage paths.

PM me.

And yes, you would need Besst as you would need run calibration after controller replacement.
Or this can be cheaper then Besst:

https://docs.google.com/forms/d/e/1FAIpQLSeAx35eYdMQ9cYB6sNZ-v1YtQKWiwCk2-0ZAsz2wAuOJEj2OQ/viewform



[reka123]

Mate, you doing wrong conclusions, because you dont know how the power up works. Why u so surprised it is discharging capacitors, when u press power button? Press also minus and plus, one if it will be discharging also. There is resistor on buttons which is grounding battery.

Why u wont put down controller and inspect first pcb? Its 1 minute. That part with finns, no need to open whole motor. You look skilled. I would say you would find something blown or greenish rust on battery voltage paths.

PM me.

And yes, you would need Besst as you would need run calibration after controller replacement.
Or this can be cheaper then Besst:

https://docs.google.com/forms/d/e/1FAIpQLSeAx35eYdMQ9cYB6sNZ-v1YtQKWiwCk2-0ZAsz2wAuOJEj2OQ/viewform

Have a stupid question but... can't find any button to start PM ... I text to you on whatsapp.

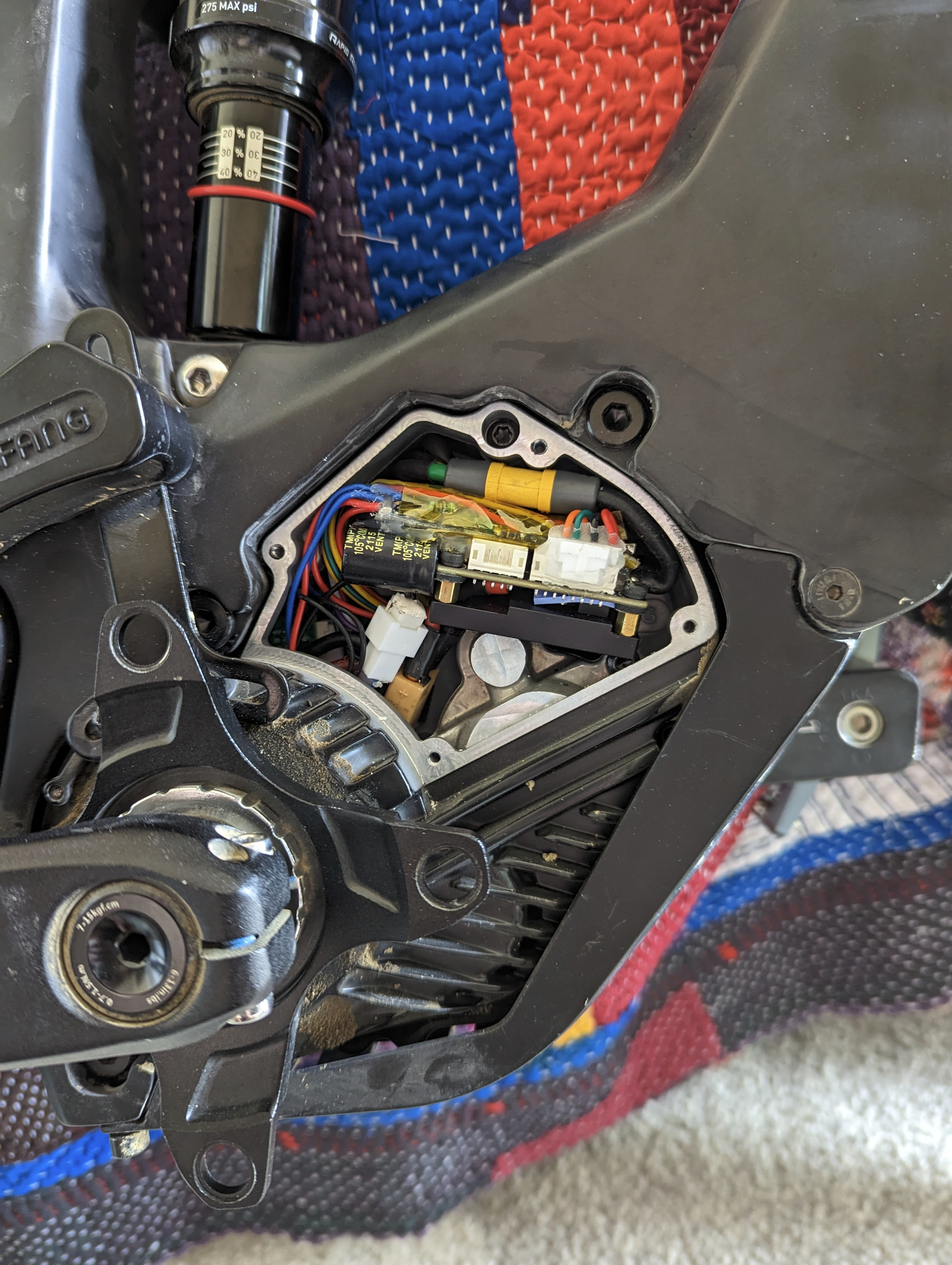

So, inspect PCB It was one of the first thing what I have done. And on the first look it seems to be good (pic below, reverse side looks simillar). I can't find any issue. But I'm also not as far in electronic to know what to measure in first step. I found this youtube totrurial and also try it. In this toturial was suggestion if voltage will not drop - fuse is broken. Also checked buttons on remote controler and it's working fine.



[Dado]

There is LED on pcb, if I remember right is light on when u press power and blinking when it boot. Try. If no blinking microcontroller is not booting.

Show me pls. the fuse, which one it is. Did u mesure it as u stating in video?



[Catweazle]

Hello everyone
Is there a way to unlock the thumb throttle on the M510 FC 2.0? Thanks



[patdam]

Hello everyone
Is there a way to unlock the thumb throttle on the M510 FC 2.0? Thanks

? it's not locked, you just need dedicated wiring



[Catweazle]

I connected the 1t4 cable



[patdam]

I connected the 1t4 cable

You have wiring with throttle ? on mine FC2.0 its functioning well with 1t2 wire



[Kyokushin]

The bike mileage (ODO) is strored in display or controller?



[Dado]

In a display.

Non logically, again.



[temon10]

Hello everyone
Is there a way to unlock the thumb throttle on the M510 FC 2.0? Thanks

mine direct connect and work for thumb throttle.



[casainho]

Another user, 3D printed in clear plastic for the Bafang M500/M600 motor cover, and that red and blue LEDs from the EBike board, kills my heart!!
The display is also great!!



[Dado]

Hello guys.

Just had here new ebike with M500. Looks like Bafang has also now some new controllers in M500 (bootloader) as I was not able to flash firmware over Besst. Motor just didnt react. Must be again some new boot code.
Firmware which is in a motor: CRX10NC4812i142015.3

Have 15.5 and 15.8 but not taking it.

If anybody has a new firmware bin file to M500 please share, will analyse it.



[AlexRus]

Does anyone have the contact of a trusted seller who sells version 2 of the M600 engine?
I tried to buy on Ali, but there are all liars and deceivers, they send the wrong version.
I need a version that is configurable via BESST



[Dado]

Does anyone have the contact of a trusted seller who sells version 2 of the M600 engine?
I tried to buy on Ali, but there are all liars and deceivers, they send the wrong version.
I need a version that is configurable via BESST

Alex, new M600 is not supporting power adjustment configurations.

I did order new M600 from Bafang half year back. Try to contact Chili and explain her, you need new M600. It is not easy to spot difference from labels which is unlucky. (maybe from serial number).

My motor did come with 46.2 - here I was able to set power levels (a bafang mistake I would say as in later firmwares this was disabled) But this firmware is not usable as limiting power from 40% (which is more like 50% in reality). So just to pray bafang will put out firmware for new M600 with power adjustment support.

So for now only speed, wheel and circumference with M600.



[Catweazle]

Greenbikekit New controller with 46.2



[Catweazle]



[AlexRus]

View attachment 118253

Is it possible to adjust the assist levels through BESST?



[Catweazle]

Yes



[AlexRus]

Greenbikekit New controller with 46.2

This store is run by liars.
Yesterday they assured that the controller was in stock and I paid for it.
Today it is no longer available.
Shit customer service, would not recommend to anyone.
