Crestline Bikes

E Bob

Well-known member
Feb 15, 2021
358
359
torfaen
it's 12mm for -5, could be 10mm for +5 as your raising the bike slightly when it moves forward, i set up 25% rider sag both ends & For me on fast, flat, mild steep it noticibly lost front end grip, even bike park steep it wasn't as planted. BUT... This is just my experience... i'm not one for geeking on measurements but i knew the bike had lost grip over that 2 Deg, Nothing stopping you trying both set ups, easy enough to knock out/in


RoJo

Active member
Apr 24, 2019
247
198
Surrey
That is pretty sweet "mess" in the background by the way. I'm not sure that adding 15mm slackens by 2 deg, the maths just doesn't stack up (if you excuse the pun). I reckon about 0.4deg per 10mm of fork length.
This was calculated for my Firebird 29:
PivotHead AngleAxle to CrownzCrownxFront CentreWheelbaseRear Axle to CrownaAxle to CrownaWheelBase to Rear Axle to CrownReachStackCSBBDroplRADaRAD
170mm Fox36
65
582​
527.4711​
245.9638​
1217​
1105.051​
86.489​
28.511​
455​
612​
431​
29​
762.6067​
53.37052​
+17mm Cup
64.27893
599​
539.6496​
259.9603​
1224.281​
1105.051​
86.489​
29.23207​
447.2621​
617.6776​
430.9659​
23.57599​
762.6067​
54.09159



E Bob

Well-known member
Feb 15, 2021
358
359
torfaen

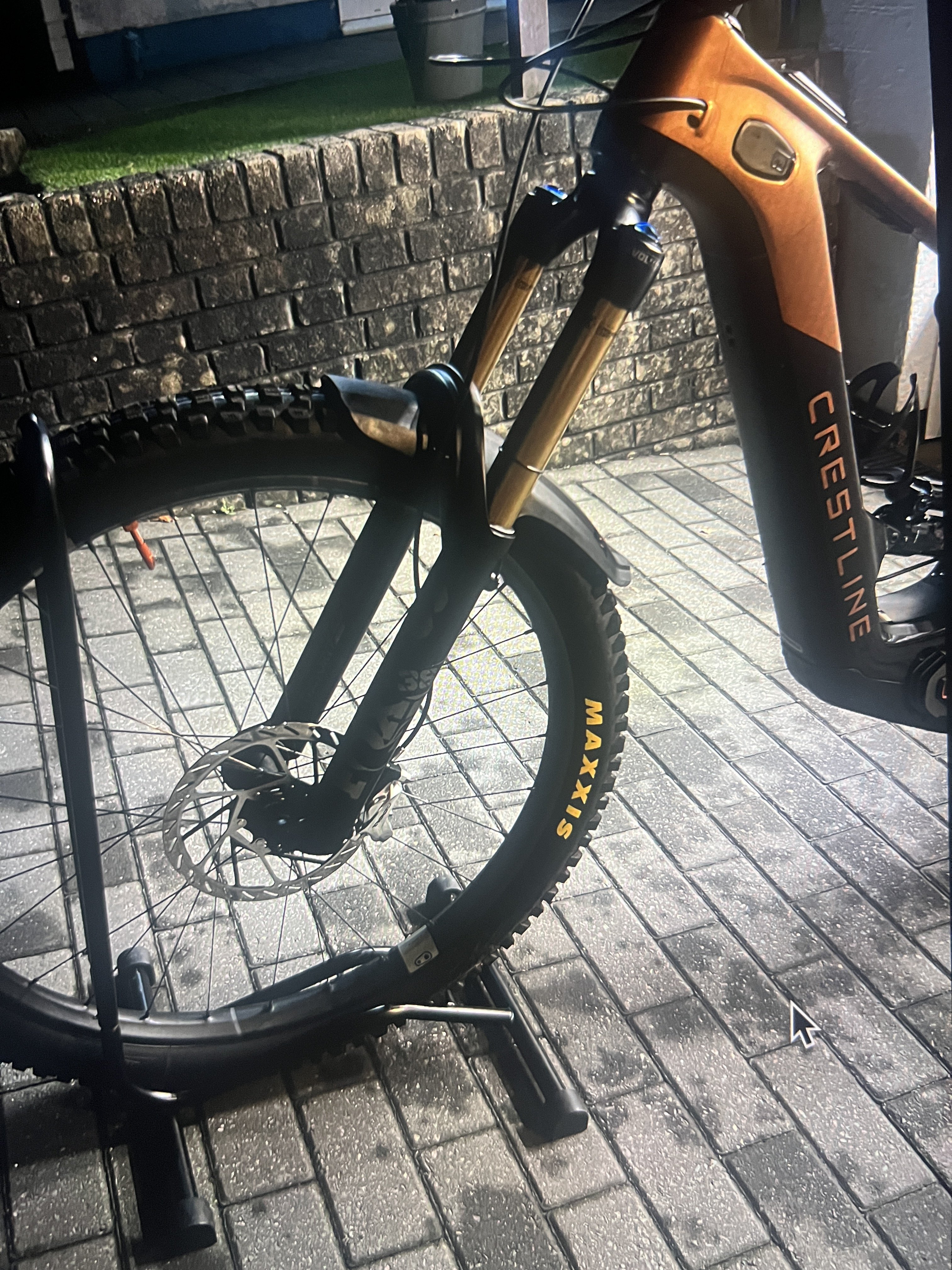

i'v honestly not got a clue re all the numbers, Alls i know is after -5 install the bike felt high and lost grip at speed in the front, This led me to check the HA, it measured 61,62 with -5 cup, 63,64 without. But Forget all the Numbers the Main thing is The bike Steers well. Holds a line when its rough. Attached is her sat high on the cup...


Alejandro

Member
Dec 13, 2020
21
23
Spain

GeorgesEBike

E*POWAH Master
Subscriber
Jul 30, 2018
207
390
Verdi, NV

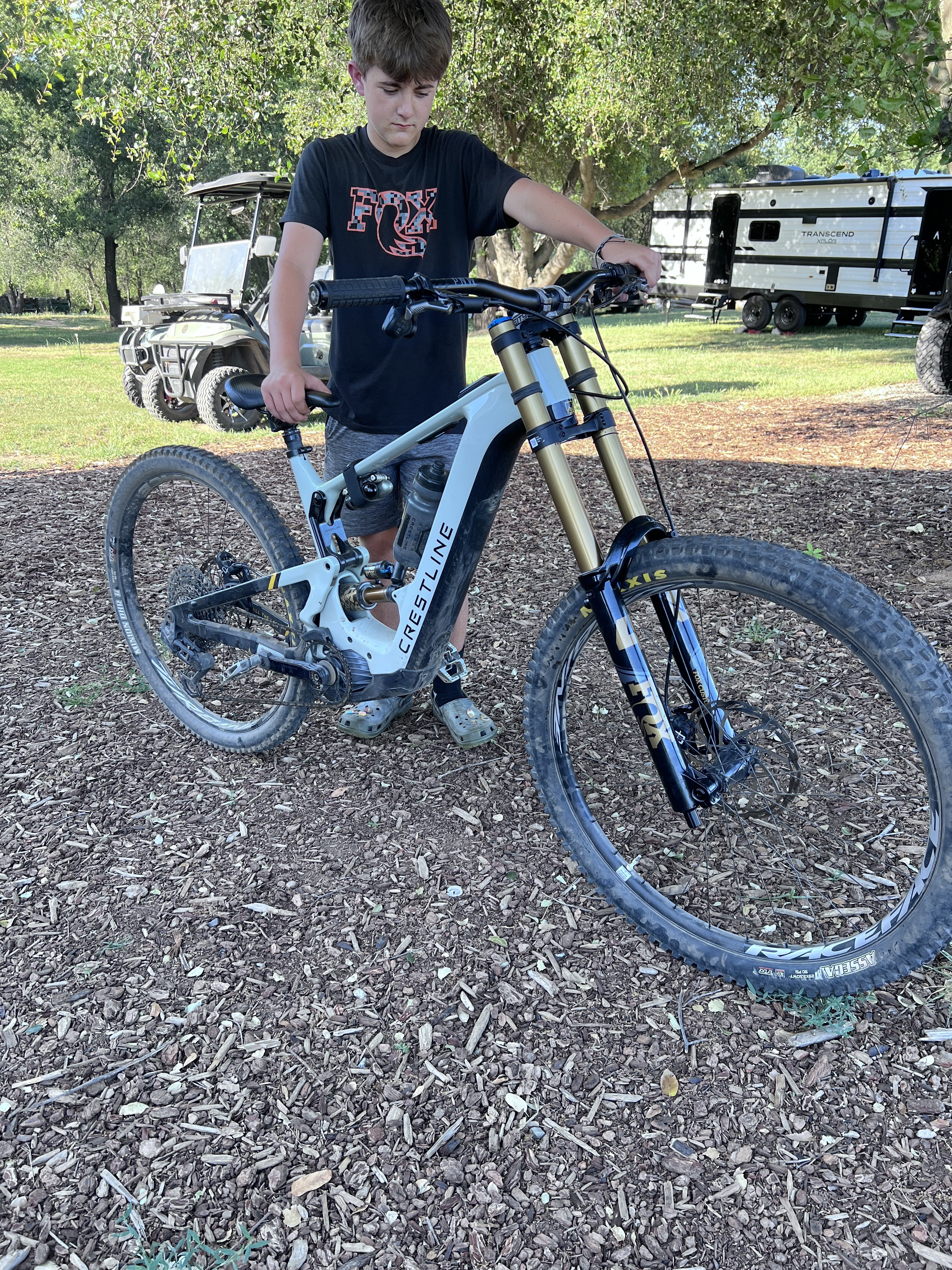

Can't wait to build up my new Crestline RS 180! Going with Ohlins air suspension, SRAM GX AXS Transmission drivetrain, SRAM AXS dropper post, Hayes Dominion A4 brake/rotors, NOBL wheels, Onyx Classic hubs, One Up bar, stem and pedals. Hoping to have it completed in the next 2 weeks.


Last edited:

Robstyle

Active member
Nov 17, 2021
116
134
New Zealand
Can't wait to build up my new Crestline RS 180! Going with Ohlins air suspension, SRAM GX AXS Transmission drivetrain, SRAM AXS dropper post, Hayes Dominion A4 brake/rotors, NOBL wheels, Onyx Classic hubs, One Up bar, stem and pedals. Hoping to have it completed in the next 2 weeks.

View attachment 138920
Solid build George. Ohlins will look great with that colour scheme too 👍


Redders473

Active member
Jul 30, 2020
197
117
Leeds
Evening guys and gals my names Darren and i represent CRESTLINE BIKES i will be racing the UK national series and other races so if you see me come say hello. If anyone in the UK is interested in the next batch of RS180s and would like to know more and talking through how the process and how troydon will save you some cash on import and VAT give me a shout. On here or instagram, @Darren.redfern

Cheers 👊


RoJo

Active member
Apr 24, 2019
247
198
Surrey
Evening guys and gals my names Darren and i represent CRESTLINE BIKES i will be racing the UK national series and other races so if you see me come say hello. If anyone in the UK is interested in the next batch of RS180s and would like to know more and talking through how the process and how troydon will save you some cash on import and VAT give me a shout. On here or instagram, @Darren.redfern

Cheers 👊
Already got one... best bike in the world. Where are your local riding spots Darren?


Posvar1

Member
Nov 17, 2022
37
27
Charlotte, North Carolina
Evening guys and gals my names Darren and i represent CRESTLINE BIKES i will be racing the UK national series and other races so if you see me come say hello. If anyone in the UK is interested in the next batch of RS180s and would like to know more and talking through how the process and how troydon will save you some cash on import and VAT give me a shout. On here or instagram, @Darren.redfern

Cheers 👊
Yo Darren! I already follow you on IG. Stoked that you are on the team. I’m about 15 months into my Crestline and it’s best bike I’ve ever had. Good luck in 2024.


Arethustra

Member
Subscriber
Apr 22, 2024
109
93
Bay Area, CA
Can't wait to build up my new Crestline RS 180! Going with Ohlins air suspension, SRAM GX AXS Transmission drivetrain, SRAM AXS dropper post, Hayes Dominion A4 brake/rotors, NOBL wheels, Onyx Classic hubs, One Up bar, stem and pedals. Hoping to have it completed in the next 2 weeks.

View attachment 138920

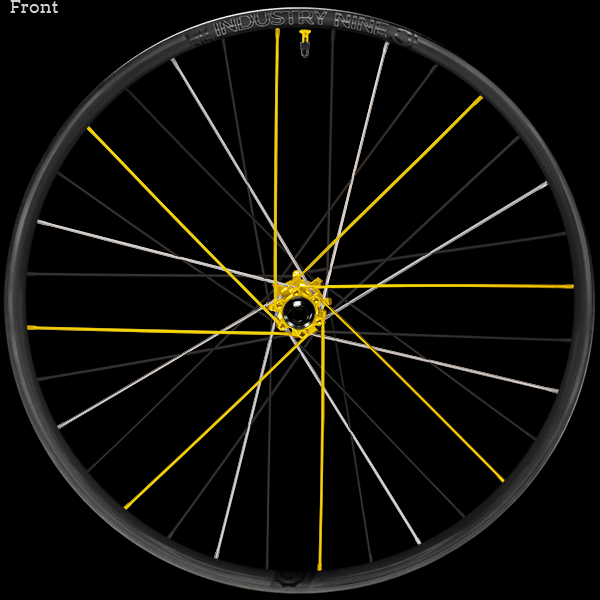

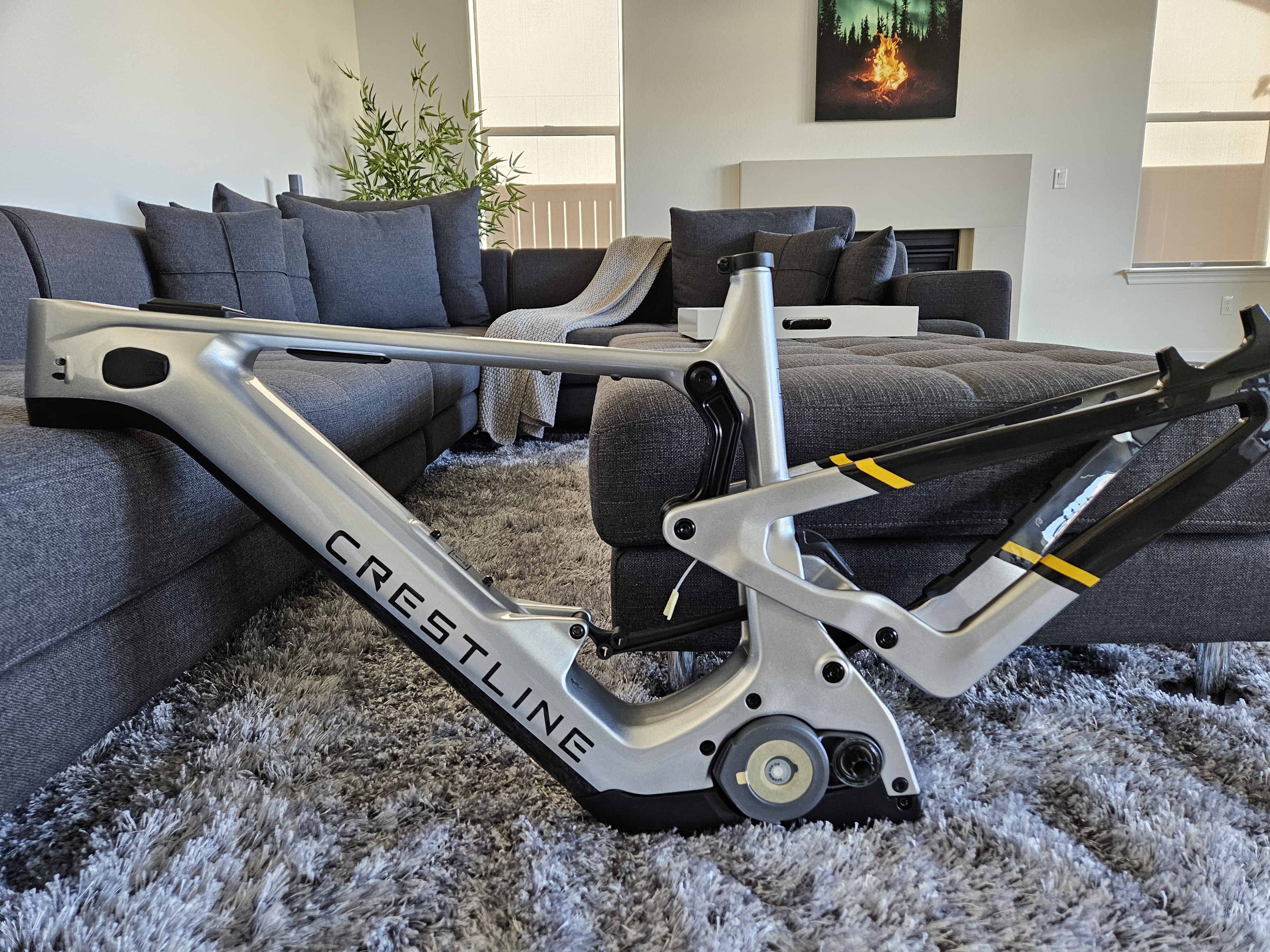

Sadly, my RS180 arrived 2-weeks ago and hasn’t been out of the box yet as I’m still waiting on I9 to build a EN350 wheelset that seemed like a good idea after a few scotch’s…hopefully the color choices/lacing pattern for the spokes doesn’t end up looking silly 🤪🤦🏻‍♂️

Rest of the parts are in and I can’t wait to get this thing built! Current build list includes:

Zeb 180mm & Super Double Deluxe Ultimate in the Rear
Maven Silver with 200mm discs
XO Transmission
Reverb Post
Yoshi ENDH Stem & Pedals
e13 Cranks and Chainring

Hopefully it’s only another week for the wheelset… 🙏🏻


Last edited:

Gnarly Bailout

New Member
Apr 22, 2024
5
23
Northern New Jersey
I made a NBD post on a different forum yesterday, and a commenter said "the bike looks heavy", so I thought I'd give a first ride impression. (Before you ask, I measured it at 53.7lbs/24.4kg with pedals). For a full powered, long travel (180mm) ebike, my first ride impression is 1). WOW! and 2) This thing feels surprisingly lively and playful. It did not feel heavy to me at all. Probably no surprise to any of you on this Crestline Forum.

Crestline Day 1 Tourne B.jpg


jray17

Member
Sep 19, 2018
26
86
California

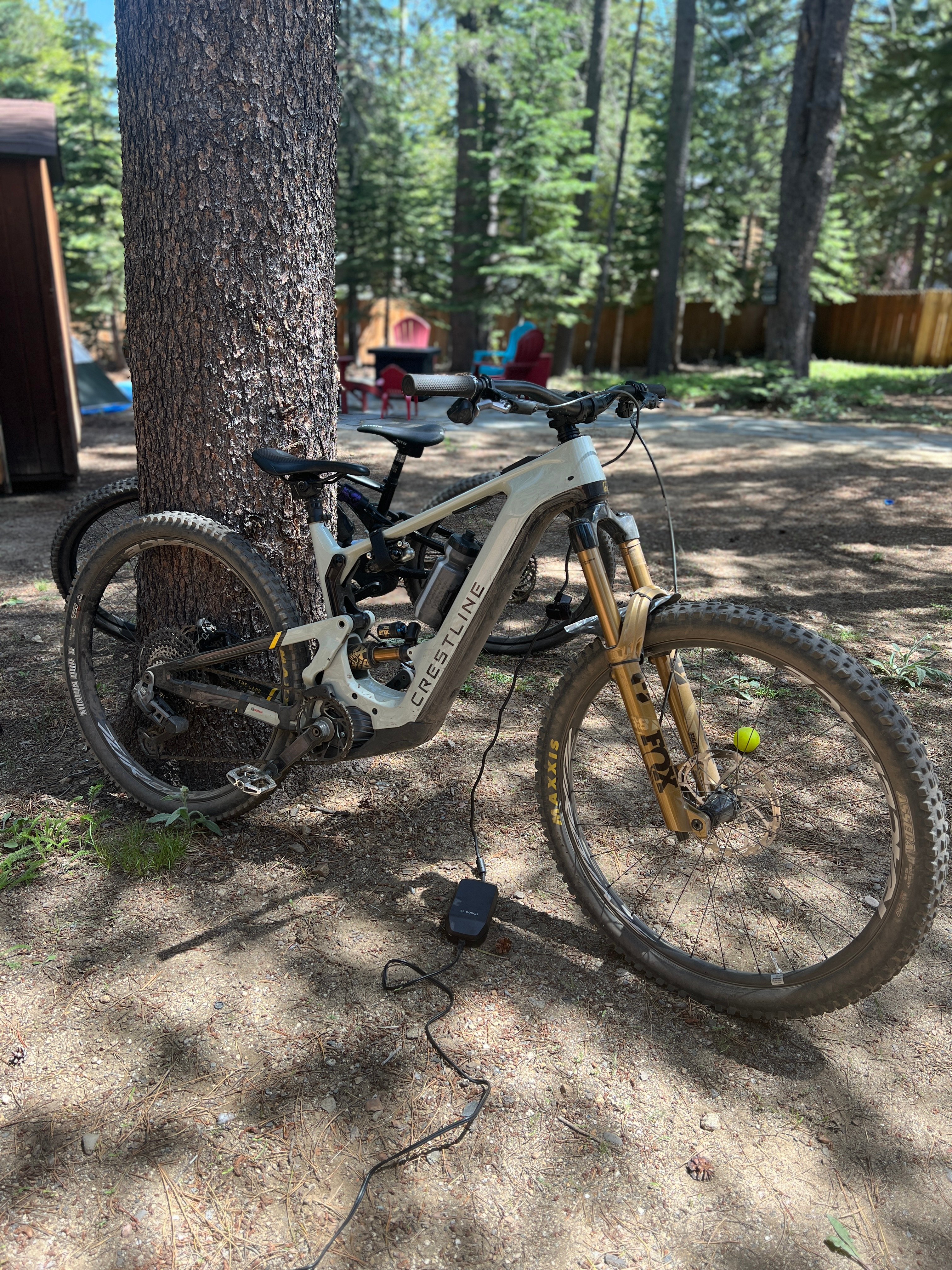

Anyone running a fox 40? I put one on and immediately felt weird. Went back to the 38. Just curious if anyone is loving the big squish life? To me the bike feels alive with the 38. I have a kenevo on 29ers and fox 40 and it feels good. This bike is amazing though!

IMG_1898.jpeg IMG_1881.jpeg


Dirtnvert

E*POWAH Elite World Champion
Sep 25, 2018
1,454
1,691
BC Canada
That 200mm/40 should only be 10mm higher front end than a 180/38 so .4⁰ slacker head and seat angle and 3mm higher crank axle. Id take the added stiffness and 20mm as long as the turning radius wasnt messing with me


Chairman

Active member
Feb 25, 2022
220
121
Nz
I am running boxxers and the turning radius is a bit annoying on occasions but I can live with it. I have never tried 180 38s but I am keen to compare but not willing to pay the price of experimentation so I will have to live with the verdict from the interweb🤣


Robstyle

Active member
Nov 17, 2021
116
134
New Zealand
I tried a dh38 on mine, it made it dead, lifeless and the turning circle meant it was an immediate no.
Have an intend flash now, wouldn't bother with a dual crown ever again.


Chairman

Active member
Feb 25, 2022
220
121
Nz
Ok that's one against a duel crown. Pretty emphatic no that one. Personally reasonably happy with boxxers but the grass always looks greener on the other side of the fence


Robstyle

Active member
Nov 17, 2021
116
134
New Zealand
Yeah the steering was a real bummer, I could probably cope with the other negatives.
Just try all the things on your bike is my recommendation 🙂


RoJo

Active member
Apr 24, 2019
247
198
Surrey
Running 200mm 38mm Boxxers on mine. Absolutely epic, best suspension performance and tracking ever. Steering restriction has made me a much better rider as I'm looking for high lines on entry. Now I never hit the steering lock.
You can count on one hand the number of dual crown certified eBikes, so don't miss out on this superpower 😁
New Boxxer is also a lot better than old one, it has great mid stroke support.
As for playfulness, it is no surprise that running a lot of sag on a heavy hitting well damped 200mm fork will make the bike planted. I would suggest trying a reach reduction at the same time, then you have more authority to move your weight around on the bike to trade stability for playfulness.


cozzy

E*POWAH Elite
Subscriber
Aug 11, 2019
927
1,028
Hampshire UK
Ok that's one against a duel crown. Pretty emphatic no that one. Personally reasonably happy with boxxers but the grass always looks greener on the other side of the fence
What boxxers? The current gen or the older ones? The older ones with +10 crowns, giving 56mm offset had a pretty poor steering lock on an ebike with a fat downtube, obviously the 0mm crowns had even less.
The 40 with a +18mm crown giving 52mm offset has a ton more steering lock compared to the boxxer.
Ive had both on a kenevo, I spent a few years trying to make the boxxers good, but out the box the fox feels so much better.
Never looked at the newer boxxers so I dont know how they are configured.


Chairman

Active member
Feb 25, 2022
220
121
Nz
What boxxers? The current gen or the older ones? The older ones with +10 crowns, giving 56mm offset had a pretty poor steering lock on an ebike with a fat downtube, obviously the 0mm crowns had even less.
The 40 with a +18mm crown giving 52mm offset has a ton more steering lock compared to the boxxer.
Ive had both on a kenevo, I spent a few years trying to make the boxxers good, but out the box the fox feels so much better.
Never looked at the newer boxxers so I dont know how they are configured.
Yeah. Got the older boxxers with the 56. I am hanging out for a Pinion long travel bike. Hopefully a Zerode so not too keen to experiment with a new set of forks just yet....but maybe
