Cube one77 2025

[Kepa]

Bosch Smart System 32KM/H Software Remote Service 35 Euro talk to this lad...



[António13_PT]

Can anyone help me and tell me the length of the power cable between the battery and the motor ?

The name of the item is BOSCH Battery Cable for Smart System.



[deertrackdoctor]

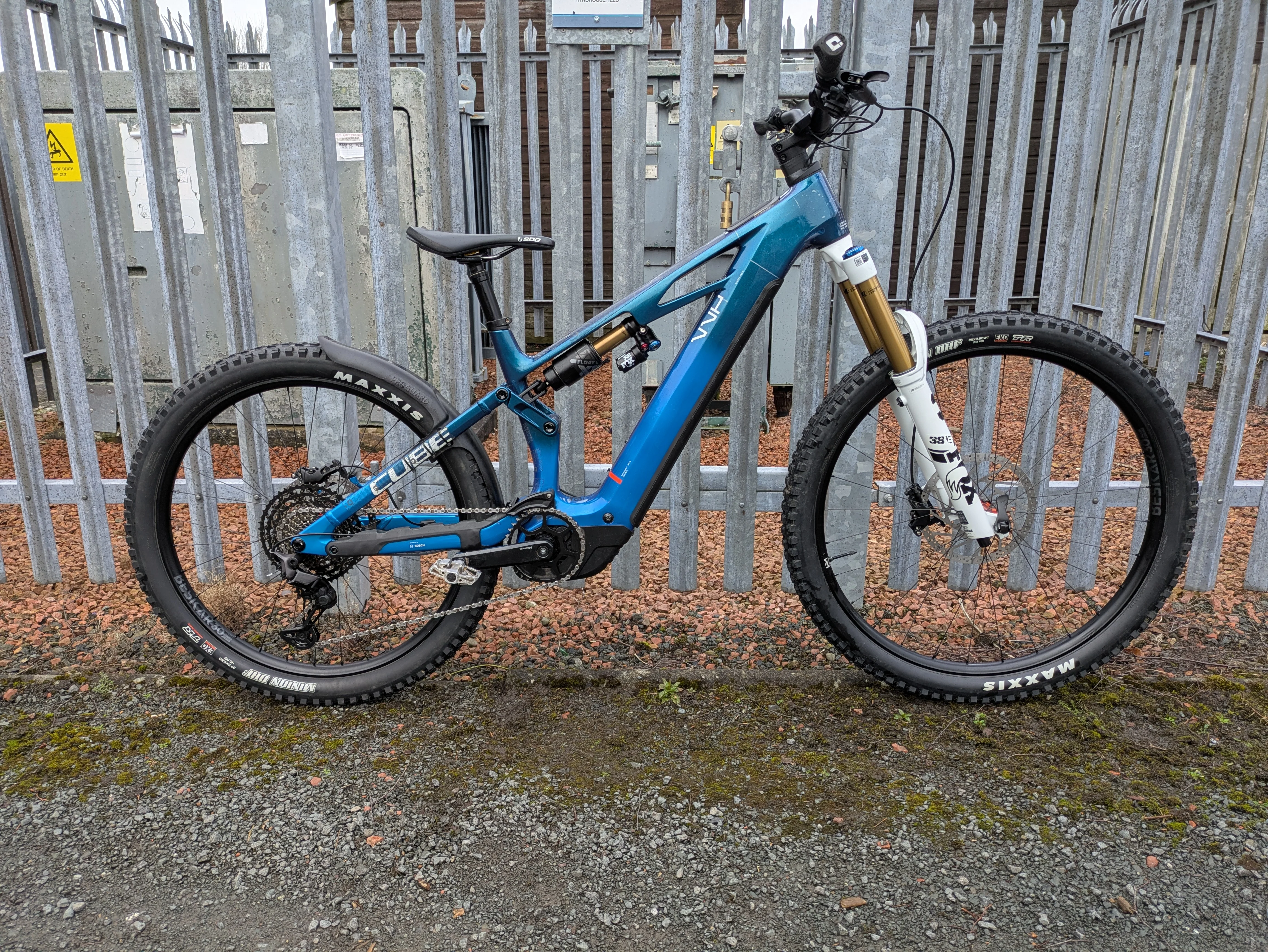

My cube ON77My One 77 AT for sale

Thread '2025 Cube One77 AT Large: 4250' https://www.emtbforums.com/threads/2025-cube-one77-at-large-4250.45305/



[deertrackdoctor]



[António13_PT]

Can anyone help me and tell me the length of the power cable between the battery and the motor ?

The name of the item is BOSCH Battery Cable for Smart System.

Since no one bothered to reply, the answer is : 400 mm or 450 mm to make it a little easier to assemble with the engine fitted



[B00Y4]

hello,
i bought a 2026 177 slx 800 and want to change that ugly stem and spacers
Can you please guide me on what parts do i need to get ?



[COOLBIKE]

hello,
i bought a 2026 177 slx 800 and want to change that ugly stem and spacers
Can you please guide me on what parts do i need to get ?

You can use regular stem, and spacers. It's a classic 1 1/8" steerertube.



[B00Y4]

You can use regular stem, and spacers. It's a classic 1 1/8" steerertube.

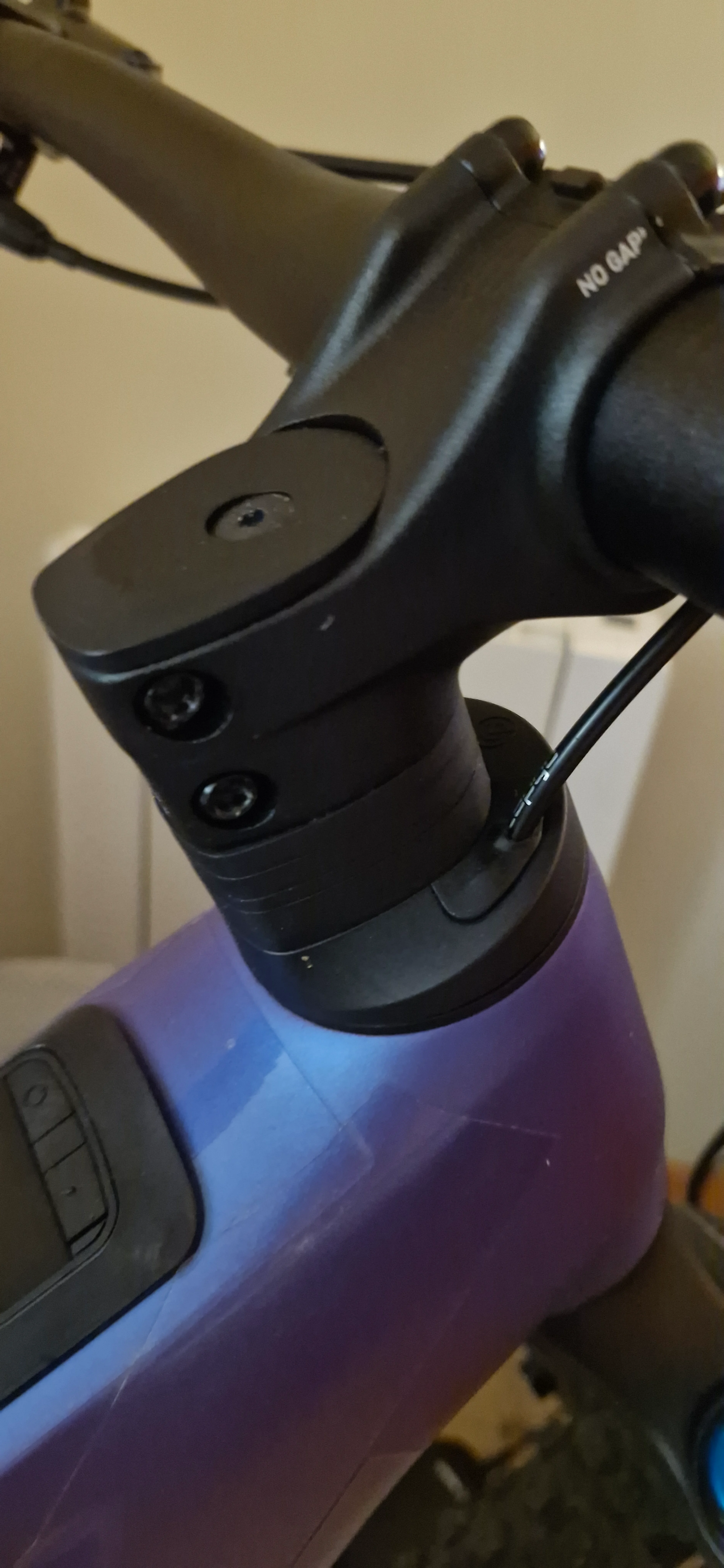

View attachment 180010

mine doesn't look similar, do i need another top headset?



[Andrew8200m]

mine doesn't look similar, do i need another top headset?

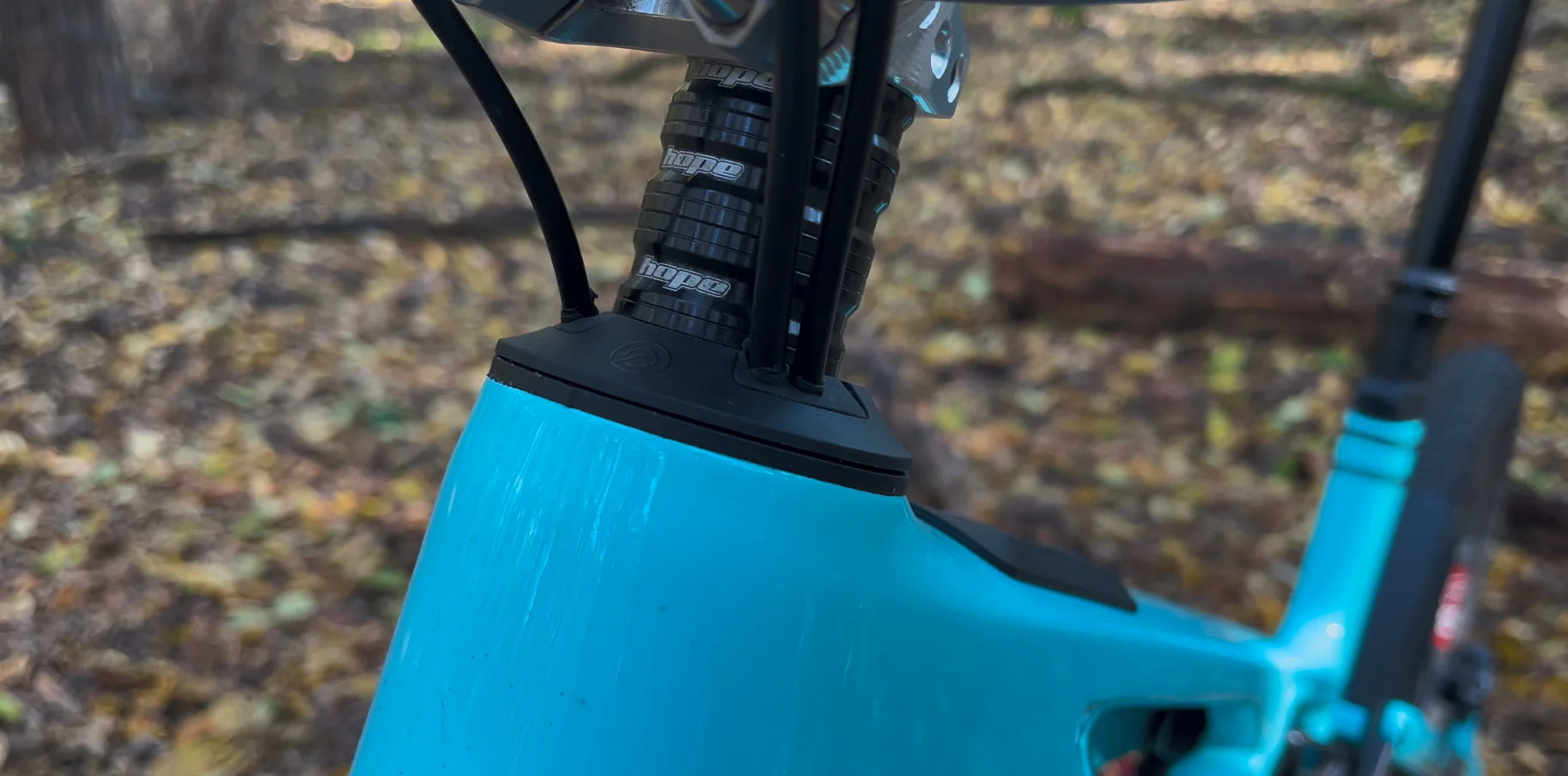

View attachment 180034

Nope, just take it all off and leave the big plastic headset top on.



[Raptor]

I noticed my Zeb steerer tube has some wear on the black coating at the level of the top of the headset.

@Rando_12345 do you still have the 'wear' issue on the steerer? I dropped my Fox 38 off at Fox today and they said mine had excessive wear in the same place on my steerer to the extent that one side had a small groove in it. They say it is typically caused by ill fitting or incorrectly designed headsets.



[Raptor]

Check your fork steerer tubes guys! Fox today confirmed mine is fecked due to dodgy headset - most likely the crappy upper bearing compression ring not doing its job properly and causing wear. New fork time for me .



[Rando_12345]

Ouch, havn't taken mine out in a while, but the headset does crack under heavy braking despite tighter than usual headset screw (presumably required to hold all the part together).



[Beaker2135]

Check your fork steerer tubes guys! Fox today confirmed mine is fecked due to dodgy headset - most likely the crappy upper bearing compression ring not doing its job properly and causing wear. New fork time for me .

That sucks. Can’t they just fit a new steerer?



[Eyuplad]

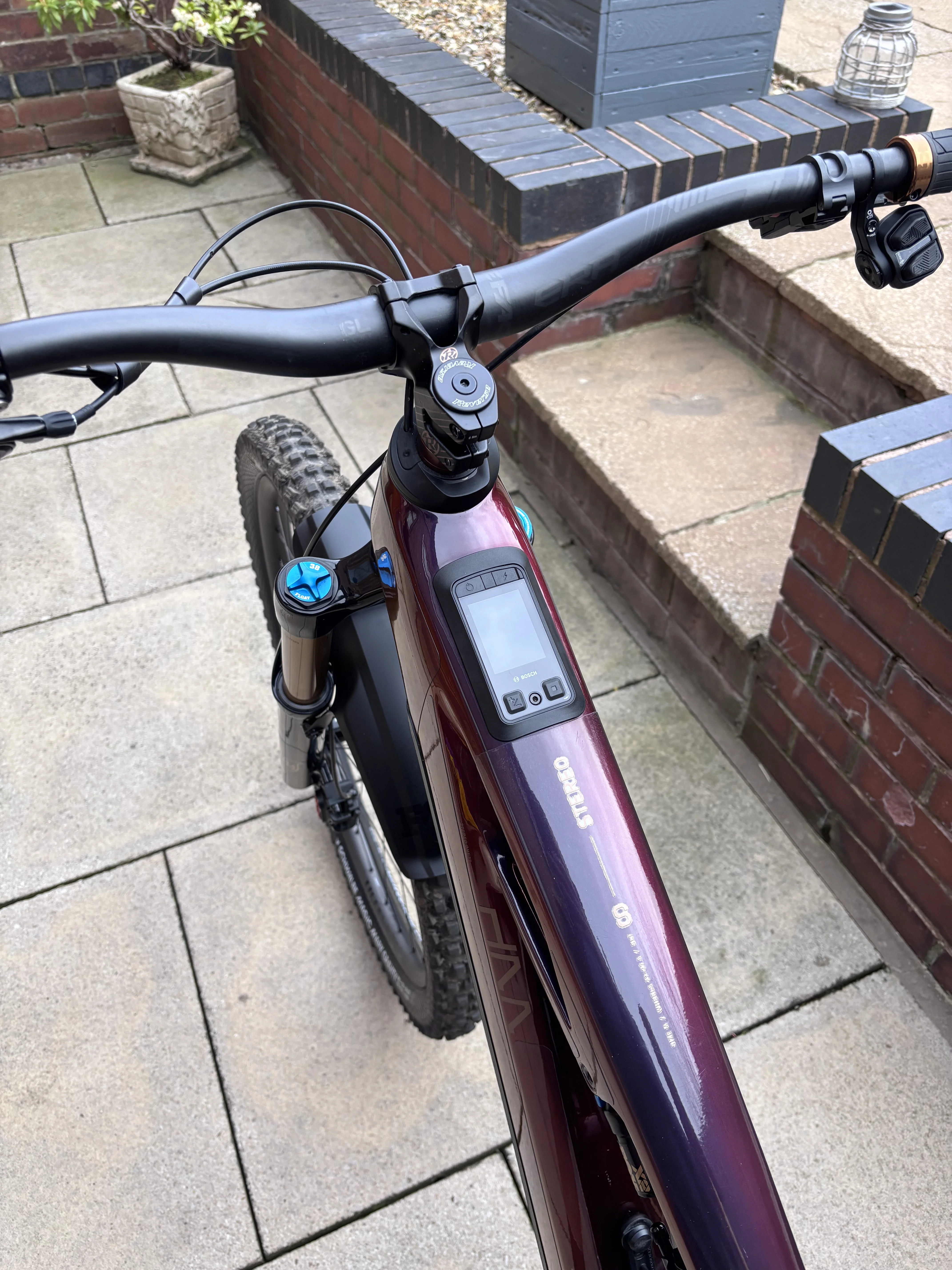

Took the plunge and retro fitted the Kiox 400 in place of the Purion. Just a shame the ugly surround lets it down a bit, but it does look sleeker and tidies the bars up a bit.



[MeatBike]

mine doesn't look similar, do i need another top headset?

View attachment 180034

Easybikeparts.co.uk have replacement alloy upper assemblies with holes for cable routing.



[Raptor]

Easybikeparts.co.uk have replacement alloy upper assemblies with holes for cable routing.

They don't have a replacement that works currently. They are manufacturing one for the one44/one77 that does.



[Raptor]

That sucks. Can’t they just fit a new steerer?

Just back from Fox UK. I ended up having a new CSU and took advantage of discounts to upgrade the damper to Grip x2 along with the air spring. Basically 95% of a factory fork at a decent price without the kashima.

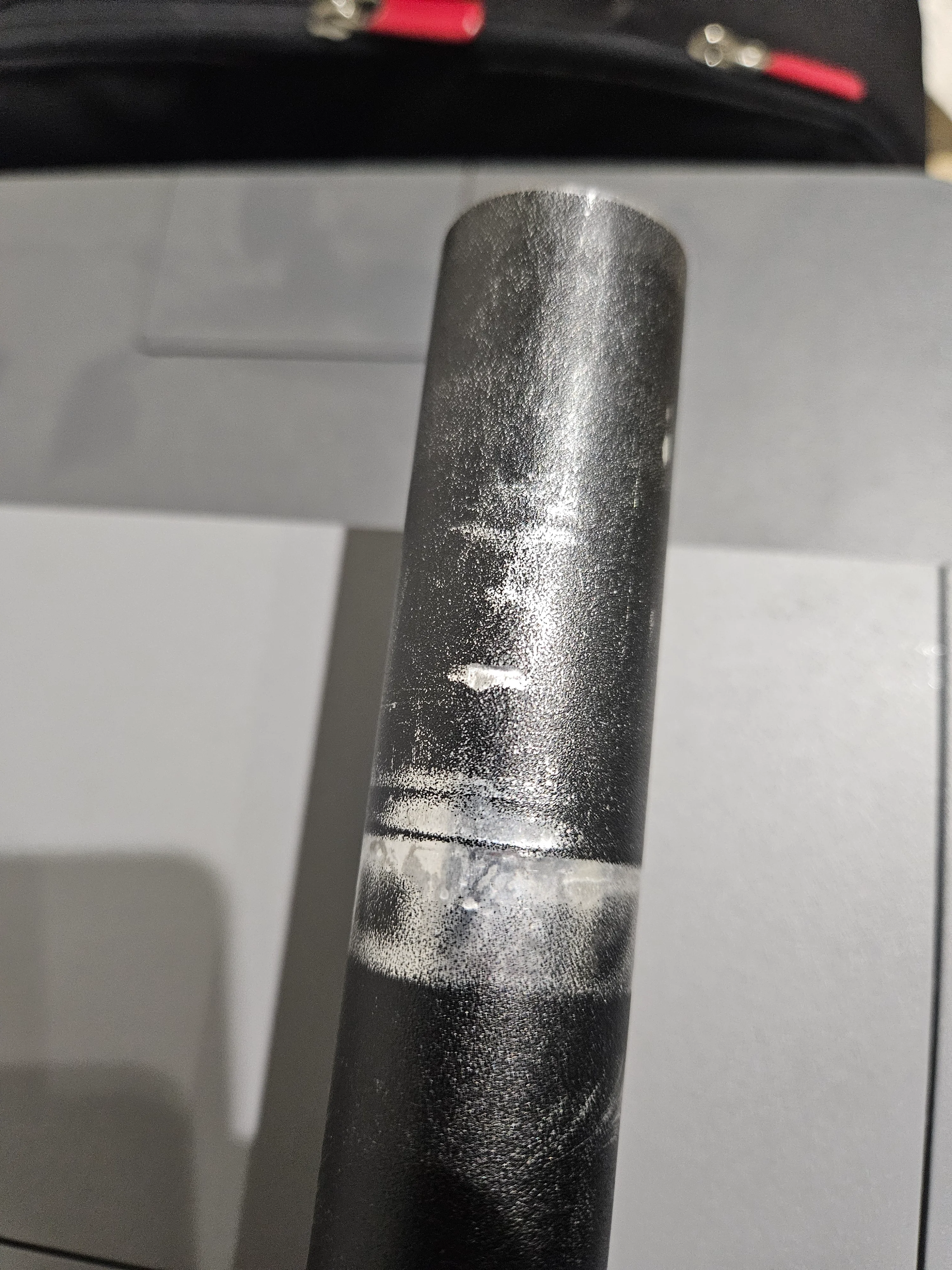

pic showing old csu and wear



[Eyuplad]

Has anybody got any experience or info on what length cable the Powermore extender requires on our bikes?



[Rando_12345]

just scroll up



[Eyuplad]

He’s asking of the cable length from the actual battery to the motor, not the Powermore to charging port.



[Raptor]

Has anybody got any experience or info on what length cable the Powermore extender requires on our bikes?

As my bike is currently in bits, I reckon it will be something like 300mm



[Raptor]

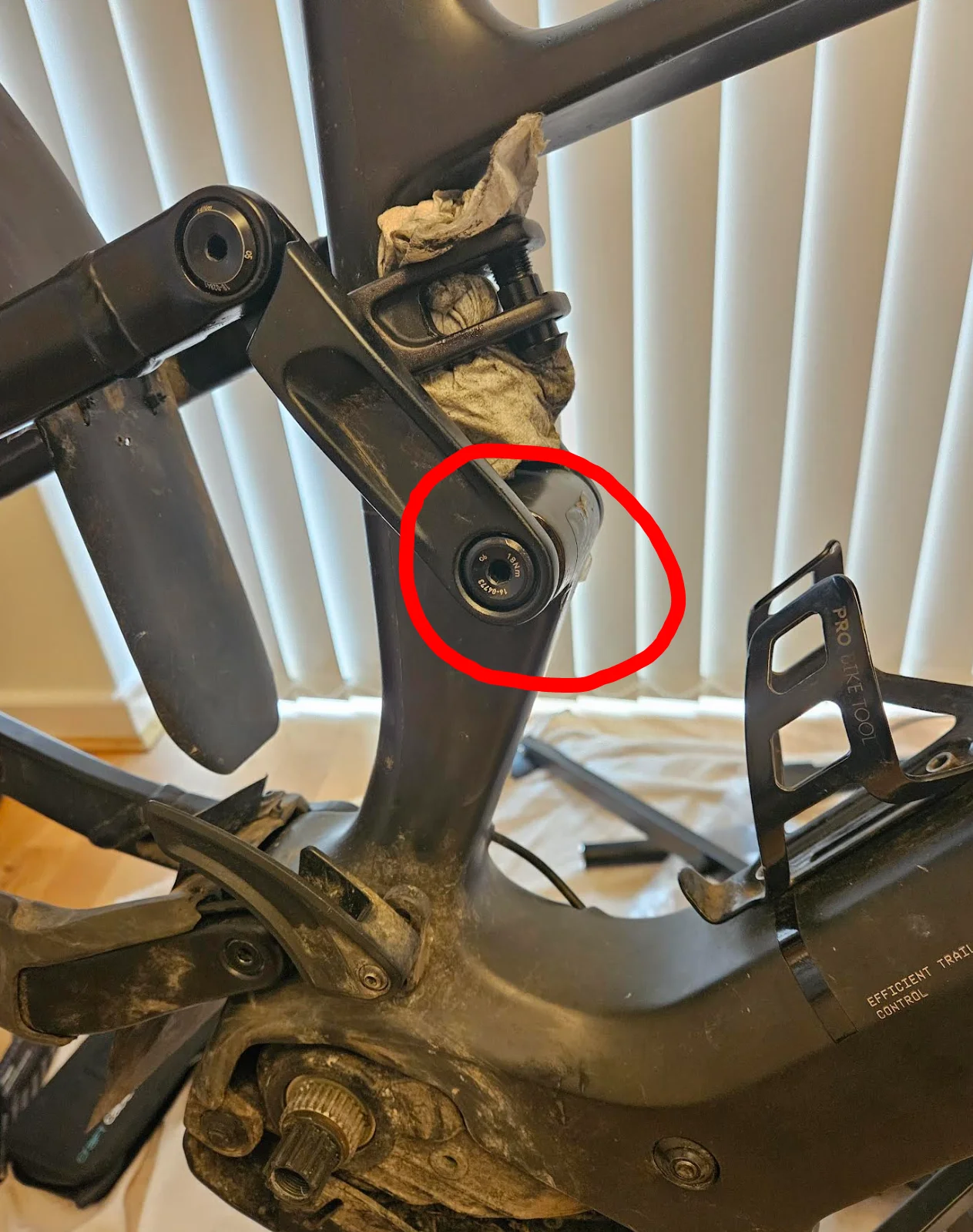

Another area to just check - At 1700 miles this main pivot bearing had failed on my one77. I had all the other frame /horst link bearings replaced too. I can tell you now it was an absolute ball-ache to change them!



[FlashToBang]

it was an absolute ball-ache to change them!

Thanks for the heads up. That’s probably the tipping point for me to just pay my LBS to replace them when the time comes rather than doing it myself



[Raptor]

Thanks for the heads up. That’s probably the tipping point for me to just pay my LBS to replace them when the time comes rather than doing it myself

I ordered the new bearing kit in advance and when it arrived, I saw how some of the bearings were designed and then decided to get my local bike guru to do them as you need specialist pullers etc. I watched him do it and the amount of cursing going on.

it took him 2 hours to change all 14 bearings. I'm glad he did it and not me!



[paul.williams_1981@yahoo.]

They don't have a replacement that works currently. They are manufacturing one for the one44/one77 that does.

Did the company confirm this? As they have informed me that they have a part that is compatible.



[Eliadn]

I ordered the new bearing kit in advance and when it arrived, I saw how some of the bearings were designed and then decided to get my local bike guru to do them as you need specialist pullers etc. I watched him do it and the amount of cursing going on.

it took him 2 hours to change all 14 bearings. I'm glad he did it and not me!

Is a blind puller needed to extract some of these bearings?



[Raptor]

Did the company confirm this? As they have informed me that they have a part that is compatible.

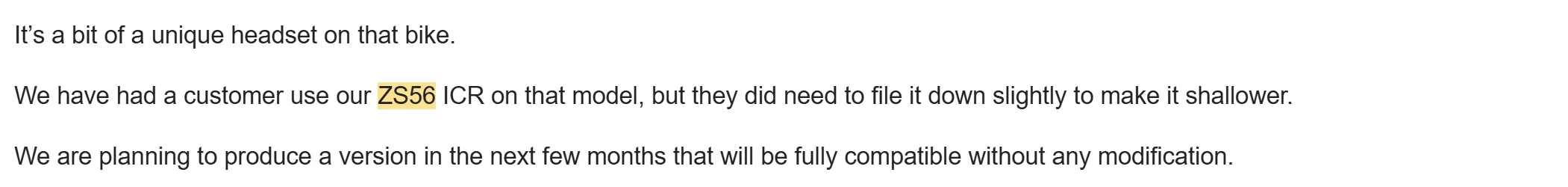

Since my post above, they have sent me the IS52 version (which should fit into the One77 angle cup) and I'll try it when it arrives. This is what they initially said to me a few days ago:



[Raptor]

Is a blind puller needed to extract some of these bearings?

definitely blind pullers of various sizes but he used a variety of tools from what I saw.



[paul.williams_1981@yahoo.]

Since my post above, they have sent me the IS52 version (which should fit into the One77 angle cup) and I'll try it when it arrives. This is what they initially said to me a few days ago:

View attachment 181026

Thanks, I had an email yesterday recommending the same part. Let me know how you get on please bud.



[jeddartjustice1972]

My One77 for sale due to injury
£3949 collection only
