Cube one77 2025

[RamRod78]

For those of you with the 38/Float X2 Factory set-up on your One77 - And I know this is somewhat subjective - Where are you finding the suspension works best? Bit firmer, bit plusher or right on the 20%/30% sag range?

I'm 250lb naked so always have "fun" setting up suspension, but I'm struggling to find the sweet spot right now....



[FlashToBang]

For those of you with the 38/Float X2 Factory set-up on your One77 - And I know this is somewhat subjective - Where are you finding the suspension works best? Bit firmer, bit plusher or right on the 20%/30% sag range?

I'm 250lb naked so always have "fun" setting up suspension, but I'm struggling to find the sweet spot right now....

I’m 93Kg (in birthday suit) and after using a friend’s Shockwiz for several weeks with my XL AT variant (FF 38/Float X2). I landed on the following:

All numbers are clicks out anti-clockwise from max damping/compression (all the way in clockwise).

Forks (just over 20% sag)
89 psi
3 Volume spacers (stock as the bike comes)
LSR 6
HSR 4
HSC 10
LSC 10

Shock (30% sag):
215 psi
4 Volume spacers (4 max -bike comes with only one volume spacer)
LSR 6
HSR 3
LSC 4
HSC 4



[paul.williams_1981@yahoo.]

I can only squeeze a 450mm one on my medium SLT because of the piggy back on the shock.

I can get a 500mm standard bottle in there. Did yours come with a 175mm transfer?



[Eyuplad]

I can get a 500mm standard bottle in there. Did yours come with a 175mm transfer?

I had a 590mm from a previous bike and that wouldn’t fit, maybe I’ll try a 500mm one then.
Yes to the Transfer dude.



[paul.williams_1981@yahoo.]

I had a 590mm from a previous bike and that wouldn’t fit, maybe I’ll try a 500mm one then.
Yes to the Transfer dude.

Thanks bud, happy with the post saves me buying a longer one as the spec said 150



[FeelFreeMTB]

I can get a 500mm standard bottle in there. Did yours come with a 175mm transfer?

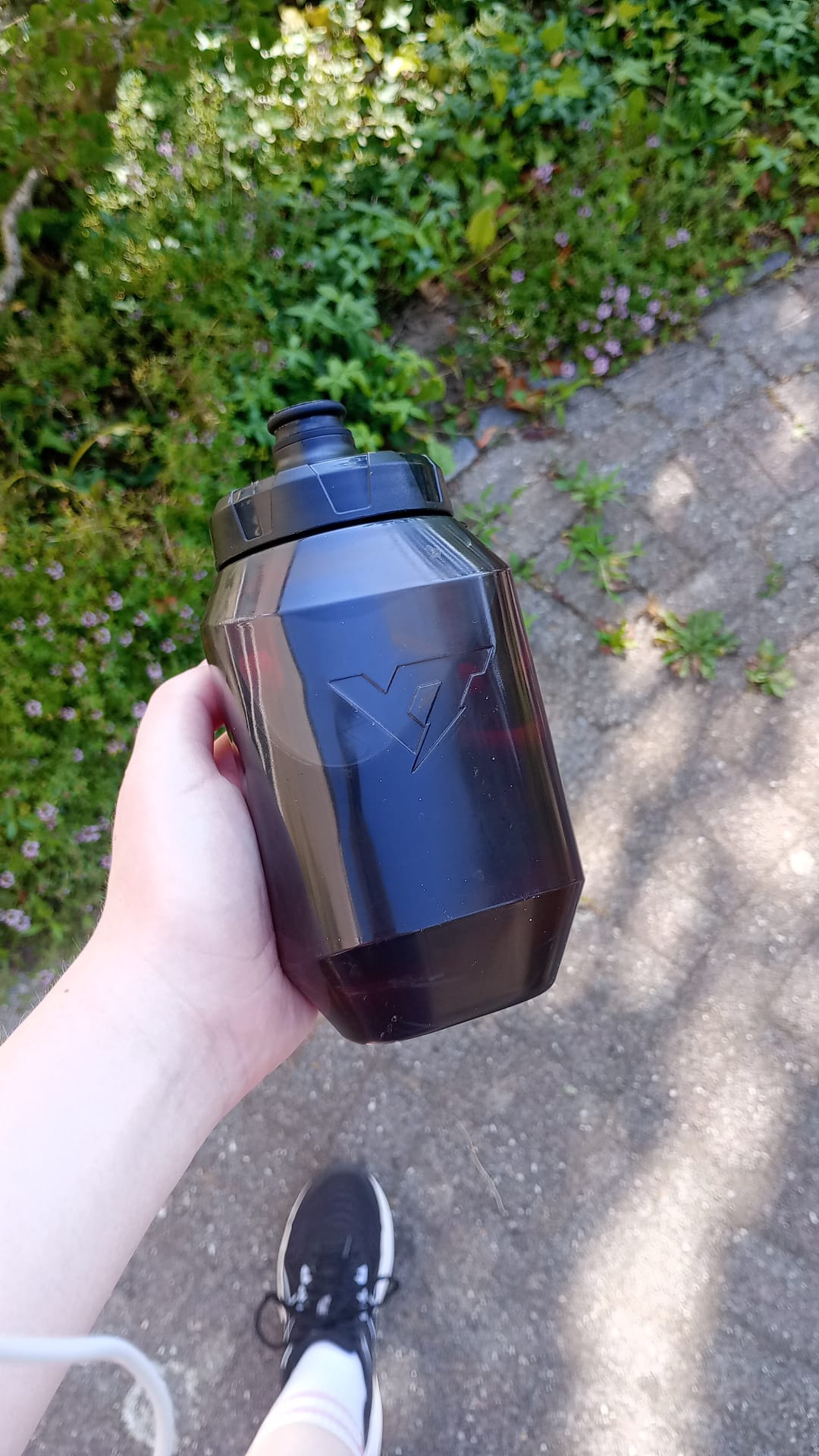

I bought a YT Thirstmaster 4000 with 600ml and Fidlock. Fits good on my former Fidlock system.



[Rando_12345]

Note that the YT bottle comes without any fidlock hardware, so I recommend buying the 450ml standard bottle as well to get the base and bottle mount, and also swap out the lids as the standard one is nice than the YT one.



[GDAS]

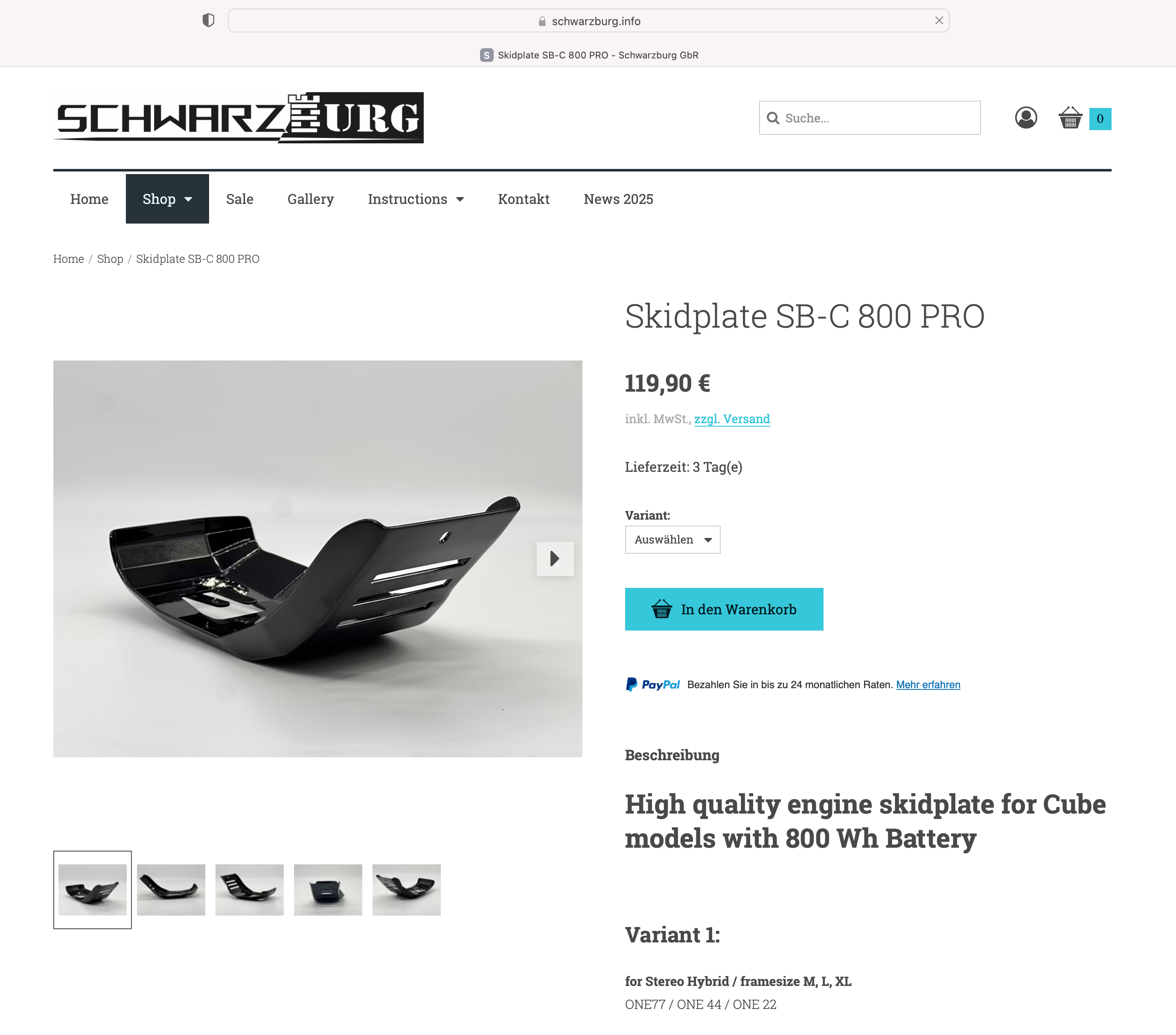

Check this: Schwarzburg GbR
This month they should release skidplates for the 2025 Cube bikes. I have one for the Stereo Hybrid 120 and is pretty good.

Now available, first impressions IMO it looks more attractive than the AVS Racing offering, I'm strongly tempted....



[Davvee]

They look good. I might invest come payday.



[paul.williams_1981@yahoo.]

Shame, I bought to AVP plates yesterday. Definitely more attractive



[Eyuplad]

Granted, it might look a little more attractive than the AVS one, but it doesn’t look to have the level of protection or sturdiness.



[Davvee]

Well my motor cover keeps unclipping from the back when going over rough stuff so I’m hoping one of these will help. It unclips then rubs on the chain then knocks the chain off lol. They should have put 2 screws to hold it not one.



[Eyuplad]

Well my motor cover keeps unclipping from the back when going over rough stuff so I’m hoping one of these will help. It unclips then rubs on the chain then knocks the chain off lol. They should have put 2 screws to hold it not one.

I had the same trouble after a few knocks. I think it must deform a bit. Replaced with the AVS one and it’s been fit and forget ever since.



[Davvee]

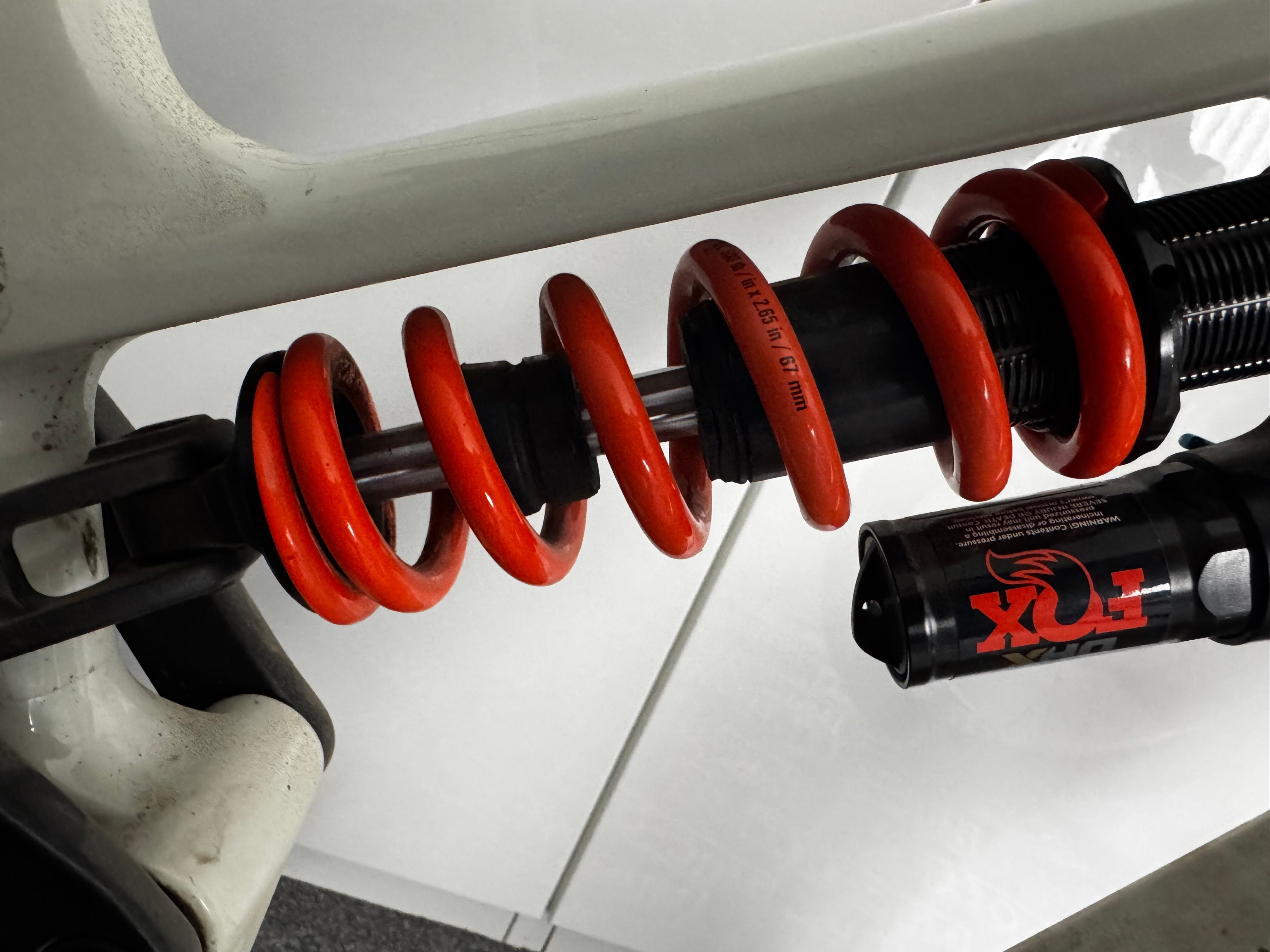

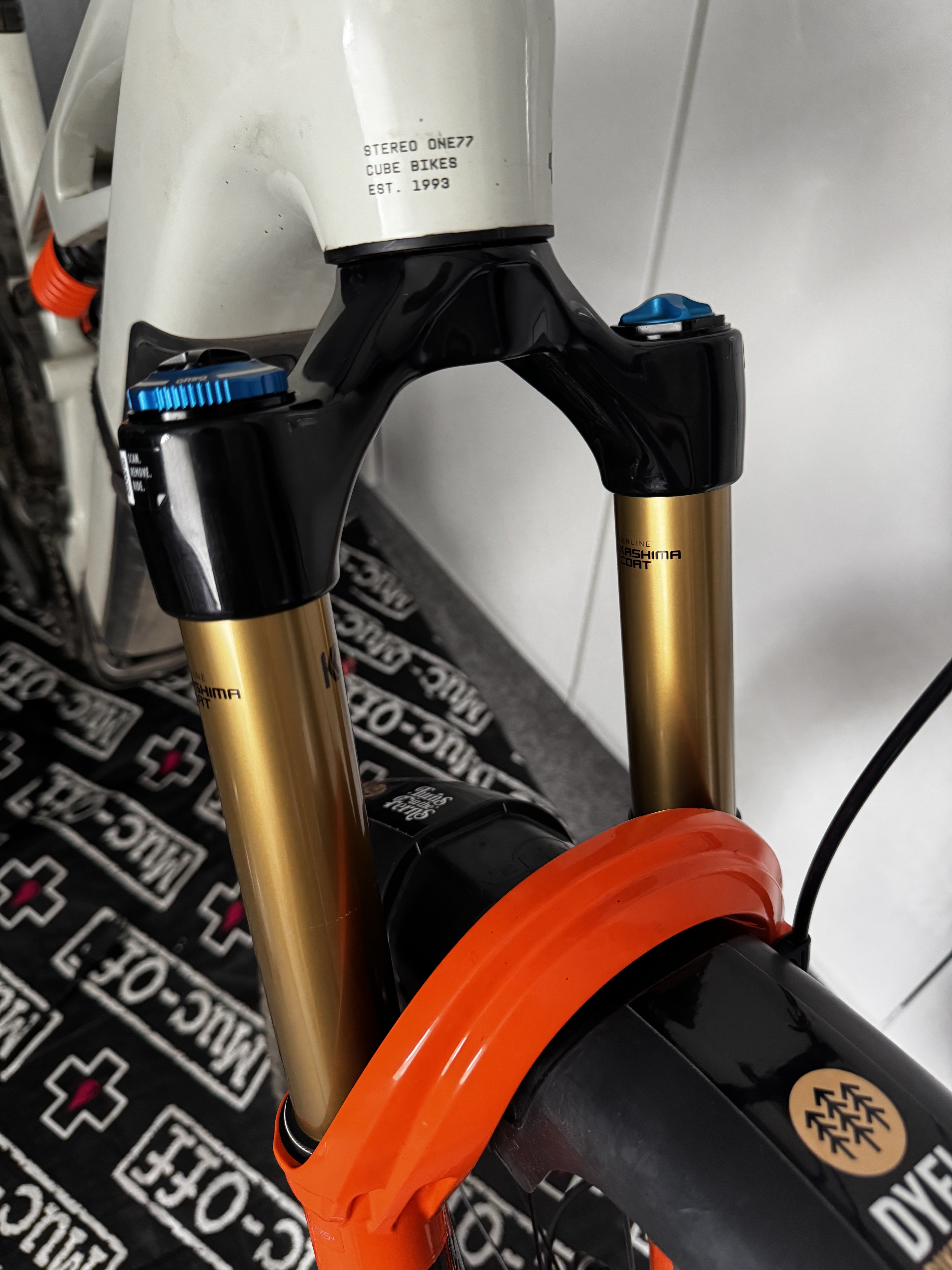

It needs a clean but the new to me fox suspension is on. Factory 38’s and dhx coil.



[Davvee]

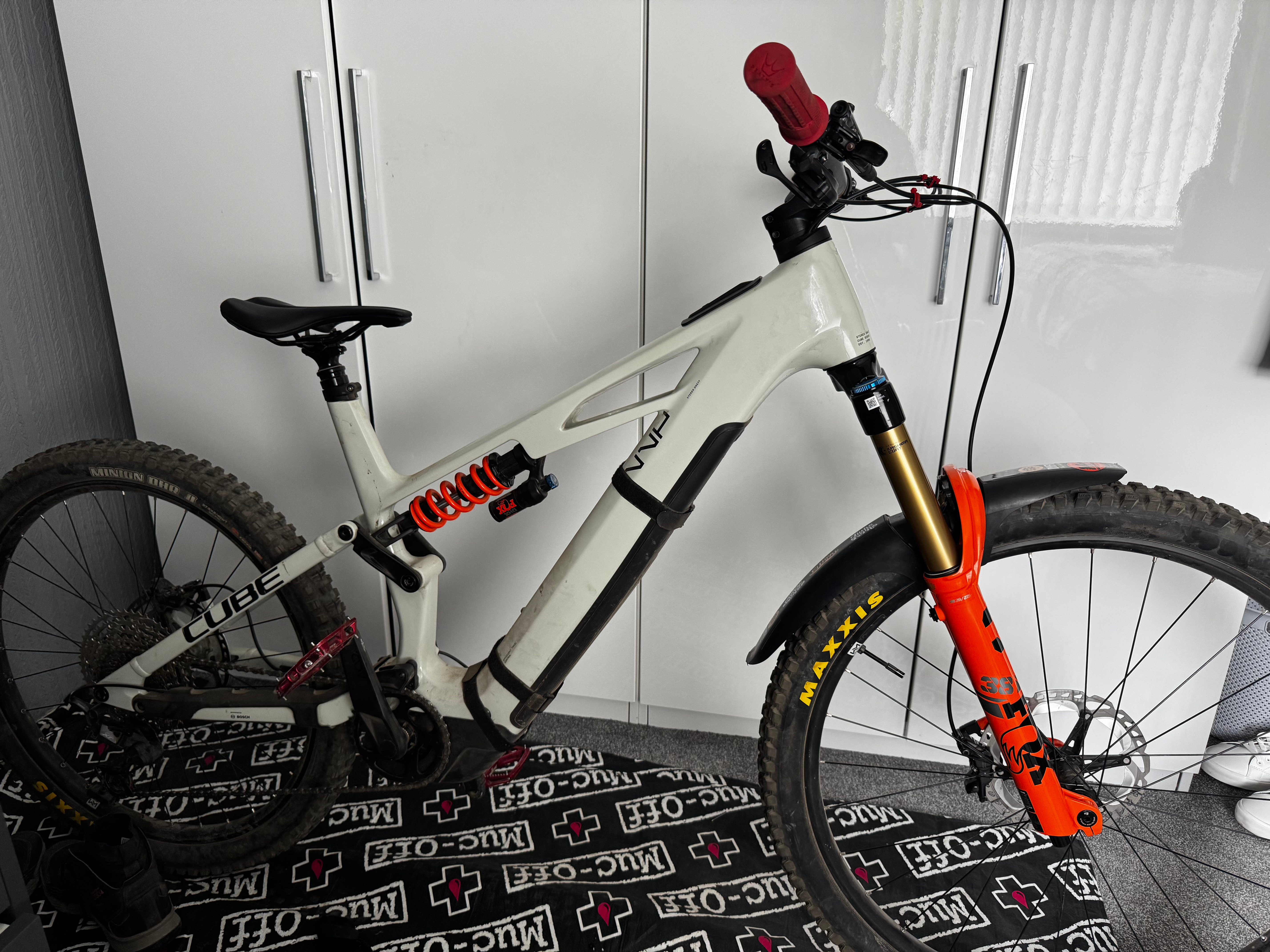

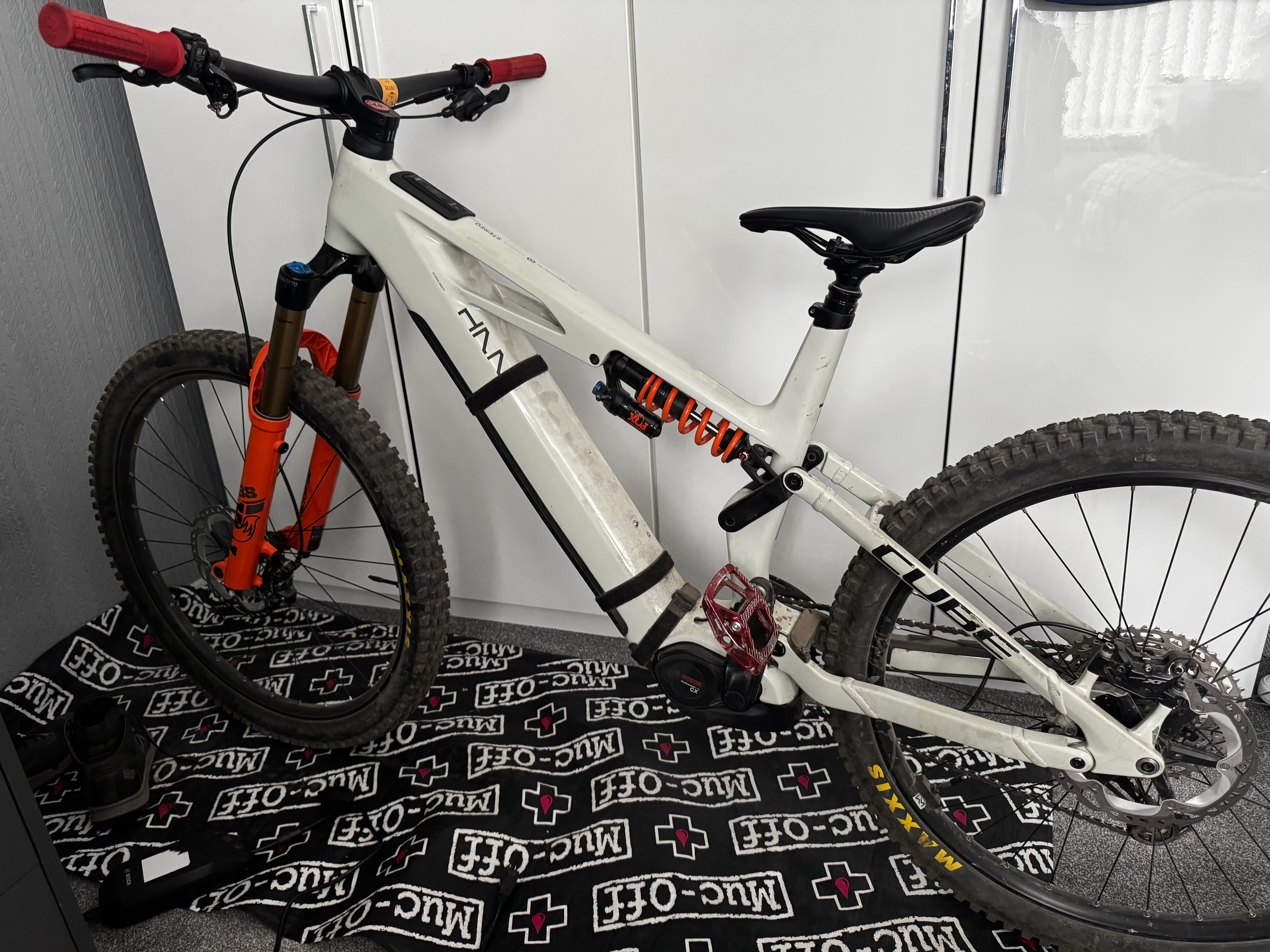

Well first ride on the new suspension and wow what a transformation. New orange Peatys grips and some black pedals and it’s done unless I find a cheap orange stem.



[Raptor]

Well first ride on the new suspension and wow what a transformation. New orange Peatys grips and some black pedals and it’s done unless I find a cheap orange stem.
View attachment 166494View attachment 166495View attachment 166496

what's made the biggest difference? The forks?



[Davvee]

The coil. Small bump on the fork is night and day better then the base 38’s. The bike feels so much more planted.



[FlashToBang]

unless I find a cheap orange stem.

Plus 35 Stem

SECURE CLAMPING THAT'S LIGHT AND STRONG FOR DIRECT CONNECTION AND CONTROL e*thirteen Plus 35 Stems are made from ultra-strong AL-7050-T7 alloy to reduce weight and designed with clamps that won't loosen, no mater how hard you ride. Our rider insight driven 132º opposing steerer clamp bolts...

ethirteen.uk

Is £35.99 cheap enough?



[Davvee]

Plus 35 Stem

SECURE CLAMPING THAT'S LIGHT AND STRONG FOR DIRECT CONNECTION AND CONTROL e*thirteen Plus 35 Stems are made from ultra-strong AL-7050-T7 alloy to reduce weight and designed with clamps that won't loosen, no mater how hard you ride. Our rider insight driven 132º opposing steerer clamp bolts...

ethirteen.uk

Is £35.99 cheap enough?

They look interesting.



[Raptor]

The coil. Small bump on the fork is night and day better then the base 38’s. The bike feels so much more planted.

Some food for thought whilst I'm off. Can't ride for 2 months now due to broken collarbone so plenty of time to look at upgrades. Need to check my one77s frame as it took a fair whack



[Davvee]

Some food for thought whilst I'm off. Can't ride for 2 months now due to broken collarbone so plenty of time to look at upgrades. Need to check my one77s frame as it took a fair whack

Ouch. Wish you a Speedy recovery. I’m off work for 2 weeks so going to try and get some riding in. Was on about going Cannock tomorrow but probably keep it local instead.



[kot-obormot]

Some food for thought whilst I'm off. Can't ride for 2 months now due to broken collarbone so plenty of time to look at upgrades. Need to check my one77s frame as it took a fair whack

Wish you a fast recovery man. I just removed the metal plate from my collarbone a week ago. Some advise -start the exercises as soon as possible, that will speedup your recovery.



[Raptor]

Ouch. Wish you a Speedy recovery. I’m off work for 2 weeks so going to try and get some riding in. Was on about going Cannock tomorrow but probably keep it local instead.

Cheers I've heard great things about Cannock especially for off-piste



[Raptor]

Wish you a fast recovery man. I just removed the metal plate from my collarbone a week ago. Some advise -start the exercises as soon as possible, that will speedup your recovery.

Yep it certainly hurts! How long until the bone healed approx?



[Andrew8200m]

Plus 35 Stem

SECURE CLAMPING THAT'S LIGHT AND STRONG FOR DIRECT CONNECTION AND CONTROL e*thirteen Plus 35 Stems are made from ultra-strong AL-7050-T7 alloy to reduce weight and designed with clamps that won't loosen, no mater how hard you ride. Our rider insight driven 132º opposing steerer clamp bolts...

ethirteen.uk

Is £35.99 cheap enough?

Loving yours I take it? (Presuming it was you who posted these a while back)



[FlashToBang]

Loving yours I take it?

Yes….. well, until I went in for my ACL reconstruction op and now I just have to love looking at it in the garage when I hobble in to grab another ice pack. I got the 40mm length version, which worked exactly as I’d hoped to slightly shorten the reach and hit the Goldilocks point, after I’d sized up to XL when I found the L just a bit too small for my liking. The 50mm length version matches the length of the Cube one fitted, but doesn’t have the rise that the Cube one does. Checking around £36 seemed to be at least half the price anywhere else were selling them for in the UK, so was a no brainer to me.



[Davvee]

Could I fit a Garmin 540 on it? I have to use a bar mount on the cube stem?



[FlashToBang]

Could I fit a Garmin 540 on it? I have to use a bar mount on the cube stem?

If you’re talking about one of those quarter turn Edge mount top cap thingys, I can’t see why not. The height of the top cap, plus the rising shape of the underside of the Edge units, should keep it clear of the stem clamps when twisting it into place.



[kot-obormot]

Yep it certainly hurts! How long until the bone healed approx?

I started some physical activity in 1 months, in 3 months went ski-touring, started biking in 5 months, went to a bike-park trip in 6, removed the metal in 8. Plan to start riding in about 2 weeks



[BeatM.]

Hi I am new here and ordered my first ebike (one77 SLT) which I did zero research on until now. I have a couple questions to ask if you could help me out.

Is the BB height really that bad ? I ride alot of steep tech and bike parks and don't want to be caught out while shifting.

I am 5'9 and ordered a medium which I my current bikes are.( nukeproof giga 297 and the new jekyll) I belive im very much in-between sizes. What's your experiences either way?

Sorry for all the questions, I dont really want a bike that I have to change parts on to make it safe.

Thanks Paul

my Stereo 160 in size L had pedal strikes

I ordered the M and will add 150 mm cranks >>> Why?:

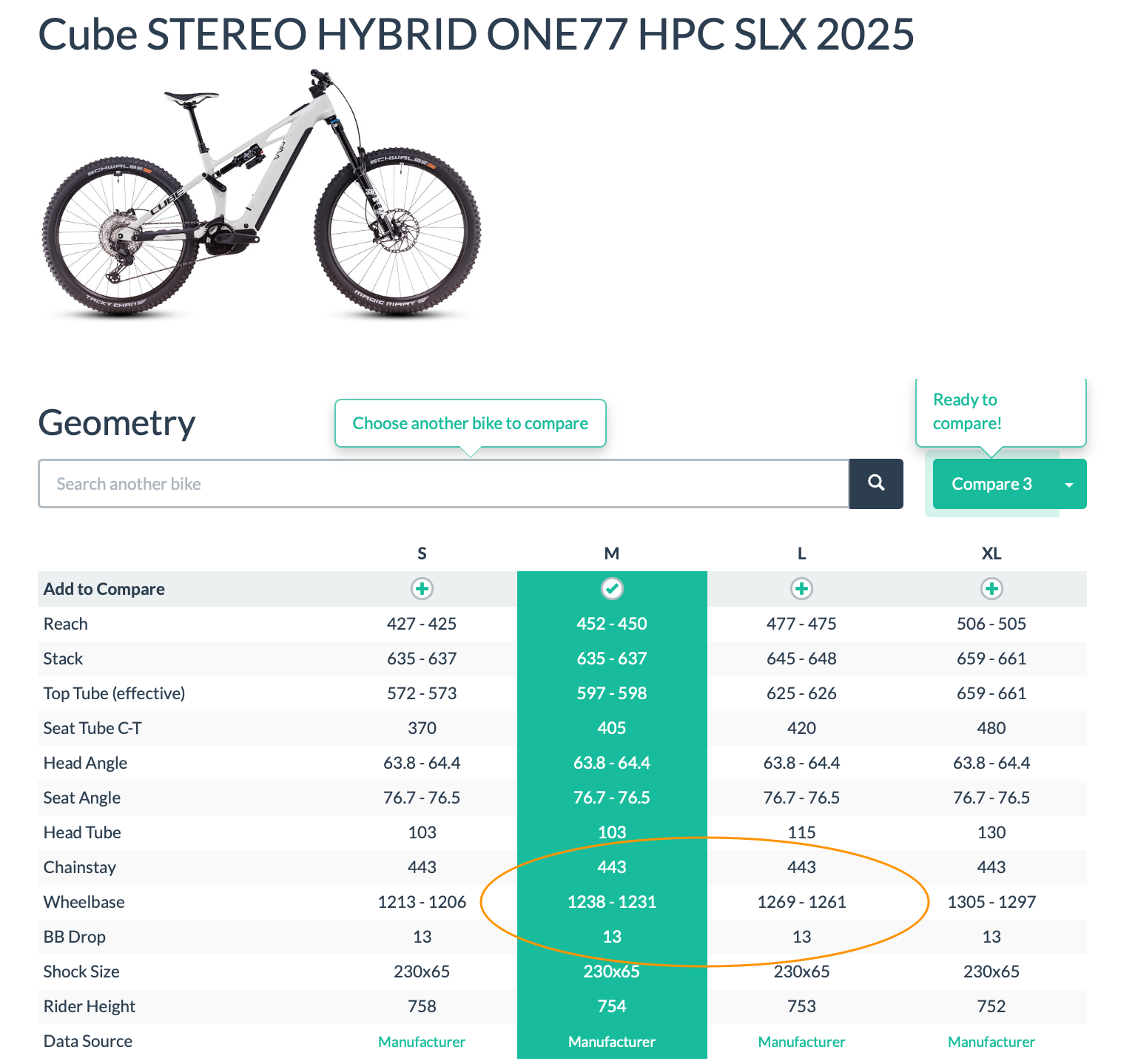

look at the table attached .. The M wheelbase is 30 mm shorter and the same components >> this should result in a bit more lee way.
