BESST tool PRO

Sheff73

Active member
Feb 13, 2021
98
82
UK
Evening all.
I have received an FC2.0 controller from Chili Shen but it has firmware MMG522C3615F801015.0 uploaded. This is no good to me as I run a 52V battery hence get an error 07 code even when my battery is empty (firmware looks to be 36V). I'm looking to download a 48V firmware but no matter which version of BESST 'standard' or 'pro' version I use, I cannot read the serial number of the controller and hence cannot update the firmware :rolleyes:. Any ideas???? I've tried MANY times to read and adding 'CR' into the serial number box but still no success... Ta.

Last edited:

Dado

Active member
Jun 28, 2022
600
415
Bratislava
Evening all.
I have received an FC2.0 controller from Chili Shen but it has firmware MMG522C3615F801015.0 uploaded. This is no good to me as I run a 52V battery hence get an error 07 code even when my battery is empty (firmware looks to be 36V). I'm looking to download a 48V firmware but no matter which version of BESST 'standard' or 'pro' version I use, I cannot read the serial number of the controller and hence cannot update the firmware :rolleyes:. Any ideas???? I've tried MANY times to read and adding 'CR' into the serial number box but still no success... Ta.

Hello. Try to rename to bin. ;)))

That is strange, you can not read even serial number over Besst.
Yes, firmware looks new - v15.0
There could be then also new for 48V

You need 48V firmware definitelly. ;)


Jeromep

Member
Mar 17, 2022
31
7
Florida
looks weird, never happened with all bafang motor i had. Try using old besst
I just downloaded Besst Pro for Mac. It seemed to install ok and I have the Besst Pro icon showing just fine. When I double click it does nothing …. Are you suggesting Python for Mac needs to be installed also ??? That is referenced nowhere in the Bafang Besst Pro manual.


Dado

Active member
Jun 28, 2022
600
415
Bratislava
I just downloaded Besst Pro for Mac. It seemed to install ok and I have the Besst Pro icon showing just fine. When I double click it does nothing …. Are you suggesting Python for Mac needs to be installed also ??? That is referenced nowhere in the Bafang Besst Pro manual.

No need python. You should get at least to login screen. Till then python wont help.


temon10

Well-known member
Feb 8, 2022
660
536
Malang, Indonesia
I just downloaded Besst Pro for Mac. It seemed to install ok and I have the Besst Pro icon showing just fine. When I double click it does nothing …. Are you suggesting Python for Mac needs to be installed also ??? That is referenced nowhere in the Bafang Besst Pro manual.
prefer windows version


Sheff73

Active member
Feb 13, 2021
98
82
UK
Hello. Try to rename to bin. ;)))

That is strange, you can not read even serial number over Besst.
Yes, firmware looks new - v15.0
There could be then also new for 48V

You need 48V firmware definitelly. ;)
Thanks @Dado (y)
I've managed to update the firmware to the 48V 10.1 version but with BESST (version 2.0.2) tool I still cannot read the serial number of the controller... Do you have a link to the latest version of the BESST Pro? or do I have the latest already? Ta.


Dado

Active member
Jun 28, 2022
600
415
Bratislava
Thanks @Dado (y)
I've managed to update the firmware to the 48V 10.1 version but with BESST (version 2.0.2) tool I still cannot read the serial number of the controller... Do you have a link to the latest version of the BESST Pro? or do I have the latest already? Ta.

Just saw there is v15.0 for 36V. So guess will be also new version for 48V. If somebody has new firmware for 48V, pls. share.

Latest Besst aplication to be downloaded from Bafang page.


Sheff73

Active member
Feb 13, 2021
98
82
UK
Just saw there is v15.0 for 36V. So guess will be also new version for 48V. If somebody has new firmware for 48V, pls. share.

Latest Besst aplication to be downloaded from Bafang page.
and if we can request a 52V version from Bafang 😁


Dado

Active member
Jun 28, 2022
600
415
Bratislava
They would probably refuse. But they can do it, it is only to set cut off voltage and battery percentage.
Have one firmware with 52V, for M600 if I remember right.


thaeber

Well-known member
Jan 26, 2021
878
766
Bruchsal, Germany
Thanks @Dado (y)
I've managed to update the firmware to the 48V 10.1 version but with BESST (version 2.0.2) tool I still cannot read the serial number of the controller... Do you have a link to the latest version of the BESST Pro? or do I have the latest already? Ta.
Did You check battery attenuation allready? When does Power reduction start?


Dado

Active member
Jun 28, 2022
600
415
Bratislava

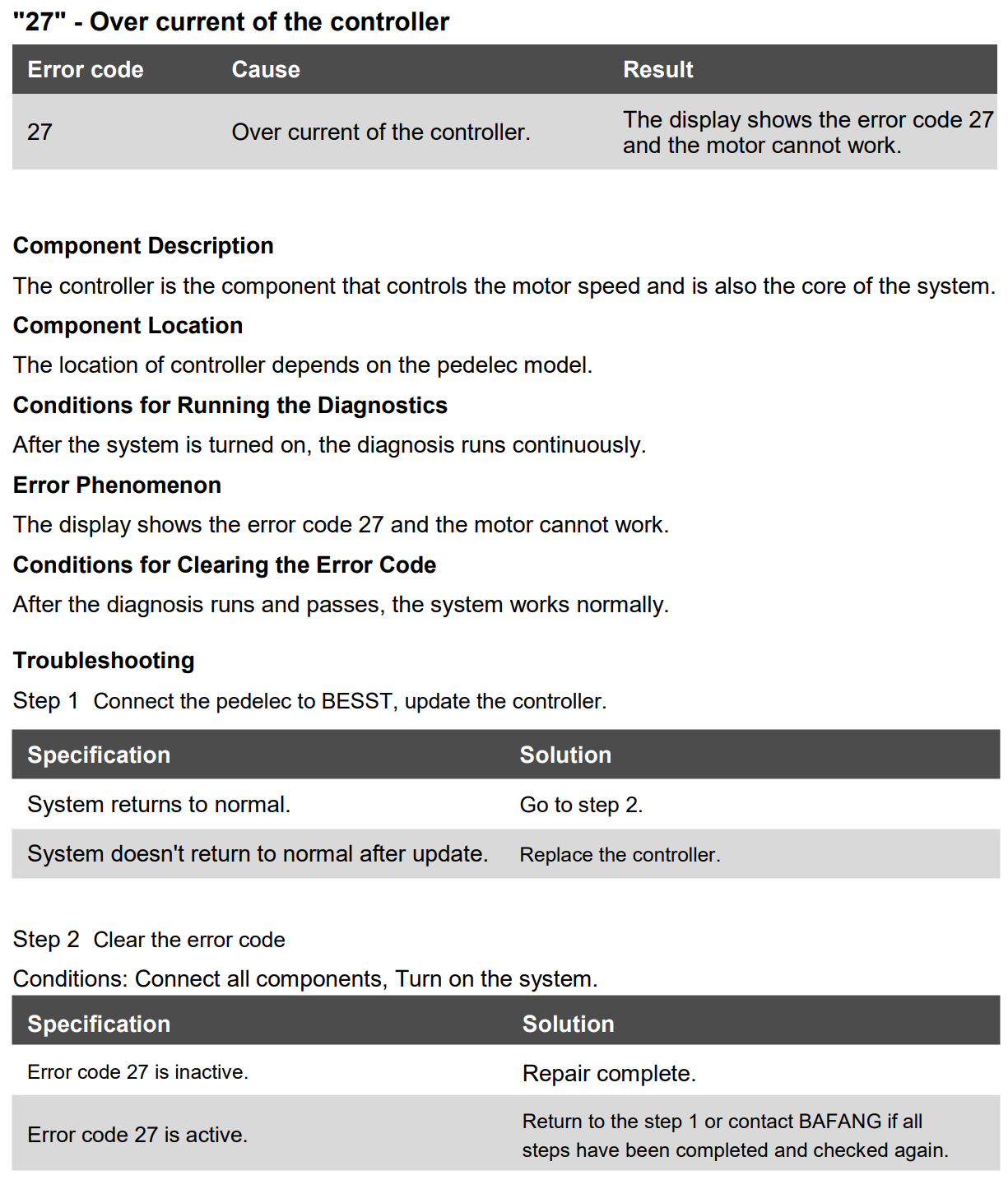

Guys, somebody has experience, how to Run Diagnose and clear the errors?
I run into 27 error (new M600), error remains also after power on/off. This is not OK if you can put back motor into function only by connecting to BESST. Also similar on M510 FC2.0, overvoltage error and did remain.



Sheff73

Active member
Feb 13, 2021
98
82
UK
Guys, somebody has experience, how to Run Diagnose and clear the errors?
I run into 27 error (new M600), error remains also after power on/off. This is not OK if you can put back motor into function only by connecting to BESST. Also similar on M510 FC2.0, overvoltage error and did remain.

View attachment 123532
@Dado Have you tried removing the battery rather than just switching the system off?


Karamba!

Member
May 29, 2023
81
28
Santiago, Chile
Can someone point out the differences or improvements that the 48v 10.1 firmware brings over the 6.1 that came with my FC2.0?
Although my testing has been limited, so far the things I don't like about 6.1 are basically:
  • sometimes the controller has restarted on me several times, although seldomly enough to not make it annoying. This happens particularly but not exclusively when in walking mode.
  • Lights turn on randomly, even from the moment of switching on the controller, dimming the screen, in circumstances that I have not installed any. This affects the screen readability on direct sunlight.
  • The walk mode is too slow. I have tried switching to the fastest gear and it´s slightly better. But changing gears when standing next to the bike, fighting to not roll down the hill on a steep climb that you have failed to complete, kind of defeats the purpose, doesn´t it?
  • It seems bureaucratic to me, to have to select the waking mode and then long press the button for it to work. IMHO one should only have to long press the button at any PAS level, for it to switch automatically to walking mode. Then long press again for activating its assistance. Better off: once one is in WM, double or triple clicking the button should lock the assistance on, so that we don´t have to keep the damn button pressed, which can get really tiresome.

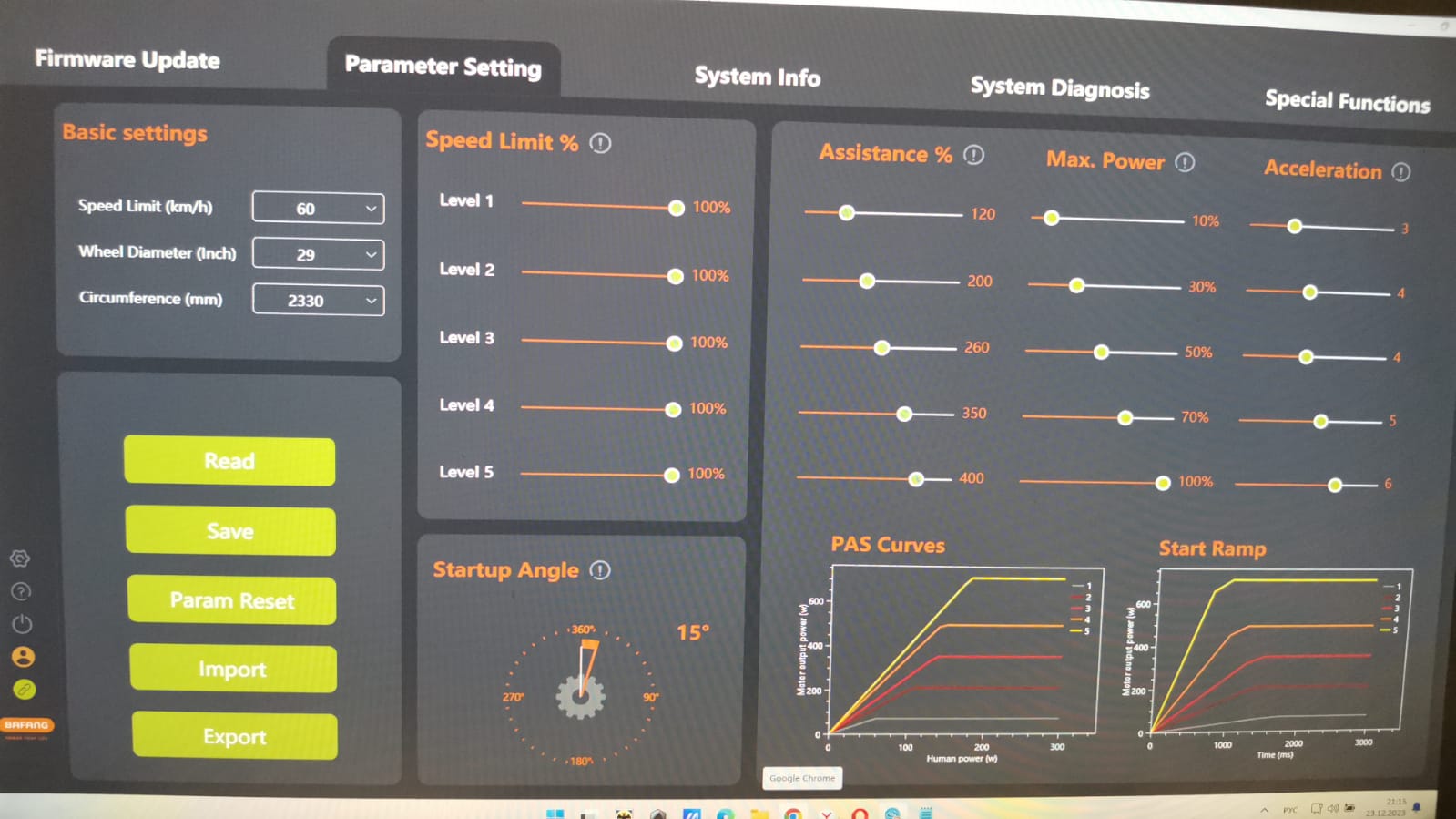

I cannot speak about performance in terms of numbers, but so far I'm liking how the motor behaves and sounds. I fine tuned it through Besst Pro as the Eco mode was too strong for my liking.
I need more testing in rougher conditions to make a better assessment though.


Karamba!

Member
May 29, 2023
81
28
Santiago, Chile
That WM. It is only on push of button due to safety.
I do understand where it comes from. It´s just that IMO, the risk of rolling downhill with a 24 kg bike far outweighs the risk of having an inconvenience in case you accidentally turn on an "always on" walk assistance.


Zimmerframe

MUPPET
Subscriber
Jun 12, 2019
13,883
20,574
Brittany, France
I do understand where it comes from. It´s just that IMO, the risk of rolling downhill with a 24 kg bike far outweighs the risk of having an inconvenience in case you accidentally turn on an "always on" walk assistance.
It is a stupid system.

The Bosch Gen4 has it too.. cycle to walk .. press, hold .. hope it stays on and it won't and will normally suddenly stop just when you're at a point where you don't need 25kg's of bike to drag you off the edge of a cliff.

It's far simpler to just long press and hold "-" and viola WALK mode .. when you need it, without negotiation.

How many people have been caught out by a bike suddenly shooting off like a snail and facing imminent death ?

If they have, they're the same people who would have somehow pressed the button once on 10 times anyway so it's already in snail death mode.


Karamba!

Member
May 29, 2023
81
28
Santiago, Chile
It is a stupid system.

The Bosch Gen4 has it too.. cycle to walk .. press, hold .. hope it stays on and it won't and will normally suddenly stop just when you're at a point where you don't need 25kg's of bike to drag you off the edge of a cliff.

It's far simpler to just long press and hold "-" and viola WALK mode .. when you need it, without negotiation.

How many people have been caught out by a bike suddenly shooting off like a snail and facing imminent death ?

If they have, they're the same people who would have somehow pressed the button once on 10 times anyway so it's already in snail death mode.
Yeah, I forgot to report that. Indeed, the walking assistance does stop without reason in the middle of the push. The whole walking mode needs a complete revision


PitcairN

New Member
Aug 5, 2023
44
26
Slovakia

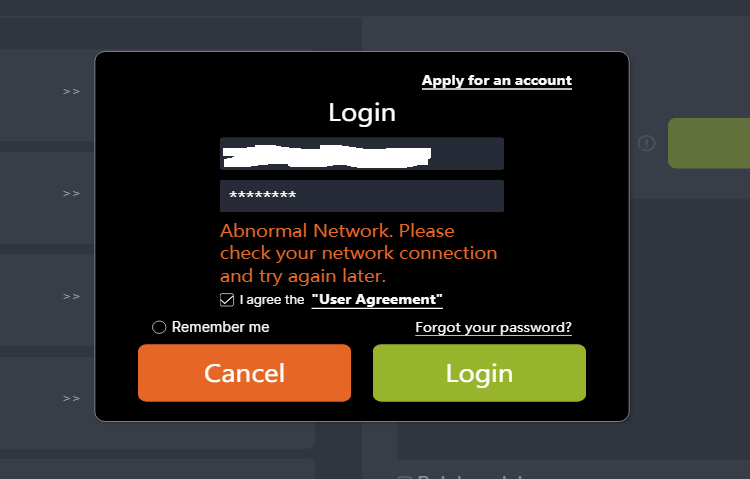

Guys i can't log into Besst Pro with my vanilla best account, python script doesn't work here as well. Is there some different py script just for Pro?


Zimmerframe

MUPPET
Subscriber
Jun 12, 2019
13,883
20,574
Brittany, France
Guys i can't log into Besst Pro with my vanilla best account, python script doesn't work here as well. Is there some different py script just for Pro?
Have you done everything like here:



patdam

Well-known member
Jan 17, 2019
820
562
france
Take care. An new revision (2.0.8) download automatically if you accept. this revision don't work with my M820 :cry:
Finally today after riding this software function and i can adjust the parameters 👍

Last edited:
