Levo Gen 3 Suspension and Coil shocks for Gen 3 - Fox 38 vs Zeb

[Christox]

Hi !

How many % sag are you running with the coil in the levo ?
I'm at planning the spring rate for my TTX22M which comes in this week.
With air i'm good at 28-30%. In theory i think the linear coil could need a few % less ?

Greets,

Chris



[Cb750stu]

Hi anybody heard any reports about one of these on a levo , I have one on my 21 Orbea Wild FS H10 with a cane creek progressive spring and I think it's a great little shock especially for less than half the price of a EXT , ohlins etc , I'd be fitting it to my 22 Levo pro
Regards Stuart



[Baron]

Hi !

How many % sag are you running with the coil in the levo ?
I'm at planning the spring rate for my TTX22M which comes in this week.
With air i'm good at 28-30%. In theory i think the linear coil could need a few % less ?

Greets,

Chris

I think the sweet spot is 27%. I’m aiming for that when I get mine later this week.



[beutelfuchs]

Hi anybody heard any reports about one of these on a levo

They tend to break with the long yokes on the Levo/Kenevo, same as the other Fox/RS shocks.



[Cb750stu]

They tend to break with the long yokes on the Levo/Kenevo, same as the other Fox/RS shocks.

I'll see if I can find some info about issues folk have had with that particular shock



[Gutch]

I don’t think fox shocks are approved with Specialized.



[ruppia]

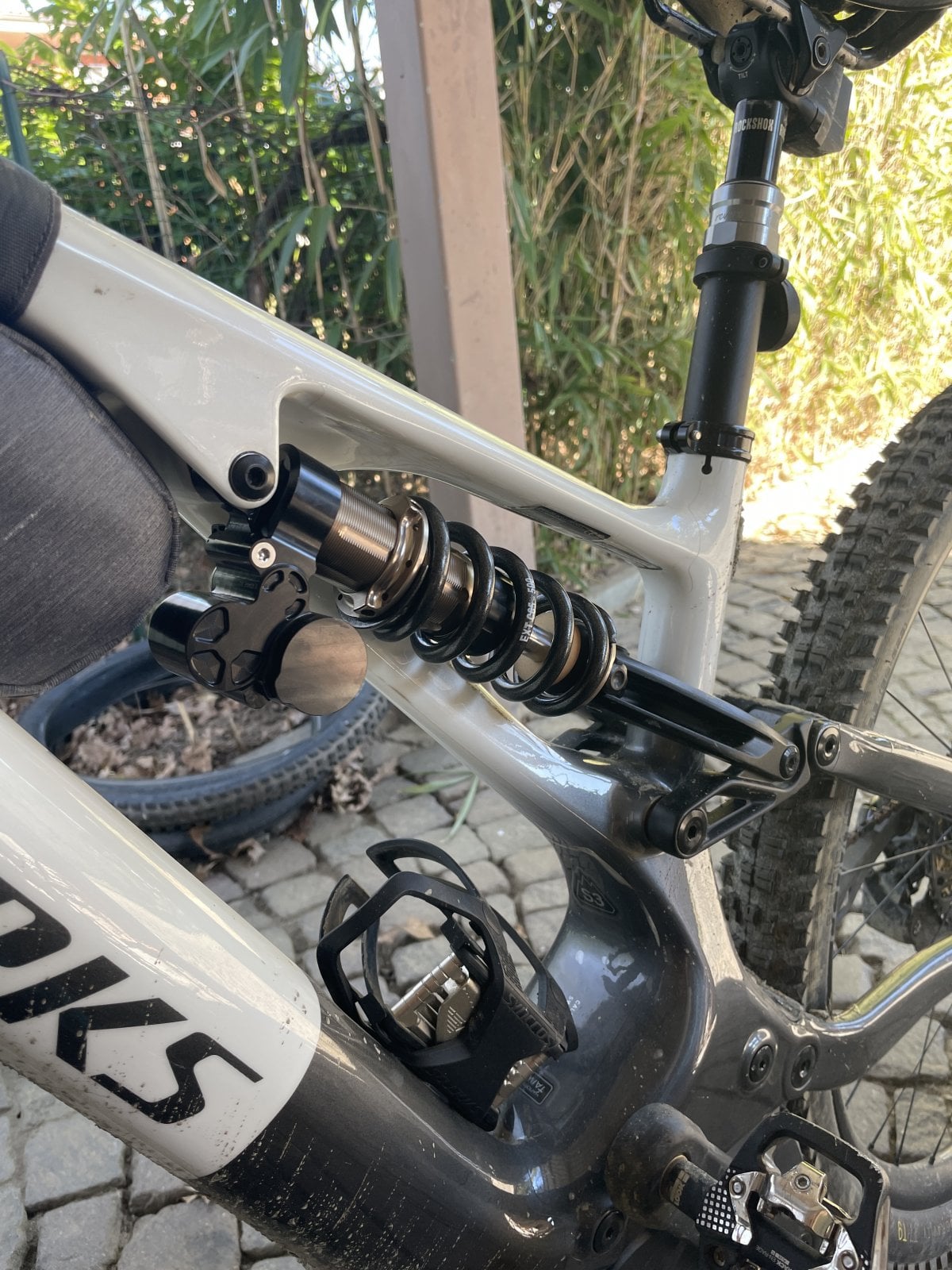

Hy guys, mount today new E-storia instead of Cane Creek

Really a great piece of italian arts



[Barbs734]

Anyone ordered the Cascade Components Long Shock Kit? If so what shock are you planning on using with it, air or coil?



[Cb750stu]

Hy guys, mount today new E-storia instead of Cane Creek

Really a great piece of italian arts

View attachment 81693

View attachment 81694

It's a thing of beauty is the lever switch easy to access it looks like it's in a awkward place to access or maybe just the pic ??



[Mike640]

Anyone ordered the Cascade Components Long Shock Kit? If so what shock are you planning on using with it, air or coil?

Im planning to use a RS Super Deluxe, because is simple, reliable and it works! I have one on my Nomad and have never changed it, because it works fantastically well. Unlike the "obvious" Fox X2 that spends all the time being repaired... I also like the coil ones, but on a Ebike, i think it takes a little of "poppiness" of the bike..



[maramouse]

Anyone ordered the Cascade Components Long Shock Kit? If so what shock are you planning on using with it, air or coil?

i ordered it, my first idea was to buy another fox x2, but a friend, took apart a 2020 dhx2 from a yeti sb165 and decided to get it.



[Eduardoramundo]

Hi anybody heard any reports about one of these on a levo , I have one on my 21 Orbea Wild FS H10 with a cane creek progressive spring and I think it's a great little shock especially for less than half the price of a EXT , ohlins etc , I'd be fitting it to my 22 Levo pro
Regards Stuart

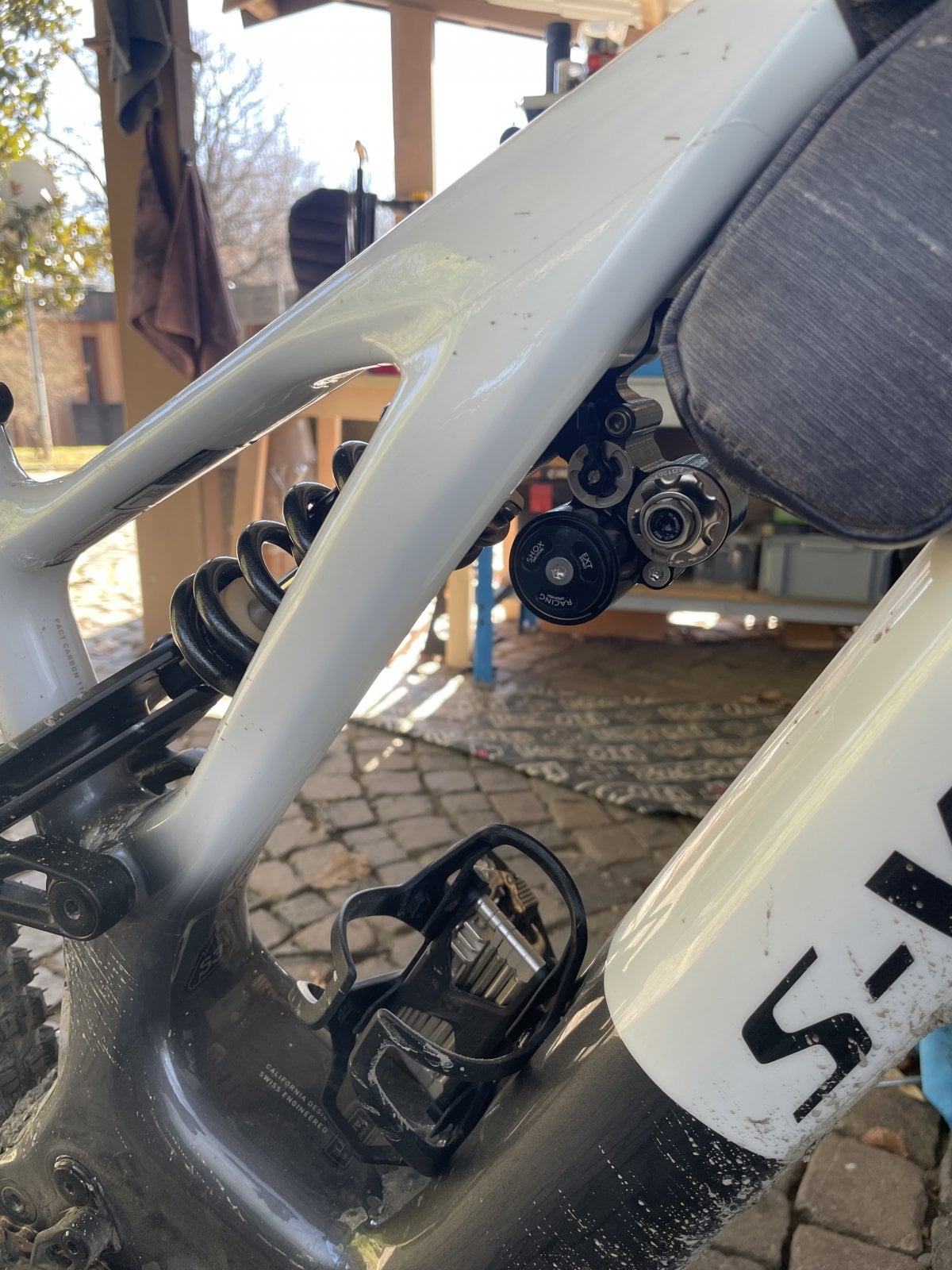

View attachment 81624

Don’t do it.

Information on

www.ridefox.com



[ruppia]

It's a thing of beauty is the lever switch easy to access it looks like it's in a awkward place to access or maybe just the pic ??

Yes, not so obvious to find and move, my old ammo had the lever in the other side.
But i need to try and tell you. The lever had free space to move without any issue



[bowser]

Hy guys, mount today new E-storia instead of Cane Creek

Really a great piece of italian arts

View attachment 81693

View attachment 81694

Mine hopefully arrives tomorrow. What weight and rate spring did you go?



[ruppia]

72 kgs

Mine hopefully arrives tomorrow. What weight and rate spring did you go?

I'm 72 kg and fitted a 500lbs spring. The spare is 550lbs. Sag seem perfect to 30% with 500lbs



[whwv]

Anyone running a Push 11-6, besides me? Push claims the Levo is their most popular model.

Been running a Push 11.6 since January on my Gen 3. Love it.



[Gutch]

Been running a Push 11.6 since January on my Gen 3. Love it.

Me 2! Very nice and dialed



[Christox]

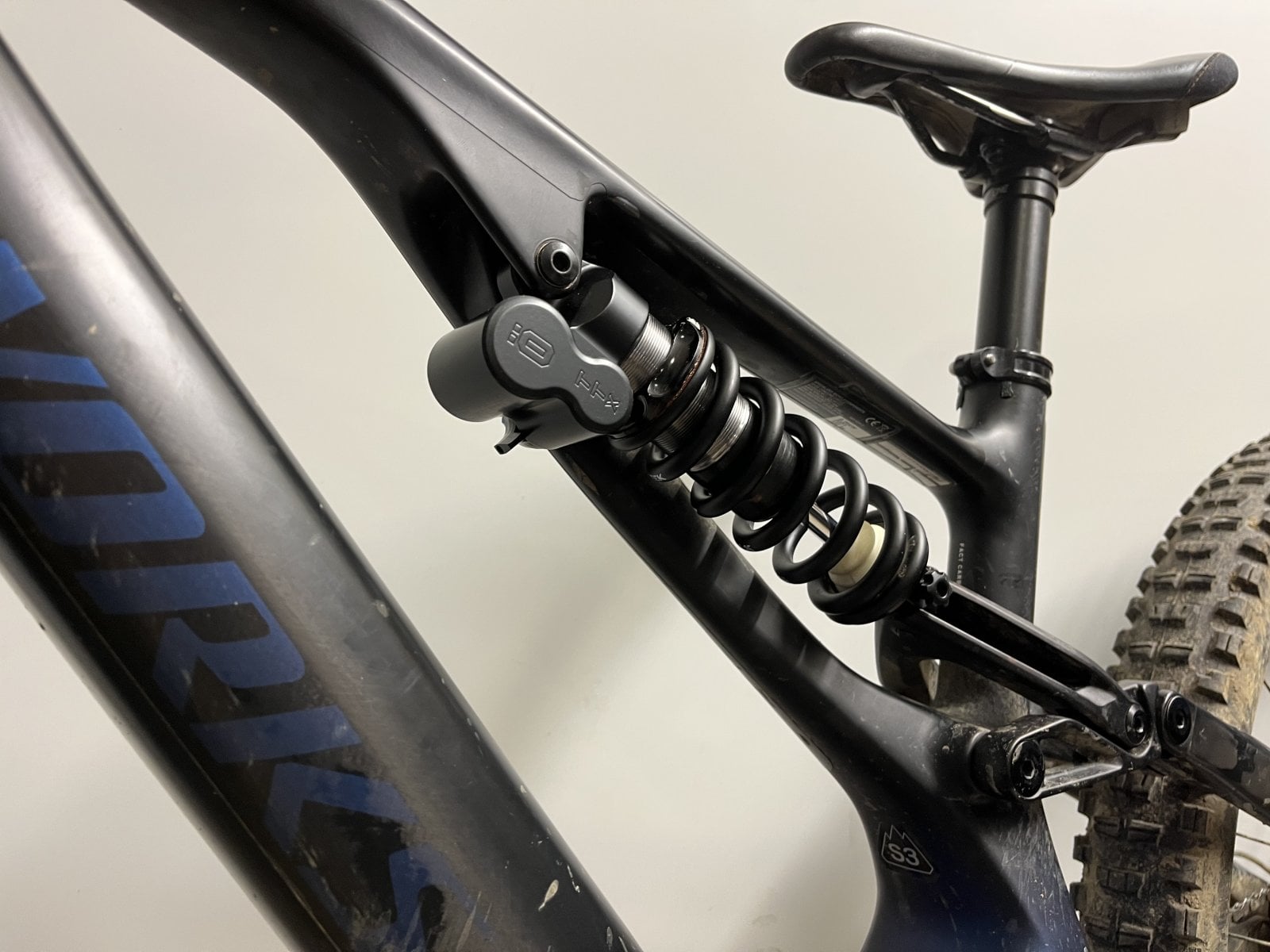

Finally:

Rides very good and still poppy enough in the Levo

I ended with at 28mm sag, 550lbs spring.
87Kg rider weight inkl. gear.

Best regards,

Chris



[Mike640]

Finally:

View attachment 81908

Rides very good and still poppy enough in the Levo

I ended with at 28mm sag, 550lbs spring.
87Kg rider weight inkl. gear.

Best regards,

Chris

You have change the size of the shock correct?



[Christox]

No, that was my wish. But unfortunately the inch-sized Öhlins have 6mm less travel then specified and that without the bumper...

So i had to send back the 222x70mm which had effectively 60-63mm.
I also have measured a 216x63mm to 57mm.

So i took a 210x55 which has 52.5mm with bumper fully compressed.

Here the "70mm" TTX22M:



[NotSoSikMik]

In case anyone in the U.S. was thinking about an EXT shock we just got in an order of 210x55mm e-Storias. Many were pre-ordered but we still have a few available.



[Spagnol]

Finally:

View attachment 81908

Rides very good and still poppy enough in the Levo

I ended with at 28mm sag, 550lbs spring.
87Kg rider weight inkl. gear.

Best regards,

Chris

28 mm or 28 % ?



[Christox]

sorry, of course i meant 28%



[Spagnol]

sorry, of course i meant 28%

I was worried because 28mm is almost 50% sag



[ruppia]

EXT E-Storia Rocks gentleman.

Yesterday i did 10 minutes DH and was really great feeling

Before Cane Creek Kitsuma Coil, nothing compared



[bowser]

My E-storia showed up today, documentation is terrible as is the location of the LOK lever...
Any other users have baseline clicker or bottom out settings?



[James_MTB]

Just after some advice, please.

I've got a TTX22M 210x52.5 from my 2018 Levo.

Do you think it's worth changing it to 210x55 for a 2021 Levo?



[ruppia]

My E-storia showed up today, documentation is terrible as is the location of the LOK lever...
Any other users have baseline clicker or bottom out settings?

For manuals you can find it here:
e-Storia_User_Manual_1.1.pdf (extremeshox.com).

You are right, documentation on the box was nearly nothing.
Location of the LOK lever is terrible yes, but after a few km you can easily find it and use it.

For me the performance are so great that this issue are bearable



[bowser]

For manuals you can find it here:
e-Storia_User_Manual_1.1.pdf (extremeshox.com).

You are right, documentation on the box was nearly nothing.
Location of the LOK lever is terrible yes, but after a few km you can easily find it and use it.

For me the performance are so great that this issue are bearable

Does your LOK lever actually do much? I expected a full lock out
700 spring yields 25% sag for me. First ride tomorrow



[NotSoSikMik]

Does your LOK lever actually do much? I expected a full lock out
700 spring yields 25% sag for me. First ride tomorrow

The Lok circuit is on its own shim stack that can be independently tuned. So it is definitely possible to have it full lock out. Very few people have actually requested this though and none were using the damper on an e-bike from what I can recall. We do have people from time to time ask for the Lok circuit to be softened up a bit to use as a flow/jump trail setting. I am curious how frequently people here use the Lok lever/ Climb switch in their normal riding if at all. With the added torque of a motor it seems in a lot of climbing situations it may be preferable to have the additional traction by just leaving it open. But I can definitely see the benefit for people who do a lot of fire or paved road grinding.
