Replacement 12 speed cassette advice

Legendof1973

Member
Jul 9, 2020
22
4
Scotland
My Wild FS M10 is needing a new 12 speed cassette. I have DT Swiss H-1900 Spline 30c TLR, Boost wheels with a Sun Race CSMZ80 11-51t, 12-Speed cassette at present. Finding a cassette is a nightmare but I can get a Shimano 12 speed 11-51T but will need a DT Swiss Shimano micro spleen 3 pawl freehub, I think.
Can anyone point me in the right direction of the correct freehub and is it just a case of sticking a Shimano Deore, SLX or XT 12spd cassette on there, or do I need anything else? Do I need a hybrid freehub?

Similarly, can I just put another 12sp cassette on instead of changing the freehub? If so, anything else apart from a Sunrace that will work with my current XT 12speed derailleur at present.

Thanks


Legendof1973

Member
Jul 9, 2020
22
4
Scotland

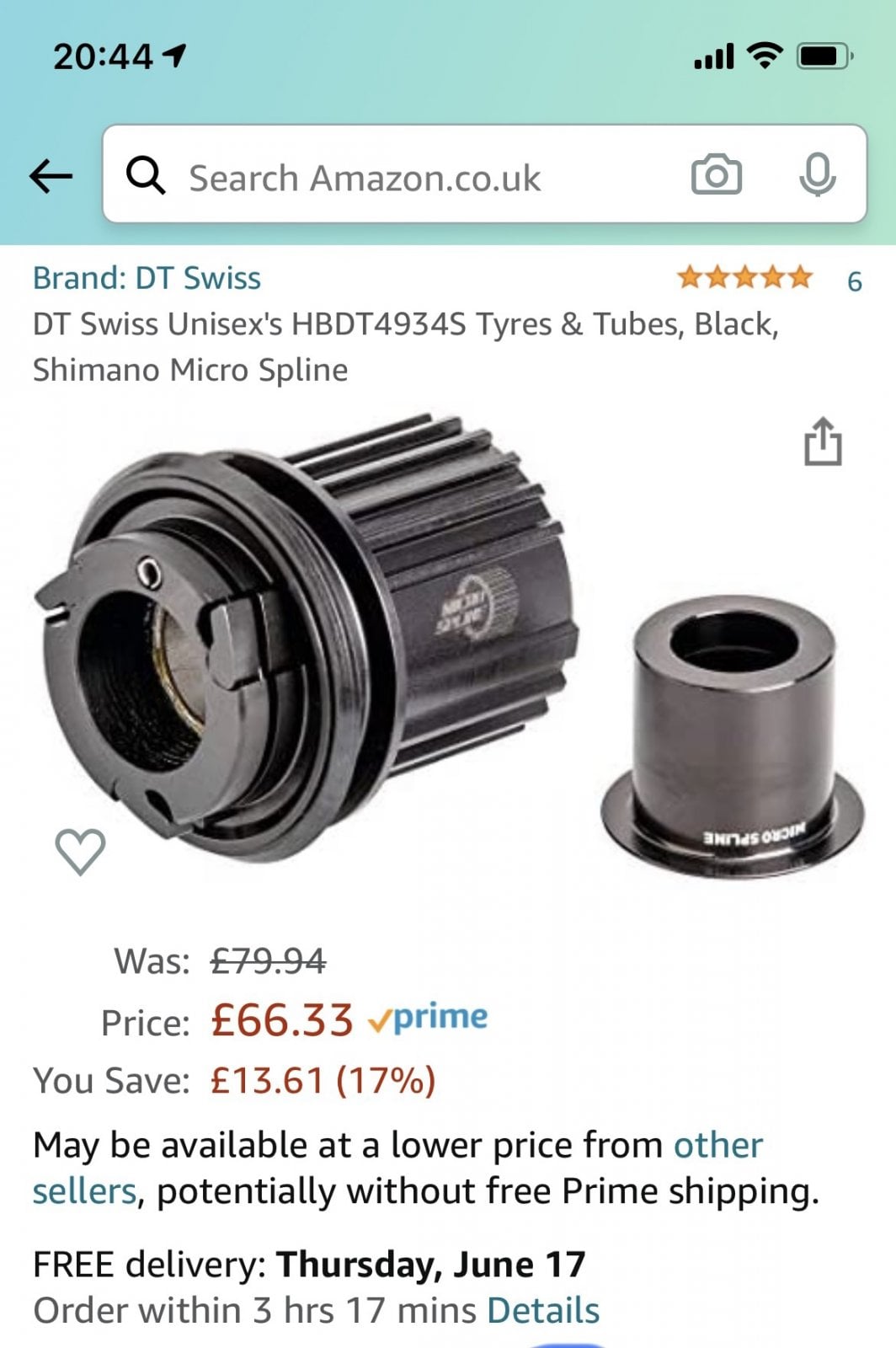

Looks like this. Came standard on the bike.



Doomanic

🛠️Wrecker🛠️
Patreon
Founding Member
Jan 21, 2018
8,746
10,442
UK
That's an HG freehub. If you can find one, a SRAM NX 12 speed cassette will fit.


Gyre

Well-known member
Jan 25, 2021
630
422
Pasadena, CA
That's HG. Not many 12-speed choices there that I know of if you don't want to stick with SunRace and don't want to change freehubs.

Garbaruk makes a 12-speed HG casssette that's supposed to be pretty good, but it's likely more than you're keen to spend.


Legendof1973

Member
Jul 9, 2020
22
4
Scotland
I’m open to options, but what freehub is required to change to Shimano as I’ve been told a DT Swiss Shimano micro spline but should it be a hybrid for the ebike?


Gyre

Well-known member
Jan 25, 2021
630
422
Pasadena, CA
I’m open to options, but what freehub is required to change to Shimano as I’ve been told a DT Swiss Shimano micro spline but should it be a hybrid for the ebike?
DT Swiss uses the "hybrid" label for anything specifically meant for e-bikes. Whether they have a separate part number for "hybrid" and regular MS freehubs, you'd need to do some research.

@Jackware and @Doomanic have pointed out the NX cassette. That might be a really good option to keep costs under control and avoid messing with freehub changes.


Doomanic

🛠️Wrecker🛠️
Patreon
Founding Member
Jan 21, 2018
8,746
10,442
UK
Yes. I use an NX cassette with an XT mech. It doesn't shift as cleanly as a Shimano cassette but it works fine.


Legendof1973

Member
Jul 9, 2020
22
4
Scotland

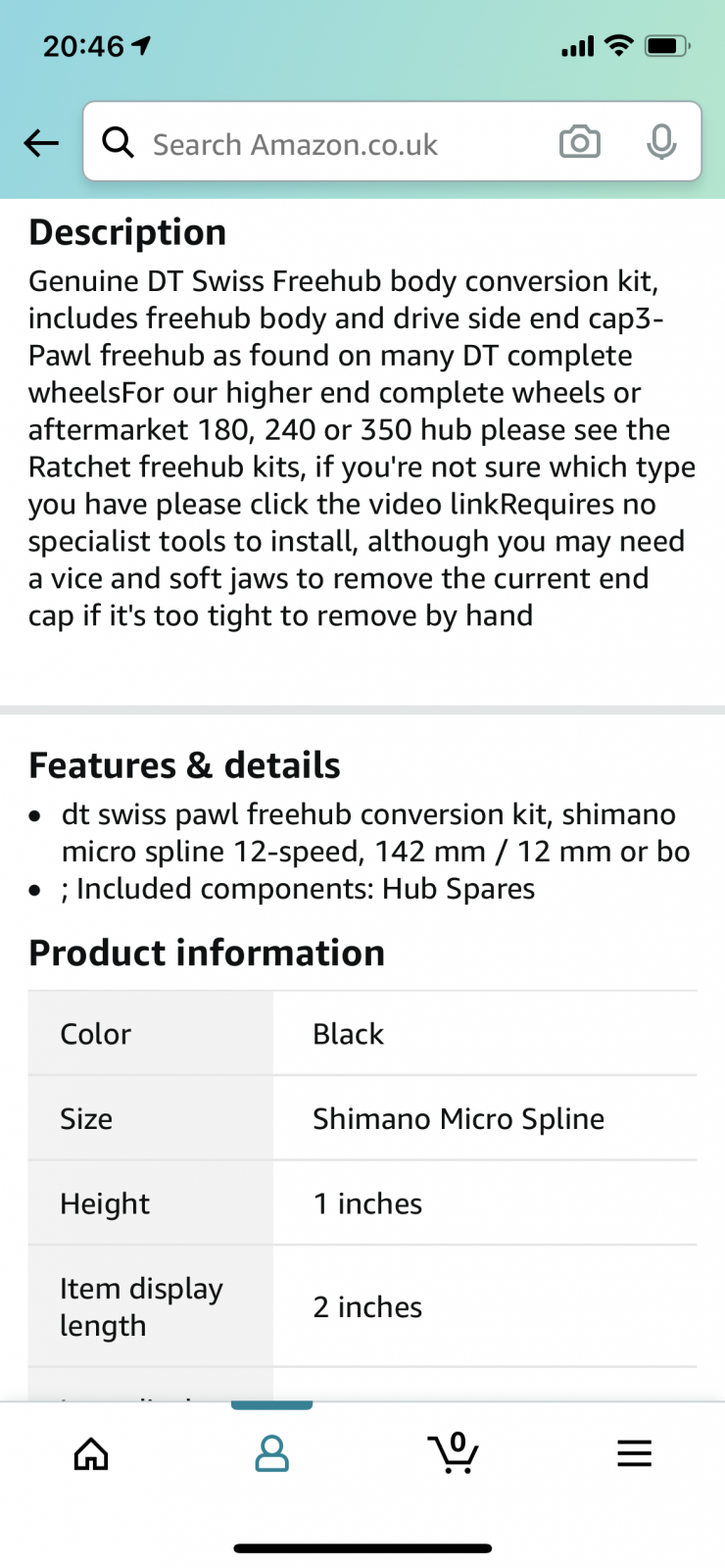

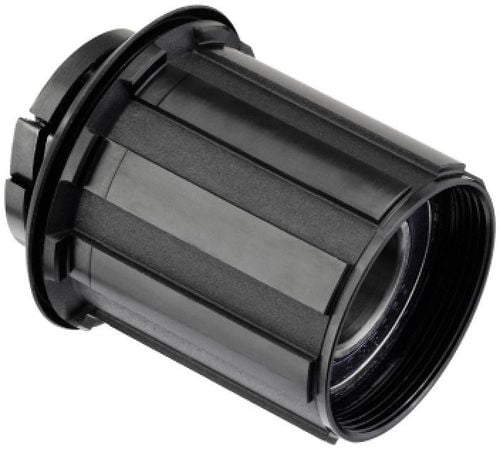

Ok, next issue is getting one? Let’s just say that I change to Shimano and change my Freehub. What one do I need? Is it this? Do I need a different end cap for boost wheels as is says 142mm ?





Gyre

Well-known member
Jan 25, 2021
630
422
Pasadena, CA
I'd suggest getting in touch with DT to make sure you're getting the right part number for your application. Amazon should be your last stop after you know the part number.


Mikerb

E*POWAH Elite World Champion
May 16, 2019
6,596
5,080
Weymouth
the description says 142/12mm OR Boost ( albeit most of the word boost is cut off).


Legendof1973

Member
Jul 9, 2020
22
4
Scotland
I'd suggest getting in touch with DT to make sure you're getting the right part number for your application. Amazon should be your last stop after you know the part number.

Thanks. Why would Amazon be the last stop if they are selling the correct part at a cheaper price?


Gyre

Well-known member
Jan 25, 2021
630
422
Pasadena, CA
Thanks. Why would Amazon be the last stop if they are selling the correct part at a cheaper price?
I wouldn't consider them a primary source for DT part numbers and information by a longshot. That said, if you're sure that's the correct part number for your application, then go for it.


bluerich

Member
Jan 17, 2021
16
6
South Yorks
Not sure where you live, but Shimano micro spline cassettes are like hens teeth and full rrp in the uk. So you would be looking at £150 ish minimum. I have nx on a trail bike, just a load of stamped steel sprockets and plastic spacers but works. My Shimano cassette on my Wild lasted 500 miles.


bluerich

Member
Jan 17, 2021
16
6
South Yorks
You could drop an 11 speed on, and adjust upper limit screw to stop final change (Drop over the back of cassette). Worked ok until 3 cassettes arrived from Italy (took best part or three months!!)


Mikerb

E*POWAH Elite World Champion
May 16, 2019
6,596
5,080
Weymouth
Not sure what you mean. ?
you will see exactly the same description as the one you saw on Amazon, same picture etc on ebay and online bike shops. It is a DT Swiss kit. You will see on other ads it is described as suitable for 142 or boost which suggests the kit contains more than end cap.


Legendof1973

Member
Jul 9, 2020
22
4
Scotland
Not sure where you live, but Shimano micro spline cassettes are like hens teeth and full rrp in the uk. So you would be looking at £150 ish minimum. I have nx on a trail bike, just a load of stamped steel sprockets and plastic spacers but works. My Shimano cassette on my Wild lasted 500 miles.
Got one from Germany for £58. Even with VAT it will be cheaper. Got an SLX cassette from the UK. ?


Legendof1973

Member
Jul 9, 2020
22
4
Scotland
you will see exactly the same description as the one you saw on Amazon, same picture etc on ebay and online bike shops. It is a DT Swiss kit. You will see on other ads it is described as suitable for 142 or boost which suggests the kit contains more than end cap.
It’s says boost or 142, but I take it the boost is what I need?


Mikerb

E*POWAH Elite World Champion
May 16, 2019
6,596
5,080
Weymouth
DT Swiss uses the "hybrid" label for anything specifically meant for e-bikes. Whether they have a separate part number for "hybrid" and regular MS freehubs, you'd need to do some research.

@Jackware and @Doomanic have pointed out the NX cassette. That might be a really good option to keep costs under control and avoid messing with freehub changes.
DT Swiss describe all the freehub options for Hybrid are steel rather than ally.


Mikerb

E*POWAH Elite World Champion
May 16, 2019
6,596
5,080
Weymouth
None of the listings I have seen offer a selection of either 142 or boost so I can only assume the kit comes with both end cap options....which is the only difference between 142 and 148 boost as far as the freehub is concerned.


Legendof1973

Member
Jul 9, 2020
22
4
Scotland
None of the listings I have seen offer a selection of either 142 or boost so I can only assume the kit comes with both end cap options....which is the only difference between 142 and 148 boost as far as the freehub is concerned.
I’ve ordered it twice and it comes with only one, which from previous comments must come with boost as it fits perfectly, and is not quick release ??‍♂️
