Reign E+ 2022

[Buckaroony]

Do you have the same Smart Gateway software nr.》 20221017000 《?

And the battery the new one is 》 2317《.

Could be a different one for different regions.

All in all the bike works perfectly, motor, controls...etc.

It's just the power reading are by 100% lower then they were before the update...

Example, in todays 25km 850m d+ ride the average power readout was 8W ...

Hi,

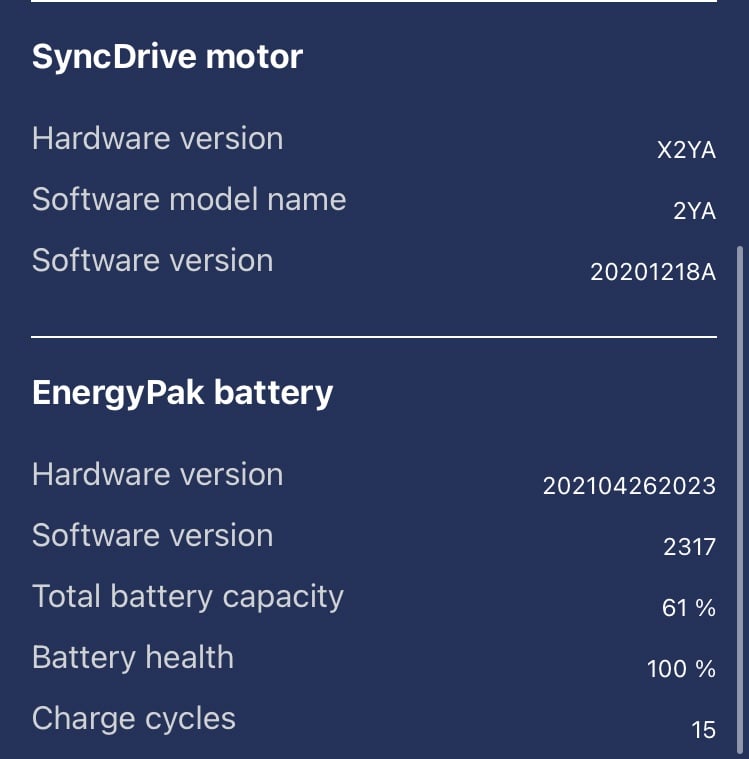

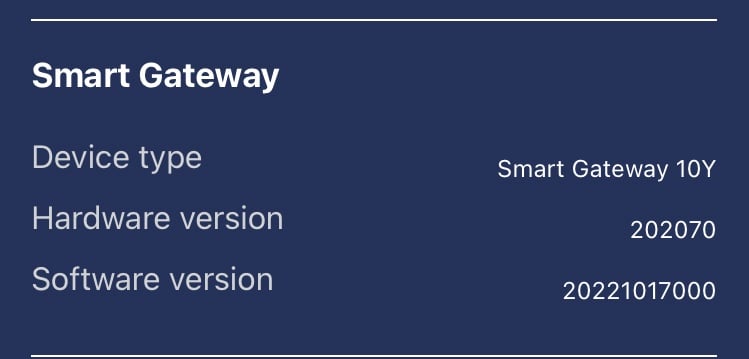

Here’s there screengrab of my hardware/software versions.

Seems like the same version.



[emtbeast]

All right guys, getting back to the new software update...did a few rides with both(625 and 800) batteries to test everything out...

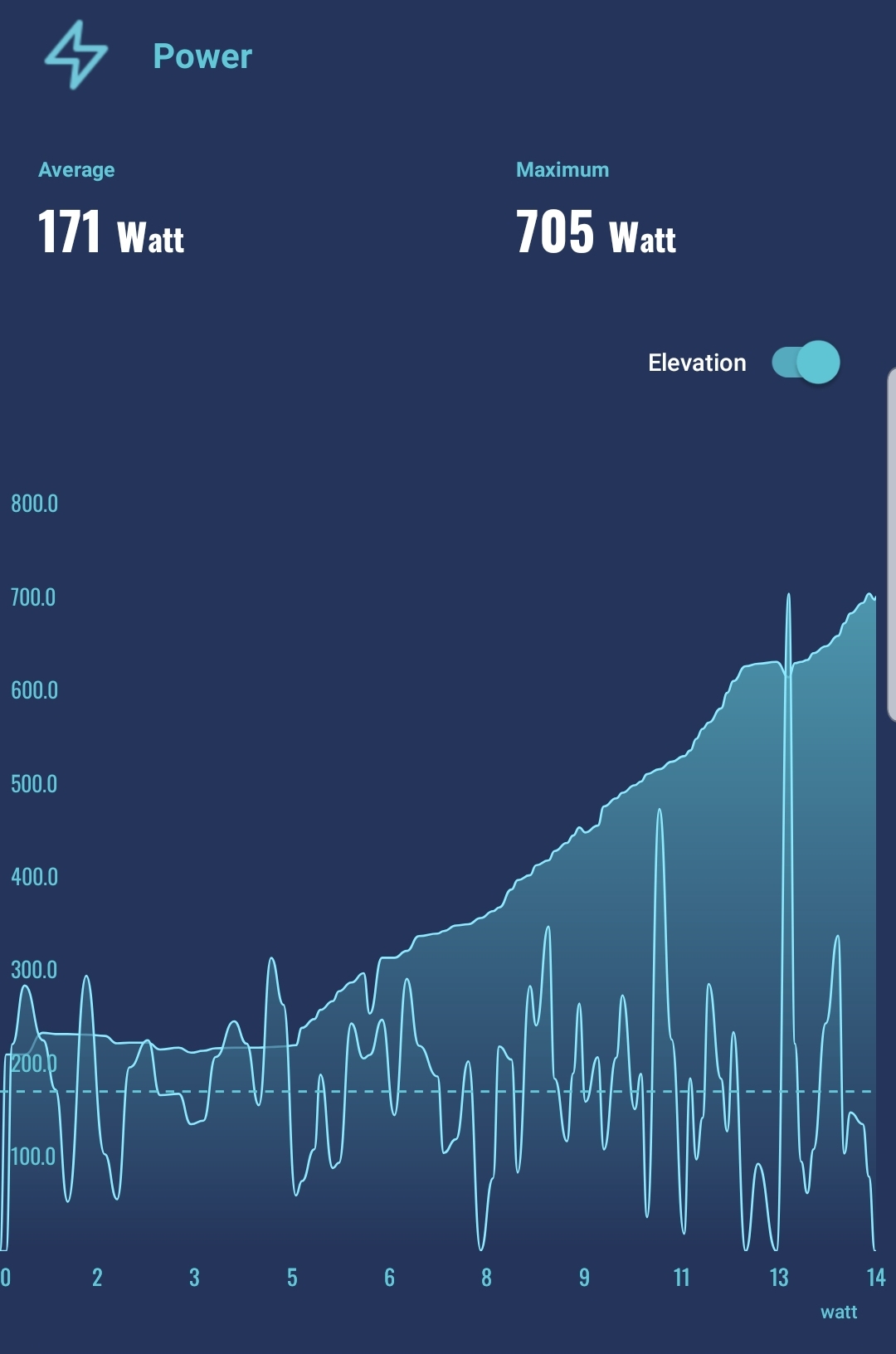

1. The power readout: I tried to ride with the Giant phone app connected to rule out different parts of story. So the power readout on the Giant app was surprisingly extremely accurate(it wasn't before the update-there were a lot of spikes). This time It showed 171W average and 705W maximum.



Although I don't know if this is motor power values or man power, it could be either.
If anyone has credible info on what power readings the app shows I would appreciate it, otherwise I will send an inquiry to Giant about it.

My Garmin app on the other side still showed extremely low average of 9W and a max of 189W maximum, as did the Ebike field for Garmin that I am using. Have already sent an inquiry to the developer of the field app and will also send one to Garmin.

2. The battery update: There were reports that the battery efficiency/range got a bit better. What I have found is that before the update the first % or the 100th % of the battery(both) dropped extremely fast after about 8m d+, where as now the battery sticks on the first percent(my measurements/same trails) 625Wh 80m d+ and the 800Wh 110m d+. So what I think Giant did with the battery update is that they just changed how the battery consumption is being showed on the first bars. I haven't discharged any of my batteries under 40% on the last rides so can't say how it behaves when you get to the last quarter, usually the efficiency there wasn't the best and the % reading dropped exponentially, will see it It has changed there also. ✌



[Redlemon]

Just bought a Rockshox Reverb AXS to replace OE dropper, should pair nicely with my GX AXS RD.

Is routing the dropper cable again a mess and need to drop the motor like some other Giant eMTBs or it's fine ? I will leave a section of the cable in place if it's a mess to do as I will most likely revert the bike to OE parts if I have to sell it someday.



[emtbeast]

Just bought a Rockshox Reverb AXS to replace OE dropper, should pair nicely with my GX AXS RD.

Is routing the dropper cable again a mess and need to drop the motor like some other Giant eMTBs or it's fine ? I will leave a section of the cable in place if it's a mess to do as I will most likely revert the bike to OE parts if I have to sell it someday.

That's a great pre Christmas gift you got for your Reign ... I bet the bike likes it, good reviews about it✌.
For the dropper cabling, don't know how it's done, but would be good to know



[Redlemon]

That's a great pre Christmas gift you got for your Reign ... I bet the bike likes it, good reviews about it✌.
For the dropper cabling, don't know how it's done, but would be good to know

Reverb AXS 30.9 170mm are pretty hard to find so pulled the trigger when I finally found one online, SRAM seem to ship these to manufacturers for their end high end builds and leave pretty much nothing for aftermarket sales.

I took a first look and it looks like there's nothing to properly guide that cable, it's just dissapearing randomly on top of motor, I will assume that you need some kind of trick to get the cable routed or drop the motor to do it easily.

I'll post pics early next week when I receive it.



[Heems]

I applied the update a couple days ago. But I have not been out on a ride since so I can’t comment on the details you posted. The update itself went smoothly and all seems ok from a quick ride around the block. Have a proper ride coming up this weekend. Will report if I notice anything.

I don’t have any Garmin or 3rd party sensors but I am not noticing any major difference in power usage after this update. However, one thing that seems to have gone wrong is my odometer. I had around 600 miles and after update it zeroed.



[Redlemon]

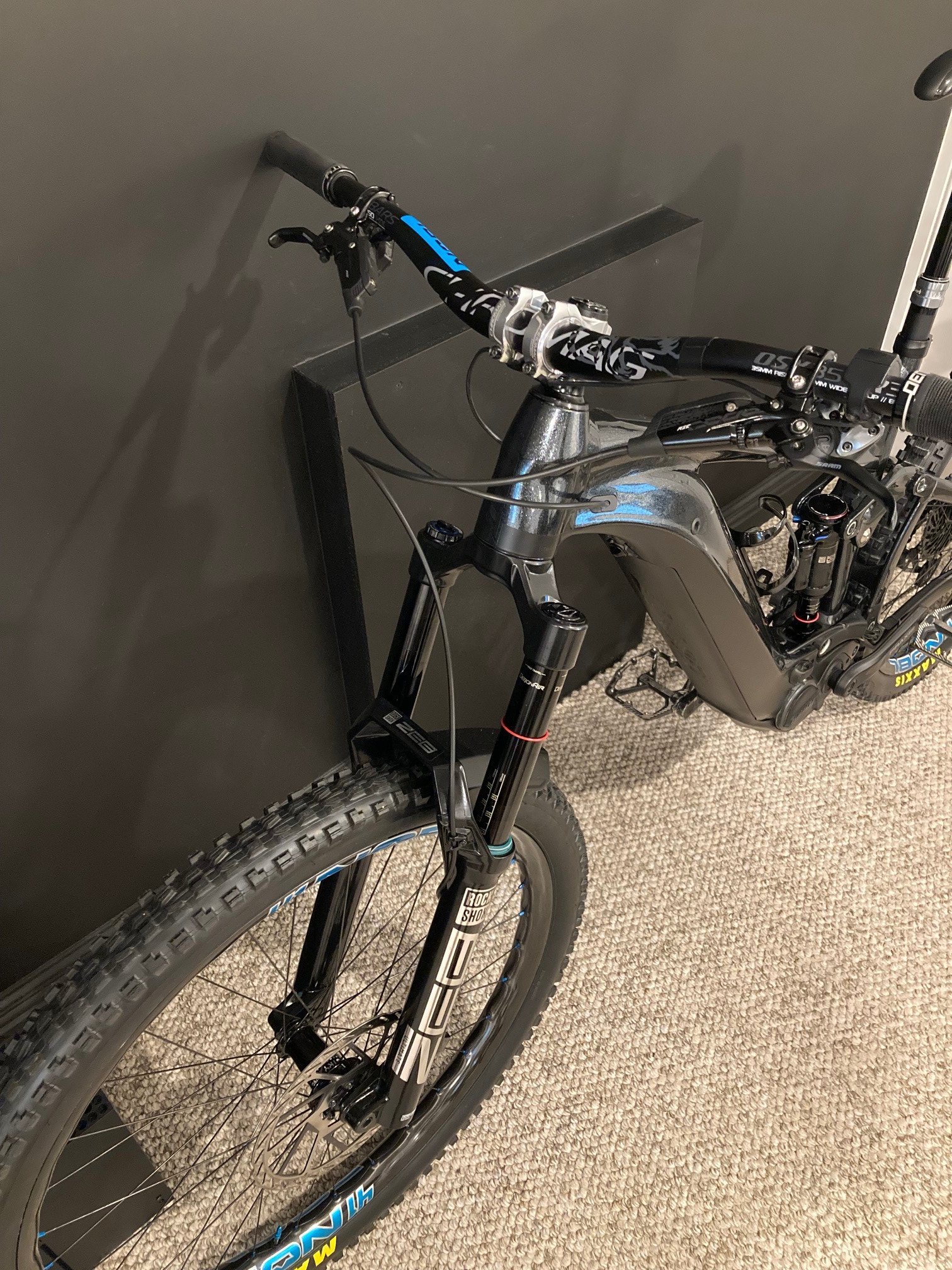

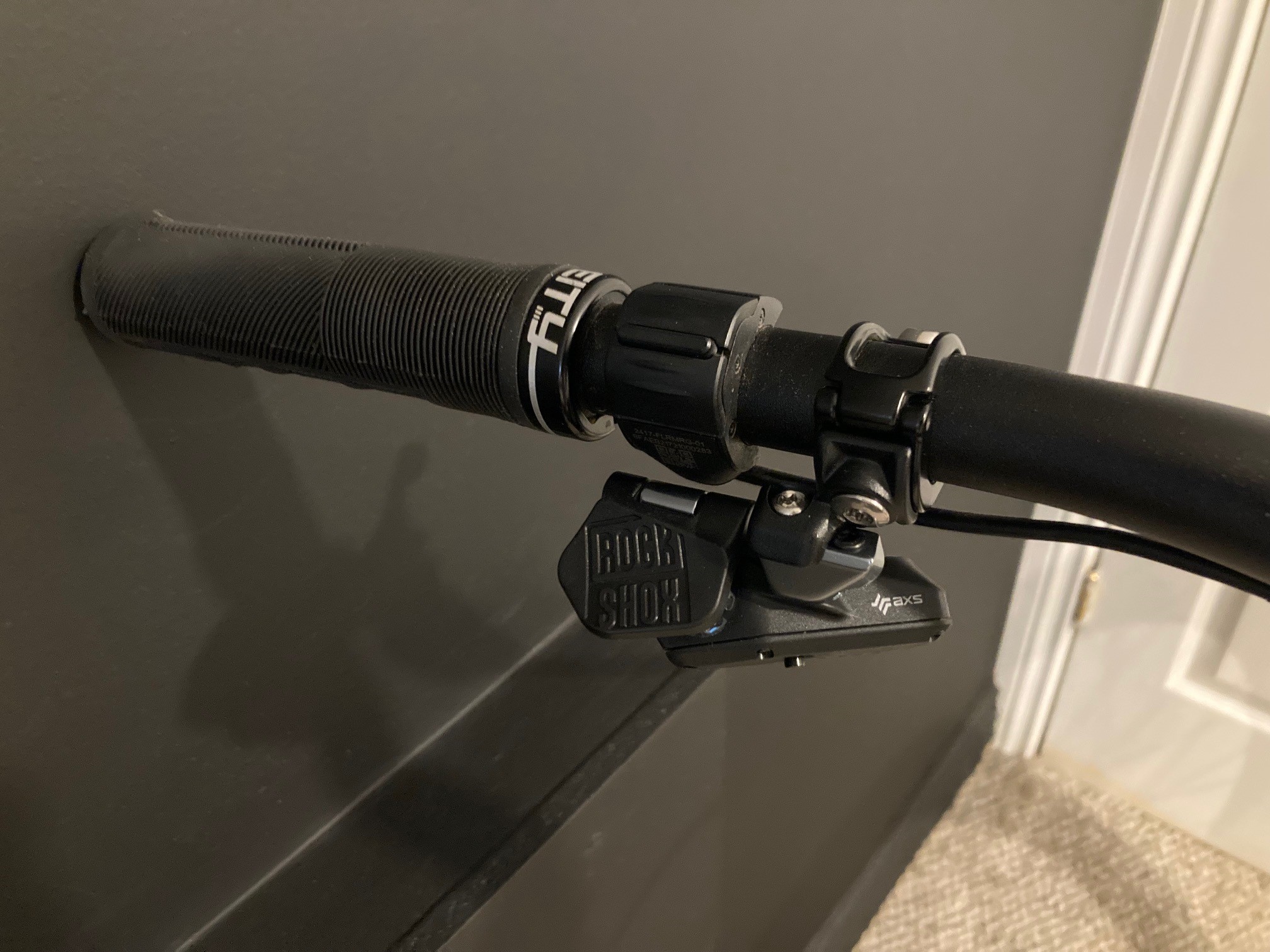

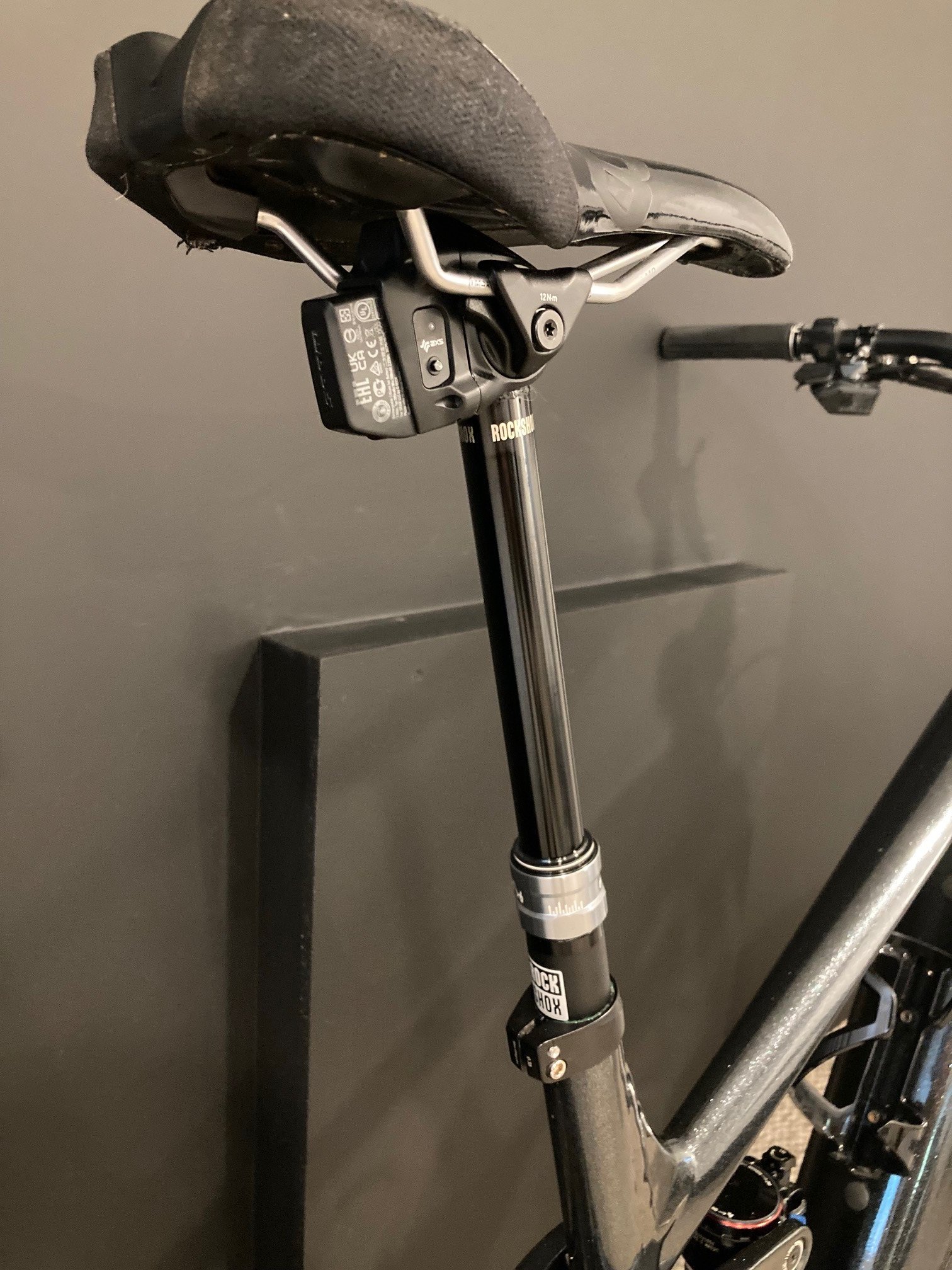

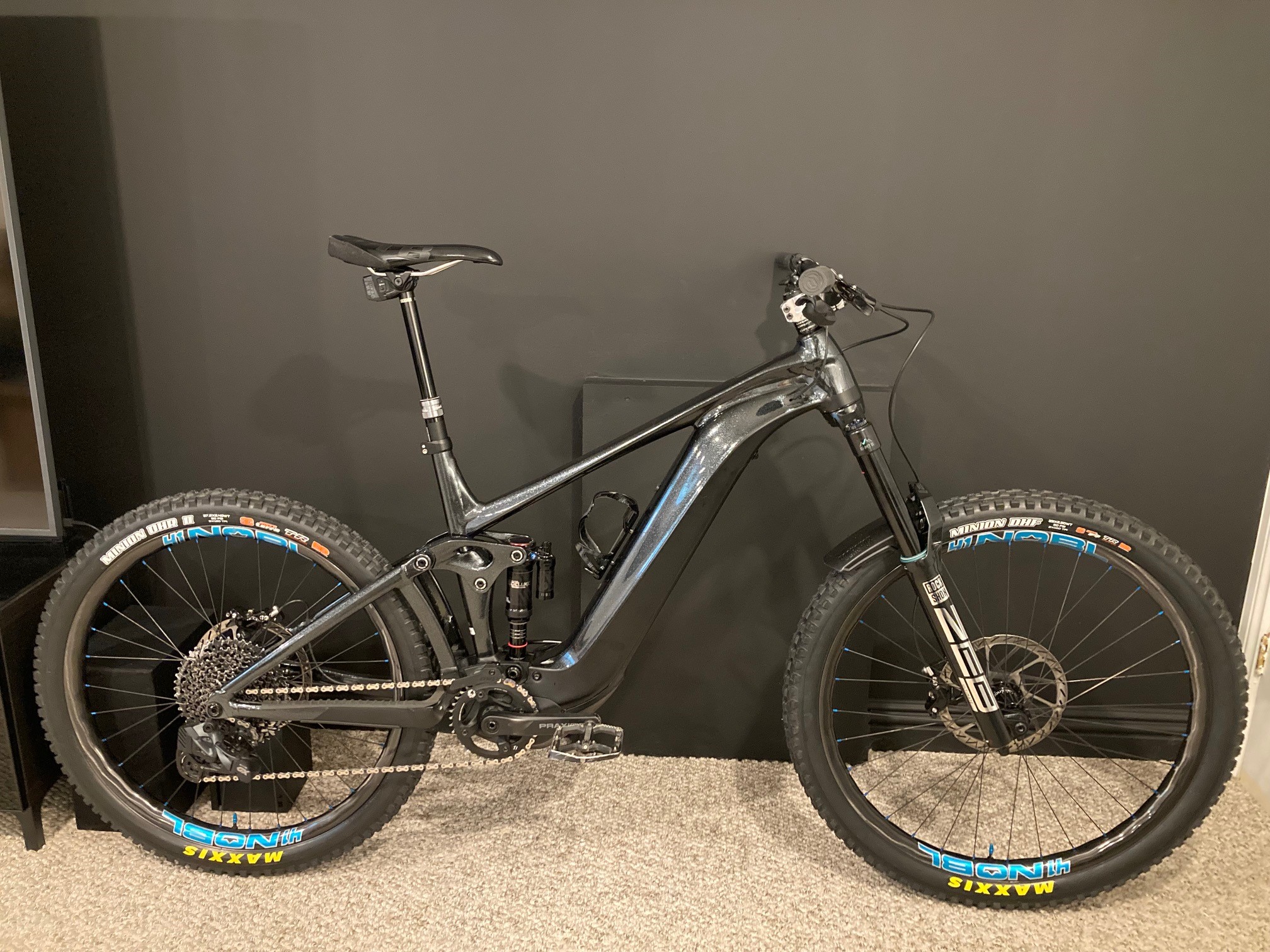

Installed my new Reverb AXS this morning and fresh Maxxis tires front & rear.

ZEB was serviced with new SKF seals and the Super Deluxe with racing bros seals.



[Implor]

Any suggestion on getting a more poppy bike?

i‘m not that impressed with the X2. Thinking about a coil Shock instead.



[Jurassic]

Any suggestion on getting a more poppy bike?

i‘m not that impressed with the X2. Thinking about a coil Shock instead.

I would imagine a coil shock will make it less poppy not more poppy. Might be worth having your X2 serviced before shelling out loads on a new shock, it would be a selling point even if you decide you still don't like it and want to sell the X2 and get something else. FWIW I was talking to the guy that services my suspension about X2s and he said that they often come from the factory badly assembled but that if someone who knows what they're doing services them then they're one of the best on the market. I hope he's right cos I have X2s on two of my bikes!



[JernejK]

Any suggestion on getting a more poppy bike?

i‘m not that impressed with the X2. Thinking about a coil Shock instead.

Coil is usually less poppy. Did you try different damping settings?



[Donamici]

Is a poppy 25kg bike even a thing?!



[Implor]

Coil is usually less poppy. Did you try different damping settings?

Yes. Did braket setup in excel. It can plow thru anything but popping off small roots and rocks on the trail is hard. Might be down to the heavy weight.



[Implor]

Is a poppy 25kg bike even a thing?!

Might be the issue . I actually starting leaving my emtb more and more in the garage and taking the analog bike instead. It’s just more fun.

I should maybe swap to a light emtb but they are so expensive. The entry level Trek EXE cost more then my E+1. Totally insane. Right now my plan is to get my bike as good as I can.



[Jurassic]

Might be the issue . I actually starting leaving my emtb more and more in the garage and taking the analog bike instead. It’s just more fun.

I should maybe swap to a light emtb but they are so expensive. The entry level Trek EXE cost more then my E+1. Totally insane. Right now my plan is to get my bike as good as I can.

I recently rode my normal bike again as I snapped the mech on my Reign and I was blown away by how much better it was on descents. Without all that weight you can just put the bike exactly where you want it and as you say they feel so alive compared to the dead feeling you get from a heavy ebike. Pain in the arse riding back up again though!



[Implor]

I recently rode my normal bike again as I snapped the mech on my Reign and I was blown away by how much better it was on descents. Without all that weight you can just put the bike exactly where you want it and as you say they feel so alive compared to the dead feeling you get from a heavy ebike. Pain in the arse riding back up again though!

Exactly . My next bike is going to be an light emtb but it’s a few years away before I ca justify the expense . 19kg something would be perfect.



[Buckaroony]

Exactly . My next bike is going to be a light emtb but it’s a few years away before I ca justify the expense . 19kg something would be perfect.

I love the traction the extra weight gives. Really gives confidence.



[Implor]

I love the traction the extra weight gives. Really gives confidence.

well . It is more heavy so you nere to run higher pressure and so reducing grip.

So if you are going to a bikepark with a lift. Would you take your emtb or analog enduro?



[Jurassic]

well . It is more heavy so you nere to run higher pressure and so reducing grip.

So if you are going to a bikepark with a lift. Would you take your emtb or analog enduro?

For me it would be the analogue bike every time. I find analogue bikes way quicker and more entertaining on descents. My Strava times support this, I'm significantly slower on my ebike even though it doesn't always feel like it.



[Buckaroony]

well . It is more heavy so you nere to run higher pressure and so reducing grip.

So if you are going to a bikepark with a lift. Would you take your emtb or analog endur

well . It is more heavy so you nere to run higher pressure and so reducing grip.

So if you are going to a bikepark with a lift. Would you take your emtb or analog enduro?

Sold my DH bike so it’s a simple choice for me.



[Nobrks]

Any suggestion on getting a more poppy bike?

i‘m not that impressed with the X2. Thinking about a coil Shock instead.

Put more air in it



[Implor]

Put more air in it

Well then it will end up a hardtail

For me it would be the analogue bike every time. I find analogue bikes way quicker and more entertaining on descents. My Strava times support this, I'm significantly slower on my ebike even though it doesn't always feel like it.

I totally agree .



[Rando_12345]

Coming at it from a different angle: I keep my mtb around from lift access bike parks mostly to preserve my ebike. I actually love riding my ebike without its battery at the bike park, runs sweet. However, between jumps and braking bumps, the bike park is one of the harshest places to ride your bike. I started to worry about BB bearings in particular, on many motors that could be a full motor swap, at the very least a return to the service center. Whereas BB's on the mtb are cheap and easy to replace.

So yeah to put it simply: bike parks break stuff, so I'd rather stuff breaks on my 2.5k YT capra than my 4.5k Commencal meta, they both feel good out there!



[sehah]

just did a 21 miles, with 3700ft climb on a friend's levo. it had a 700wh battery and had about 40% battery remaining at the top. I've been eyeing a 2022 reign e3. i know it has a smaller battery but is that a realistic climb for the reign without running out of battery in mostly "trail" mode?



[emtbeast]

just did a 21 miles, with 3700ft climb on a friend's levo. it had a 700wh battery and had about 40% battery remaining at the top. I've been eyeing a 2022 reign e3. i know it has a smaller battery but is that a realistic climb for the reign without running out of battery in mostly "trail" mode?

It depends on your weight, tire pressure, cadence, climb incline.

I am 86kg and my average consumption on the 625Wh battery is 35Wh per 100m(330ft) climbed in the 200% Assistance mode-that would equate to about 50% Assistance on the Levo.

Calculating the average consumption on the Levo 420Wh(60% used) / 1130m from your data would come to about 37Wh per 100m(330ft) climbed.

So the Giant should be slightly more efficient, but if you take the higher weight of the Giant into account they end up about the same, only if you had the Carbon Levo...it's about 2,5 to 3kg(5,5lb to 6,5lb difference.

I manage the get about 1400m(4500ft) - 1500m(5000ft) from the 625Wh battery, but do use higher tire pressure about 30psi on the climbs and also found out that every 1,5 psi decrease in tire pressure equals to a 1 Wh increase in average battery consumption.

My longest ride was on Eco/Tour settings... 63km(39miles) with 1730m(5675ft) climb.

Hope this helps ✌



[sehah]

It depends on your weight, tire pressure, cadence, climb incline.

I am 86kg and my average consumption on the 625Wh battery is 35Wh per 100m(330ft) climbed in the 200% Assistance mode-that would equate to about 50% Assistance on the Levo.

Calculating the average consumption on the Levo 420Wh(60% used) / 1130m from your data would come to about 37Wh per 100m(330ft) climbed.

So the Giant should be slightly more efficient, but if you take the higher weight of the Giant into account they end up about the same, only if you had the Carbon Levo...it's about 2,5 to 3kg(5,5lb to 6,5lb difference.

I manage the get about 1400m(4500ft) - 1500m(5000ft) from the 625Wh battery, but do use higher tire pressure about 30psi on the climbs and also found out that every 1,5 psi decrease in tire pressure equals to a 1 Wh increase in average battery consumption.

My longest ride was on Eco/Tour settings... 63km(39miles) with 1730m(5675ft) climb.

Hope this helps ✌

thank you that does help. now i just gotta decide if i wait for 2023 or get a 2022 with discount.



[DOCTOR EBIKES]

Here is a section that I did last week on one of my Maxxis Assegai Maxxgrip test routes mounted on my 2022 Giant Reing E+0, without a doubt the perfect tire for this great machine, I hope you enjoy the descent as I did when i did it



[justintaylor]

I just bought the E+2 version, when I test drove it the dealer was silent about trying it out in higher gears (higher cadence) so I only went in the 12th and 11th gear. The motor sound was not the best but OK. However since its a mountain bike, and I live near a mountain 60pct of the time you are climbing in high gears. The perceived noise between the 12th gear low cadence and 1st gear high cadence is at least 5X, due to the high pitched whining noise part of the sound profile going from like 40DB to 60DB!!! I could not believe my ears! It is like riding a hand blender on the quite mountain trails and I am now old (40+) less prone to hear high pitched sounds. How can someone produce a motor like this and also how can you still put "bicycle" in the name of the product.
I was deeply disappointed in Rob as well, since he was praising the bike sky high and lowering my guard when test driving, I guess it was a paid advert as well like 90pct on Youtube. I am not unfamiliar with mid drive motors either, my GF has a 2016 Bosch Active Line and it is super quiet. In the highest gear the noise of the cheapo old Bosch is comparable to this Yamaha abomination in the lowest gear. I know that more powerful Bosch new motors are louder as well, but at least they are lower pitched than the niiiiiiiiiiiiiiiii motor of Yamaha. I dont even mention my 15 years old Bionx PT350 hub drive motor on my city bike is STILL working and giving 70pct as much torque as the Yamaha motor in complete silence!!!
So I am taking back the bike to the dealer after just 2 km of real world driving at a loss, probably I will build a silent EMTB with a large diameter cheap Chinese hub motor. At least its much cheaper to service, completely silent at a cost of more weight less range.
This whole trend of motors going lighter and stronger while sacrificing a big part of what bike riding means (quiet, peace, ZEN, close to nature) is a complete dead end IMO. Yamaha should have sticked with enduro motorbikes if sound is a non issue for them. All the ebikes sooner or later will be banned from all nature parks due to these bad apples like the motorbikes for similar reasons.
EDIT:
On further investigation I found that above 60 cadence the sound increases exponentially becoming louder than a Tesla at around 100 cadence. Strange thing is it has nothing to do with power assist level, and even steepness of road. So if I keep pedaling at a cadence lower than 50, I can still climb a 10pct grade road and the sound is just marginally higher than Bosch line active 2016 model. Now I will probably not return the bike, I will just readjust and wont pedal as fast as on my old bikes. Still not happy completely, since I like doing 120+ cadence cardio runs, just it is impossible with this bike due to sound poisoning!

low cadence

- YouTube

Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on YouTube.

www.youtube.com

high cadence

- YouTube

Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on YouTube.

www.youtube.com



[jeanmarc]

My Reign does not do this.



[Mikects]

Mine is fine as well - don’t notice motor noise when riding unless I’m listening for it.

Not sure why anyone would stick to the gear ratios the salesman suggests - I always “ride it like I stole it” on a test ride.

Sounds like he bought the wrong bike for his needs.



[Garybee]

Hi Justin, My Reign definetly does not have any annoying noises. Not sure whats happening with yours. Gary
