Main Pivot Protection

[LeeS69]

Another cracking ride out on the Rise tonight, and back out tomorrow so she's sat charging up!

BUT - the linkage is a crap magnet, I've seen a few posts with zip tying some neoprene etc to cover it.

What are people doing out there, would consider a new guard etc (using muckynutz at the moment)

Looking for solutions not moaning - my cross bike does the same thing but even worse the gear cable on that runs right through it

It's not causing any issues, but not the best for the pivots life expectancy!!



[ZXR_Power]

My solution is a thick rubber pad and a sicomtb fender. Untill now it works but the truth will be seen in winter and muddy conditions.



[Lightme]

I’m have a Firebird and a Shuttle LT. As the Shuttle is my main Pivot, I do try to protect it.



[LeeS69]

My solution is a thick rubber pad and a sicomtb fender. Untill now it works but the truth will be seen in winter and muddy conditions.

View attachment 120652
View attachment 120653

That mudguard offers much better protection there than the Muckynutz, it actually directs the crud right at the pivot, might have to find something to make a cover like that. The advantage of the mucknutz is it's a lot longer with the extension on and protects your saddle/backside..



[Ark]

My solution is a thick rubber pad

where does one get a thick peice of rubber? a door mat or car mat?



[LeeS69]

where does one get a thick peice of rubber? a door mat or car mat?

You can get neoprene sheet on Amazon - but I remembered I've got a big sheet of roof covering rubber that should be ideal.



[Stihldog]

The small rubber flap over the pivot is a good idea and https://sicomtbproducts.com/ offers a small fender also
.
i modified a MunkyNutzs fender fender to protect the pivot and part of the dropper post. Small debris can still get into the frame gap at the pivot location but a perfectly sized rock is less likely (horrible sound).



[LeeS69]

The small rubber flap over the pivot is a good idea and https://sicomtbproducts.com/ offers a small fender also
.
i modified a MunkyNutzs fender fender to protect the pivot and part of the dropper post. Small debris can still get into the frame gap at the pivot location but a perfectly sized rock is less likely (horrible sound).

View attachment 120672

I've actually got one of those on the front and used the short fender on the back - moved the proper rear fender they brought out but might have to look at this option again, it did cover better lower down! Might have a swap around!



[cookie70]

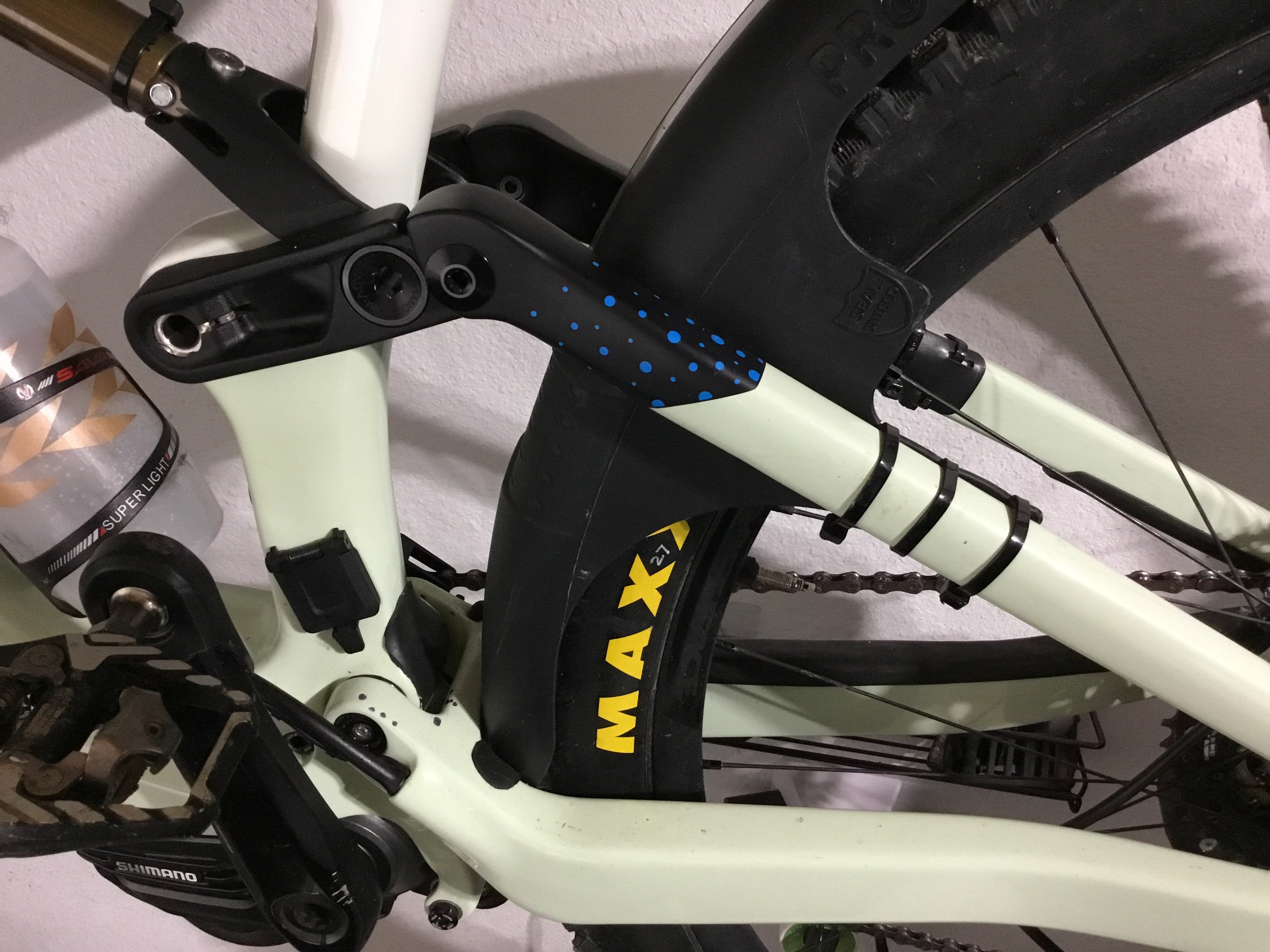

I run this front mudgaurd on the rear, works awesome at keeping the crap off all the pivots



[r11gs]

I made one myself:

Orbea Rise M10 M20 Mxx 2023 Cover Swingarm, Abdeckung Schwinge by r11gs

Dies ist eine Abdeckung für den Schwingenlagerbereich für ein Orbea Rise M10/M20 (Carbon Version) für das Modelljahr 2023. Sie passt auch an 21/22 M Modelle, aber nicht ganz so gut. Noch etwas weniger für die H-Modelle. Wird mit drei 2,5/3,5mm Kabelbindern befestigt.This ist a cover for the area...

www.thingiverse.com



[jcismo1]

While I can’t take credit for this, because I found this somewhere. Just install a front fender on the back. It’s longer and protects this area really well. My only regret was not finding out about it sooner. Notice all of the rock chips.



[Simmo3801]

I run this front mudgaurd on the rear, works awesome at keeping the crap off all the pivots

View attachment 120740

Likewise, upside down front guard



[mascifm]

I made one myself:

Orbea Rise M10 M20 Mxx 2023 Cover Swingarm, Abdeckung Schwinge by r11gs

Dies ist eine Abdeckung für den Schwingenlagerbereich für ein Orbea Rise M10/M20 (Carbon Version) für das Modelljahr 2023. Sie passt auch an 21/22 M Modelle, aber nicht ganz so gut. Noch etwas weniger für die H-Modelle. Wird mit drei 2,5/3,5mm Kabelbindern befestigt.This ist a cover for the area...

www.thingiverse.com

View attachment 120832

Very cool. How can I get you to make one for me?



[Frankyspec]

Very cool. How can I get you to make one for me?

Also interested +1



[Frankyspec]

I made one myself:

Orbea Rise M10 M20 Mxx 2023 Cover Swingarm, Abdeckung Schwinge by r11gs

Dies ist eine Abdeckung für den Schwingenlagerbereich für ein Orbea Rise M10/M20 (Carbon Version) für das Modelljahr 2023. Sie passt auch an 21/22 M Modelle, aber nicht ganz so gut. Noch etwas weniger für die H-Modelle. Wird mit drei 2,5/3,5mm Kabelbindern befestigt.This ist a cover for the area...

www.thingiverse.com

View attachment 120832

can I buy of order it somewhere? I have a rise m team 2023 coming …



[mascifm]

can I buy of order it somewhere? I have a rise m team 2023 coming …

I'd like to order one from you as well...
