M820 Bafang - LIGHTCARBON LCE930 Frame (lightweight)

xtraman122 said:
Hey @Rob Rides EMTB are we ever going to get to see the full review video of this frame? You teased us with the build and we want to see the review!
Click to expand...

I bet something went wrong with the frame. Judging from my own experience, the qc is poor and the frame probably snapped in use.
www.emtbforums.com

Lightcarbon LCE930 review

Hi guys, I have been reading this forum and have been inspired by builds fron Sandnap and Denver among others. Now I just ordered and LCE930 with motorkit from LightCarbon. Will be posting pictures and notes as I build. The goal is a very functional build, not a luxorious or high end build. I...
www.emtbforums.com www.emtbforums.com

⚡ EMTB Pro Go Pro — exclusive discounts & ad-free Peaty's 25% off & more · Ad-free browsing · Pro badge See the deals →
Mikael1 said:
I bet something went wrong with the frame. Judging from my own experience, the qc is poor and the frame probably snapped in use.
www.emtbforums.com

Lightcarbon LCE930 review

Hi guys, I have been reading this forum and have been inspired by builds fron Sandnap and Denver among others. Now I just ordered and LCE930 with motorkit from LightCarbon. Will be posting pictures and notes as I build. The goal is a very functional build, not a luxorious or high end build. I...
www.emtbforums.com www.emtbforums.com
Click to expand...
Actually the LCE930 frame quality is very high. Carbon finish + aluminium inserts for bearings and motor mountings makes this frame really well made. At my weight about 100kg geared up, frame have survived over 2000km of hard Enduro trails no problem.

The only problem with mainstream review might be that it will be very uncomfortable for main ebike manufacturers.
Let me say, we have many reviews of SL bikes in price range from 7k to 12k EUR and suddenly there cheap, good DIY option comes up in around 3k to 4k EUR. So for someone with bit of a tools an knowledge there is no piont of getting a bike in the shop.

Rob has done a lot for the sport and the acceptance of DIY which is fantastic. However, I agree that at some point when YT channels get big enough they tend to go where the money is. It is nice that we see occasional representation from the big channels like EMBN visiting the Bafang factory earlier this year and Rob doing an occasional DIY build. Without support from the manufactures it's so expensive to do proper product, build, and ride reviews. I would love to do this if I could convince LC, Dengfu, Markhor, SZZS, etc.. to send me their best offerings. I would be willing to put in the time and extra money for the builds. A shootout would be awesome too, although I would have to solicit the help of a more advanced rider for the big hits.

Evening Team,

We’ve been quiet on the Emtb front latter part of this year; we had a fair few product launches/upates that have sucked our time up! Not that it’s bad thing… we’re busier than ever before, so our stoke is high!

If anyone saw it, we actually got a small feature on EMBN which was pretty cool.

But yeah, we are officially 18 months deep into testing this frame and motor/battery, and are finally about to open up on orders (had a few last legal/compliance hoops to jump through to make sure we are all set). But overall, great results for us, especially considering the 2x British winters, Bike Park laps, Spanish Enduro/DH week and all the Welsh off piste you can dream of…. Just good laughs the whole time.

Nothings perfect, but LC are constantly open to feedback and continue to improve QC.

Anyway, from the Radical Team, hope you guys have a great new year, and a 2025 full of shredding! Hopefully we’ll see some of you guys knocking around.


RadicalBicycleCo said:
Evening Team,

We’ve been quiet on the Emtb front latter part of this year; we had a fair few product launches/upates that have sucked our time up! Not that it’s bad thing… we’re busier than ever before, so our stoke is high!

If anyone saw it, we actually got a small feature on EMBN which was pretty cool.

But yeah, we are officially 18 months deep into testing this frame and motor/battery, and are finally about to open up on orders (had a few last legal/compliance hoops to jump through to make sure we are all set). But overall, great results for us, especially considering the 2x British winters, Bike Park laps, Spanish Enduro/DH week and all the Welsh off piste you can dream of…. Just good laughs the whole time.

Nothings perfect, but LC are constantly open to feedback and continue to improve QC.

Anyway, from the Radical Team, hope you guys have a great new year, and a 2025 full of shredding! Hopefully we’ll see some of you guys knocking around.

View attachment 152408
Click to expand...
Have you experienced similarly bad quality I documented in the other thread? I imagine quite many frames have passed your hands at this point.

Just checked out your post as we don't monitor the forum: We have certainly not seen anything to the extent you have posted.

As I’m sure you are aware we haven’t been open for orders as of yet, as we have been in long term testing. We have had 2x test frames (one from early batches, one from later), both of which have been fine; nothing like what you have posted. If we would have seen a large quantity pass through our hands during testing it would raise serious red flags.

Steve (our fabricator & welder) also works for a company that repair carbon frames and run inspections on any that come via insurance claims. He has access to ultrasound equipment… the works. It’s difficult for us to say really without trying fire shots at half the industry, so I wouldn’t want to go into everything too much as it puts us in an awkward position…. but having looked at our frames he has been pleased with the quality and finishing (that WE have had)…. The finishing on a majority of larger scale production bikes from what he has seen, is not always pretty…. (But also, not necessarily detrimental)

We can’t really comment on yours (we have a pretty good idea from the pictures), but certainly; if you are concerned about it you have done the right thing by raising it.

Last edited:
RadicalBicycleCo said:
Just checked out your post as we don't monitor the forum: We have certainly not seen anything to the extent you have posted.

As I’m sure you are aware we haven’t been open for orders as of yet, as we have been in long term testing. We have had 2x test frames (one from early batches, one from later), both of which have been fine; nothing like what you have posted. If we would have seen a large quantity pass through our hands during testing it would raise serious red flags.

Steve (our fabricator & welder) also works for a company that repair carbon frames and run inspections on any that come via insurance claims. He has access to ultrasound equipment… the works. It’s difficult for us to say really without trying fire shots at half the industry, so I wouldn’t want to go into everything too much as it puts us in an awkward position…. but having looked at our frames he has been pleased with the quality and finishing (that WE have had)…. The finishing on a majority of larger scale production bikes from what he has seen, is not always pretty…. (But also, not necessarily detrimental)

We can’t really comment on yours (we have a pretty good idea from the pictures), but certainly; if you are concerned about it you have done the right thing by raising it.
Click to expand...
I correct that: 3x frames; But number 3 is a recent frame for a distributor ahead of launch

Bonjour et merci pour le retour de ce cadre. Ce fil m'a donné envie de faire une construction, j'ai passé commande chez Jim il y a 2 semaines. Grâce à vos commentaires j'espère qu'ils feront le nécessaire pour vérifier le contrôle qualité. Je posterai les photos des photos et recevrai le cadre pour les comparer

Mikael1 said:
Thanks for replying :) ! good to hear that you have gotten better quality. And I do understand you can't comment too much. But it might be a good idea to keep your eyes open when you ramp up production.
Click to expand...
Yep definitely: good to see others experiences, whether good or not!

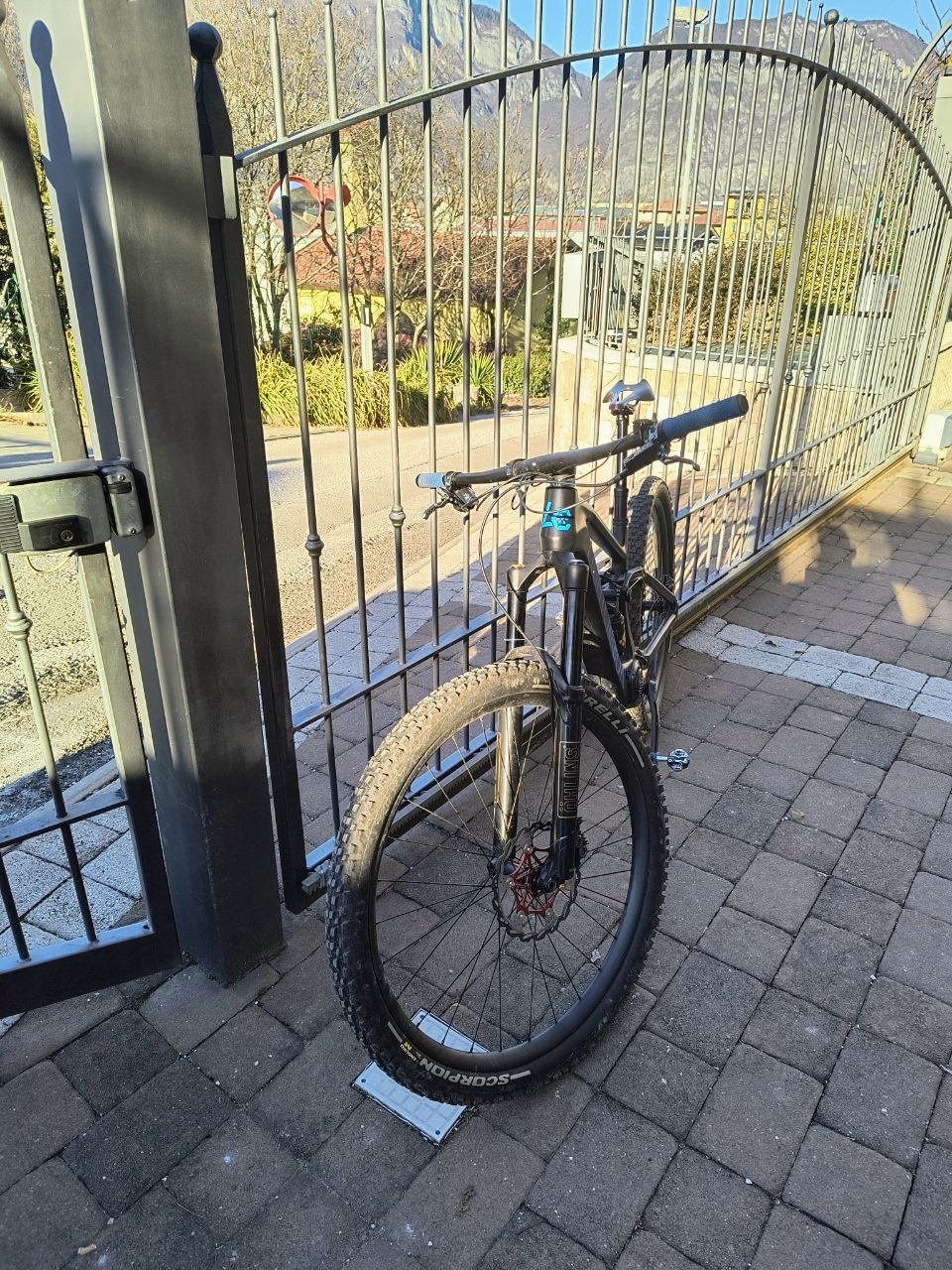

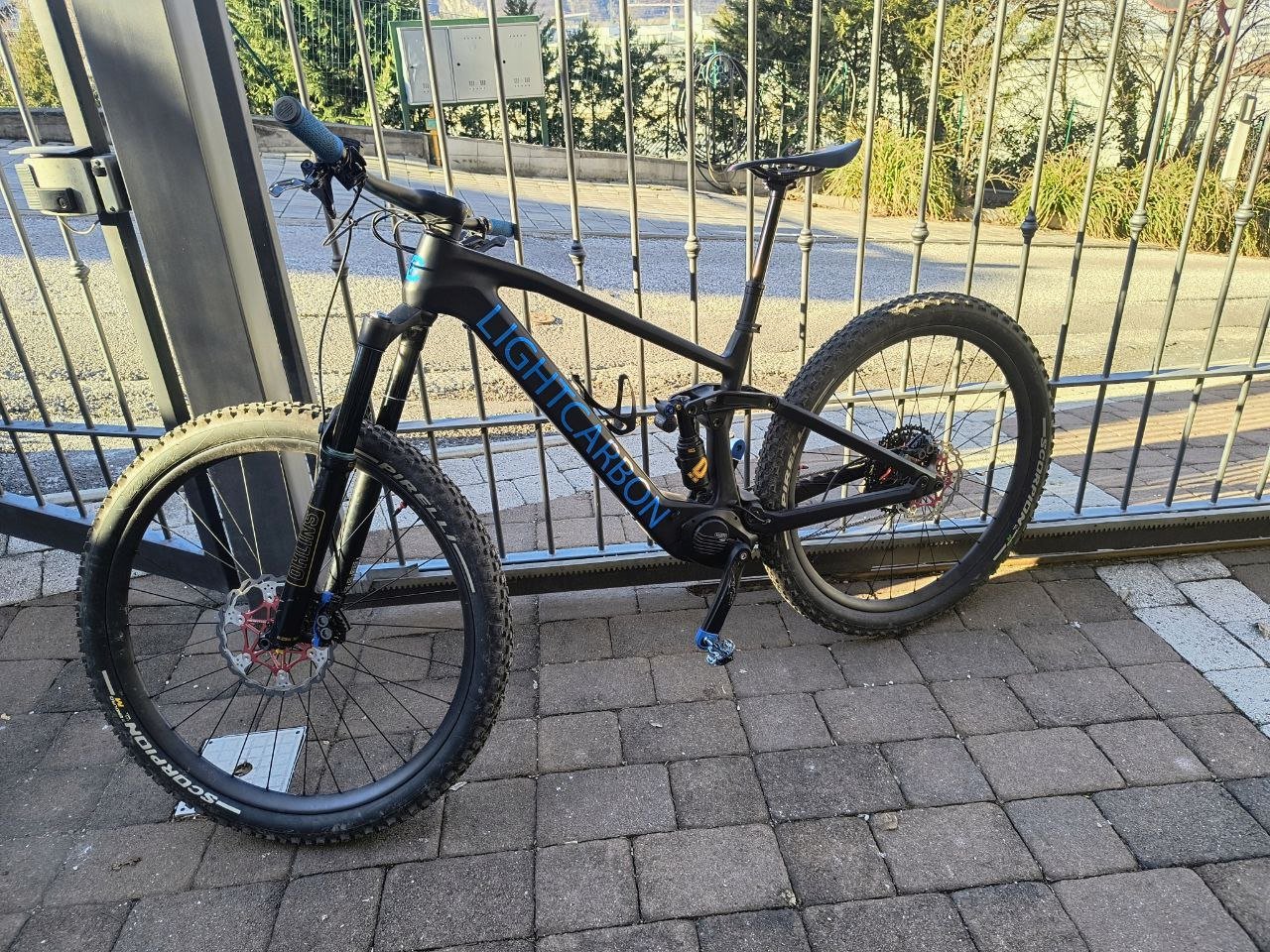

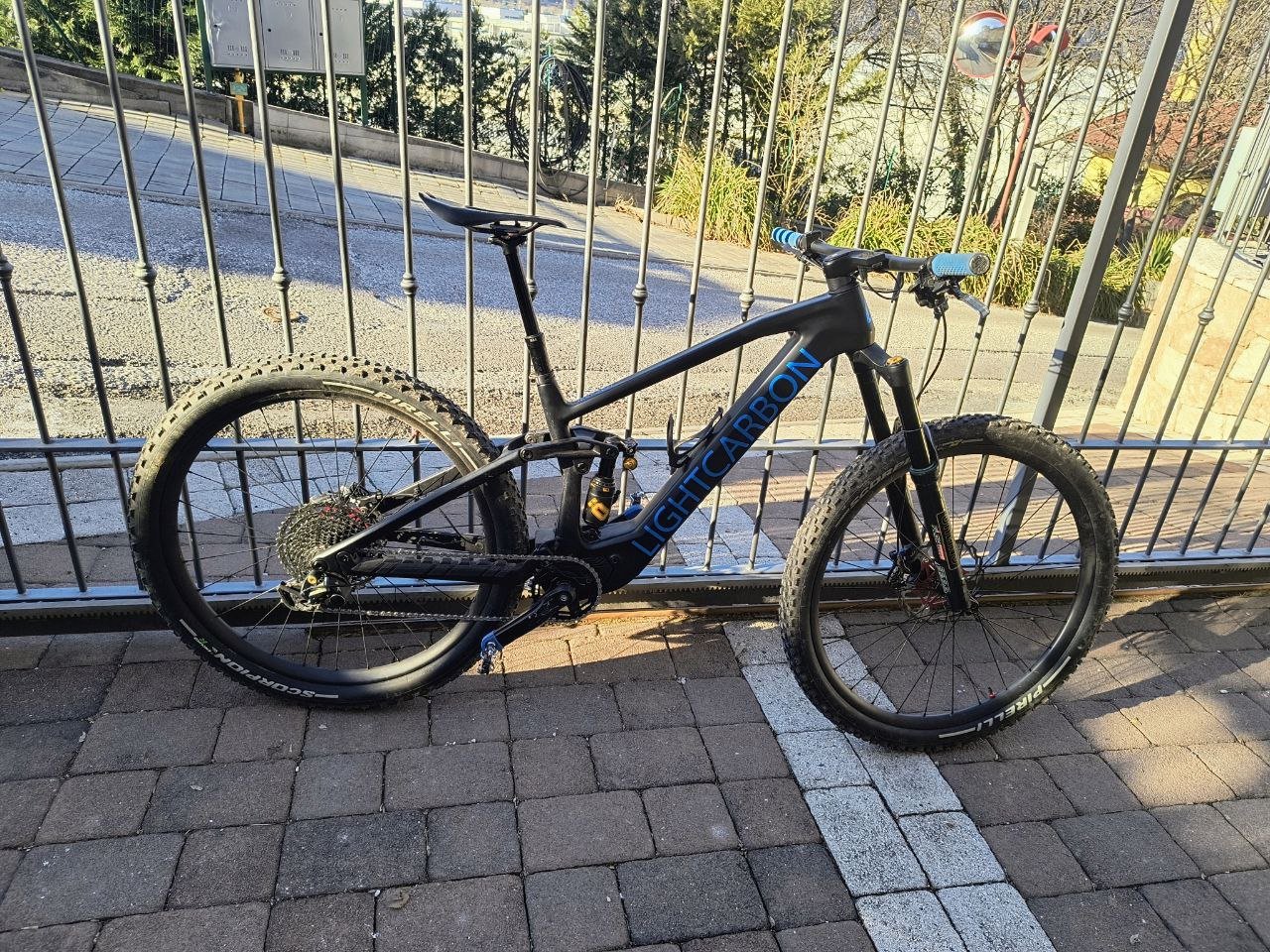

I have received last week an frame LCE971 ordered from light carbon. It still have same looking quality than their previous production, far away of the dengfu E82 received by dazirl

for critical, I can jsut said that varnish thicknes of basic frame in glossy are thin than custom paint. normal taking account of the diferential value

Morning All,

Happy new year! Just letting you know that we have now finally officially launched the Thundercat after 18 months, which is available to purchase direct through the website! Stoked!

https://radicalbicycleco.com

You can also purchase/have full builds from our partners/UK Distributors

Bike9 - Frames and Builds
Freeride UK - Distribution

Bike9 currently have a demo in (size Small), check out the build video here, and we have a Medium in HQ.

I would like to extend our gratitude to the warm welcome you have all given us, and I hope you can join us in wishing us all the best of luck with this frame! We will continue to remain active on the forum, so give us a shout if you wanted to chat!

View attachment DSC02086.jpeg

Hey everyone
I have a problem with my M820 motor, it won’t turn on, I tried 2 different displays, both are known as working and a new lead from the motor to the display, tried a different battery also.
I’m thinking it’s the controller, does anyone know where to buy a replacement?

Goff said:
Hey everyone
I have a problem with my M820 motor, it won’t turn on, I tried 2 different displays, both are known as working and a new lead from the motor to the display, tried a different battery also.
I’m thinking it’s the controller, does anyone know where to buy a replacement?
Click to expand...
Try greenbikekit.com, they have controllers for other bafang motors.

Hi everyone, just a quick question, finally got some Hope Cranks to replace the Bafang cranks that came with the motor! How on earth do I remove the Bafang cranks from the motor, I have a crank puller however the inner thread of the crank puller has nothing to push against due to the central part of the motor is hollow, any ideas greatly appreciated!

You need a crank puller with a larger round end. Park tools makes one with a removable head so you can choose the old style smaller diameter or the larger diameter needed for this application.
www.parktool.com

CWP-7 Compact Universal Crank Puller

A universal wrench-driven tool for removing crank arms from virtually all three-piece crank systems.
www.parktool.com www.parktool.com

I’ve heard of people using a coin of some sort . But the black park tool puller is what you need

mike_kelly said:
You need a crank puller with a larger round end. Park tools makes one with a removable head so you can choose the old style smaller diameter or the larger diameter needed for this application.
www.parktool.com

CWP-7 Compact Universal Crank Puller

A universal wrench-driven tool for removing crank arms from virtually all three-piece crank systems.
www.parktool.com www.parktool.com
Click to expand...
Brilliant, looks like I might need to order this, always another tool needed!

E*thirteen have ISIS cranks that should fit the M820. Both aluminium and carbon. What makes them interesting is that they are attached with a "self-removing" bolt. So if I undertand correctly, there is no need for extractor, it will come loose by opening the bolt. No mention of Bafang, but since it is ISIS standard it should fit. There are also different q-factors available.

"Compatible with Bosch®, Brose® S Mag, TQ®, Fazua®, Yamaha®, Maxon®, Sram® motor systems using the 24mm ISIS standard. "

E*thirteen cranks

Freda said:
E*thirteen have ISIS cranks that should fit the M820. Both aluminium and carbon. What makes them interesting is that they are attached with a "self-removing" bolt. So if I undertand correctly, there is no need for extractor, it will come loose by opening the bolt. No mention of Bafang, but since it is ISIS standard it should fit. There are also different q-factors available.

"Compatible with Bosch®, Brose® S Mag, TQ®, Fazua®, Yamaha®, Maxon®, Sram® motor systems using the 24mm ISIS standard. "

E*thirteen cranks
Click to expand...
I put Praxis on mine. Same type of system.

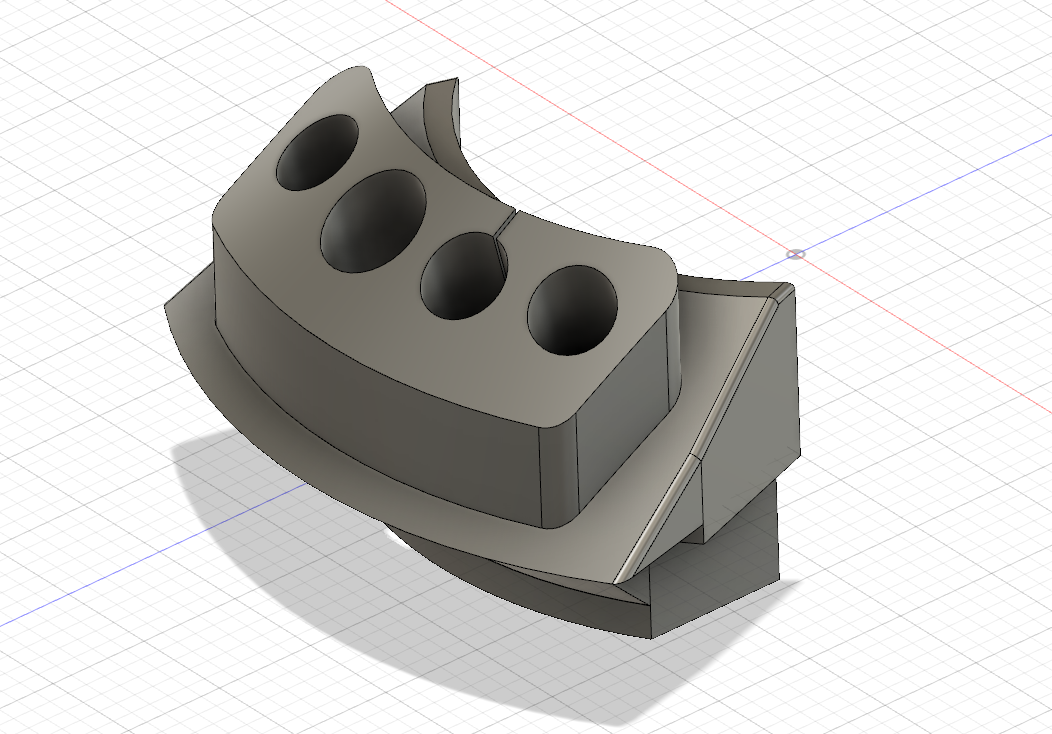

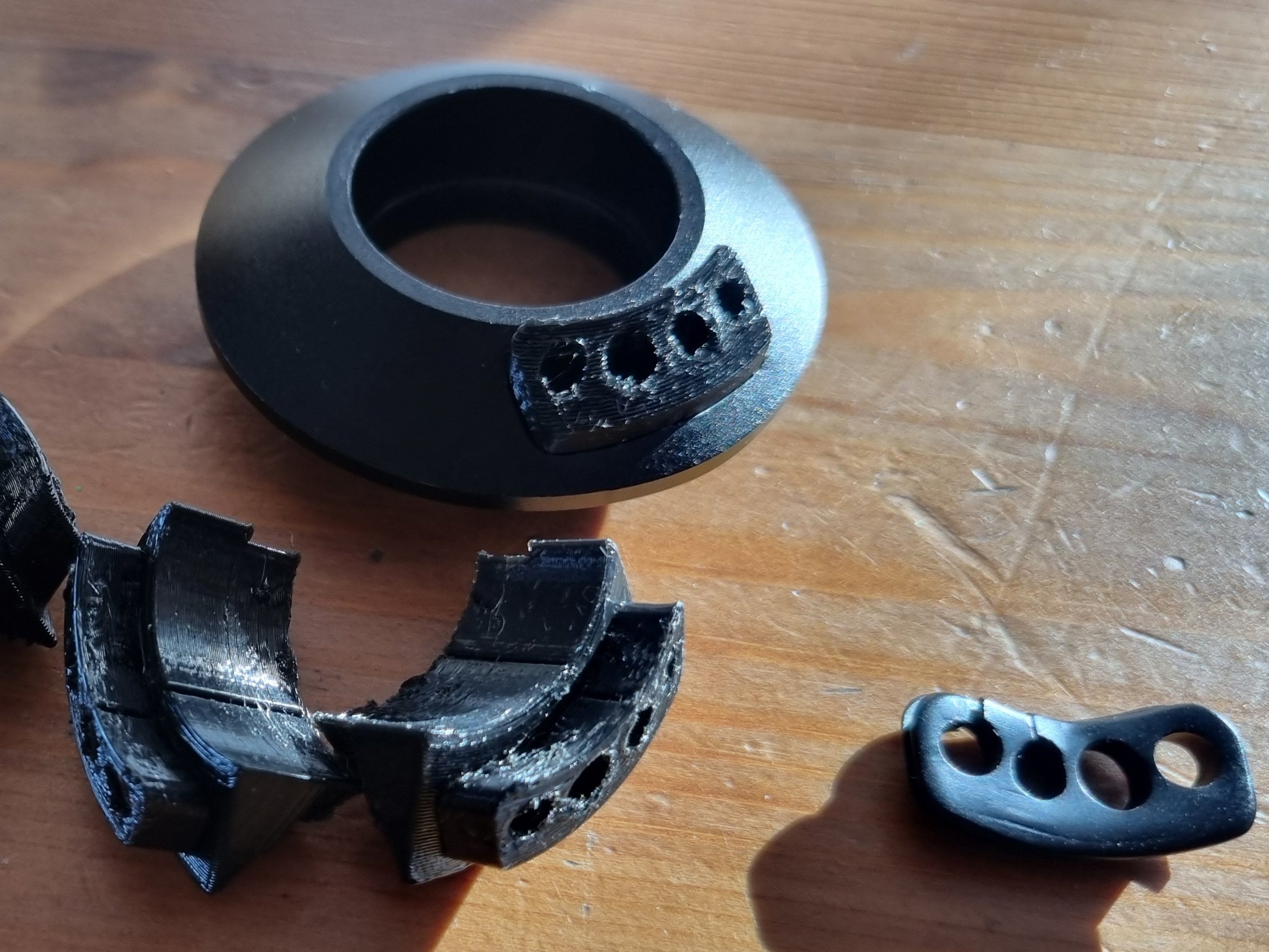

If you're tired of rubber cable routing falling through your headset, I designed a new one that's much better for 3D printing (like TPU). I only made a slit for the motor control cable, if you don't want to remove the cables, just cut the other holes.

Headset 2.png Headset.jpg
