M820 Bafang - LIGHTCARBON LCE930 Frame (lightweight)

[JimLee-Lightcarbon]

Which Frame or painting is this?

trhe frame is LCE930, color is crystal effect bronze



[JimLee-Lightcarbon]

Hallo @JimLee-Lightcarbon , does the frame already have the new UDH standard for the new Sram Eagle Transmission circuit? I've seen Karbon bike use this circuit on your frame.
How far are the L-frames, can you already give a delivery date ?

yes, the frame can fit for the newest dram eagle transmission, just like you find in other web,
size L now in early of June



[JimLee-Lightcarbon]

I think this is the first decent looking DIY MTB i've seen. Wish it was either longer travel, or ran a 205x60 rear shock so it could be long stroked, but either way, its encouraging to see!

rear shock recommend 185*55mm,



[JimLee-Lightcarbon]

it won't ran 205x60, already advice them to make 205 rearshock version but always said it will break the frame

When you are a manufacturer who wants to do a good job in after-sales, you know how important it is to be conservative.
At the just-concluded China cycle 2023, we found two manufacturers who produced in a radical way. In order to pursue light weight, several frames were completely unqualified in terms of design and workmanship,
Because they are ready to accept it, (the repair rate is less than 20%) anyway, the domestic freight is cheap; but the ultra-light frame can attract more than double the sales.



[JimLee-Lightcarbon]

Anyone got their btf014 yet? Supplier wasn’t able to give an ETA on the new form factor

the newest battery will be finished in middle of end of May,



[JimLee-Lightcarbon]

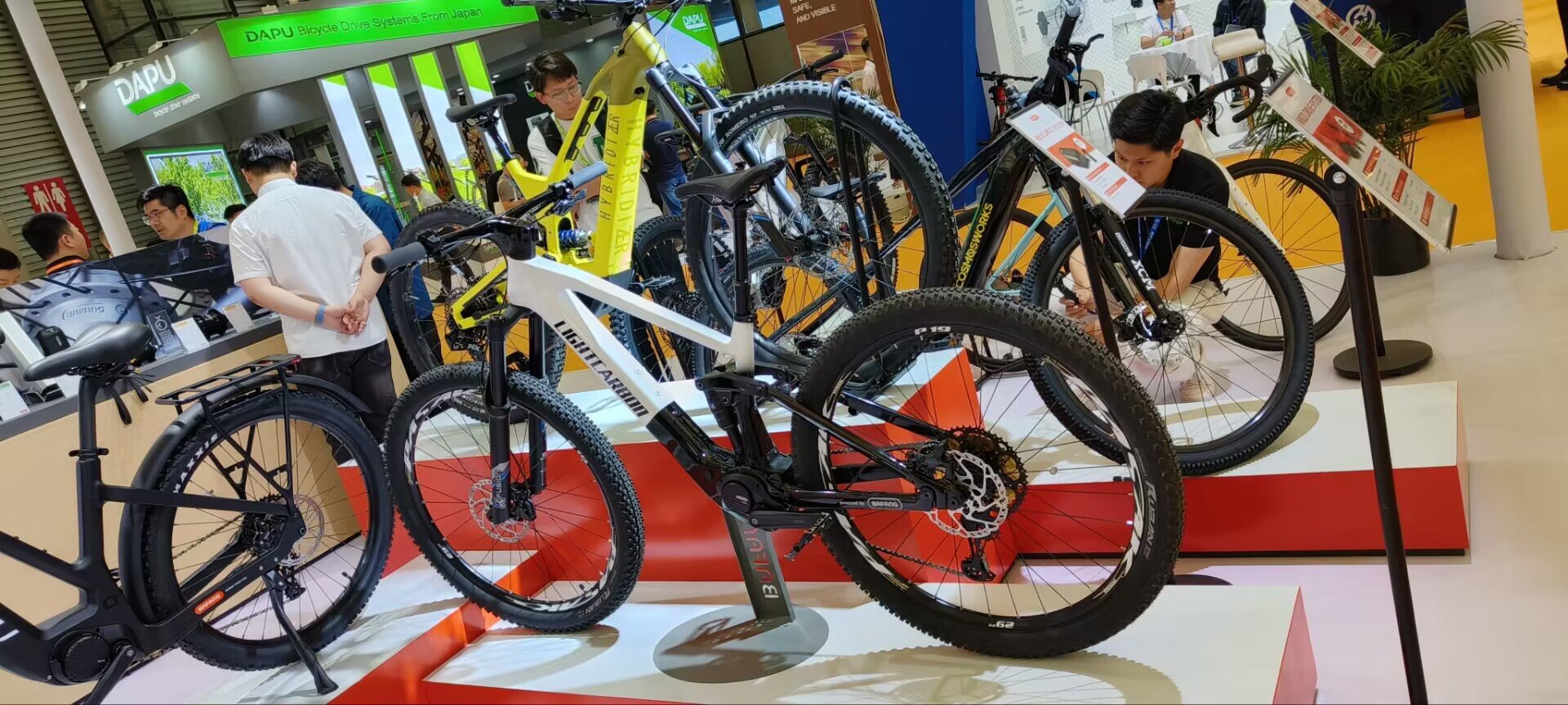

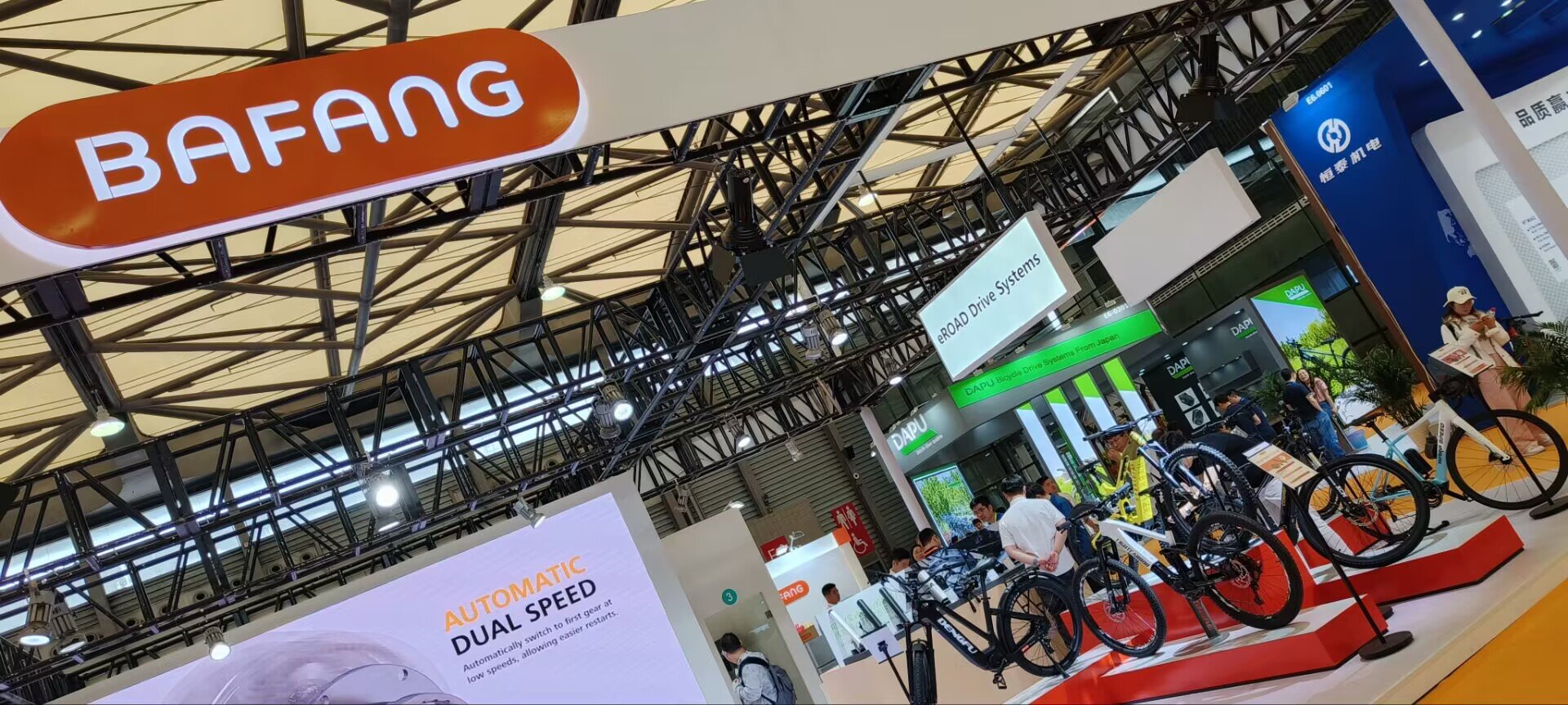

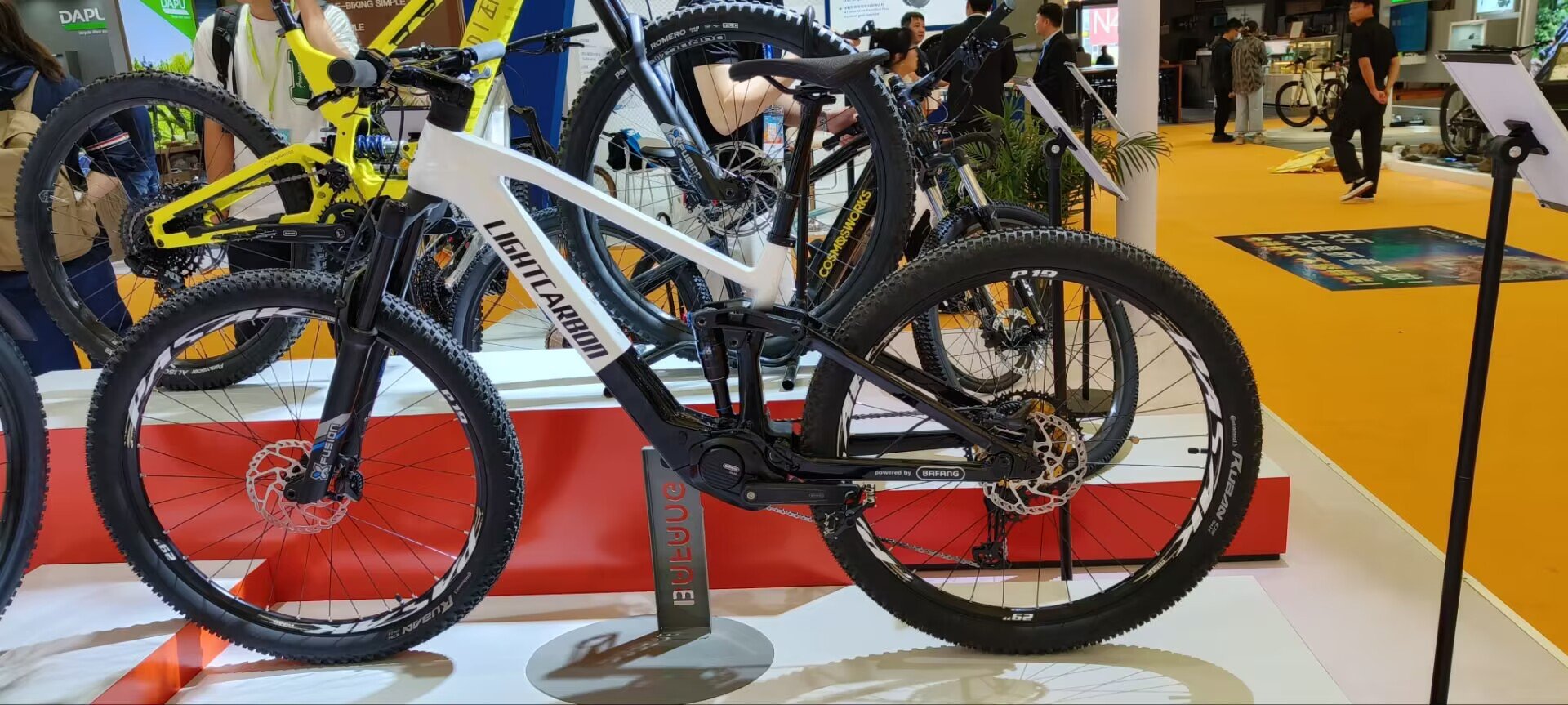

The LCE930 in Bafang booth.
In Eurobike 2023 you can find it again, also in lightcarbon booth.



[kimochi]

Hello Jim, it seems your website is having an error? How do I place an order for this? Also, can this run mullet wheels? How about 27.5 both front and rear?



[JimLee-Lightcarbon]

Hello Jim, it seems your website is having an error? How do I place an order for this? Also, can this run mullet wheels? How about 27.5 both front and rear?

Hi my friend, you can not open our web?
we have no online shop, so send mail to [email protected]
yes the frame can run the mullet wheel, also can fit for 27.5" wheel,



[JimLee-Lightcarbon]

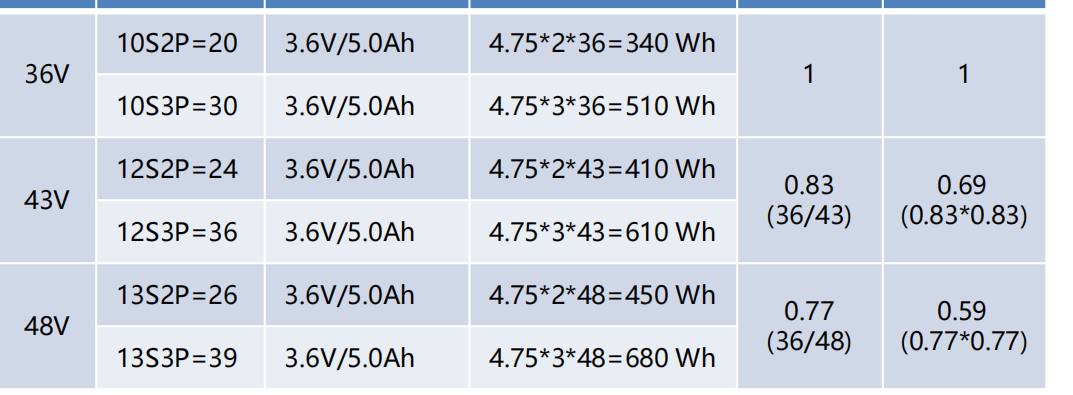

About the DIY battery, lots of peoples want the bigger battery, 720wh, 840wh, 960wh, the more the better,
but please note,
1. This is an electric assist bicycle, electric energy is only auxiliary and should not be the main force, Use your feet to move the pedals, not just sit there.
2. We talked with the bafang designers, they not suggest the bigger battery more than 500wh for M820 motor, That is, the full electric mode for two hours; high current output for a long time may cause the motor to overheat, which involves the effective conversion of energy of a motor, and they are still being resolved.

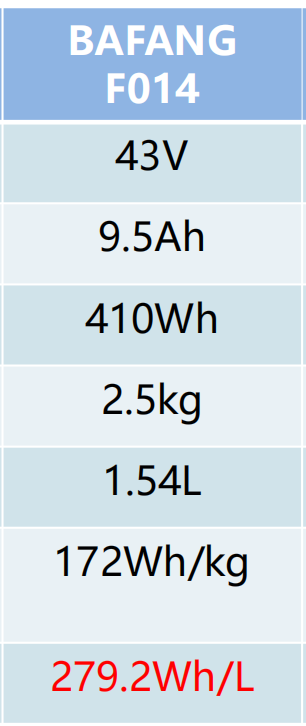

3. some info about BF F014, the infomations are old version, the newest version only change the battery mount.



[brbr]

Anyone already received the frame here?
Or are we all waiting ? Jim said Large end of the month or beginning of June, cant’ wait…



[Goff]

Anyone already received the frame here?
Or are we all waiting ? Jim said Large end of the month or beginning of June, cant’ wait…

I’m waiting for size large, hopefully it’s not far away from delivery



[clix]

I am also waiting for size L and I am quite excited about it. But of course I am also waiting for updated 410wh battery, which could be delayed sadly...



[brbr]

I am also waiting for size L and I am quite excited about it. But of course I am also waiting for updated 410wh battery, which could be delayed sadly...

Same here
I’ve started looking at spot welder and tutorials on how to build diy battery.
If it’s delayed for one or two weeks it’s okay, but if it’s longer I will go into DIY



[borysgo2]

I am waiting for the battery and L size frame too.
If anyone have update about the frame, please let me know.

THX



[brbr]

Jim told me 10th of June for size L and btf014 should be here by the end of the month apparently !



[clix]

Jim told me 10th of June for size L and btf014 should be here by the end of the month apparently !

Where did you order motor and battery from?



[borysgo2]

I am just wondering if it would be possible to update frame to suit the new type of the speed sensor. The one that m820 motor is supplied with, so we can use brake disc magnet instead of spoke magnet.



[brbr]

I am just wondering if it would be possible to update frame to suit the new type of the speed sensor. The one that m820 motor is supplied with, so we can use brake disc magnet instead of spoke magnet.

Yeah, spoke magnet aren’t very reliable…



[brbr]

Where did you order motor and battery from?

Anna Shen from Changzhou filedebikes



[clix]

Anna Shen from Changzhou filedebikes

Aha, OK, same as me.



[clix]

Yeah, spoke magnet aren’t very reliable…

I am hoping to find this one somewhere:
I remember having this one years ago on my kids bike, for bike computer. it was PITA to attach, but once it was on, it was not going anywhere. I might have one somewhere.

Or try new version:
SIGMA SPORT Power Spoke Magnet for toolless Mount, 4,75 €
It does look a little bit less secure though.



[brbr]

I've found a SR Suntour unair quite cheap for the rear shock, it's very linear, which is good for this frame.
Now I see this nice discount on this coil shock : DVO Jade Coil Metric Trunnion Amortisseur arrière 185x55mm | Bikester.fr
I have no idea however if it's a good shock or not... I think it could be better than my cheap suntour. Anyone knows this one?



[Goff]

I've found a SR Suntour unair quite cheap for the rear shock, it's very linear, which is good for this frame.
Now I see this nice discount on this coil shock : DVO Jade Coil Metric Trunnion Amortisseur arrière 185x55mm | Bikester.fr
I have no idea however if it's a good shock or not... I think it could be better than my cheap suntour. Anyone knows this one?

I have purchased the same DVO shock for my build, the guys I ride with rate this shock, they ride grade 5 all day long and are very particular on suspension, one of them used to have his own suspension service business.
I have purchased a Fox factory 38 up front, currently 160mm travel but have a 180mm air cartage on order.
Can't wait for the frame delivery.



[clix]

@Goff, you are going to put 180mm fork on LCE930 frame?



[Goff]

@Goff, you are going to put 180mm fork on LCE930 frame?

Yes it will raise the front slightly and some more rake.



[brbr]

I have purchased the same DVO shock for my build, the guys I ride with rate this shock, they ride grade 5 all day long and are very particular on suspension, one of them used to have his own suspension service business.
I have purchased a Fox factory 38 up front, currently 160mm travel but have a 180mm air cartage on order.
Can't wait for the frame delivery.

Wow fox 38 180!
That’s a lot
I read some reviews and I think it might be a bit overkill for my riding!



[brbr]

I have purchased the same DVO shock for my build, the guys I ride with rate this shock, they ride grade 5 all day long and are very particular on suspension, one of them used to have his own suspension service business.
I have purchased a Fox factory 38 up front, currently 160mm travel but have a 180mm air cartage on order.
Can't wait for the frame delivery.

well, I'm weak, I clicked
I now have a nice DVO Jade, just missing the spring! Any advice on how to calculate the load needed ?



[Freda]

well, I'm weak, I clicked
I now have a nice DVO Jade, just missing the spring! Any advice on how to calculate the load needed ?

I used this for my mega and it was spot on for that. I guess you need to add about 5kg for ebike.

TFTuned



[brbr]

I used this for my mega and it was spot on for that. I guess you need to add about 5kg for ebike.

TFTuned

i have 500, it seems ok



[brbr]

Update from Jim, size L is planned for 10th, but it will also probably be on the 20th of June, because of feedbacks from size M, they need to change a bolt linking front and rear triangle. They might not receive the bolt for the 10th of June…
And, no feedback from Bafang for the BFT014 neither, it’s getting complicated to wait, specifically when your other bike is an old shitty bike!
