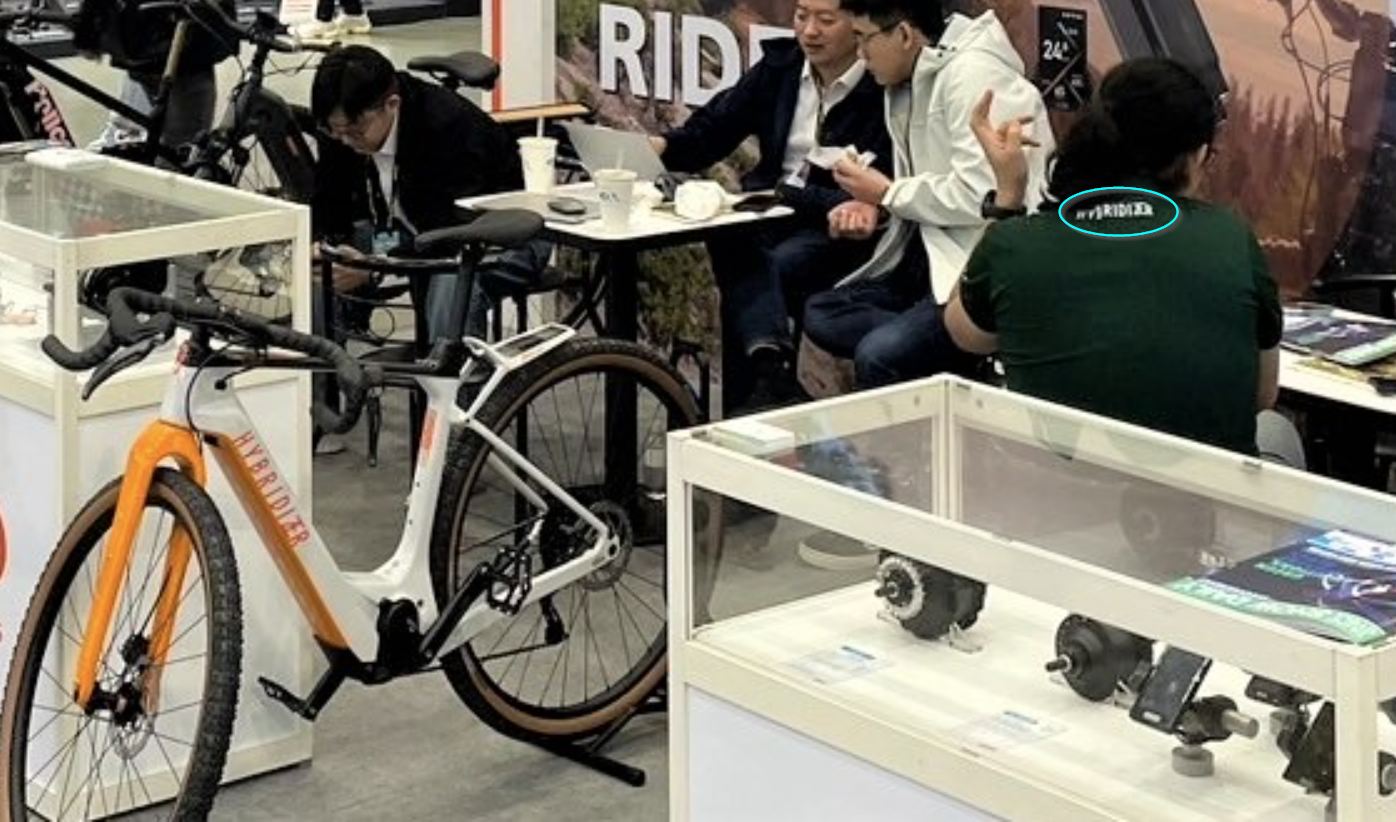

@D'Apostrophe spotted the new Hybridizer frame!! Source: Bafang Facebook Page
An employee of Hybridizer is also there.
An employee of Hybridizer is also there.
Hybridizer Sann Bafang M500 series Aluminum FS
- Thread starter Mabman
- Start date
CarolinaCrawler
Active member
What is your current build and weight? I'm curious how light they could get an aluminum frame.
D'Apostrophe
Member

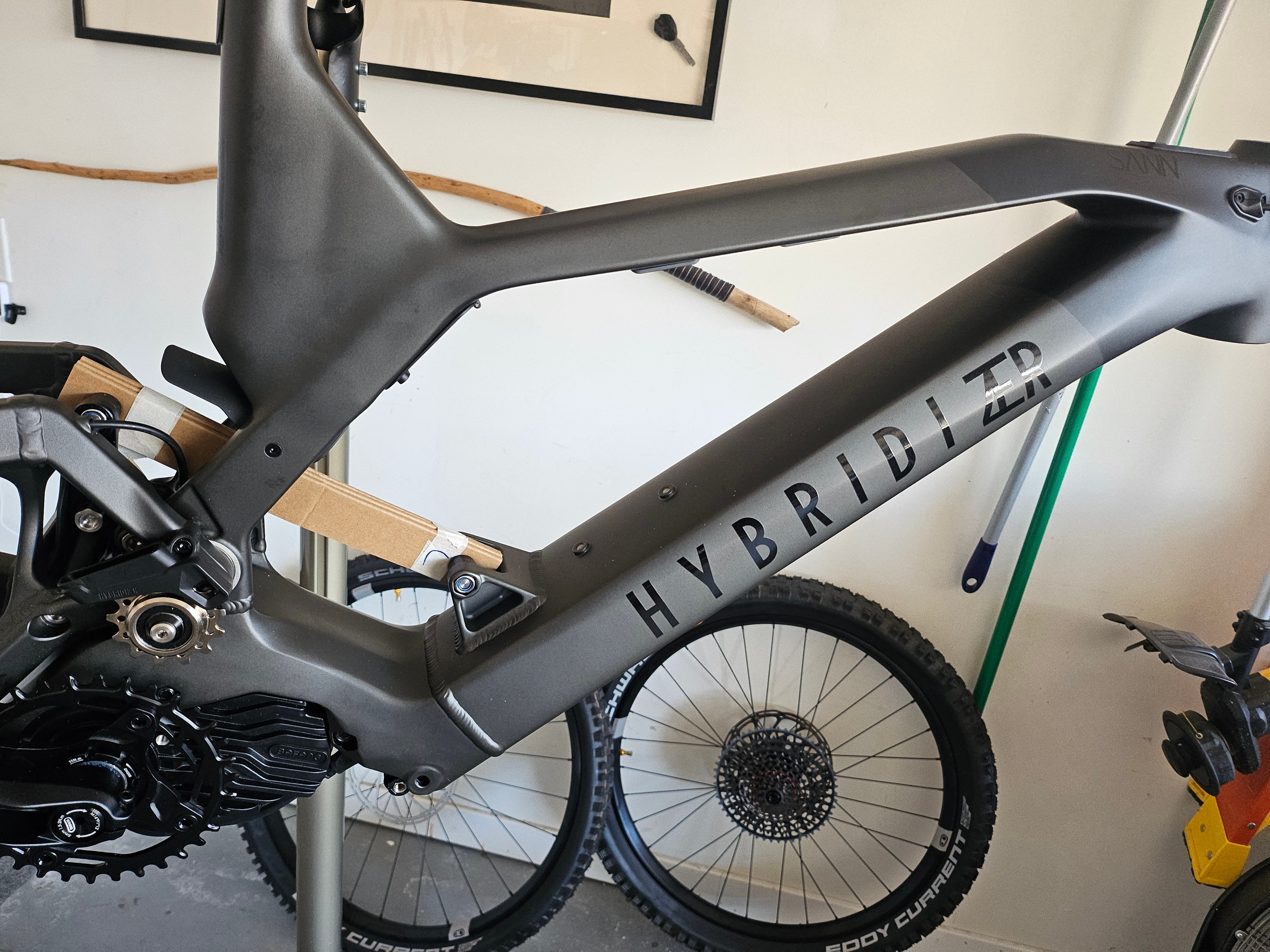

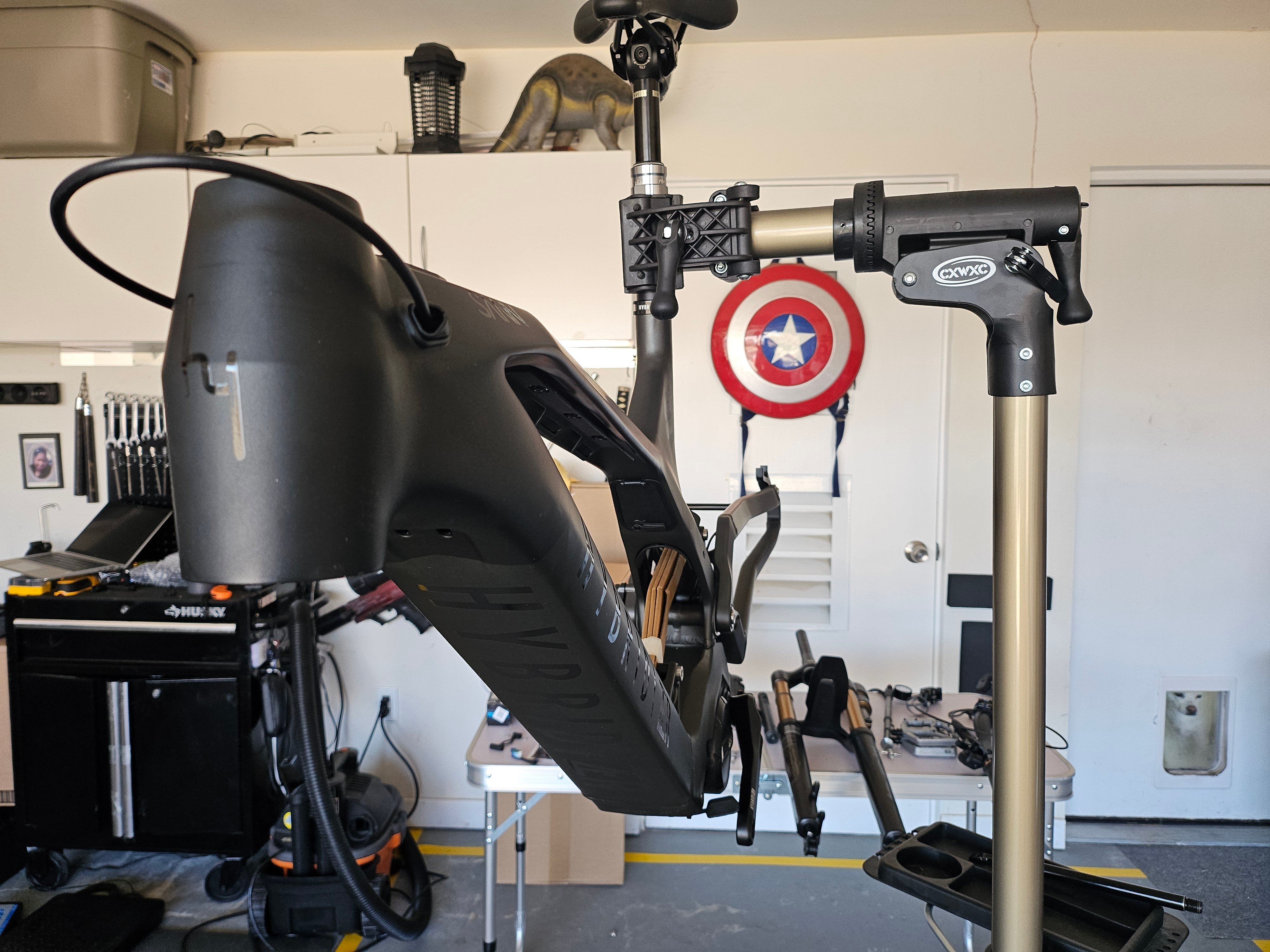

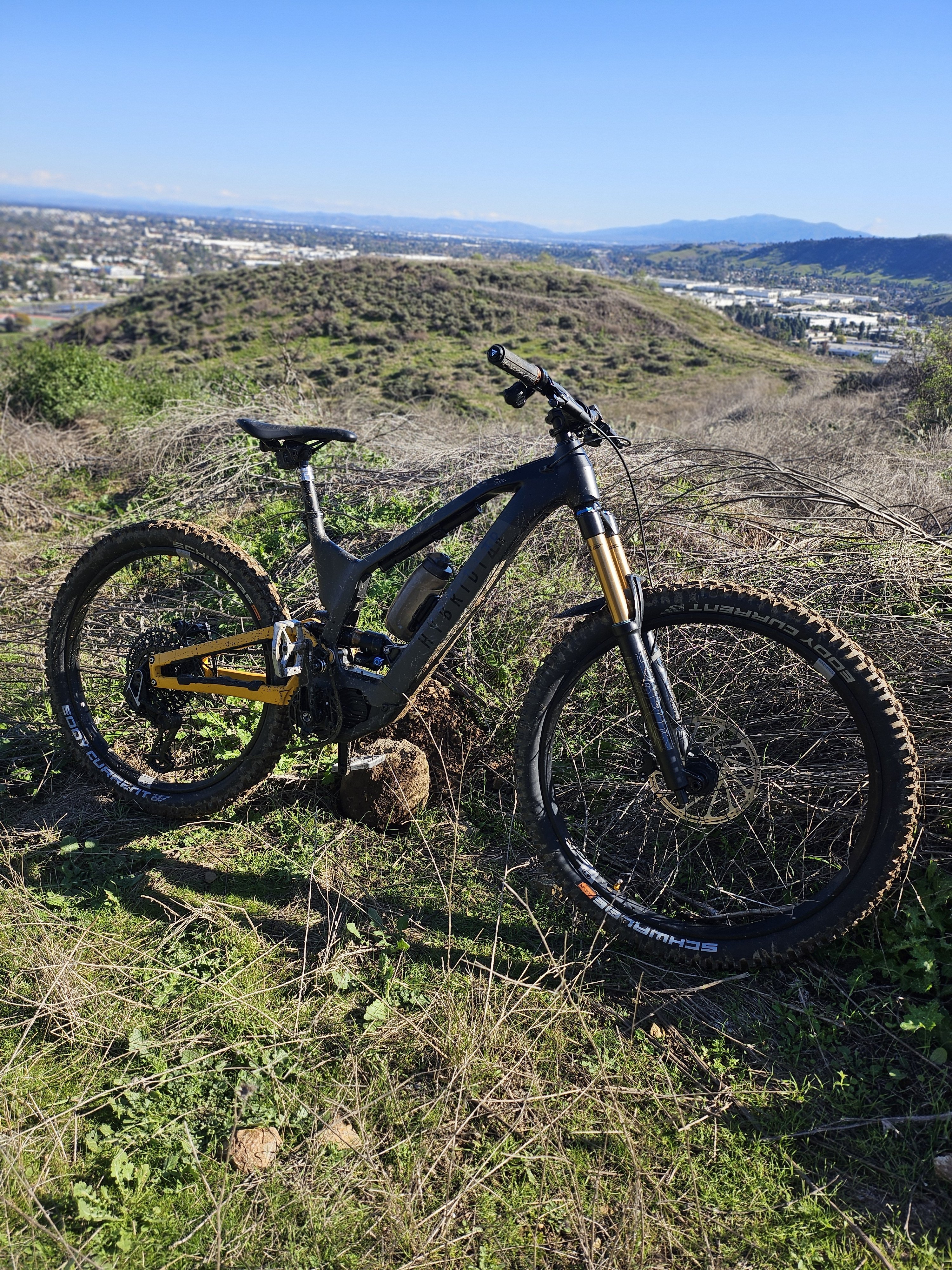

I threw caution to the wind when it came to weight. I'm 220lbs (99kg), so a light weight bike doesn't really matter.
The build is 58lbs (26kg)
27/29 crankbrothers synthesis Alloy wheels
Schwalbe eddy current tires 2.6 and 2.8
220/203 rotors
Sram db8 brakes
Fox 36 fork, Fox dpx2 shock
Sram XO axs t-type
Rockshox reverb dropper
Ergon smc large saddle
Crankbrothers stamp 3 pedals, large
Raceface turbine stem and aeffect bars
Cane creek headset
Fidlock bottle
D'Apostrophe
Member

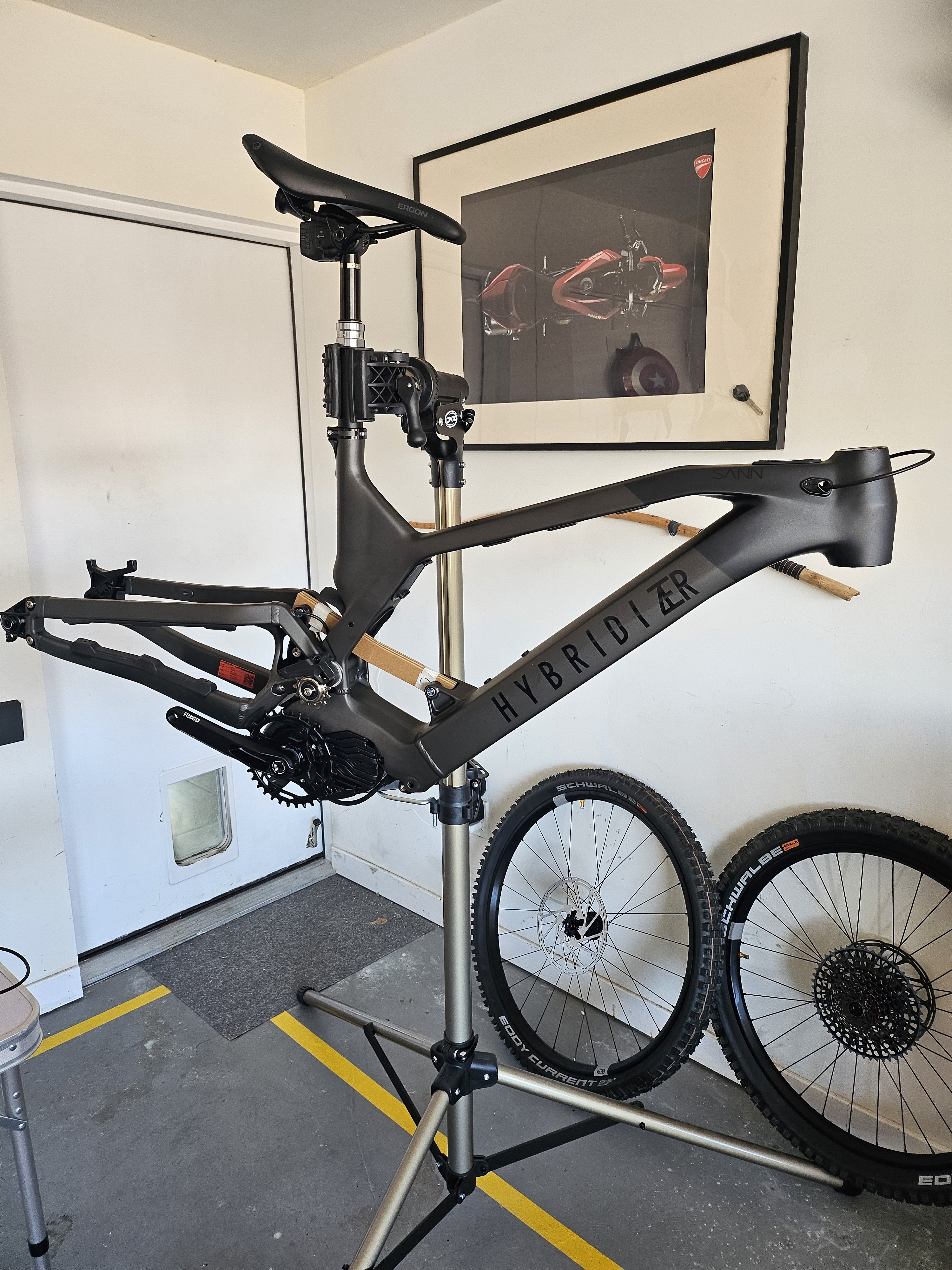

Wooot! That's me

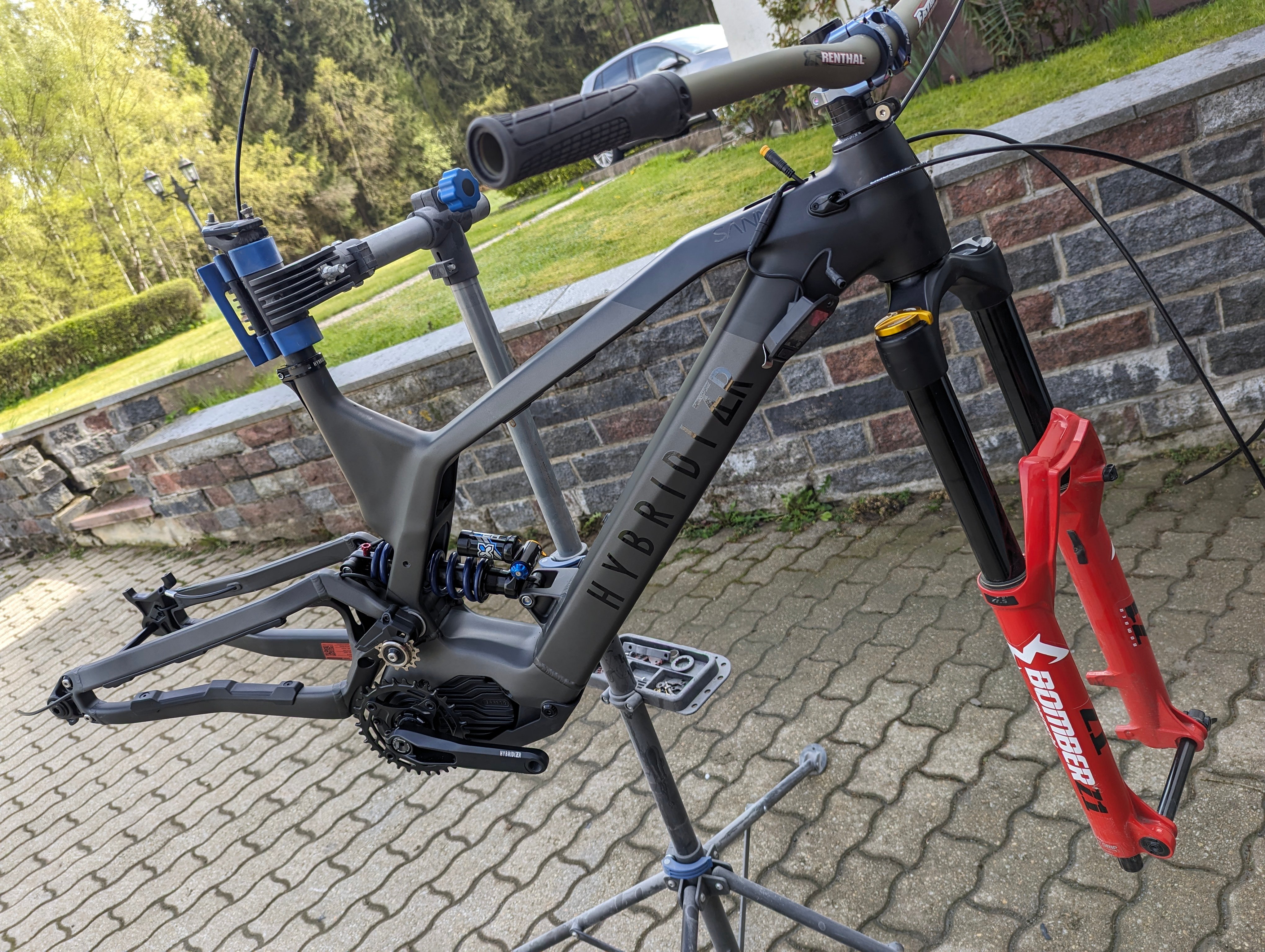

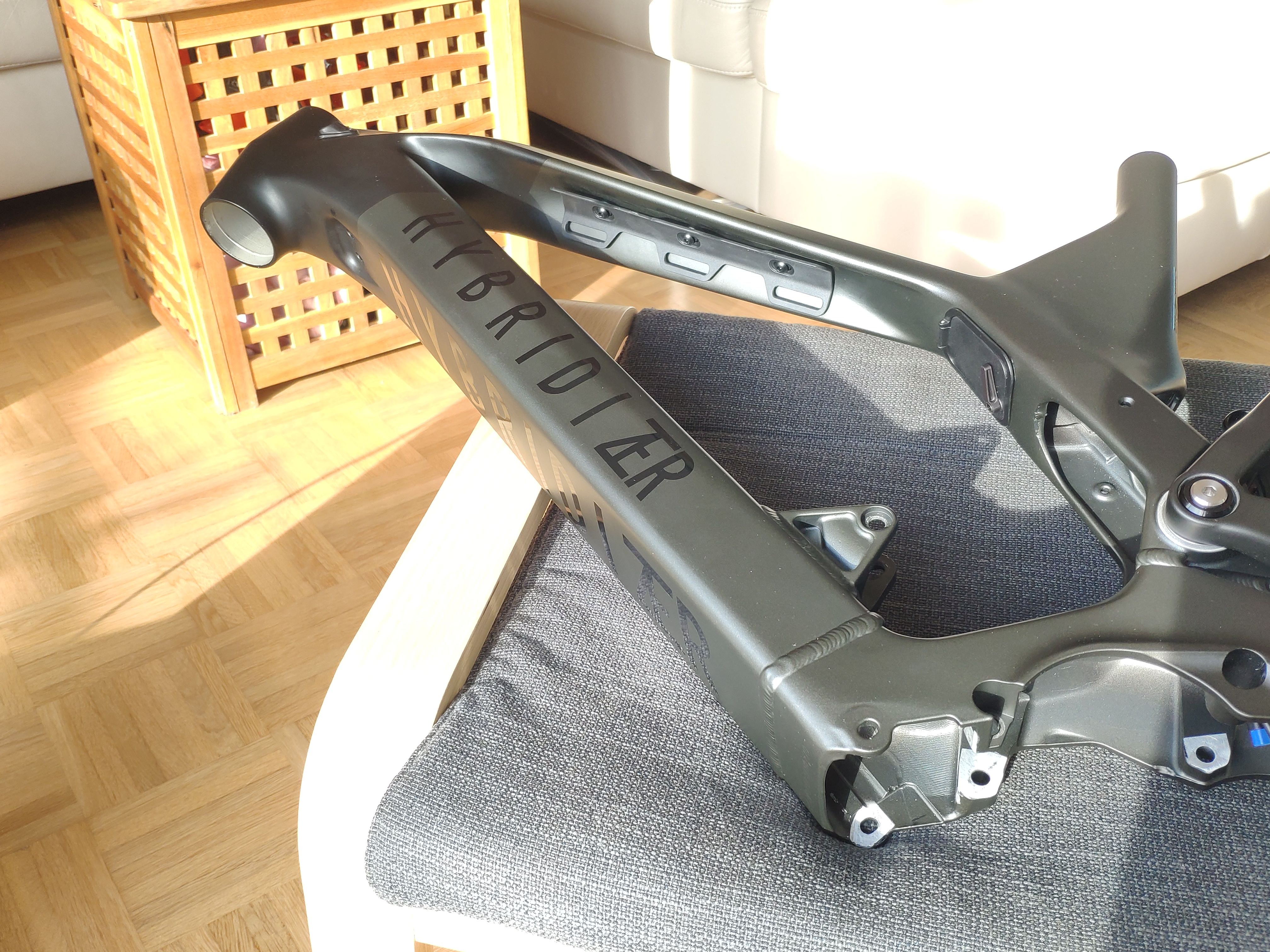

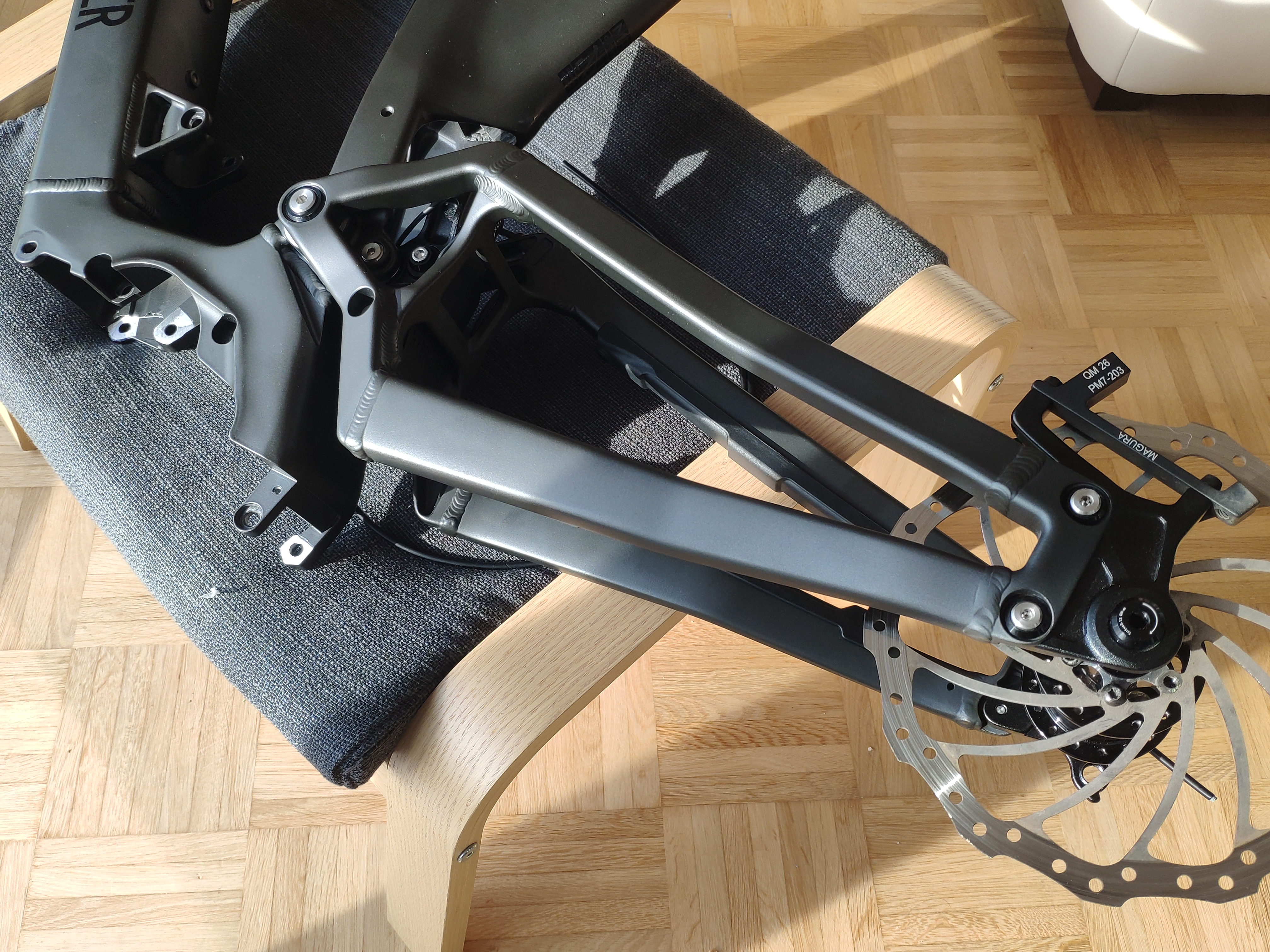

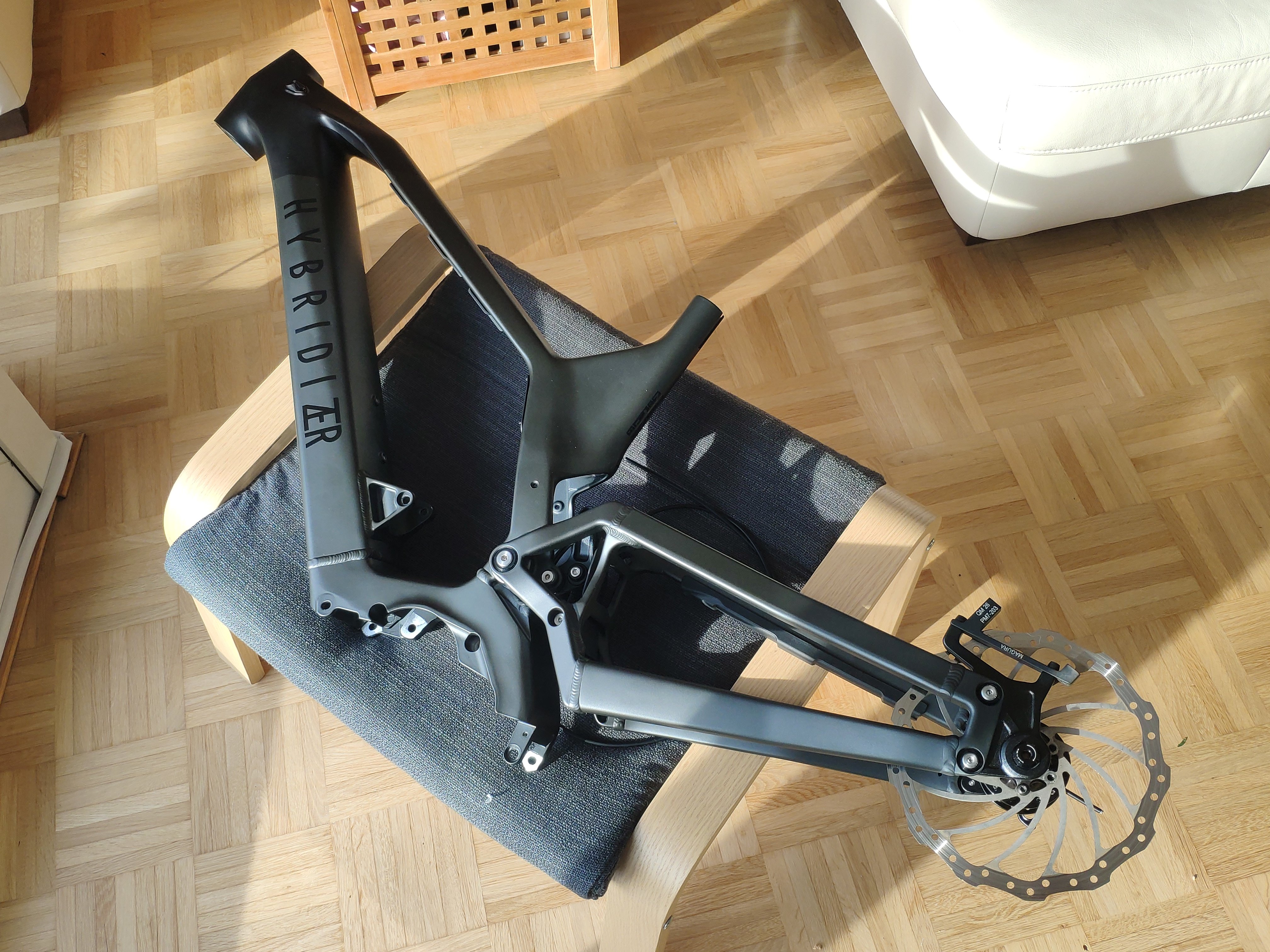

Received mine a few days ago. I'm amazed and very excited, to finish the build.

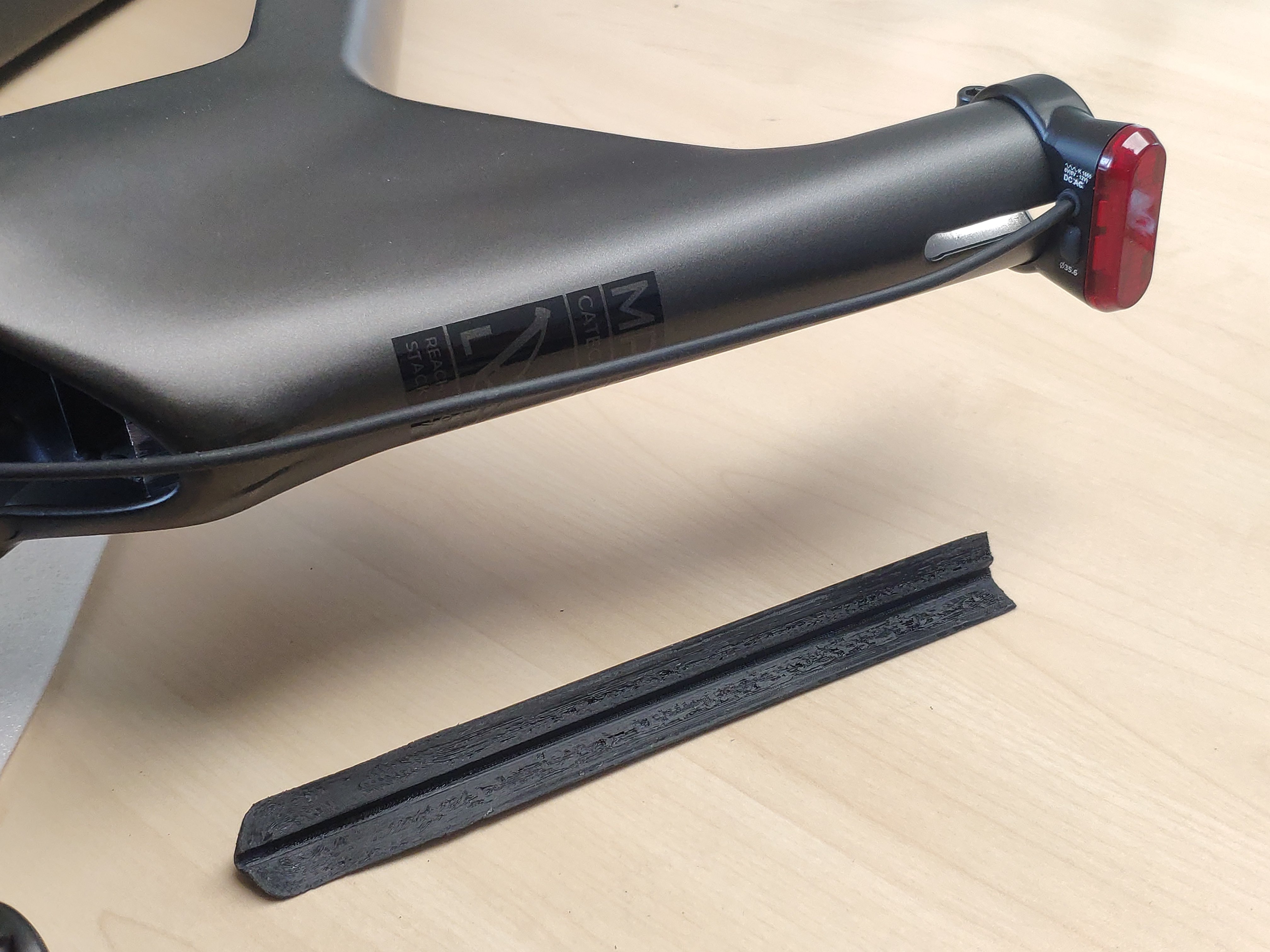

However I'm working on some custom features, like cable duct for the rear light and custom wiring so I can attach Lupine SL X + Lupine C14. It's a rather slow build, but I try to post images regularily.
However I'm working on some custom features, like cable duct for the rear light and custom wiring so I can attach Lupine SL X + Lupine C14. It's a rather slow build, but I try to post images regularily.

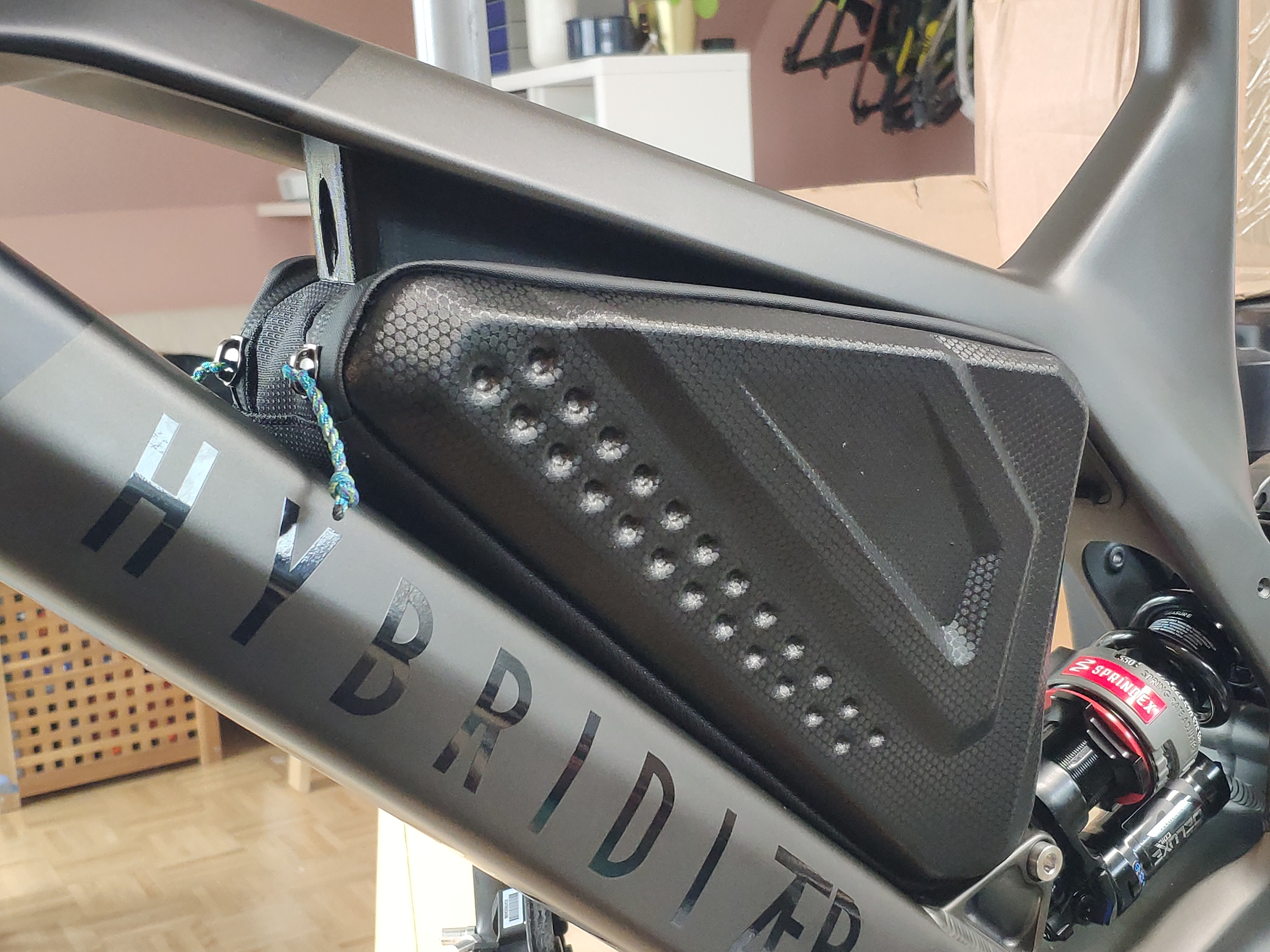

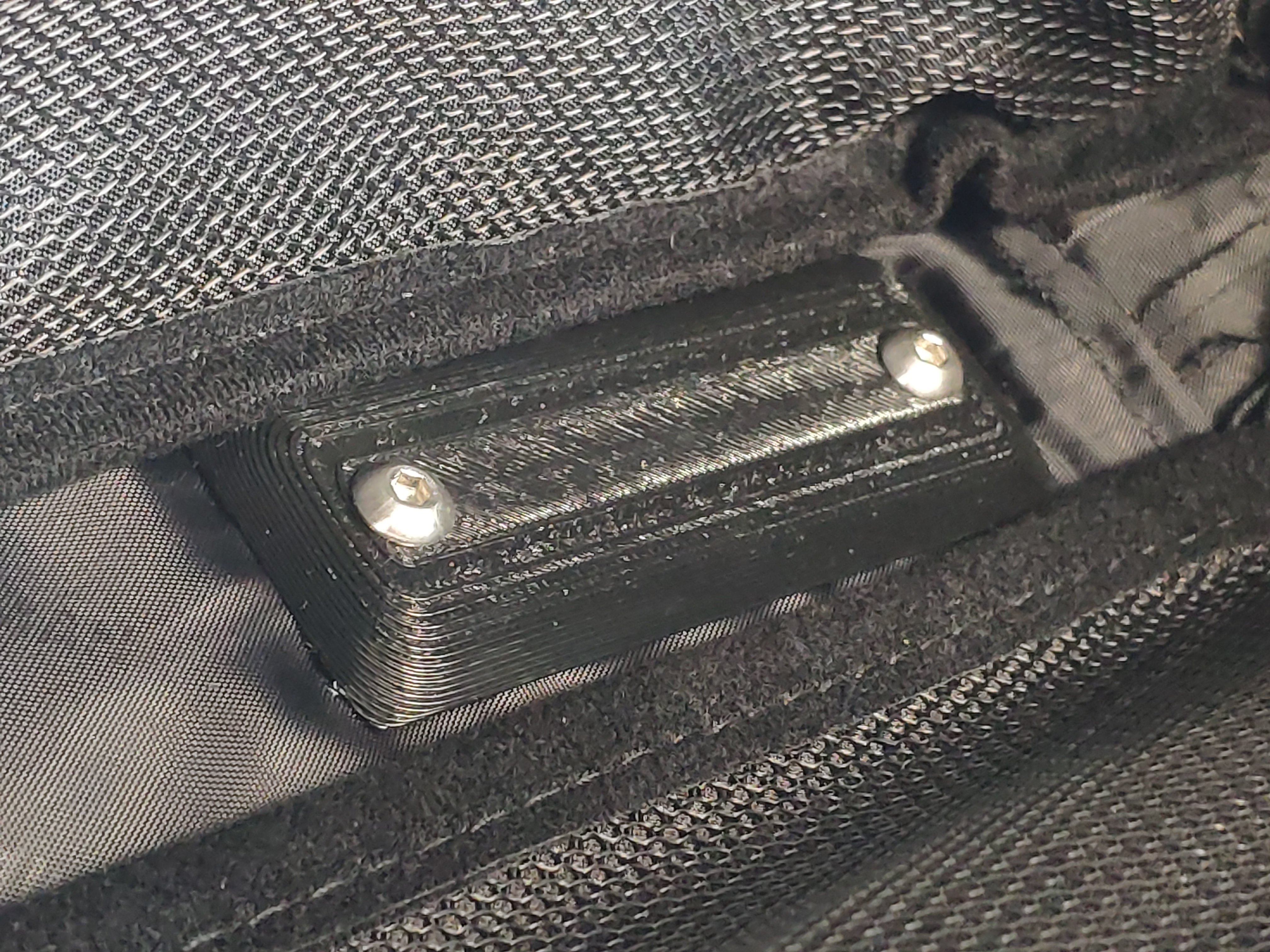

I got this "WILDMAN" bag from Aliexpress. The ugly reflective logo and straps can easily be removed. For mounting I made myself some 3D-printed parts, that screw into the exisiting screwholes of the frame. The zippers had to be replaced with cords, since it's hard to get around the corners otherwise.
Last edited:

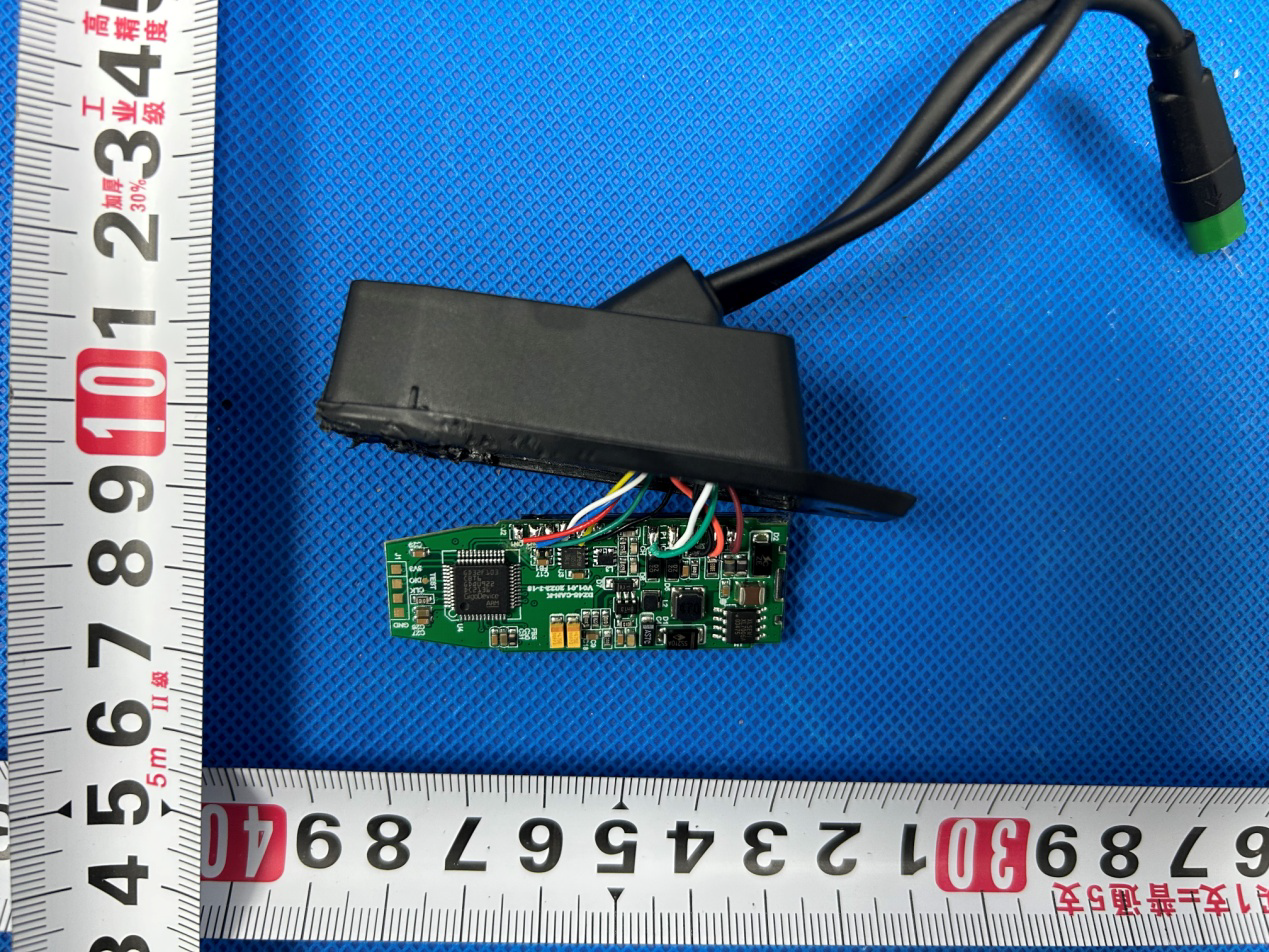

The Topology DZ45 display of the Hybridizer SANN had to undergo FCC certification, since it has built-in bluetooth. Images and documents are publicly available, by looking for 2BDHY-SANN.

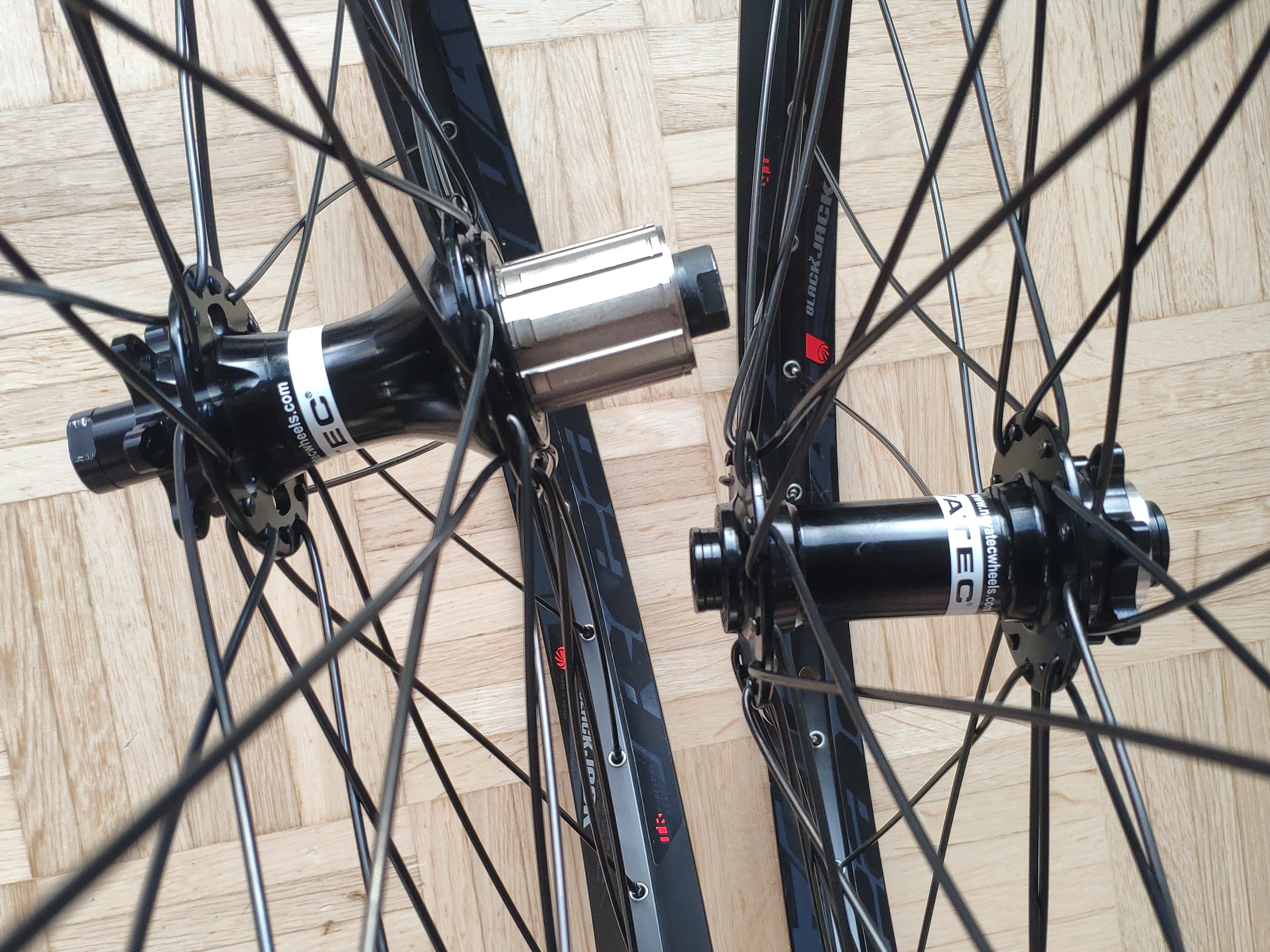

Just finished building the wheels! It's down to centering them now..
Front: Novatec Hub 110mm Boost 32H 6-hole [D041SB-B15]
Back: Novatec Hub 148mm Boost 32H Shimano-body [D462SB-SL-B12]
Rims: Rodi Blackjack READY40
Spokes: DT-Swiss Champion 2,34mm
Front: Novatec Hub 110mm Boost 32H 6-hole [D041SB-B15]
Back: Novatec Hub 148mm Boost 32H Shimano-body [D462SB-SL-B12]
Rims: Rodi Blackjack READY40
Spokes: DT-Swiss Champion 2,34mm
Hi. Could you give me some directions on where to order the frame?
HYBRIDIZER
Blue83
Member
Seit Freitag bin ich auch stolzer Besitzer
D'Apostrophe
Member

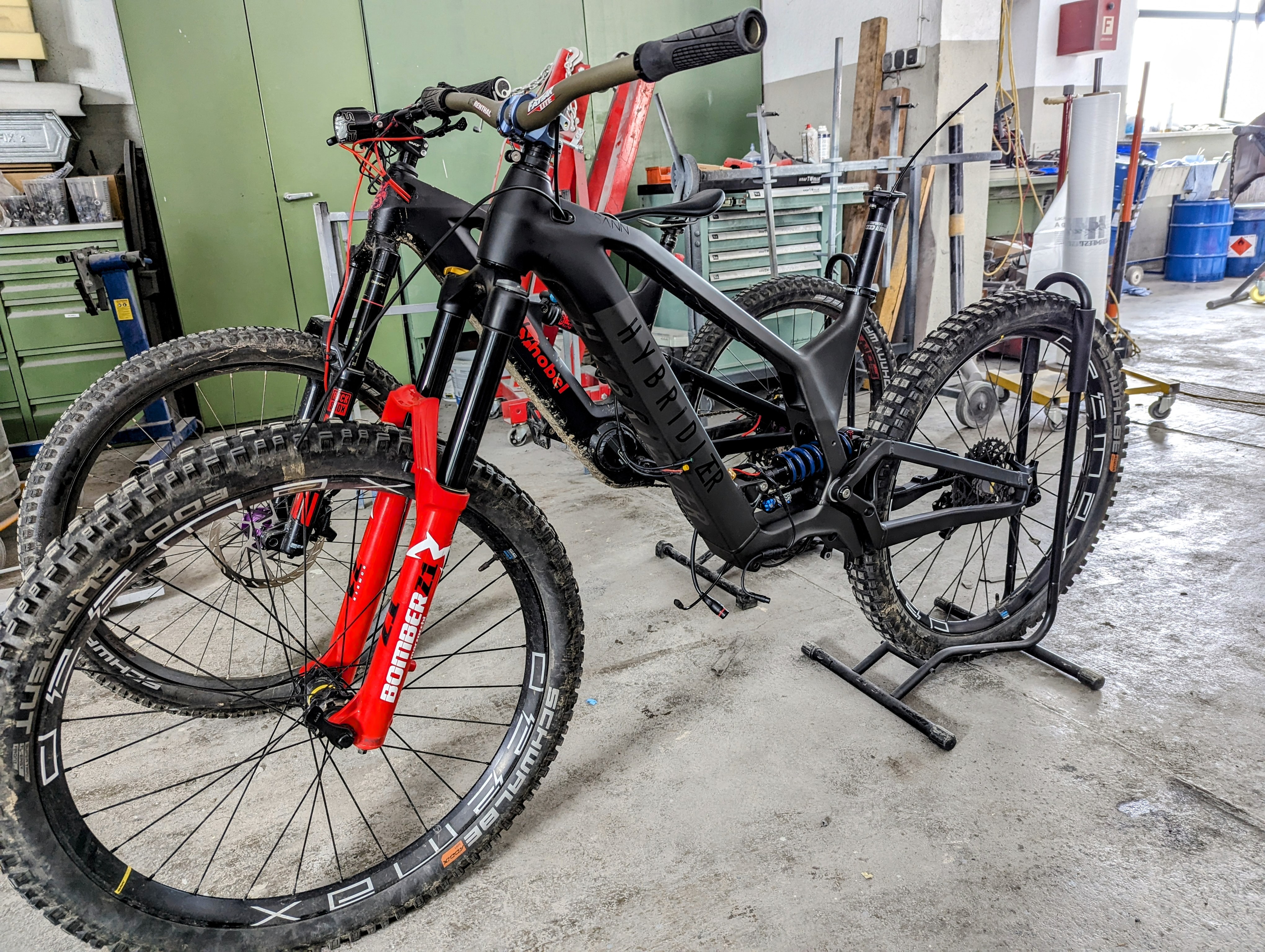

Everyone's bike is looking awesome.

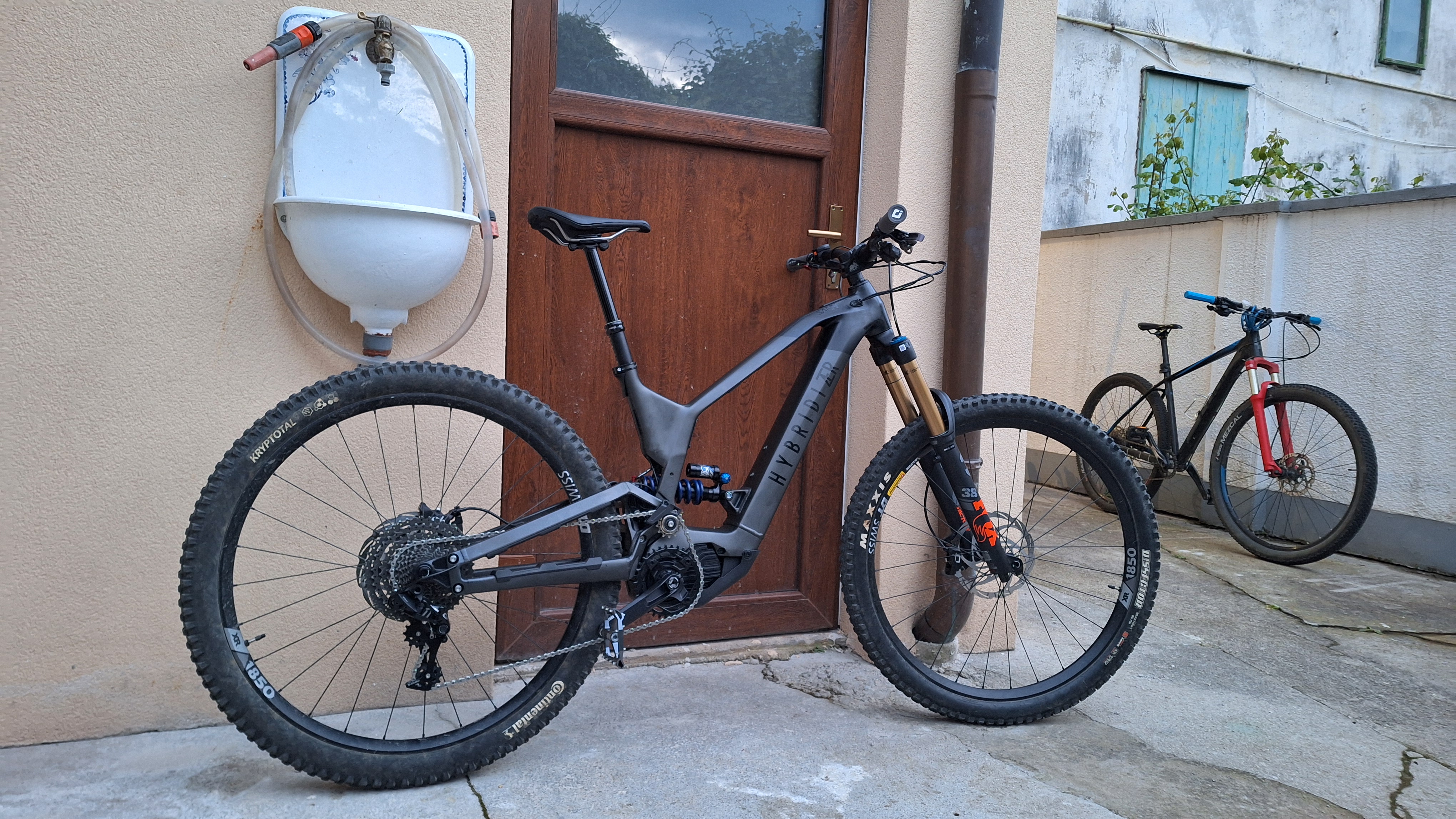

I finaly build my bike. It is verry nice bike frame, and works very good.

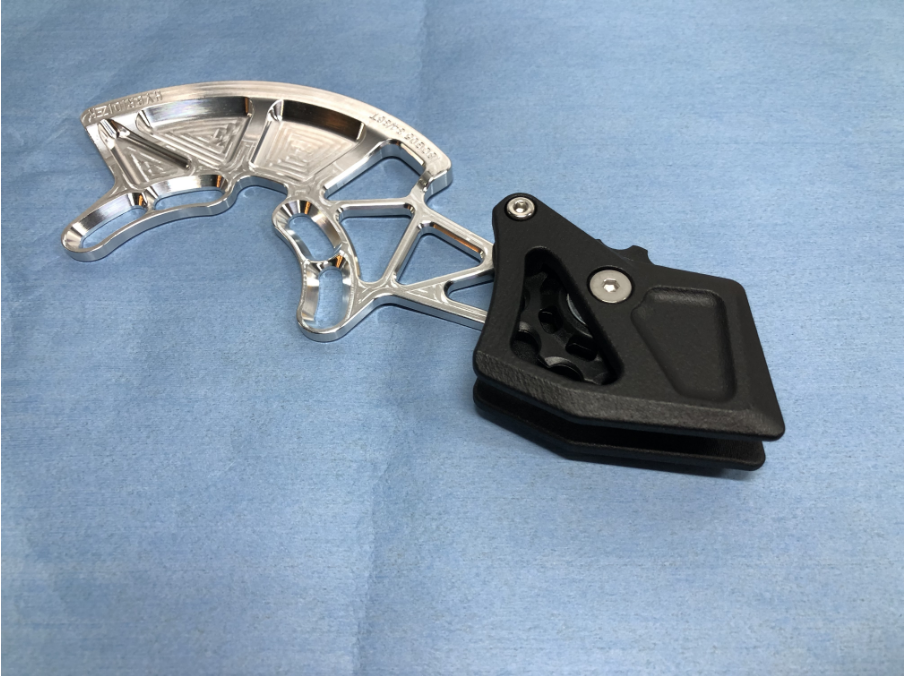

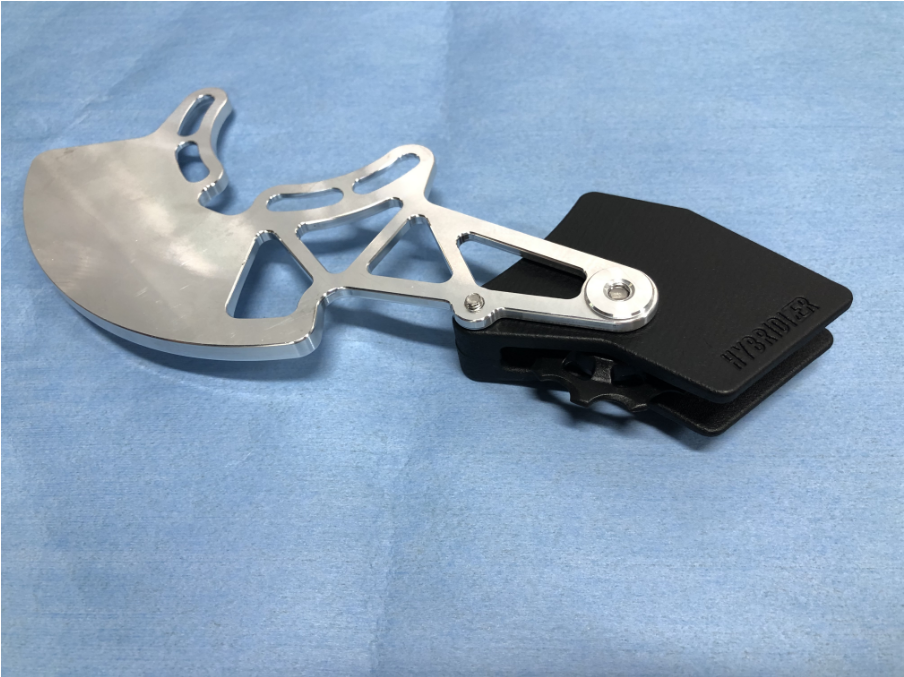

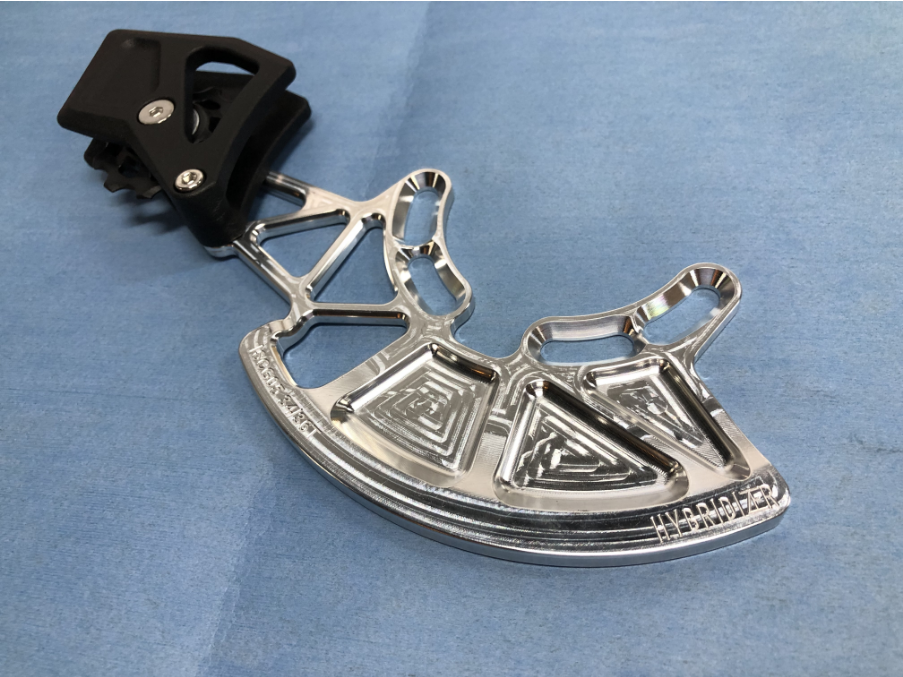

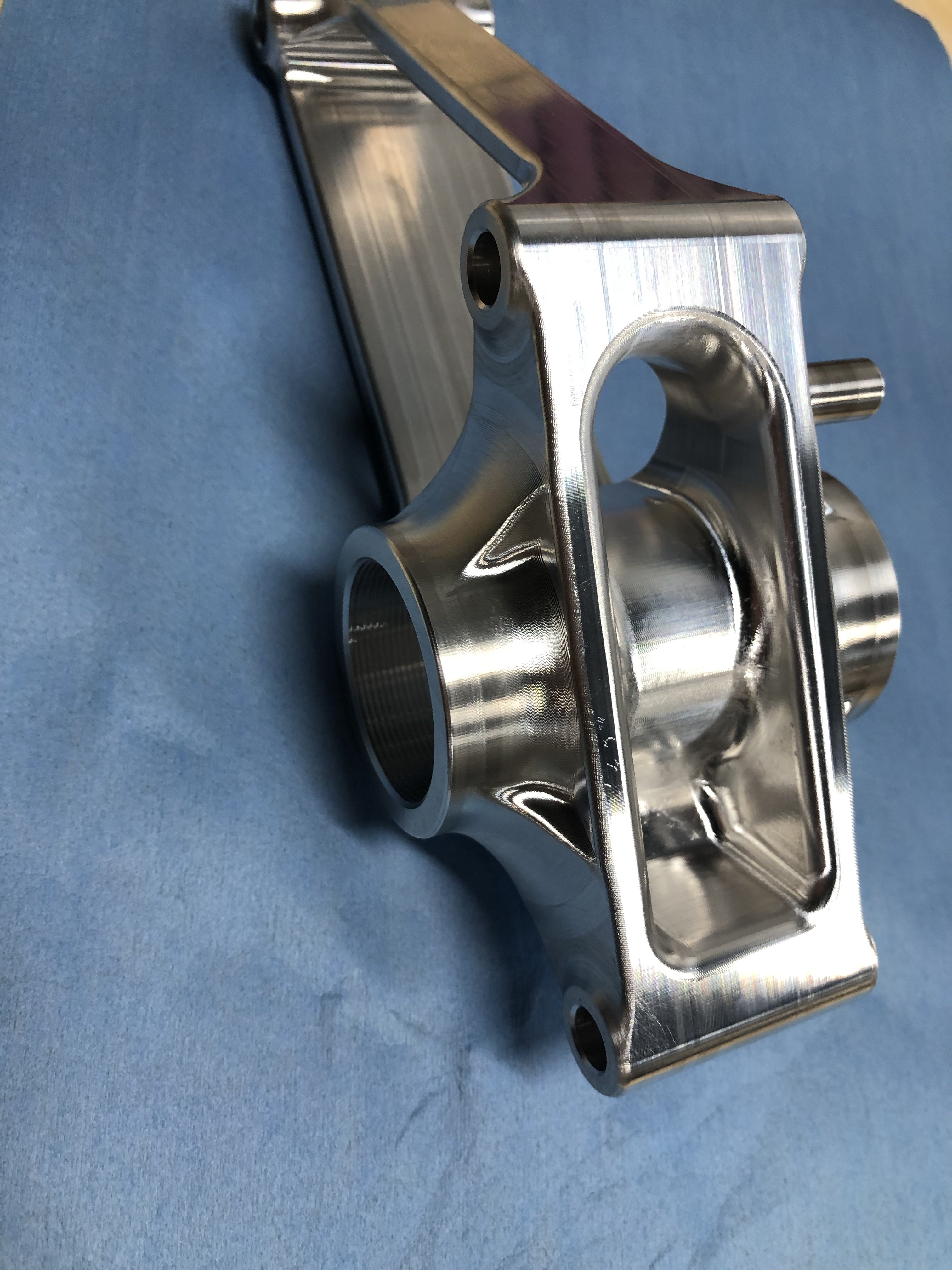

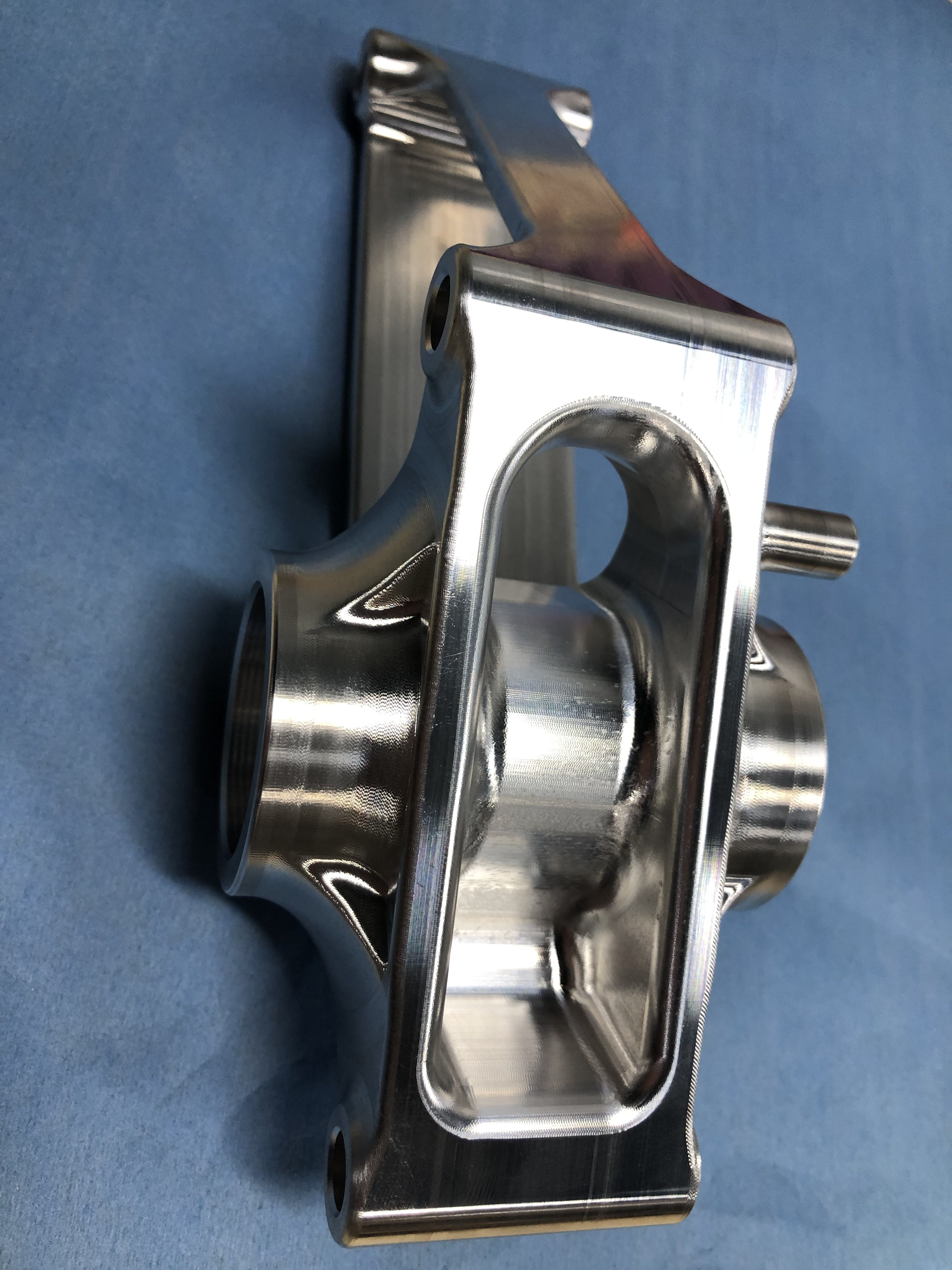

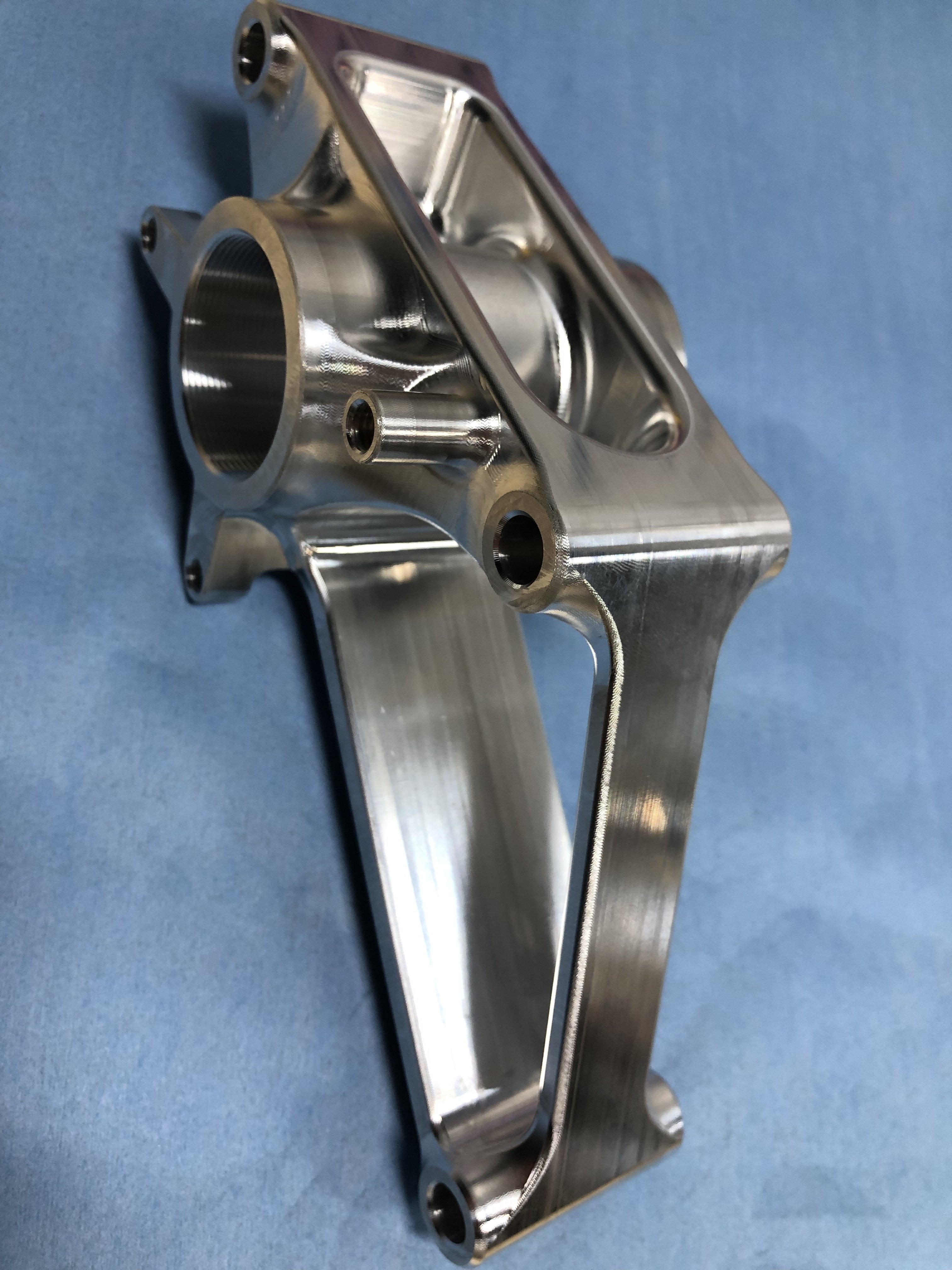

I have ordered bashguard and adapter for accustic bottom bracket (to make non electric bike bb92).
Price for chain guard is 52$, price for bottom bracket adapter is 100$, shipping to EU is 45$. And they gave me free jersey.
I think all parts are super nice.
Have a nice day.
I have ordered bashguard and adapter for accustic bottom bracket (to make non electric bike bb92).
Price for chain guard is 52$, price for bottom bracket adapter is 100$, shipping to EU is 45$. And they gave me free jersey
.I think all parts are super nice.
Have a nice day.

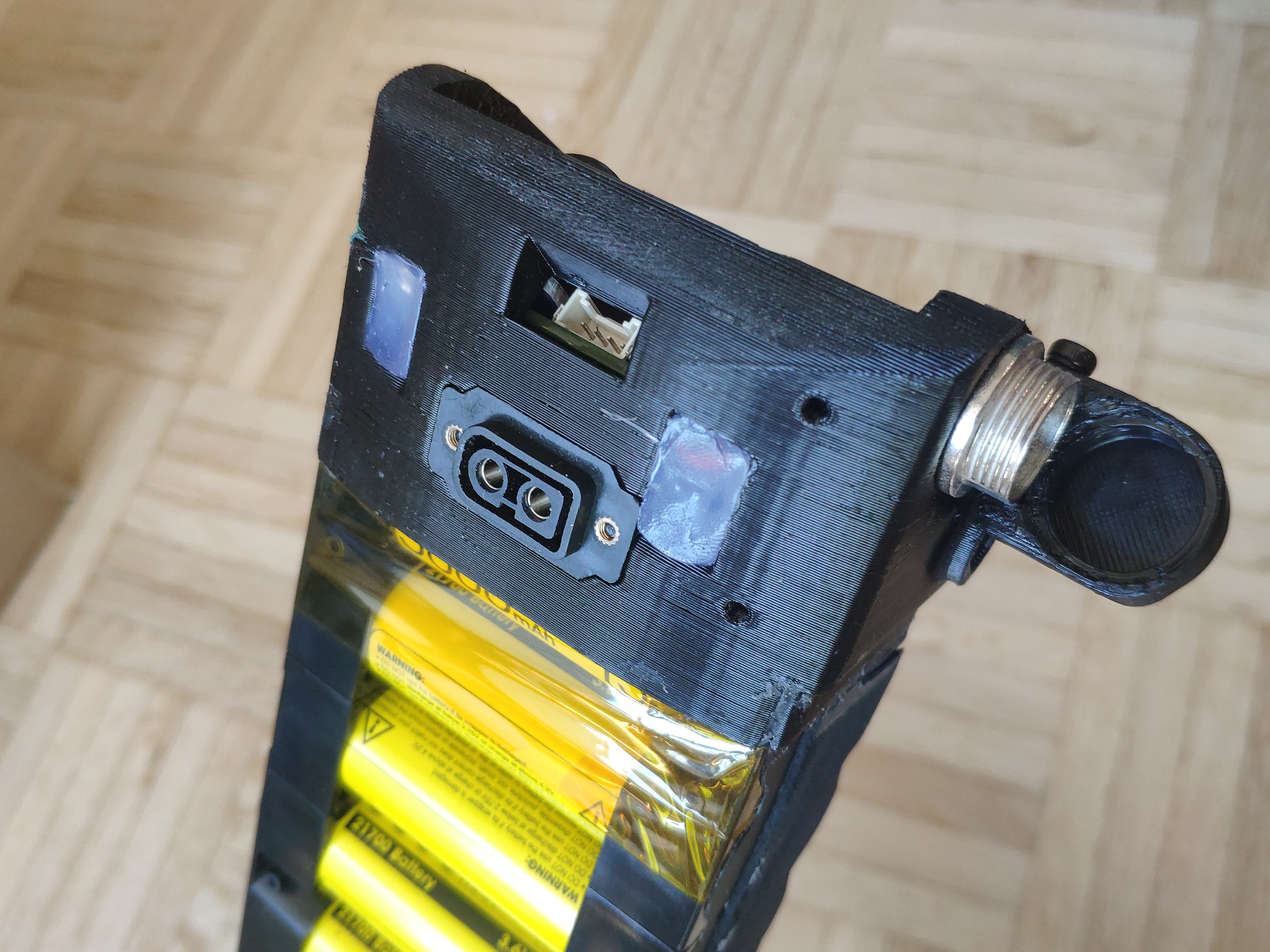

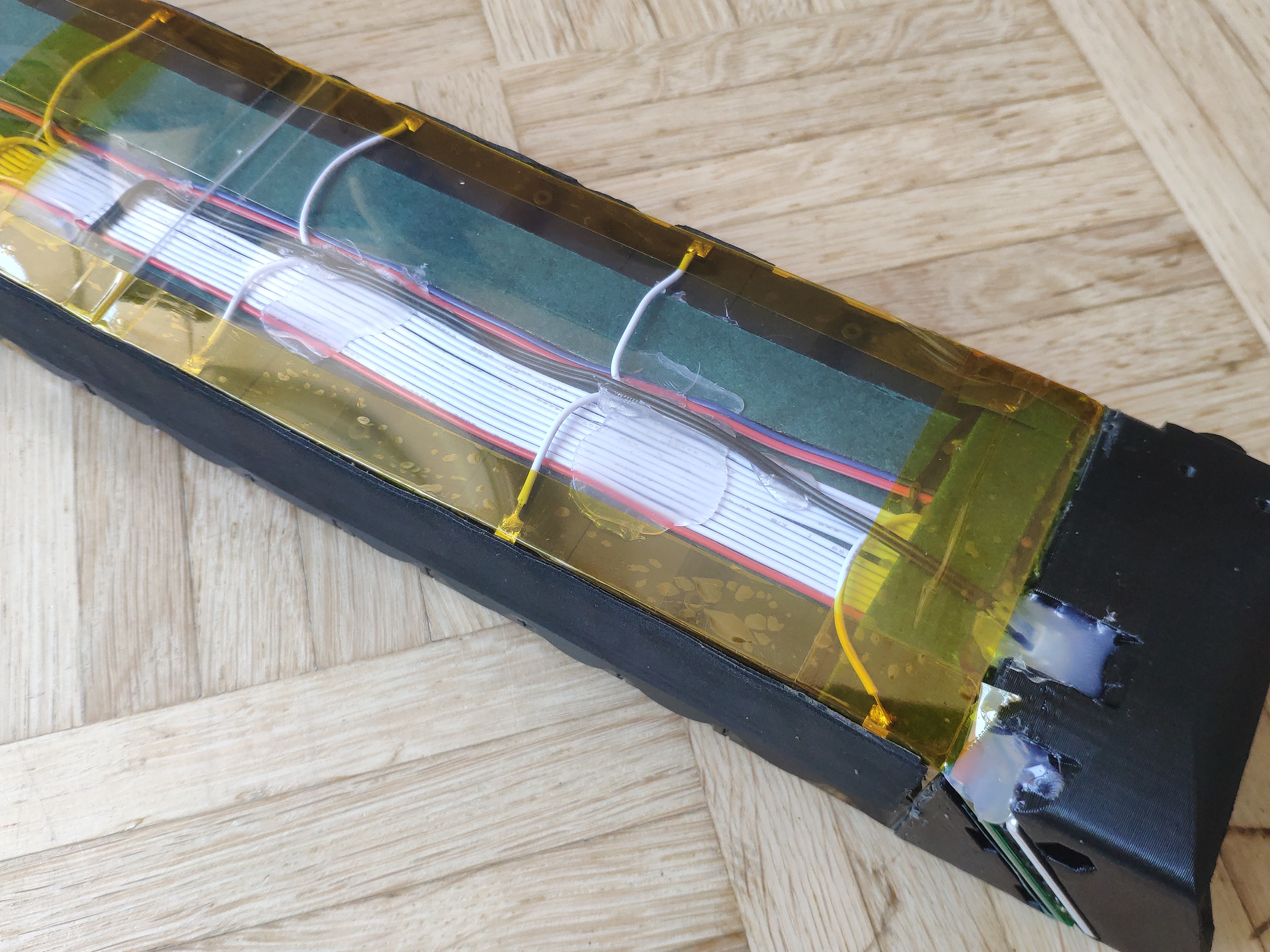

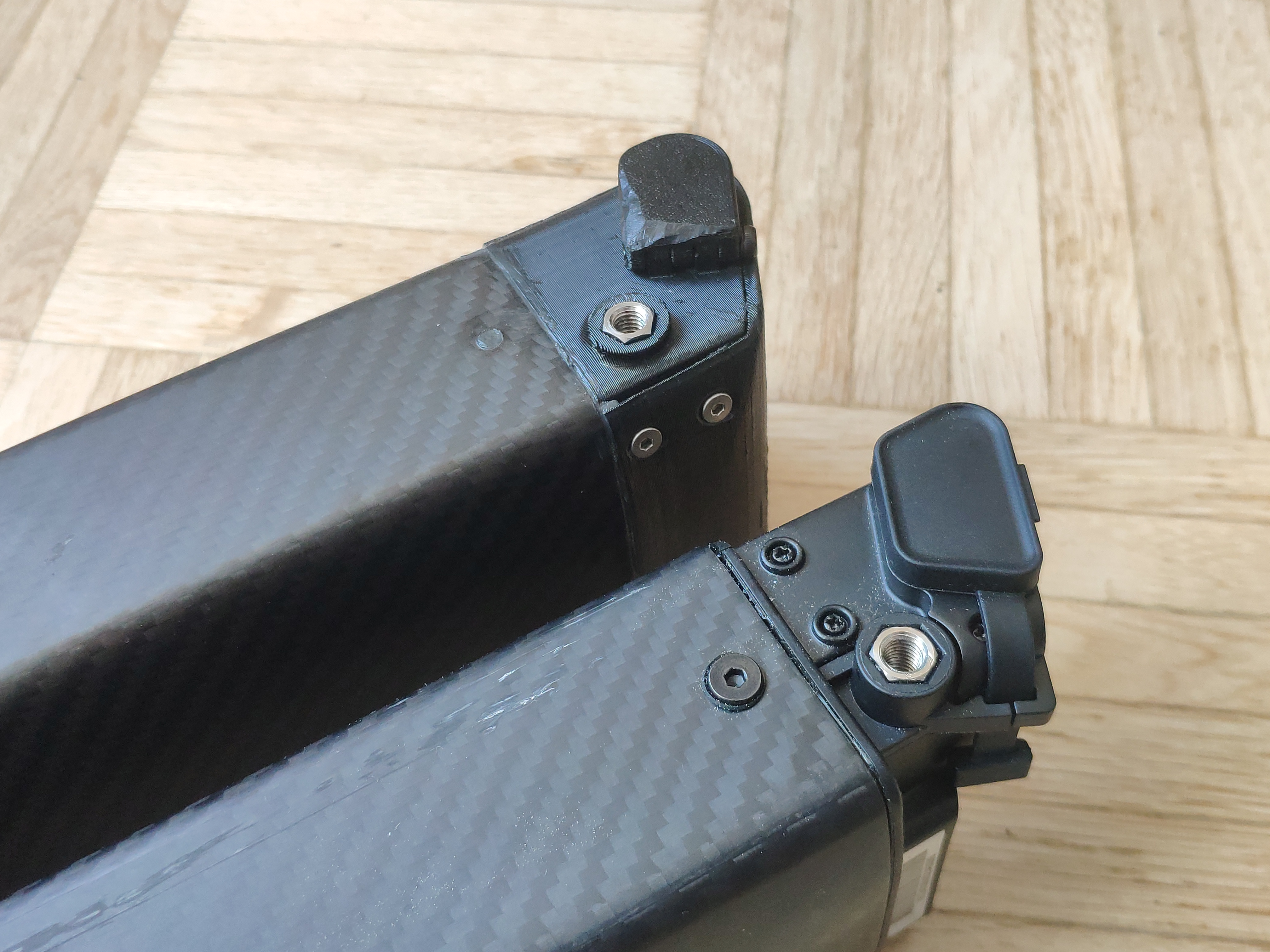

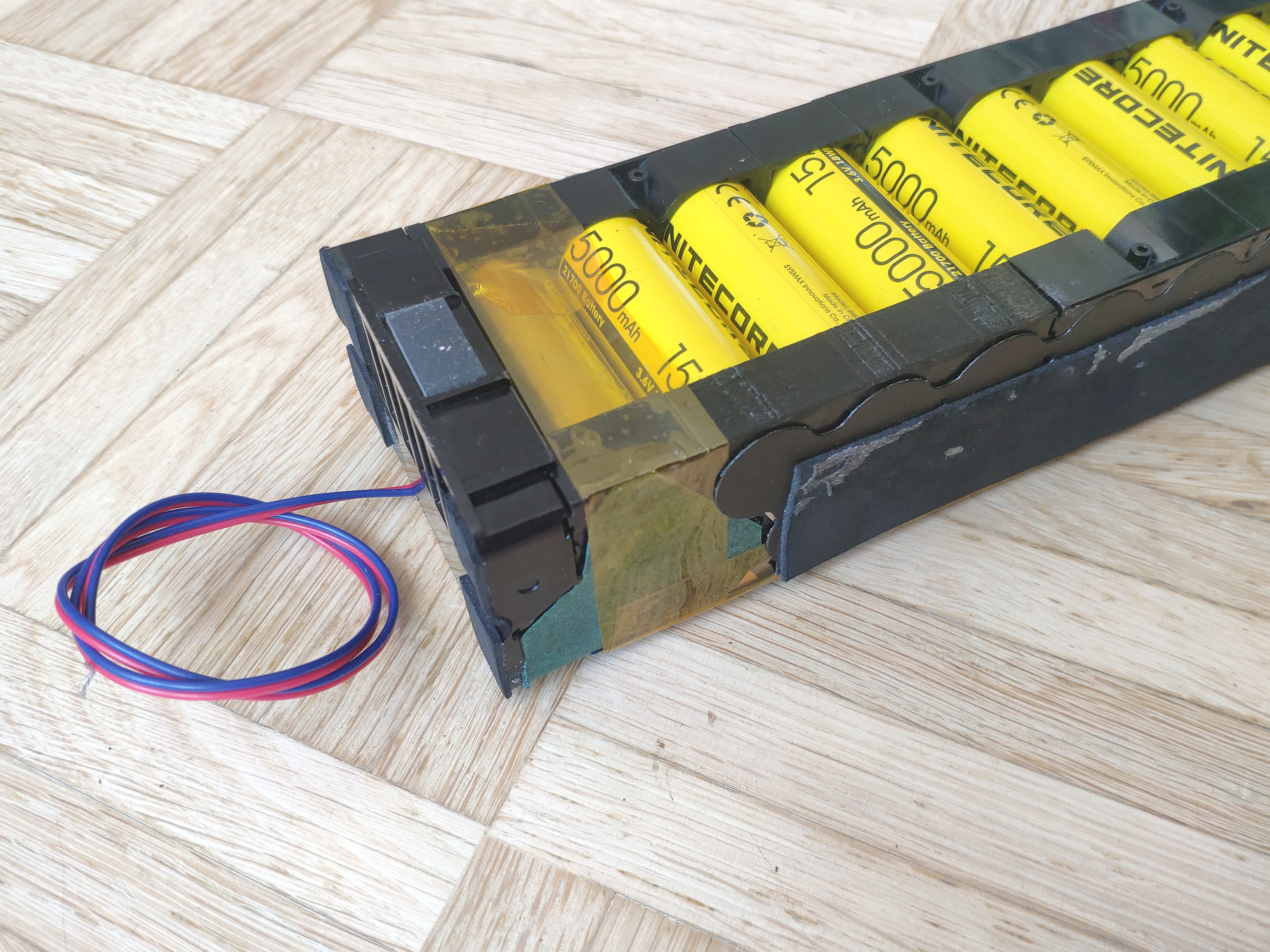

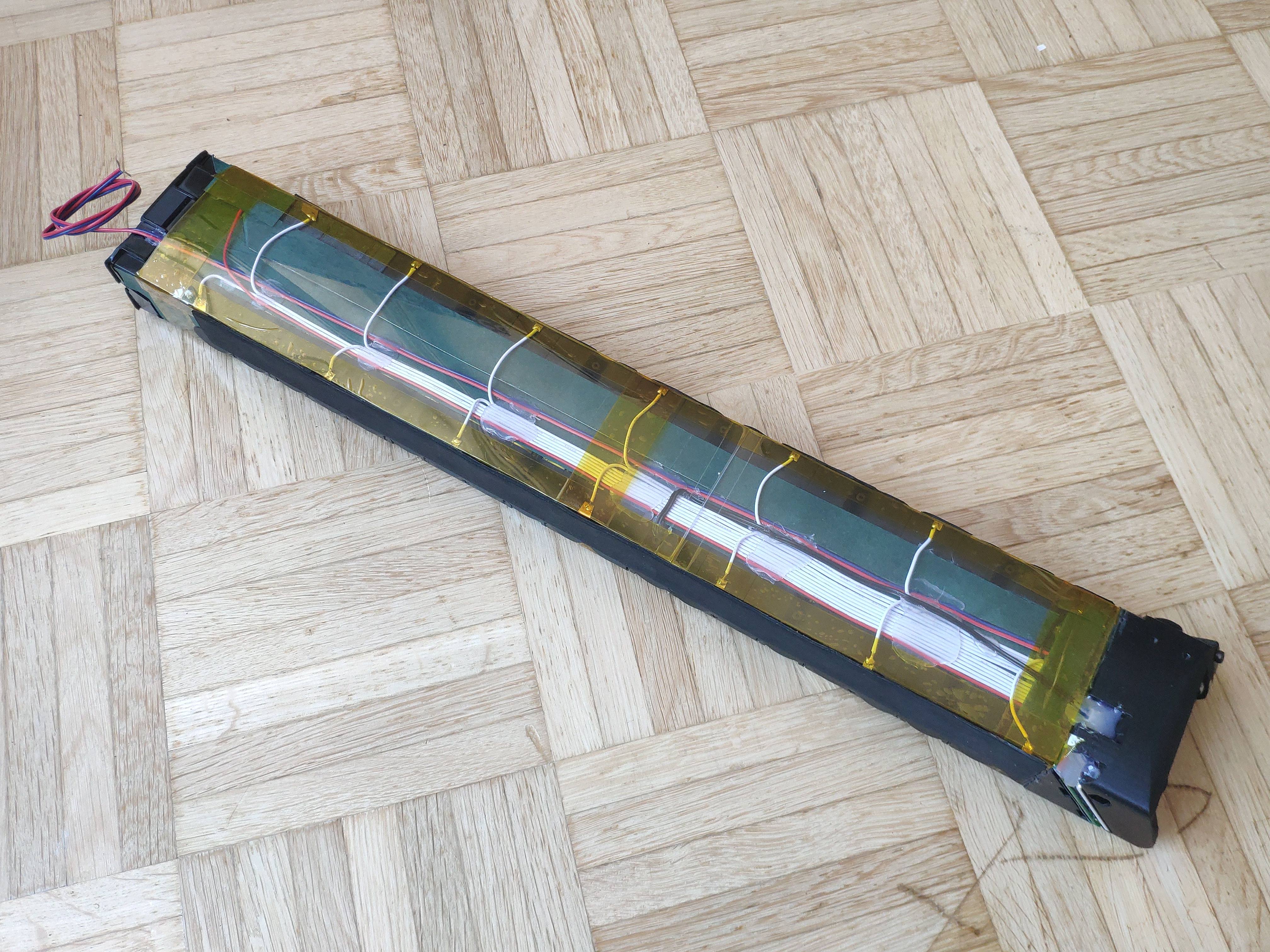

I just finished building my custom 14S battery. I added 3 cells and added a small JBD BMS. The battery has now bluetooth (Xiaoxiang APP), an on/off switch, 780Wh and is 52V, which makes the motor run faster and leads to a better ride experience. But it's just personal taste.
Bozzma
Member
I was looking for te DengFu E82. I thought I didn't need this high pivot kind of tech. But it all seems to be thought out well by some true EMTB geeks (ment to be a positive thing). The manual is interesting. So.. I am very interested in this bike.
Sadly it will take to long to get here to use it this summer. So I got me a cheap non e-motor Scott for the summer to enjoy the flat Dutch trails. I might order a Hybridizer later on to build as a winter project.
I just stumbled on a new 2024 release clip from Hybridizer. One of my main concerns was battery capacity, but they have enlarged it a bit to 860Wh. They also mention an upgraded bearing part in the rear suspension.
It is also available with the 500W M560 (130Nm). The 750W power plant is NOT supported, the battery's BMS wouldn't supply that much current. I would think the 500W motor would be able to burn through the charge fast enough, so it will do for me.
I hope more Hybridizer Sann owners will leave a comment on their experience with building and riding this nice EMTB!
The 2024 release video of Hybridizer.
Sadly it will take to long to get here to use it this summer. So I got me a cheap non e-motor Scott for the summer to enjoy the flat Dutch trails. I might order a Hybridizer later on to build as a winter project.
I just stumbled on a new 2024 release clip from Hybridizer. One of my main concerns was battery capacity, but they have enlarged it a bit to 860Wh. They also mention an upgraded bearing part in the rear suspension.
It is also available with the 500W M560 (130Nm). The 750W power plant is NOT supported, the battery's BMS wouldn't supply that much current. I would think the 500W motor would be able to burn through the charge fast enough, so it will do for me.
I hope more Hybridizer Sann owners will leave a comment on their experience with building and riding this nice EMTB!
The 2024 release video of Hybridizer.
Last edited:
Alessio77
New Member
Very nice frame ! I'm new to ebike world and considering the Sann as first build; its manual mention the speed sensor, but I can't see the cable running in the swingarm...
Charging port is located just in front of the motor area?
Charging port is located just in front of the motor area?
You can order by contacting Xu
He is always open to answer your questions. Mention my name and he might give you a discount. Check the manual. It's linked in one of the past posts. Yeah charging port is near the motor..
D'Apostrophe
Member

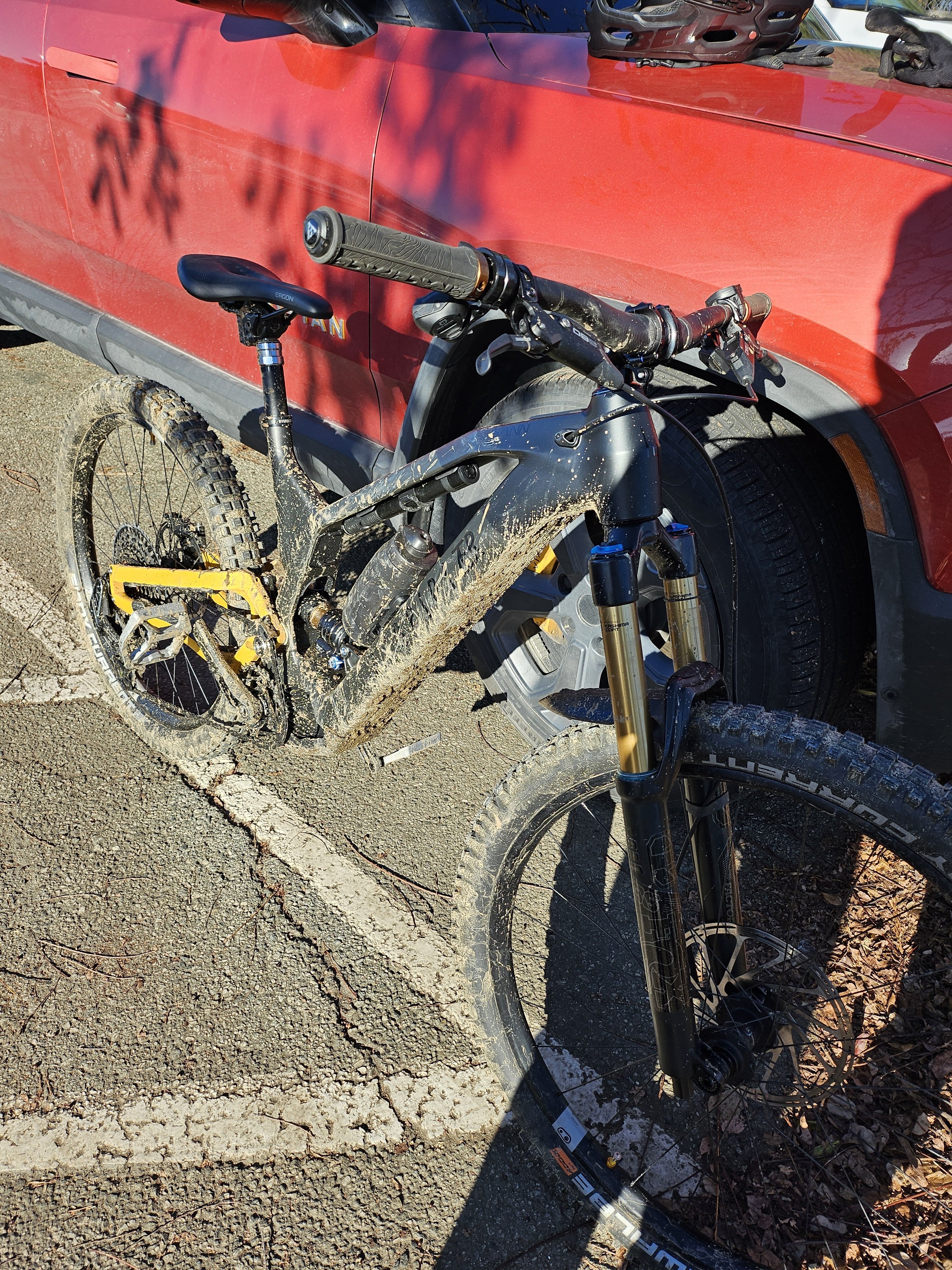

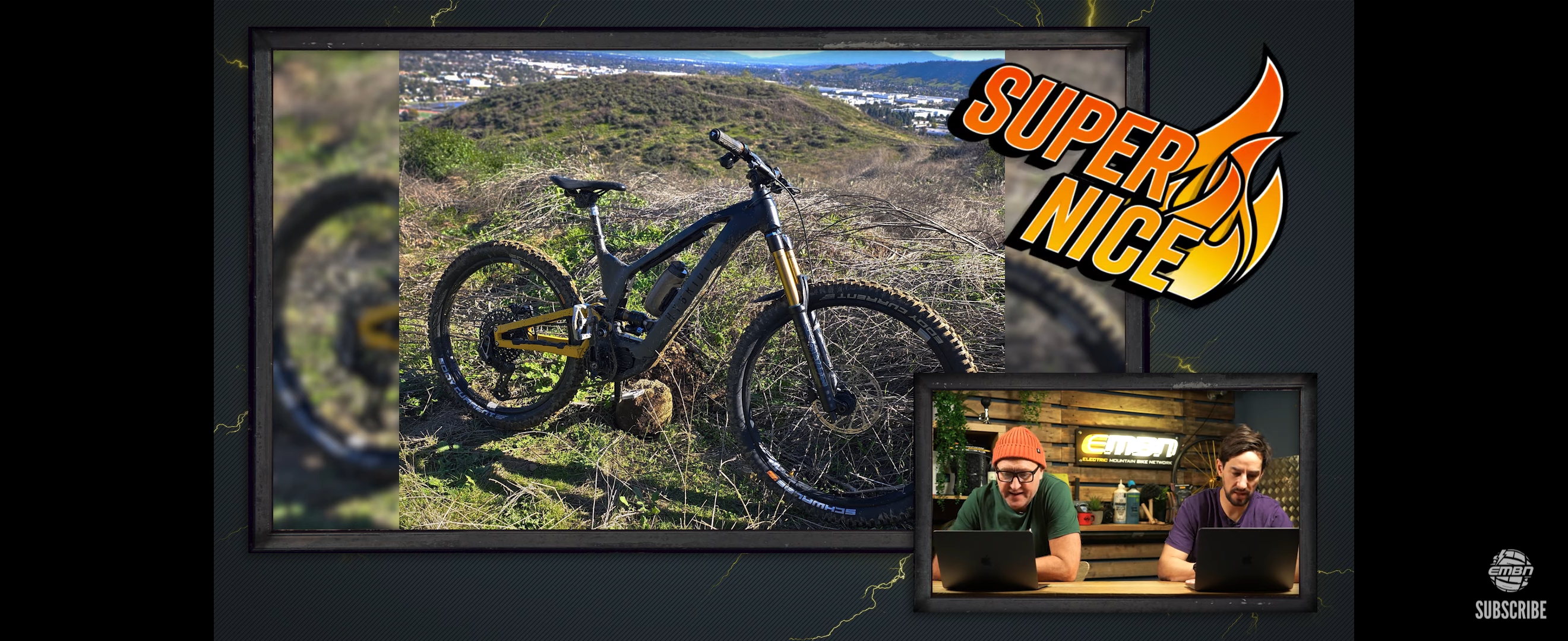

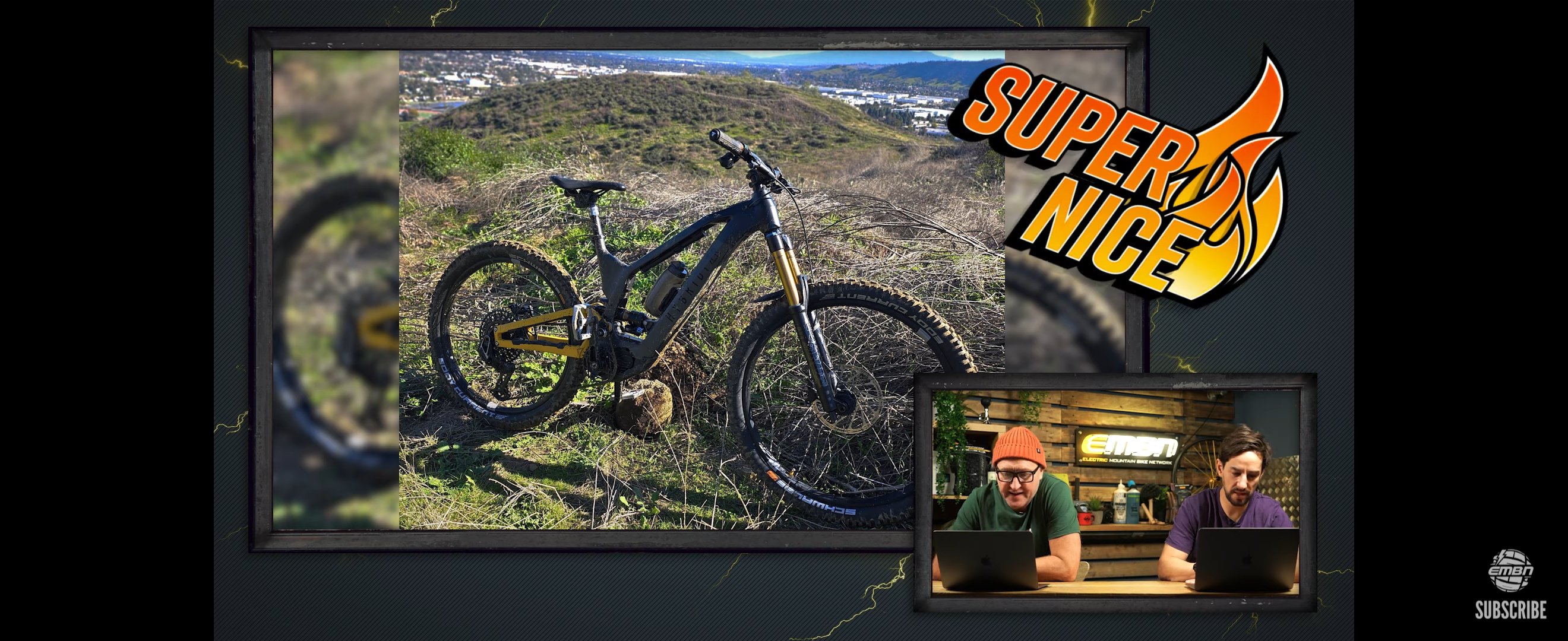

Did one of you guys get your Hybridizer on EMBN again? I just saw a super nice from Alaska!

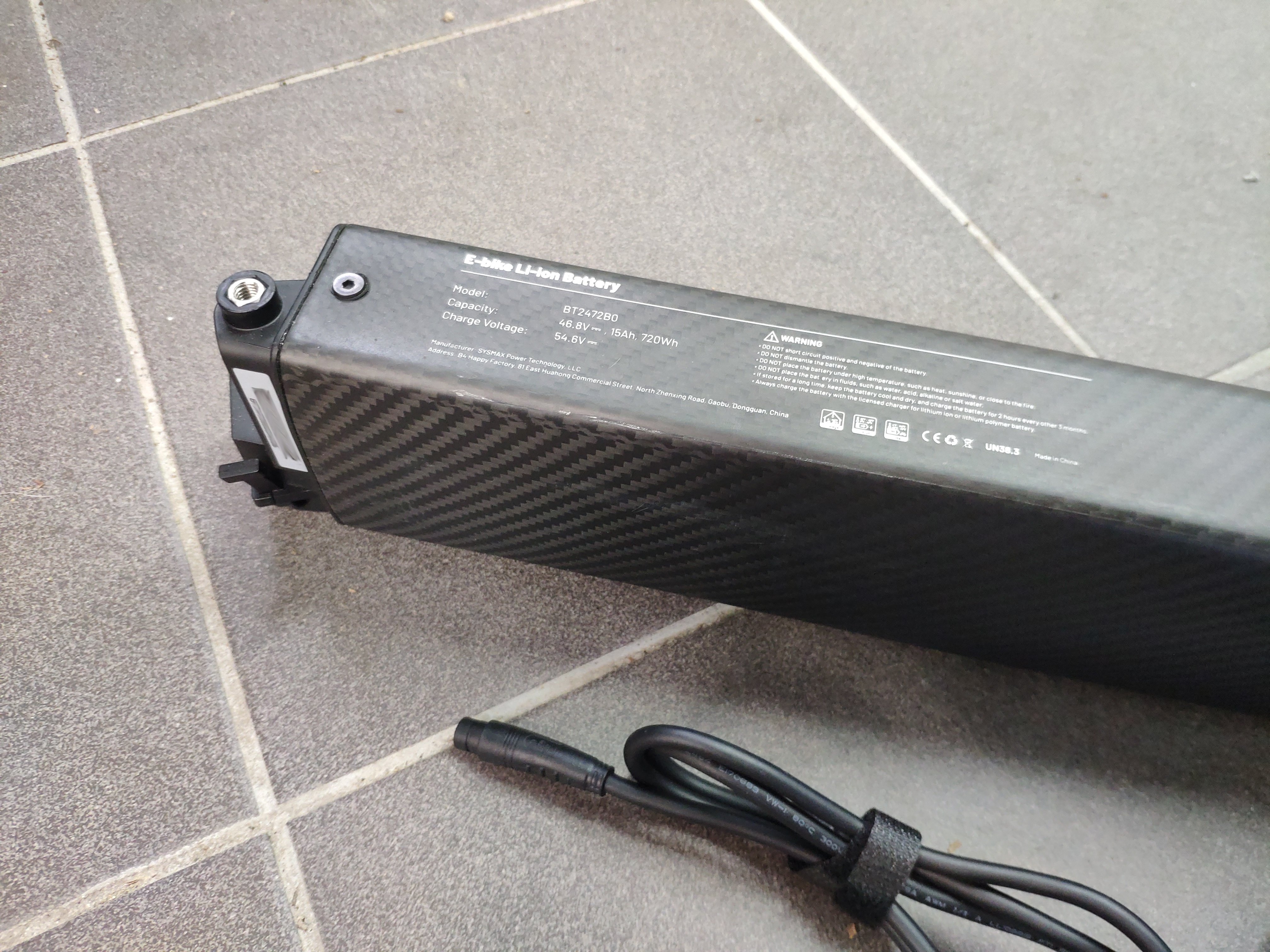

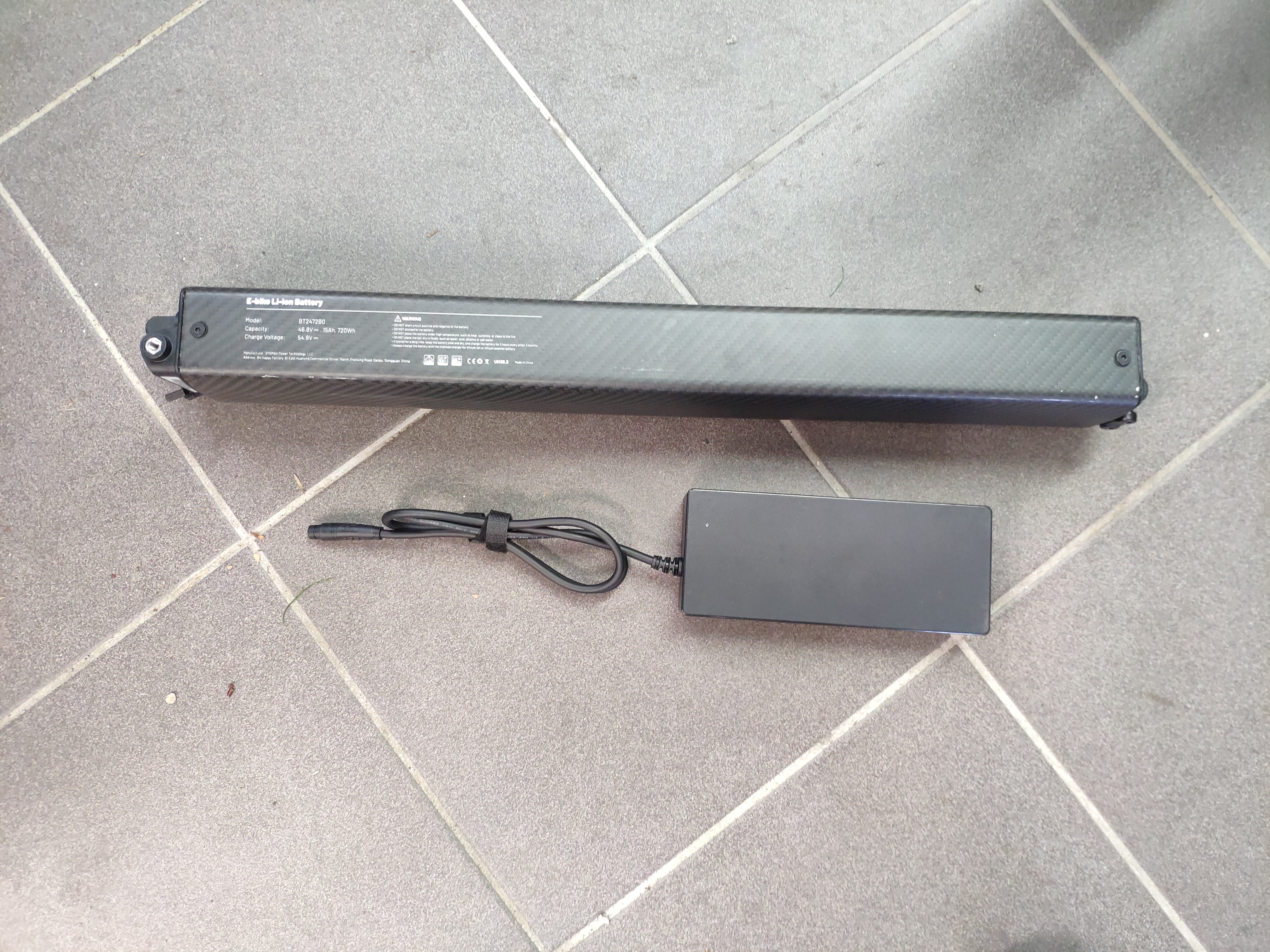

I'm asking for 650€, which includes charger + battery. Send me a message if you're interested.If anyone is thinking about buying a Hybridizer bike, I want to say that the bike is great. I also bought an adapter for bike parks (for a regular crankset without a motor and battery). The bike works really super.
Even with some problems and issues, the Hybridizer team is very responsive. They answer emails quickly and fix problems professionally. If you're unsure about buying a bike directly from Asia, you will be happy with Hybridizer.
Klemen
Even with some problems and issues, the Hybridizer team is very responsive. They answer emails quickly and fix problems professionally. If you're unsure about buying a bike directly from Asia, you will be happy with Hybridizer.
Klemen
Blue83
Member
