lol, youtuber/Affiliate marketer is calling a known legit source a scam:
I think he's pissed because a redditor bought through unofficial channels.



[BonBond]

Still running my 32t chainring with no issues with a 12spd Shimano slx m7100 set up.
Baring in mind, my E22 is pulling 160nm. Its 120nm

Hey Neeko, 'not' pulling 160nm? This is because you capped the Amp limit?



[Neeko DeVinchi]

Apologies for the delay @BonBond.
Yes, I've reduced my settings for the M620 motor.

These are my settings for profile 1 (street legal), screenshot using the Eggrider v2 app.

Basic Bafang Settings

Bafang Pedal Assist Settings

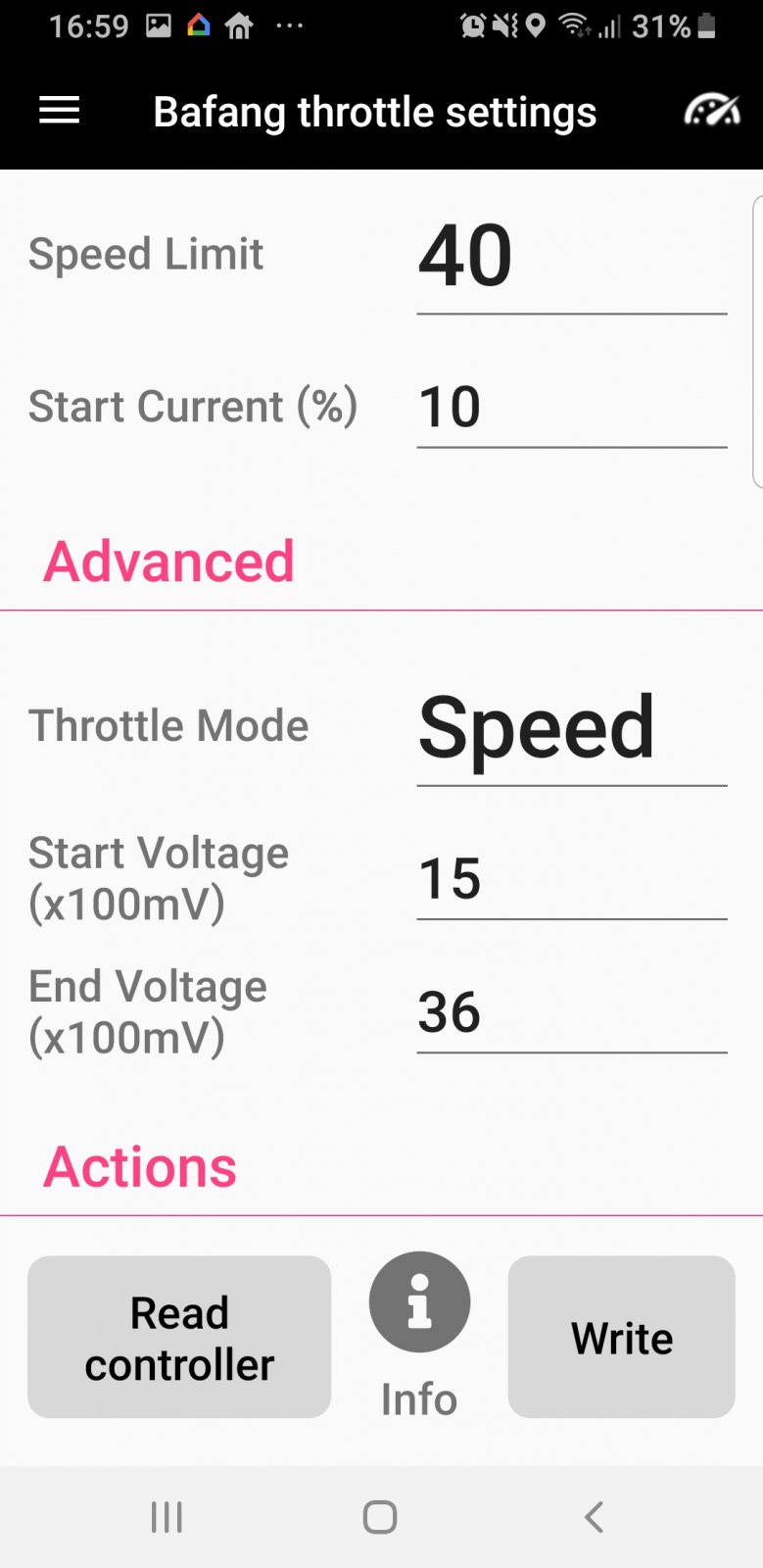

Bafang Throttle Settings (To be fair, I've not touched these settings. So they're stock settings)

Bafang Torque Settings



[HIDrive]

Thanks for sharing Neeko! Does anyone know where to get an Eggrider V2 currently? Their website has said sold out for weeks!



[Neeko DeVinchi]

I'll ask Eggrider for a response and share it to the thread.



[BonBond]

Apologies for the delay @BonBond.
Yes, I've reduced my settings for the M620 motor.

These are my settings for profile 1 (street legal), screenshot using the Eggrider v2 app.

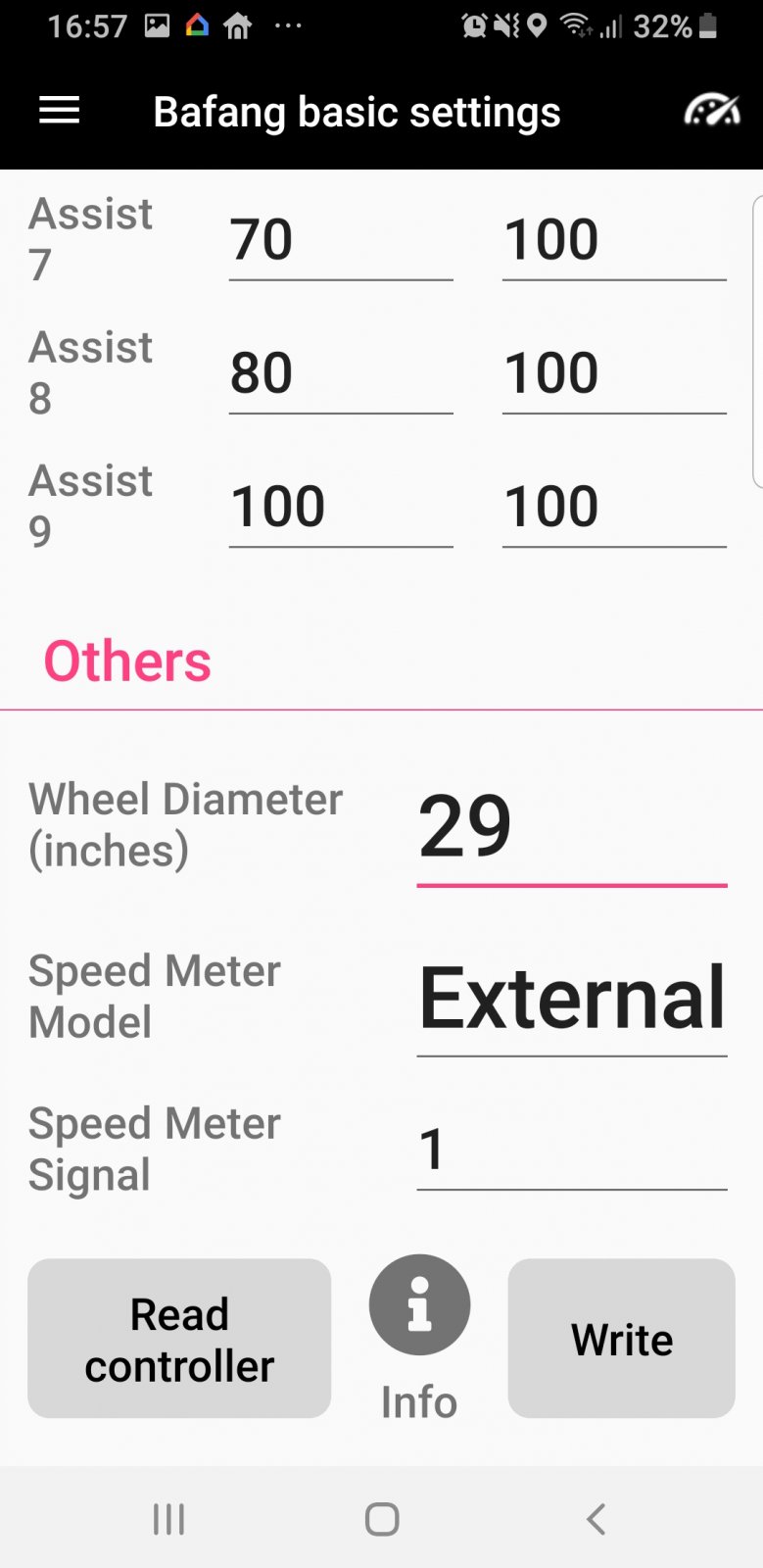

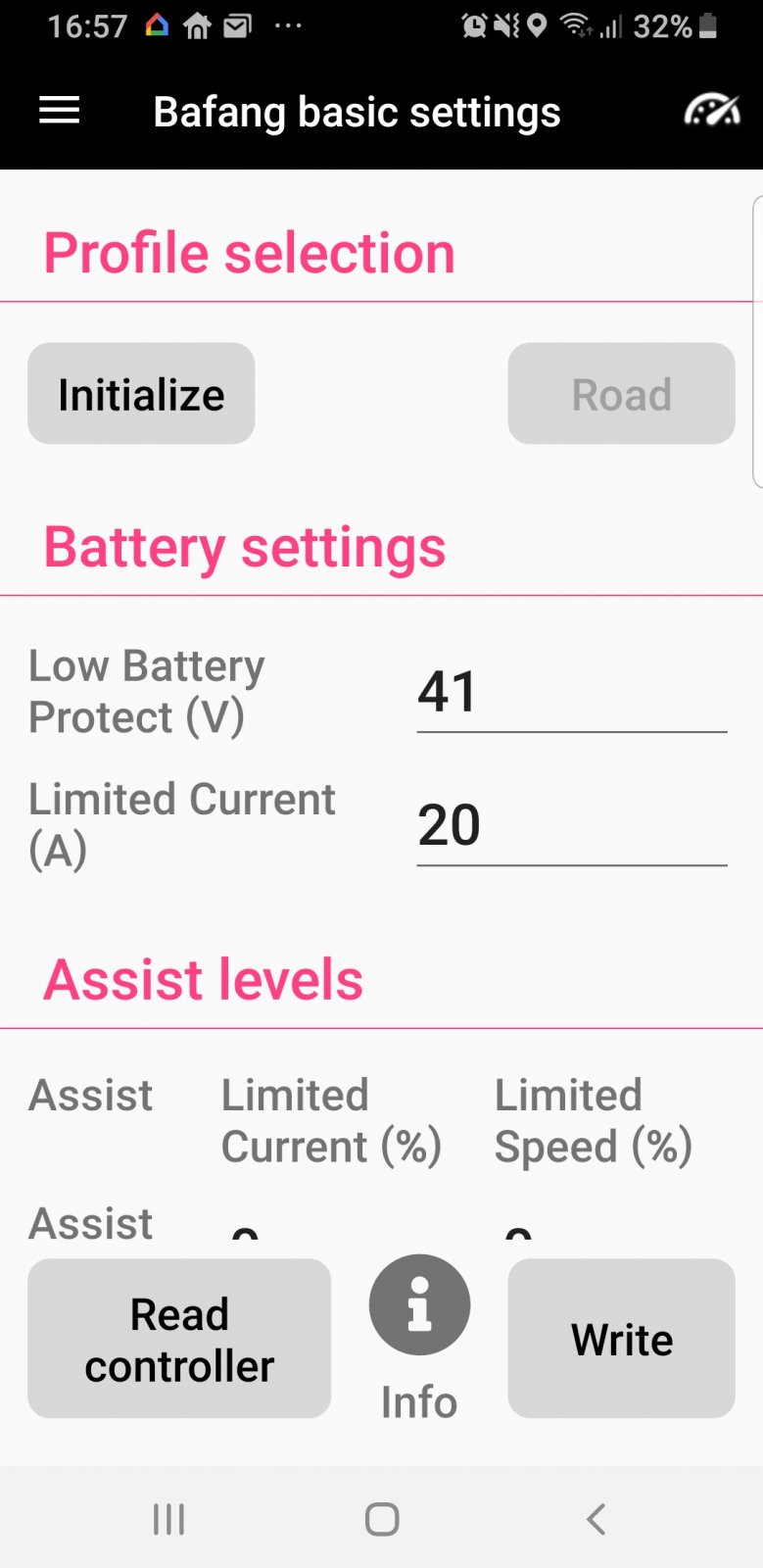

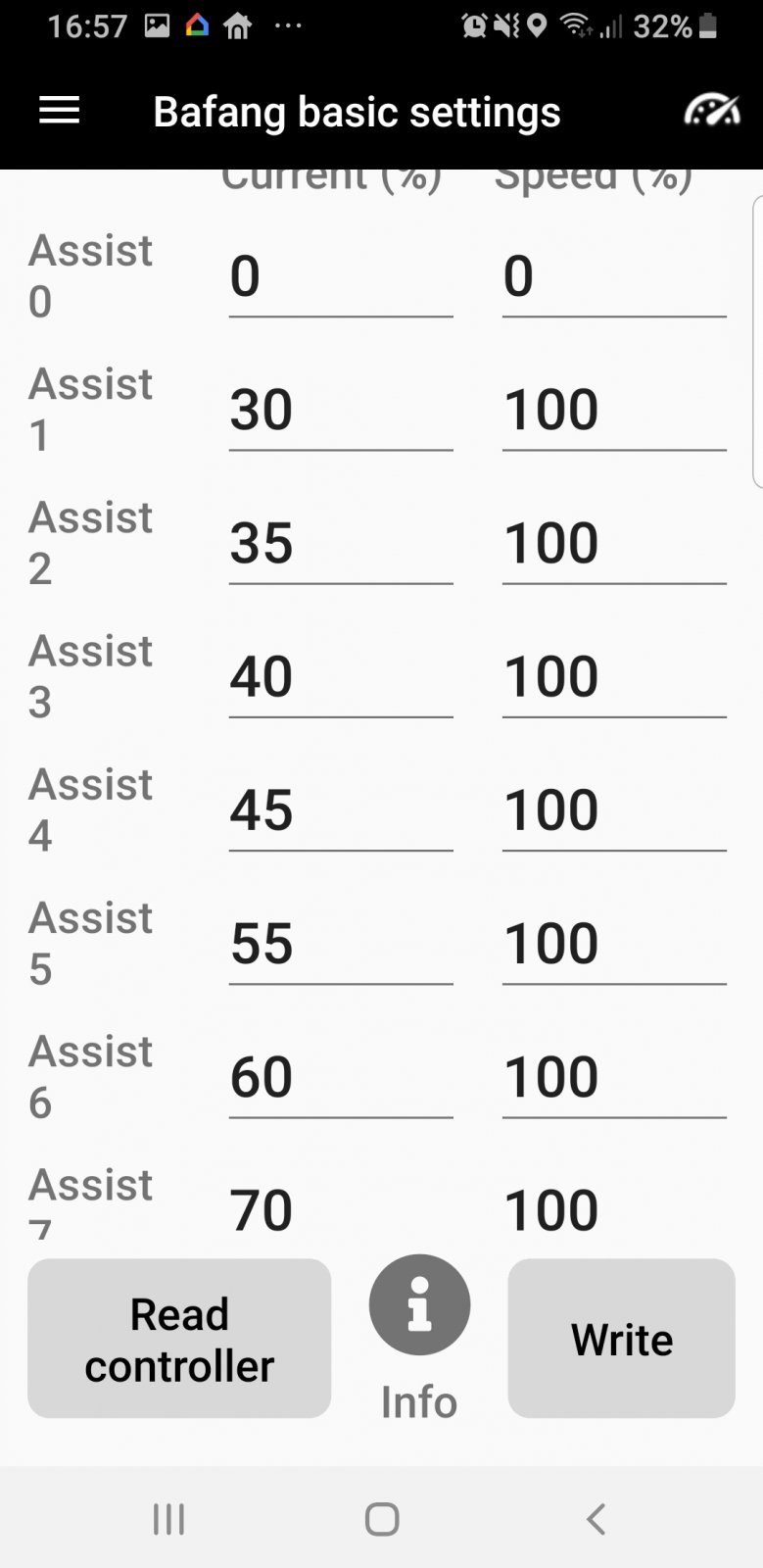

Basic Bafang Settings
View attachment 99120
View attachment 99121

View attachment 99122

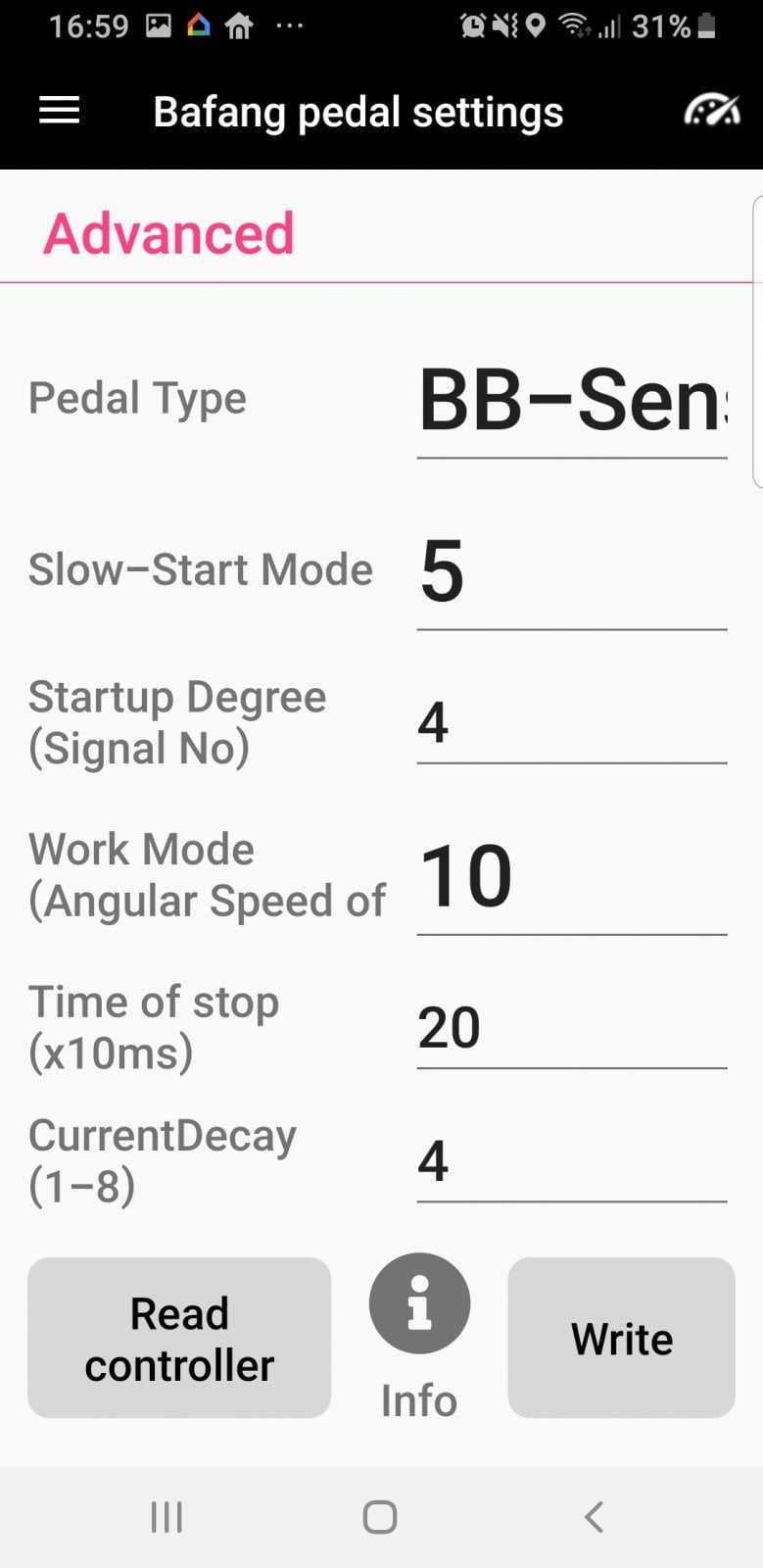

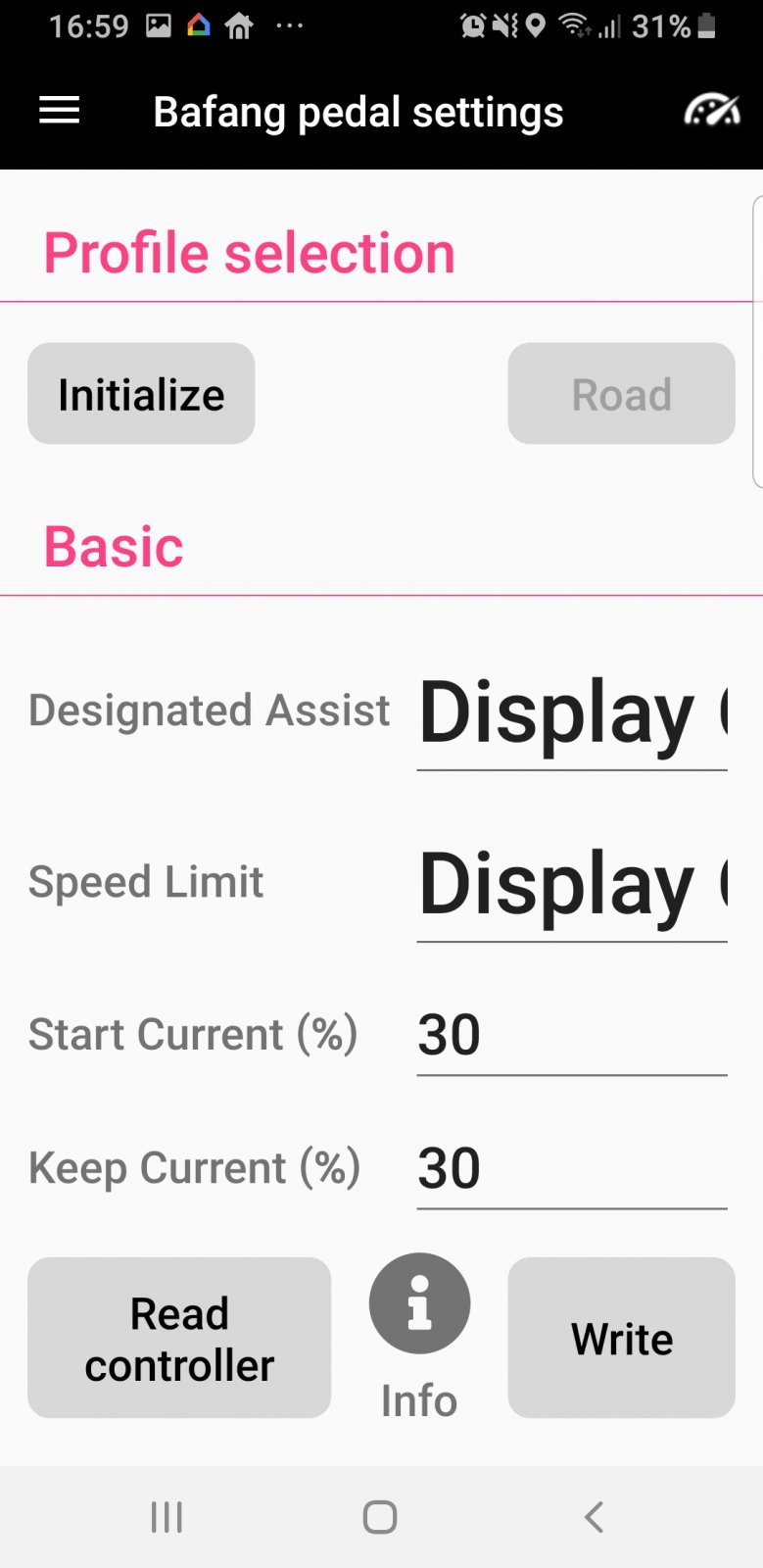

Bafang Pedal Assist Settings
View attachment 99123
View attachment 99124

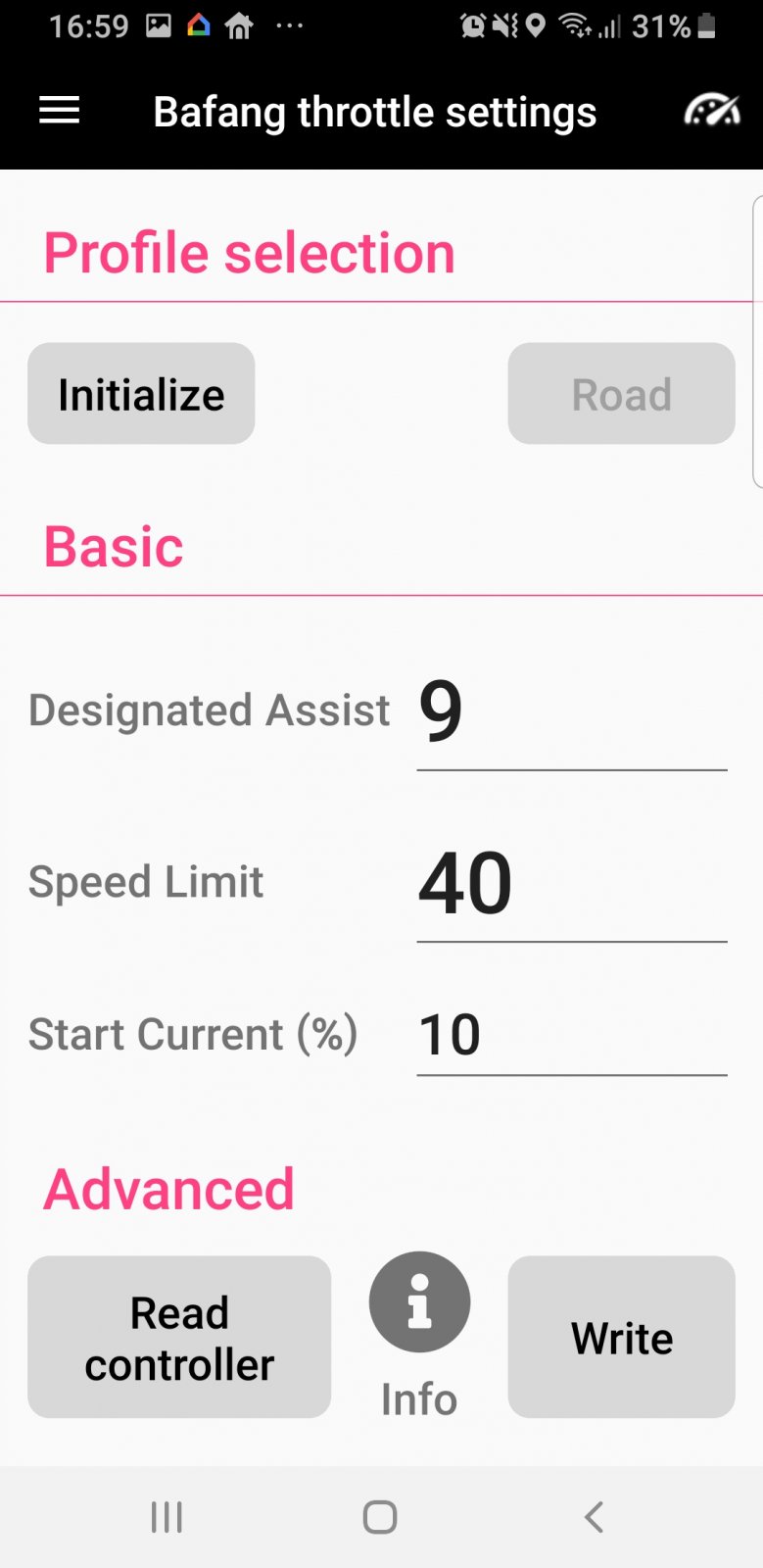

Bafang Throttle Settings (To be fair, I've not touched these settings. So they're stock settings)
View attachment 99126
View attachment 99127

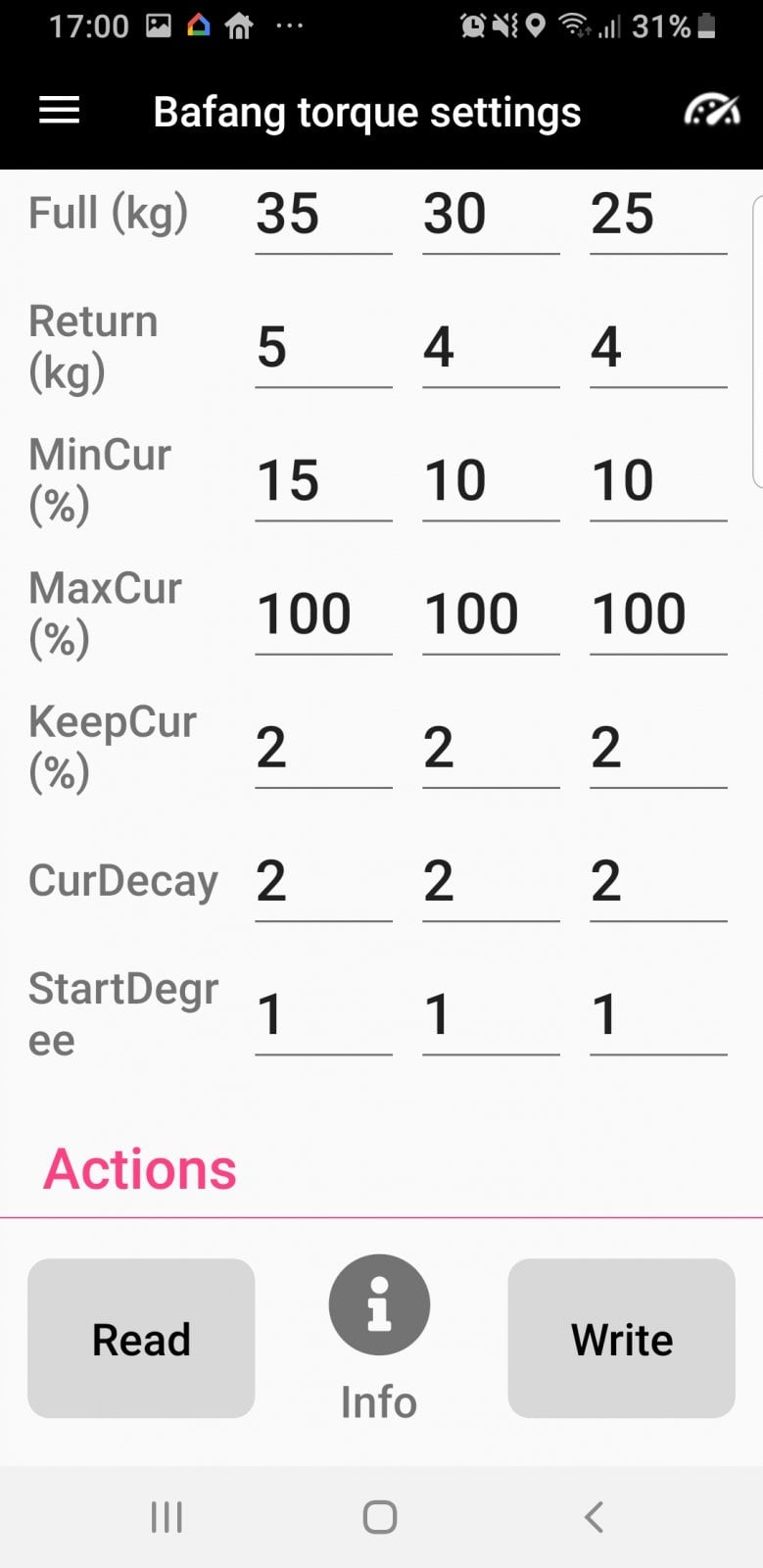

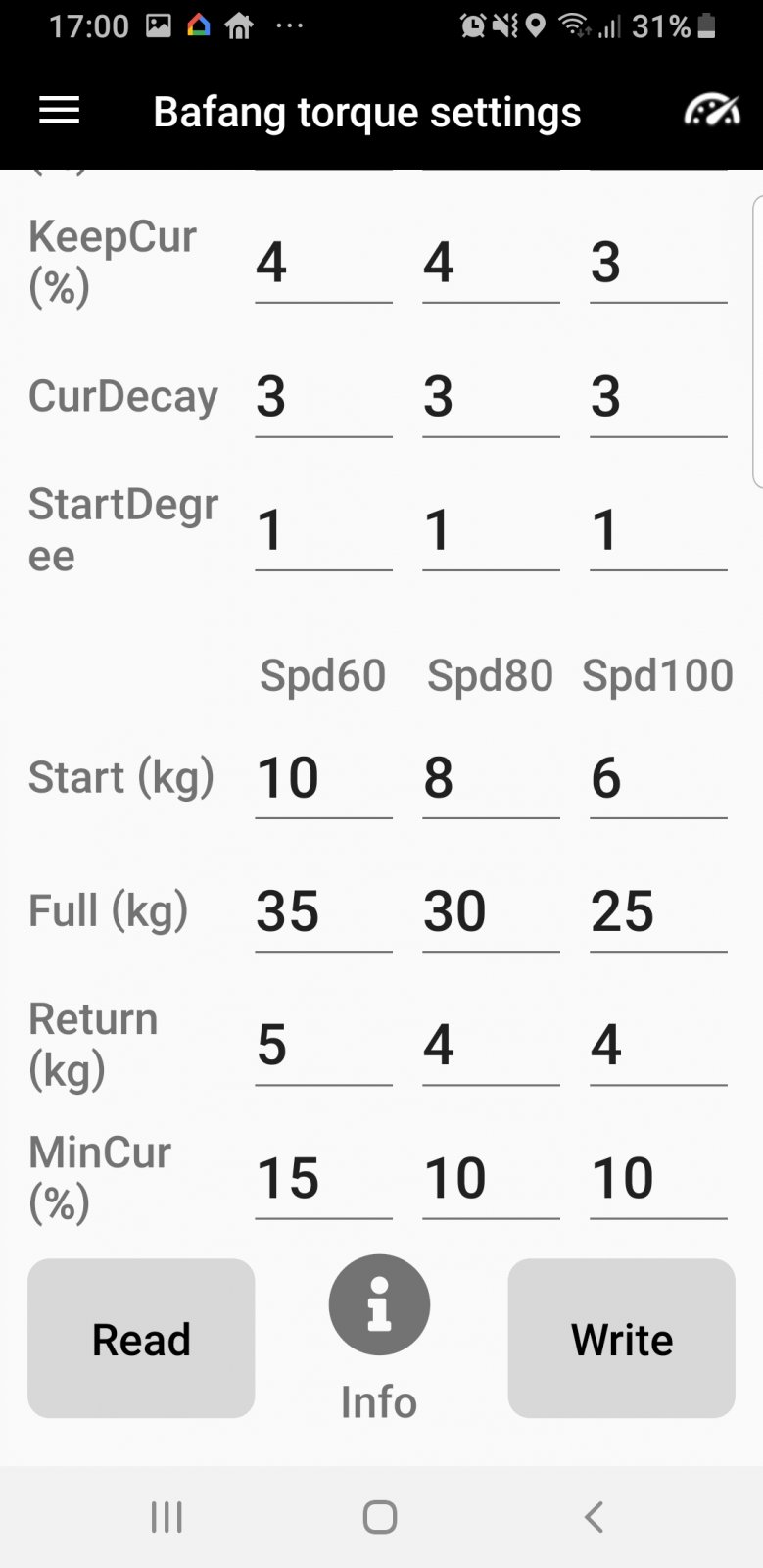

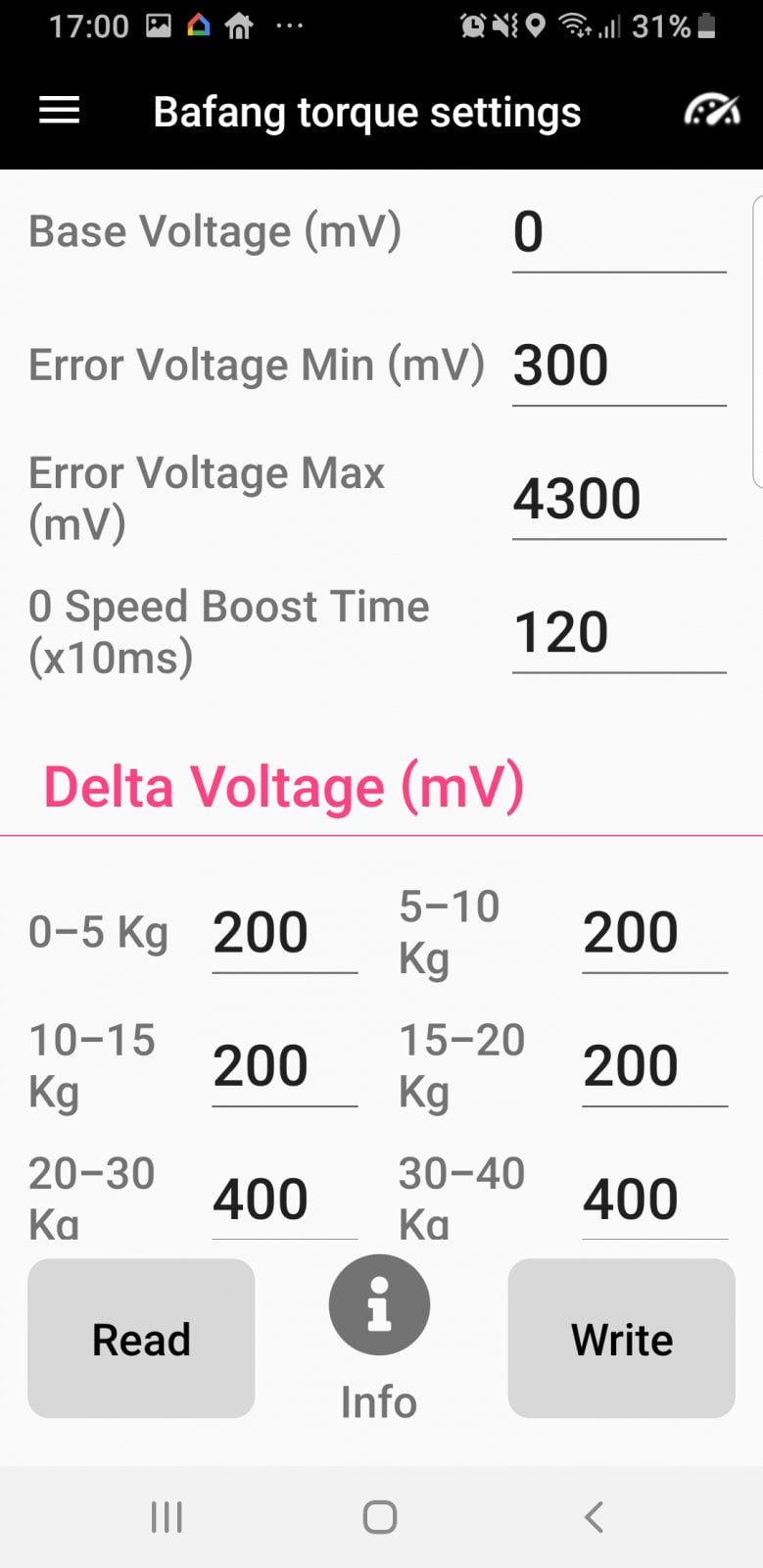

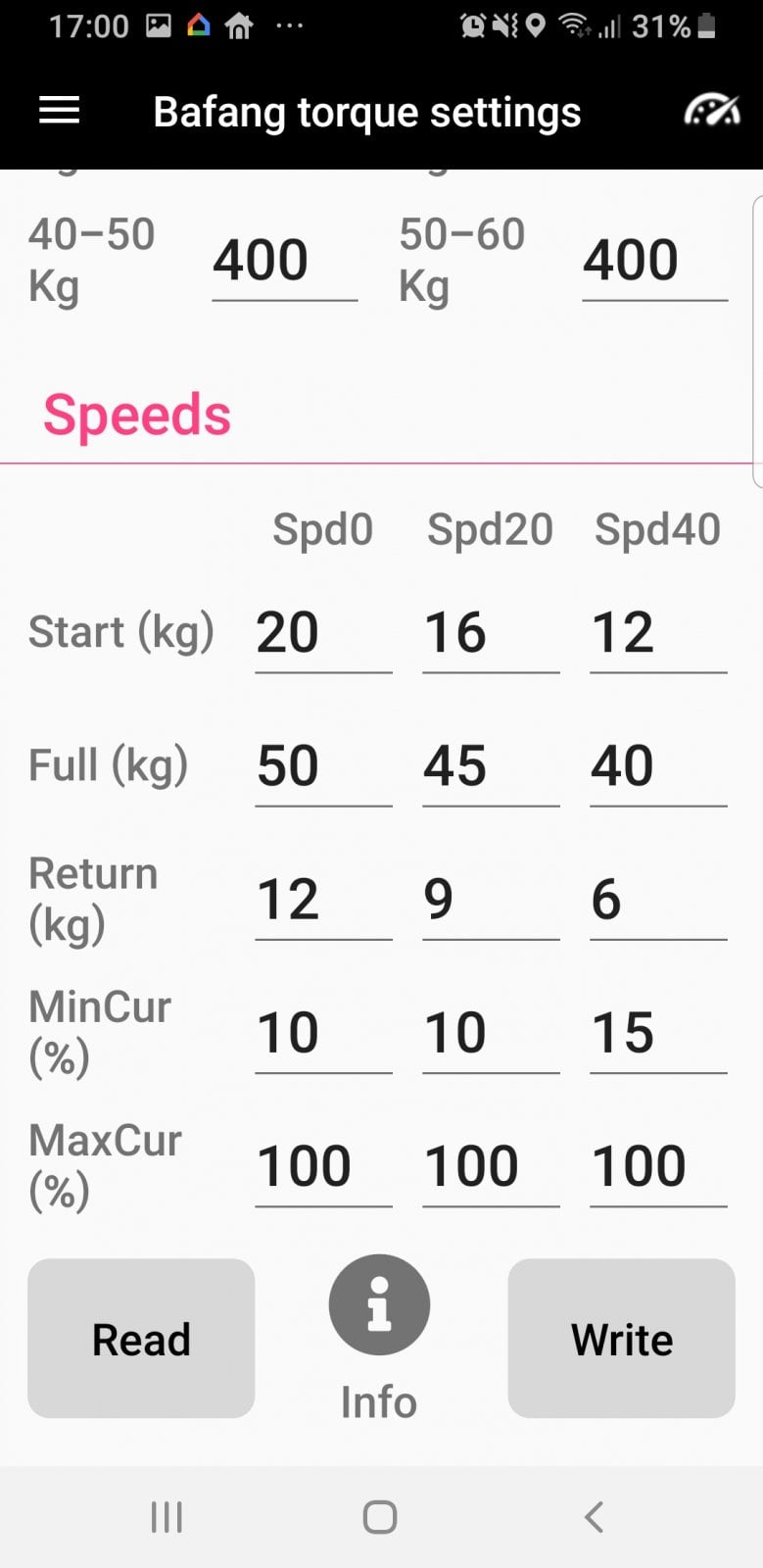

Bafang Torque Settings
View attachment 99128
View attachment 99129 View attachment 99130 View attachment 99131

Cheers dude - man I want an eggrider now, that interface is so much cleaner than the windows app...and correct me if i'm wrong, but this means you can tweak the settings while you're out and about...



[HIDrive]

Thanks dude, yep the cover still fits - the rebates on the long sides of the case allow for the lip. I guess you could modify it towards a pot-bellied design, for more cells, but it'll already hold 56x 21700 cells, so looking at 20Ah and 52v.

I'm not sure how I feel about sharing the STLs yet, it took me ages to design, its only V1 and not 100% right (I had to file a corner off to get it to fit!), plus some of the dimensions are so weird I'm not even convinced it'd fit in somebody else's frame! I'd defo be interested to get some dimensions from another frame and compare...

I'm eagerly awaiting for an update on your DIY battery project! I know youre on the fence about sharing the STL files but can you go into detail about how you fit all those batteries and a BMS in the case? The larger sections look like they hold 12 cells and the section that looks like it has a slot for the BMS looks like it holds 8... Any additional info would be awesome!



[BojanZ]

Has anyone tried fitting a 2.8 wide tyre on a 27.5 inch rear tyre? It should probably fit?

Thanks.



[twistgripper]

2.8 wide tyre on a 27.5 inch rear tyre? fit?

I know its a long thread, but pls search first before asking questions that have likley been answered already.
Top right corner of your screen: "search" - enter "2.8" - filter "this thread" - boom your question is answered!
See post #131 and #379



[TeoElFeo]

What do you think is the largest battery to fit the frame without using a case? Do you think 21700 13s5p 48v 25ah would fit?



[BonBond]

I'm eagerly awaiting for an update on your DIY battery project! I know youre on the fence about sharing the STL files but can you go into detail about how you fit all those batteries and a BMS in the case? The larger sections look like they hold 12 cells and the section that looks like it has a slot for the BMS looks like it holds 8... Any additional info would be awesome!

Will keep you posted, correct on the config - 4x banks of 12 and 1x 8 bank of 8...that's the theory anyway



[Mabman]

What do you think is the largest battery to fit the frame without using a case? Do you think 21700 13s5p 48v 25ah would fit?

There is a post in this thread that shows I think a 21ah soft wrap 21700 battery in two parts that looks like it is at the limit.



[BonBond]

What do you think is the largest battery to fit the frame without using a case? Do you think 21700 13s5p 48v 25ah would fit?

You definitely wont be fitting 65x 21700 cells in a stock medium sized frame. Maybe if you took a Dremel to the frame....

I've been designing a 14S4P 21700 case (nearly there!). I'm pretty sure you wont get any more than 56 cells and a BMS into a medium sized, unmodified, frame - in a case or in a soft pack. Once you've taken the battery mountings out, 56 cells are a real squeeze anyway. I've no idea how much more space is in a large sized frame though, I guess there's potential to fit more cells in there.

NB: I've been warned off soft packs by somebody else in this thread, 'each to their own' though.



[Swannking]

Thanks for sharing Neeko! Does anyone know where to get an Eggrider V2 currently? Their website has said sold out for weeks!

I got mine from

EggRider V2 Display

We are currently stocking the NEW 2022 version with black power button and enlarged +/-buttons. The EggRider display is far and away the greatest display for Bafang motors. Compact and stylish. it allows for motor programming using your phone or other mobile device. The EggRider also allows...

california-ebike.com



[HIDrive]

I got mine from

EggRider V2 Display

We are currently stocking the NEW 2022 version with black power button and enlarged +/-buttons. The EggRider display is far and away the greatest display for Bafang motors. Compact and stylish. it allows for motor programming using your phone or other mobile device. The EggRider also allows...

california-ebike.com

Awesome! Thank you! I just ordered one!

Bonbond, Thanks! That makes WAY more sense! On your 3D printed case it still says 14s5p so I was doing some serious mental gymnastics trying to figure out how that was possible! Thanks for clarifying!



[twistgripper]

Chain guides?

Bram, you mentioned you used an e13 model, can you specify which one? would it work with the factory 44t chainring?
I cant seem to figure anything out here...

Anyone else know of a chain guide that will work with the stock 44t chainring?



[BonBond]

it still says 14s5p

Hehe, sorry about that. Yeah, I didn't spot my typo until it'd been printed.



[timal]

Apologies for the delay @BonBond.
Yes, I've reduced my settings for the M620 motor.

These are my settings for profile 1 (street legal), screenshot using the Eggrider v2 app.

Basic Bafang Settings
View attachment 99120
View attachment 99121

View attachment 99122

Bafang Pedal Assist Settings
View attachment 99123
View attachment 99124

Bafang Throttle Settings (To be fair, I've not touched these settings. So they're stock settings)
View attachment 99126
View attachment 99127

Bafang Torque Settings
View attachment 99128
View attachment 99129 View attachment 99130 View attachment 99131

Hi Neeko, would you please kindly share your settings for profile 2 {unrestricted} ? Thanks a lot



[MadZoom]

heres my thoughts on the 104bcd spider from greenbikekit

What chainring bolt size did you used on that adapter with the 38t?



[thelostjs]

What chainring bolt size did you used on that adapter with the 38t?

thanks for asking your question on the channel. I've responded and the answer is that the teyssor sprockets come with their own hardware even at $7 each! My only comment on the hardware is it apears to be standard steel meant for a single chainring. I got about 4 turns of engagement before they tighened up. In light of your question i may be reusing the bafang sprocket bolts or purchasing some double chainring bolt to try.



[HIDrive]

I'm still curious about the chainring guide/guard discussion if anyone knows of a compatible solution! Also, I keep seeing people run the chainring on either side of the spider adapter. Is one way the right way or does it depend?



[Neeko DeVinchi]

I keep seeing people run the chainring on either side of the spider adapter. Is one way the right way or does it depend?

It depends on which adapter you use.

I use the Christini 104bcd adapter. GBK and other vendors, sell the M500/M600/M510s chainring with a spacer. The reason being is because the M620s Q-factor is wider than the M500/M600/M510.

As such, I'm able to run the chainring on the inside of the spider 'as it was meant too'.
The M500/M600/M510 spider used on the M620 (recognising the Q-factor difference regardless of the 5mm spacer included), still means that the chainring is meant to be ran on the outside of the spider for optimum chain clearance.

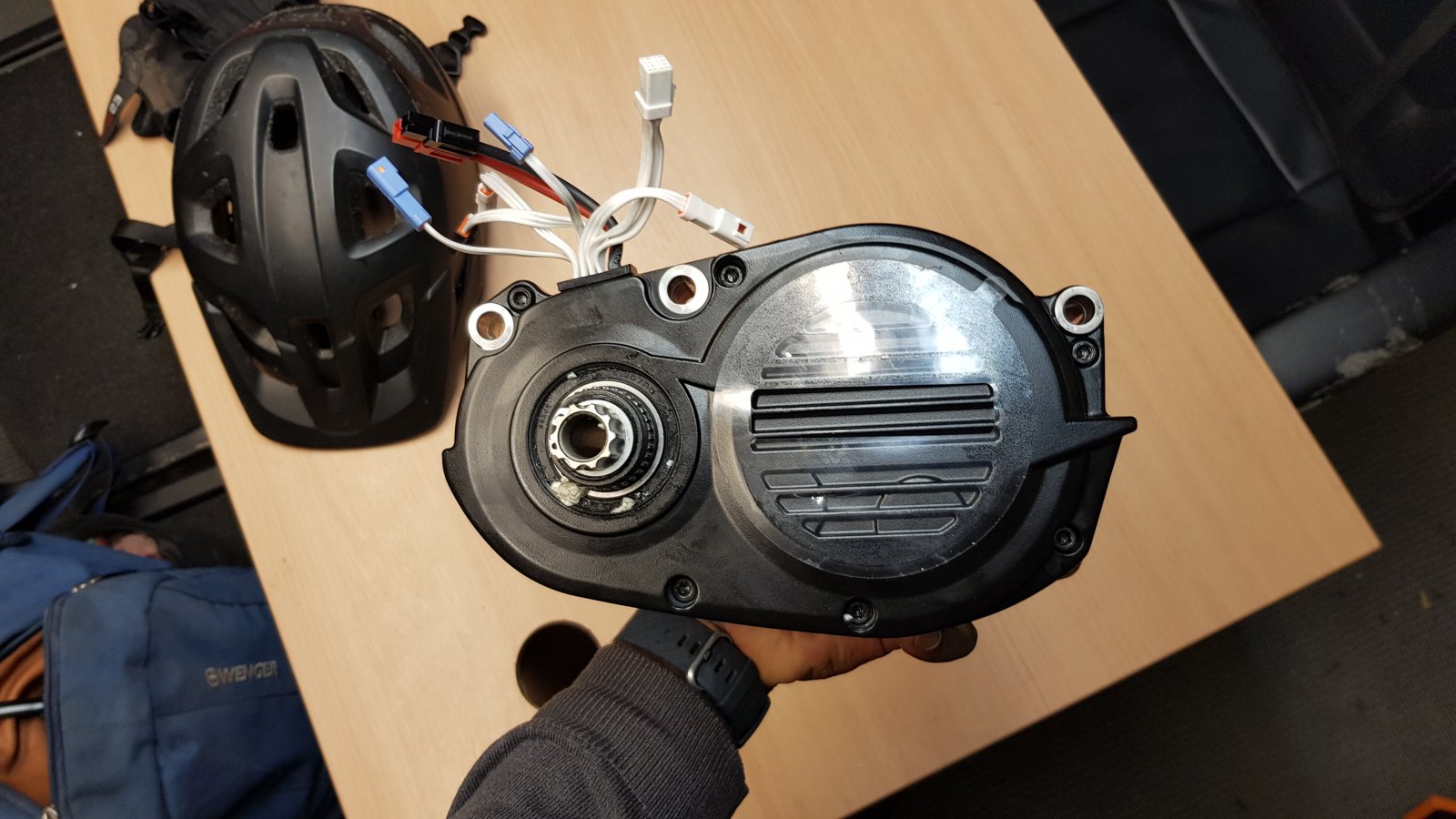

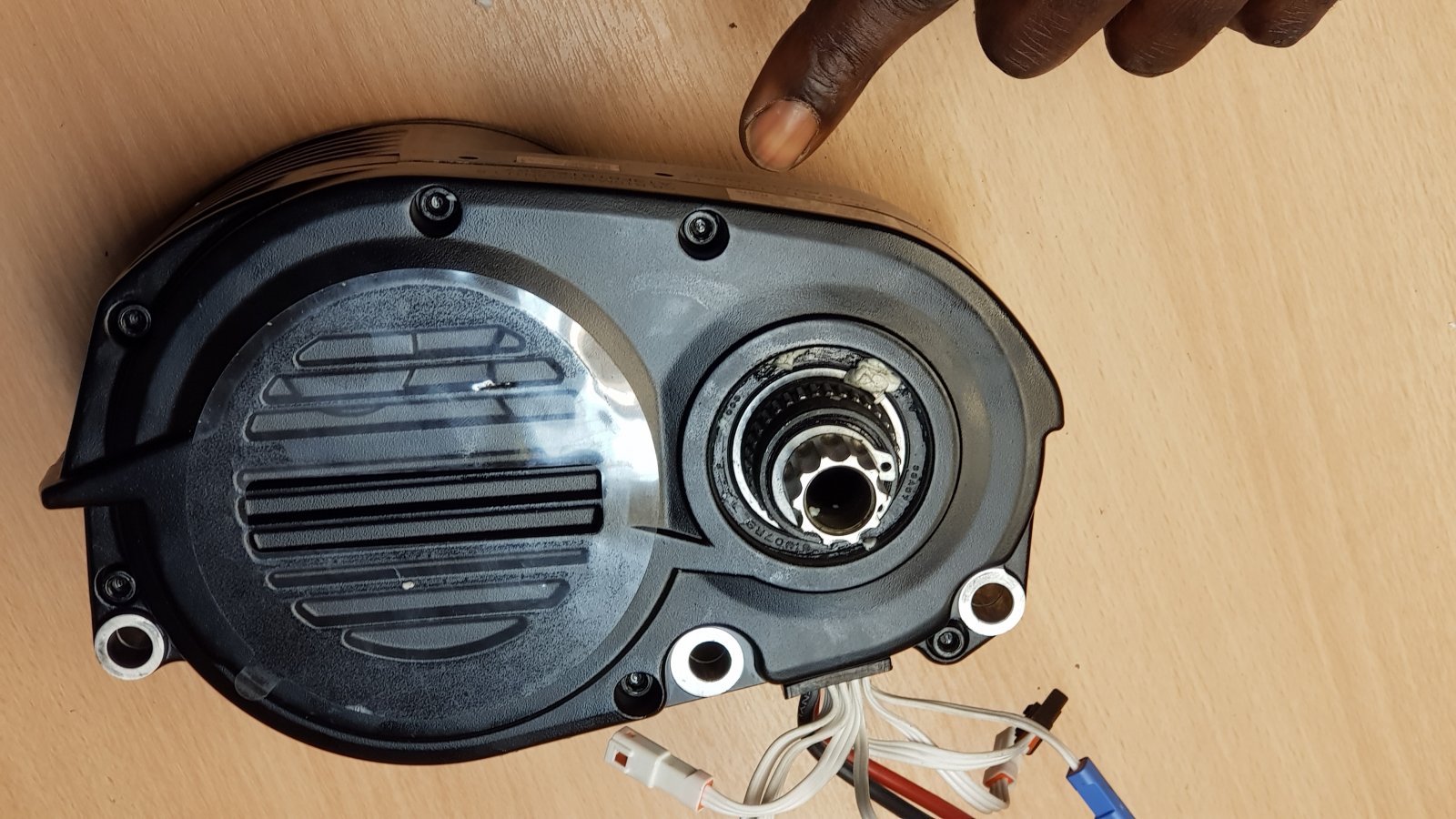

As for the chain guide enquiry,

I've been looking into a feasible way to attach one onto the M620 without adding any further attachment points or using adhesive.

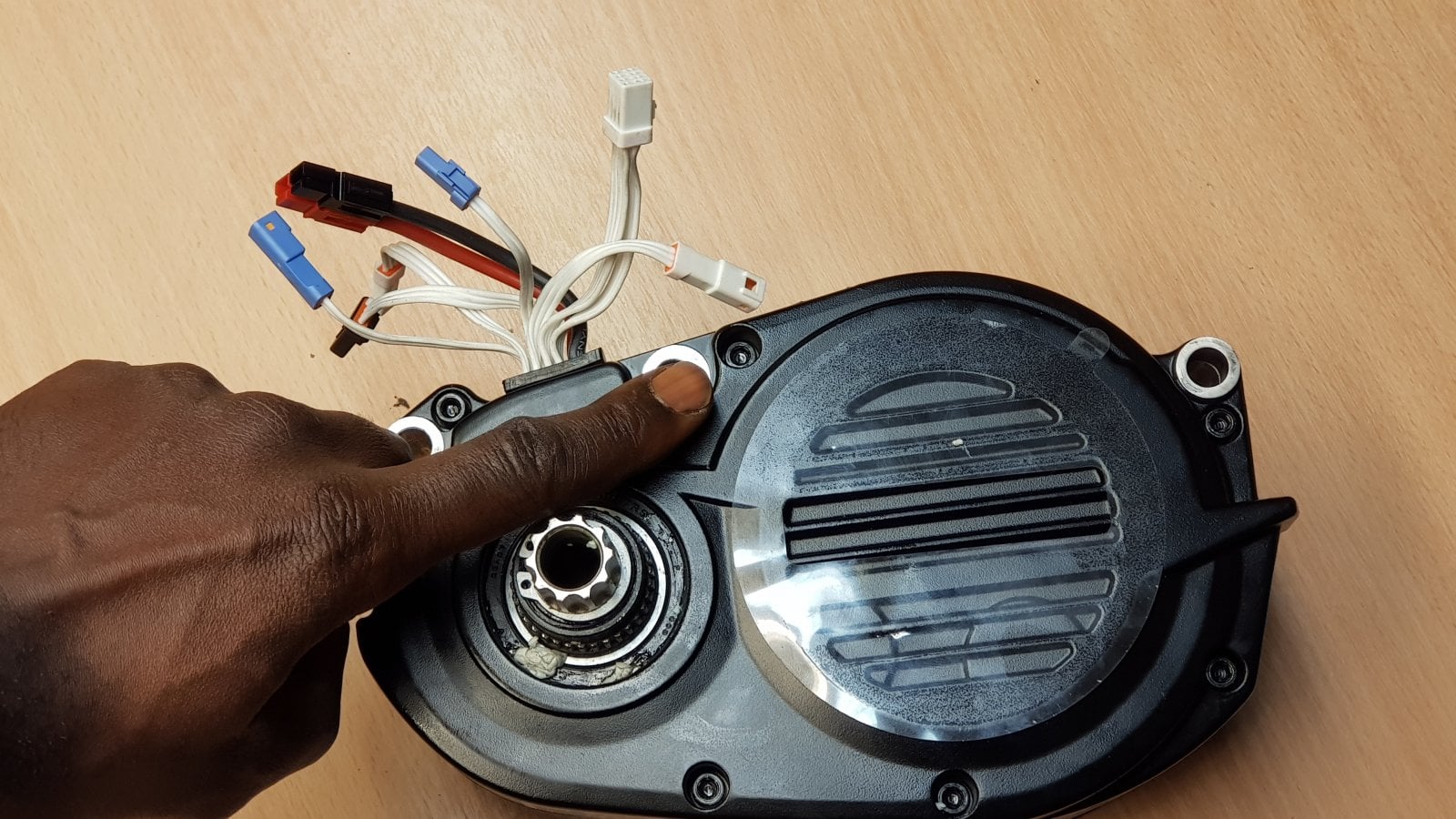

My best guess would be to use the two 4mm bolts as attachment points, but use a longer 4mm bolt for a chain guide attachment

I'll share my findings if I uncover a suitable method and a chain guide which may work



[Waynemarlow]

Neeko don't bother fitting a chain guide, I've been using just a Narrow Wide chain ring for over 12 months including the very muddy UK Winters where the motor literally gets covered completely with mud, without a problem so far. In fact I think I had more problems with a chain guide than not.



[Neeko DeVinchi]

Neeko don't bother fitting a chain guide, I've been using just a Narrow Wide chain ring for over 12 months including the very muddy UK Winters where the motor literally gets covered completely with mud, without a problem so far. In fact I think I had more problems with a chain guide than not.

It's funny you should say that. Throughout the entire time I've built, ridden and thrashed my E22, I've never lost the chain or had it skip off from the narrow wide 12spd chainring. Same thing goes with my E10s as well.

SRAM GX Eagle Chain PC Solid Pin 126L Powerlock Flowlink 12-Speed

Ground breaking new chain design and technology.

www.certini.co.uk

Maybe I'm overthinking it, but it could be the chain and chain link count



[twistgripper]

It's funny you should say that. Throughout the entire time I've built, ridden and thrashed my E22, I've never lost the chain or had it skip off from the narrow wide 12spd chainring. Same thing goes with my E10s as well.

SRAM GX Eagle Chain PC Solid Pin 126L Powerlock Flowlink 12-Speed

Ground breaking new chain design and technology.

www.certini.co.uk

Maybe I'm overthinking it, but it could be the chain and chain link count

What about using the factory 44t chainring? does it hold the chain well? Also i'm reluctant to buy a smaller chainring due to the reports of trashed chains and cassettes...



[Neeko DeVinchi]

What about using the factory 44t chainring? does it hold the chain well? Also i'm reluctant to buy a smaller chainring due to the reports of trashed chains and cassettes...

It would be unfair/biased of me to suggest that the stock 44t 130bcd chainring/spider wont be as good compared to a lower teeth chainring. My preferences reflects my E22 build.
But using a 104bcd spider/chainring still allows you to use up to a 44t chainring.



[twistgripper]

It would be unfair/biased of me to suggest that the stock 44t 130bcd chainring/spider wont be as good compared to a lower teeth chainring. My preferences reflects my E22 build.
But using a 104bcd spider/chainring still allows you to use up to a 44t chainring.

what i meant was, is there a chainguide for a 44t chainring that is reasonably priced? as mentioned earlier, gluing one to the motor is an option I guess.... will see if it's needed once i start riding



[BojanZ]

Could anyone point me to the appropriate product so I can fit my straight tube front fork onto the E22 frame? I have not yet received the frame (and do not know what kind of headset comes with the frame), but have the forks from my previous project.
The fork has 28.6 mm straight tube and as I know the E22 frame has tapered headtube, so I probably need some kind of adapter for the bottom part of headtube?

Thanks.



[Neeko DeVinchi]

Could anyone point me to the appropriate product so I can fit my straight tube front fork onto the E22 frame? I have not yet received the frame (and do not know what kind of headset comes with the frame), but have the forks from my previous project.
The fork has 28.6 mm straight tube and as I know the E22 frame has tapered headtube, so I probably need some kind of adapter for the bottom part of headtube?

Thanks.

Personally, I'd use this.

Slackerizer Angle Headset - 2 Degree - UK Made - Superstar Components

Slackerizer Angle Headset - 2 Degree - UK Made

www.superstarcomponents.com

Depending on your frame size, select the appropriate headset within the 56/40 range. They also cater for tapered steerer forks or straight steerer forks.

If you let me know which frame size you've ordered, I can tell you which specific headset to buy



[BojanZ]

Personally, I'd use this.

Slackerizer Angle Headset - 2 Degree - UK Made - Superstar Components

Slackerizer Angle Headset - 2 Degree - UK Made

www.superstarcomponents.com

Depending on your frame size, select the appropriate headset within the 56/40 range. They also cater for tapered steerer forks or straight steerer forks.

If you let me know which frame size you've ordered, I can tell you which specific headset to buy

Dear Neeko, I bought L size frame..
