Bosch CX gen 4 suddenly no assistance (broken?)

Pascal K

Member
Aug 24, 2020
4
3
Liechtenstein
A problem suddenly and completely unexpectedly occurred today with my Mondraker Level 2023 with Bosch CX Gen 4. While driving up the mountain, there was suddenly no more pedal assistant and the engine revved up as if it were empty. There wasn't a steep climb or any other cracking noise from which I could have concluded that something has broken. I then tried all driving modes, turned it off and on again, performed a reset, all without success. Luckily nothing blocked so I was at least able to pedal home without motor support. It seems as if a clutch is going empty or, for example, a gear no longer has any teeth and is no longer engaging, but as I said, this happened without notice or any noise. The error code was then on the display - error 523001, which I believe actually points to the speed sensor. I can only imagine that the system was confused because the engine revved up empty but the wheel rotated normally, because when I continued to drive without assistance, the speed was displayed correct. Is there anything else I can try or does the bike have to go to the dealer? It's just not around the corner :)


bazxa

Member
Jan 18, 2022
85
38
Heathcote NSW Australia
Unfortunately it sounds like a dealer job. We can't buy parts,very annoying. There is an English guy that posts and supplies bearing kits he may have some info on his site, Ill re post if I find a link. Good luck


Hattori-Hanzo

Well-known member
Apr 10, 2023
427
567
UK
Also following. Exact same error code and symptoms on mine, zero assistance from the motor but can manually pedal fine.
Hoping it's just a simple speed sensor failure, but mine also had some configuration errors and wouldn't connect to the diagnostic machine, so I'm suspecting mine is a little more serious 😞


Coldat

New Member
Sep 2, 2024
6
4
Moscow
Also following. Exact same error code and symptoms on mine, zero assistance from the motor but can manually pedal fine.
Hoping it's just a simple speed sensor failure, but mine also had some configuration errors and wouldn't connect to the diagnostic machine, so I'm suspecting mine is a little more serious 😞
100% its not a speed sensor... This error appears, cause motor starts to assist, but has no connection with cranks. The wheel rotates slowly, while the motor gives all its boost. Thats why when u pedal with motor off - sensor works fine. I suppose the clutch bearring suddenly died...


Mikerb

E*POWAH Elite World Champion
May 16, 2019
6,596
5,080
Weymouth
I think your assumptions are right. Not on a Bosch cx but on a Levo, my son snapped a chain pedalling uphill on turbo and the motor made a huge noise revving really high for a fee seconds...and he was left with an error which cleared once restarted with a repaired chain. Clearly if you can still pedal albeit with the motor off, the mechanical drivetrain is good but you have lost connection between the motor and cranks. So sounds like a broken sprag/ clutch bearing. Options are a new motor if under warranty or a motor repair if not.


Bearing Man

Ebike Motor Centre
Patreon
Sep 29, 2018
976
2,334
UK

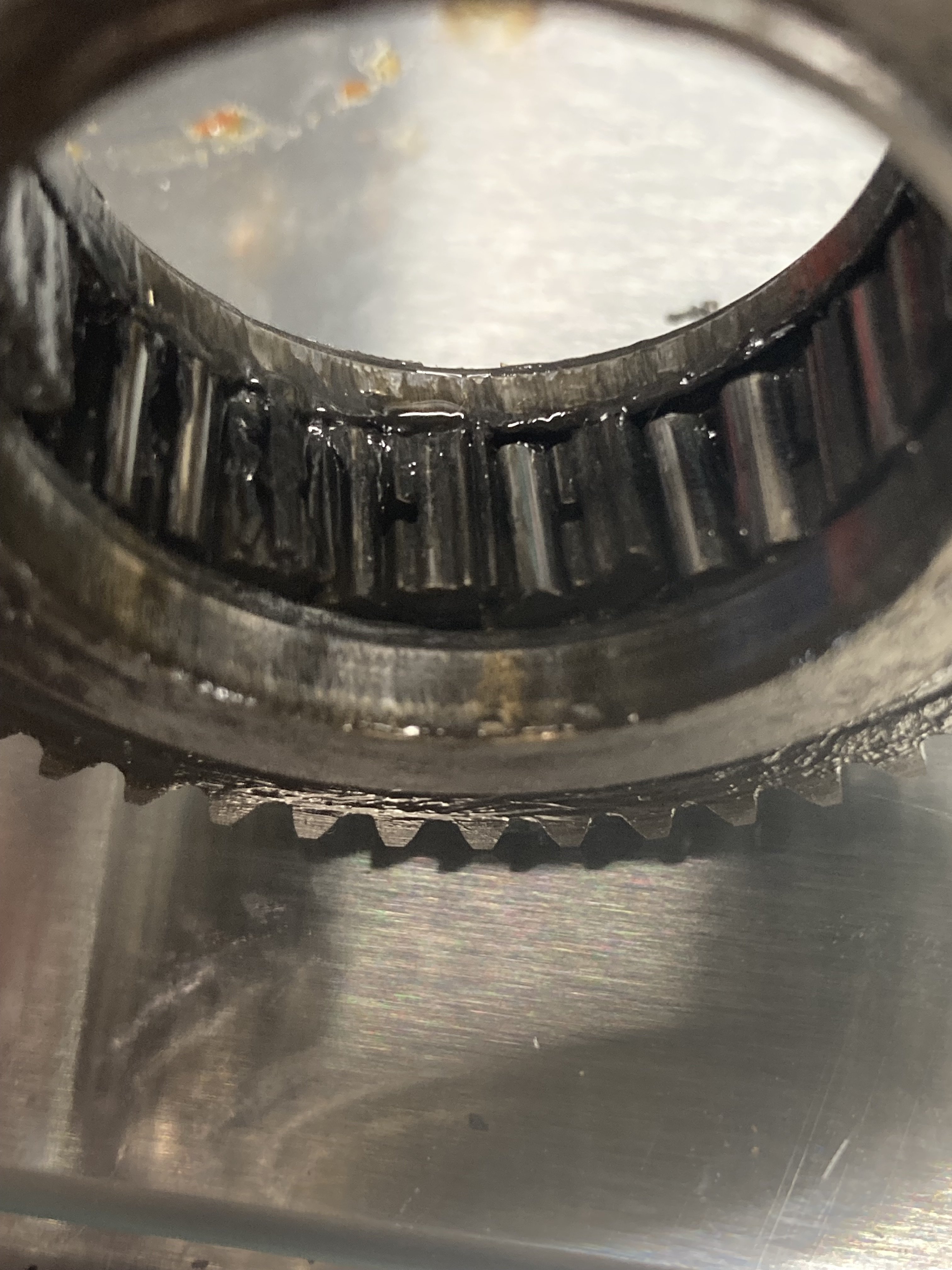

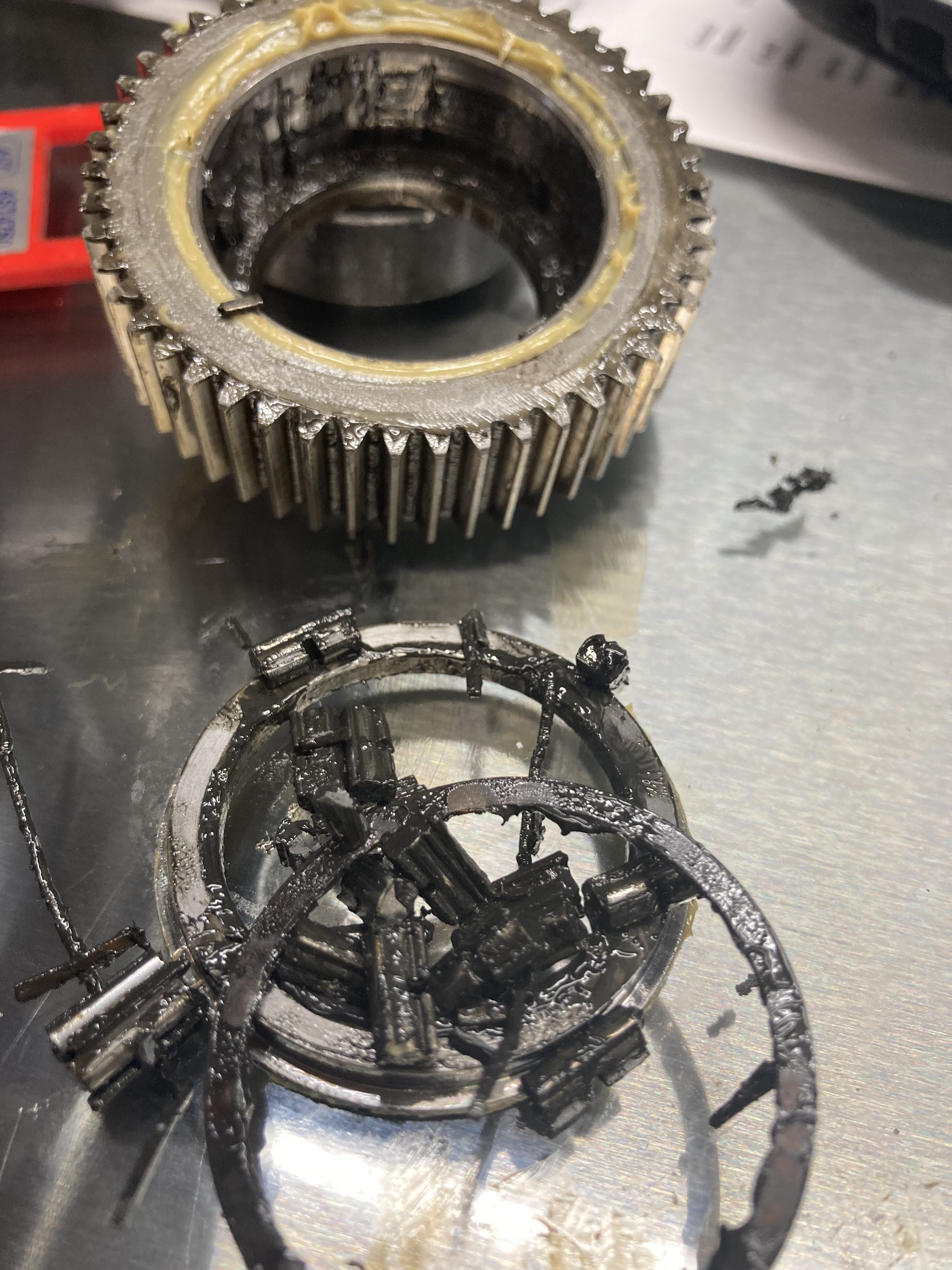

Bosch Gen 4: Sudden loss of drive and the motor spinning up and shutting down is normally due to the failure of the sprag bearing within the large steel drive gear.

IMG_6107.JPG IMG_6108.JPG


Coldat

New Member
Sep 2, 2024
6
4
Moscow
Found the reason! My clutch was ok and

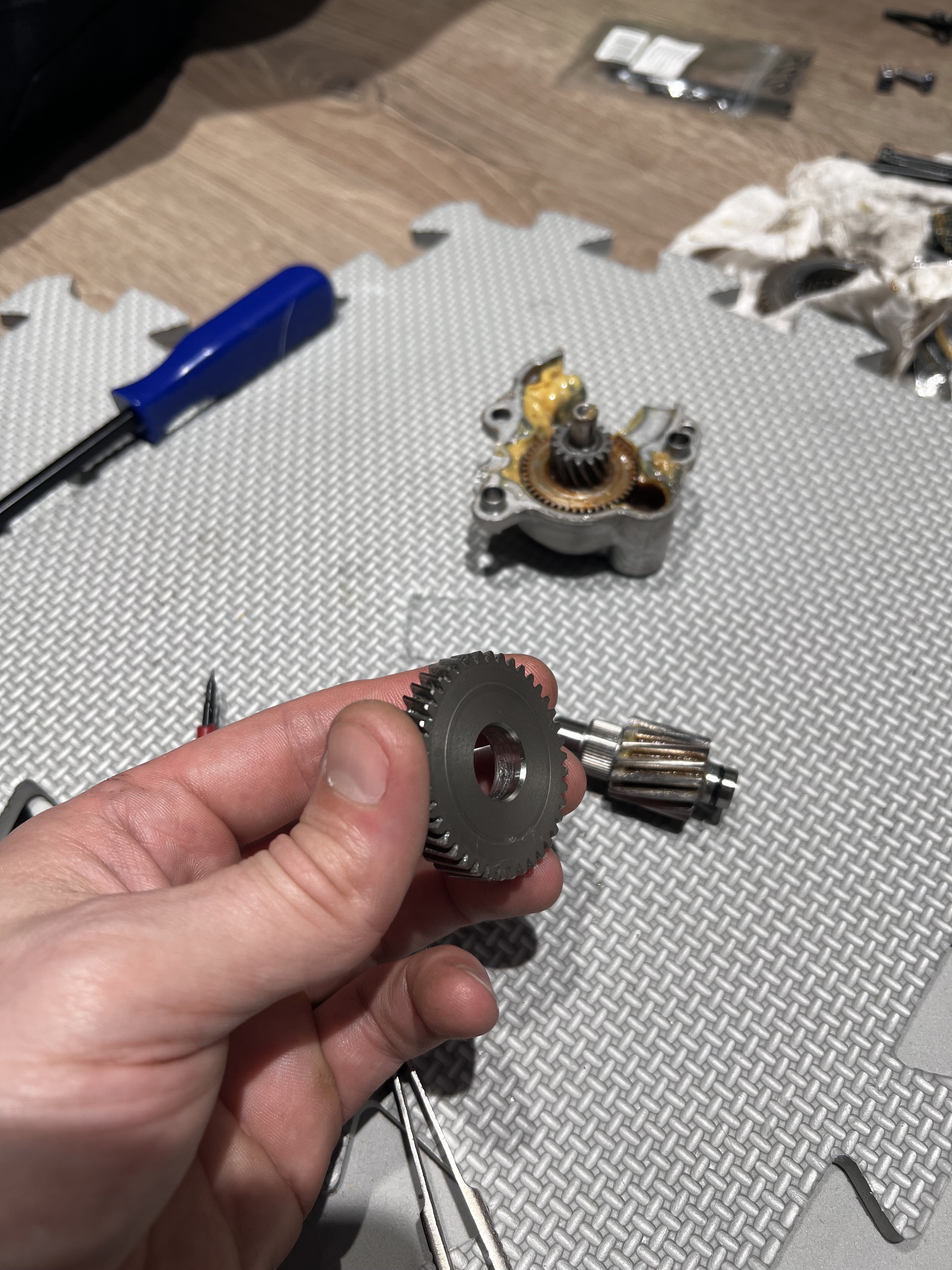

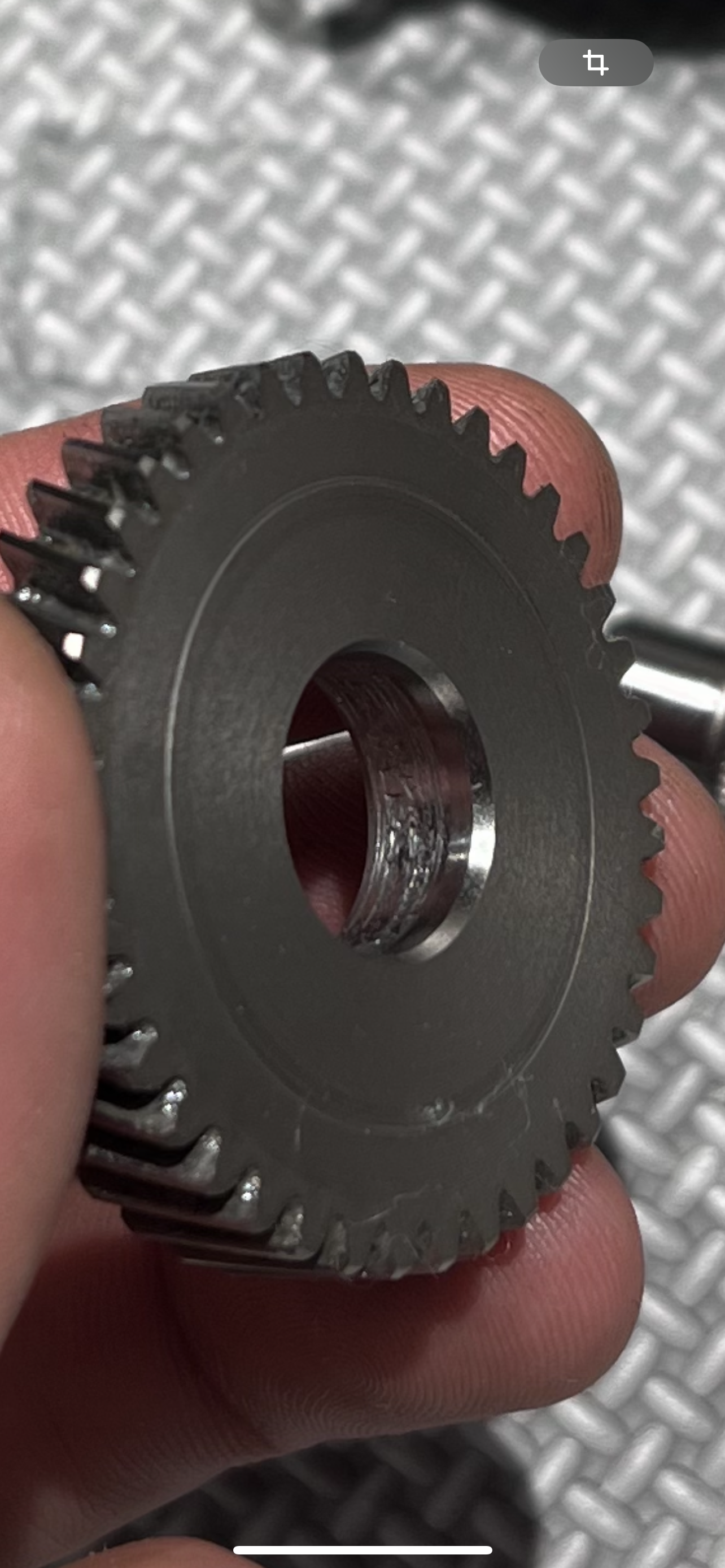

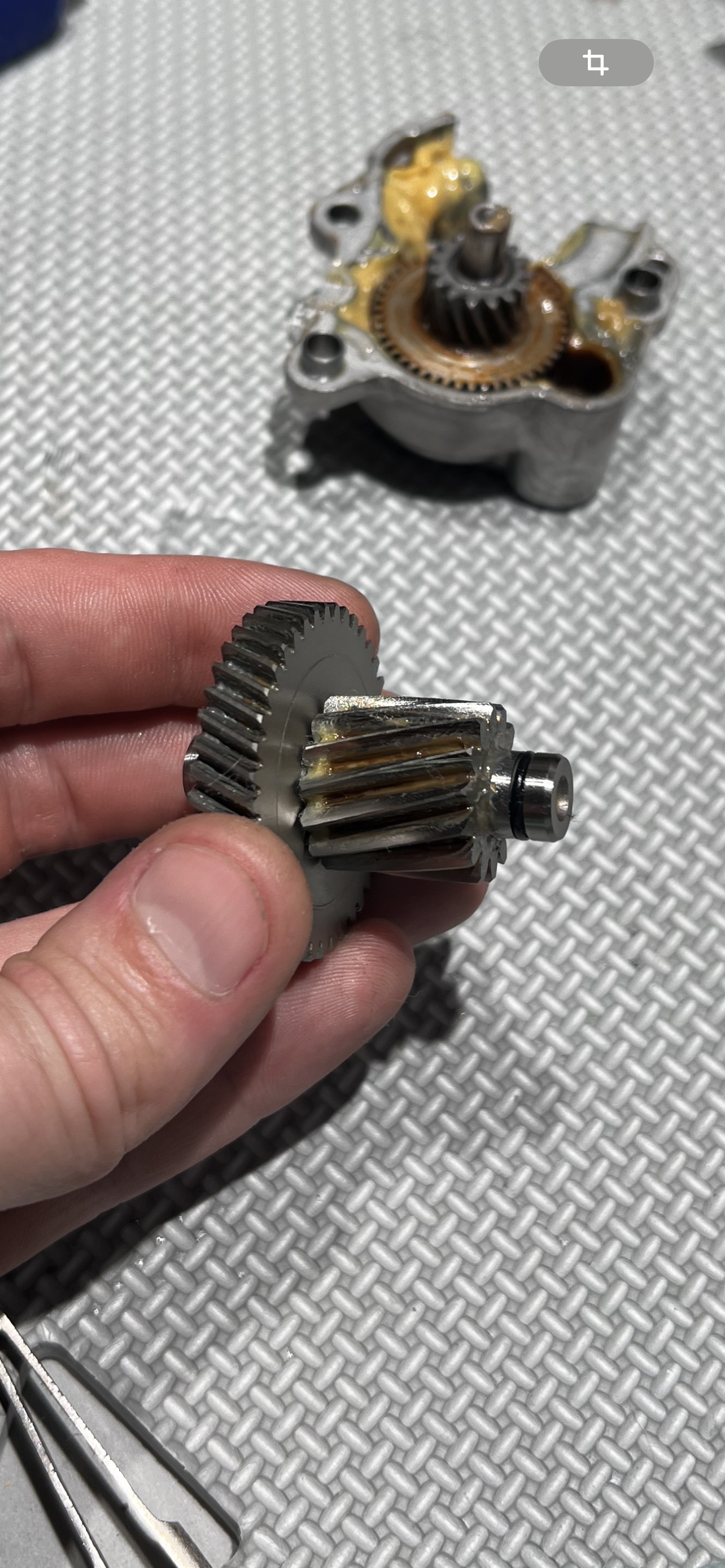

Peter from Ebike Motor Center recommended me to check one of gears inside the gearbox. They are pressed together, but there is no spline on the gear, also only about 2/3 inside of the gear touches the spline. The inner side got stripped and now it can easily slip. The next is step is to figure out how to connect them together back)

IMG_5165.png IMG_5155.jpeg IMG_5166.png


Embt

New Member
Aug 1, 2024
66
16
Dundee
Found the reason! My clutch was ok and
Peter from Ebike Motor Center recommended me to check one of gears inside the gearbox. They are pressed together, but there is no spline on the gear, also only about 2/3 inside of the gear touches the spline. The inner side got stripped and now it can easily slip. The next is step is to figure out how to connect them together back)

View attachment 146771 View attachment 146772 View attachment 146773
Why didn't u take it to dealer


RustyIron

E*POWAH Elite World Champion
Subscriber
Jun 5, 2021
1,854
2,904
La Habra, California
The hole in the gear appears to be damaged and the splines on the hardened shaft appear to be intact. If that is the case, I would first bore the hole bigger in the gear. Make a bushing with a shrink fit. Bore out the bushing to the finish size, press it all together, et voilà, you're back in business.


Coldat

New Member
Sep 2, 2024
6
4
Moscow

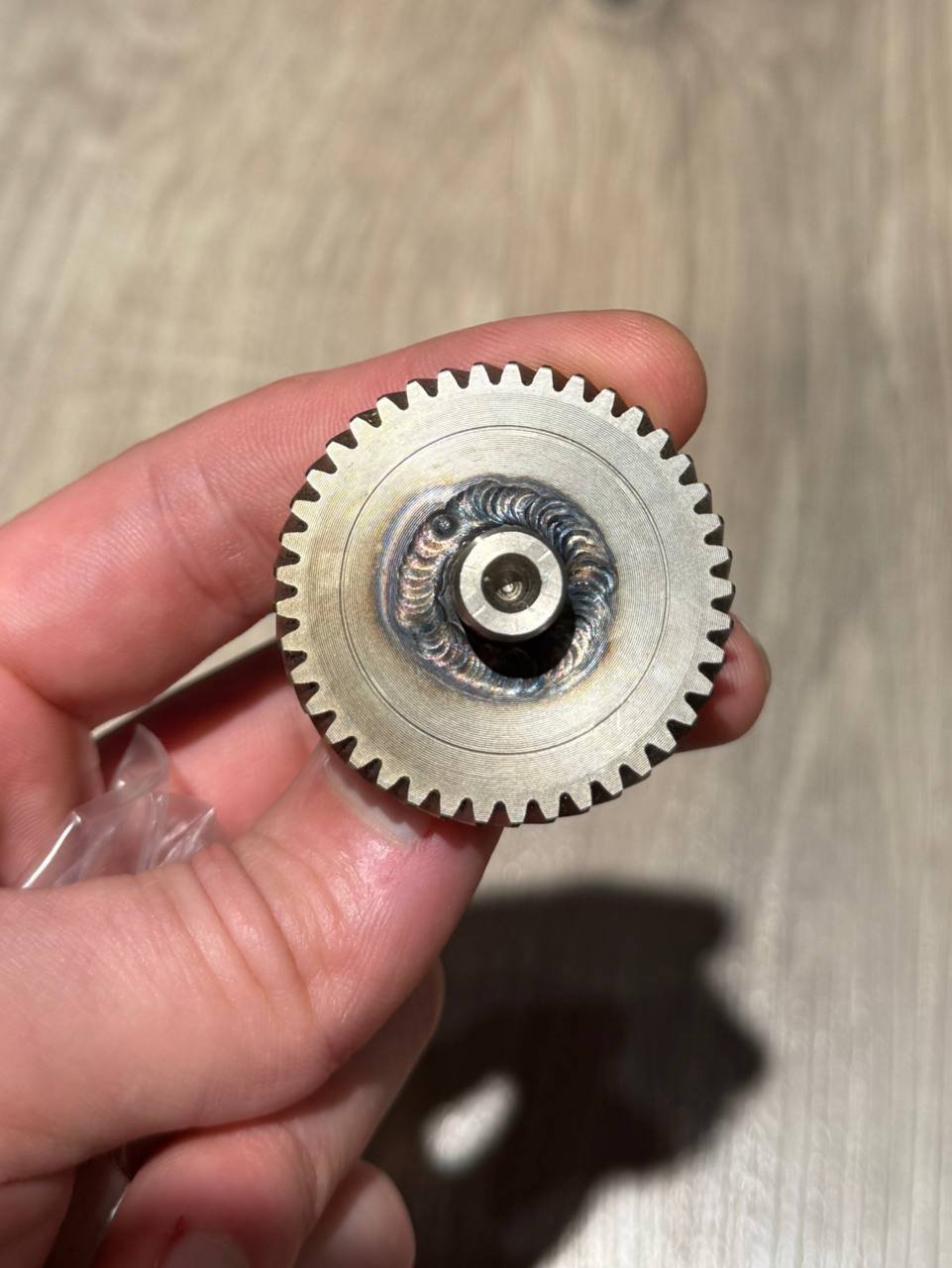

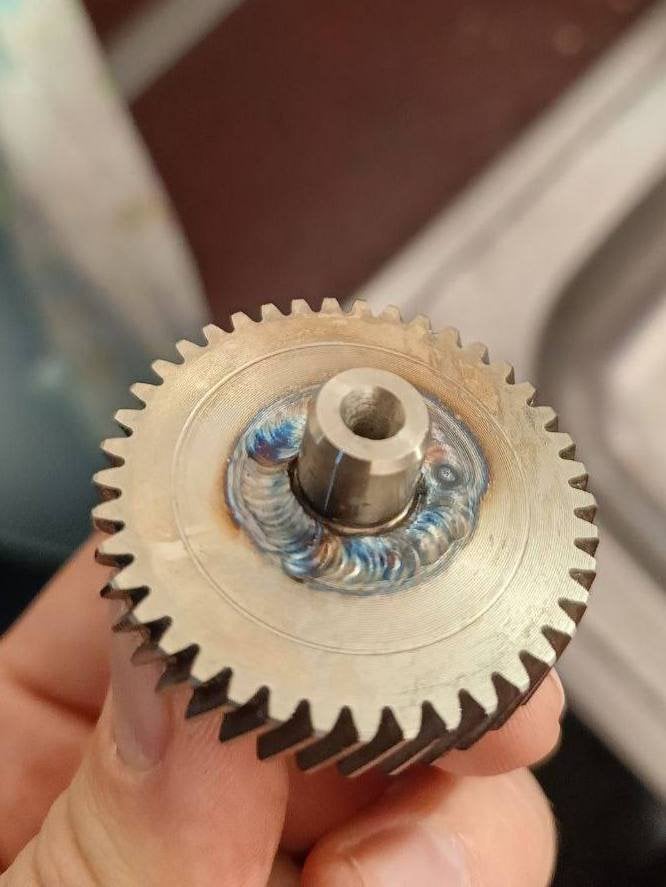

After some engineering thoughts we finally solved the problem!
We wanted to make a pin, but checked out that in this case the rotation way may unpress the gear again. (If it was opposite - this method could work)
We wanted to make a bushing as above - but to many operations sounded risky.
So, as always WELDING AND ANGLE GRINDER (in this case only welding)
And again my greates thanks to Ebike Motor Center and Peter especially!
Btw, Bosch also replied me... after a month :) with a question "where r u from" :)

photo_2024-11-25_00-56-33.jpg photo_2024-11-25_00-56-01.jpg
