Where did you buy 160mm connecting rods?
Bafang m510
- Thread starter Puschtrale
- Start date
Dado
Active member
Was thinking about mobile, but I dont like to putting phobe on handlebars, does not look good
Waynemarlow
E*POWAH Master
Mount it on the top of the stem.
Bike Computer Stopwatch Mount Bracket Holder Stem Cap For Garmin,Bryton,Wahoo | eBay
Find many great new & used options and get the best deals for Bike Computer Stopwatch Mount Bracket Holder Stem Cap For Garmin,Bryton,Wahoo at the best online prices at eBay! Free delivery for many products.
www.ebay.co.uk
I've got an iphone in a protective waterproof case with a mount on the base which fits into the Garmin Cap mount with a Garmin halyard in case you knock the phone off in a crash. Works a treat, much better than the Garmin as you can use your own favourite navigation App. The protective cases are tough.
Full Body Clear Hybrid Shockproof 360 Case For iPhone 14 15 Pro Max 13 12 11 8 7 | eBay
Anti-vibration protection: The shell is made of plastic and soft TPU, which can effectively prevent vibration. Support wireless charging: no need to remove the phone case to power the phone.
www.ebay.co.uk
thaeber
Well-known member
No pedal strikes and it suits my riding style with higher cadence
thaeber
Well-known member
This is my solution. 2 water bottle holes in the toptube, rubber rivet inserts, and a carbon plate with velcro. Then a cheap but thight fitting rubber case with velcro on the backside for the phone. Bombproof even in the worst downhill rattle, and touchdown tested
thaeber
Well-known member
Oh - and use Your company phone like I do. Just in case
Waynemarlow
E*POWAH Master
Strip of industrial velco with self adhesive strip directly to the top tube of the E10 and the opposite velcro on the Iphone case saves drilling holes. Works a treat as well. My case has a small safety lanyard which I clip around the top tube or stem.
Self Adhesive Strong Tape VELCRO Industrial Strength Heavy Duty Stick On 1 meter | eBay
ICOM32 Limited is an official VELCRO distributor. To use, clean and dry both surfaces. Peel backing paper and press firmly to surfaces. Adhesive reaches maximum strength after 24 hours. These are genuine VELCRO products and not cheaper inferior copies.
www.ebay.co.uk
thaeber
Well-known member
True. But I wanted the option to mount a tool / fliplock bottle or something else I dont needStrip of industrial velco with self adhesive strip directly to the top tube of the E10 and the opposite velcro on the Iphone case saves drilling holes. Works a treat as well. My case has a small safety lanyard which I clip around the top tube or stem.
Self Adhesive Strong Tape VELCRO Industrial Strength Heavy Duty Stick On 1 meter | eBay
ICOM32 Limited is an official VELCRO distributor. To use, clean and dry both surfaces. Peel backing paper and press firmly to surfaces. Adhesive reaches maximum strength after 24 hours. These are genuine VELCRO products and not cheaper inferior copies.www.ebay.co.uk
on the toptube. So I decided to drill and place rivets.Waynemarlow
E*POWAH Master
The top tube is slightly rounded, do cut the Velcro into 20mm strips and put them about 20mm ( or what ever suits your frame ) apart to allow the flat of the case to sit down almost against the top tube ( leaving a small gap to allow for frame vibration which the Velcro is really good at isolating from ).
if you are going to put any heavy items on it then Thaebers use of a riv would be good.
if you are going to put any heavy items on it then Thaebers use of a riv would be good.

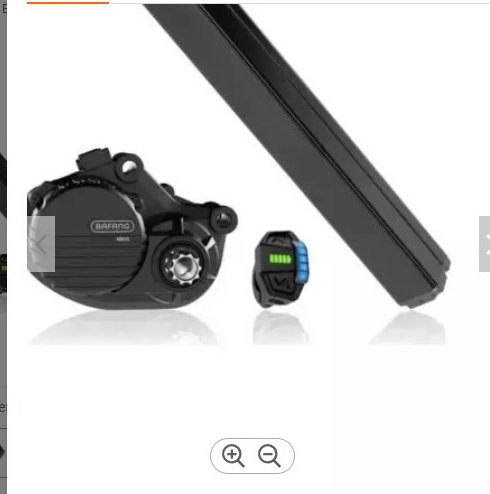

The new DPE181 remote control without a screen, but with bluetooth. If you need parameters, you connect an old smartphone or your remote control. There is a navigator on your smartphone, can you install a navigator on your remote control?
Hi. wich store ?
thaeber
Well-known member
I‘m going to buy this combo when available
Neeko DeVinchi
E*POWAH Elite World Champion
Any news as to the cable length between the junction box display and the controller @thaeber?
Dado
Active member
Finally looks pro. Also looking forward for this display. Also buttons looks good.
Lanton, I have that BT buttons over a month, it somehow showed up on Ali. Chili is also selling them.
Waynemarlow
E*POWAH Master
The BT Buttons, do you need a display to interface to the motor or can you go direct ? And cost ?
Do you like this button? Is the button convenient to use? This button does not have USB, how to charge a smartphone?
Thanks! There are a lot of new products, I liked it
Assuming there is a smartphone app. Then you still need a module to communicate with CAN. Maybe you can make friends with the phone via Bluetooth with CAN? If it is possible, then Dado will be a very rich person if he writes an application for a smartphone. The app is easy to sell. It will not cost as much as the device. And they will be able to buy it all over the world. I'll be the first customer.
Dado
Active member

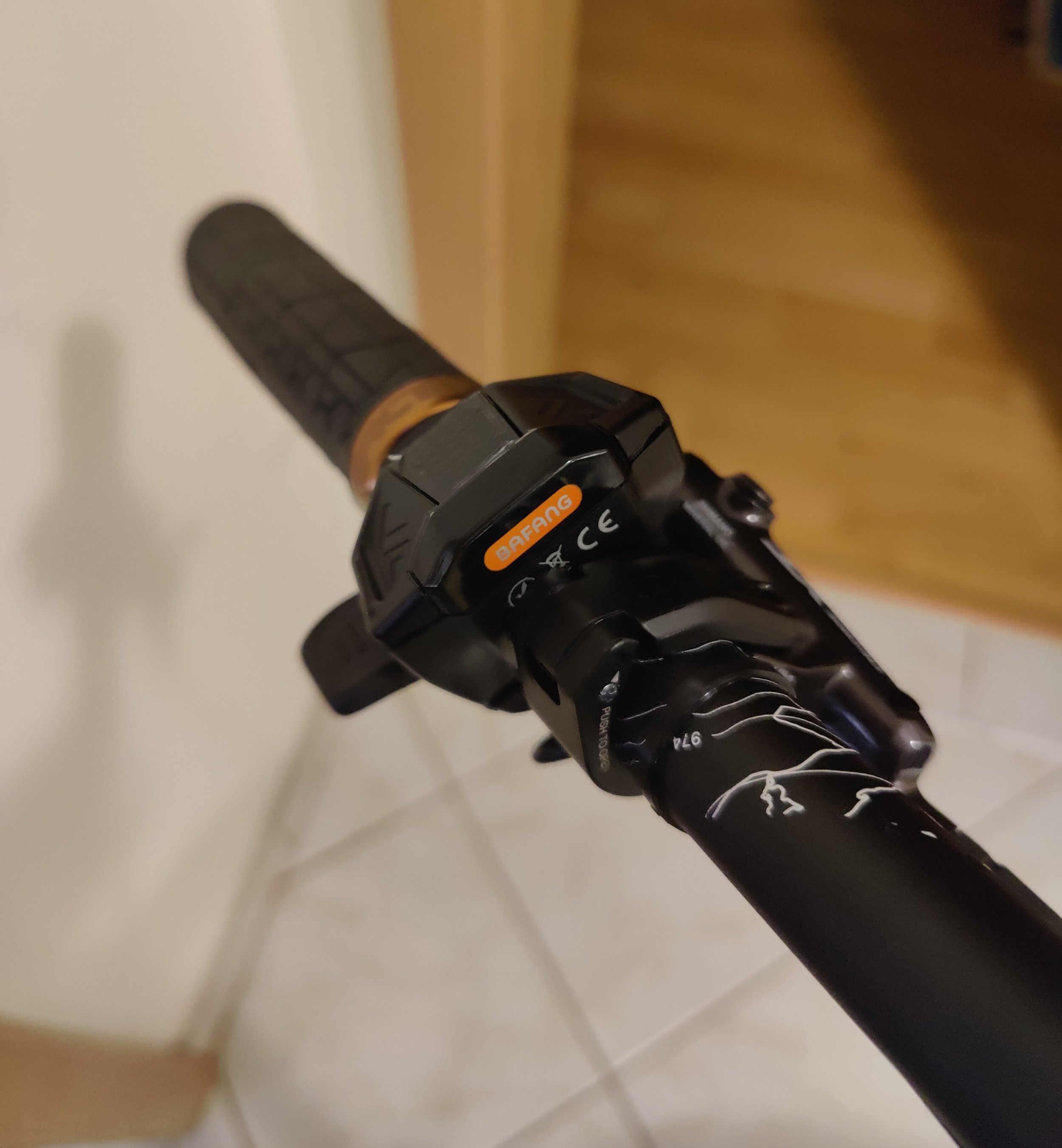

It is connected to motor over cable. BT is for connecting with mobile. Just in case missunderstanding.
Buttons are good, ergonomic (I do like higher edge on end of buttons, so easy to operate). Need to check how to lower led power - shines too much.
As there is microcontroller with BT and CAN driver, it is little higher - see picture, but perfectly match into hole in new XT lever. (Can not go over the throttle case though)
Plastic case looks better, also quality of plastic. LEDs are as is - old school (could have been 2 small 1 line OLED displays) There is rubber on bottom half ring, also a hole for cable exit.
Dont wanna voluntary try waterproofing with wap wash.
But hope, it will be better now.These buttons was exactly what I was looking for. To handle all CAN traffic. To mimic whole Bafang CAN protocol would take a lot of time without documentation.
Thaeber, thanks.
Digging into it, lot of overnights.
thank you. I hope fixation is more stronger than other remote switches; for the moment it's the only one who resist
Last edited:
Dado, any plans to develop an App for the phone? I would buy it anytimeIt is connected to motor over cable. BT is for connecting with mobile. Just in case missunderstanding.
Buttons are good, ergonomic (I do like higher edge on end of buttons, so easy to operate). Need to check how to lower led power - shines too much.
As there is microcontroller with BT and CAN driver, it is little higher - see picture, but perfectly match into hole in new XT lever. (Can not go over the throttle case though)
Plastic case looks better, also quality of plastic. LEDs are as is - old school (could have been 2 small 1 line OLED displays) There is rubber on bottom half ring, also a hole for cable exit.
Dont wanna voluntary try waterproofing with wap wash.
These buttons was exactly what I was looking for. To handle all CAN traffic. To mimic whole Bafang CAN protocol would take a lot of time without documentation.
Thaeber, thanks.
Digging into it, lot of overnights.
View attachment 100766
.Viva la Velcros i am going to try them soon.Basically you can save around 1 Kg because the battery case is around 800gr and the lock and mounting plates of the battery are also 440gr or so .And if we make a battey around 600wh than we can have a bike around 20Kg or so with the m510 and dengfu frame
thaeber
Well-known member
I doubt the case is 800g. I just weighed the original Dengfu battery using 2 different scales, result is 3.89 - 3.91 kg. That’s pretty good for a 840 Wh battery, containing 65 x 18650 cells at 48,3 g nominal weight each. Thats 3.14 kg for the cells only. Plus welding plate material, cell holders, wiring, BMS. My friends 720 Wh Fantic battery is above 4 kg. And the tiny 630 Wh Shimano battery is 3,54kg. Considering the price of the Dengfu battery, this is a damnd good package!
thaeber
Well-known member
And 369 g for the brackets
thaeber
Well-known member
Waynemarlow
E*POWAH Master
This is about as light as you can for just on 800Wh.
