M500 headlight

[Cajos]

Hi.
I have built the dengfu e10 with m500 and am wondering if you can connect a front headlight to the internal battery somehow through the motor or display? Thoughts?



[Mavic_rim]

The display head unit has a USB outlet that you can plug your light into.



[Cajos]

Ok. Thank you. I will check the display for usb connection. Is that s special dengfu headlight or any light thst has the usb connectivity?



[Mavic_rim]

Ok. Thank you. I will check the display for usb connection. Is that s special dengfu headlight or any light thst has the usb connectivity?

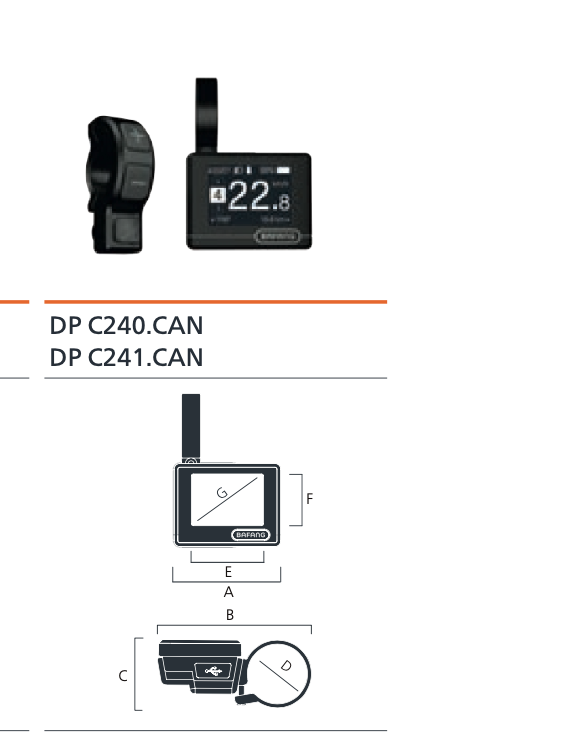

This the controller I am talking about! I am not sure if yours is the same. Good luck



[Waynemarlow]

Be aware that there maybe a max current that you can draw through the USB port, I seem to remember reading somewhere that there’s only 0.5A available and that’s more like a flicker in lighting terms.



[Cajos]

Ok. Anyone tried to connect headlight to this usb-port? I will make a try and get back with suggestions.



[Hagbard]

How did you get on? I believe that display (I have the same one) has the ability to automatically activate lights, though I'm not sure whether that's the backlight of the display or headlights.

I'd definitely love to know more about lightings options though!



[Cajos]

How did you get on? I believe that display (I have the same one) has the ability to automatically activate lights, though I'm not sure whether that's the backlight of the display or headlights.

I'd definitely love to know more about lightings options though!

Hi. I have not tried yet. But I will as autumn is coming. I will port here when I try this setup.



[Eclipse MTB]

Get something like this:
And a short USB cable so you can charge it when the battery goes low



[Hagbard]

@Eclipse MTB I think the point is to have a headlight that is powered directly from the bike's battery, rather than to use the bike battery to charge a battery on the light.

If the daylight sensor on the display works as I suspect then it should even be possible to have automatic healights on the bike. Which would be kind of cool.

500ma is likely to be far too weak to power anything decent though.



[Eclipse MTB]

@Eclipse MTB I think the point is to have a headlight that is powered directly from the bike's battery, rather than to use the bike battery to charge a battery on the light.

If the daylight sensor on the display works as I suspect then it should even be possible to have automatic healights on the bike. Which would be kind of cool.

500ma is likely to be far too weak to power anything decent though.

I would have not suggested that if USB and the display isn’t mentioned. Without the USB, the controller is the only option.

But I digress. I’d rather have a powered light than run another cable to the motor. Also, with it’s own battery, I don’t have to worry about another thing sucking up juice from the main battery, until it runs out, in which case, it’s a very short cable to run to the display unit. That’s just me though. 500ma is just enough to charge my headlight and Edge 830, albeit slowly, and keep them going when I forget to juice them up



[Sandur-Rx]

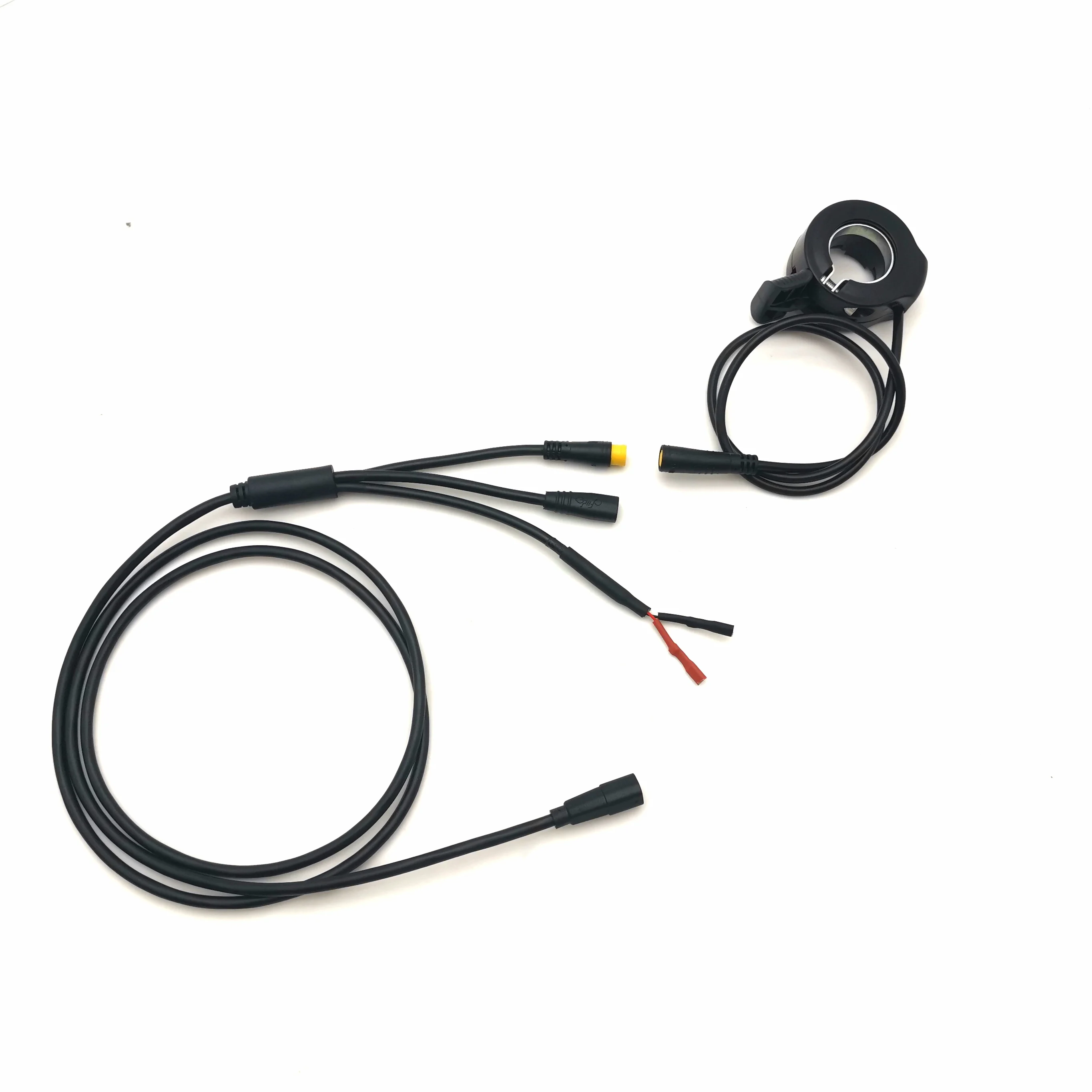

€ 10,23 20％ Off | Ebike Kabel Voor M500/M600 1T3 Kabel Thumb Throttle Bafang Motor Elektrische Fiets Diy Conversie Kit Deel

Page Not Found - Aliexpress.com

Just buy this. There is one for the rear to. That connects to the wiring that also go’s to the speed sensor. The 6v headlight doesn’t disappoint if you ask me.



[Cajos]

€ 10,23 20％ Off | Ebike Kabel Voor M500/M600 1T3 Kabel Thumb Throttle Bafang Motor Elektrische Fiets Diy Conversie Kit Deel

Page Not Found - Aliexpress.com

Just buy this. There is one for the rear to. That connects to the wiring that also go’s to the speed sensor. The 6v headlight doesn’t disappoint if you ask me.

What kind of headlight do you use for this cable?
