Lost screw

[Tubby G]

Now then …

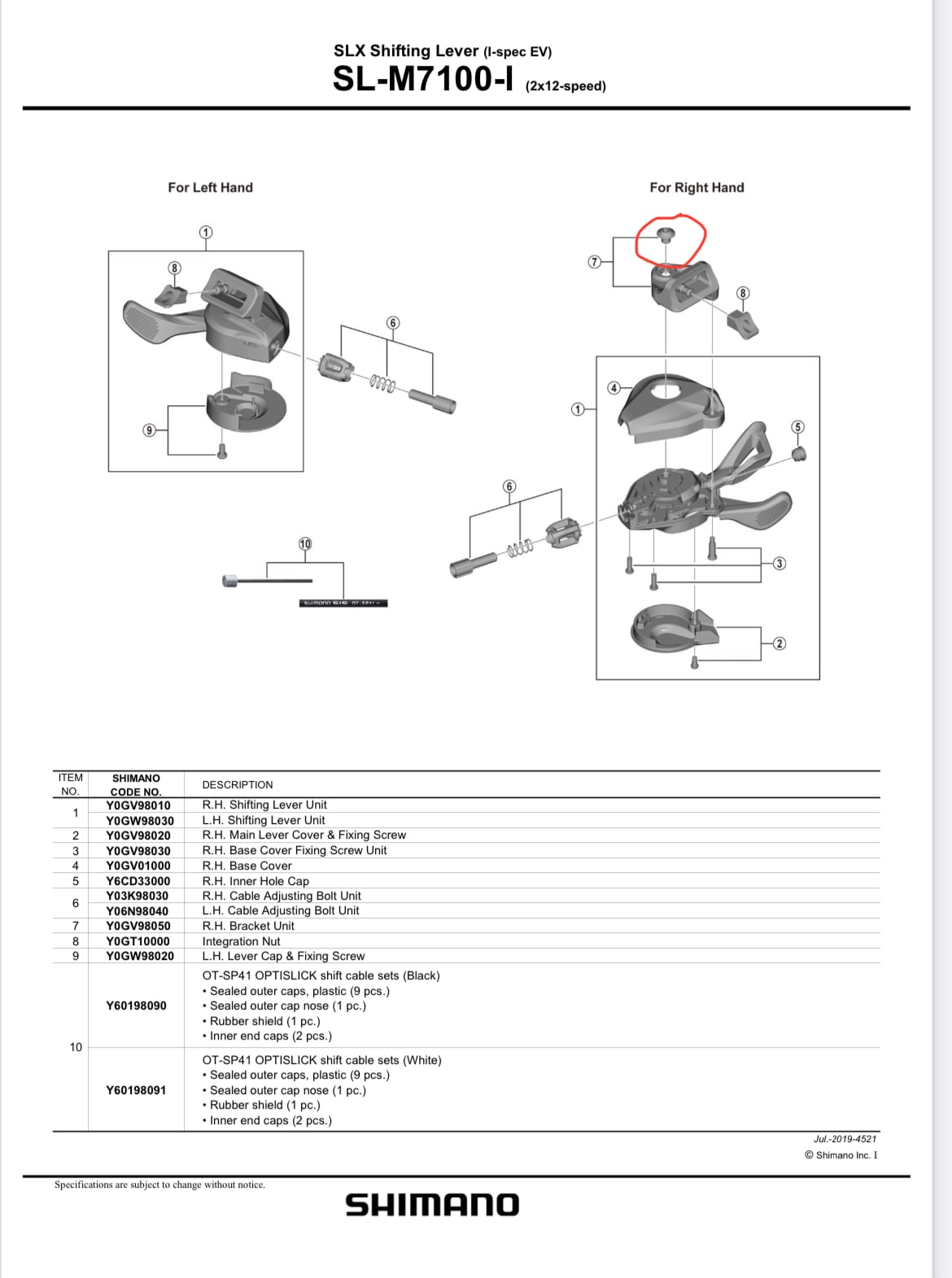

Anyone know the size of this screw / bolt that managed to drop out of my partner's SLX shifter on the trail ?

i.e M6 15 ?

it’s the one with a red circle drawn around it

Tried a couple of bike shops, no success. They suggested I buy a new shifter, but reluctant to do that when all I need is a screw!



[Zimmerframe]

Sorry, I only came here because I thought it might be a bambam type screw thread ..

But seen as I'm here ..

Can't seem to find one for the i-spec ev .. presumably the internals are the same as the i-spec, which would be an M5

https://www.bike24.com/p2227760.html

But obviously the actual screw shape is different on the EV.

I'm not sure if you bought the adapter if that comes with the correct screw ??

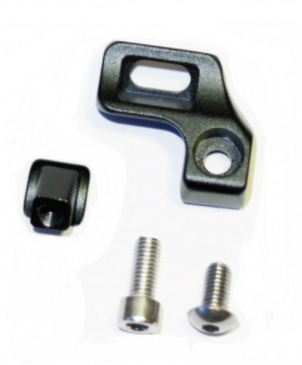

I-Spec EV Adapter

mohawkscycles.fr



[MrPeaski]

M5 x 7mm button head allen bolt

A spare disc rotor bolt should work, but you may need to cut it down a little



[Tubby G]

Whist you were both answering, I was just cutting down and fitting a bottle cage screw as I found a Reddit post asking the same question

The answer there was an M5 12 button head screw


Problem solved



[MrPeaski]

I measured the actual bolt from an XT clamp version. But guessed the i-spec EV would be the same



[urastus]

My partner has a similar problem, but the screw isn't lost yet. It's just loose



[Nicho]

My partner has a similar problem, but the screw isn't lost yet. It's just loose

Your partner has a screw loose?
