Ebike Garmin apps ~ UPDATE: new multi battery support

squeegee

Well-known member
Aug 19, 2019
313
236
USA
My 2022 MM pair up with Ebike field fine, shows battery % on Fenix 6, same as 2020 Levo SL. I do notice that when the MM is on, the Fenix HR monitor stops working, starts working as soon as I turn off the MM. Anyone else seen this? MM seeing Fenix 6 as HR option but won't pair either

--Edit--
Solved my own problem here, Garmin somehow detected an external HR monitor coming from the MM even though not present or desired, I allowed a connection on my Fenix that ended up stopping HR during activity. I deleted the connection under "Sensors & Accesories" on the watch. For Ebike Field Premium all of the connections established are listed here (if you have more than one bike or an extra battery), so you can just manually delete if needed.

Last edited:

NoPro

Active member
Aug 2, 2019
83
150
Austria
@JanCapek A friend of mine bought a new Fenix 7x and the nerdstyle field is not available in the IQ Store. We know the watch is not out for long we just wanted to know if you plan to make it available for new 7 series?


JanCapek

Active member
Aug 16, 2018
150
136
Czech Republic
Yep, I will also update it to be compatible with Fenix7 line, but you can achieve almost the same with standard Ebike Field. Just place it on the screen together with other standard garmin datafields. With F7x you can choose layout with 8 fields on single screen.


NoPro

Active member
Aug 2, 2019
83
150
Austria
Yep, I will also update it to be compatible with Fenix7 line, but you can achieve almost the same with standard Ebike Field. Just place it on the screen together with other standard garmin datafields. With F7x you can choose layout with 8 fields on single screen.

Thx for the reply, my friend will be very happy to hear that! I know you can almost achieve the same with the regular Ebike Field but after 2 years I just dont want to miss it, it is infact the only datafield (other than the map) I use. So I guess no excuses left for me to not upgrade 🤔


JanCapek

Active member
Aug 16, 2018
150
136
Czech Republic
@NoPro please try 3.0.0 version of Nerd Style version which I just uploaded to CIQ Store. It has Fenix 7 line compatibility.



muzzman1

Active member
Feb 11, 2019
149
127
Los Angeles CA
Is anyone else having trouble with "Ebike Field" after the specialized firmware that came out this week?
I was able to connect one of my bikes, but the Bike identification number changed. I was able to identify the new number by going to "sensors" on the garmin where it found all the sensors with a new number. I plugged that number into ConnectIQ and the battery % along with a numerical value for power level showed up. (no turbo, trail, or eco) no matter what setting on the ConnectIQ app I chose.

My 2nd bike would not connect even after using it's new ID number on the ConnectIQ. It just wont' connect.

Any help would be greatly appreciated.

Edit: BTW I did pay for multi bike support, so that's not why my 2nd bike won't connect.


GDAS

Member
Sep 19, 2018
93
67
Woking, Surrey
Is anyone else having trouble with "Ebike Field" after the specialized firmware that came out this week?
Yes, I went out today for first ride after updating motor & display firmware and realised that the ebike nerd screen on my Garmin Forerunner watch wasn't picking up the Eco/Trail/Turbo mode and more importantly the remaining battery percentage. I'm hoping @JanCapek can suggest what needs to be done to fix. I hope Spesh haven't done something to permanently disable it.


muzzman1

Active member
Feb 11, 2019
149
127
Los Angeles CA
Yes, I went out today for first ride after updating motor & display firmware and realised that the ebike nerd screen on my Garmin Forerunner watch wasn't picking up the Eco/Trail/Turbo mode and more importantly the remaining battery percentage. I'm hoping @JanCapek can suggest what needs to be done to fix. I hope Spesh haven't done something to permanently disable it.
Good news is I was able to get it working to some extent on both of my bikes. It looks like the update changed the registration number for the garmin. So I just used the garmin to detelct all sensors. I used that number to plug into the IQConnect app on my phone an resynced and it works! It no longer says "turbo, trail, eco, but rather 1,3,5. Most importantly battery % is there. So I will take it!


elorenzo1

Member
Oct 12, 2018
3
1
Valencia - España
Y sí, hay que tocar el Garmin, ya que la bici cambia el identificador Ant+.
En el Garmin hay que borrar los sensores de ebike y potenciómetro, y escanear el nuevo ebike, potenciómetro y cadencia, que ahora lo detecta como sensor independiente. No es necesario cambiar nada en los campos de datos.


Funkeydunk

Well-known member
Subscriber
May 28, 2019
360
258
Uk
Is anyone else having trouble with "Ebike Field" after the specialized firmware that came out this week?
I was able to connect one of my bikes, but the Bike identification number changed. I was able to identify the new number by going to "sensors" on the garmin where it found all the sensors with a new number. I plugged that number into ConnectIQ and the battery % along with a numerical value for power level showed up. (no turbo, trail, or eco) no matter what setting on the ConnectIQ app I chose.

My 2nd bike would not connect even after using it's new ID number on the ConnectIQ. It just wont' connect.

Any help would be greatly appreciated.

Edit: BTW I did pay for multi bike support, so that's not why my 2nd bike won't connect.
@JanCapek seems like we're having issues with the basic battery % and mode display. any idea when this will be modified?


JanCapek

Active member
Aug 16, 2018
150
136
Czech Republic
Hi guys, interesting that Specialized released such major update to older bikes. Please make sure to reset pairing by adding zero to Bike ID in app settings and it should pick up the bike again. They also changed how the bike reports assist modes. I will hopefully release soon ability to customise assist mode name to specific numeric values, so you will be able to have eco/trail/turbo back on screen after that.
Can you please some of you launch my Ebike Diagnostics app onn such updated bike and send me picture what number the app shows under "assist mode" after the dash? Thanks!


StuR

E*POWAH Elite World Champion
Patreon
Subscriber
Apr 28, 2018
441
722
Forest of Dean
I had the free version and it worked perfectly on my 2019 Levo
I bought a 2021 Kenevo about a month ago and it would not work at all
Deleted the app and reinstalled, set bike to zero and generally faffed for hours with no joy .
Decided to take a gamble and buy the full monty version for €5 / £4.33
Jan sent a pin ,I followed the instructions set bike to zero and boom all sorted!!
It finds both bikes and batteries even when they are Swapped between bikes
So I can leave one in my car for extra laps when required
Shows accurate percentage and eco , trail and turbo on my Garmin 820
Well happy
Best £4.33 I've spent recently
Thanks Jan , it's a great feature


StuR

E*POWAH Elite World Champion
Patreon
Subscriber
Apr 28, 2018
441
722
Forest of Dean
Here's how it looks on my Garmin 820



muzzman1

Active member
Feb 11, 2019
149
127
Los Angeles CA
Hi guys, interesting that Specialized released such major update to older bikes. Please make sure to reset pairing by adding zero to Bike ID in app settings and it should pick up the bike again. They also changed how the bike reports assist modes. I will hopefully release soon ability to customise assist mode name to specific numeric values, so you will be able to have eco/trail/turbo back on screen after that.
Can you please some of you launch my Ebike Diagnostics app onn such updated bike and send me picture what number the app shows under "assist mode" after the dash? Thanks!
1st thanks for the great app!
FYI Eco show 1, Trail Shows 3, Turbo shows 5 during a ride


WogsRus

Member
Sep 13, 2021
43
21
Tasmania, Hobart
Hi Jan. Love the data fields. I have a Venu SQ and whist i can use the data field, which wil lpopulat efor a little while, after i start cycling, the data disappears and stops reading and then i cant get it to show any data a all. I have a shimano Ep8 motor with the e800 controller


fali

New Member
Feb 4, 2022
36
6
Sant Celoni
Hello,

as I also ride Turbo Levo and likes to ride with my Garmin instead of smartphone, I developed applications specifically for ebikes which communicates via ANT+ connectivity (which all Turbo Levos supports) without need to be setting up any fake-channel. So, in case somebody is interested in similar setup, here are they:

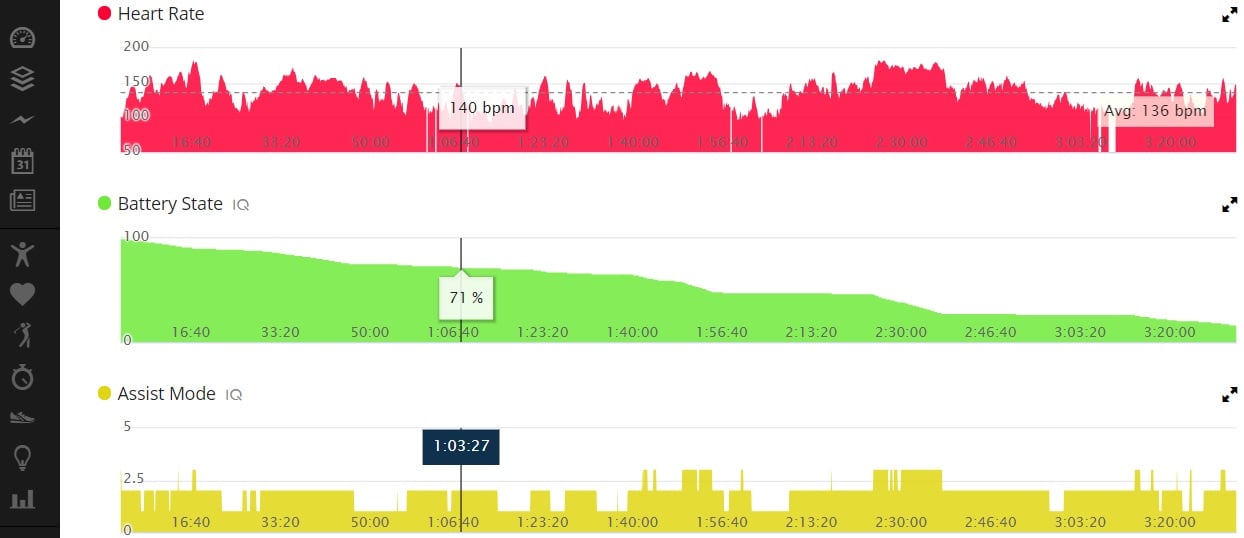

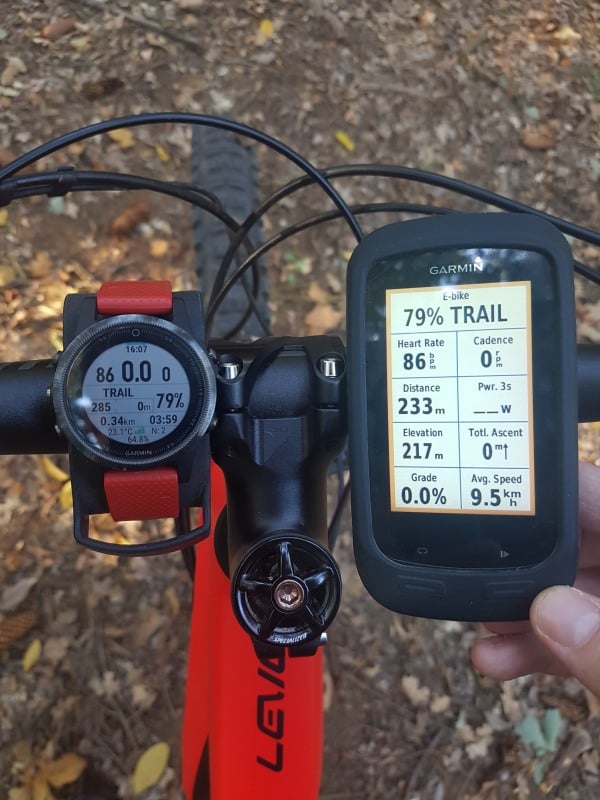

Ebike Field behave like simple datafield which you can configure to your preferred screen layout. It can show both battery level and current assist mode and it supports wide range of Garmin devices (EDGE and watches). You can even configure what and how it should be shown on screen. Additionally it support to render graphs of battery state and used assist mode during whole activity to Garmin Connect, which is perfect for evaluating your battery consumption. Version 2.0 changelog with multi battery/bike pairing feature.

Ebike Field "Nerd Style" does the same as first app but is specifically for watches and tries to maximize number of information on watch screen while remaining usable. It is even able to remind you in case you are off your preloaded route/course and you can reconfigure shown metrics on screen in app settings via Garmin Connect Mobile app.

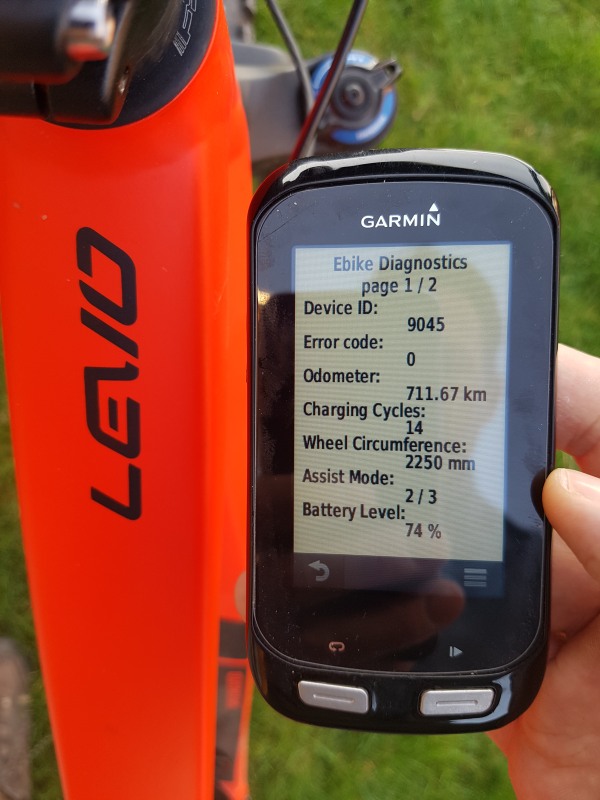

Ebike Diagnostics is app with ability to read lots of useful information from bike and is even able to change bike wheel circumference. Unfortunately, no full support for new 2019 FSR Levo. This app is only for my donators.

More detailed description of all applications can be found under provided links on Garmin Connect IQ app store. More interesting features are on the way. Enjoy and let me know your thoughts!

Detailed review for German-speaking friends:
Connect IQ App EBike Field y EBike Diagnostics im Praxistest » Radler GPS


View attachment 6381
View attachment 5538
View attachment 6382
View attachment 5977

Actualización: 2.0 con compatibilidad con múltiples bicicletas/baterías y más: aplicaciones Ebike Garmin ~ ACTUALIZACIÓN: nueva compatibilidad con múltiples baterías - EMTB Forums
[/CITA]
S puede poner en Garmin 520 Plus ?


Pete_London

New Member
May 6, 2022
2
1
London
I too had this problem. 2019 gen 2 levo, Garmin Edge 1000. I can confirm that the fix of making the bike ID in the EBike Field section of Garmin Express fixed the problem. Get batt % and ECO, Track or Turbo.


fali

New Member
Feb 4, 2022
36
6
Sant Celoni

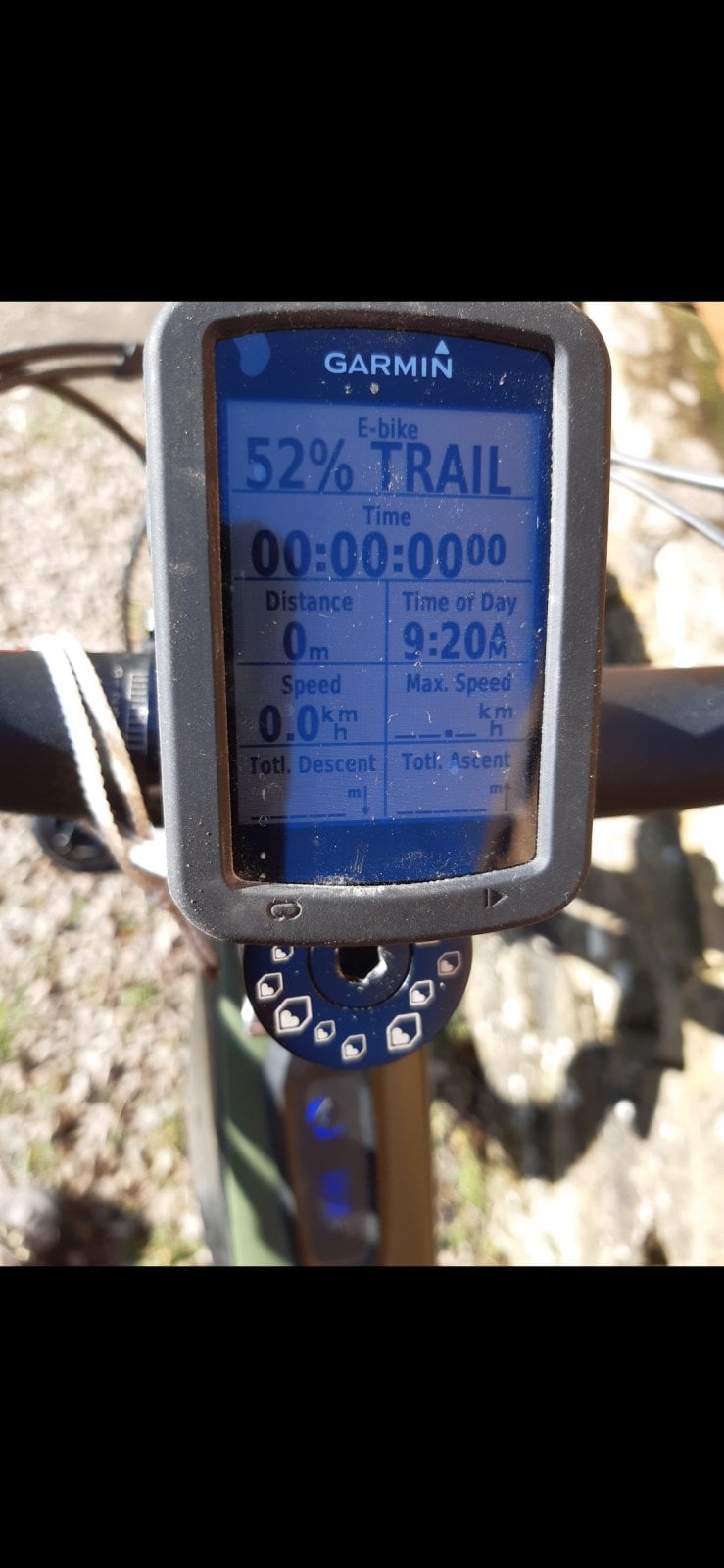

Hola chicos, es interesante que Specialized haya lanzado una actualización tan importante para bicicletas más antiguas. Asegúrese de restablecer el emparejamiento agregando cero a Bike ID en la configuración de la aplicación y debería recoger la bicicleta nuevamente. También cambiaron la forma en que la bicicleta informa los modos de asistencia. Con suerte, lanzaré pronto la capacidad de personalizar el nombre del modo de asistencia a valores numéricos específicos, para que pueda volver a tener eco/trail/turbo en la pantalla después de eso.
¿Pueden algunos de ustedes iniciar mi aplicación Ebike Diagnostics en una bicicleta tan actualizada y enviarme una imagen del número que muestra la aplicación en "modo de asistencia" después del tablero? ¡Gracias!
[/CITA]

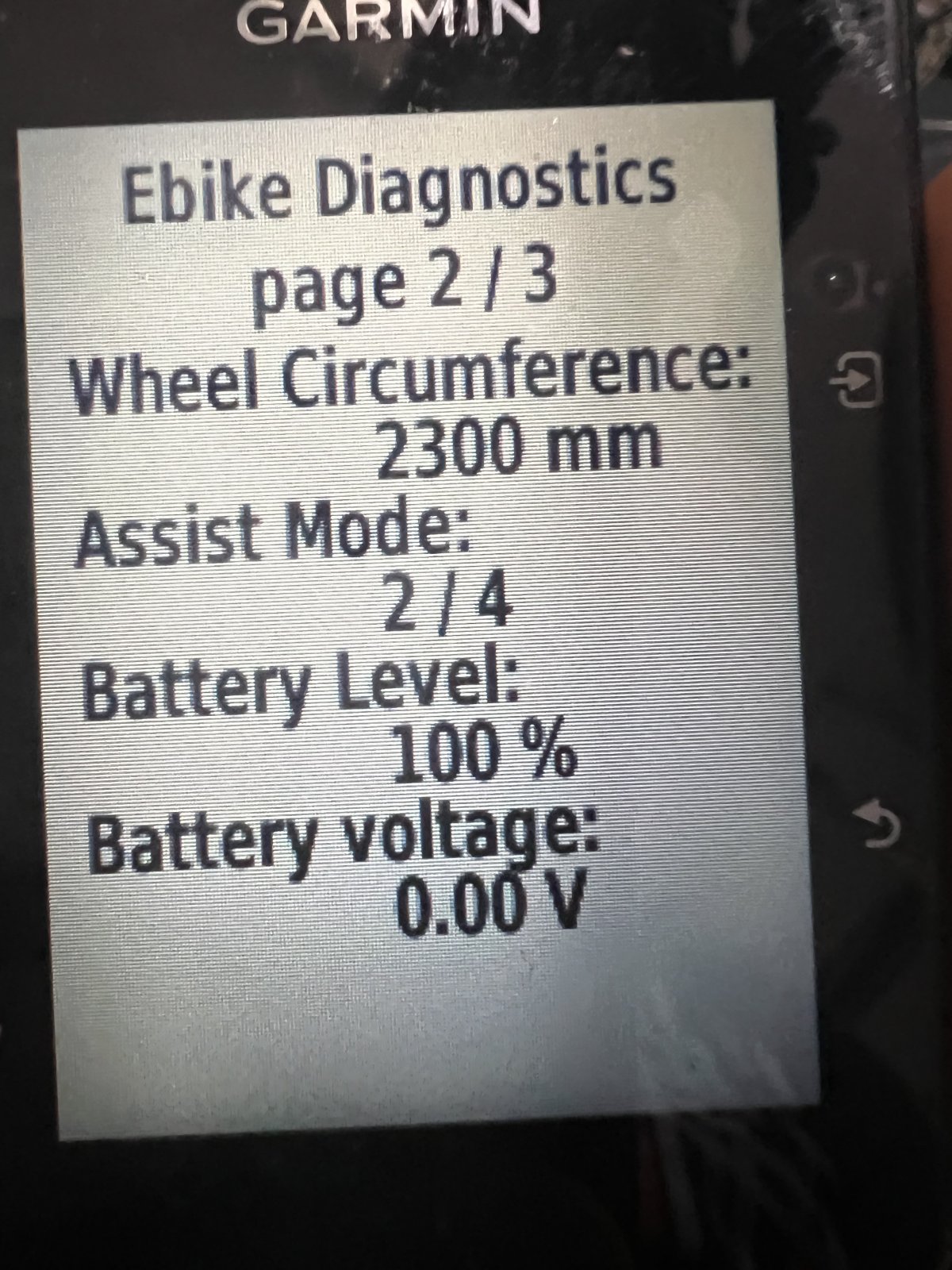

A mi las asistencias me sale con digitos 2-4-7


fali

New Member
Feb 4, 2022
36
6
Sant Celoni
Amigo, uso anteojos, ese es el problema.

Si no uso anteojos, no tendré ningún problema en ver claramente el texto pequeño en cualquier reloj.

Sin embargo, no podré ver a dónde voy por el sendero. ¿Simplemente se convierte en un lugar muy borroso, borroso y aterrador para estar?
[/CITA]
Cuando conducimos un coche no podemos mirar el movil , Porque cuando vamos en bici miramos el navegador ?


emtbeast

Active member
Jan 10, 2022
127
153
Slovenia
Hello @JanCapek

I am using your ebike field Nerd style the Premium version with the 2022 Giant Reign E+1. It all works great except the power readings.

So the power readings on the Giants app are quite normal about 130W average and 690W maximum.

Recently the bike had an update.

So before the update the Garmin readings were sort of OKish...the Max power had serious spikes of 2000W, 3000W etc..., the average was about 100W, not the best also.

Now after the update the max power is around 170W and the average is around 10W...so completely wrong...

Is this a Garmin issue or can something be done with the app field? Don't know which direction to go research...


Mr Dog

Member
Sep 26, 2021
72
61
Switzerland
Hello @JanCapek

I am using your ebike field Nerd style the Premium version with the 2022 Giant Reign E+1. It all works great except the power readings.

So the power readings on the Giants app are quite normal about 130W average and 690W maximum.

Recently the bike had an update.

So before the update the Garmin readings were sort of OKish...the Max power had serious spikes of 2000W, 3000W etc..., the average was about 100W, not the best also.

Now after the update the max power is around 170W and the average is around 10W...so completely wrong...

Is this a Garmin issue or can something be done with the app field? Don't know which direction to go research...
I am seeing this same issue with power. It’s frustrating. I’m not sure if it’s Garmin or Giant related. I tried to calibrate the sensor in the Edge but it never completed the cal.

Weather to bad for me to solve it right now. Giant update didn’t fix it. I have had Garmin updates also so maybe they broke it.


ebikeZA

Active member
Apr 2, 2018
226
114
Cape Town
I use the Ebike Garmin app all the time... what I wish though, if there was an option for range left .
should be a easy calculation to make ?
