BikingBad
Active member
I have not. Bike is significantly quieter compared to 181.1, hence I’m mainly looking for plugs for aesthetics and long term wear.
Crestline RS 181.2 thread – builds, reviews, technical info
- Thread starter BikeBert
- Start date
This one is for the weight weenies and maybe less sendy riders like me.

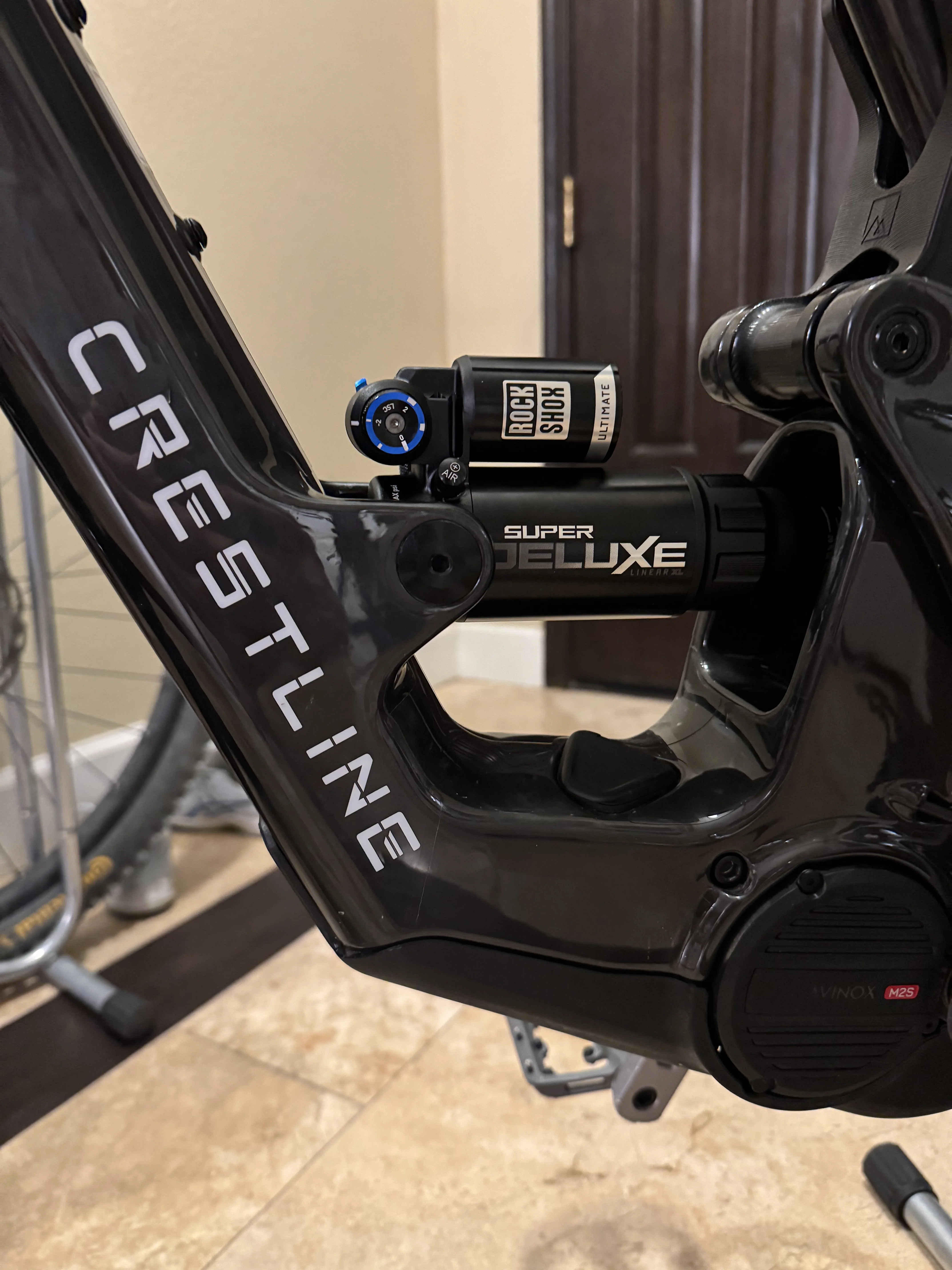

The 2027 Super Deluxe 205x65 just barely fits in the RH2. It weighs 565g, the Float X2 (with bearing hardware) was 810g. It brought my bike down from 47.64 lbs down to 47.10 lbs.
I did have to lightly shave the head of the Super Deluxe with a file. Unfortunately forgot to take a picture of that, but you can’t see it after install. On full compression I can slide a piece of paper back and forth freely between the shock and frame now. I think on RH3/RH4 you guys have more room and wouldn’t need to do this.
Shock feels surprisingly good! It has excellent support on medium drops with HSC in middle and 1 token position at my 165lb weight. It gets a little more of a poppy trail feel over the X2. It’s massively easier to adjust rebound now, and still easy enough to check sag because Rockshox has sag lines printed on the shaft.
Most importantly, color and brand matches my Zeb. With the Zeb and X2 factory combo the bike was literally unrideable.
The 2027 Super Deluxe 205x65 just barely fits in the RH2. It weighs 565g, the Float X2 (with bearing hardware) was 810g. It brought my bike down from 47.64 lbs down to 47.10 lbs.
I did have to lightly shave the head of the Super Deluxe with a file. Unfortunately forgot to take a picture of that, but you can’t see it after install. On full compression I can slide a piece of paper back and forth freely between the shock and frame now. I think on RH3/RH4 you guys have more room and wouldn’t need to do this.
Shock feels surprisingly good! It has excellent support on medium drops with HSC in middle and 1 token position at my 165lb weight. It gets a little more of a poppy trail feel over the X2. It’s massively easier to adjust rebound now, and still easy enough to check sag because Rockshox has sag lines printed on the shaft.
Most importantly, color and brand matches my Zeb. With the Zeb and X2 factory combo the bike was literally unrideable.
Thanks for the update! I’m really interested in the SRAM XX DH thus asking
Kilslow
New Member
Anybody that got a Plaid with a Zeb and a vivid air know what volume spacers/tokens are preinstalled? I’m still working on getting the suspension to feel right for me and I’m thinking it’s too progressive but I don’t have lot of experience with the adjusting that.
John_likes_bikes
Well-known member
Enter the serial numbers into the TrailHead app to confirm. My Vivid had 1, B1 Zebs usually have none bc of the ABO.
TTEngineer
New Member
The sram power cable is a PIA to route. Good god it took me forever.
BikingBad
Active member
Seems many folks experienced the same. Mine was relatively easy, only removed 1 bottom pivot axle bolt to loosen Cascade link enough to route cable.
polymathic
New Member
- Feb 11, 2026
- 46
- 62
I ruined one. Super easy to route with a cable housing rather than the fishing lines. With the line a nightmare.
Having all the linkage off makes it super easy. Literally took about 30 seconds to tape and pull it through. And the whole bike assembly is rather straightforward and easy. Went very quickly. Even if I didn't have to remove it all for the wrap, I would have done so anyway. Just like to make sure the lube, thread-locker and torque situations are all dialed from the start.
TTEngineer
New Member
Man, I tired the line, string, shifter cable, all taped to the cord and nothing.
Finally a fished some trimmer wire in there and taped the end butt to butt and barely made it through. Something about the chain stay bend was getting the plug hung up.
Glad it’s over though. Now it’s time to set up the cockpit. I’m a little worried the 210 dropper is too long for me though. If it’s not it’s right on the edge.
I might swap it for a 185 slammed and just rock it slightly shorter than ideal for climbing. After all the motor helps with that so much.
Finally a fished some trimmer wire in there and taped the end butt to butt and barely made it through. Something about the chain stay bend was getting the plug hung up.
Glad it’s over though. Now it’s time to set up the cockpit. I’m a little worried the 210 dropper is too long for me though. If it’s not it’s right on the edge.
I might swap it for a 185 slammed and just rock it slightly shorter than ideal for climbing. After all the motor helps with that so much.
Dirkniblet
New Member
What size drop outs you taking out? Wanna sell?
TTEngineer
New Member

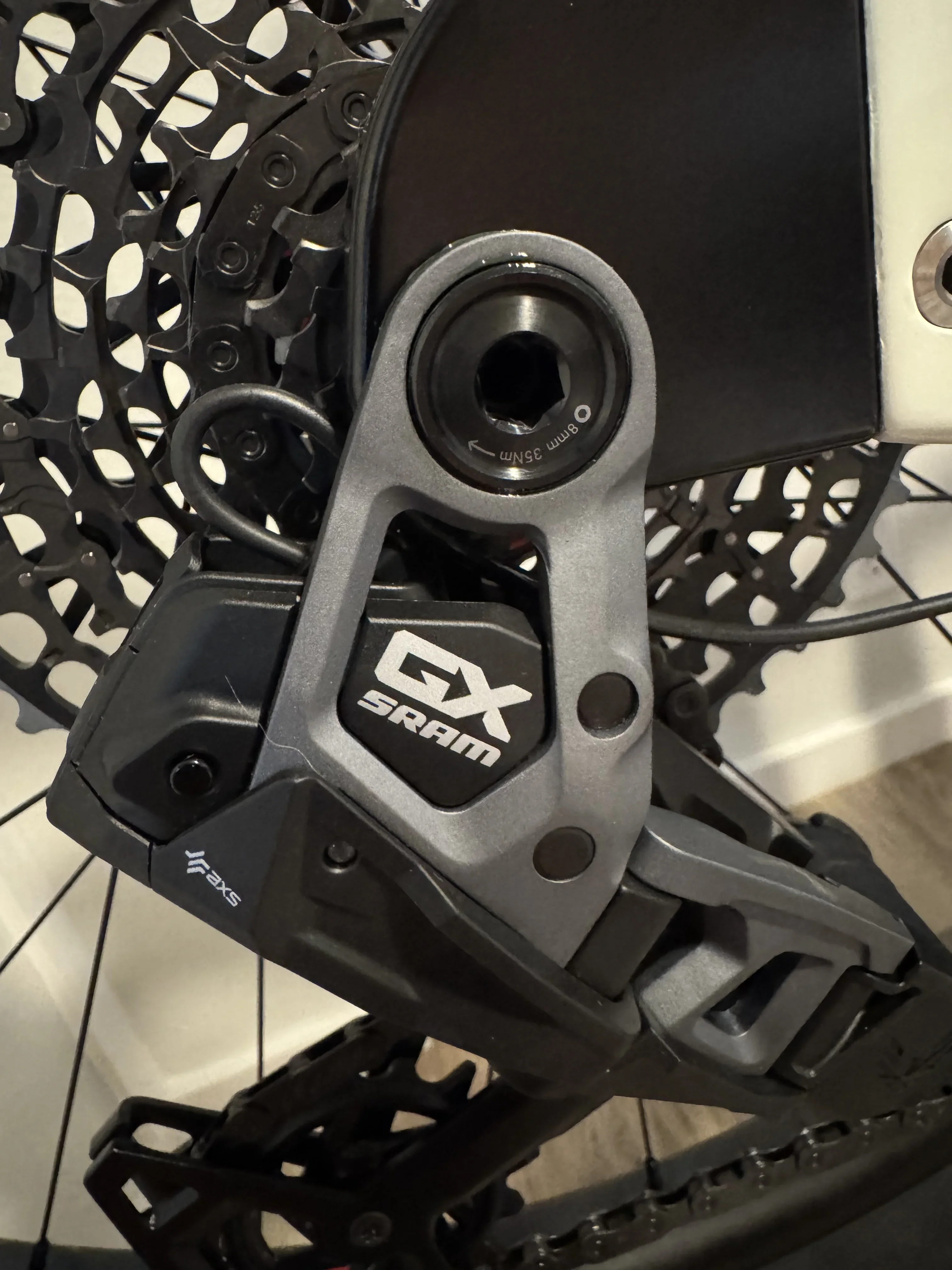

Speaking of the sram power cable, how are y’all routing it to the hanger? Currently mine is routed between the UDH mount ears on the derailleur.
Last edited:
FrogSkunk
Member
Have you been to Jarrods since getting your bike together? Im considering going next Thurs-Fri-Sat. Im not sure, as I would probably be solo. I still need to hit that new flow trail at Coldwater too. Red Clay Buffet maybe?
After much debate, I have run my Sram cable the same way you described. No issues so far.
I have it outside the frame. Seems to sit flush and doesn't move. I didn't like how running through the UDH mount made a big gap under the chain stay.
I went with the Wolf Tooth 200mm dropper post. Shortest insertion length available. If the 210 is on the edge of being too long, 200 with better insertion will be on the money, I’m guessing.
Anyone take off their stock chainring and check the offset (and possibly have a photo of the markings)? I've been having 3rd gear and overall chain slipping issues on my gx transmission setup. Have rechecked, reinstalled everything and I can't get my chain and cassette to play nicely.
Also, anyone with RH2 was your sram setup key A and 118 links on the chain?
Also, anyone with RH2 was your sram setup key A and 118 links on the chain?

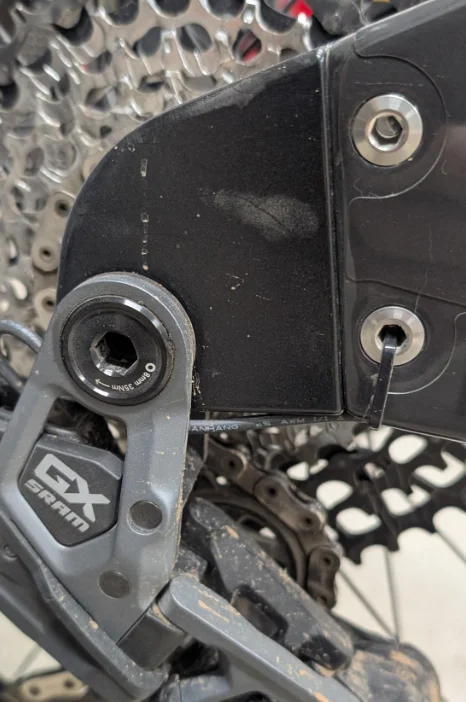

I think I saw this on T's bike, so I stole the idea. A zip tie though the lower bolt sucks the cable in nice and tight.
All good. SRAM instructs us to route the cable between the UDH 'ears.'
eflynnbot
New Member
- May 3, 2026
- 3
- 14
I ruined one aswell.
Andorranik
Member

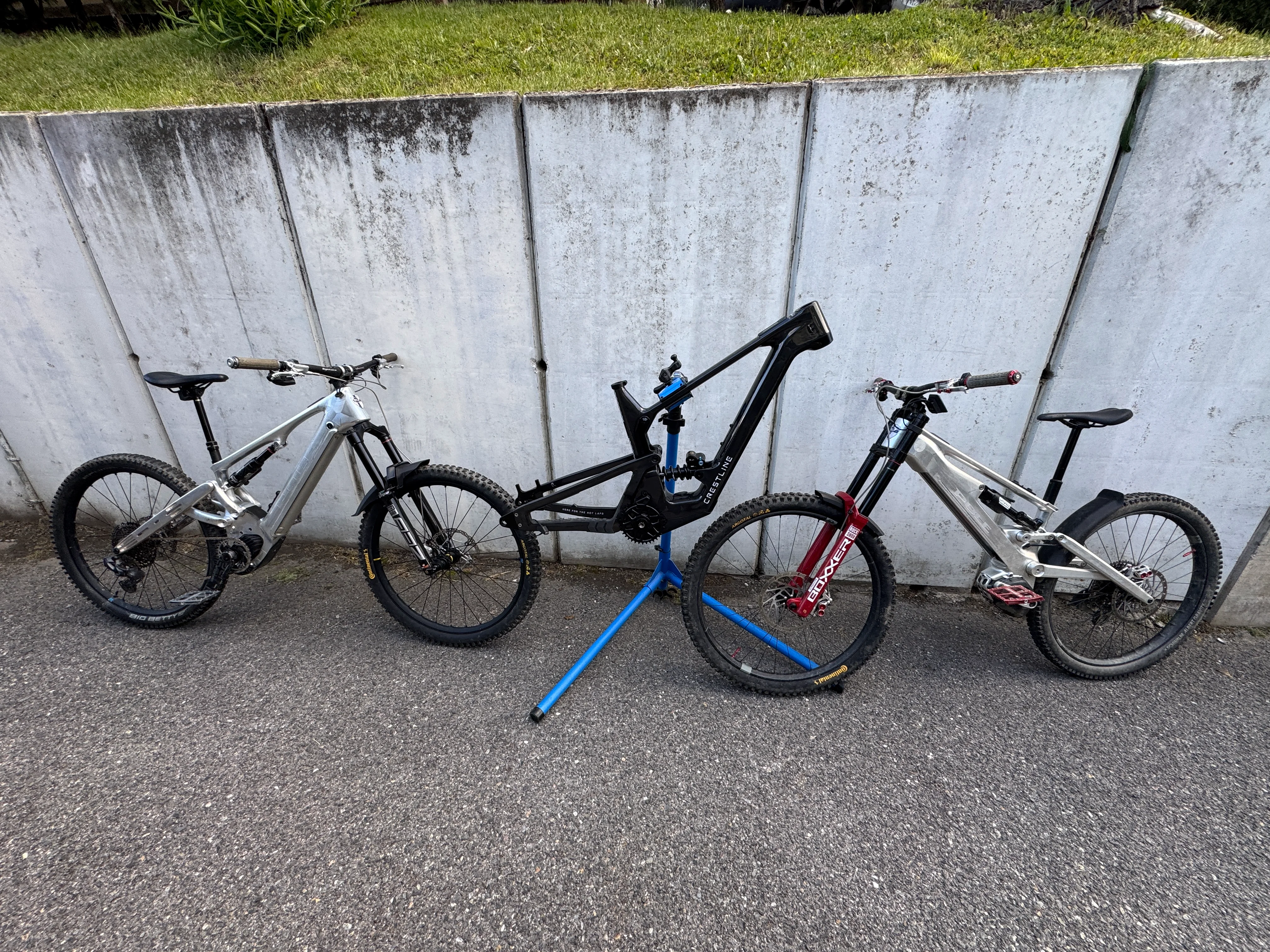

Chassis No 53 checking in......had to go and rescue from the USA and the Build is starting.......if anyone in the USA needs a 800w battery I have mine stuck in Florida (no go on airlines).....now sold to another Crestline owner.....
also have to sell a Pole Voima and or Sonni as 3 top tier Ebikes in the Garage is a bit silly.
also have to sell a Pole Voima and or Sonni as 3 top tier Ebikes in the Garage is a bit silly.
Last edited:
Singletrackmind
Well-known member
Sorry to hear about your battery. Is that the Forged or the Raw frame?
Andorranik
Member
its a raw Plaid. will be robbing bits of the Poles for the build.......got a loan Battery until I can get one over here....
Singletrackmind
Well-known member
Glad you were able to get a loaner battery. I had similar issues when I bought an emtb from Canada and tried to ship to US.
How do you like the Raw Plaid finish? Looks to be black and you can see the "raw" carbon depending on the angle of light.
Andorranik
Member
I put Ride wrap on the bike and found it hard to make it "perfect" but yes indoors it looks black........in daylight it looks like it has a silver sheen inside......I like it a lot.......kinda industrial and not showy......one of the reasons I loved the Poles was the fact you could see and feel the engineering that went into it.
Nice! I also parted out my Voima to build my raw Plaid. You’re going to love it. I’m curious to see how it compares to both of your Poles. My Voima has the CX Race, and the Avinox blows it away. Way more power, but also more controllable. Climbs that were super steep and technical are now a lot easier on my Plaid. It’s also 3.5lbs lighter than my Voima with the 750 battery. Seems like Leo is losing a lot of customers to Crestline.
TTEngineer
New Member
Waiting on a few parts still.
Should have it together before Memorial Day but we are going to Hilton Head that week. So my riding will have to wait till the weekend after.
JJ503
Member
What torque specs are people going with for the battery bolts?
“That’ll do”. Idk how that translates to metric though
