Bafang M510 Firmware thread

[temon10]

I try with Besst Pro 2.0.11 and there is max 25 km/h available :-(

View attachment 161395

don't use besst pro to unlock speed limit. use old besst with python mode



[PitcairN]

Tested the bike and I saw 860-870W peak power.... It climbs like bull

That sounds great, maybe if you can kindly contact your dealer, they can provide the bin file for you. 22A for M510 that would be a great upgrade for us M510 users.



[Dado]

Check also K1 Flash, there is 22A firmware for M510 included.



[Waynemarlow]

Where are we with the 48 volt and 52 volt firmwares ? I need to change a 36 volt motor to 48 volts and are looking for the latest firmware bin file ( there are so many different files out there ) ?



[eCologne]

I am looking for a 48V firmware with a low overrun.
I have Besst Hw and needed tools, a Bagang Battery 48V with CAN BMS.

I use the 17A firmware, try to change gears without or low paddling, but it eats my chains and cassettes after 1500 km.
Chain always oiled and cleaned.
But the maintenance is to high...



[patdam]

I am looking for a 48V firmware with a low overrun.
I have Besst Hw and needed tools, a Bagang Battery 48V with CAN BMS.

I use the 17A firmware, try to change gears without or low paddling, but it eats my chains and cassettes after 1500 km.
Chain always oiled and cleaned.
But the maintenance is to high...

17A ? where do you find that ?



[eCologne]

I can not check, but I think It is 48V 17A with a long overrun.
And I think found it here in this forum/thread.

Next week I am back from holidays and check...



[Waynemarlow]

Try this one, runs pretty well with not a lot of over run, but will only pull about 12A.



[Dado]

Try this one, runs pretty well with not a lot of over run, but will only pull about 12A.

It is 14A and it is standard current for 48V.

Ecolone try this shared v10.1 , it does not have long over-run. (Anyway I saw already 3 v10.1 with different file size.)



[Waynemarlow]

It is 14A and it is standard current for 48V.

Most I've seen on the display is around 680w's, the battery was @ 56 V which is just over 12A's.

Question Dado, how can we tell from the file name what A's the firmware is, is it as simple as the 4814...... ?



[eCologne]

In my Display I saw peeks around 820 Watt. I mean it was 826Watt.
I set CURRENT to 17A with the OpenBafangTool.

Or I dreamed this. Then I should drink less or some other liquor...

I will check when I returned. But after my Return a work travel is planed...



[CarolinaCrawler]

What is the most powerful 36v firmware that I can install with the BESST tool?



[eCologne]

In my Display I saw peeks around 820 Watt. I mean it was 826Watt.
I set CURRENT to 17A with the OpenBafangTool.

Or I dreamed this. Then I should drink less or some other liquor...

I will check when I returned. But after my Return a work travel is planed...

Yes, I am on a 14A Firmware and set it to 17A.

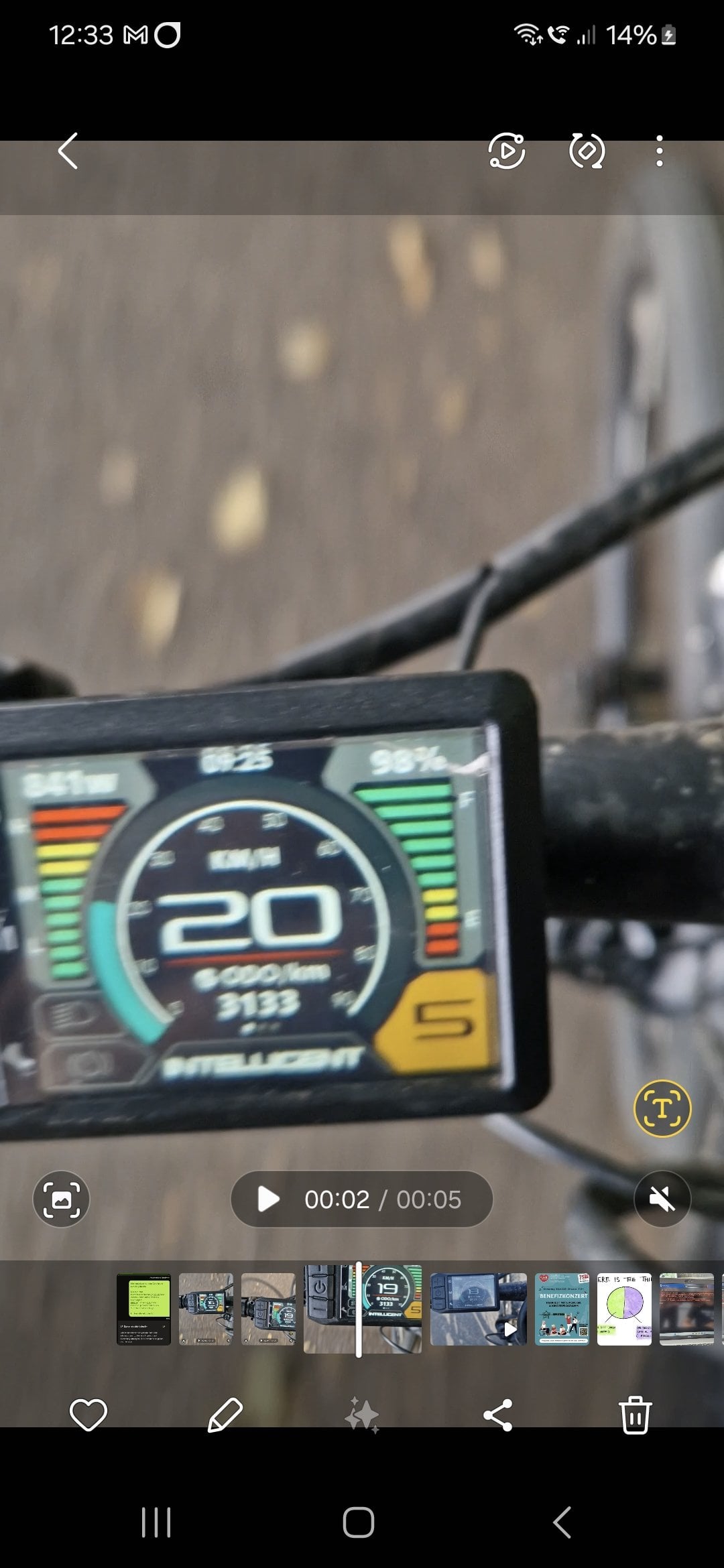

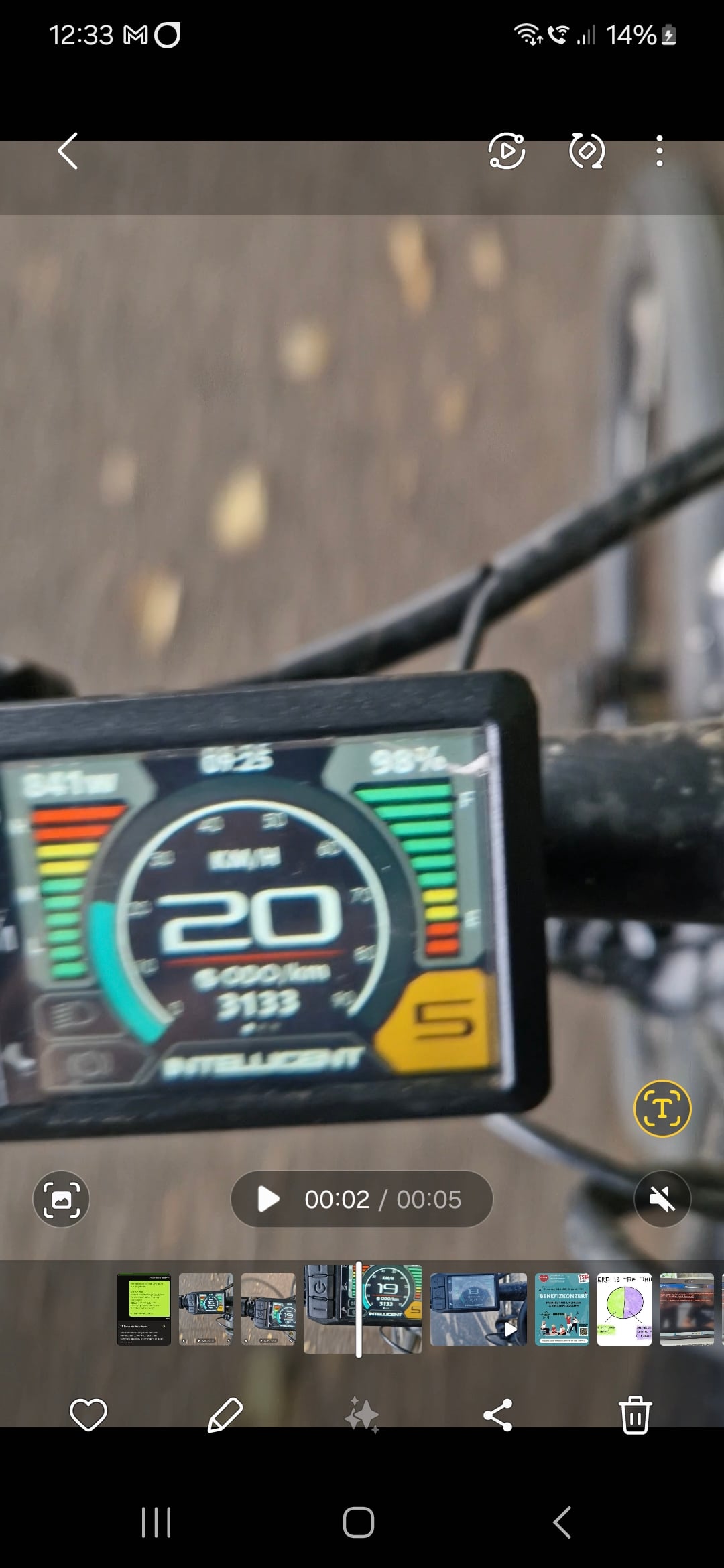

So I came up around 840 peek. the picture is a bit blurry, but you can see the Power.

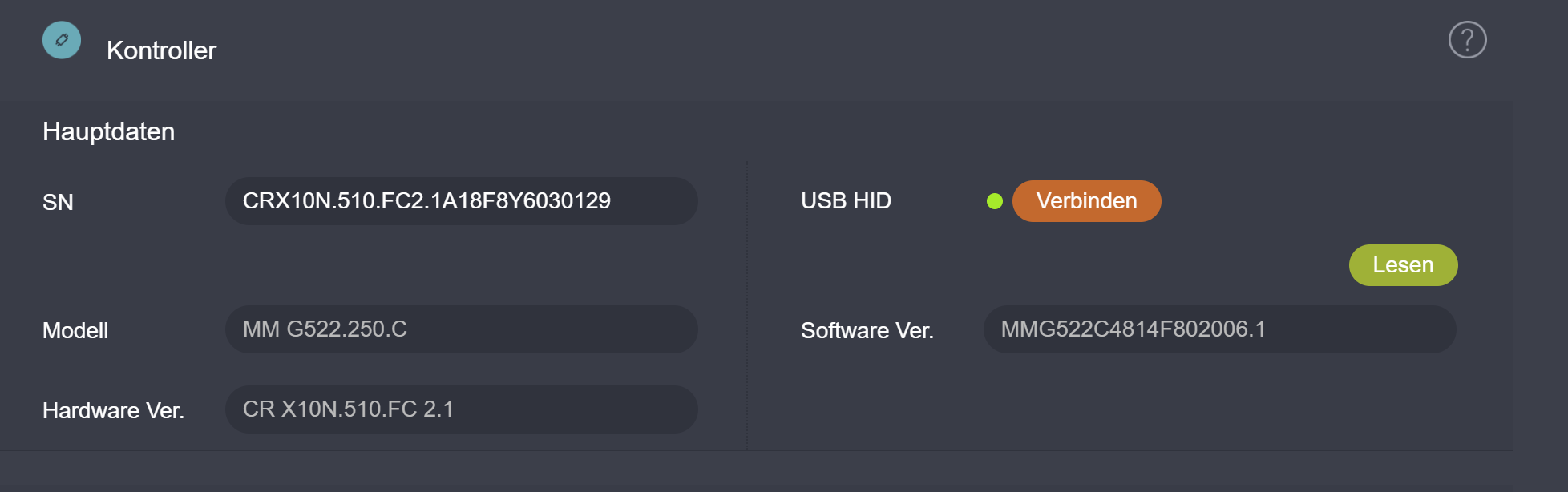

And the used Firmware is shown in 2. picture.

PS: I know that OpenBafangTool can read this too. I did it that way.



[salvaparraes]

Sí, tengo un firmware 14A y lo configuré en 17A.
Así que llegué a alrededor de 840 peek. La imagen está un poco borrosa, pero se puede ver el poder.
Y el firmware utilizado se muestra en la imagen 2.

PD: Sé que OpenBafangTool también puede leer esto. Lo hice así.

View attachment 163848 View attachment 163849

¿Nos podrías decir qué parámetros tenemos que cambiar para poner 17A?



[eCologne]

Different language? No problem:

Dat mööt mit däm OpenBafangTool jonn. Luur da ens rin.
Da jeht och mieh...



[owieczka]

Is this the latest firmware version for the M510 36V? What are the differences in firmware version MMG522C3619F802005.1?
