Any experience with Moterra SL out there?

Nov 14, 2023
42
23
Berko
Hey Geordie, yeah, hopefully we can get some info on range extension options. I was following your posts here regarding your underperforming battery, and just wanted to mention that I was talking to my friend, who is a Cannondale dealer here in the US, and he just bought himself a Moterra SL 1. I was checking out his freshly built bike today, which passed my highly technical parking lot slalom test with flying colors and it "stuck" my rear wheel drop test! 😉 His bike, for the record, was about 45.5lbs in stock spec, and 48lbs with Doubledown tires, Cushcore, XT enduro pedals, and a fork swap from a Fox 36 to a 38. He happened to mention that the early models they'd received all had battery issues, but they were able to warranty the batteries and they've had no problems since then. He didn't know how or what they had changed, and I'm not sure what date your battery was made relative to any changes, but it might be worth perusing a warranty swap if you have one of the early ones off the production line.
Thanks man that’s very helpful, I’m ignoring it for now as it gets me around what i do at the moment and I’ll be interested to see if it just doesn’t like winter temps when the UK finally warms up, i know my wifes car is currently about 25% less on range due the temperature, it’s a great bike, i just want to be able to do big days out on it also!


Nov 14, 2023
42
23
Berko
Just a heads up, the last two rides i’d had a creaking develop so went around the bike with a Torque Wrench today for once i washed off all the slop, turns out my lower pivot was very loose, all torqued back up now but worth keeping an eye on.


TheKaiser

New Member
Dec 12, 2024
29
11
Connecticut

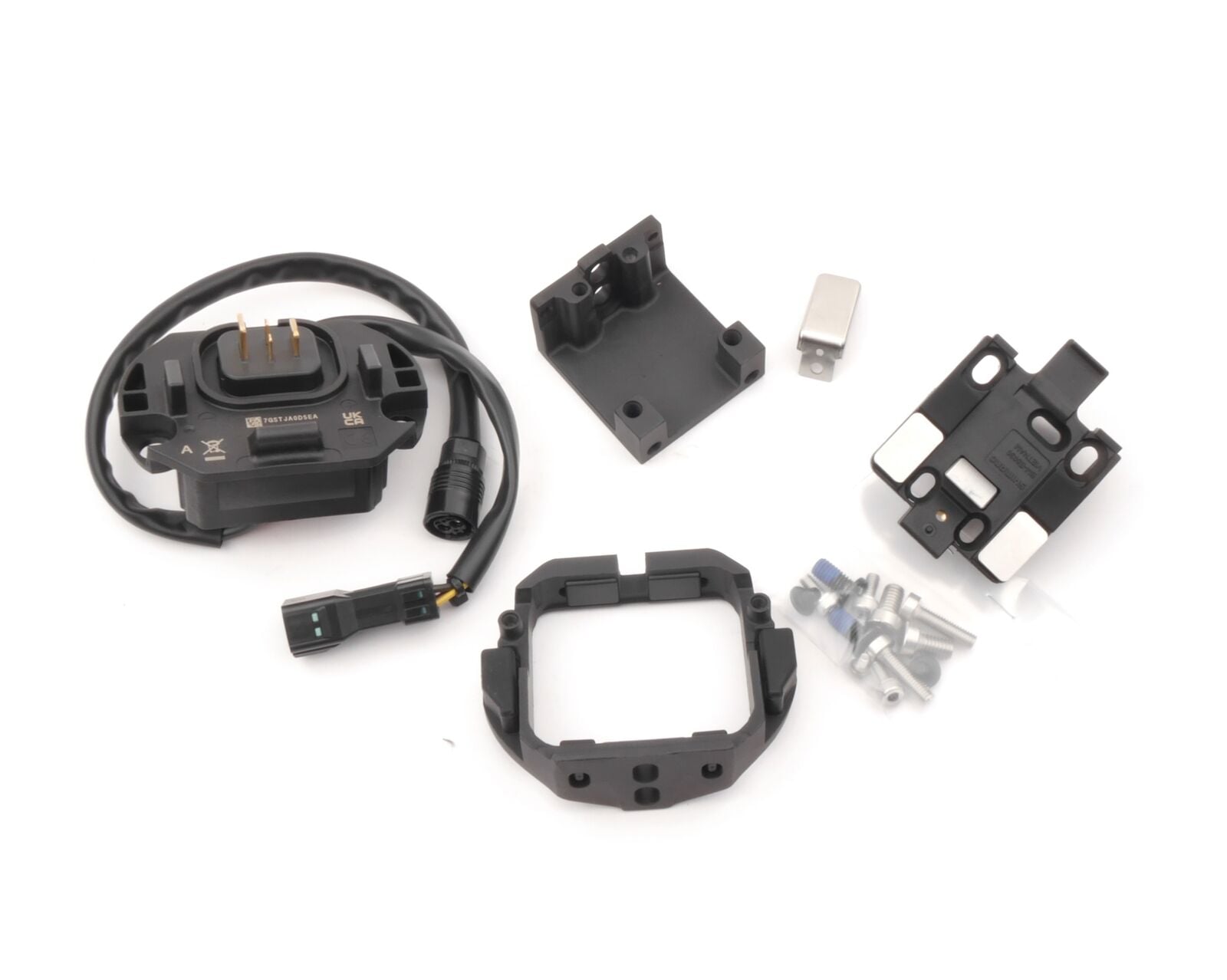

Do any of you guys know if the Moterra SL uses a standard Shimano battery mount/loom, or is it a custom one? I know it is a custom battery, but was unsure about if the custom battery was configured to use standard wiring. Here is a pic of what I believe is the standard battery mount and loom for comparison.

BT E8035.jpg

Nov 14, 2023
42
23
Berko
Do any of you guys know if the Moterra SL uses a standard Shimano battery mount/loom, or is it a custom one? I know it is a custom battery, but was unsure about if the custom battery was configured to use standard wiring. Here is a pic of what I believe is the standard battery mount and loom for comparison.

View attachment 155957
I don’t think it’s the same, i don’t recall seeing around connector inside

Nov 14, 2023
42
23
Berko
So last Wednesday i was out for a ride, went over some chunk and nothing, no assistance, no lights, nothing in an instance, i tried to sort it last week before a trip away this weekend but with no success to the point where i ended up hiring a Cube One44 (wow what a bike for the money but that’s a different story) anyway, today (with some great advice from Markus at Emax) i started the whole process over again. Dropped the motor, checked all the connections, connected Etube Pro to the motor and got a “firmware corrupted” message, so disconnected the battery and this time it allowed me to repair the firmware, repaired, reinstalled the battery cable, again corrupted firmware, so went around all the wires again and finally i got my battery back and all working with the battery cable installed into the motor, now i’m not 100% certain but i’m almost sure it was one of the cables into the back of the display…. Despite them looking clean and dry, and firmly clicked into place, i love this bike but god you have to learn every quirk, especially in UK winter…..


TheKaiser

New Member
Dec 12, 2024
29
11
Connecticut
So last Wednesday i was out for a ride, went over some chunk and nothing, no assistance, no lights, nothing in an instance, i tried to sort it last week before a trip away this weekend but with no success to the point where i ended up hiring a Cube One44 (wow what a bike for the money but that’s a different story) anyway, today (with some great advice from Markus at Emax) i started the whole process over again. Dropped the motor, checked all the connections, connected Etube Pro to the motor and got a “firmware corrupted” message, so disconnected the battery and this time it allowed me to repair the firmware, repaired, reinstalled the battery cable, again corrupted firmware, so went around all the wires again and finally i got my battery back and all working with the battery cable installed into the motor, now i’m not 100% certain but i’m almost sure it was one of the cables into the back of the display…. Despite them looking clean and dry, and firmly clicked into place, i love this bike but god you have to learn every quirk, especially in UK winter…..
Wow, that sucks, I'm sorry to hear about the hassles!:( It seems like e-bike manufacturers really need to step up in regard to reliability. I rented/hired a Turbo Levo for a week and, in that short time, I had several instances where the system shut off for no apparent reason, which required unhooking the battery connector cable, and reaffixing it, to get things running again. I couldn't find any problem that could be remedied, nor could the shop from which I rented it. It was just, as you say, a "quirk" to be learned and managed. I also had a total motor failure during that week, which required the rental shop doing an overnight motor swap. Luckily for me, it seems that motor failures of that type were common enough that they had extra motors on hand, and the motor failure happened near the end of my ride, so I didn't need to pedal the thing out of the deep woods unassisted, but it could have been a real nightmare. Its a weird paradox that there is an awkward middle ground where failures are less common (a good thing) but they become uncommon enough that they manufacturer doesn't stock the dealer with spares to have on hand (a bad thing), so you could actually end up with more downtime.

If I were to write a prescription for improvement in the e-bike industry, I would say that they should: 1. Really properly test their systems to prevent these rookie mistakes like battery connections that vibrate loose in rough terrain (I'm looking at you Santa Cruz, in addition to the aforementioned Specialized). 2. Make the motors serviceable, even if in a very basic way to address contamination that works it's way into the BB spindle area. 3. Extend the motor warranty to a minimum of 5yrs, and offer factory service for failures after that point, rather than making it a throwaway item.

As it stands now, the reliability of a lot of these bikes is pretty embarrassing, when compared to the car or motorcycle industries, and they only get away with it because we all love MTB so much that we're willing to tolerate a lot of hassles in exchange for the fun times. 🤷‍♂️


hajpr

New Member
Mar 19, 2025
1
1
Czech (Europe)
Has anyone weighed a Moterra SL 2? I am curious how much more it weighs than the higher end ones.
I'm a new owner of a custom SL2 which I'll show later on but on my scale it was 22.5 kg = 49.6 lbs (XL, full 29er, DT swiss alloy wheels, Conti DH Argotal+DH Kryptotal 2.4 tires with no inserts - tubeless, 200mm SDG dropper, alloy Renthal cockpit, T-Type GX, handguards, muckynuts front fender, old Codes RSCs on 200mm centerlines, nukeproof flat pedals, bottle cage)
