Anyone ever replaced a CX Gen 2 for the new Gen 4

Thanks again for your work with the adaptors!

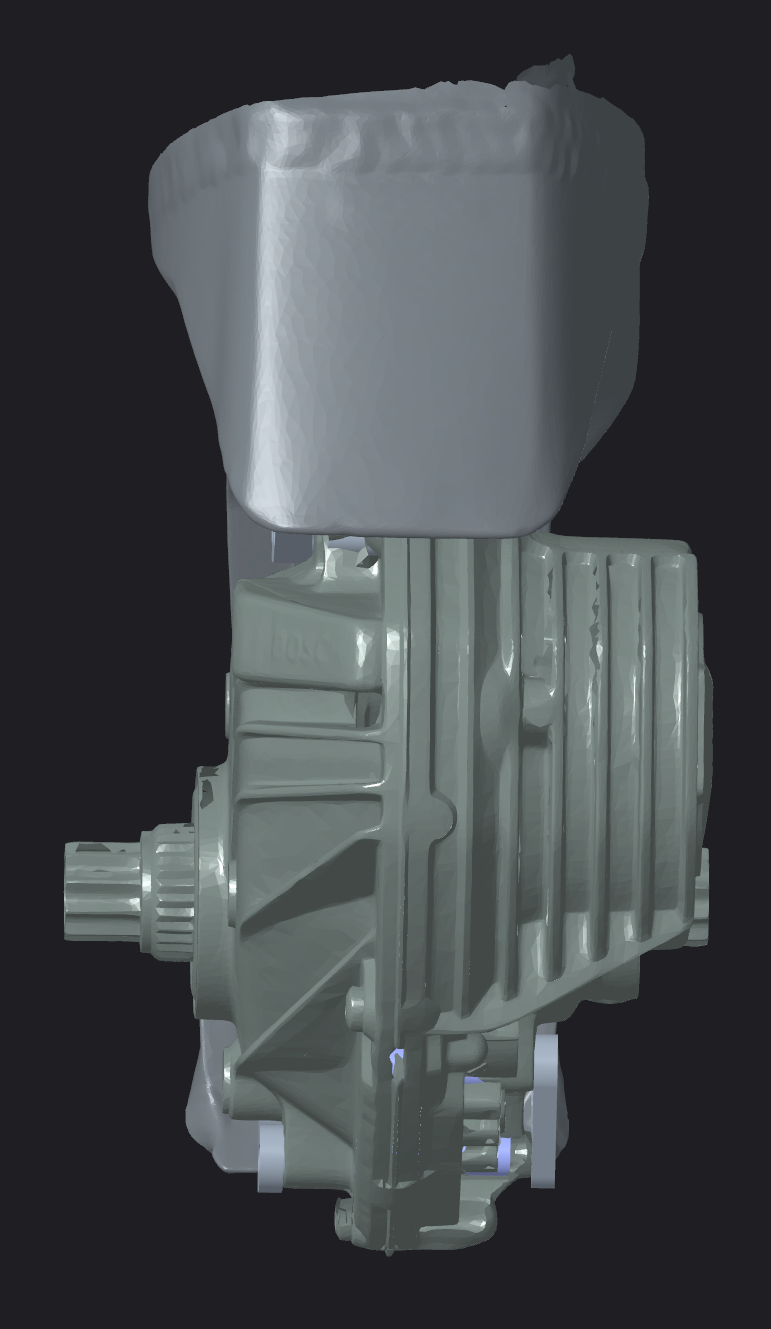

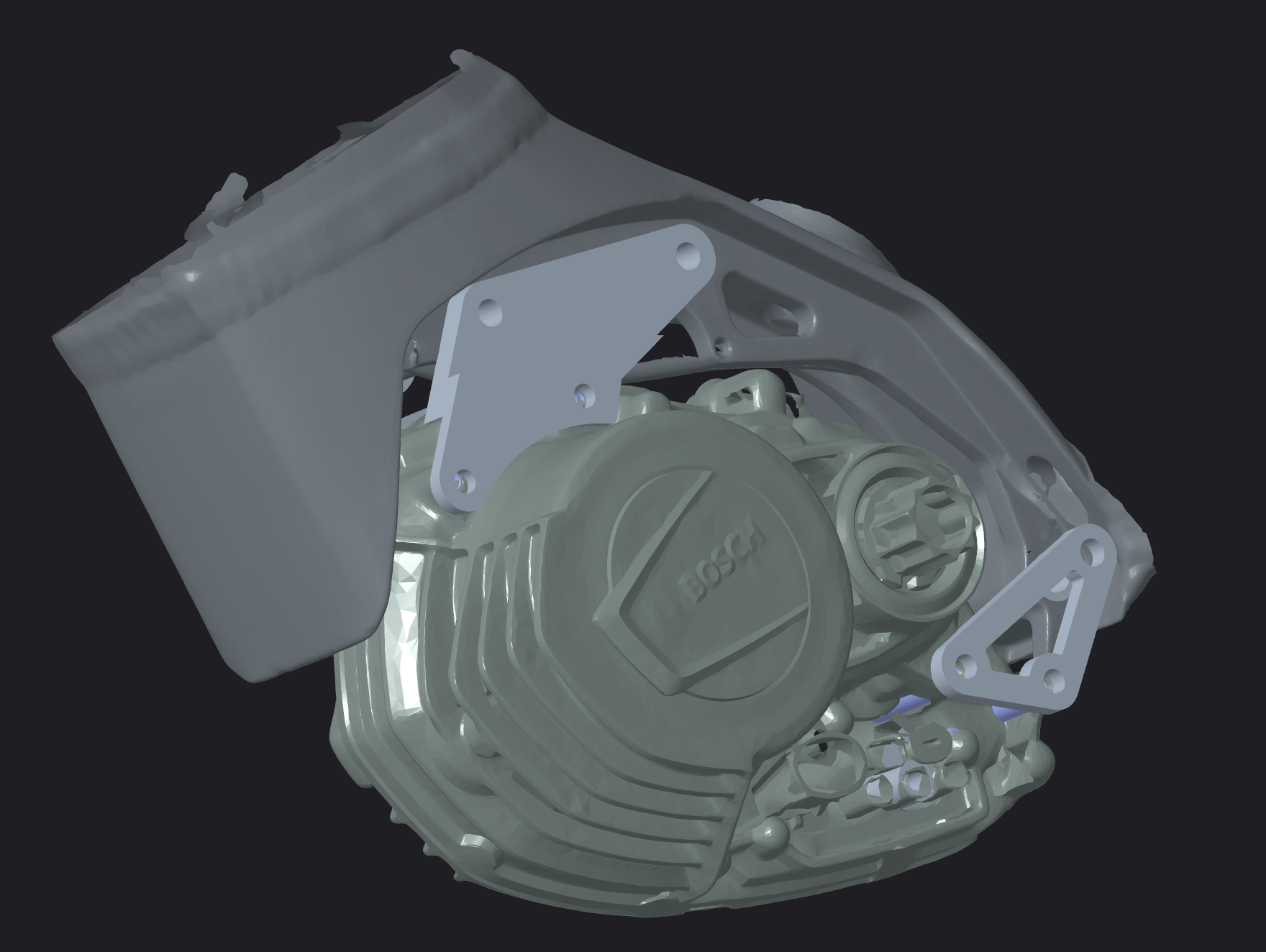

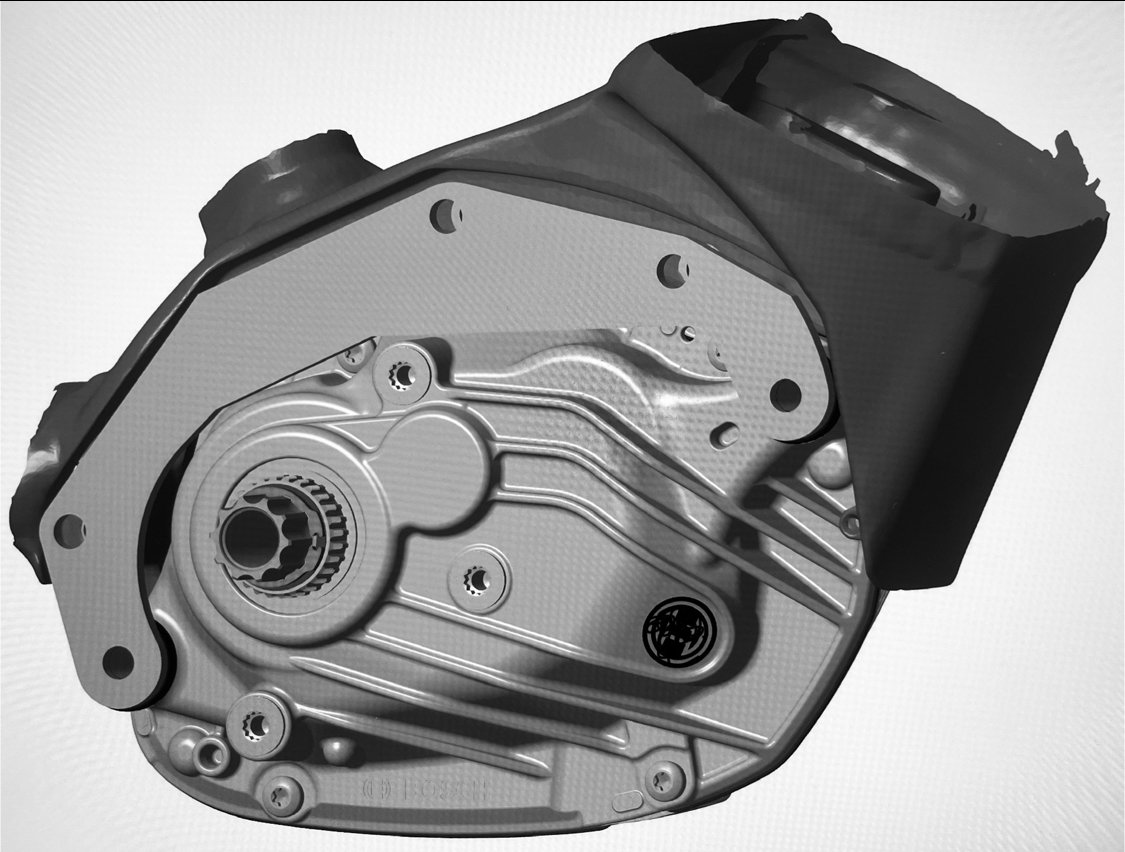

I had to put my project on hold during the winter - but now the temperature is rising and I have found some time to work on the egg-cover. I have still some work to do on the structure, but I am quite pleased by the result. I choose to integrate with the the cx4 bottom cover to protect the cables and make the design easier for myself (I can not draw - I am using OpenSCad).

I am excited to see the others here have made a 3d-model of the cx4 motor and making a cover from scratch. Keep up the good work!


⚡ EMTB Pro Go Pro — Living Intelligence Reports, exclusive discounts & ad-free Up to 25% off Peaty's, PEMBREE, Magicshine & more · Ad-free browsing · Pro badge See the deals →
arildl said:
Thanks again for your work with the adaptors!
I had to put my project on hold during the winter - but now the temperature is rising and I have found some time to work on the egg-cover. I have still some work to do on the structure, but I am quite pleased by the result. I choose to integrate with the the cx4 bottom cover to protect the cables and make the design easier for myself (I can not draw - I am using OpenSCad).

I am excited to see the others here have made a 3d-model of the cx4 motor and making a cover from scratch. Keep up the good work!
Click to expand...
Looks good!

Which brand are the bottom and left side cover? They seem like a good fit for this project!

Last edited:
Alavin said:
Looks good!

Which brand are the bottom and left side cover? They seem like a good fit for this project!
Click to expand...

Sorry for the late response.... at first I did not know what to answer.... I got the bottom covers from my local bike shop, and they was the same as the covers on my Bulls Copperhead Evo 29 XXL bike. I thought they were generic Bosch as Bulls is not sold in Norway. My local bike shop tried to sell Bulls for many years ago, but Norway was a too small country for Bulls. But now my local shop is selling Kettler - which might be associated with Bulls one way or another (maybe someone here can verify?).

So Bulls/Kettler is my best answer until I visit my local shop so I can ask them.

Edit: Your cover is also a very nice work! I also can share my source when I have fixed a few problems. Trouble is I am using OpenSCad - and this project is so much trial-and-error so the source is really embarrassing ;-) But the winter is not over yet - it is snowing right now - so do not hold your breath while waiting for me.

Edit: typo

Last edited:
Beekeeper said:
I think @Bearing Man has managed to put a newer version of a motor into a bike by making a special mounting bracket.
Click to expand...
Hi I'm in the process of swapping out the Bosch performance line cx gen 3 to the gen 4 my bike is a Trek Powerfly 4 2020 model if you can't make a bracket can you get them anywhere at all it's non smart also volspeed have told me the tuning chip I fitted in the old will go in the new can you advise please

Steve0101 said:
Hi I'm in the process of swapping out the Bosch performance line cx gen 3 to the gen 4 my bike is a Trek Powerfly 4 2020 model if you can't make a bracket can you get them anywhere at all it's non smart also volspeed have told me the tuning chip I fitted in the old will go in the new can you advise please
Click to expand...
Let me know if you need adapters.

Cobee said:
Let me know if you need adapters.
Click to expand...
Yes I need adapters can you help all I have is an unprogrammed Gen 4 which my local e bike supplier is going to fit in place of the Gen 3 and he will put latest program files on it. The Gen 4 is tiny in comparison. But if you have adapters how can I contact you please

Steve0101 said:
Yes I need adapters can you help all I have is an unprogrammed Gen 4 which my local e bike supplier is going to fit in place of the Gen 3 and he will put latest program files on it. The Gen 4 is tiny in comparison. But if you have adapters how can I contact you please
Click to expand...
Write to me [email protected]

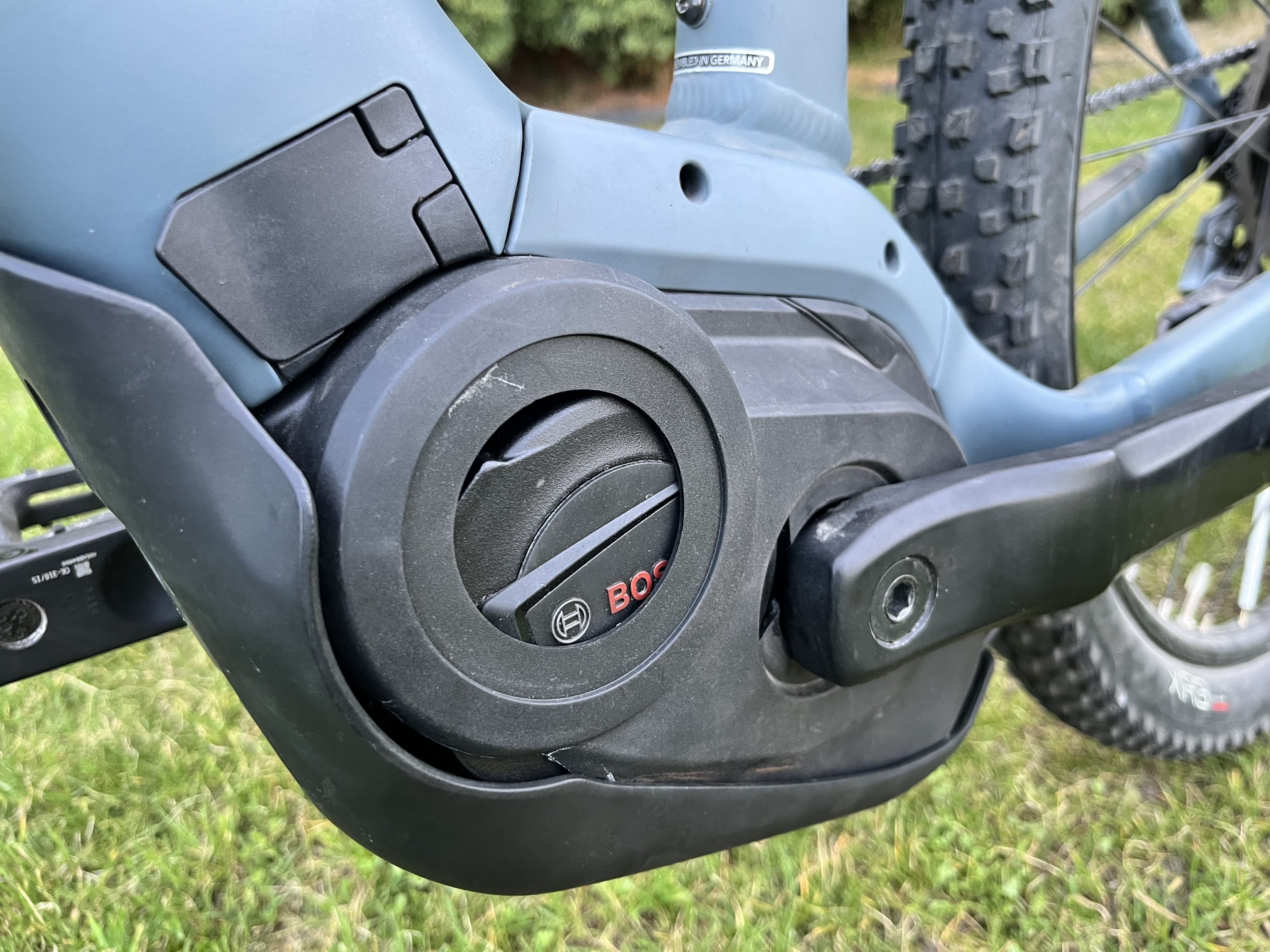

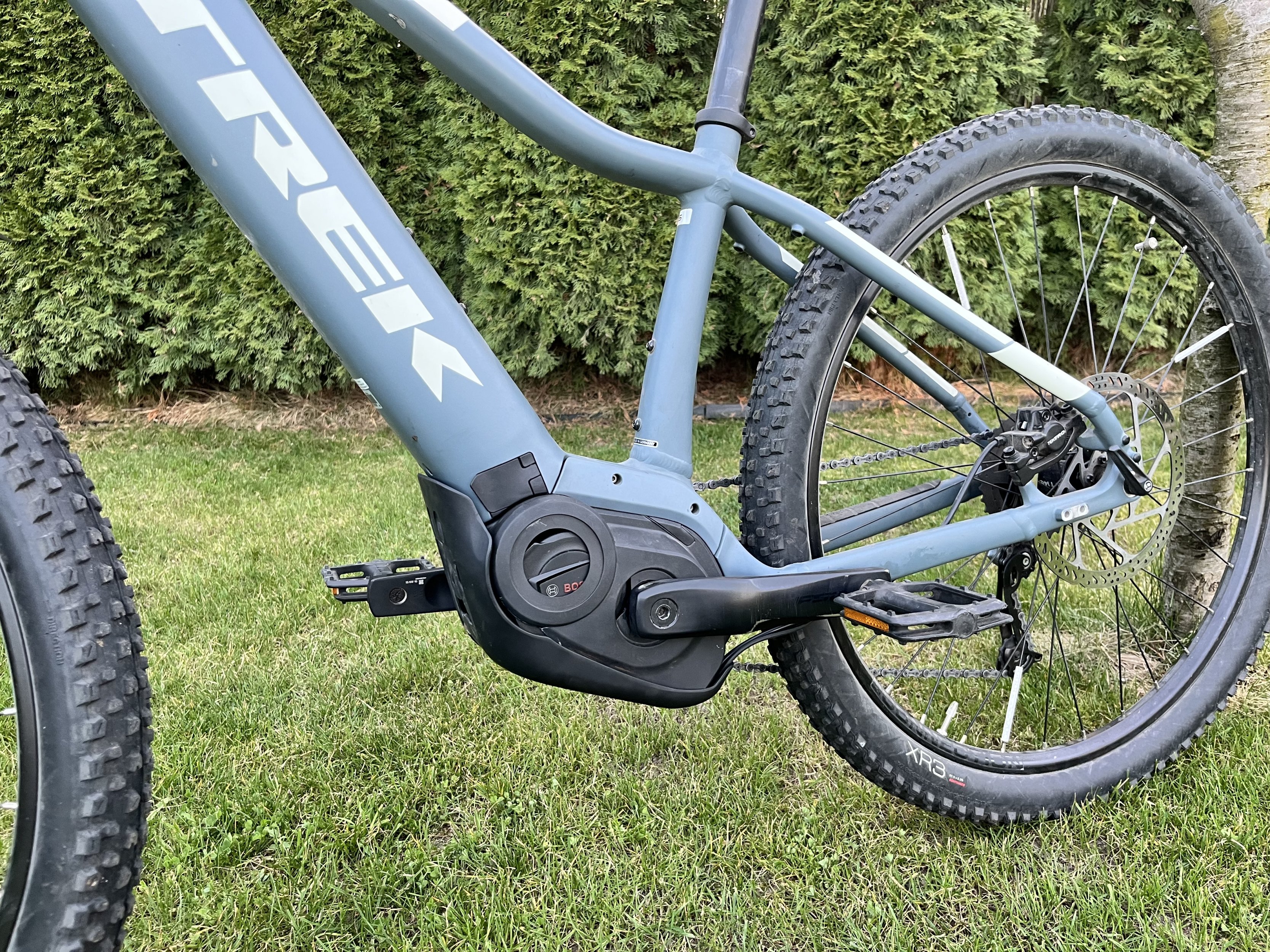

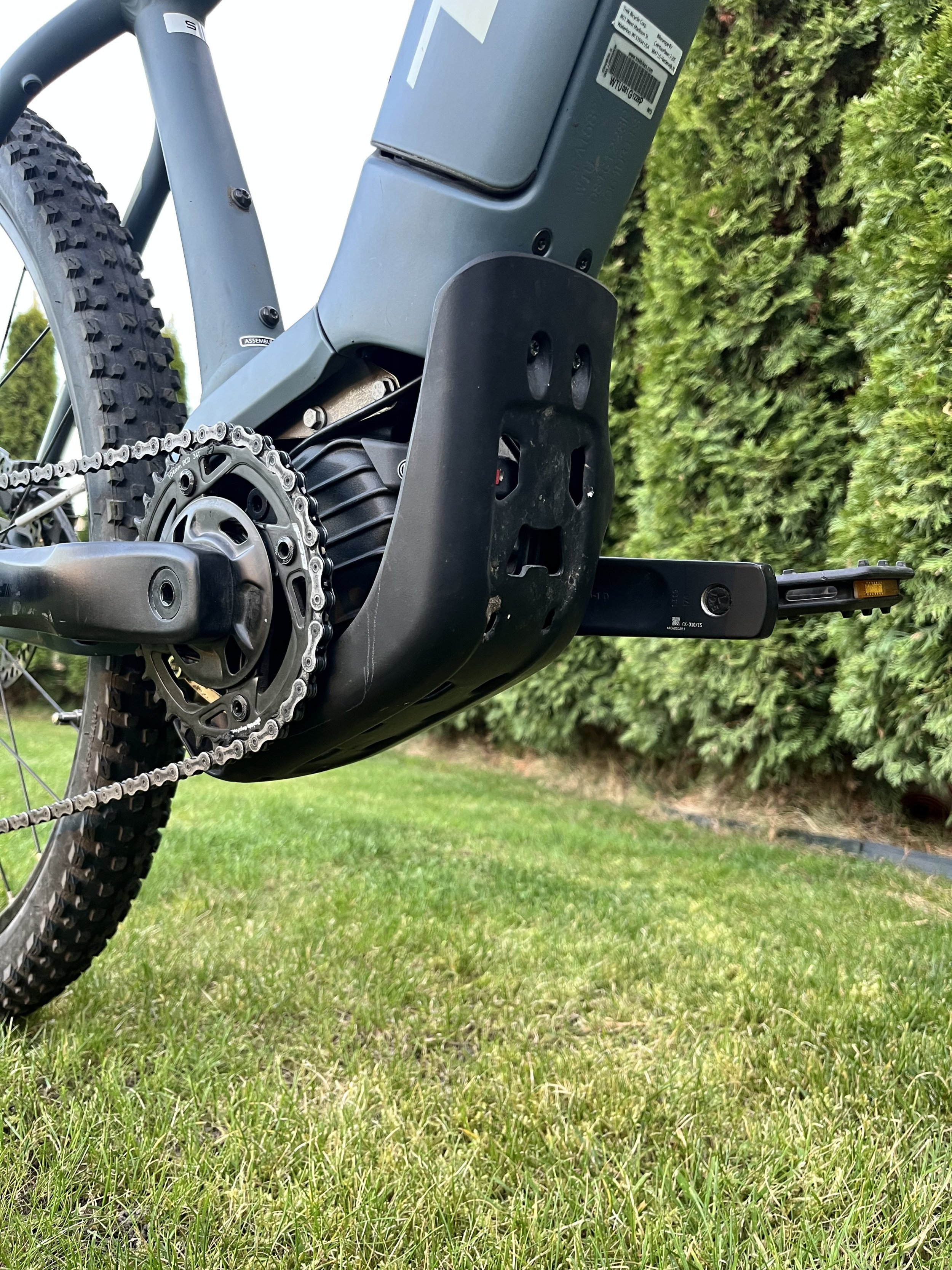

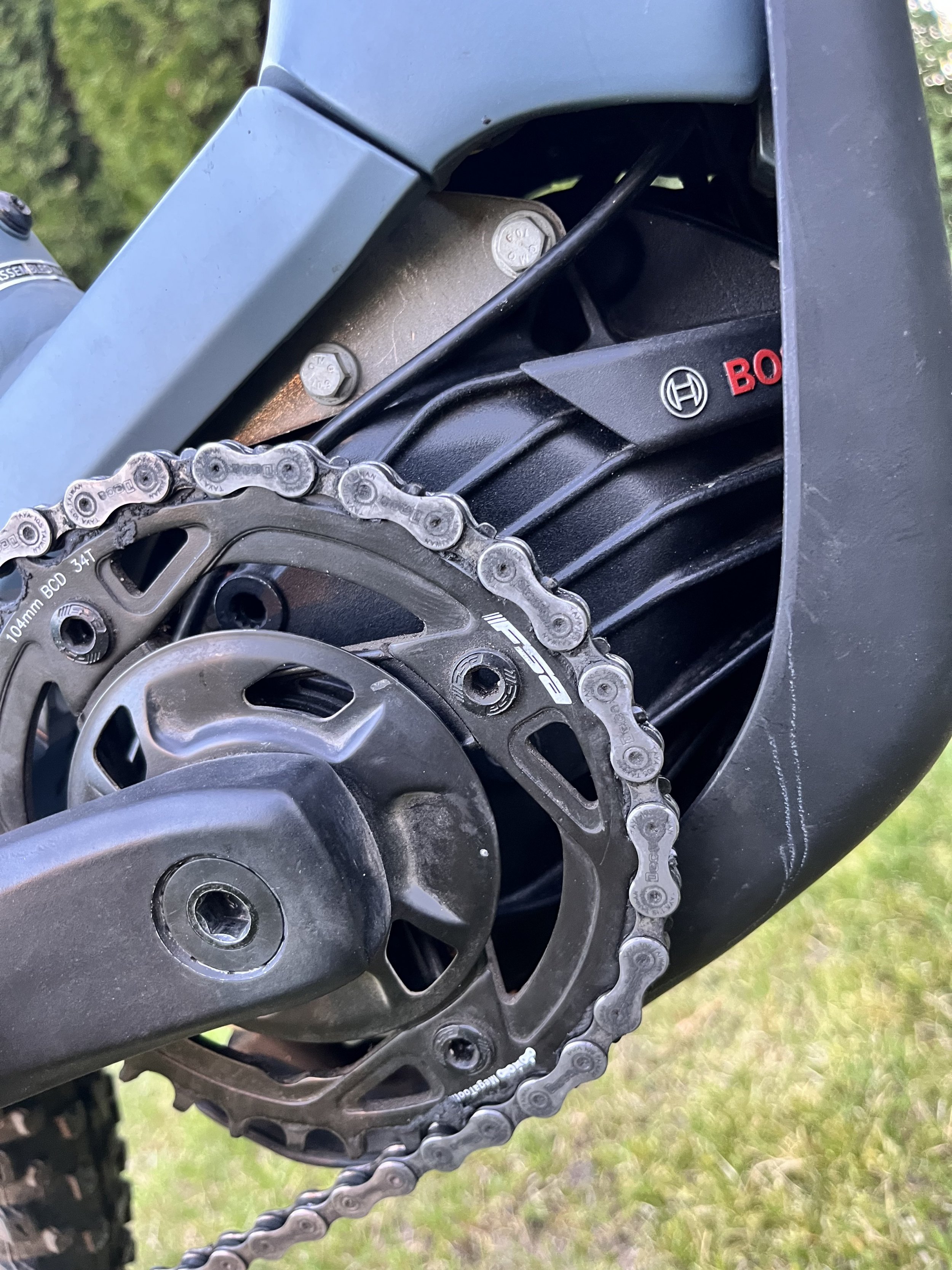

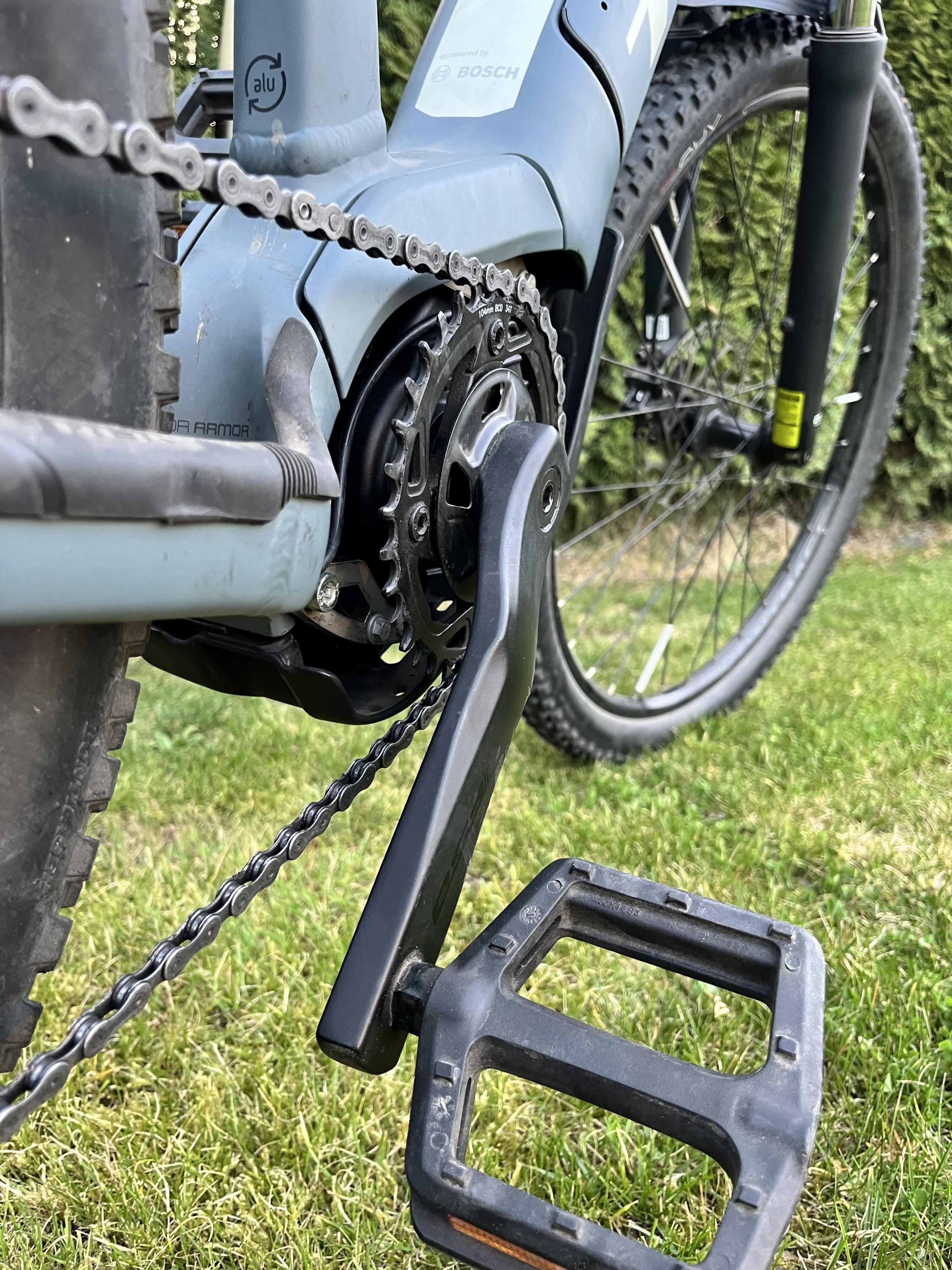

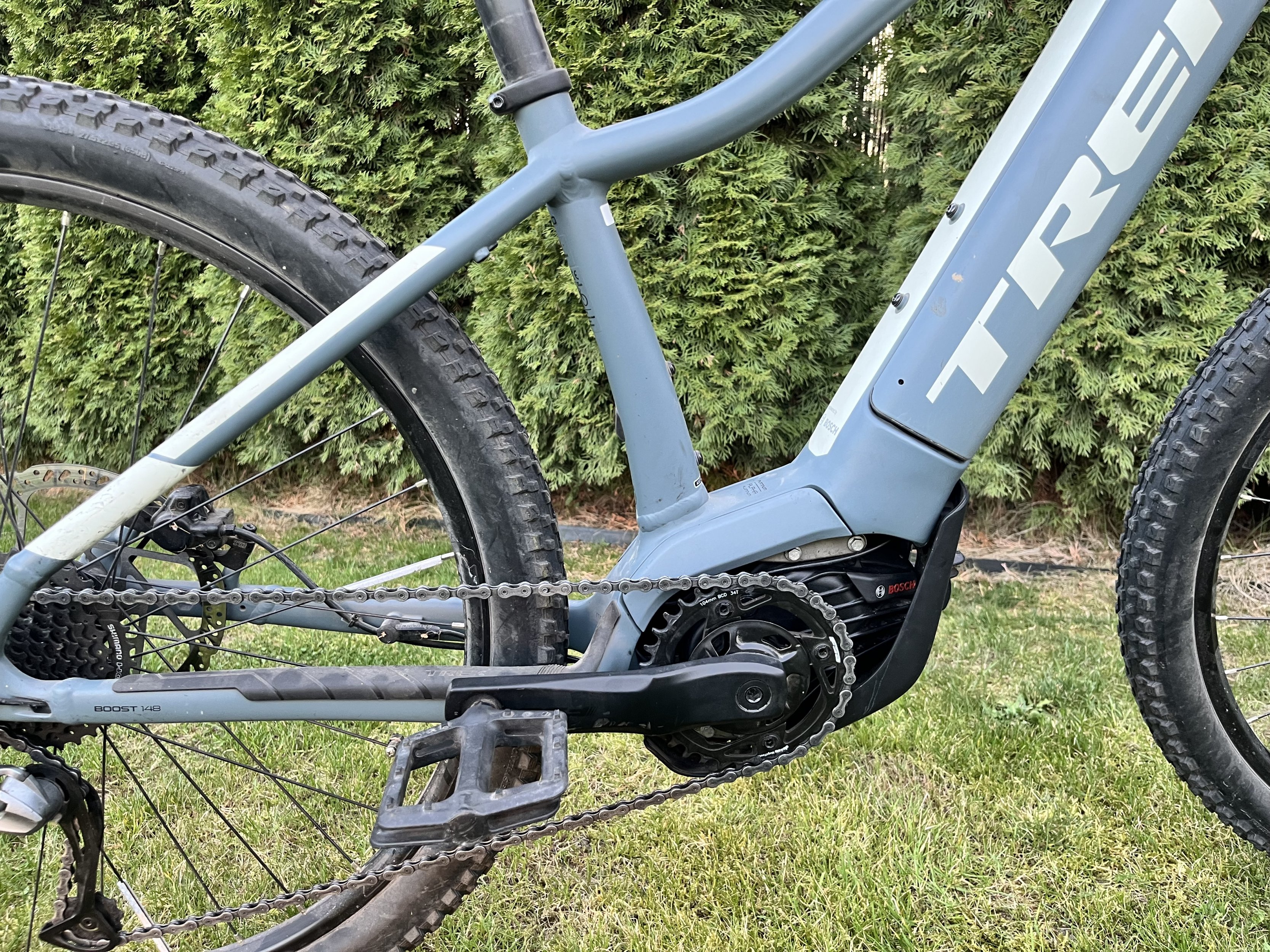

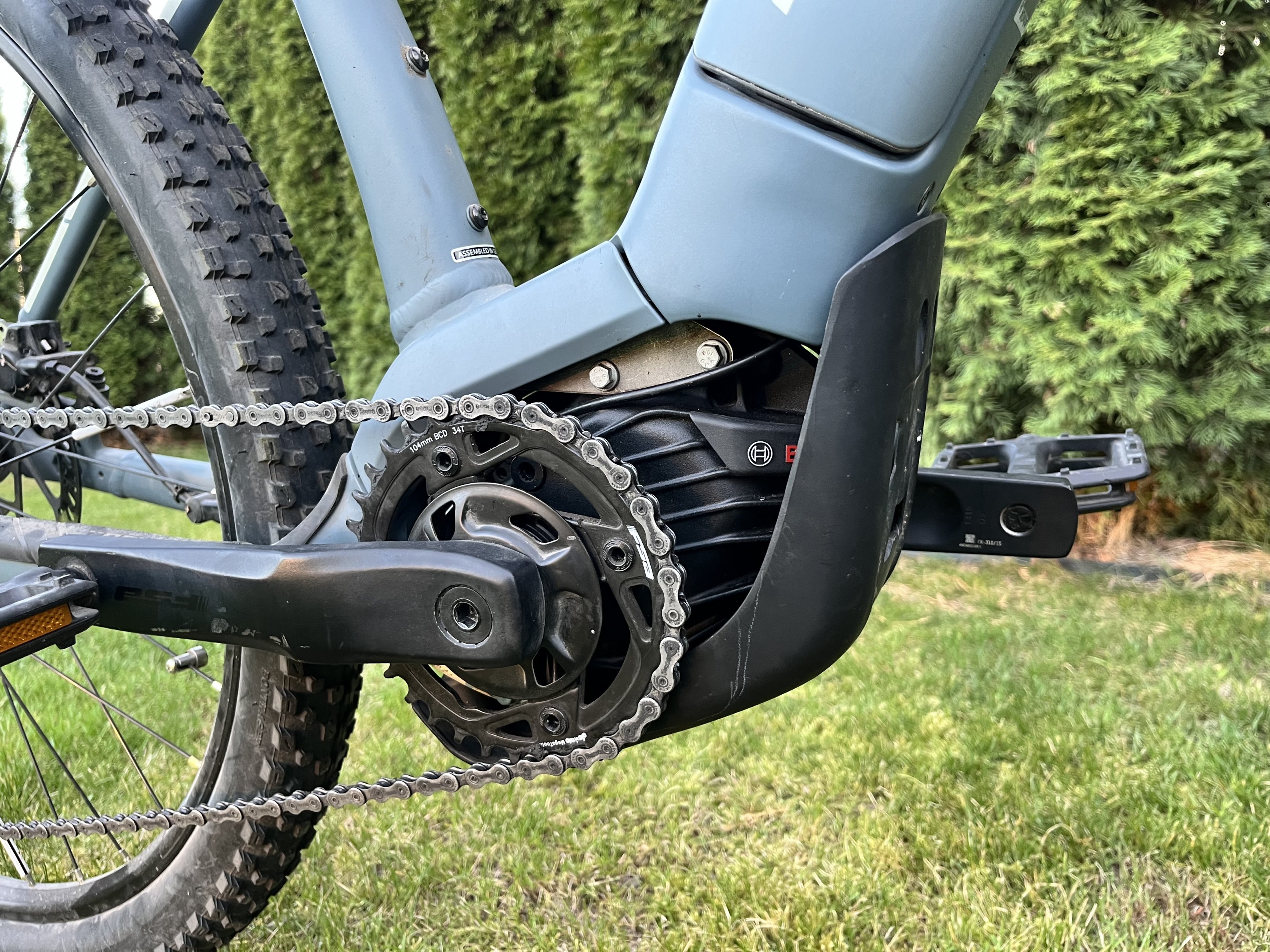

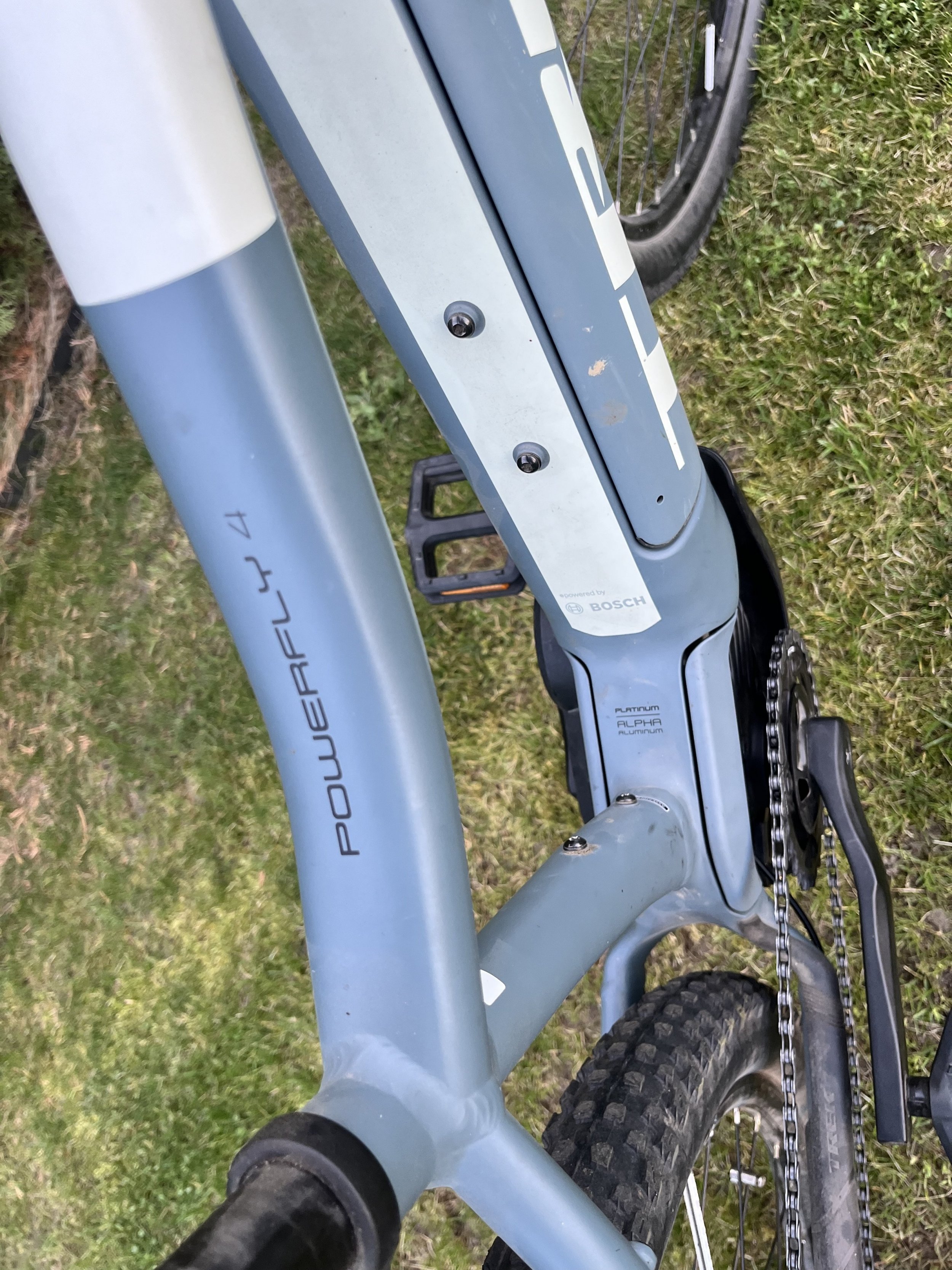

Trek Powerfly 4 2019 with gen4 motor swapped on my adapters. Only one non-drive side cover need to be little cutting :)
If you need this adapter in EU let me know.
IMG_9798.jpeg IMG_9797.jpeg IMG_9795.jpeg IMG_9794.jpeg IMG_9793.jpeg IMG_9792.jpeg IMG_9790.jpeg IMG_9789.jpeg

cemoz said:
I was hoping to do it, was studying product design and I still couldn’t get hold of the gen 4 motor by itself.Tried for over a year, Bosch their distributors or any LBS that stock them will not sell you one. It’s only available as a replacement (gen 4 for gen 4) the only way you will get one is through eBay and they don’t come up that often.

If I go back to working on the project I was trying to get it for I’ll probably buy the cheapest hard tail I can find with the gen 4 and take the motor out of that.
Click to expand...
I Bought an unprogrammed Gen 4 on ebay. Brand new from Poland cost £240

Cobee said:
Trek Powerfly 4 2019 with gen4 motor swapped on my adapters. Only one non-drive side cover need to be little cutting :)
If you need this adapter in EU let me know.
View attachment 157494 View attachment 157495 View attachment 157496 View attachment 157497 View attachment 157498 View attachment 157499 View attachment 157500 View attachment 157501 View attachment 157502
Click to expand...
I bought a Set of these brackets from cobee and I can personally vouch they are machined to perfection. I was a bit scared at the thought that maybe they won't fit or would it not look right.

Cobee was amazing throughout answering all my questions and I had a lot though he put my mind at rest.

The shipping was extremely fast about 4 days from Poland to the UK. I purchased my Bosch Gen 4 from ebay unprogrammed and I got a mate in my local e bike shop to program the motor taking out my Gen 2 replacing it with the Gen 4. Here are the Photos. I have included the brackets as I chose to spray them mat black which in hindsight was the right choice. The front sprocket is a 36 tooth Sram and a wipperman chain which I waxed with absolute black graphene wax.

My ride is a 2020 Trek Powerfly Sport 4 equipped which I have modified with Magpeds ergon grips and magnetic bottle holder from peatys

Here are the Photos.

The next thing I want to upgrade is to a 625w power tube battery without spending a fortune does anyone know where I can get one

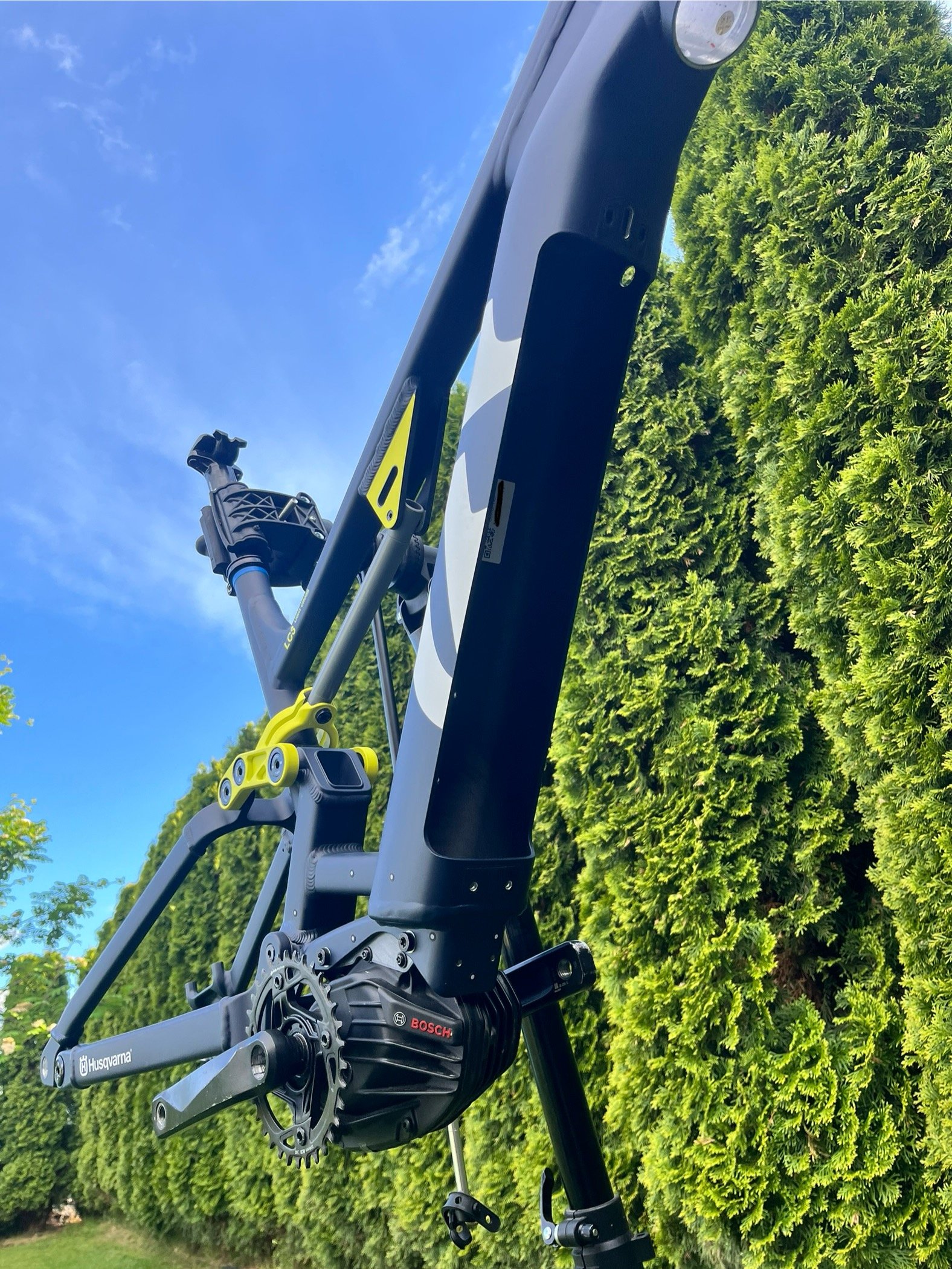

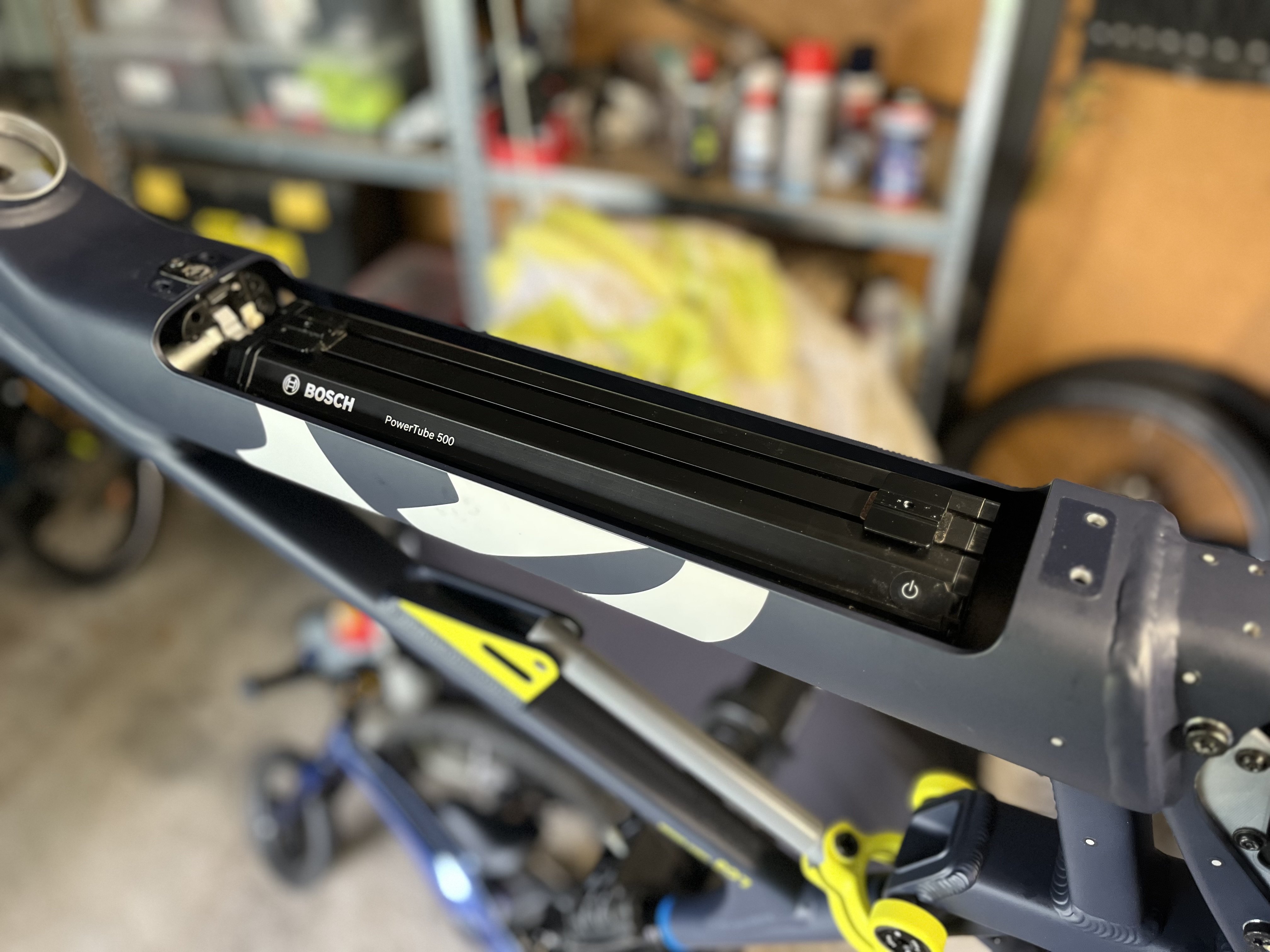

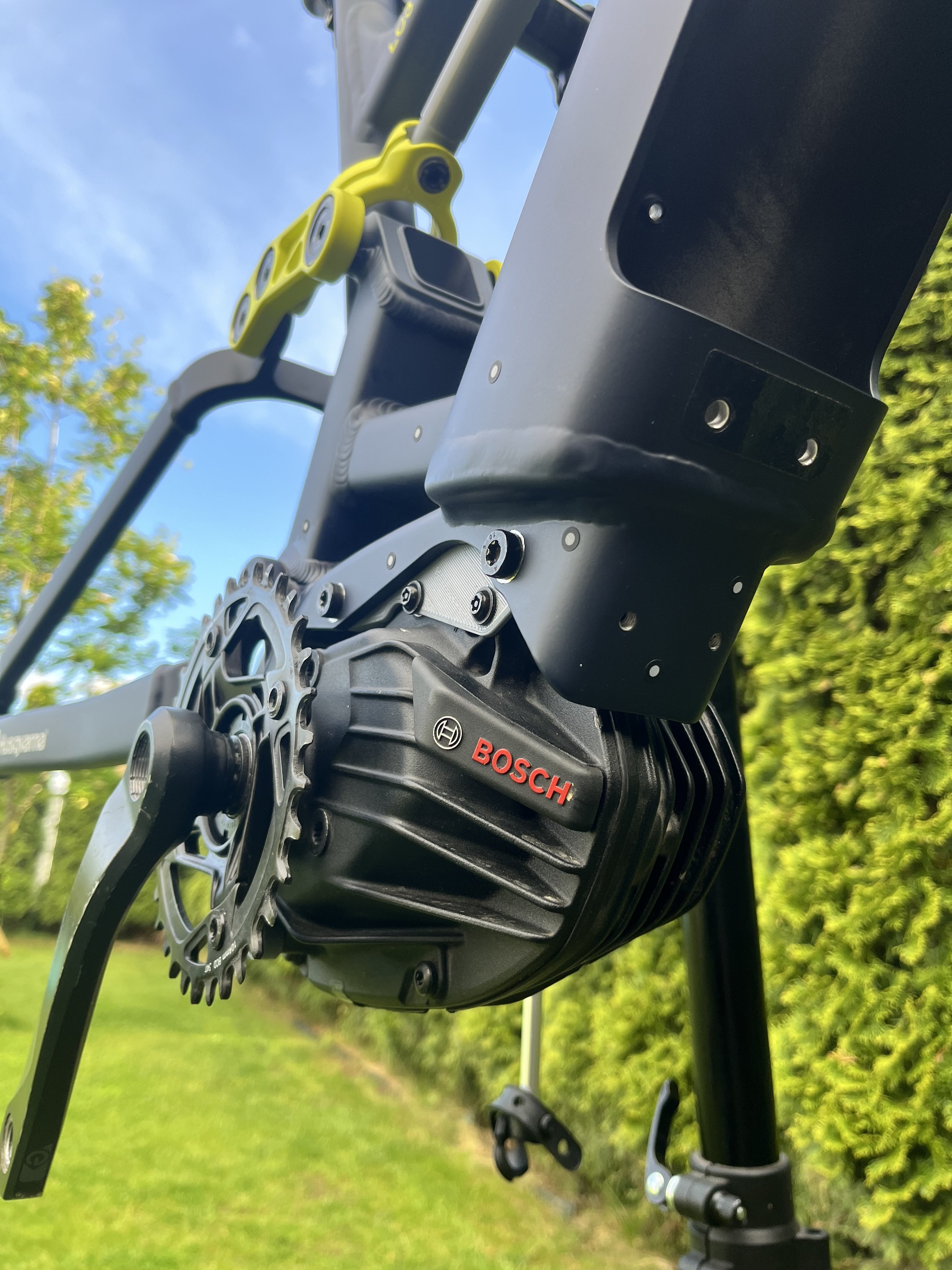

Let’s talk about gen4 motor in Shimano e8000 frame 🤩

Log into Facebook

Log into Facebook to start sharing and connecting with your friends, family, and people you know.
www.facebook.com www.facebook.com

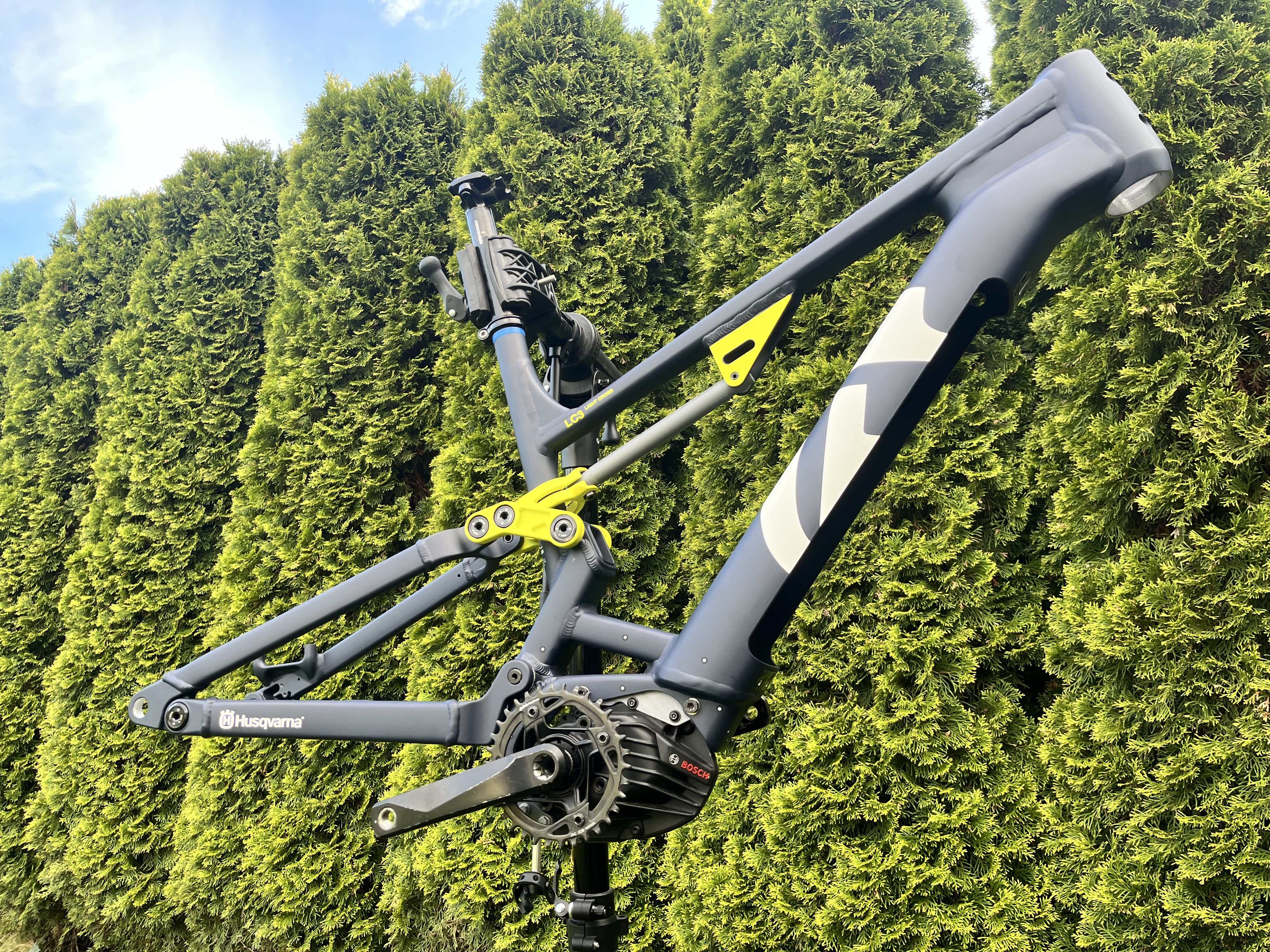

IMG_0319.jpeg IMG_0327.jpeg IMG_0323.jpeg IMG_0320.jpeg

@Cobee That looks so good have you thought about spraying the mounting bolts and brackets mat black. Or giving the option. Are you getting a lot of business
