ST Ride App - Tracker/dash/logger for STEPS motors

[vadII]

Update 2026/04/07:
App is available at Google Play
App is available at AppStore

I decided to start developing an App for collecting and displaying information that is available for Shimano STEPS motors: speed/cadence/assist/Di2 data and etc, combined with GPS data and data from other external sensors as heart rate monitors and etc. The only problem is that data from the motor can be collected from any STEPS displays (E7000, E6100, EN100) other than the most common E8000. This is outrageously stupid on the part of Shimano.

It's lucky that the E7000 display is installed in my bike, so I made some initial version. At this moment the App collects bikes data (including Di2 data), HR from common Bluetooth HRM sensor and phone's GPS data. App has circumference correction factor, so it shows correct Speed/Distance on the dash even if you set minimal circumference for a higher speed limit.

So I am ready to listen to your suggestions for the further development of the App. For example, what features do you want to see in such Apps?



[Fivetones]

Ooh, this looks promising. Good work @vadII.
And now I need a new display it seems.



[Fivetones]

EN100 and cheap small Android I guess.



[efcm1]

Where it's possible to download it ?



[Zimmerframe]

@R120's already there ... maybe you can get him to test with the EN100 ?

Looks really good @vadII



[vadII]

I expected some more feedback...

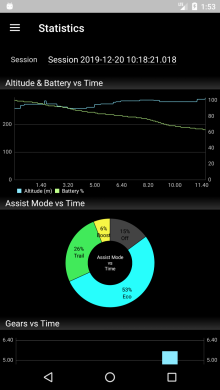

Anyway, here some other screenshots


The data is taken from a generated session, so it looks a bit strange

May be after that I'll get some more feedback , for example what graphs/charts do you want to see.



[Zimmerframe]

I think everyone's in bah humbug unhappy xmas, politicians are all mad, we're all either going to drown or burn to death - it's the end of the world mode ...

I still think it looks nice .. I might buy another E8000 bike just to play with it

For ideas of peoples dreams, you could read the blevo thread as peoples desires will be similar if they're on an Shimano bike or a Spesh. That has 110 pages of "I WANT AND I WANT IT NOW... please"...

I think a bit like with Blevo, you need beta versions out there for people to use, then they can see what it does and what it doesn't do, which will influence how they use it and what they'll want to use it for, which will give your real world, rather than armchair beer, feedback.



[iXi]

Most of us probably have the E8000 so feedback might be limited.



[MassDeduction]

I decided to start developing an App for collecting and displaying information that is available for Shimano STEPS motors: speed/cadence/assist/Di2 data and etc, combined with GPS data and data from other external sensors as heart rate monitors and etc. The only problem is that data from the motor can be collected from any STEPS displays (E7000, E6100, EN100) other than the most common E8000. This is outrageously stupid on the part of Shimano.

It's lucky that the E7000 display is installed in my bike, so I made some initial version. At this moment the App collects bikes data (including Di2 data), HR from common Bluetooth HRM sensor and phone's GPS data. App has circumference correction factor, so it shows correct Speed/Distance on the dash even if you set minimal circumference for a higher speed limit.

So I am ready to listen to your suggestions for the further development of the App. For example, what features do you want to see in such Apps?

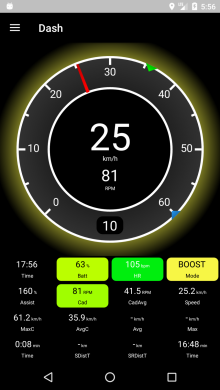

View attachment 23126

I have an E8000 motor with an E6010 Display, and I'd be pleased to test out the app for you if that's a combination that you're interested in feedback for.



[lamomie]

I expected some more feedback...
Anyway, here some other screenshots

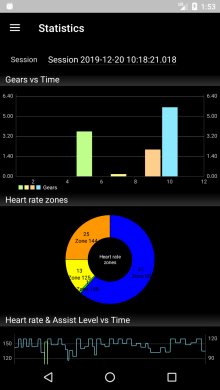

View attachment 23226View attachment 23227

The data is taken from a generated session, so it looks a bit strange

May be after that I'll get some more feedback , for example what graphs/charts do you want to see.

it is a good idea for those who use their smartphone during the exit, but would it be possible to develop a garmin app via the store connect IQ of garmin which stores this data in the .fit file of the gps, because garmin displays them on its GPS, but does not store them.



[lamomie]

I expected some more feedback...
Anyway, here some other screenshots
View attachment 23226View attachment 23227

The data is taken from a generated session, so it looks a bit strange

May be after that I'll get some more feedback , for example what graphs/charts do you want to see.

it would be nice to have the average value of the% assistance on the exit if you can acquire these values of course



[raine]

I can swap between E8000 display and EW-EN100 Junction if needed too.



[nepper]

Is it possible to display power usage from battery? It would nice to see how much engine is producing power and also rider too



[vadII]

Is it possible to display power usage from battery? It would nice to see how much engine is producing power and also rider too

No. Power is not accessible. Moreover assist percent allowed only for non E8000 motors... Such a dumb Shimano developer...



[RickBullotta]

No. Power is not accessible. Moreover assist percent allowed only for non E8000 motors... Such a dumb Shimano developer...

Well, I've been impressed with your ability to reverse engineer stuff thus far - maybe have a go at custom firmware for the E8000 display unit? It definitely has access to assist level telemetry since it displays it in the graph, but some tweaks to what it supports over the bluetooth link would be awesome. The protocol exists, just needs to be ported. As you correctly state, "Dumb Shimano Developers". ;-)



[vadII]

E8000 motor does not have Assist level in the telemetry... Moreover, assist level is only 1 byte (0..255). So, E8000 with stock 300% doesn't fit

Well, I've been impressed with your ability to reverse engineer stuff thus far - maybe have a go at custom firmware for the E8000 display unit? It definitely has access to assist level telemetry since it displays it in the graph, but some tweaks to what it supports over the bluetooth link would be awesome. The protocol exists, just needs to be ported. As you correctly state, "Dumb Shimano Developers". ;-)



[Zimmerframe]

E8000 motor does not have Assist level in the telemetry... Moreover, assist level is only 1 byte (0..255). So, E8000 with stock 300% doesn't fit

It only needs one byte. It doesn't log the assist per % , it logs it in base 5 I think (can't remember).

EDIT : Sorry, not base 5 .. xmas beer ....

But it logs in 5's - so 300% is 60. 500% is 100 - so it only needs 1 byte for most of it's data fields. (not had one for months, but it became apparent when deciphering the black box).



[Gary]

I already have dedicated GPS, speed/cadence sensors and HRM etc. and various apps to upload the data to and geek out over. but leave that to the roadbike and intentionally don't ever use any of that tech while riding emtb. I just don't see the point as I see absolutely no value in viewing stats whatsoever from a motor assisted bike ride.
But...

custom firmware for the E8000 display unit?

an option to turn the display brightness low (for night riding) is something I would like!
On the lowest brightness seting the E8000 display is still far far too BRIGHT! and distracting in the woods at night



[Zimmerframe]

I already have dedicated GPS, speed/cadence sensors and HRM etc. and various apps to upload the data to and geek out over. but leave that to the roadbike and intentionally don't ever use any of that tech while riding emtb. I just don't see the point as I see absolutely no value in viewing stats whatsoever from a motor assisted bike ride.
But...

an option to turn the display brightness low (for night riding) is something I would like!
On the lowest brightness seting the E8000 display is still far far too BRIGHT! and distracting in the woods at night

A dead giveaway when e-dogging...



[RickBullotta]

E8000 motor does not have Assist level in the telemetry... Moreover, assist level is only 1 byte (0..255). So, E8000 with stock 300% doesn't fit

Thanks for the clarification. Shimano should hire you to rewrite all of their software stack!



[vadII]

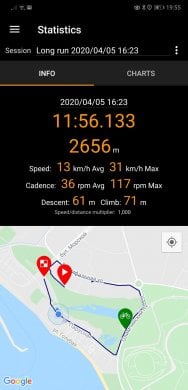

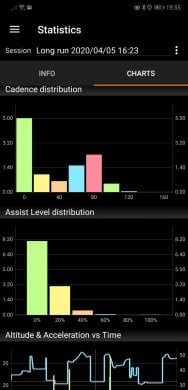

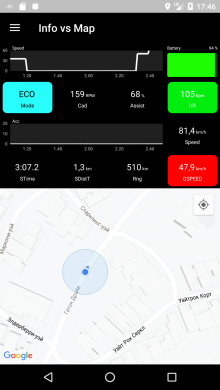

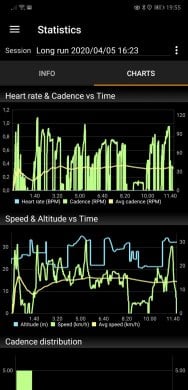

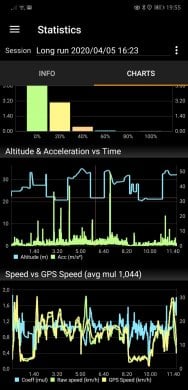

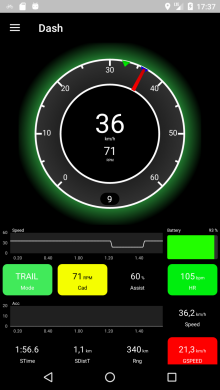

Here is some new screenshots from the App (not released yet)

Dash scheme (type (chart, bar, text), colors, dynamic colors, parameters) are configurable in XML file (at this moment)

Quick demo

p.s. Assistant level can be retrieved for E8000, but only as 0-100%



[RickBullotta]

Here is some new screenshots from the App (not released yet)
View attachment 28438View attachment 28440View attachment 28439View attachment 28441View attachment 28442View attachment 28443

Quick demo

Very cool stuff! Nice work.



[OldGoatMTB]

I believe there was a demo of it on YouTube today.



[lamomie]

hello vadll is it possible to create a view with all the parameters in which we can check the parameters that interest us and create a backup of these parameters in a garmin .fit file



[vadII]

hello vadll is it possible to create a view with all the parameters in which we can check the parameters that interest us and create a backup of these parameters in a garmin .fit file

As I said above all dash screens are configurable in XML file (at this moment)



[Stuart569]

Do you have a release date in mind yet @Vadll



[vadII]

Do you have a release date in mind yet @Vadll

May, 2020.



[Stuart569]

May, 2020.

Cool. Looks really good.



[Trail-Niels]

Looks interesting
Not that I’m a big fan of a dash on a mountainbike, as i prefer to ‘read the trail’ instead. But what I find useful is to analyse the ride when back home. What I find very interesting is the app that SRAM has made for their AXS drivetrain. At the end of the ride you sync the AXS master with your phone app, and see the number of gear shifts, which cog was running and for how long. The app syncs with Strava and gives you the ability to seek out a segment where you can see which gear you were using etc.
I’d find a similar functionality useful, being able to see the telemetry for any given segment, like assist mode, power etc.



[vadII]

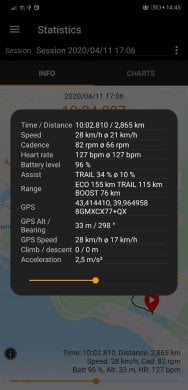

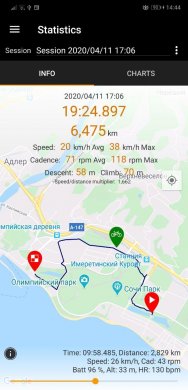

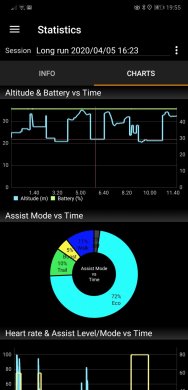

New features + more screenshots
