Motors · BH
BH · BH BHZ by SEG (light eMTB)

BHZ

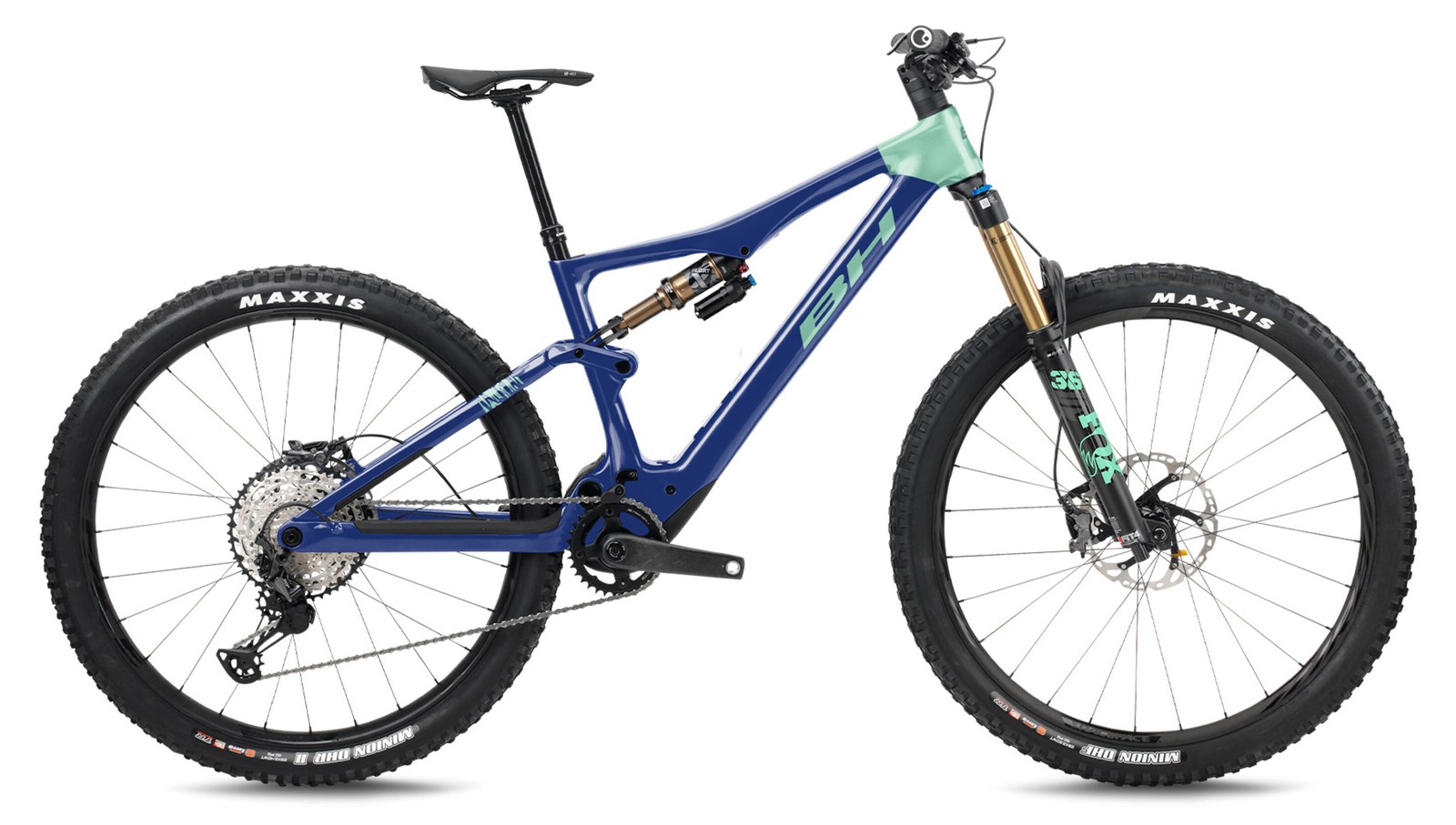

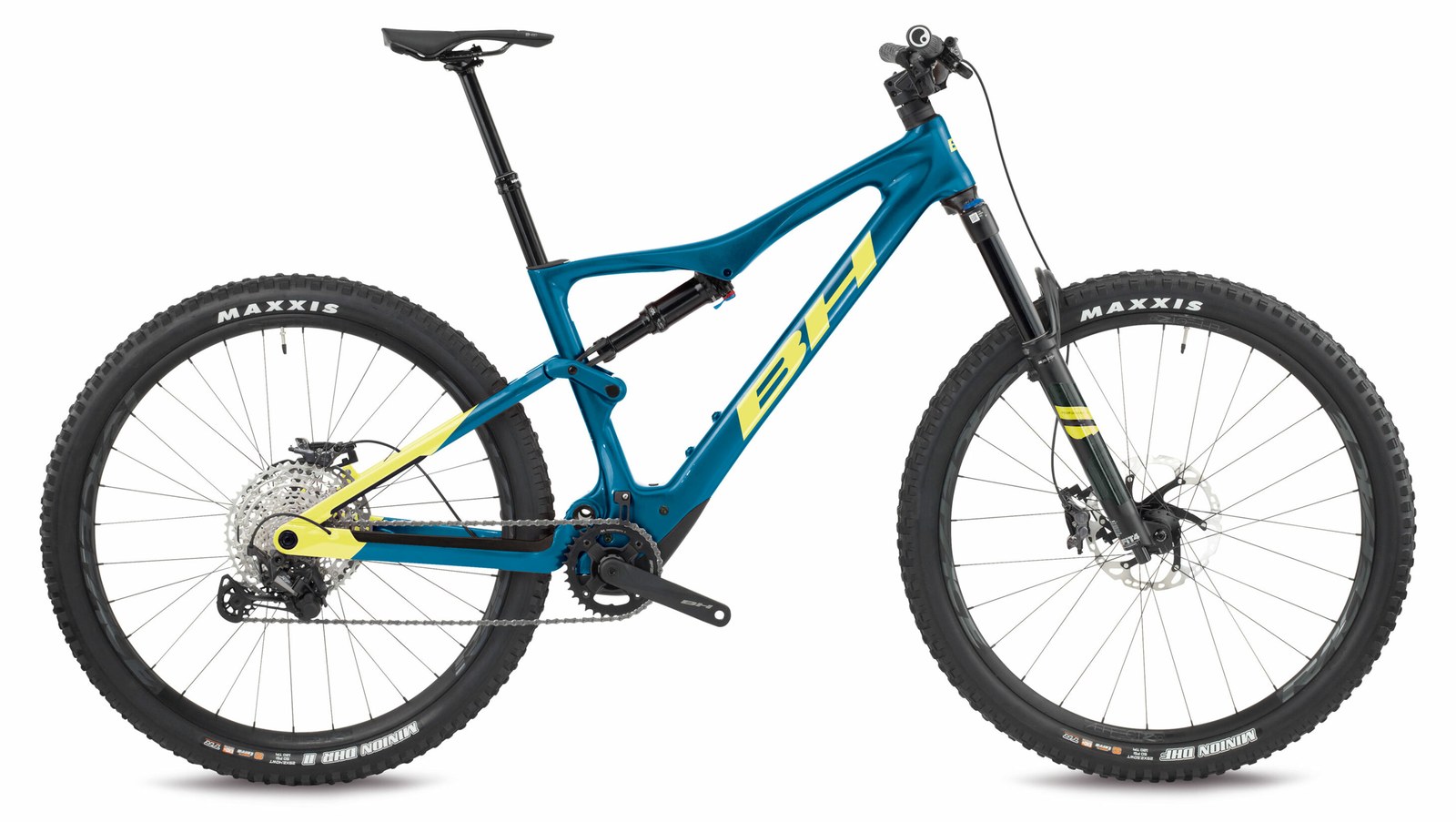

BH's first in-house drive unit, the BHZ by SEG, is a Spanish-built lightweight motor that puts 65 Nm and a 500-watt peak into a 2.1 kg package, the heart of BH's iLynx Trail and Race Carbon SL e-MTBs.

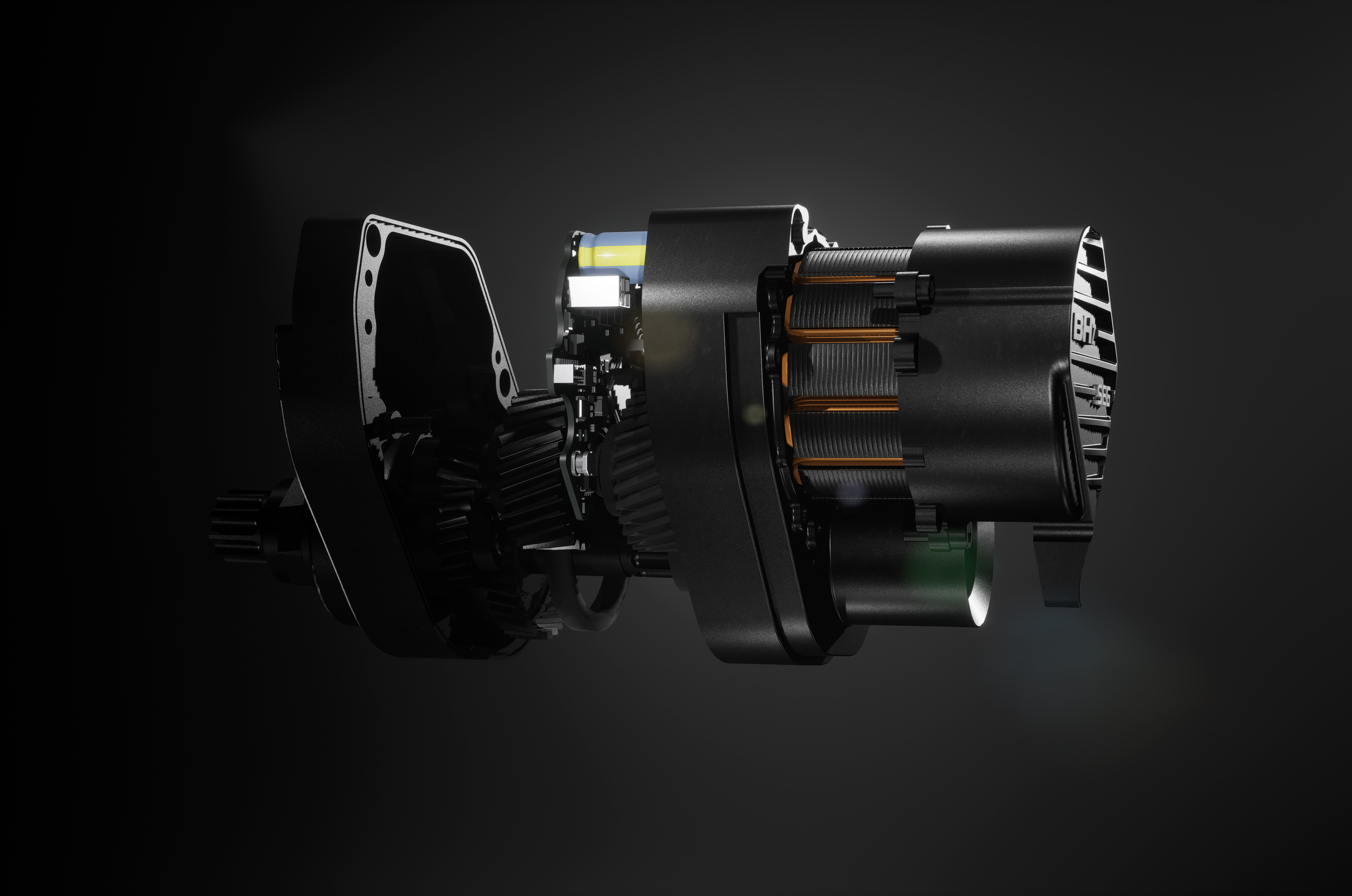

BHZ eMTB motor
Cutaway render of the BHZ by SEG drive unit — a 2.1 kg, 65 Nm SL-class motor designed, developed and built by SEG Automotive in Treto, Cantabria.
0250500406080100120500 Wcadence (rpm) →power (W)

Illustrative, not lab-measured: SL-class delivery in which torque builds quickly off low cadence, peaks across the mid-range and tails off smoothly toward the limiter, rewarding a brisk, steady cadence. No independent dyno trace has been published.

The verdict

BH BHZ is the Basque brand's bold bet on going it alone. Rather than buying in a Bosch or Shimano unit, BH co-developed this drive with SEG Automotive and has it designed, developed and built at SEG's plant in Treto, Cantabria, making it one of the few genuinely Spanish-made mid-motors on the market. At 65 Nm of torque and 500 watts of peak power (250 W continuous, fed by a 36 V system) for just 2.1 kg, it sits squarely in the SL-class, the same lightweight bracket as Bosch's SX, Fazua's Ride 60, Specialized's SL 1.2 and the TQ HPR50.

The defining trait is naturalness. Three sensors, torque, speed and cadence, sample more than 1,000 times a second, so the assist arrives the instant you load the pedals and tapers cleanly toward the 25 km/h cut-off. BH quotes 100% power at all times regardless of battery charge across its Boost, Trail and Eco modes (with finer Trail+/Trail-/Eco+/Eco- steps in the app), so there's no over-eager surge and no lag, just a motor that amplifies the rider rather than replacing them. BH and the German press both flag it as one of the quietest units on the market, with no freewheel drag to spoil the descents, though no lab has yet published a decibel figure for it.

It is not, and was never meant to be, a 100 Nm full-power bruiser. On steep, technical climbs a Bosch CX (85 Nm) or Specialized 3.1 (101 Nm) will simply walk away from it. But for riders who want an e-MTB that rides like the analogue bike it's based on, the BHZ delivers the kind of light, lively, low-drag character that lets BH build a 120 mm trail bike that tips the scales at 17.8 kg while still carrying a 630 Wh battery.

“One of the few genuinely Spanish-built mid-motors, and one of the quietest, the BHZ amplifies the rider rather than replacing them.”

Character

Rider input
BH quotes 100% motor power at all times regardless of battery charge, delivered through Boost, Trail and Eco modes (plus finer Trail+/Trail-/Eco+/Eco- steps in the app). BH does not publish a peak support ratio for the bike-fitted BHZ, and as an SL motor it wants a genuine, sustained rider effort to reach full output rather than feeding off a light tickle of the pedals.
On the trail
Light, lively and natural, the BHZ amplifies the rider instead of dominating them, letting BH's iLynx feel close to its non-assisted siblings while still adding meaningful punch.
Noise
No lab has published a decibel figure for the BHZ. BH and the German press repeatedly describe it as one of the quietest drives on the market, a discreet hum under load with no audible freewheel rattle on descents, but that quietness claim rests on subjective impressions rather than a measured dBA reading.
Efficiency
The pairing of a low-drag SL motor with BH's high-density 630 Wh 21700 pack (and an optional 180 Wh XPro range extender for 810 Wh total) is built for long, efficient tours rather than brute force.

The case for and against

Strengths

  • Genuinely lightweight at 2.1 kg
  • Natural, instant, low-lag torque-sensor feel
  • 100% motor power available at any battery charge
  • Spanish-built (Treto, Cantabria) by SEG Automotive
  • Pairs with a high-density 630 Wh battery (810 Wh with extender)

Compromises

  • 65 Nm / 500 W can't match full-power rivals on steep climbs
  • BH-exclusive ecosystem (app, display, battery, dealer service)
  • No independent dyno, thermal or measured-noise data published yet
  • Limited long-term field record so far

How it stacks up

In the SL-class the 65 Nm / 2.1 kg BHZ lines up against Bosch's SX (55 Nm, ~2.0 kg), Fazua's Ride 60 (60 Nm, ~1.96 kg), Specialized's SL 1.2 (50 Nm, ~1.95 kg) and TQ's HPR50 (50 Nm, ~1.85 kg) — it is the torquiest of that group, at the cost of being a touch heavier than the lightest of them. BH itself pitches the BHZ's 65 Nm / 500 W as on par with Shimano's EP5, but that parallel is shaky: the EP5 is a 60 Nm / ~3 kg commuter-and-trekking unit aimed below the SL bracket, so it is markedly heavier and not a true SL-class peer. The BHZ can't live with full-power units like the Bosch CX (85 Nm) or Specialized 3.1 (101 Nm) on steep technical climbs, and isn't meant to.
OWNER INTELLIGENCE
Most owners report no problems.
