just ordered the coil over 2021 and bushings from UK thanks for the help brother its appreciated man FYI this is where Im bringing my newly upgrade to XTR rail 9.8XT this is what I do for a living
Trek Rail with Fox DHX2 coil
- Thread starter zaykay
- Start date
Richiefromboston
Active member
ok i ordered up the coil over I just got the mounting bushings from the UK anything anyone thats done this can tell me/warn me of?
700lbs. Depending on the Stroke of your rear shock, you can use 700x61mm with standard stroke, or 700x67mm if extended. I’d buy quick as I’m finding them instock when I google them….they were out of stock just about everywhere a few months ago.
Last edited:
@BiGJZ74 Thank you very much. I will buy it quick. So if I stay on rear shock size 230x60 (not 57), I should have to buy the spring 700x61 but not 700x67, is this ok? Could you attach the link to shop with that spring? The version has to be SLS or could be standard (if I cant find them on shop)?
The 61mm on a 60mm stroke shock would only give you 1mm of preload before binding. I would go 67mm to be on the safe side. I run 65mm stroke with 67mm 700lb spring. www.tftuned.com has them in stock since I don’t think ur in USA. Just google fox 700lb spring and a bunch should show up
I bought fox stroke 700. But I have question about the shock. Is it better fox dhx or dhx2? Ues, O know price and controls count, but... I think that I prefer reliability (dhx has one flow only) and I think that high speed control is not needed for my weight and 700lbs spring or no? The dhx has same metal body as dhx2, both 2022 year, hasnt?
And good detail can be the size - for trek rail is maybe dhx better sized for bottle, that every us need. (Yes, I have camel bag too, but I dont want do cleaning)
And good detail can be the size - for trek rail is maybe dhx better sized for bottle, that every us need. (Yes, I have camel bag too, but I dont want do cleaning)
Richiefromboston
Active member
Big, question AGAIN my rear shock drops on the 23rd Im in a bit of a pinch on time how long will it take to throw this is and dial?? I think i got the correct bushings from the UK I ordered what you told me to. I think. been a while.
I'd just go with Fox recommenced settings to start. Install is simple. SHOCK- 2022 All Coil Shocks (DHX2 and DHX models) | Bike Help Center | FOX
Richiefromboston
Active member
So check this out, ordered a 2022 fox DH2 from BIKE INN it was 990.00 USD and had to pay another 60 USD for tax coming into states, And after asking over and over that they include a 700lb spring. They never answered even once and when it finally showed up last night its beautiful but NO COIL. BIKE INN sucks. Just know that
Richiefromboston
Active member
It was only place Icould find it in exact size I needed the non spring thing is lame. But its on its way and hopefully ill have time to install it and the front fork. This is the fork i settled on Fox Racing 36 Float Factory GRIP2 Fork - 29" 160mm,15x110 hopefully i dont screw up the entire suspension Got bushing from UK as listed here on forum to install rear fox. So it will all be in dream build video without the romantic music i assure you.
Richiefromboston
Active member
I did And Im about to put the new coilover in, really wish I knew the method to install these random little sleeves and bushingsWe at Offset Bushings can produce standard shock bushings for you if you'd like to upgrade from the thru shaft to a standard shock! Hit us up if you have any questions. They're £28.80 (including VAT in the EU, £24 outside of EU) + postage.
Richiefromboston
Active member
I had no idea It was only place I could find the right size.
Richiefromboston
Active member

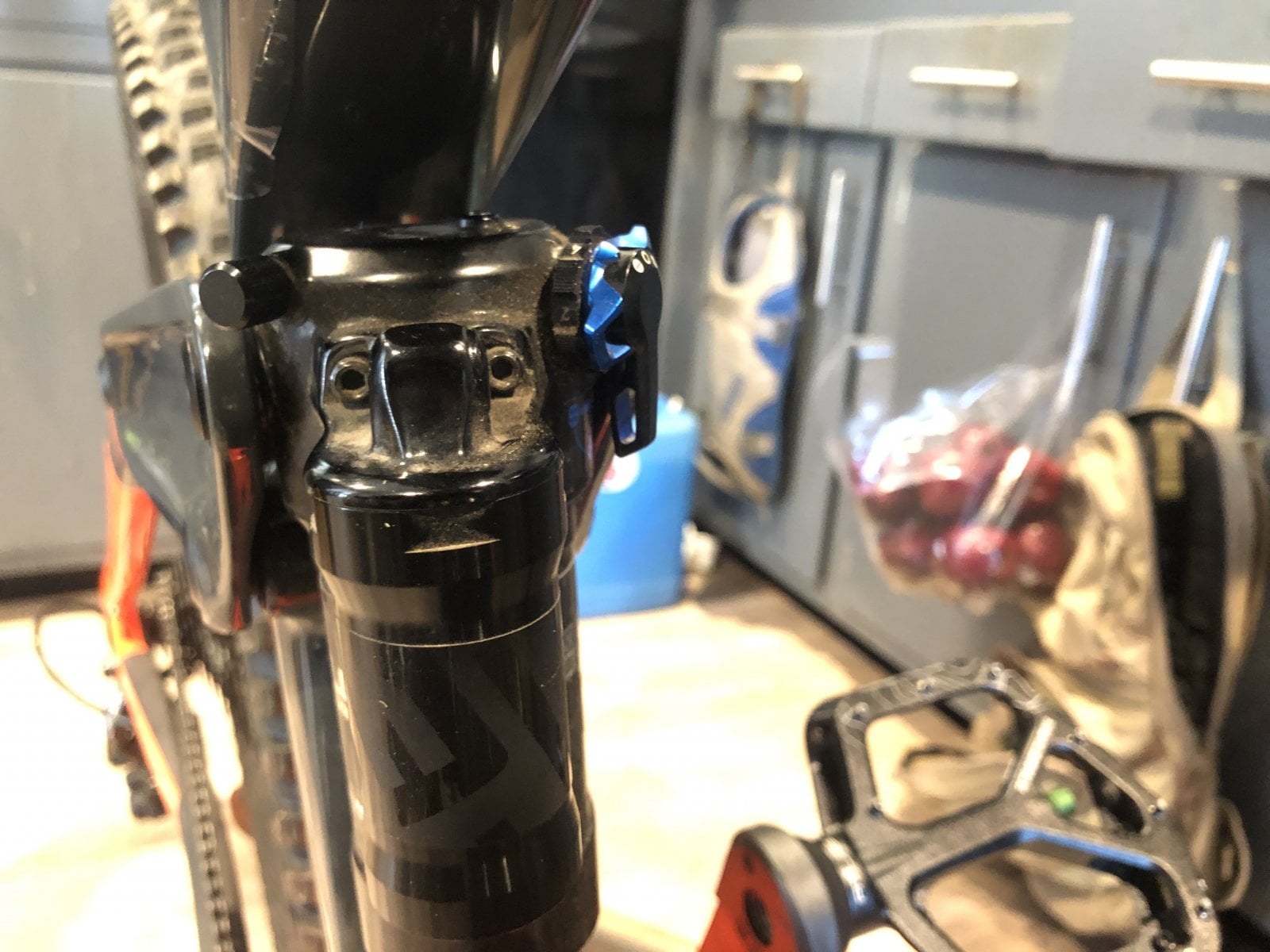

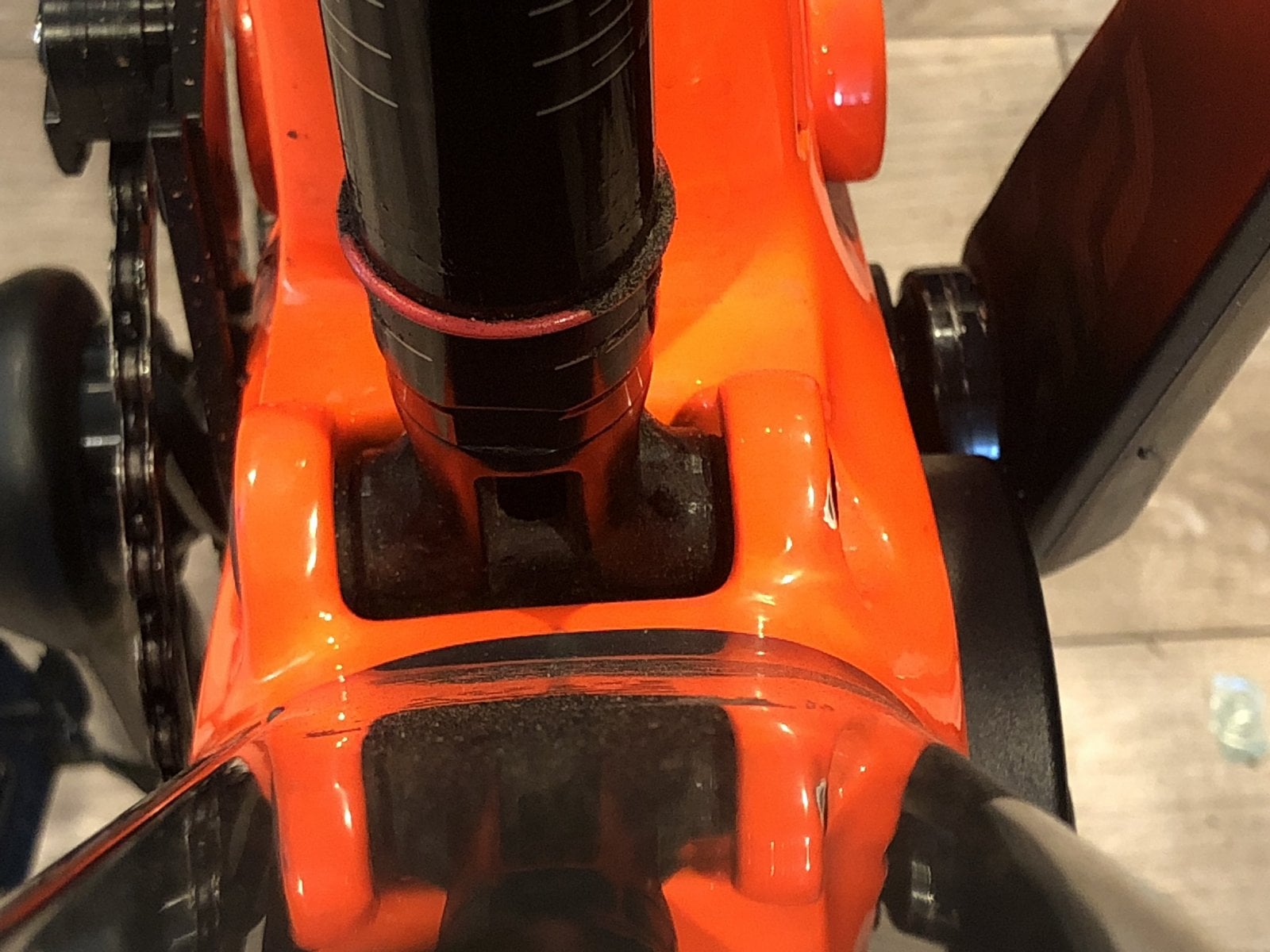

any chance of getting a close up pic of top mount? Im about to do this and want to make sure Im good to go.
Richiefromboston
Active member

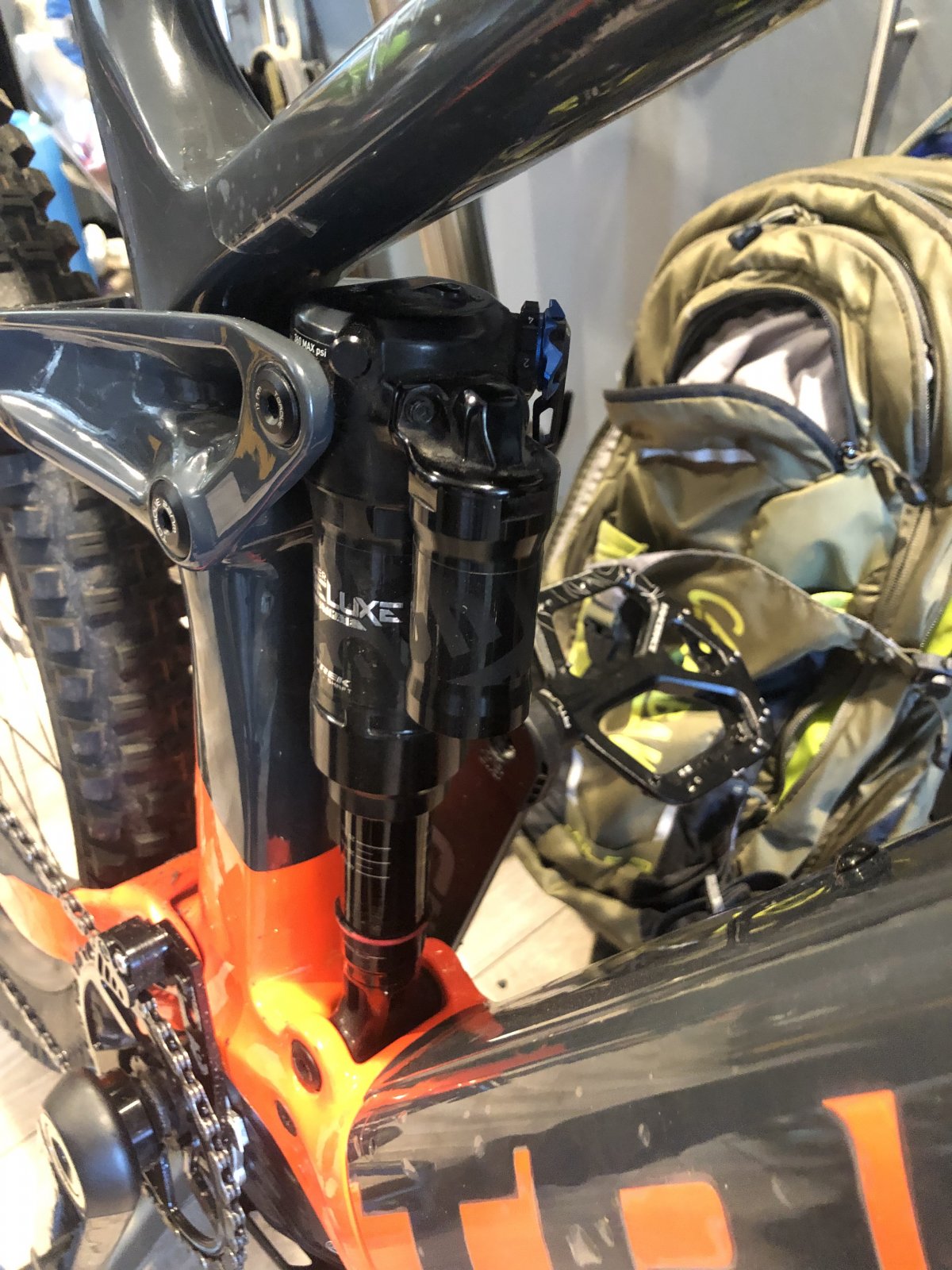

Ok after reading carbon frames vs. ally frames Im wondering if the fox shock I have with the @offsetbushing kit I got is even going to work. Do I have the right shock and bushing setup for my frame? the top look drastically different on rockshox compared to fox.

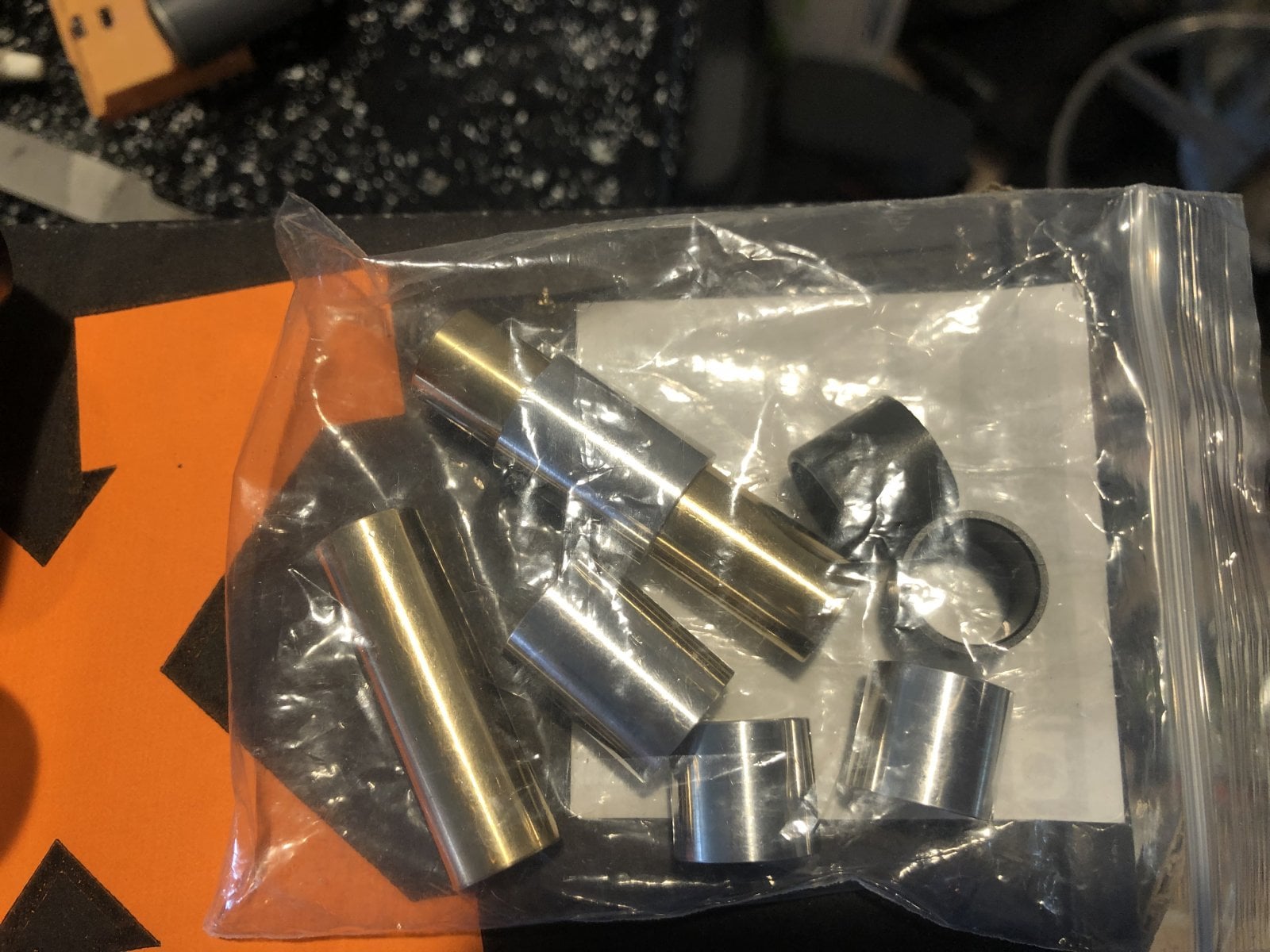

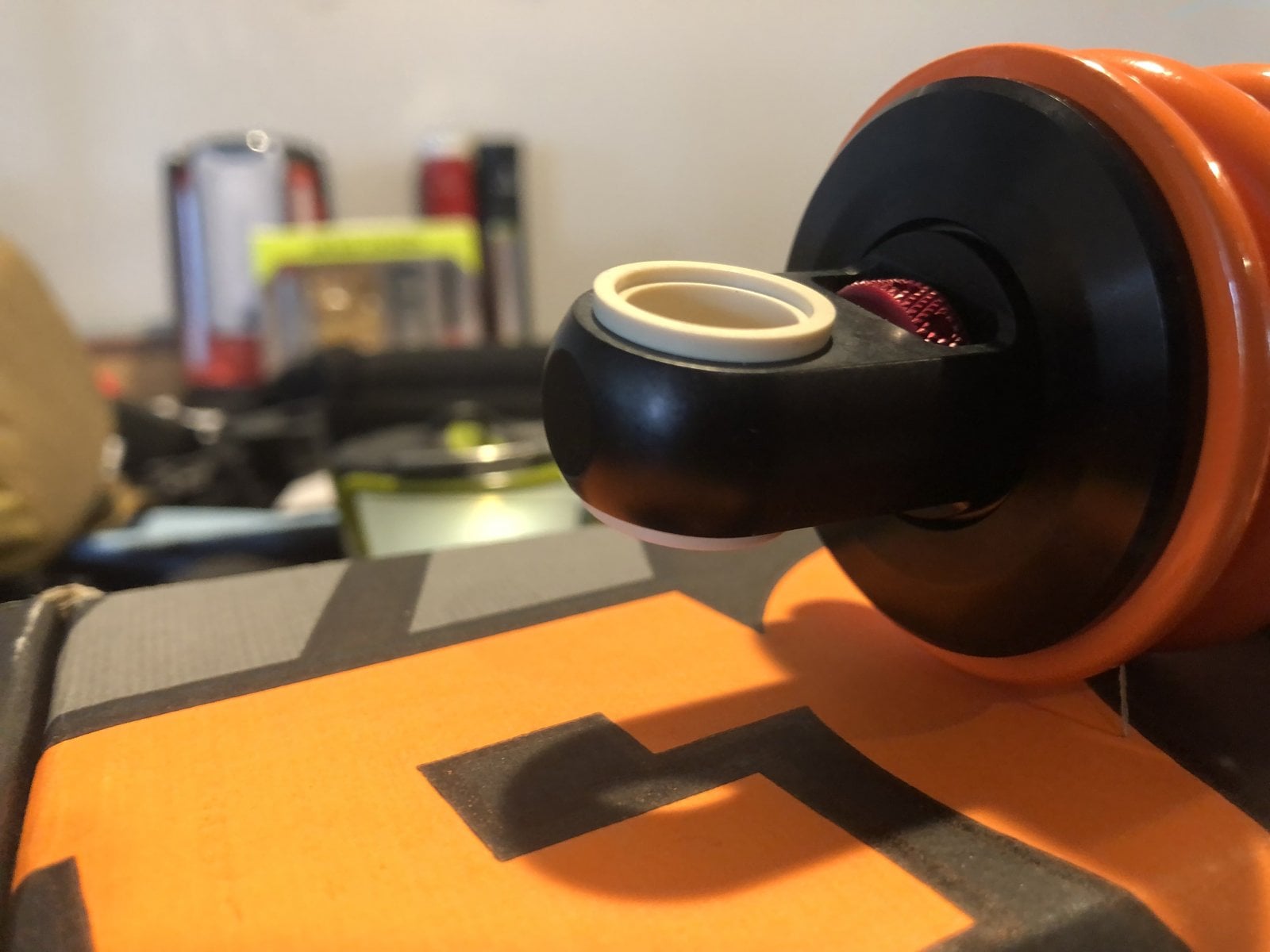

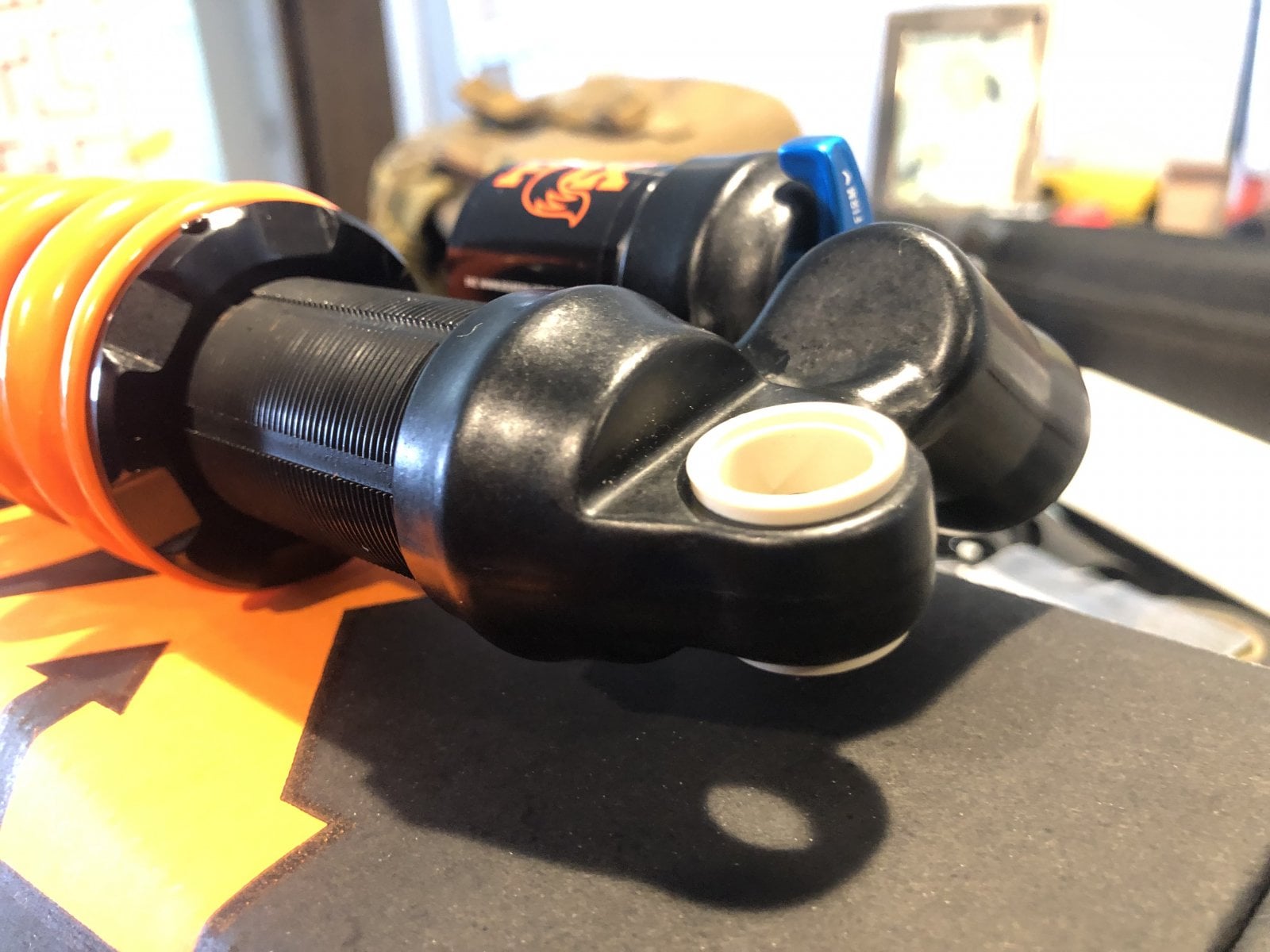

To use The Offsetbushing hardware you have to remove the Fox white IGUS Bushings and insert the black DU bushings from the kit. then press the 54mm long piece thru the top bushing and then the sleeves over each end....repeat for lower. The hardware from thelostco.com shop I sent u the link for was Fox specific so it would use the White IGUS bushings that are factory installed....plus their sleeves are black which will look a bit better
Richiefromboston
Active member
Im still waiting for that hardware to land, Hopefully it makes more sense when I can see it in hand.
Richiefromboston
Active member

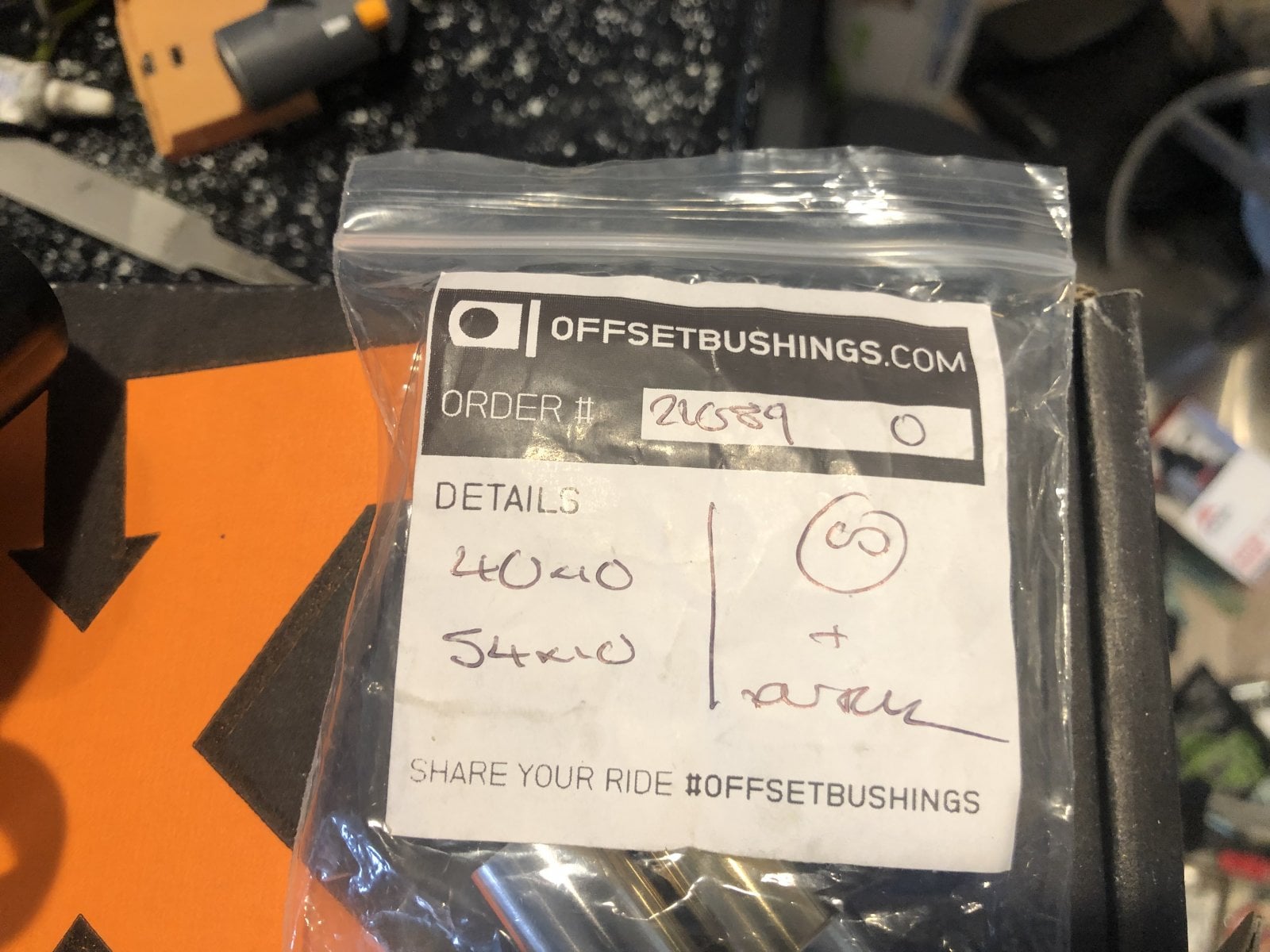

AGAIN< I ordered a set from you, and I would love to know what it should look like when assembled 21 trek rail 9.8 carbon frame and a 22 fox DHX2 coilover.We at Offset Bushings can produce standard shock bushings for you if you'd like to upgrade from the thru shaft to a standard shock! Hit us up if you have any questions
Richiefromboston
Active member
Shhhh.
Richiefromboston
Active member

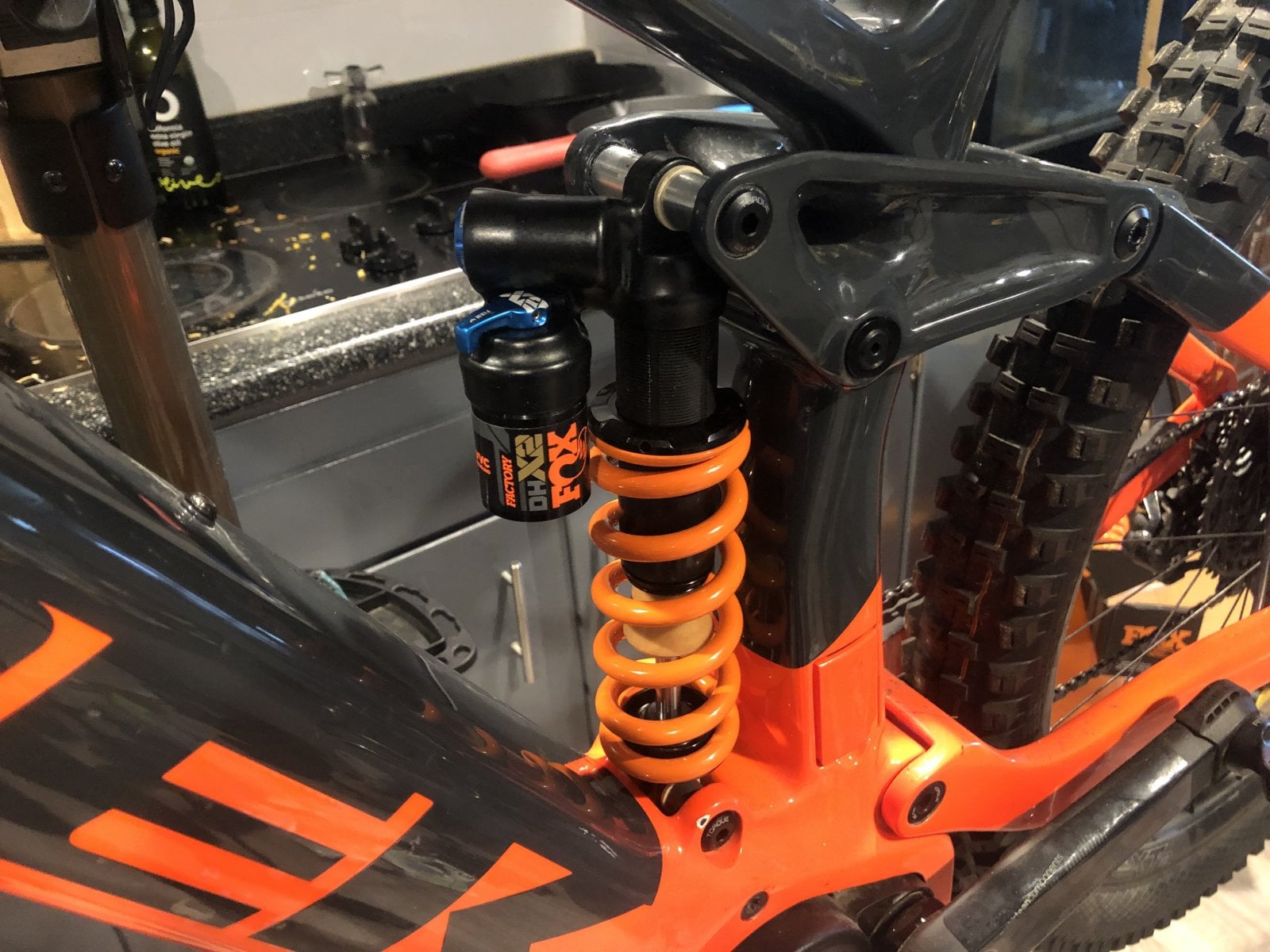

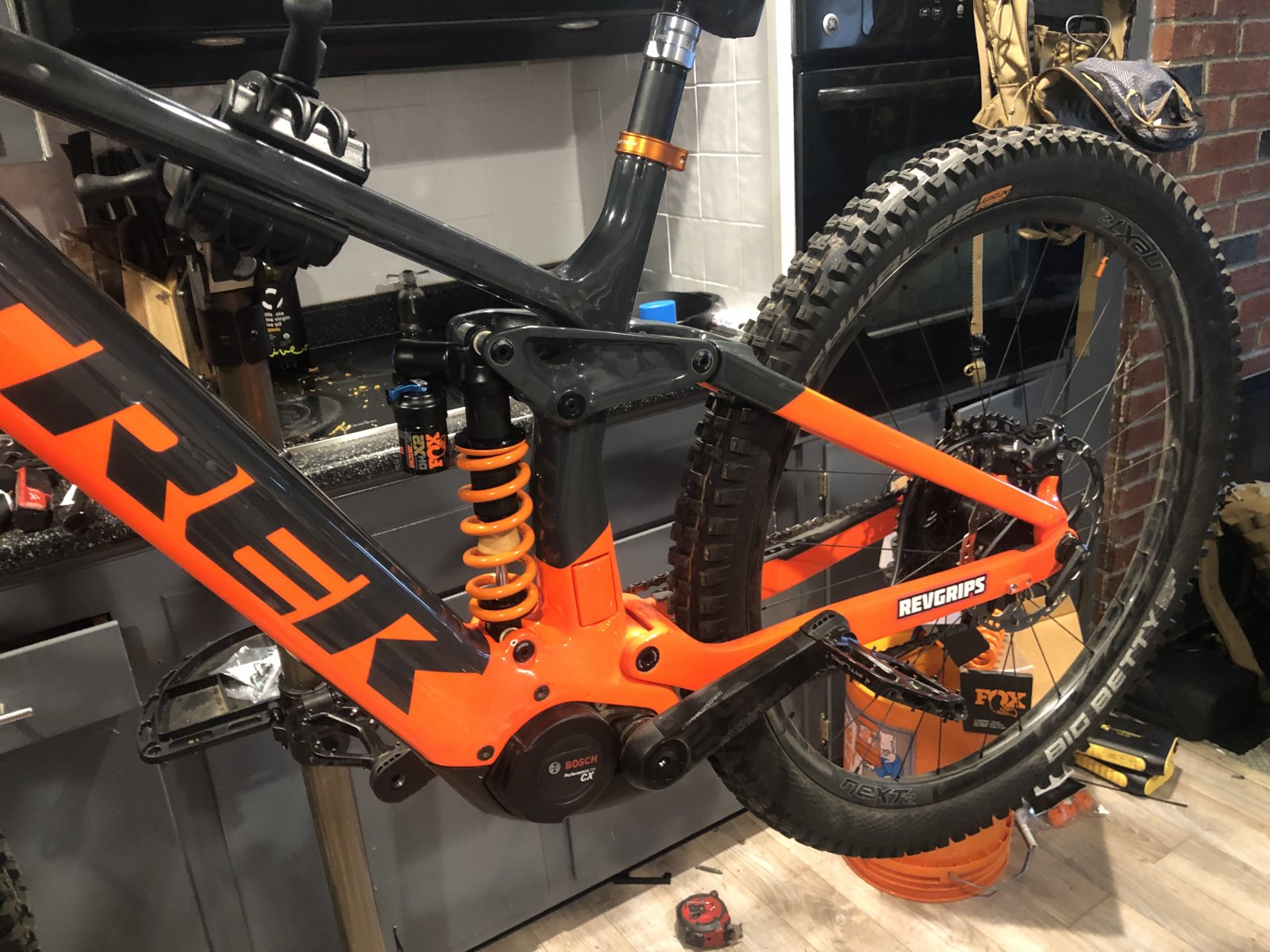

Ok even though I Should be running the trunion mount version I used mounting bolts from Trel and the hardware from Uk offset( after filing them down a lot, and got it to go . And the ride difference is what I hoped it would be. I was expecting nothing to be honest but with a 550lb Fox spring its perfect. I weight 230lbs Im going to do a walk around video of bike tomorrow Ill post the link up when its done.
the $$ tag on this entire build hit 16K just for reference. ya gotta love those chips in the paint already bike has about 90 miles on it and 2 goodly crashes.
the $$ tag on this entire build hit 16K just for reference. ya gotta love those chips in the paint already bike has about 90 miles on it and 2 goodly crashes.
Last edited:
So u had to file down the silver sleeves because u used the IGUS bushing instead of the DU bushings from the offset kit. Looks great!
Richiefromboston
Active member
yes and this isnt permanent its mounted, itsi n place it works but the sleeves arent resting against washers just the bushing in the shock which will wear.
If you make it out to Cali I've got the extra hardware if your lost set doesn't ever turn up.
Or I have the tools to remove the Igus Bushings and install the DU bushings to make the offset hardware fit properly
Richiefromboston
Active member
or theres that, But i filed down offset bushings they werent right size meaning I will be replacing the hardware with better hardware. Ill send you a close up pic
Last edited:
Asnowmobiler
Member
Any heavy riders(280lbs plus gear) found a spring (preferably progressive) spring that works?
I just run A fox SLS 700lb spring
They are the right size but you had to remove the off-White plastic bushing off of the fox shock for them to fit....
Asnowmobiler
Member
How much do you weigh?
