Rail - Dropper post

[Iggy_BBR]

Currently running a 150mm OneUp dropper filly slammed on a medium frame.



[Hamina]

My Trek Rail 5 2020 XL has the original TranzX JD-YSP18 (130mm travel, internal routing, 425mm length) and it's getting a little out of shape. I could try to fix it with Oneup V1 rebuild kit but at the same time why not upgrade to.

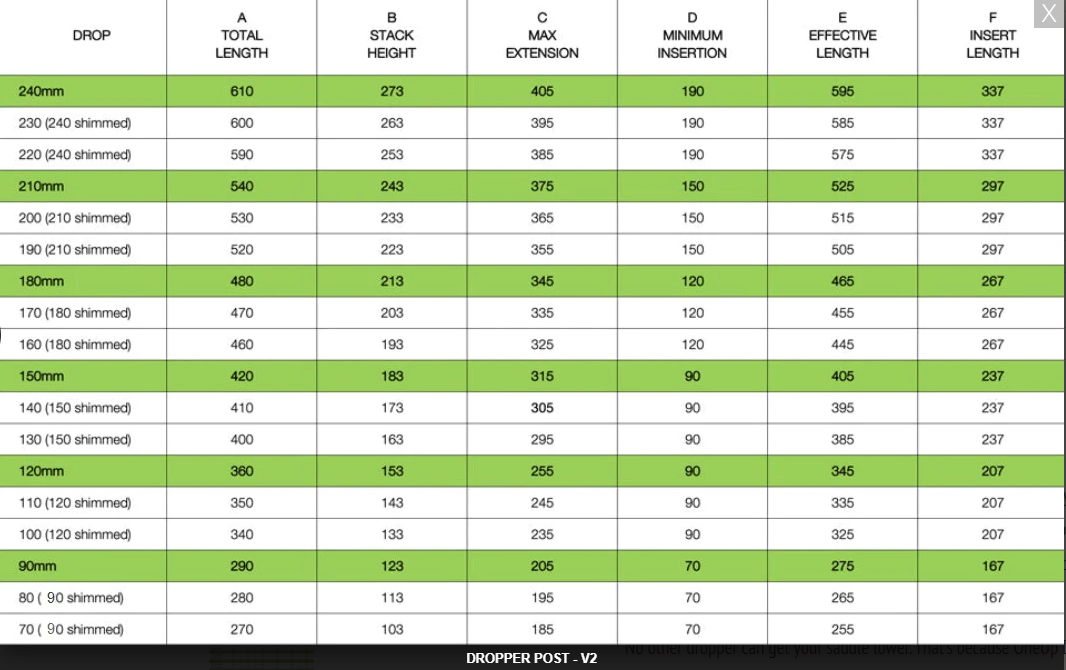

Any idea/experience if the 31,6mm/240mm/610mm could fit XL-frame?

I think it's about if the (INSERT LENGHT = 337mm) will fit.



[Stihldog]

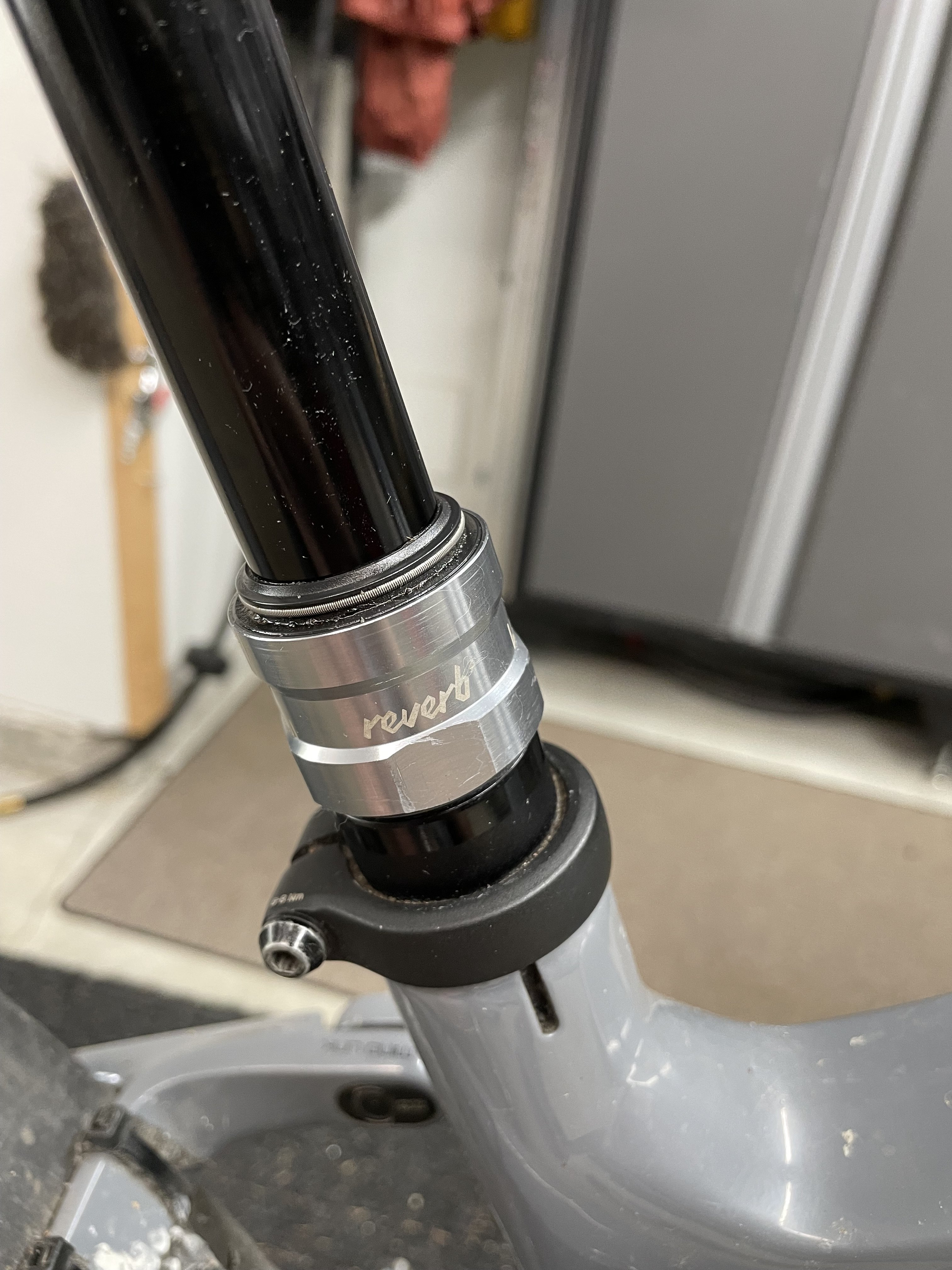

For those who decide to fit an AXS Reverb 170mm dropper into a medium sized Rail…measure carefully. Seat hight is a critical factor because the dropper bottoms out at the bend of the down-tube.

I was able to slam the post to within 5mm (or less) for the correct seat hight for me (5’9”). Having a longer dropper allowed me to drop the seat much lower for downhill drops and technical runs.
My inseam is 32” I think . This size is not for everyone but this length of dropper works perfectly for my geometry.



[Mattman]

For those who decide to fit an AXS Reverb 170mm dropper into a medium sized Rail…measure carefully. Seat hight is a critical factor because the dropper bottoms out at the bend of the down-tube.

I was able to slam the post to within 5mm (or less) for the correct seat hight for me (5’9”). Having a longer dropper allowed me to drop the seat much lower for downhill drops and technical runs. View attachment 118620
My inseam is 32” I think . This size is not for everyone but this length of dropper works perfectly for my geometry.

Do you know what the insertion length of your 170 reverb is?



[Stihldog]

Do you know what the insertion length of your 170 reverb is?

No, I don’t know, but that information is available on their site.



[Stihldog]

Do you know what the insertion length of your 170 reverb is?

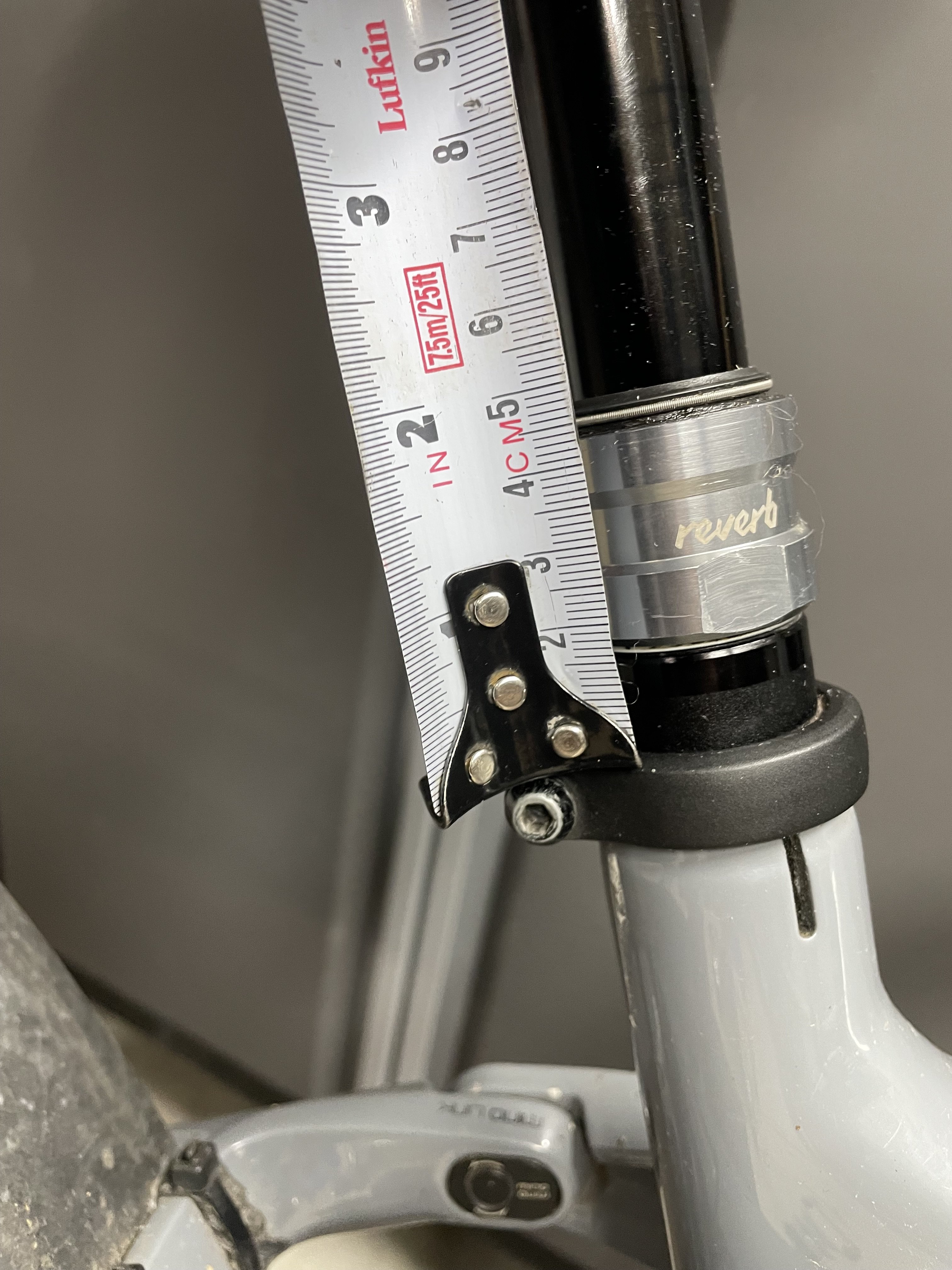

Regarding the insertion depth of the seat tube on a 2020 Rail 9.7, using a 170mm AXS Reverb dropper.

Insertion depth was measured at 234mm(when the dropper post touched the frame).

I inserted mine at 227mm. (7mm to avoid contact).



[Darren66]

I have a OneUp 210mm dropper on my XL Rail, no issues...



[JariL]

I have a OneUp 210mm dropper on my XL Rail, no issues...

Which Rail?



[Darren66]

Which Rail?

2022? Rail 5



[Mattman]

I just installed the OneUp V2 210mm dropper on my Trek Rail 7 Gen 2 ('22) size large. I am able to slam it all the way down.
