Q about modifying Bafang M600 for higher top speed

[KrisKristofer]

Good morning guys. I'm new to the forums and already see a lot of content I'm excited to dive into.

I have a question for the group.

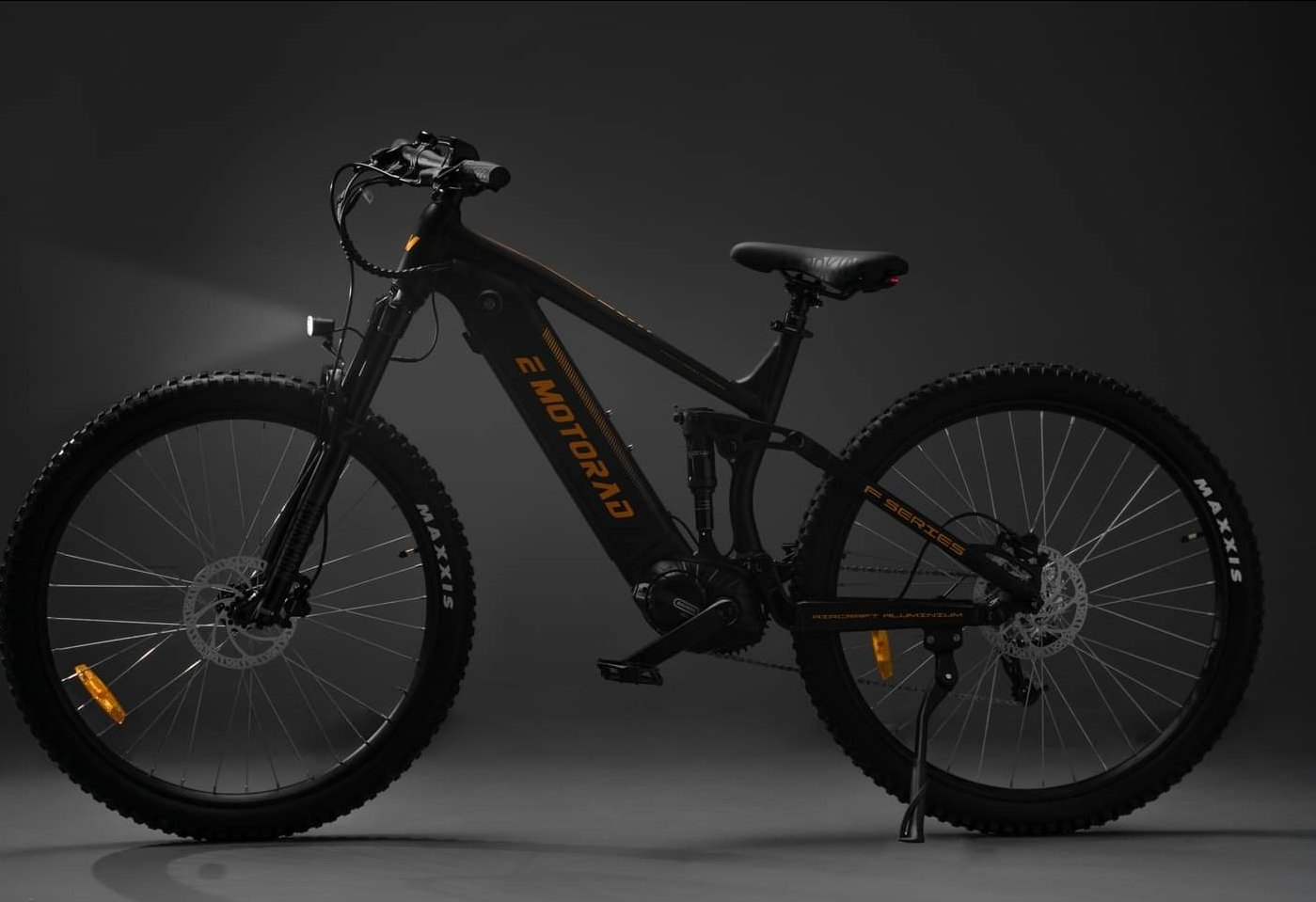

I recently bought a 2023 EMotorad Athena. It comes with a Bafang M600 motor and was surprised that it is limited to a max speed of 25 km/H.
Another model I had tested was not limited so I was a bit disappointed.
So my question is if there is a way for me to increase the max speed in any way? I see other riders in my area blitzing by on their bikes (Cube, Trek, Specialized etc) and I am quite envious.

I hope someone here can help me out, point out what I need for the job and some instructions.

Thank you in advance.



[Zimmerframe]

Have a look in motors / derestricting. Think there were a couple of bafag posts in there.



[Kyokushin]

KK blackbox from @Dado is no brainer. I am using it and no better choice.

Bafang M500, M510, M600 - speed limit offroad switch

The K1 blackbox is working perfectly for M500, M510 and M600. It fits inside frame and is completely hidden. great switch for public/offroad modes 👍Works perfect 👍 Features: - starting with 25km/h limit - limit can be adjusted by holding + or by clicking pas combination 01210. - for m510 can...

www.emtbforums.com

You may also buy the BESST interface, i have this one too, but if you want something for easy and 'daily' - pick the above blackbox.



[Dado]

And now new one, guys.

K1 Flash

1. Can set all the parameters: Speed limit unlock , power level settings, circumference, acceleration, rpm and also calibration can be run.

Simple to use: just edit file on SD card with your desire parameters, insert SD card, connevt CAN connector, wait 5 seconds and done!

- Speed limit, Circumference and Wheel is supported by all Bafang CAN bus motors. Even hub motors with bafang controller.

-Power adjustments are supported by: M510, M630 and M560


2. Firmware update.
AutoFlash - device will chose best
firmware from SD directory /AutoFlash
ForceFlash - upload your bin file on SD
card to /ForceFlash direvtory and upload to your motor.

Now everybody can flash firmware. Simple as inserting SD card and connecting CAN connector.

Advantages:
- No need to have Besst and looking for account password (passwords are outdating after few weeks)
- You can set any speed. Besst is not allowing you set higher speed then 28kmh.
- No need to looking for bin firmware files. Including SD card with my set of firmwares. Including some custom made and testing firmwares.
- can be updated (so in the future will be supporting firmware flash also for M620, M630, M560)
- Great also for ebike shops. You can flash also on the street, and in one go - Flash firmware, set motor parameters and run rotor calibration. Takes only 1 minute!


Preorder for special price 140Eur including shipping at [email protected]
