New Orbea Wild with One Up pump on bottle cage

[Zave]

Has anybody managed to make it fit?
I've tried but it fouls with the struts.



[BIG-DUKE-6]

What kind of sorcery is going on in this thread. Fouling? Struts? My beloved Wild?!?!
Forcing it to fit???

OP seek help and anger management. We are here for you .

Sort of…..



[paal]

Yeah, those struts really do suck.

I sawed the mount that came with the pump so the remaining part was just a simple "U-shape" with the rubber strap. Then I drilled 2 new holes in it to secure it to the frame.
It obviously wont combo with a water bottle this way, but I'm fine with that.

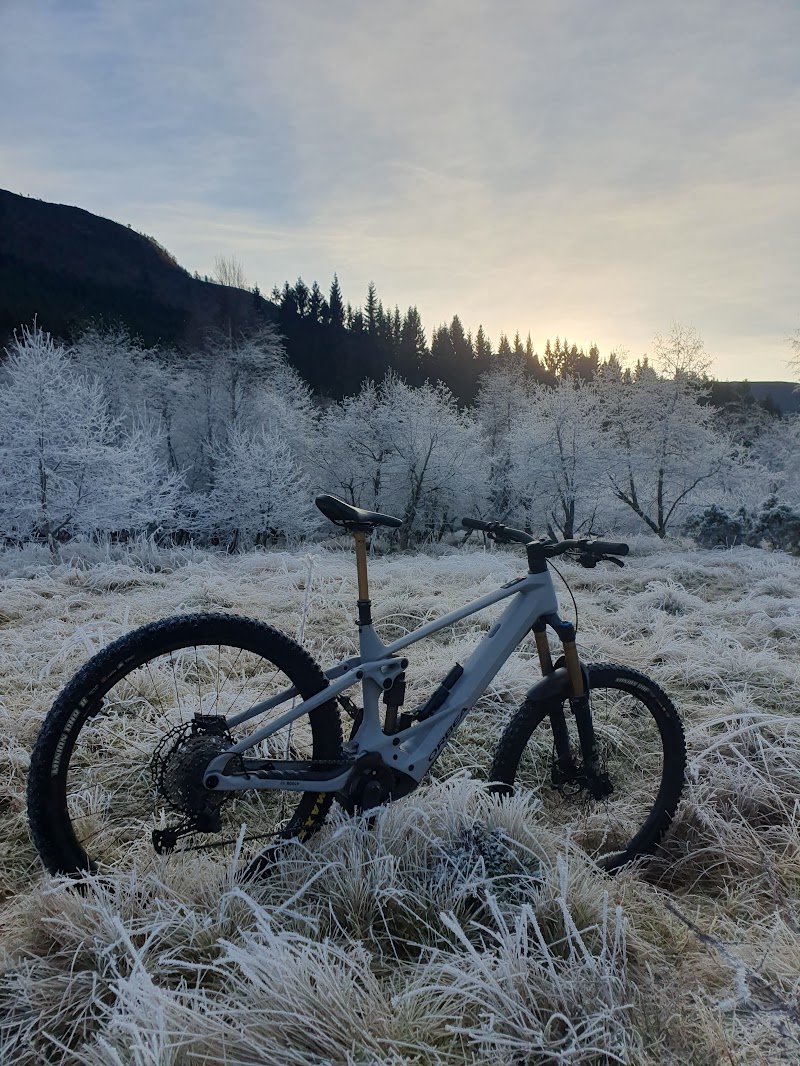

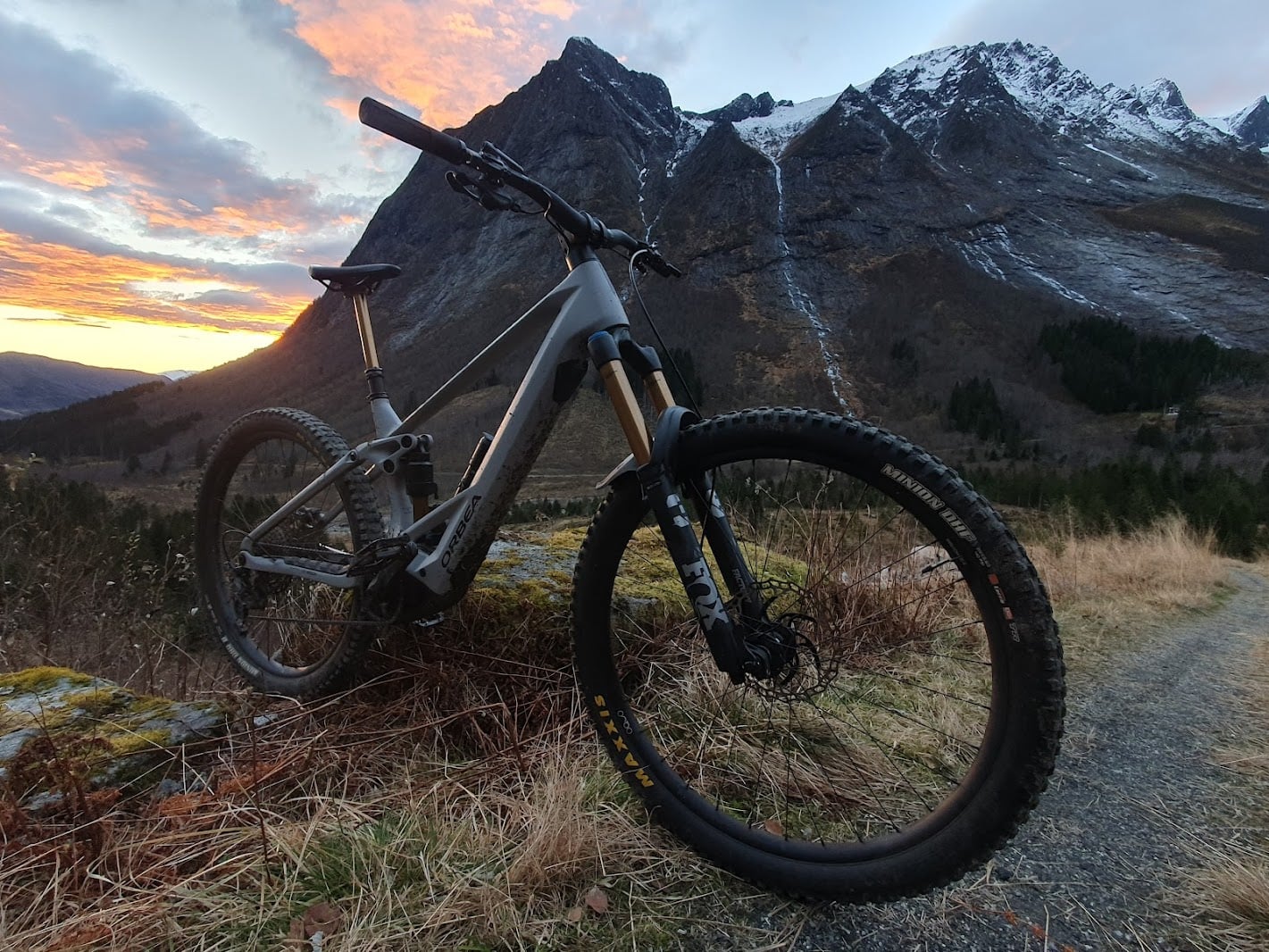

The only pics I had laying around that shows the pump:



[Zave]

Yeah, those struts really do suck.

I sawed the mount that came with the pump so the remaining part was just a simple "U-shape" with the rubber strap. Then I drilled 2 new holes in it to secure it to the frame.
It obviously wont combo with a water bottle this way, but I'm fine with that.

The only pics I had laying around that shows the pump:

View attachment 129829

View attachment 129830

Like an inline mount which one-up now sell. Want to keep the water bottle though



[VWsurfbum]

Oh no, I hadnt thought of this, is there mounting holes on the underside of the top tube? mine hasnt arrived yet and i run a bottle and pump mount.



[paal]

Oh no, I hadnt thought of this, is there mounting holes on the underside of the top tube? mine hasnt arrived yet and i run a bottle and pump mount.

Unfortunately, no.



[BIG-DUKE-6]

Isn’t there a bottle cage out there you can mount a pump to?!?! Seems it would be pretty easy with some zip ties.



[VWsurfbum]

my current pump holder sits under the side entry cage, so this means i'll have to get a new bottle cage and pump mount.



[Zave]

my current pump holder sits under the side entry cage, so this means i'll have to get a new bottle cage and pump mount.

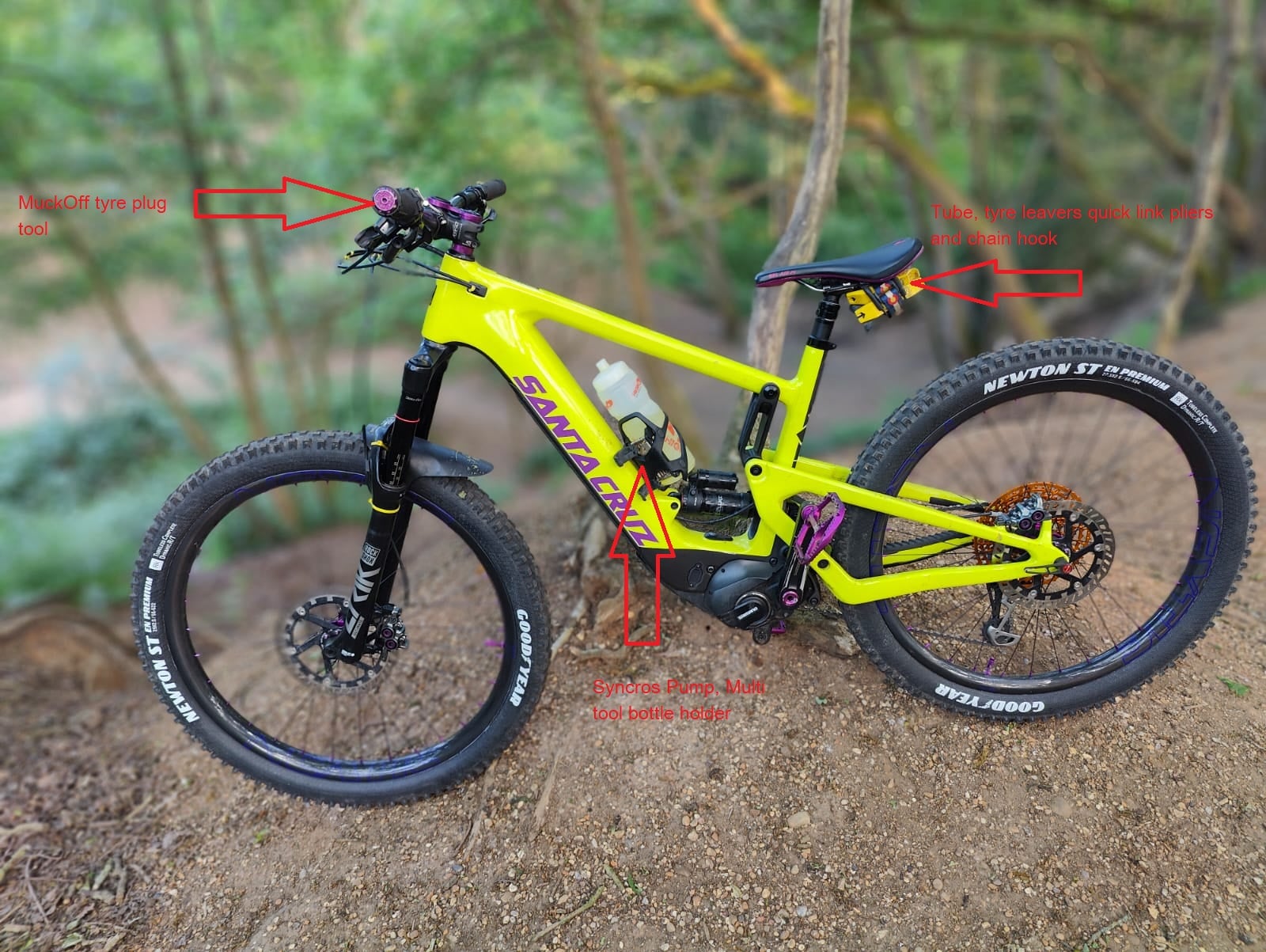

View attachment 129895

It's not gonna fit the new Wild like that



[VWsurfbum]

It's not gonna fit the new Wild like that

Yeah, need to see what I can fit and where i can fit it (when the dam thing turns up! )



[Kermit]

INLINE PUMP MOUNT – 76 Projects

For OneUp EDC Pump Universal stick-on or bolt-on mounting to the centre line of your frame. Bolt-on - Pop out the slot covers and directly mounts to frame bosses (standard 64mm spacing with 5mm of adjustment).Ideal for the under top tube bosses seen on recent bikes from Forbidden, Deviate...

76projects.com



[VWsurfbum]

INLINE PUMP MOUNT – 76 Projects

For OneUp EDC Pump Universal stick-on or bolt-on mounting to the centre line of your frame. Bolt-on - Pop out the slot covers and directly mounts to frame bosses (standard 64mm spacing with 5mm of adjustment).Ideal for the under top tube bosses seen on recent bikes from Forbidden, Deviate...

76projects.com

This is the way.



[Zave]

Perfect!
Just ordered one. Thanks for that.



[VWsurfbum]

So I fitted the pump on the mount on the underside of the top tube. I didn't notice it had fallen off on my driveway until I had got back from my ride (glad I didn't lose it or need it) but now I need to re-stick it, I think because the frame is ceramic coated I don't think the pad stuck enough. (yes I had used the wipe to clean surfaces)



[Zave]

So I fitted the pump on the mount on the underside of the top tube. I didn't notice it had fallen off on my driveway until I had got back from my ride (glad I didn't lose it or need it) but now I need to re-stick it, I think because the frame is ceramic coated I don't think the pad stuck enough. (yes I had used the wipe to clean surfaces)

The pad part is concaved. Whereas the underside of toptube is flat. I held mine in place with zip ties whilst the glue in the 3m pad went off. So far so good



[VWsurfbum]

The pad part is concaved. Whereas the underside of toptube is flat. I held mine in place with zip ties whilst the glue in the 3m pad went off. So far so good

Top tip that!



[Chriso82]

just use a bottle rad adapter. On a,azon for £6.00 far cheaper than the wolf tools one. It moves the bottle mount up the frame and then you pump also fits



[Zave]

just use a bottle rad adapter. On a,azon for £6.00 far cheaper than the wolf tools one. It moves the bottle mount up the frame and then you pump also fits

Do you have a photo of it on your Wild?



[VWsurfbum]

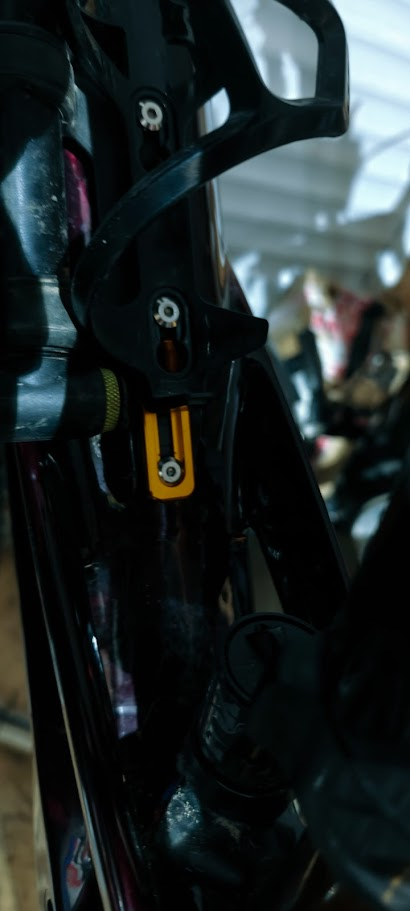

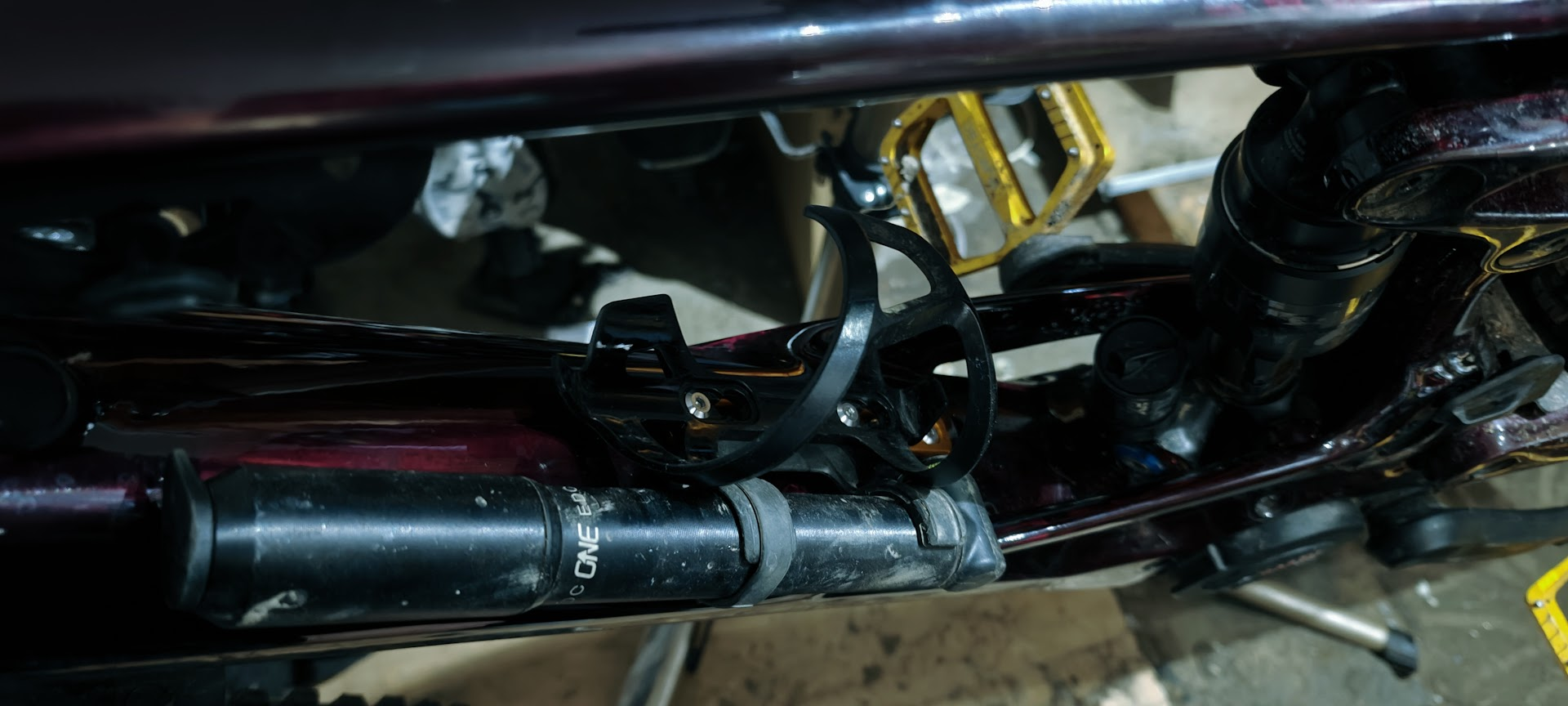

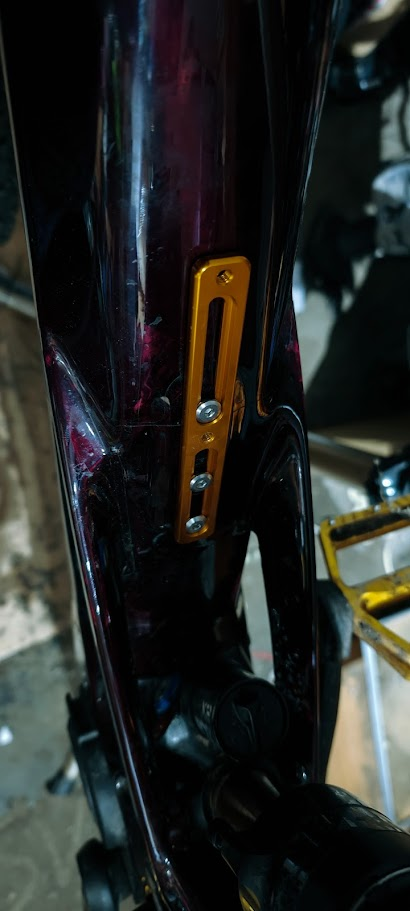

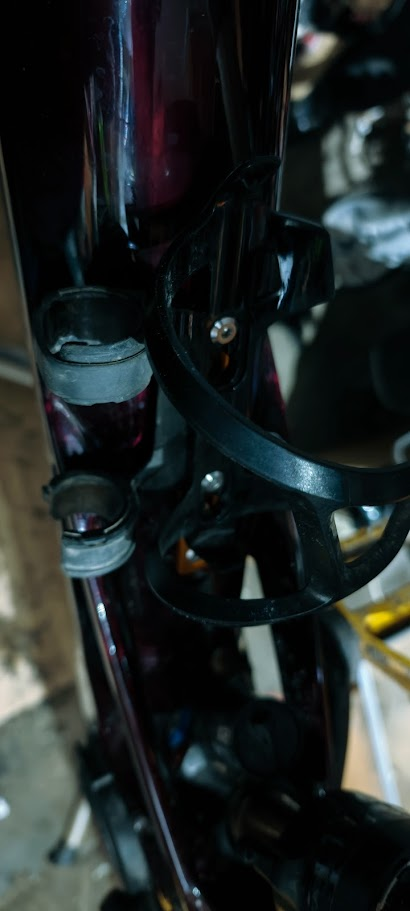

Just fitted a bottle cage extender.
was paranoid i was going to lose my pump and not realise.



[BiGJZ74]

Just fitted a bottle cage extender.
was paranoid i was going to lose my pump and not realise.
View attachment 134567 View attachment 134568 View attachment 134569 View attachment 134570

Nice I was just gonna recommend the Wolftooth B-Rad system which is basically the same thing.



[Ark]

INLINE PUMP MOUNT – 76 Projects

For OneUp EDC Pump Universal stick-on or bolt-on mounting to the centre line of your frame. Bolt-on - Pop out the slot covers and directly mounts to frame bosses (standard 64mm spacing with 5mm of adjustment).Ideal for the under top tube bosses seen on recent bikes from Forbidden, Deviate...

76projects.com

Their cable bobbins are awesome too CABLE BOBBINS – 76 Projects
