Levo Gen 3 How do you remove the chainring ?

[cfrea]

Whats the best way to remove the chainring on the Levo? I tried doing it with the crank on and holding the little nuts on the back side with a wrnech but it just keeps spinning on me



[Christurbo]

Whats the best way to remove the chainring on the Levo? I tried doing it with the crank on and holding the little nuts on the back side with a wrnech but it just keeps spinning on me

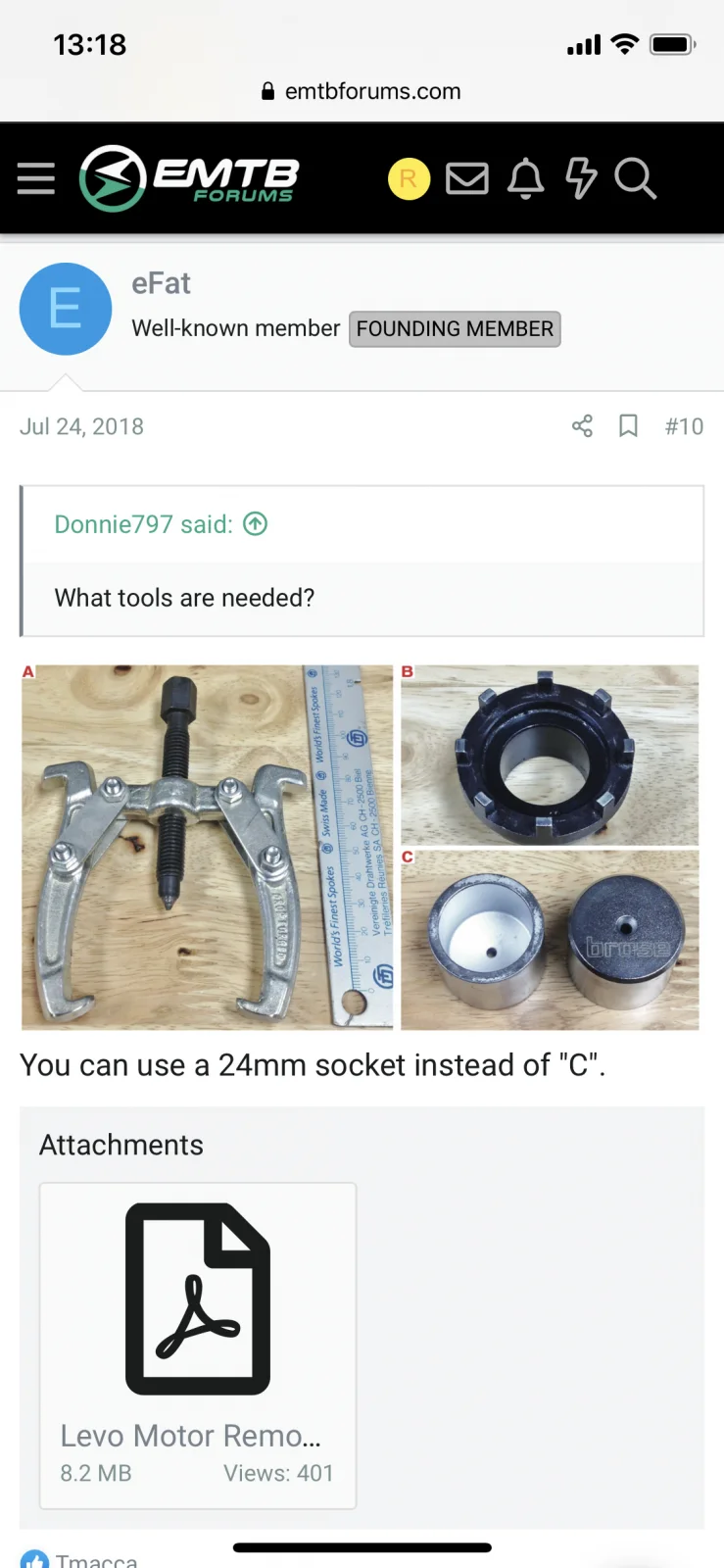

Why don’t you just remove the cranks, plastic nut and use a gear puller to pop the chainring off? Easily done and how I do it.



[Rich-H]



[RiderOnTheStorm]

You shouldn't have to remove the crank. May be just the right pedal (to be able to slide the chainring out after removing the bolts).

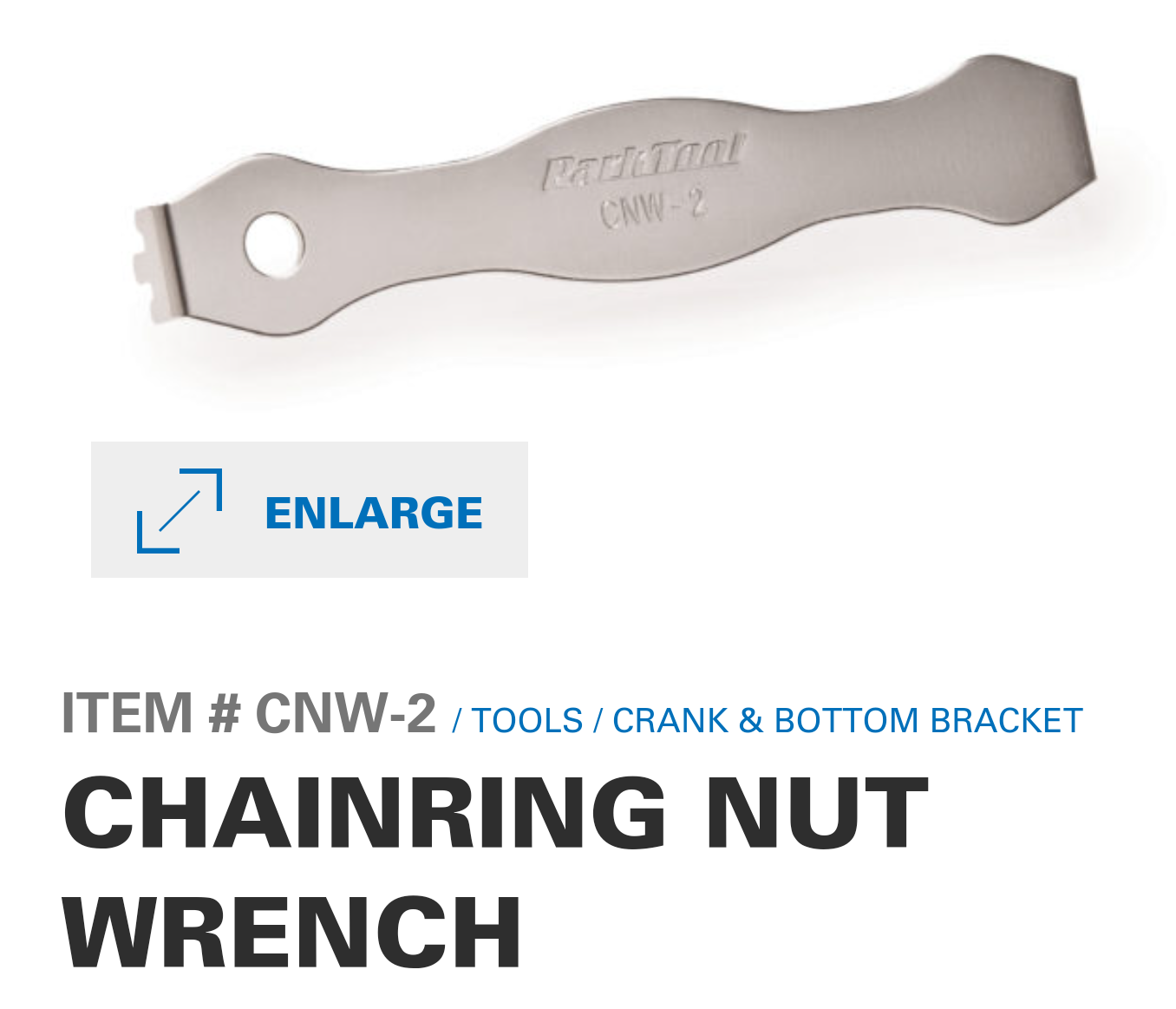

When I replaced my chainring, I used a special wrench from Park Tool (below) to hold the slotted chainring nuts in place while loosening or tightening the bolt. Chainring disassembly and re-installation was fairly quick and easy.

Just make sure you Locktite the bolts after replacing the chainring.



[RickBullotta]

You shouldn't have to remove the crank. May be just the right pedal (to be able to slide the chainring out after removing the bolts).

When I replaced my chainring, I used a special wrench from Park Tool (below) to hold the slotted chainring nuts in place while loosening or tightening the bolt. Chainring disassembly and re-installation was fairly quick and easy.

Just make sure you Locktite the bolts after replacing the chainring.

I needed to remove the crank and spider to get my chainring off. It wasn't possible to get adequate leverage on the back side of the crank bolts in my case.



[cfrea]

Well I remvoed the crank but still cant get the cahinring off as it wont come off the spider without taking the spider off



[RickBullotta]

Well I remvoed the crank but still cant get the cahinring off as it wont come off the spider without taking the spider off

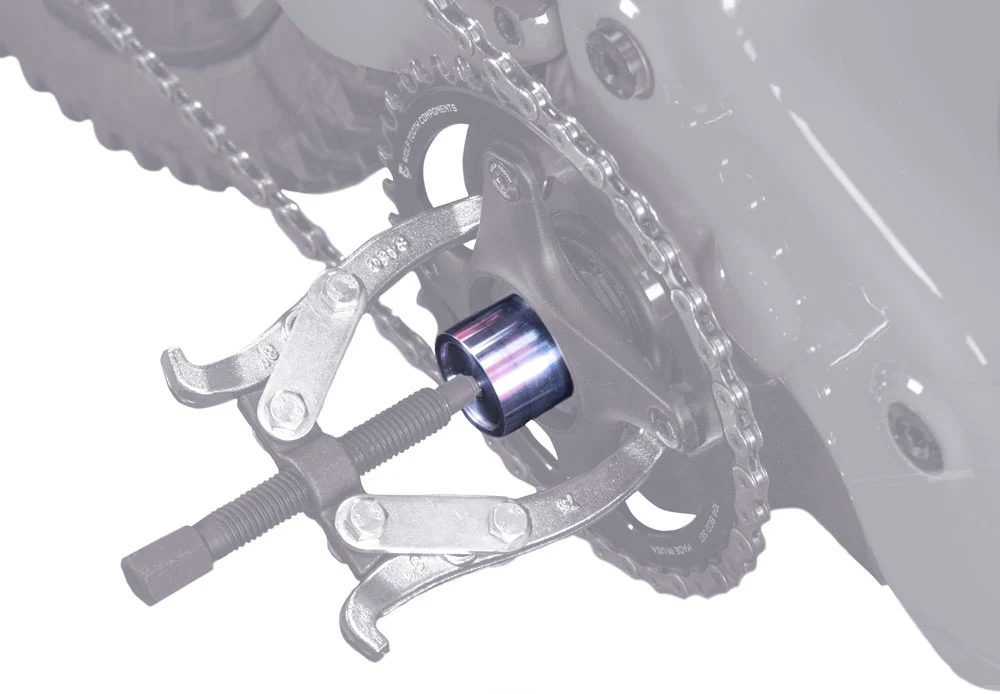

Yup - edited my comment. I meant to say crank arm + spider. I used the lockring tool and a gear puller, as suggested above.



[cfrea]

Yup - edited my comment. I meant to say crank arm + spider. I used the lockring tool and a gear puller, as suggested above.

Off to my bike shop to get the tool lol. Was the lock ring torqued or does it unthread easily with a 32mm socket?



[RickBullotta]

Off to my bike shop to get the tool lol. Was the lock ring torqued or does it unthread easily with a 32mm socket?

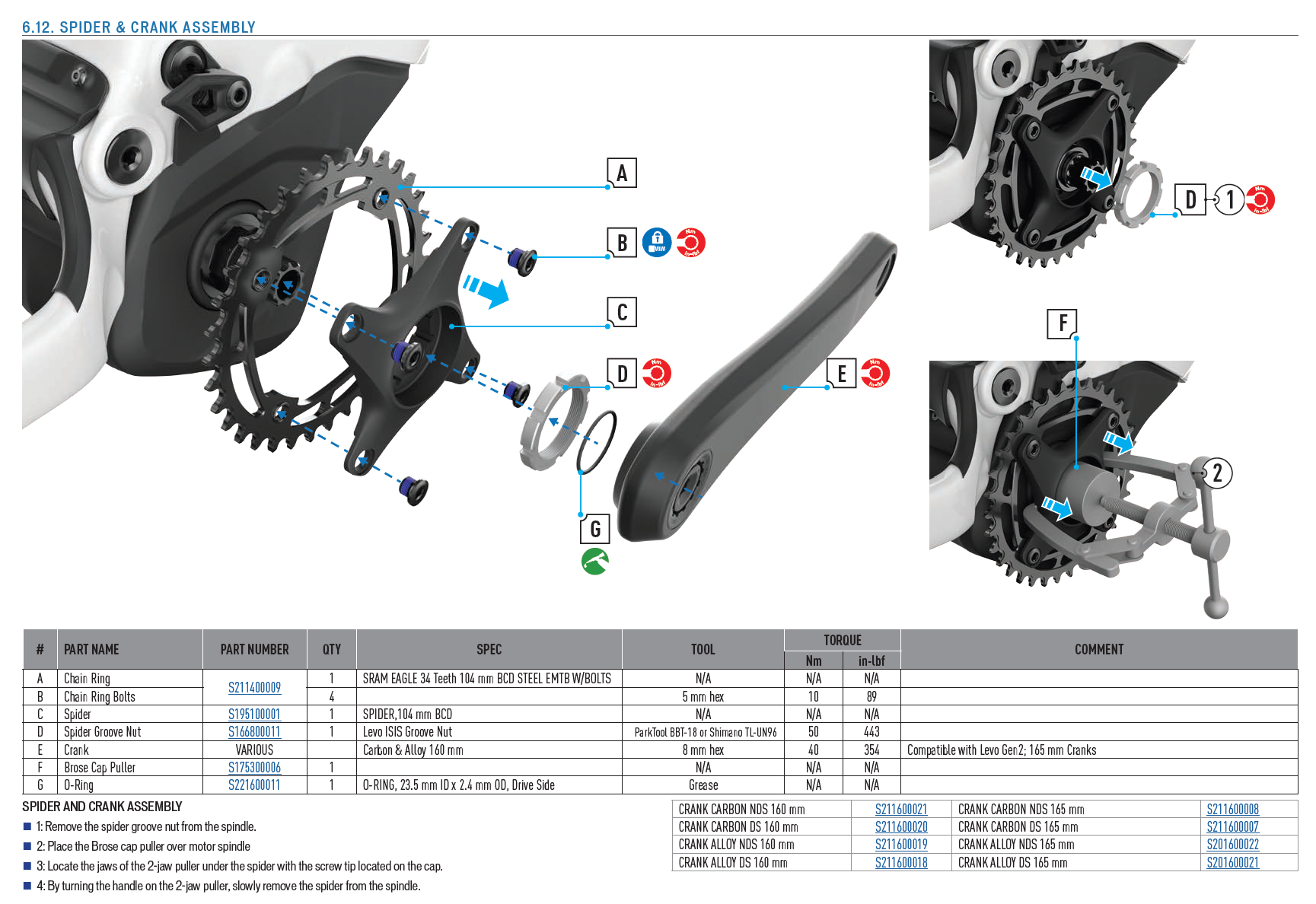

It's on there quite tight. The torque spec is 50 Nm or so if I recall for my 2022 Levo.



[cfrea]

It's on there quite tight. The torque spec is 50 Nm or so if I recall for my 2022 Levo.

The castle nut is at 50nm or the 8mm holding the crank arm?



[cfrea]

The castle nut is at 50nm or the 8mm holding the crank arm?

NVm youre right
