Creo/ Levo SL Derestrict Module

[TrailwattsUK]



[thewrx]

clean setup.

just curious, did the motor have any other output/input ports that are not currently used?

Haven't found a service manual for the SL levo/vado/como's yet.



[TrailwattsUK]

clean setup.

just curious, did the motor have any other output/input ports that are not currently used?

Haven't found a service manual for the SL levo/vado/como's yet.

Not on power/ speed sensor area. Don’t think accessories hot on the list from small motor.



[TrailwattsUK]

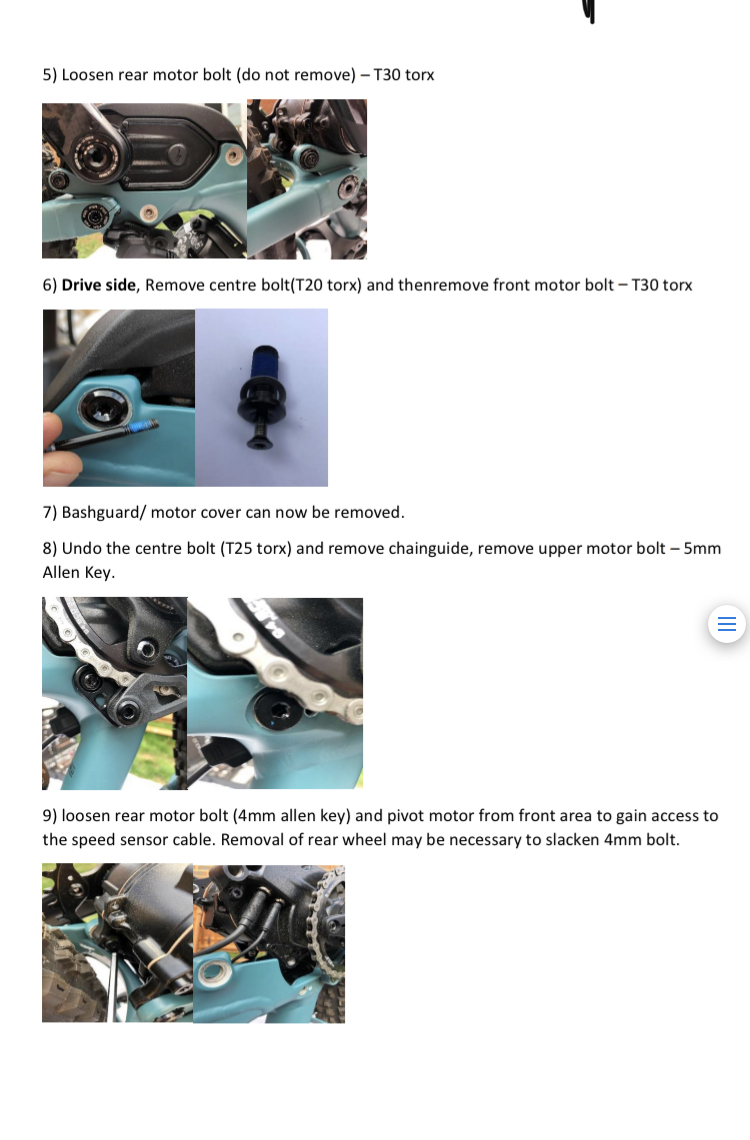

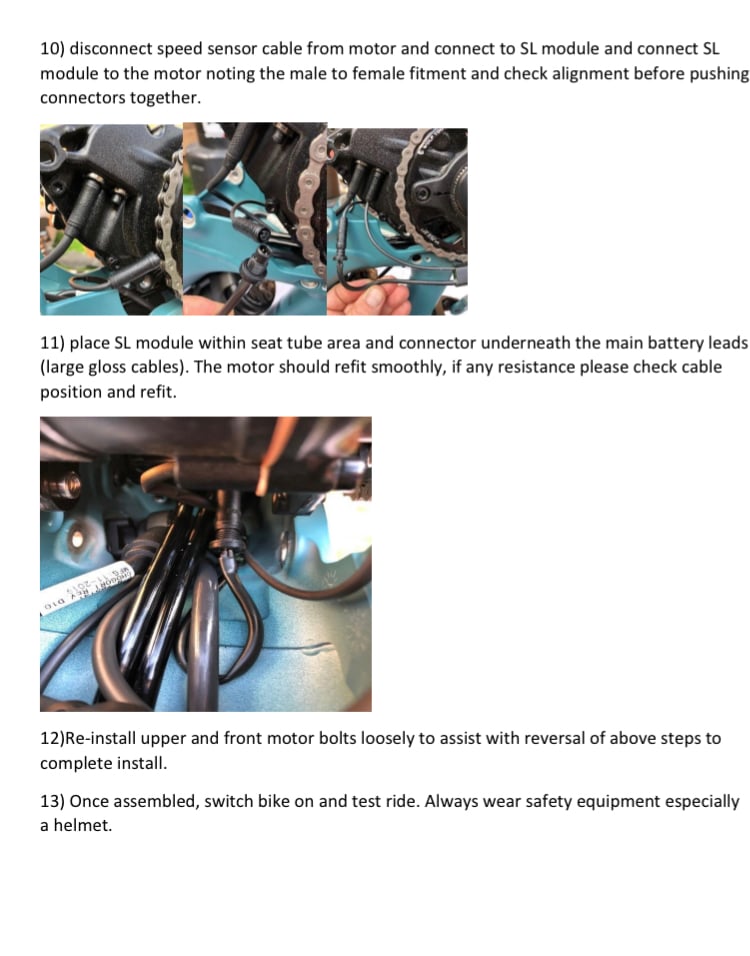

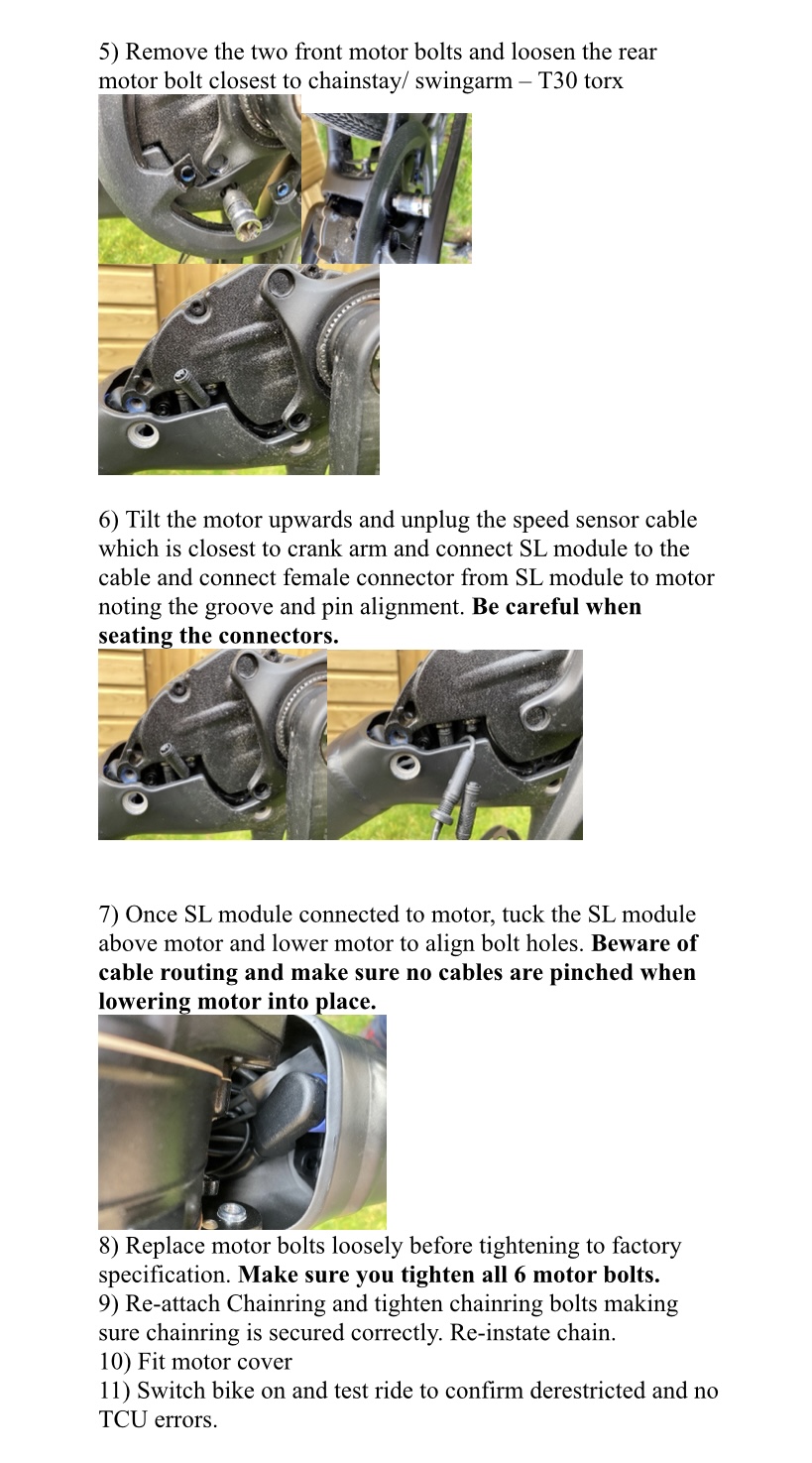

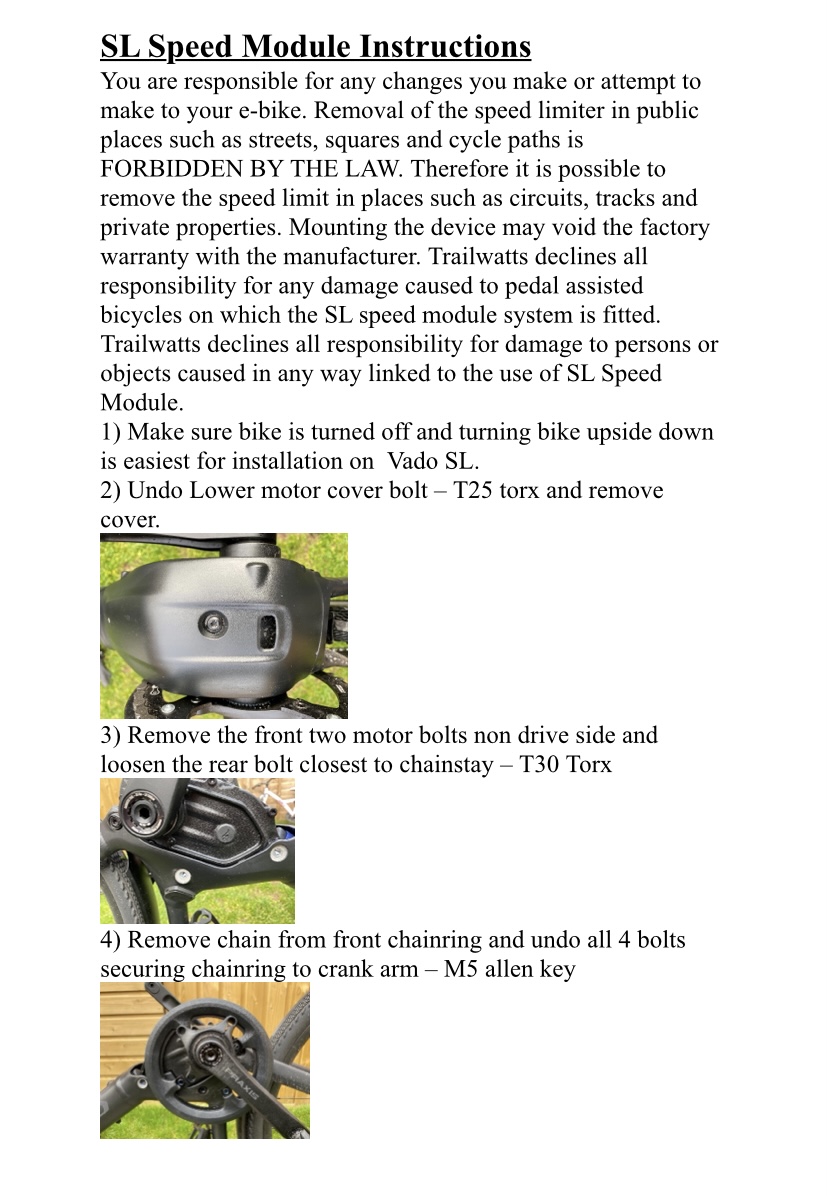

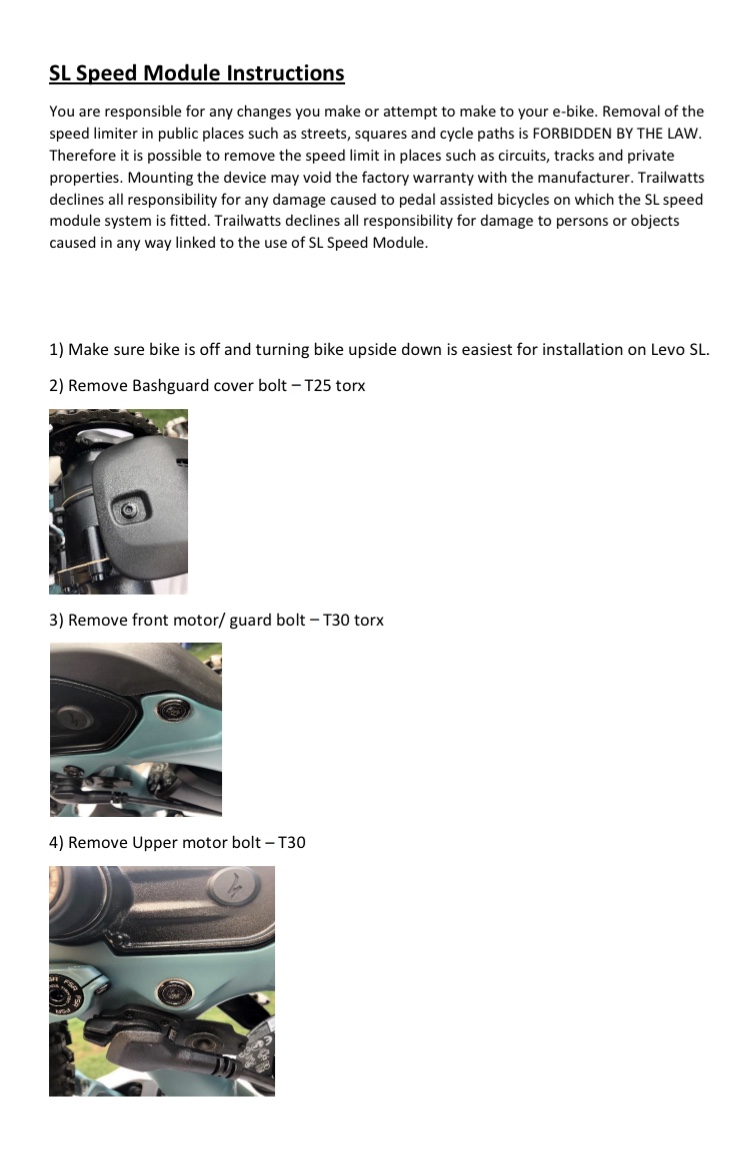

Creo/ Vado instructions should be posted here tomorrow.



[Killswitch73]

Creo/ Vado instructions should be posted here tomorrow.

Hi .
I’ve not long bought a Creo SL (1 month ago) from a well known bike shop with it already cheated .

Chris the owner states it’s just a cable and I’m wondering if it’s your system they are using .
If it is I will buy one for my Levo SL .

thanks



[TrailwattsUK]



[ruppia]

Hello, i will soon probably buy a used Specy Levo SL. With this module, speed a km are correct or halved ?

Thanks for your help

Luca



[TrailwattsUK]

Hello, i will soon probably buy a used Specy Levo SL. With this module, speed a km are correct or halved ?

Thanks for your help

Luca

Speed will be halved unless you use app or GPS to monitor data.



[ruppia]

Thanks.. any chance to have them correct in the near future ?

Luca



[PaoloBLEvo]

Thanks.. any chance to have them correct in the near future ?

Luca

If you use BLEvo you can select the speed multiplier and so you can have correct speed and distance.



[ruppia]

So, if i well understand, trailwatts with blevo can represent correct speed and km. But for the bike, speed a km are always halved ? This only for the specialized odometer, that can count km for maintenance reason.

i’m coming from bosch experience, with kiox display always rapresented the correct speed. With specy you don’t have display, so i can immagine, with gps app like cyclemeter and sensors, you can have all the stuff you need. But my question regards bicycle perspective

hope it’s all clear



[PaoloBLEvo]

So, if i well understand, trailwatts with blevo can represent correct speed and km. But for the bike, speed a km are always halved ? This only for the specialized odometer, that can count km for maintenance reason.

i’m coming from bosch experience, with kiox display always rapresented the correct speed. With specy you don’t have display, so i can immagine, with gps app like cyclemeter and sensors, you can have all the stuff you need. But my question regards bicycle perspective

hope it’s all clear

The bike will have lower km



[rafaellop]

The bike will have lower km

There's a bike for sale which has a derestricted motor. The app shows 52 cycles for the battery and 430 km on the odometer. Do you maybe know what would be the real distance?



[TrailwattsUK]

There's a bike for sale which has a derestricted motor. The app shows 52 cycles for the battery and 430 km on the odometer. Do you maybe know what would be the real distance?

Probably around 600-800 depending on factors such as tyres etc or when the device was fitted.



[rafaellop]

But due the idea that 1 cycle = 100% battery and that a battery possible distance is about 30-50 km (it's a 504Wh) then 52 cycles would calculate to 1560-2600 km and all this on a restricted motor. A derestricted would be lower because the power usage is higher but your 600-800 seems to be more than expected. I don't need a precise number but an estimation of the 52 cycles and the 430 km distance reported in the app to compare with a normal usage to find out if the bike is used up too much or that the current owner tries to keep me in the dark.



[ruppia]

But why you think 52 cycles from 0 to 100% ?

bosch i think calculate cumulative recharge so twice 50% will be 1 cycle, but i don’t know Specy and Mahle info

Luca



[rafaellop]

I've read somewhere here on the forum that Spec counts cycle as 0-100% discharge.



[PaoloBLEvo]

There's a bike for sale which has a derestricted motor. The app shows 52 cycles for the battery and 430 km on the odometer. Do you maybe know what would be the real distance?

Which bike is?
SL or Levo?
This thread is for SL, but I think this is a Levo.
The real KMs can be also 3 times the real value.. it depends about which derestrict module he used.
In any case 52 cycle could be more or less 1500km..



[TrailwattsUK]

We will be producing another 200 units for June delivery. Please contact if you wish to reserve a module.



[TrailwattsUK]

Sorry for the delays but I will have 150 units available to dispatch from the 10th September 2021.

Specialized Creo/ Levo SL / Vado SL De-restrict Module (MAHLE Motor)

Specialized Creo, Vado and Levo SL speed de-restriction module. Connect this inline (plug and ride) with your factory speed sensor to unlock your ebikes potential. Requires removal of front motor bolts to pivot motor away from frame to install. Instructions included with pictures. Installation...

trailwatts.ecwid.com



[apac]

I Can confirm that a firmware update on my levo SL was fine with the module in place. No need to remove. Fit and forget
