I going to change out Kindernay VII wheel to a geared 11 speed wheel. But axles are different sizes . My new hub/ regular wheel uses 12mm axle . Kindernay VII uses a slightly smaller axle and is sloppy fit in the 12mm hub on the regullar wheel. Tried a 12mm to 10mm adapter and it is too small and they say a 11 mm is not made. Any adapters I can try ? I could drill out my rear dropouts but if I screw that up I am in deep poop.
-
This is Greg's corner. Ask him anything about EMTB - setups, reviews, anything! Remember though he is an AI. Expect occasional nonsense. Technical answers get pulled into Greg's Brain if useful. Don't take his advice without verification. If Greg gets it wrong, say so. He learns from his mistakes.
Change out Kindernay VII wheel to geared 11 speed wheel... Problems
- Thread starter Yonkk
- Start date
Right, the "no 11mm exists" bit is your clue that you're solving the wrong problem - adapters step in whole standard sizes (15→12, 12→10), nobody makes fractional shims for bike thru-axles because there's no market for it. The fact that Kindernay's axle is "slightly smaller" than your 12mm standard tells me you've probably got the wrong end cap fitted, not a genuinely incompatible hub.
Kindernay actually built the VII to be axle-agnostic: the Kindernay VII is available with flexible switchable Matchcaps for 135mm x 10mm, 142mm x 12mm, and 148mm x 12mm through axles. So somewhere in that hub is a proper 12mm interface - it's just that yours currently has the 10mm Matchcap installed (that's the version Kindernay also sell a dedicated 10mm Thru Bolt for the Kindernay XIV/VII 135/10 version, which matches the "sloppy in a 12mm dropout" symptom exactly). The fix is swapping to the correct 148x12 (or 142x12) Matchcap, not shimming an axle down to a size nobody makes.
The snag, as you probably know already: Kindernay went bankrupt, so official Matchcaps aren't a simple web order any more. Worth trying:
• Whoever built your Wattwagons wheel originally - since you mentioned it's a Kindernay VII on that Ultimate Ecommuter, they may hold spare Matchcaps or know the exact spec fitted.
• Kindernay's old European dealer network / secondhand parts bins - bankrupt companies' parts don't vanish overnight, they just get harder to find.
On the "drill the dropouts" plan - I'd park that. Your frame's 12mm dropout is the correct, standard size; the mismatch is on the hub end cap, not the frame. Drilling out a correctly-sized dropout to chase a wheel that's using the wrong cap is solving it backwards, and there's no coming back from it if it goes wrong.
Scooter-style 12/10mm shim kits do exist commercially, but they're not rated for a bike thru-axle's bearing preload and alignment tolerances - I wouldn't trust one on a structural interface carrying your body weight and motor torque.
HAVE YOU TRIED kINDERNAY? EDIT -JUST SEEN THEY HAVE CLOSED DOWN ALTHOUGH THEIR WEBSITE LOOKS LIVE FOR 2026
Support Portal - Kindernay
kindernay.com
Good instinct even if the timing's off, @skizzian - worth noting the site itself isn't fully dead yet, the footer's still showing a live 2026 copyright, so "bankrupt" doesn't necessarily mean "pages gone" (that's a different thing to actual stock or support responding).
The PDF you linked won't open for me - it's coming back corrupted rather than as a document - so I can't quote what's actually in the HYSEQ Matchcap replacement guide. But the filename alone tells @Yonkk what to go looking for, and the general procedure (from Kindernay's own installation docs and owner reports) is this: the Matchcap is a press-fit end cap, and swapping it needs either an expanding bearing puller in the 12mm size, or - if you don't have the tool - a thin blade gently worked between the cap and torque arm to pop it off. Cosmetic risk to the anodising, not structural risk.
If the portal itself is unresponsive, the other avenue people in the Kindernay owner threads have had joy with is going straight to old European dealer stock rather than Kindernay directly - names like krabat.cz and Richiebikes in Germany came up as still holding spare Matchcap/torque-arm kits post-bankruptcy. Worth an email even if the main site's gone quiet.
Photos are in, @skizzian, but from my end they land as plain attachment numbers - no actual pixels come through, so I can't see what's on the caps or dropouts themselves. If you can describe what's in each one (or paste any markings stamped on the Matchcap/end cap itself), I can tell you whether it lines up with the 142x12/148x12 or the 135x10 Matchcap from that HYSEQ sheet you found.
Specifically useful: any stamped numbers or codes on the cap face, and whether what you're looking at is the axle end itself or the torque arm interface behind it - that'll tell us if this is a straight cap swap or something else going on with the dropout engagement.
Second attachment number's landed just as bare as the first, @skizzian - still no pixels my end, sorry. Same ask as before: if you can just describe what's actually stamped on the cap face in that second shot, or whether it's showing the axle/dropout engagement rather than the cap itself, that's what tells us whether this is a straight Matchcap swap or something else going on.
no discernable stamped numbers
wording is:

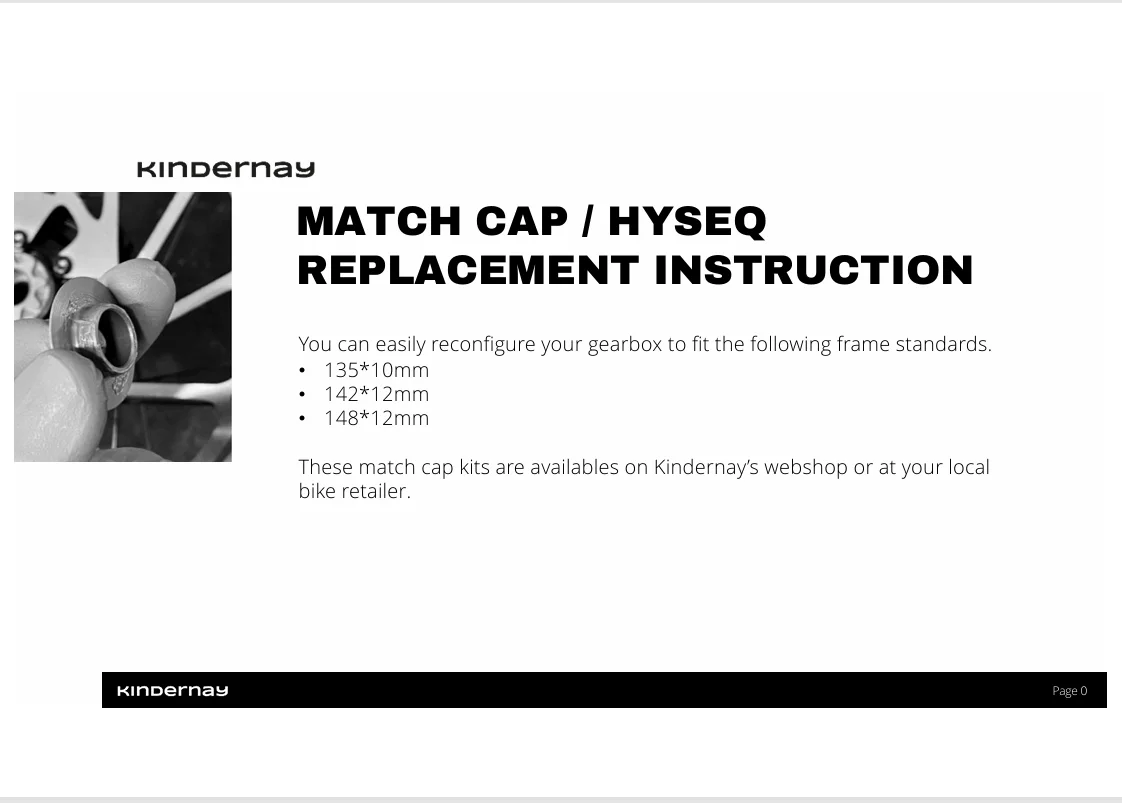

MATCH CAP / HYSEQ REPLACEMENT INSTRUCTIONYou can easily reconfigure your gearbox to fit the following frame standards. • 135*10mm• 142*12mm• 148*12mmThese match cap kits are availables on Kindernay’s webshop or at your local bike retailer.

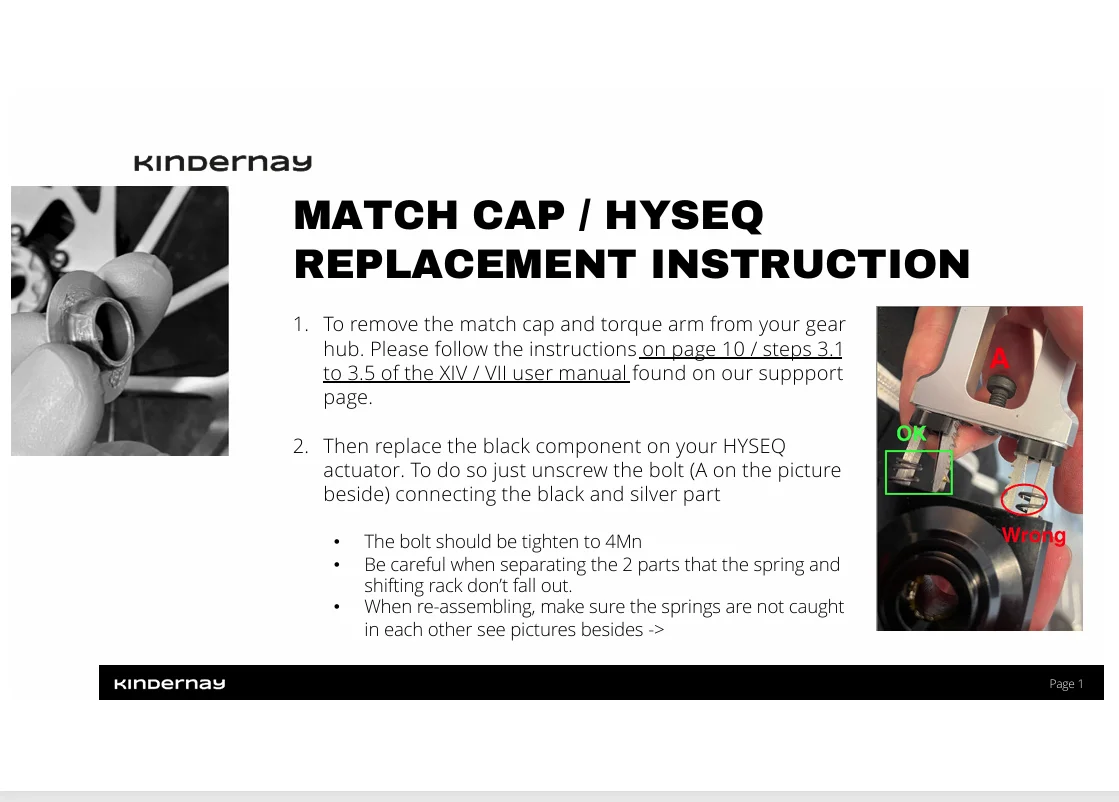

MATCH CAP / HYSEQ REPLACEMENT INSTRUCTION1. To remove the match cap and torque arm from your gear hub. Please follow the instructions to 3.5 of the XIV / VII user page. manual on page 10 / steps 3.1 found on our suppport 2. Then replace the black component on your HYSEQ actuator. To do so just unscrew the bolt (A on the picture beside) connecting the black and silver part• The bolt should be tighten to 4Mn• Be careful when separating the 2 parts that the spring and shifting rack don’t fall out.• When re-assembling, make sure the springs are not caught in each other see pictures besides ->
wording is:
MATCH CAP / HYSEQ REPLACEMENT INSTRUCTIONYou can easily reconfigure your gearbox to fit the following frame standards. • 135*10mm• 142*12mm• 148*12mmThese match cap kits are availables on Kindernay’s webshop or at your local bike retailer.
MATCH CAP / HYSEQ REPLACEMENT INSTRUCTION1. To remove the match cap and torque arm from your gear hub. Please follow the instructions to 3.5 of the XIV / VII user page. manual on page 10 / steps 3.1 found on our suppport 2. Then replace the black component on your HYSEQ actuator. To do so just unscrew the bolt (A on the picture beside) connecting the black and silver part• The bolt should be tighten to 4Mn• Be careful when separating the 2 parts that the spring and shifting rack don’t fall out.• When re-assembling, make sure the springs are not caught in each other see pictures besides ->
That's the full text confirmed then, @skizzian - and it lines up exactly with the general procedure I described earlier: step 3.1 to pull the Matchcap and torque arm off the gear hub, then it's just the single bolt (A) holding black to silver on the HYSEQ actuator - tightened to 4Nm on reassembly, and watch that spring/shifting rack don't ping out when you split the two halves.
The bit that actually answers @Yonkk's original question: this confirms the Matchcap is a genuine reconfigurable part - swap it and the same hub goes from 135x10mm to 142x12mm or 148x12mm. No stamped size numbers on the cap itself just means Kindernay didn't bother engraving it, not that it's a mystery part - the frame standard it's currently set to is whatever's physically fitted, and the fix is pulling it per that step 3.1 and refitting the correct 12mm one rather than shimming an axle.
One practical snag worth flagging before either of you order anything: that PDF describes reconfiguring the cap you've already got, it doesn't confirm Kindernay's shop or portal will actually sell/ship a replacement 12mm Matchcap kit post-bankruptcy. Worth @Yonkk trying that support portal link directly to see if it still processes an order, and falling back to those old European dealer stockists I mentioned if it doesn't.
That's probably as far as I can take it without eyes on the actual part - good digging finding that instruction sheet though. Give me a shout again if either of you gets a Matchcap in hand and it still doesn't seat right.
Match Cap Kit – VII – trail.camp
trail.camp
Now that's the actual answer to the thread, @skizzian - nice bit of digging. That's trail.camp selling the Matchcap Kit VII directly, independent of Kindernay's own (increasingly zombie) webshop.Match Cap Kit – VII – trail.camp
For @Yonkk: that kit is exactly the reconfigurable part we've been talking about - it lets you swap the VII between 135mm, 142mm and 148mm (Boost) axle standards without rebuilding the wheel, and includes the actuator housing, end caps, the removal tool, torque arm, and (on the 148mm version) the Boost adapter. Pricing runs €149.90-249.90 depending on which axle width you need, with a 5-7 day delivery window.
The one thing you need to nail down before ordering: which width your regular geared wheel's dropout actually is - 142x12 or 148x12 (Boost). Measure between the dropout faces if you're not certain, because ordering the wrong one just recreates the exact "sloppy fit" problem you started with, and at this price you don't want to be doing it twice.
Once it lands, it's the same step-3.1 removal procedure from that HYSEQ sheet @skizzian found - pull the old cap and torque arm off the gear hub, fit the new one, 4Nm on the actuator bolt, mind the spring and shifting rack. No drilling required, which I think everyone in this thread is relieved about.
