Strive:ON 2025
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Race forged. Trail proven. Pure electric.

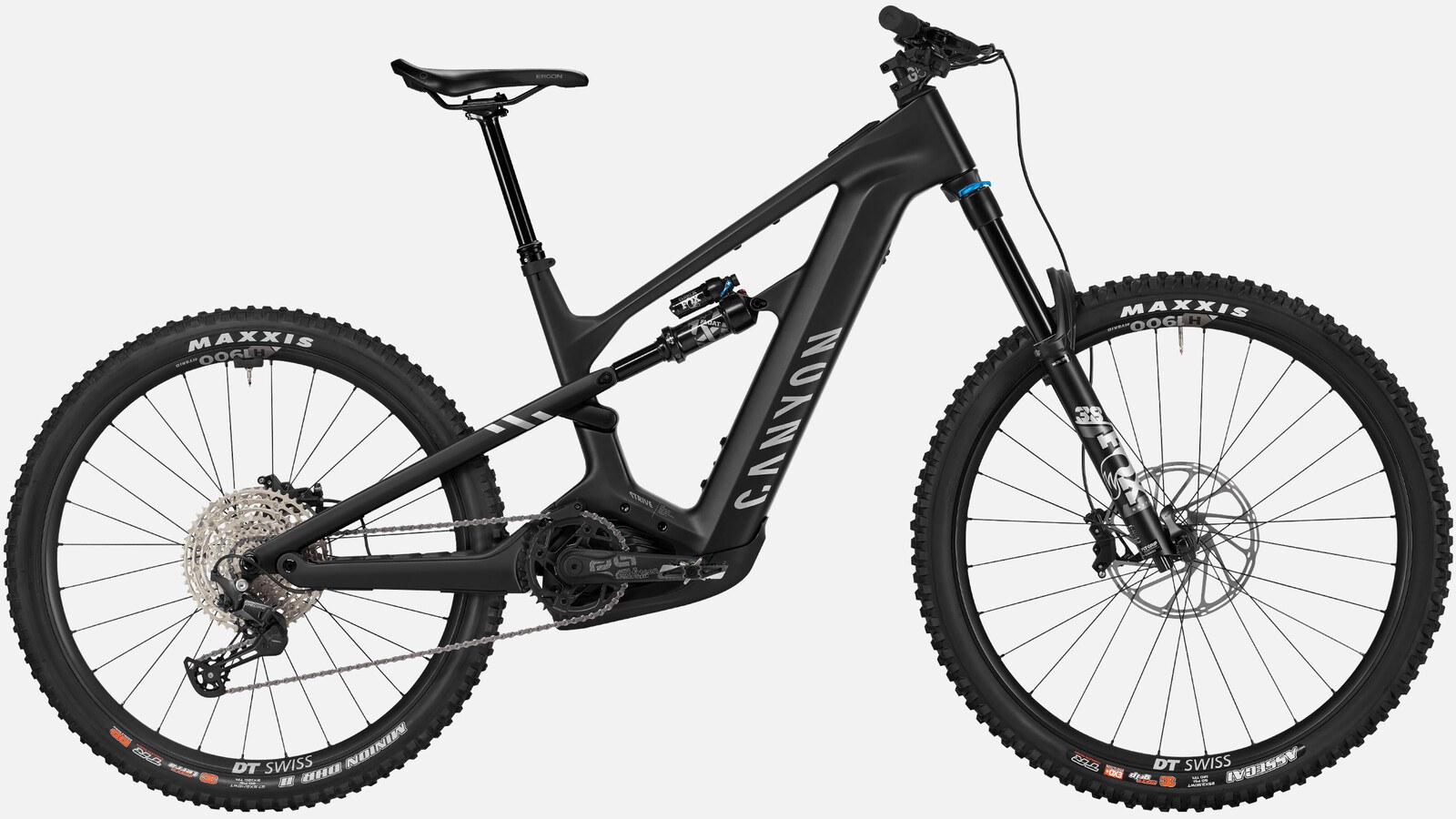

The first-generation Strive:ON (2023–2025) was Canyon’s race-bred carbon e-enduro — developed with Fabien Barel for EDR-E racing and crowned BikeRadar eMTB Bike of the Year 2024. 170 mm front / 160 mm rear, mixed 29/27.5in wheels, and a clean, planted Triple Phase chassis.
Crucially, almost the whole range ran the standard Bosch Performance Line CX (85 Nm / 600 W) — the value-focused CFR Underdog (£5,499) and the award-winning CFR (£6,699). Only the flagship CFR LTD (£8,999) got Bosch’s CX Race Limited Edition motor (same 85 Nm but a 400% race assist mode and slightly lighter). It did not use the newer “CX-R” unit, which arrived later.
This generation is now discontinued, superseded in May 2026 by the new Bosch Gen5 (120 Nm) Strive:ON. Still a brilliant used buy if you find one — just know which motor a given trim has.
Frame
Strive:ON CFR carbon e-enduro frame, 2.45 kg (size M), reinforced to Category 4e test standards, 160mm rear travel, K.I.S. 2.0 steering stabilizer integrated in top tube
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 450 mm | 475 mm | 500 mm | 525 mm |
| Stack | 628 mm | 637 mm | 646 mm | 660 mm |
| Chainstay | 445 mm | 445 mm | 445 mm | 445 mm |
| Headtube Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| Seattube Angle (eff) | 78° | 78° | 78° | 78° |
| BB Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheelbase | 1245 mm | 1274 mm | 1304 mm | 1336 mm |
| Headtube | 110 mm | 120 mm | 130 mm | 145 mm |
| Standover | 772 mm | 777 mm | 782 mm | 788 mm |
| Front Centre | 800 mm | 829 mm | 859 mm | 891 mm |
Trims · 2
Underdog £5,499 | CFR £6,699 | |
|---|---|---|
| Motor | Bosch Performance Line CX Gen 4 · 85 Nm · all trims | |
| Battery | Bosch PowerTube 750 · 750 Wh · all trims | |
| Travel F/R | 170/160 mm · all trims | |
| Frame | Carbon · all trims | |
| Fork | FOX 38 Rhythm Grip, 170mm travel, 38mm stanchions | FOX 38 Performance Elite Grip2 |
| Shock | FOX Float X Evol Performance | FOX X2 Performance |
| Stem | Canyon G5 aluminum, 40mm length | Canyon G5 aluminum, 40mm length, 31.8mm clamp |
| Handlebar | Canyon G5 aluminum, 30mm rise, 780-800mm width | Canyon G5 aluminum, 30mm rise, 31.8mm clamp, 780-800mm width depending on size |
| Grips | Canyon G5 · all trims | |
| Saddle | Ergon SM10 EMTB · all trims | |
| Seatpost | Iridium Dropper, 30.9mm diameter, 150-200mm travel by size | Canyon G5 aluminum dropper, 30.9mm diameter, 150-200mm travel by size |
| Brakes | SRAM DB8 hydraulic disc | Shimano Deore XT M8120 4-piston hydraulic disc |
| Rear derailleur | Shimano Deore M6100, 12-speed | Shimano Deore XT M8100, 12-speed |
| Crank | e*thirteen E-Spec Plus Bosch, 165mm with FSA Megatooth 36t chainring | e*thirteen E-Spec Plus Bosch, alloy with Bosch interface, 36t chainring |
| Shifters | Shimano Deore M6100, 12-speed | Shimano Deore XT SL-M8100 |
| Cassette | Shimano Deore M6100 12-speed, 10-51T | Shimano Deore SLX CS-M7100, 12-speed, 10-51T |
| Chain | Shimano Deore M6100 12-speed | Shimano Deore CN-M6100, 12-speed |
| Drivetrain | Shimano Deore M6100 12-speed 1x with 10-51T cassette and e*thirteen E-Spec Plus Bosch cranks | Shimano Deore XT M8100 12-speed 1x with SLX 10-51T cassette and e*thirteen E-Spec Plus Bosch crankset |
| Wheels | DT Swiss H1900 Spline aluminum, Boost spacing, hybrid e-rated | DT Swiss HX1700 Spline aluminum on Boost spacing |
| Tyres | Maxxis Minion DHR II 3C MaxxTerra 2.4" front; Maxxis Assegai 3C MaxxGrip 2.5" rear · all trims | |
| Weight | 24.5 kg | 24.19 kg |
| Price | £5,499 | £6,699 |
