YAMAHA e-Bike diagnostic software Ver.2

[siwik81]

Wygląda na to, że trochę za wcześnie nabrałem nadziei. Dzięki, sprawdzę to. Oto zdjęcie połączenia.

View attachment 134961

Witam
Jak udało mi się panu to rozszyfrować?
Bo ja też mam z tym problem.



[drdino]

Has anyone managed to clear codes? I've got 3 that when trying to clear them I get a "clearing failed" message.



[allthegear(noidea)]

Has anyone managed to clear codes? I've got 3 that when trying to clear them I get a "clearing failed" message.

Did you have any luck clearing the fault codes?



[drdino]

Nope, unfortunately not.



[allthegear(noidea)]

Nope, unfortunately not.

Oh no. I've got 3 faults on mine. Still working on it and stripping the bike down to fault find etc.
I noticed on a replacement motor details it says they needed coding and yedt needed (Yamaha diagnostic tool) and wonder if it was different / better than this software.



[drdino]

Out of interest, what are the 3 faults? Mine has 3 faults too, although functionality doesn't seem to be affected.



[allthegear(noidea)]

Out of interest, what are the 3 faults? Mine has 3 faults too, although functionality doesn't seem to be affected.

Code 36 , 68 , 79
Abnormal voltage, black lead wire is short circuited, abnormal voltage.

Frustratingly the bikes been perfect.



[drdino]

I think these are the same that I have. I'll check later and let you know, they might be shadow codes.



[drdino]

Took me a bit to reply, sorry...

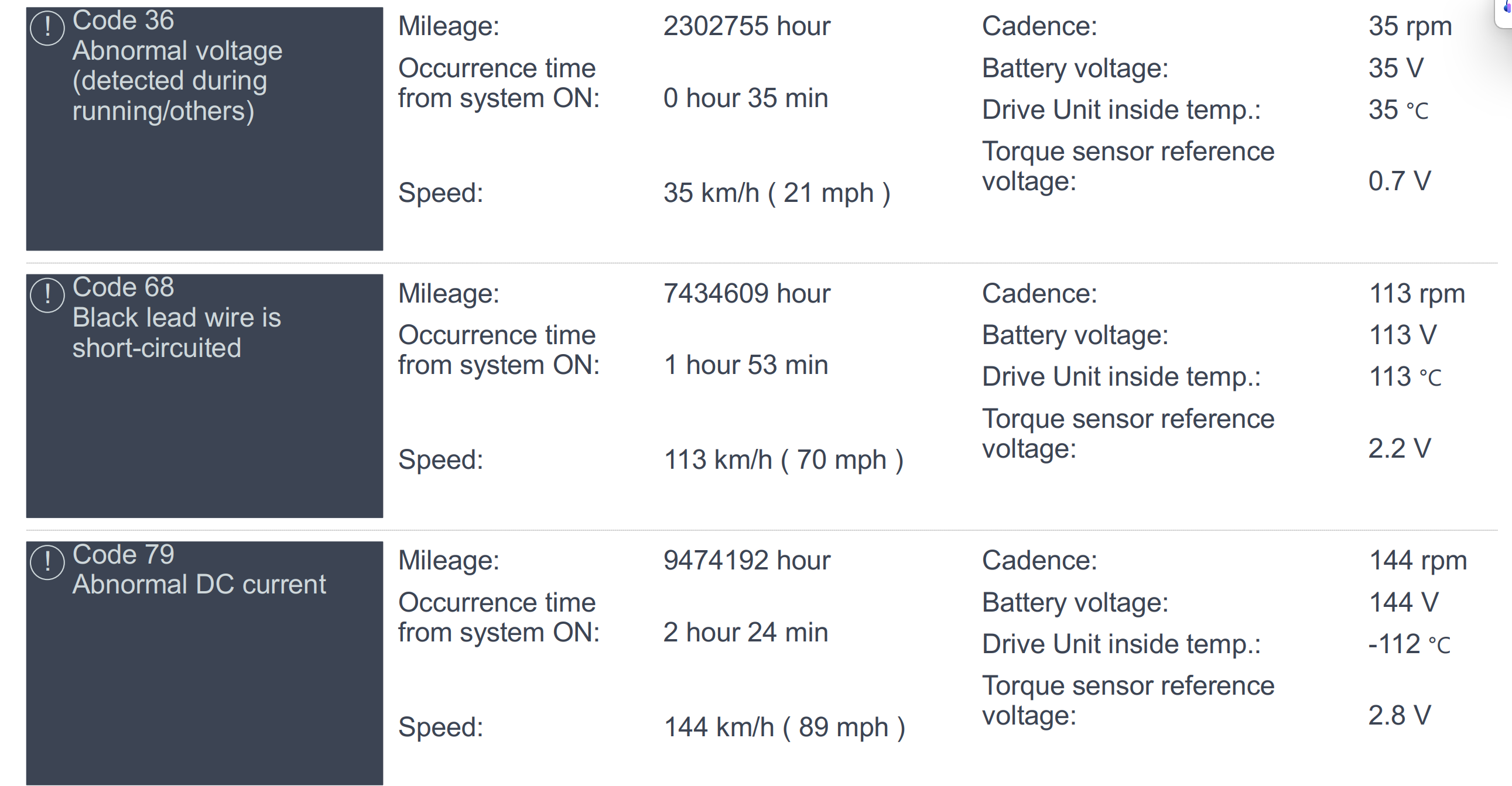

Yeap, same errors:



[allthegear(noidea)]

Took me a bit to reply, sorry...

Yeap, same errors:
View attachment 167415

Cheers. Any joy fixing yours?
I've been away for a bit so not really looked further at mine. Will probably put it into a local bike shop soon.



[drdino]

I don't think there's anything to fix really, I think the bike is working as it should and these might be shadow codes that just can't be cleared.



[peted]

Hi all, can I adjust the wheel circumference with this software? I've changed my wheel from 29 to 27.5. I have a pw-x3 motor with an interface X controller. thanks.



[peted]

Nevermind, I got it to work. The error still shows up in Device Manager, but as soon as I connect the bike another working virtual Com Port appears (instead of the Yamaha Device). This is for my Win7 SP1 Intstallation, Win10 still does not work. For me this is fine enough.
I own a Haibike Sduro Hardnine 7.0 (2016, PW-X1) and an AllMnt7 (2023, PW-X3). Software works on both, and also on both the battery cannot be checked (Communication Error). Reading the fault History works fine, cleaning it does not (An error occurred). I only tested history cleaning on the PW-X3, as tghe PW-X1 had no errors reported.

If anybody had access to a newer version, this would be a breeze!

Cheers,
Frank

Hi HXT, is there an option for changing the wheel circumference in the software? Thanks.



[Randombox]

Hi I could use a huge favour does anyone have a diagnosis printable report they would be willing to share? I want to see exactly whats shown. Ideally for a PW X
