Trance E Freehub issues

poppy said:
G'day FTS, new bike. Like you, my LBS has been nothing short of awesome to deal with. I have had issues with my Pro 1 basically since i have had it. So it was agreed that it was time for another bike, so they looked after me on price and i upgraded. They did get a new E PRO 1 in for me but decided to upgrade and hopefully have a bit of a luck change.
Click to expand...
its an awesome looking bike Poppy. How much did the wheelset set you back? pretty sure you wont have an issues with those hubs

⚡ EMTB Pro Go Pro — exclusive discounts & ad-free Peaty's 25% off & more · Ad-free browsing · Pro badge See the deals →
poppy said:
Hi Mate, came with the bike. I changed from E PRO 1 to E PRO 0.
Click to expand...
I thought they spec the same wheels for all the bikes. That bike is pretty nice, i couldnt justify the price difference. But with the XTR and factory forks i reckon it would be worth every cent. will you be hitting up gap creek today then

the giant branded hubs are supposedly DT Swiss built, but i would suspect they would be the lower end offerings, and not based off the 240s. i am hoping this upgrade will bring them upto at least the 350 standard, which is what the h 1700 a based around

poppy said:

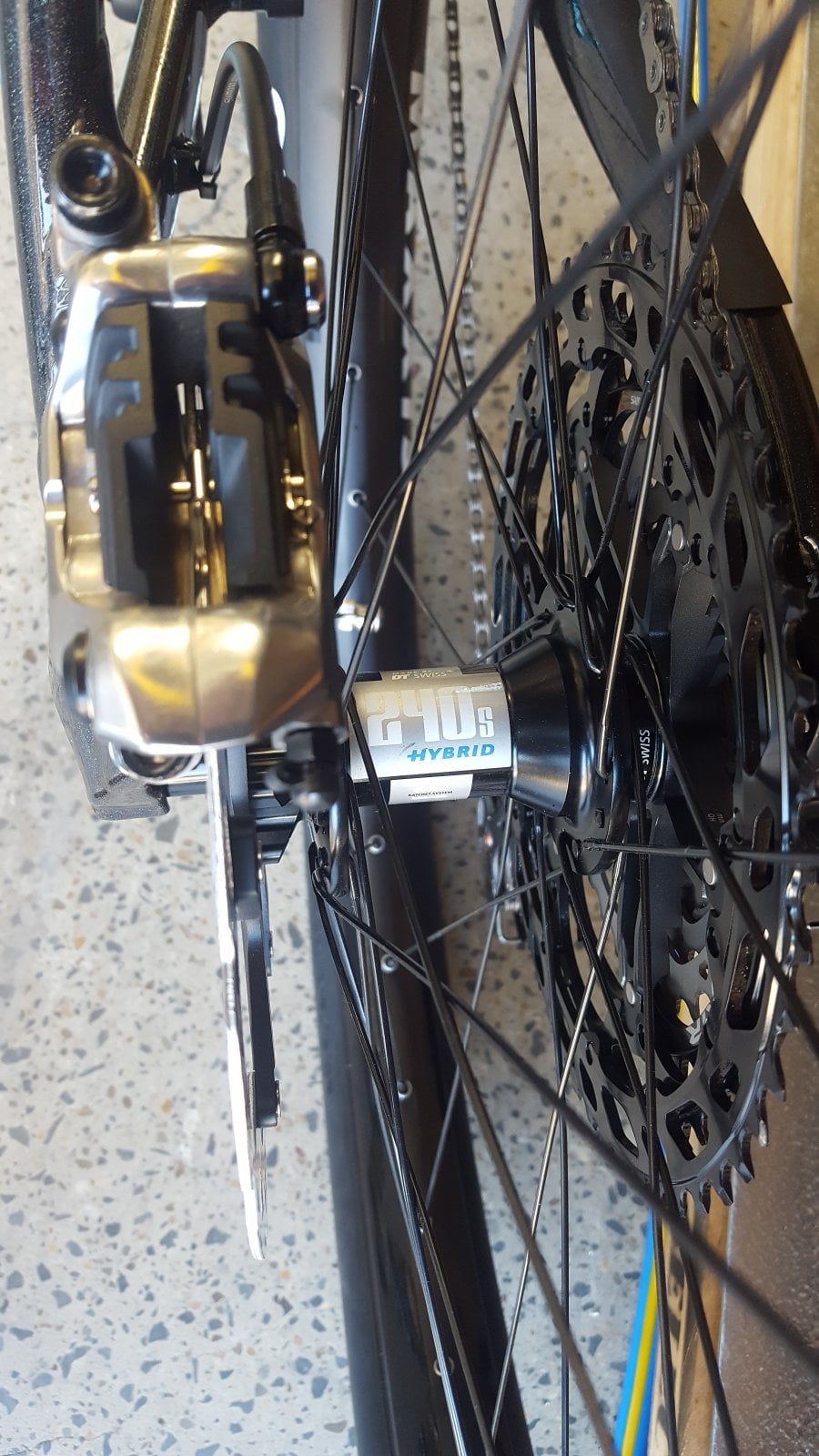

New hub day, wooohooo, just picked it up, keen as mustard to go for a peddle.
View attachment 9720

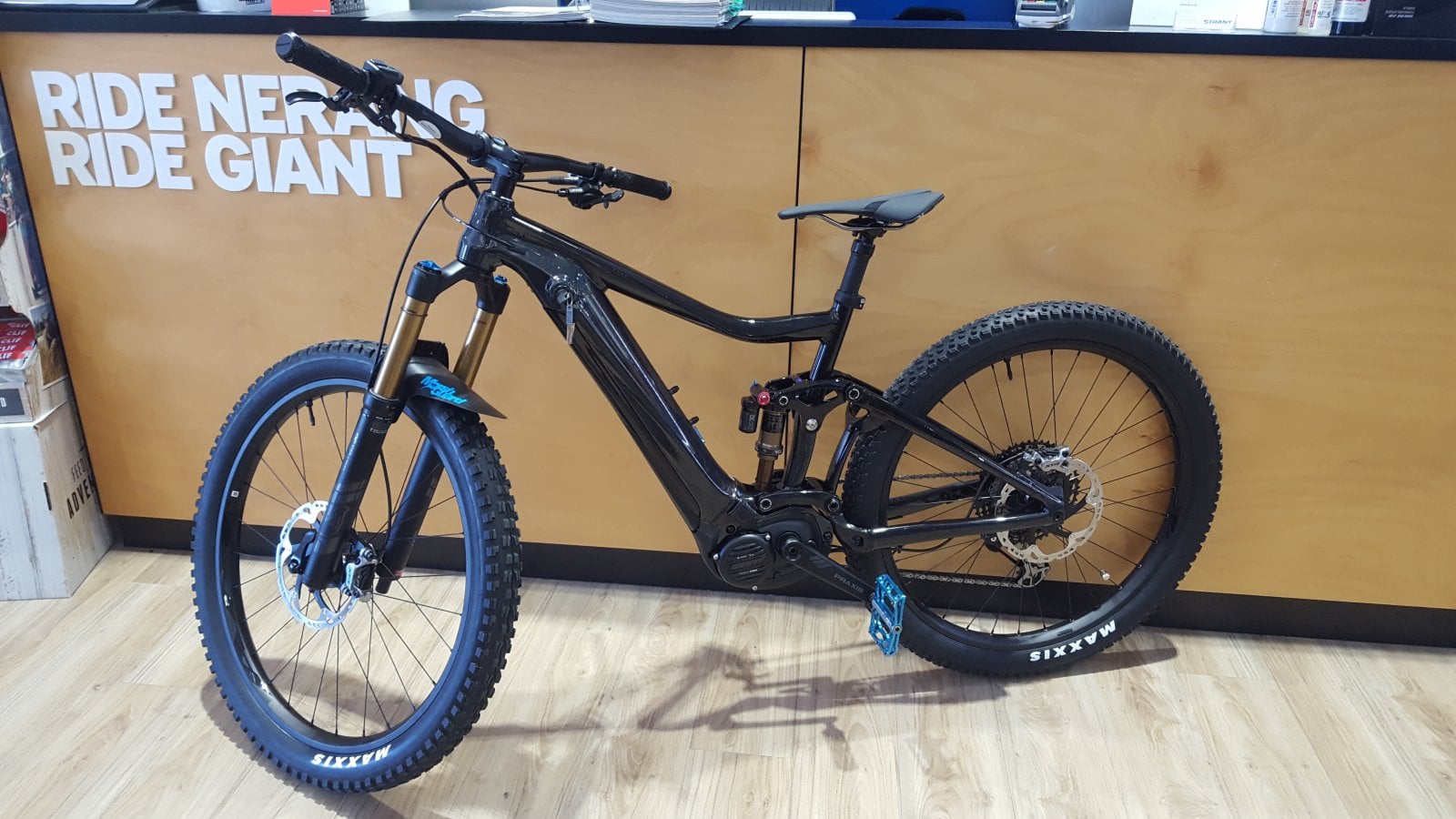

Came attached to this
View attachment 9721
Click to expand...
You probably answered this somewhere; but i can't find it.
I understand that's a new Giant bike; did it came stock with the upgraded hubs?
Or were the hubs specially upgraded for you?

Thanks!

Last edited:
friartuckshop said:
this is the path i am thinking of heading down
DT Swiss - H 1700 SPLINE® 35
can be had for less than $1000 NZD. but will see how the new hubs from tomorrow
Click to expand...
That 350 hub looks appetizing which probably now bumps the Hope Pro 4 as I think I would rather ratchet than pawl system for the eBike. Looks like you also get 4 options of teeth count (18-54) with the 350....

Sophie777 said:
You probably answered this somewhere; but i can't find it.
I understand that's a new Giant bike; did it came stock with the upgraded hubs?
Or were the hubs specially upgraded for you?

Thanks!
Click to expand...

Hi Sophie, they came with the bike as standard. I could have kept changing wheels under warranty, but that is just inconvenient to both myself and the bikeshop, mainly me because i was the one walking. I could have ponied up for new hubs. My LBS has been really great and looked after me with the price on a new bike. By the time i spend money on upgrading this and that it was a no brainer to change bikes. The LBS has sent my old bike back to giant, what happens with it from there is anyones guess.

The Flying Dutchman said:
Question for the group!

If you had to replace your own hub/wheel, what would you get? Would you get Ebike specific or a solid enduro hub?
Click to expand...
Pretty sure I will build a set of Chris King hubs not sure which rim but will keep the giant wheels to put in the bike when i sell it on.

poppy said:
Hi Sophie, they came with the bike as standard. I could have kept changing wheels under warranty, but that is just inconvenient to both myself and the bikeshop, mainly me because i was the one walking. I could have ponied up for new hubs. My LBS has been really great and looked after me with the price on a new bike. By the time i spend money on upgrading this and that it was a no brainer to change bikes. The LBS has sent my old bike back to giant, what happens with it from there is anyones guess.
Click to expand...
Hi Poppy,

Thanks for replying.

Unfortunately here in Canada Giant is not offering the Trance E+ Pro; only the Trance E+ SX Pro. It seems the difference between the models is that SX uses SRAM components instead of Shimano.

But would you by any chance know whether the SX model (which is the only one available to me in Canada) also comes with the upgraded hubs?

Sophie777 said:
Hi Poppy,

Thanks for replying.

Unfortunately here in Canada Giant is not offering the Trance E+ Pro; only the Trance E+ SX Pro. It seems the difference between the models is that SX uses SRAM components instead of Shimano.

But would you by any chance know whether the SX model (which is the only one available to me in Canada) also comes with the upgraded hubs?
Click to expand...

Hi Sophie, over here in Aus, the SX 0 is exactly the same specs as the 1 except for the suspension upgrade ( factory forks 160 travel, coil rear) wheels, hubs, and all drive components SRAM. The 0 has the same suspension as the SX 0 except forks are 150 travel, Air shock Rear and all driveline, brakes etc are Shimano XTR with DT Swiss Hub.

well my ride didnt end so well. Did about 600m of climbing on the sunday, on the downhill i had a couple of chain drops. thought it was because the gain guide was set to high (38 not 36). got back home and while washing the bike i noticed that the cranks would turn while wheeling the bike. the freehub is sticking causing the cranks to turn. so back to the LBS, and another phone call to giant for answers. hopefully have some clue tomorrow. Dutchman i am not sure what hub the used, but they actually only upgraded the internals not the hub shell. i have a feeling that my new issue is related to the damage the broken pawls did to the internal hub shell, not so much the free hub itself. looks like the DT Swiss H 1501 wheel set is on the cards

Can confirm that my hub exploded too. Giant NZ and Evo cycles helping me out with a replacement\ upgrade to DT350 Hybrid Picking it up tomorrow!!

Its not an issue with the hub paws so i have been told but an aluminium shim in the hub assemble that is being crushed due to the increased power output. This then causes the paws to miss align and fail. I couldn't be bothered waiting 3-4 weeks for parts (Giant hub) and wanted a louder hub anyway so ill take the upgrade to the DT 350 hybrid EMBT specific hub.

rob_NZ said:
Its not an issue with the hub paws so i have been told but an aluminium shim in the hub assemble that is being crushed due to the increased power output. This then causes the paws to miss align and fail. I couldn't be bothered waiting 3-4 weeks for parts (Giant hub) and wanted a louder hub anyway so ill take the upgrade to the DT 350 hybrid EMBT specific hub.
Click to expand...

Hi Rob, that DT Swiss 240 Hybrid hub in my new bike is whisper quiet. Way quieter than than standard EPro 1 hub.

friartuckshop said:
well my ride didnt end so well. Did about 600m of climbing on the sunday, on the downhill i had a couple of chain drops. thought it was because the gain guide was set to high (38 not 36). got back home and while washing the bike i noticed that the cranks would turn while wheeling the bike. the freehub is sticking causing the cranks to turn. so back to the LBS, and another phone call to giant for answers. hopefully have some clue tomorrow. Dutchman i am not sure what hub the used, but they actually only upgraded the internals not the hub shell. i have a feeling that my new issue is related to the damage the broken pawls did to the internal hub shell, not so much the free hub itself. looks like the DT Swiss H 1501 wheel set is on the cards
Click to expand...
I got a full hub swaped it out myself the new giant hub was heavier then the old 1.I am waying up options build DT 350 HYBIRD and DT rims or a last a lifetime wheel set.

friartuckshop said:
well my ride didnt end so well. Did about 600m of climbing on the sunday, on the downhill i had a couple of chain drops. thought it was because the gain guide was set to high (38 not 36). got back home and while washing the bike i noticed that the cranks would turn while wheeling the bike. the freehub is sticking causing the cranks to turn. so back to the LBS, and another phone call to giant for answers. hopefully have some clue tomorrow. Dutchman i am not sure what hub the used, but they actually only upgraded the internals not the hub shell. i have a feeling that my new issue is related to the damage the broken pawls did to the internal hub shell, not so much the free hub itself. looks like the DT Swiss H 1501 wheel set is on the cards
Click to expand...

Bugger!

From no engagement through to complete engagement. I can understand why the chain dropped, if the cassette is pushing the chain onto a static front chainring its gotta go somewhere.

I'll be checking my funds for new wheelset.

dream set: Flite Carbon eMtb - Wheelworks
I'd go for the hope hub tho. purely for aesthetics :cool:

Damn thats a mighty fine looking set of wheels, and mighty pricey:unsure:. its good to see that they give a lifetime warrenty on them, even though they are ebike specific

rob_NZ said:
Its not an issue with the hub paws so i have been told but an aluminium shim in the hub assemble that is being crushed due to the increased power output. This then causes the paws to miss align and fail. I couldn't be bothered waiting 3-4 weeks for parts (Giant hub) and wanted a louder hub anyway so ill take the upgrade to the DT 350 hybrid EMBT specific hub.
Click to expand...
Thats the same response that i had from Giant NZ as well Rob. I really dont think that that is the whole issue, as the say its also related to the extra torque of the 50t eagle cassette, but its not just the eagle equipped hubs that have failed. the old Full E bike from 2017 ran virtually the same motor (80nM?) and those wheel sets didnt have the same failures as the current generation.
