RECON E HL1000 Light on 2022 Giant

[pwiles1968]

I have a 2022 Reign E+3 and was looking at the Recon Front light to go with my Magicshine 4500 that i can move to my helmet ?

Has anyone installed one of thease lights on a 2022 Giant Reign (I assume Trance is the same) How hard is it to access the connector ?



[Coolspot]

Hi!

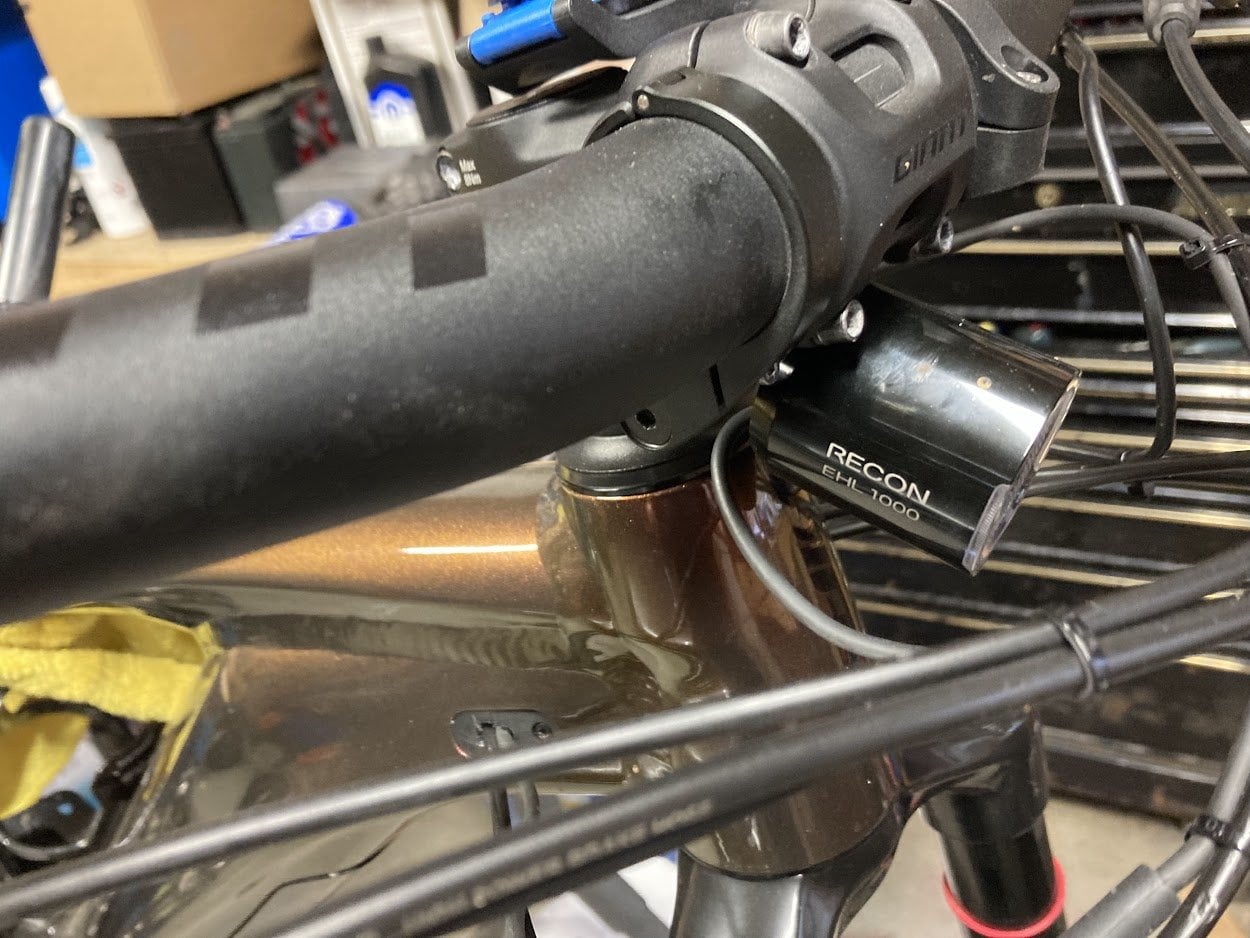

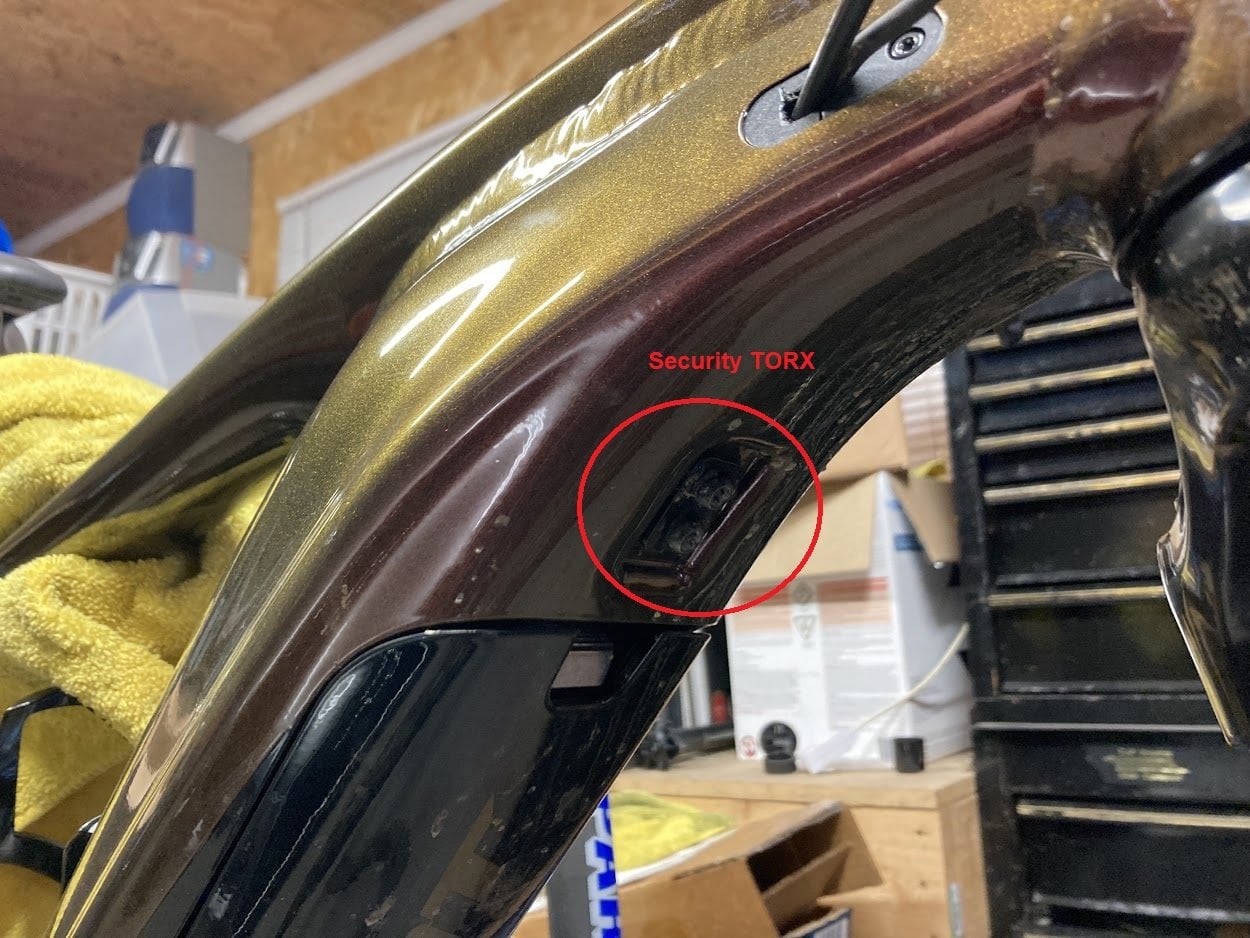

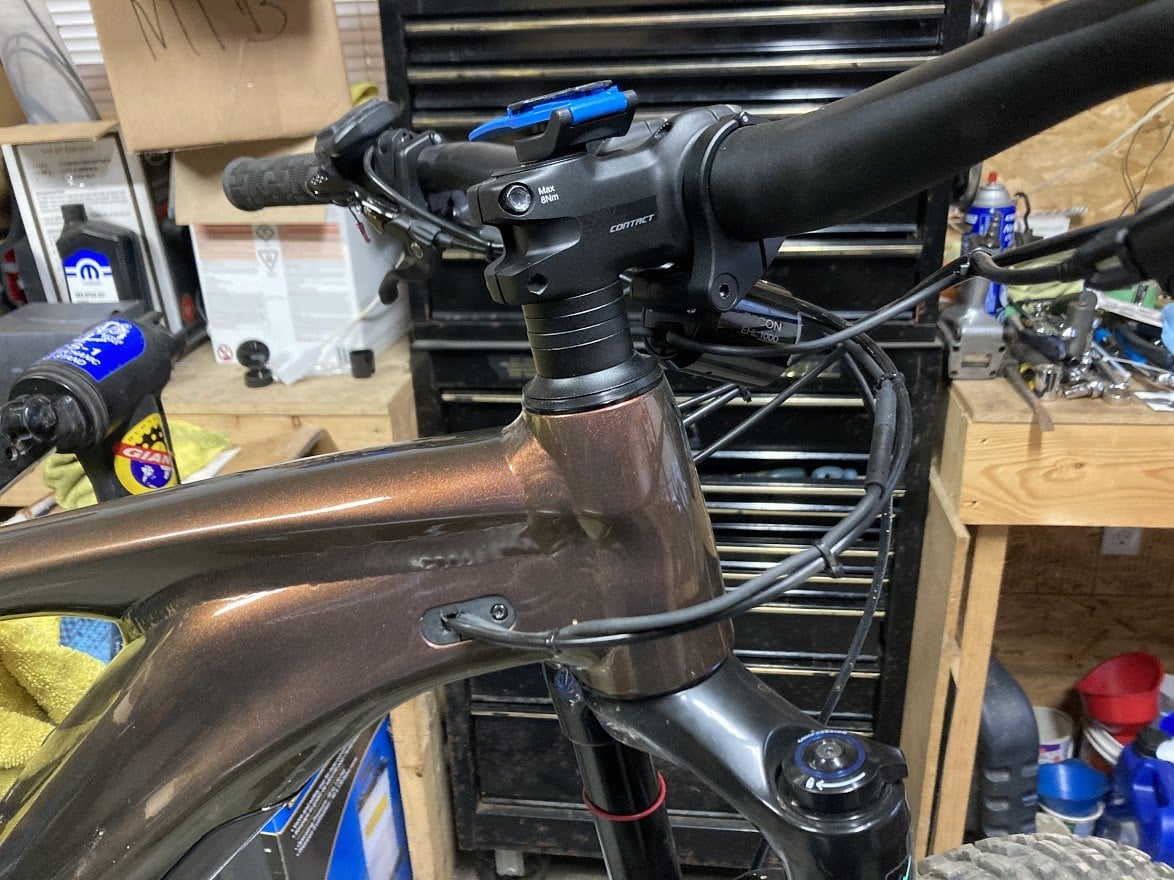

I installed the same light on my 2021 Trance X E+. The connector is tucked just above the battery top retainer. I had to remove the battery and the retrainer (2 security torx). The light has a wire long enough to leave the connector inside the down tube, I ran the wire thru the right side groomet along with the dropper cable.
Here's a video I found helpful:


Keep in mind your GIand light will connect directly to the bike cable, no cutting or splicing required

I had to readjust the battery retainer a few time to get it to the right position, it might take a few tries.



[Haveland]

I put the same light on my 2021 Stance as well but I think the problem is with the new controls on the 2022's would it still work? I'm not sure how you'd turn the light on/off with the new buttons in 2022.



[Coolspot]

Good point!
This is from the user manual: You might need to buy a "right control"



[pwiles1968]

I bought them fitted them, the functionality was horrific so they went back, they defaulted to full power whenever i switched the bike on, and as other pointed out with the 2022 controller you have to reprogram a button for lights meaning i lost walk assist which was a no go, shame the supplied switch did not do on/off.
