2023 Giant Reign E+

Shane(NZ)

Active member
Sep 4, 2019
179
140
NewZealand
hoping they bring the e+1 to NZ, i'd pretty much buy that tomorrow if it was about $10500nzd
i dont care about the colour, I'd put my xt brakes on, the rest would be fine.


Shane(NZ)

Active member
Sep 4, 2019
179
140
NewZealand
Wow that is a huge bump from last years model!



AXS and battery being the main difference  So those 2 items add over $2000nzd from last years model 🤔

Last edited:

Wallybean

Member
Jan 13, 2023
29
39
Hamilton, Montana

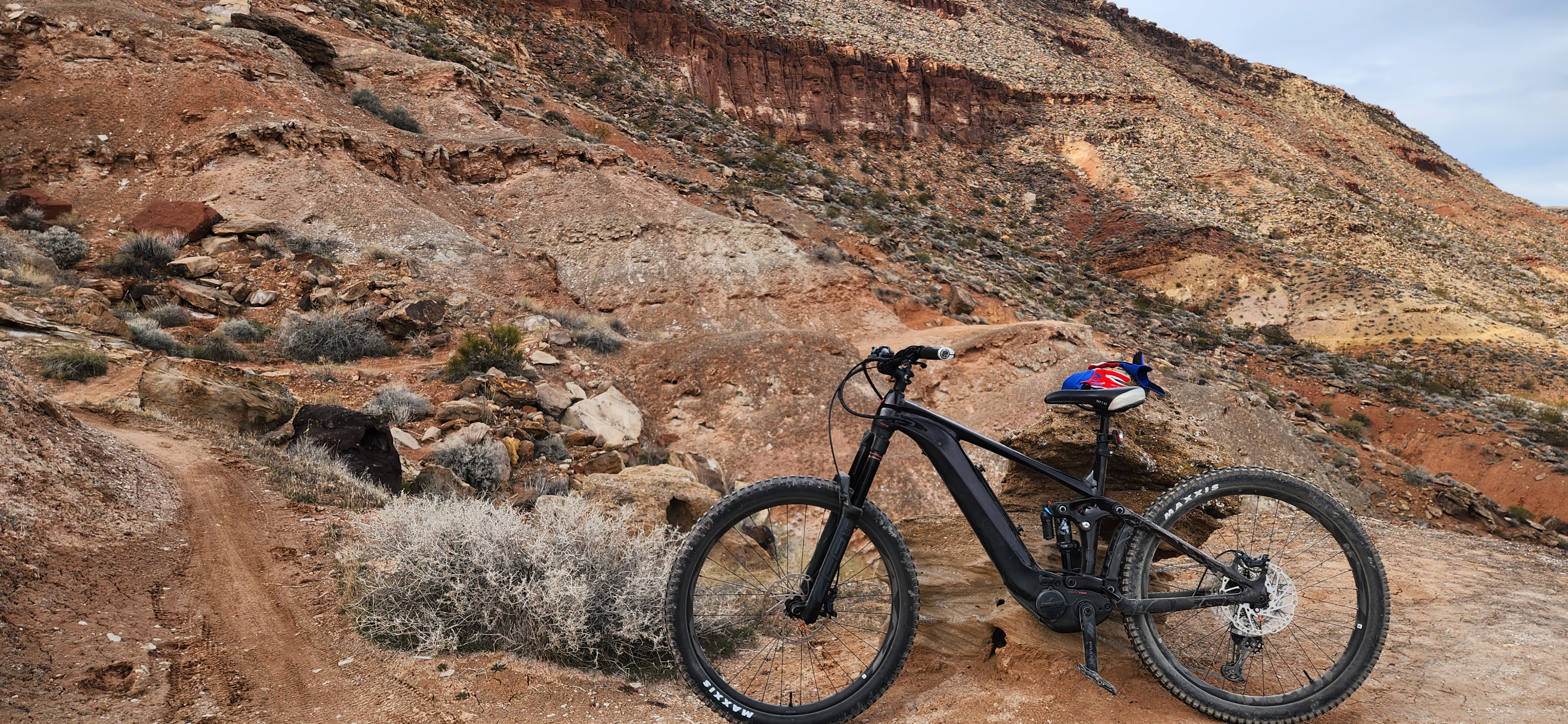

Finally picked up the e+2 today. Looks great. Heading south next week to give it a couple of weeks of abuse.
Reign e+2.jpg


Rando_12345

Active member
Nov 16, 2022
225
306
France
Great looking bike, any chance you weighed the bike out of curiosity?

What are those things either side of the bottle mounts?


Wallybean

Member
Jan 13, 2023
29
39
Hamilton, Montana
Range extender fits perfectly and the cord plugs in perfectly with room to spare. Having 1050wh this summer is going to be awesome for really long days.

I haven't weighed it as I don't have a decent scale and bathroom scales don't count. It does feel slightly lighter than my 2020 reign but I have pretty heavy tires on the '20. Very scientific:rolleyes:


psst!!!...

Active member
Mar 2, 2022
37
25
Portugal
My Reign E+0 (2022) with mudguards, pedals, bottle and swatt12 pieces, Maxxis 2.6 front and rear: 25.69Kg with 750wh Battery. it is with xx1 chain and 10-52 X01 cassete.


trailaddict

Active member
Jul 7, 2021
313
369
Alps
My 2022 Reign e+1 Size M with 750Wh, Maxxis DD/DH Tires and highly customized Parts weights 25,6kg with Pedals.


boarder87

Member
Oct 4, 2022
26
17
Germany
Reign E+2, size M with 800Wh battery, 170mm dropper post, tubleless and with Giant Aluminium Flat pedals ~25,5kg. Other components remained stock.
Edit: sorry mine is 2022 Modell...wrong thread


Wallybean

Member
Jan 13, 2023
29
39
Hamilton, Montana
I have bottomed the fork out a couple times on some severe g=outs. I probably need to add some tokens as Trailaddict advised. Only issue I have had with the suspension so far. Sag is set for my weight but do need some more progressive dampening on the fork.


trailaddict

Active member
Jul 7, 2021
313
369
Alps
If you never use full travel you are "over-forked" and have spent money for nothing 😂
It your fork doesn't have an adjustable high-speed compression damper, add tokens or have someone tune it to your match your weight and riding style.

Last edited:

Dannage

Member
May 28, 2022
34
48
UK
Range extender fits perfectly and the cord plugs in perfectly with room to spare. Having 1050wh this summer is going to be awesome for really long days.

I haven't weighed it as I don't have a decent scale and bathroom scales don't count. It does feel slightly lighter than my 2020 reign but I have pretty heavy tires on the '20. Very scientific:rolleyes:
Wonder if they are new range extenders for 2023 or if they rotated the plugs around on the bike as the range extenders on 2022 models pulled the cord like a piano string. Have you got a pic of the extender fitted please?

Dan


Wallybean

Member
Jan 13, 2023
29
39
Hamilton, Montana
Wonder if they are new range extenders for 2023 or if they rotated the plugs around on the bike as the range extenders on 2022 models pulled the cord like a piano string. Have you got a pic of the extender fitted please?

Dan
That was the one of the first things I checked. They must have changed the plug alignment as it now has plenty of slack. When I get a chance, I will take a pic. No need for it at the moment as I am trying to get rid of the winter blubber and can't even begin to use up the 800wh before I bonk.:mad:


sehah

Member
Nov 14, 2022
12
14
Socal
Anyone know which derailleur hanger these bikes are supposed to use? Derailleur itself is Shimano Deore SLX, 12-speed, Shadow+.


hexagon

Member
Jun 22, 2019
33
40
Cape Town
Picked up a 2023 Reign e+ 2, I had setup the Fox Float X2 to 30% sag, but seems like I am blowing through that on chill stuff, should I increase the psi? Currently @ 210psi for 95kg rider with gear. Rebound set to 5. Any suggestions?


nztim

New Member
Jun 23, 2023
4
1
New Zealand
Picked up a 2023 Reign e+ 2, I had setup the Fox Float X2 to 30% sag, but seems like I am blowing through that on chill stuff, should I increase the psi? Currently @ 210psi for 95kg rider with gear. Rebound set to 5. Any suggestions?

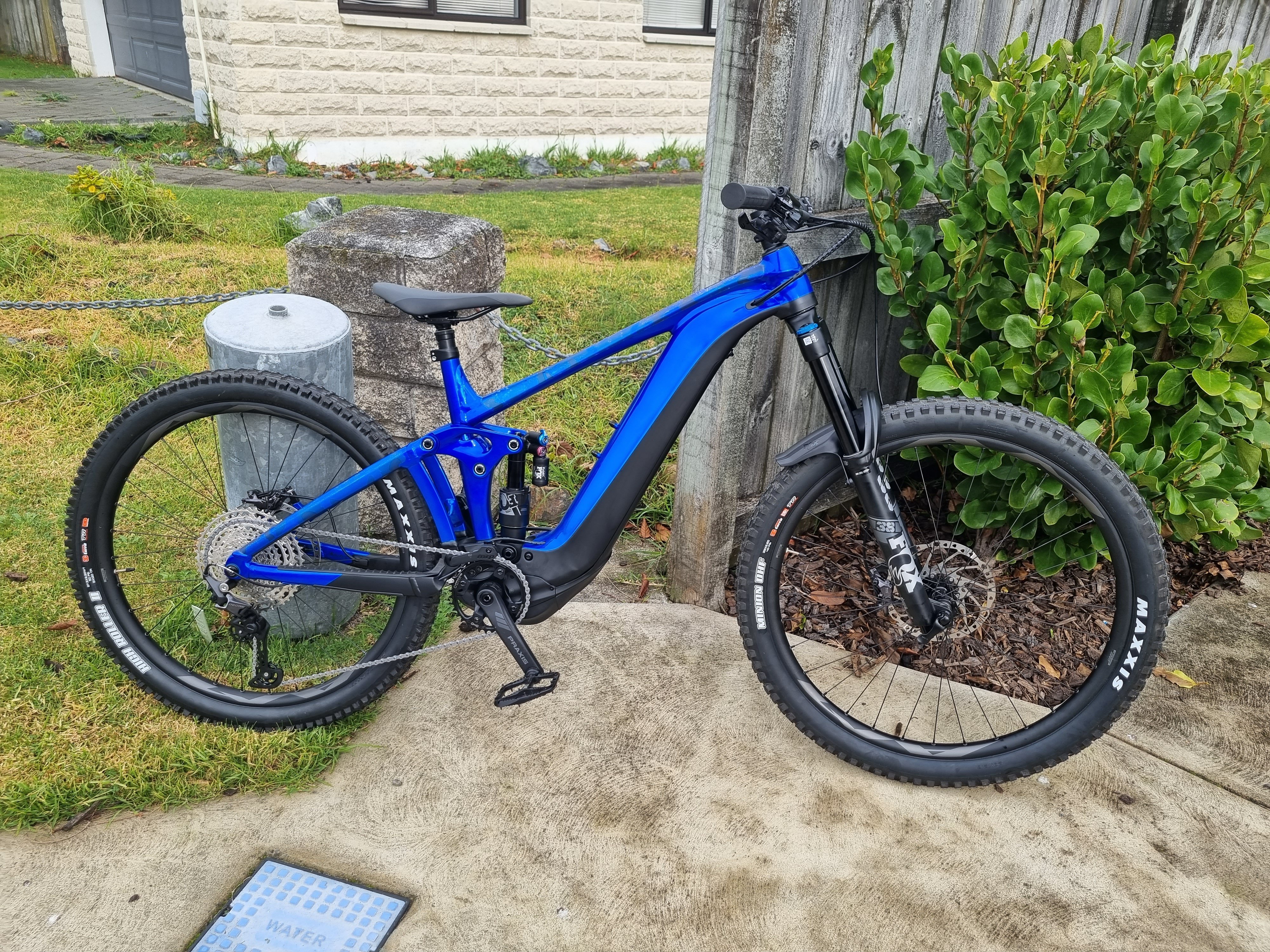

I have just got a reign e+ 3 and put fox performance elite suspension front and rear. Noticed the same thing on my first ride yesterday, currently have 2x tokens in my float x2 so am going to add a 3rd and see if the travel usage is more balanced.

I was at 215psi for 95kg rider. 20230624_123856.jpg


jar2b

New Member
May 13, 2023
11
22
Corsica
Picked up a 2023 Reign e+ 2, I had setup the Fox Float X2 to 30% sag, but seems like I am blowing through that on chill stuff, should I increase the psi? Currently @ 210psi for 95kg rider with gear. Rebound set to 5. Any suggestions?
It's a float X not X2.
For 95kg, you should put 225 psi at least.
With 215psi and 85kg, i had to put a bigger volume spacer for a better middle stroke support.
0.4mm from factory, i went to 0.6mm
Volume spacers


nztim

New Member
Jun 23, 2023
4
1
New Zealand
Anyone installed the EDC tool on the Reign E2 2023?? Just watched Rob’s latest vid and keen on doing the same.
Anyone installed the EDC tool on the Reign E2 2023?? Just watched Rob’s latest vid and keen on doing the same.
I've got a oneup edc on my bike but it's more about the forks than the frame? On a fox 38 you have to use the small storage tube and the funny star washer thing as the steerer is oval. Should be fine with Zebs as they have the huge 1.8" steerer.


Rando_12345

Active member
Nov 16, 2022
225
306
France
It's a float X not X2.
For 95kg, you should put 225 psi at least.
With 215psi and 85kg, i had to put a bigger volume spacer for a better middle stroke support.
0.4mm from factory, i went to 0.6mm
Volume spacers

I have the 2022 with a Float X: Added a volume spacer and running around 210psi for a 75kg rider, still bottoming out here and there but I often huck to flat...

I don't have an EDC, but the Hassle'off tool from milkit is amazing and fits neatly under a fidlock 450ml bottle: Hassle'off - milkit.bike. You will need to find the right length bolts or cut them as the giant bottle mounts are very shallow.

I'll take some pics of my on bike storage during the week now that my setup is finished.
