2021 Rise M Ltd with dead battery replacement ? repair ? sources ?

[4mal]

After back surgery unable to ride. Thinking about my EMTB wasn't in my firefront... and so not being dilligent, I let the batery go flat. Now tht I can ride, it won't take a charge. My LBS has a Shimano computer rig to analyze and they aren't able to get a peep out of it. This is a Gen 0 battery. Out of stock with orbea and when they finlly come in. Only a dealer can order and I get to pay DHL from Spain

Hey Orbea - Ya know there is also market on this side of the pond. Maybe you should consider stocking parts over here too ?

So... anyone know where I can source new gen 0 battery or preferrable where I can get thiis one reconditioned.. Kinda shocking to me that there isn't a way to wake this thing up. First time I have encountered a LiOn battery with a form of BMS that can't be woken up.

The not so funny thing... My BMC Alpenchallenge AMP with Shimano was parked along side the Rise. Not only did it take a charge, it still had 3
LED segments showimg after sitting during my rehab.

Well enough bitching, time to get this Rise rehabbed so I can get out on the trail.

Any source recommendations would be more than welcome. Thanks!



[Funkyoid]

I’d love to know too. Same situation.



[ep8-rs]

In case you have not seen these:

B

Thread 'Orbea Rise Power and Batteries'

Nov 14, 2022

I tried to gather information about Rise power abilities.

What have I figured out…

360 Wh battery that contain 10S2P setup of 2170 cells. 2 stacks of ten cells in series connection joined together in parallel.

Cell manufacturer Samsung SDI or LG perhaps? SDI cell INR21700-50G, 4850mAh (very close to 360Wh. They are rated to continuous output of 9.7A. Nominal voltage 3.7V

Nominal
(10 x 3.7V) X. (2 x 9.7A) = 718 Watt

Lowest point (discharge cut off)
(10 x 2.5V) X. (2 x 9.7A) = 485 Watt

Highest point (charge cut off)
(10 x 4.2V) X. (2 x 9.7A) = 815 Watt

Consider 100 watt losses? To...

• Borbea
• Replies: 6
• Forum: Orbea

Orbea RS 360Wh 36V Internal Battery | Westbrook Cycles

<p>Genuine Orbea spare part - Orbea RS Gen0 downtube internal battery for Shimano EP8 RS motor systems. Only compatible with Rise Carbon frames from 2021 and 2022 ranges. Capacity: 360 Wh Voltage: 36V Cells: Lithium-Ion 21700 Weight: 2.2 Kg.</p> <

www.westbrookcycles.co.uk

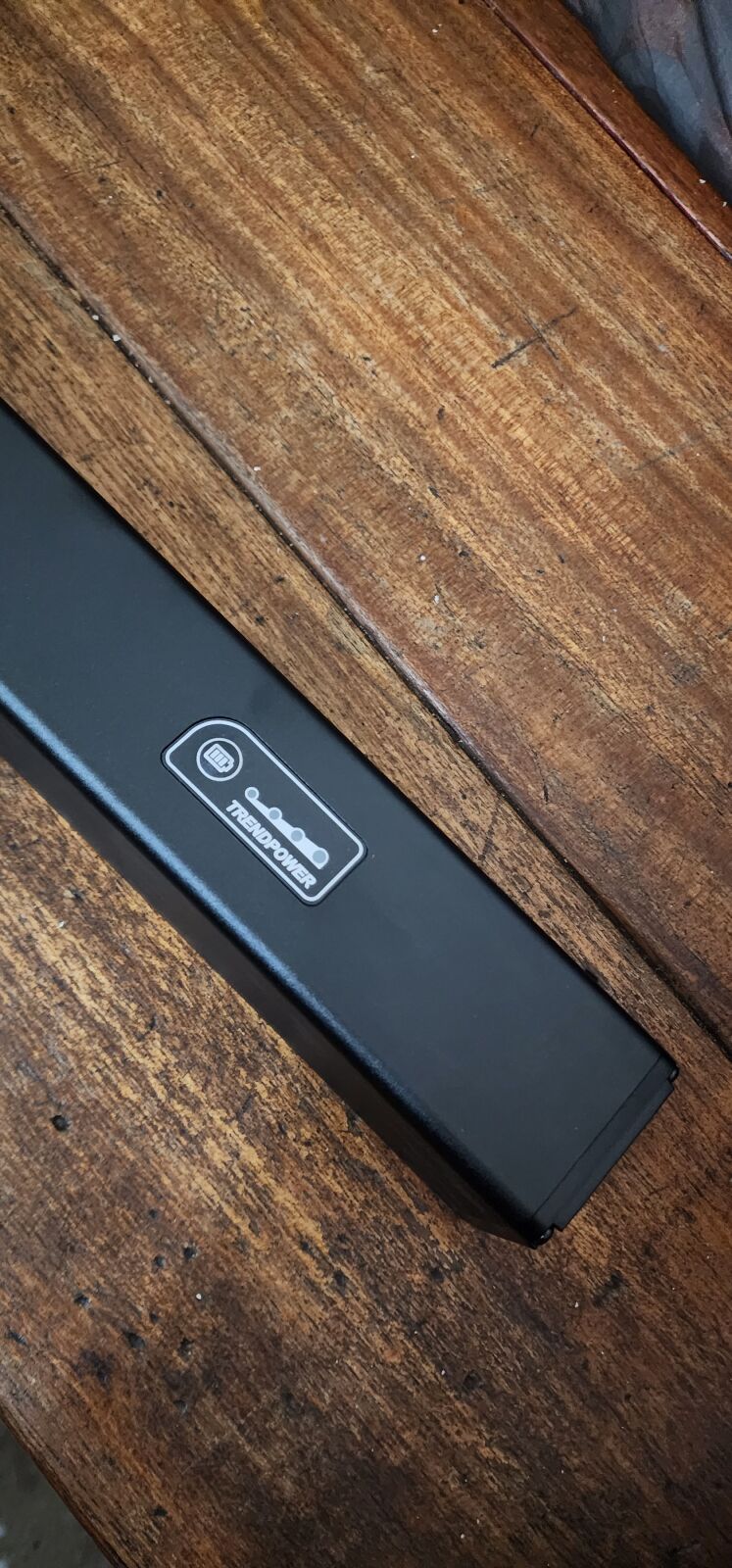

Orbea Rise Ebike battery trendpower 360Wh | E-bike Frames & Parts | Bike Hub

Selling on behalf of one of my customers.Bought a second battery but in the end it wasn't needed.It ...

bikehub.co.za

Please post what you end up doing as I have a Gen 0 as well , and would like to know my options if and or when I reach the end of my battey life.
