Trek rail rear shock upgrade ideas please

@HeyHey If you do get an Ohlins coil then rotate the damper shaft to move the Rebound knob to the rear (as below).

www.emtbforums.com

Trek rail rear shock upgrade ideas please

Have January 2022 Trek Rail 5 Large, also weigh about 80kg kitted up with Ohlins TTX22m.2 coil shock and Rockshox Lyrik Ultimate MY23 forks with Trutune eBike insert (no spacers). Shock from TF Tuned came with the 525lb spring recommended by them. Have also tried a 500lb spring but prefer the...
www.emtbforums.com www.emtbforums.com

⚡ EMTB Pro Go Pro — exclusive discounts & ad-free Peaty's 25% off & more · Ad-free browsing · Pro badge See the deals →
irie said:
Bought from TF Tuned - came from them with the 3 shims pre-installed so the shock was standard 57.5mm.

Edit: but have since tried 60mm and 62.5mm but have stayed with 57.5mm which works nicely with the forks (Lyrik Ultimate MY23). Am 5'10/75kg with a 525lb spring. Tried a 500lb spring which felt too soft, the 525lb felt better for where I mostly ride (South Downs) so stayed with it.
Click to expand...
Thanks! You are being more informative than the two retailers I have tried to get this info out of.

irie said:
@HeyHey If you do get an Ohlins coil then rotate the damper shaft to move the Rebound knob to the rear (as below).

www.emtbforums.com

Trek rail rear shock upgrade ideas please

Have January 2022 Trek Rail 5 Large, also weigh about 80kg kitted up with Ohlins TTX22m.2 coil shock and Rockshox Lyrik Ultimate MY23 forks with Trutune eBike insert (no spacers). Shock from TF Tuned came with the 525lb spring recommended by them. Have also tried a 500lb spring but prefer the...
www.emtbforums.com www.emtbforums.com
Click to expand...
Thats good info, thanks!

mark022 said:

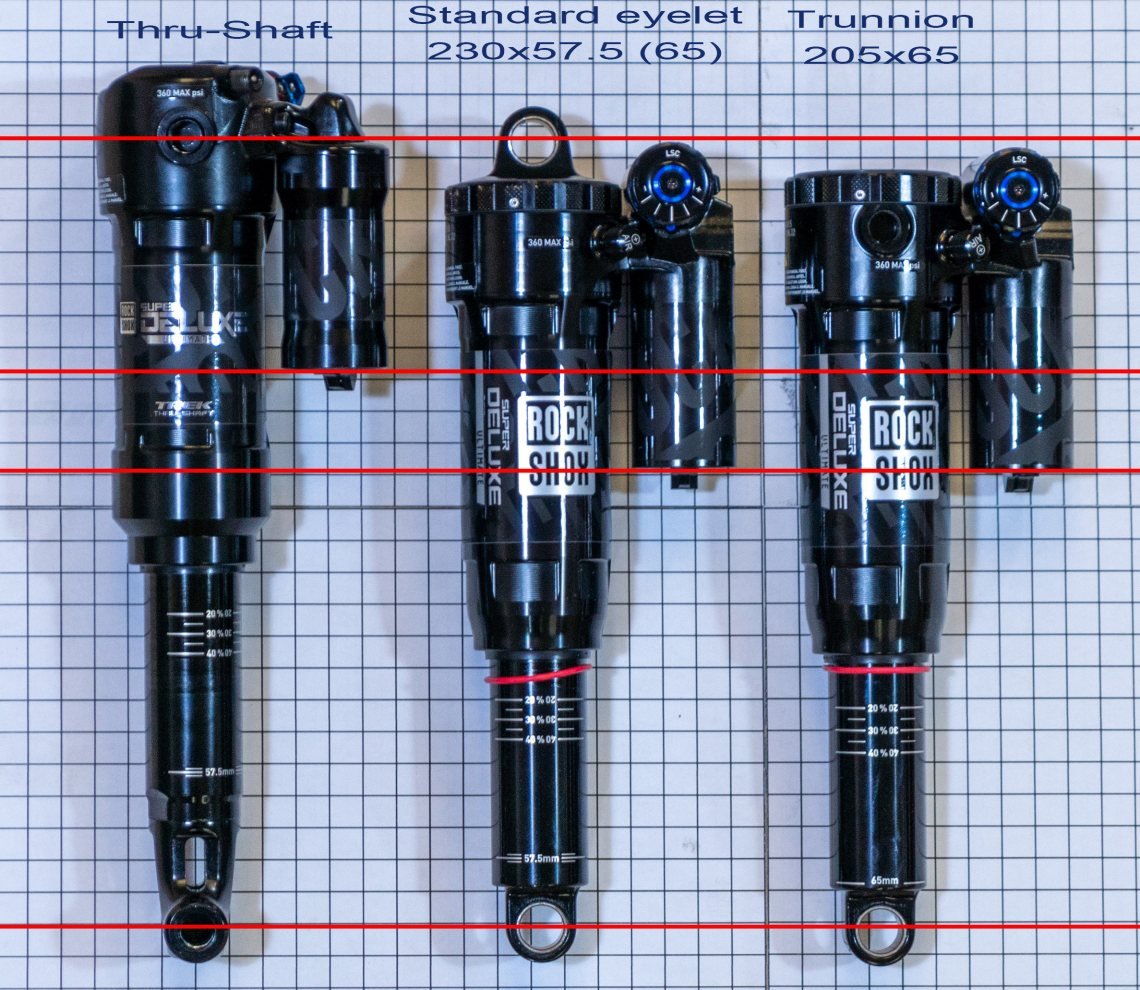

if put in vivid coil the spring will fi in between the rockers since the shock's body will move up by 25mm?

View attachment 148056
Click to expand...
Yes that was the idea, then I could use any 205 x 57.5 trunnion shock I liked - as long as the piggy back clears the frame.

As it turns out I got a great deal on a 230mm jade x so bought that instead. I needed some heavy shim work to feel right though.

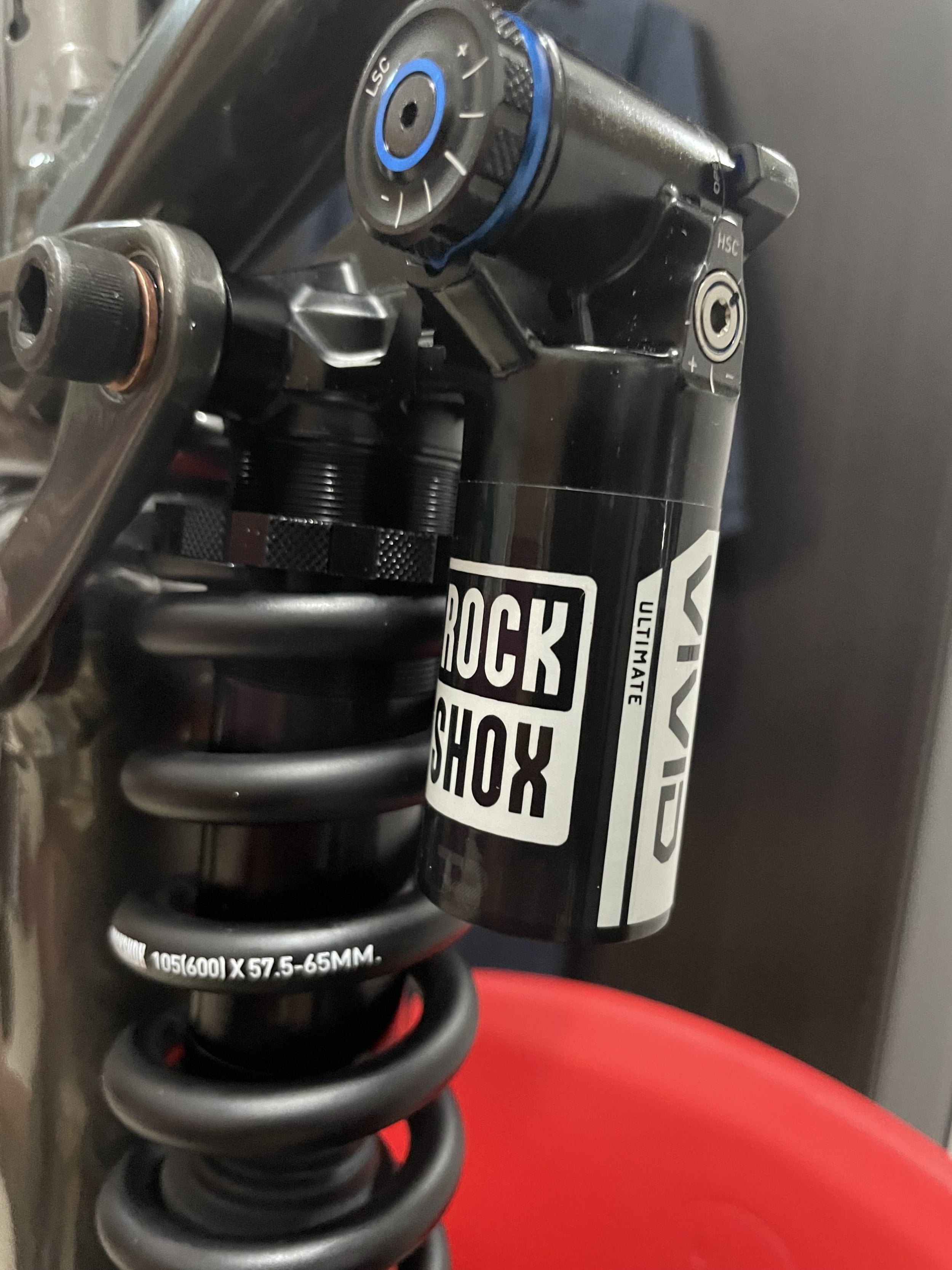

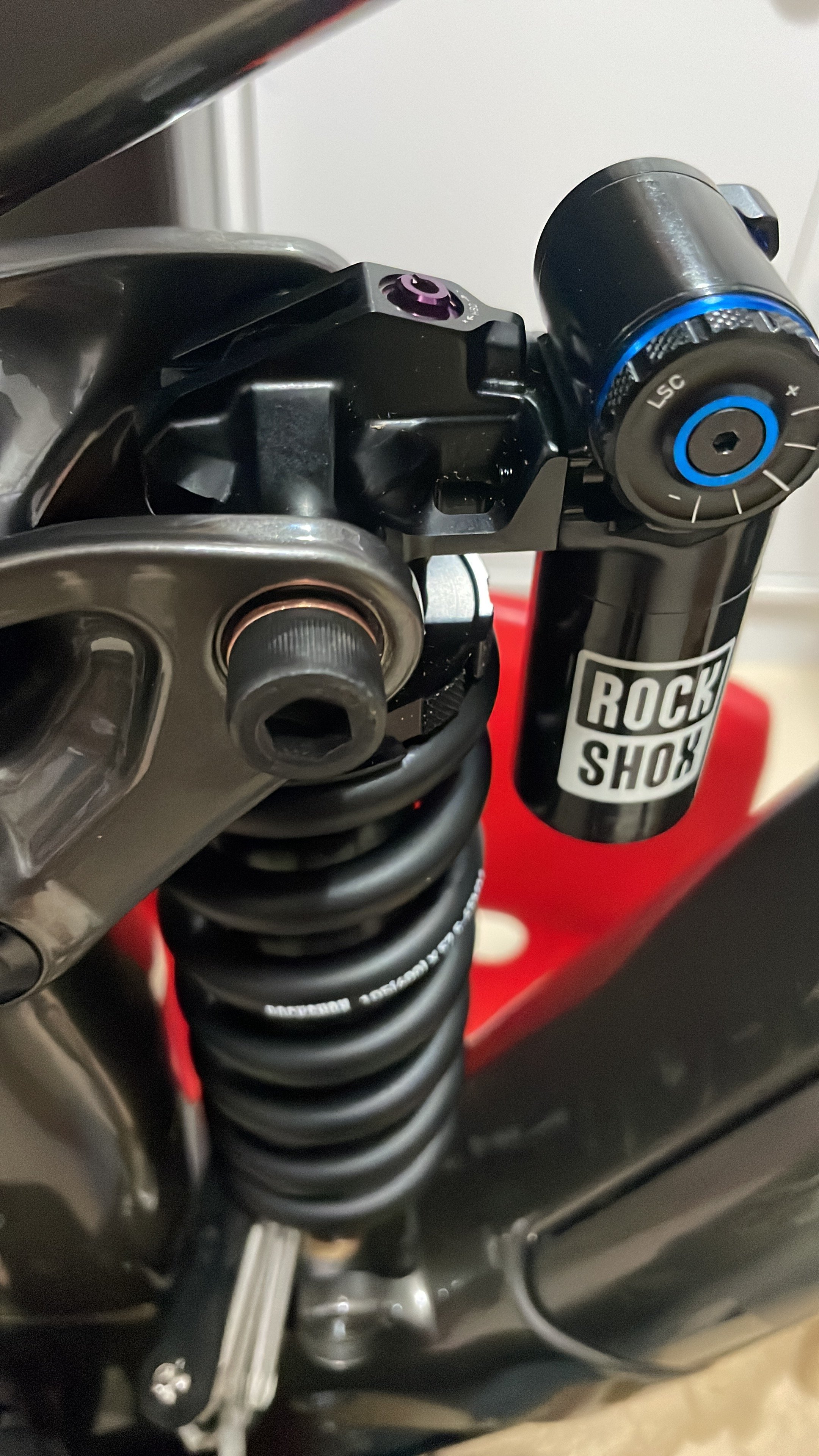

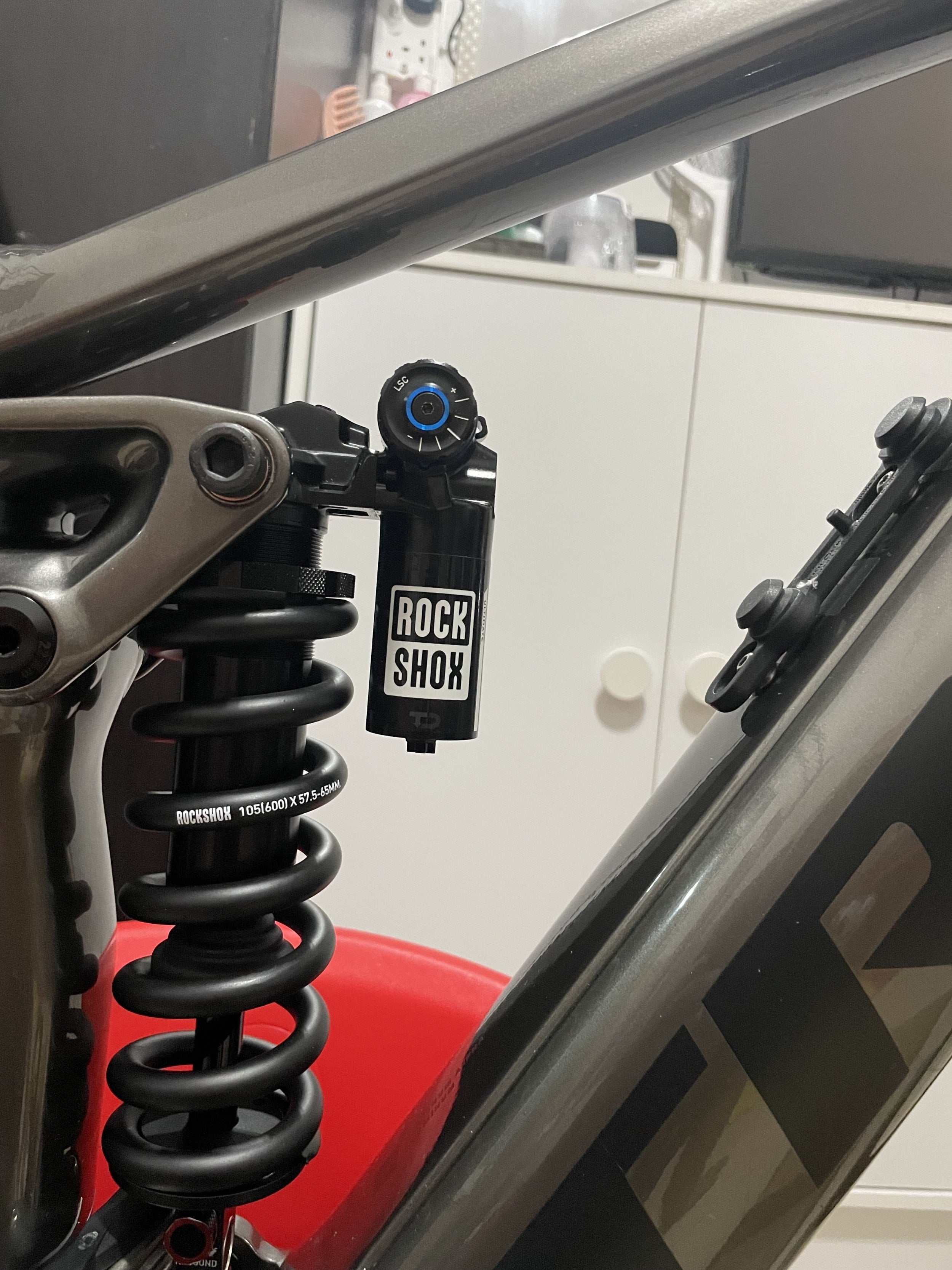

It clear the spring and the pivot just waing the proper trunnion bolt

D7CC95DF-80FD-424F-B9F4-113ED2F13F1C.jpeg IMG_6545.jpeg IMG_6544.jpeg

2022 Trek rail 9.8 xl - Wanting to upgrade my shock. Would like to go to coil. Has anyone made this upgrade ?
Just trying to get the most out of my rig. Current shock has about 2k miles on it.

Current shock-RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230mm x 57.5mm

Hi, does anybody know if Rockshox Vivid Ultimate Air 230x62,5 will fit to Rail 5 gen.2 (625Wh 2021) Large size aluminium frame? I know that 230x60 fits but have no clue if 62,5 will be fine as well. Thanks

duri1 said:
Hi, does anybody know if Rockshox Vivid Ultimate Air 230x62,5 will fit to Rail 5 gen.2 (625Wh 2021) Large size aluminium frame? I know that 230x60 fits but have no clue if 62,5 will be fine as well. Thanks
Click to expand...

I ran my 2002 Rail5 (alloy)for over 1000miles in bikepark trails with 65mm travel damper and there was no problems:cool:

also, I didn't die 😜

Rich.

duri1 said:
Rockshox Vivid Ultimate Air 230x65mm?
Click to expand...
might work?

tftuned have a compatability guide that might help???

Trek Shock Guide - TF Tuned

Trek Shock Guide - TF Tuned are experts in mountain bike and bicycle suspension service and repair, including setting-up the for you and your bike
www.tftuned.com www.tftuned.com

I used an Ohlins ttx2air, Ohlins ttx22m coil and Manitou Mara (air) - all in 230mm length x 65mm travel :cool:

Rich.

firs ride, superdeluxe ultimate with 230*60mm :(
what did i do wrong ?

trek rail 7 gen 3 L



Came across a chap on good old Facebook who said he has fitted eyelet 230x57.5 Rockshox Coil to a medium Rail no issues (stole his photo as well)

He may even be on here???

I don’t know what to believe or who i can trust anymore…..

alexiow said:
Came across a chap on good old Facebook who said he has fitted eyelet 230x57.5 Rockshox Coil to a medium Rail no issues (stole his photo as well)

He may even be on here???

I don’t know what to believe or who i can trust anymore…..View attachment 151515
Click to expand...
That pic doesnt say much. It is when compressed and forced down (to take away flex) you can se if it really fit.

Should be okay to trust the pros at tftuned?

Hey gentlemen, looking for some insight on my rear shock. I have read all 23 pages on this forum and.l have not found a solution.
Current bike:
2020 Trek Rail 7 aluminum 230x57.5

I purchased a fox Float x with hopes it would fit.

Unfortunately the piggyback makes contact with the downtube at full compression.

My question has anyone with this year trek rail had success with any shock? I think through my reading the carbon and aluminum grams fit different.

Thanks in advance


BadboyTroy said:
Hey gentlemen, looking for some insight on my rear shock. I have read all 23 pages on this forum and.l have not found a solution.
Current bike:
2020 Trek Rail 7 aluminum 230x57.5

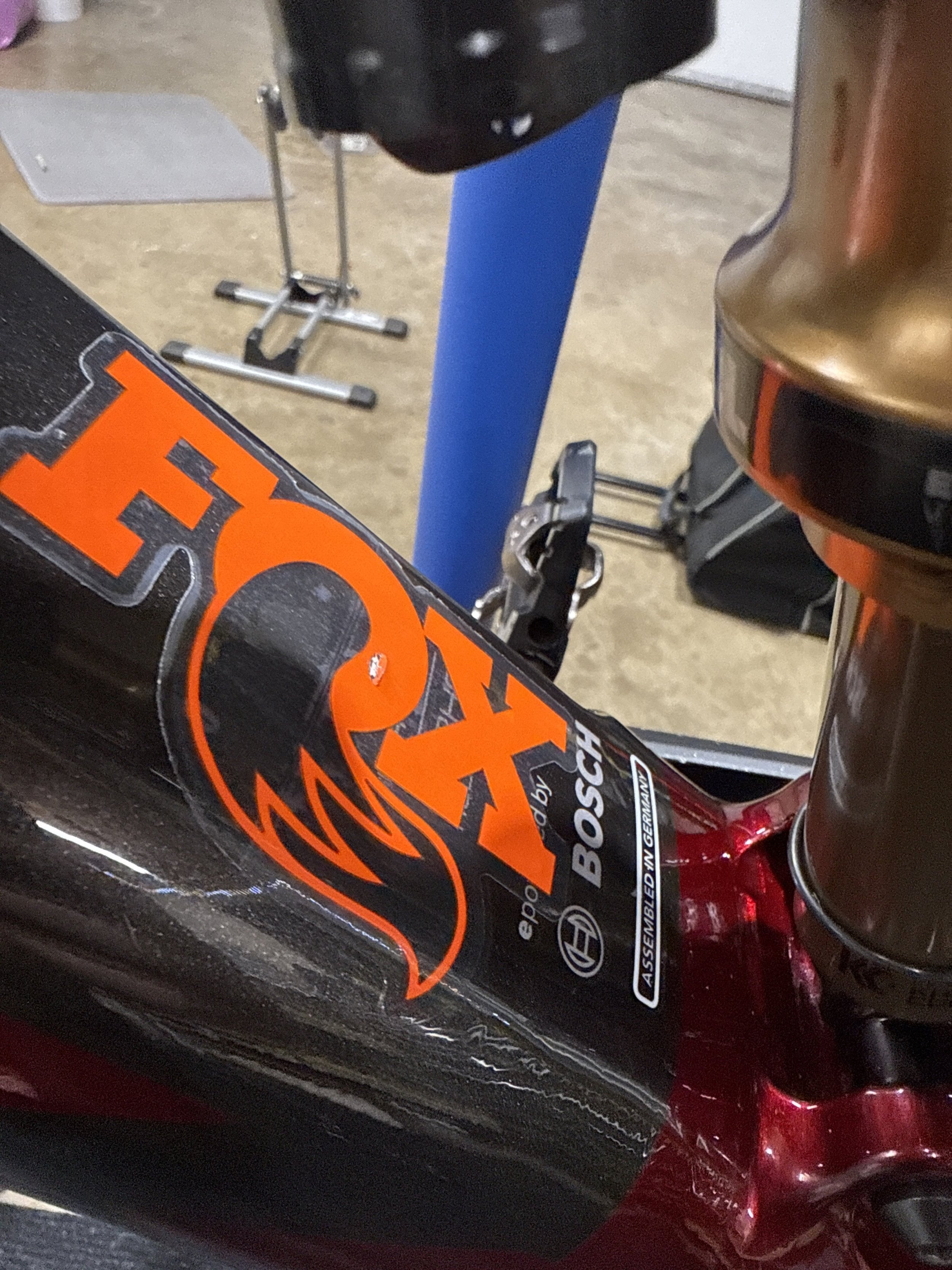

I purchased a fox Float x with hopes it would fit.

Unfortunately the piggyback makes contact with the downtube at full compression.

My question has anyone with this year trek rail had success with any shock? I think through my reading the carbon and aluminum grams fit different.

Thanks in advance

View attachment 154222
Click to expand...
DVO jade x is amazing and you can find them very cheap, the prime is even better but a bit more pricey.

BadboyTroy said:
Hey gentlemen, looking for some insight on my rear shock. I have read all 23 pages on this forum and.l have not found a solution.
Current bike:
2020 Trek Rail 7 aluminum 230x57.5

I purchased a fox Float x with hopes it would fit.

Unfortunately the piggyback makes contact with the downtube at full compression.

My question has anyone with this year trek rail had success with any shock? I think through my reading the carbon and aluminum grams fit different.

Thanks in advance

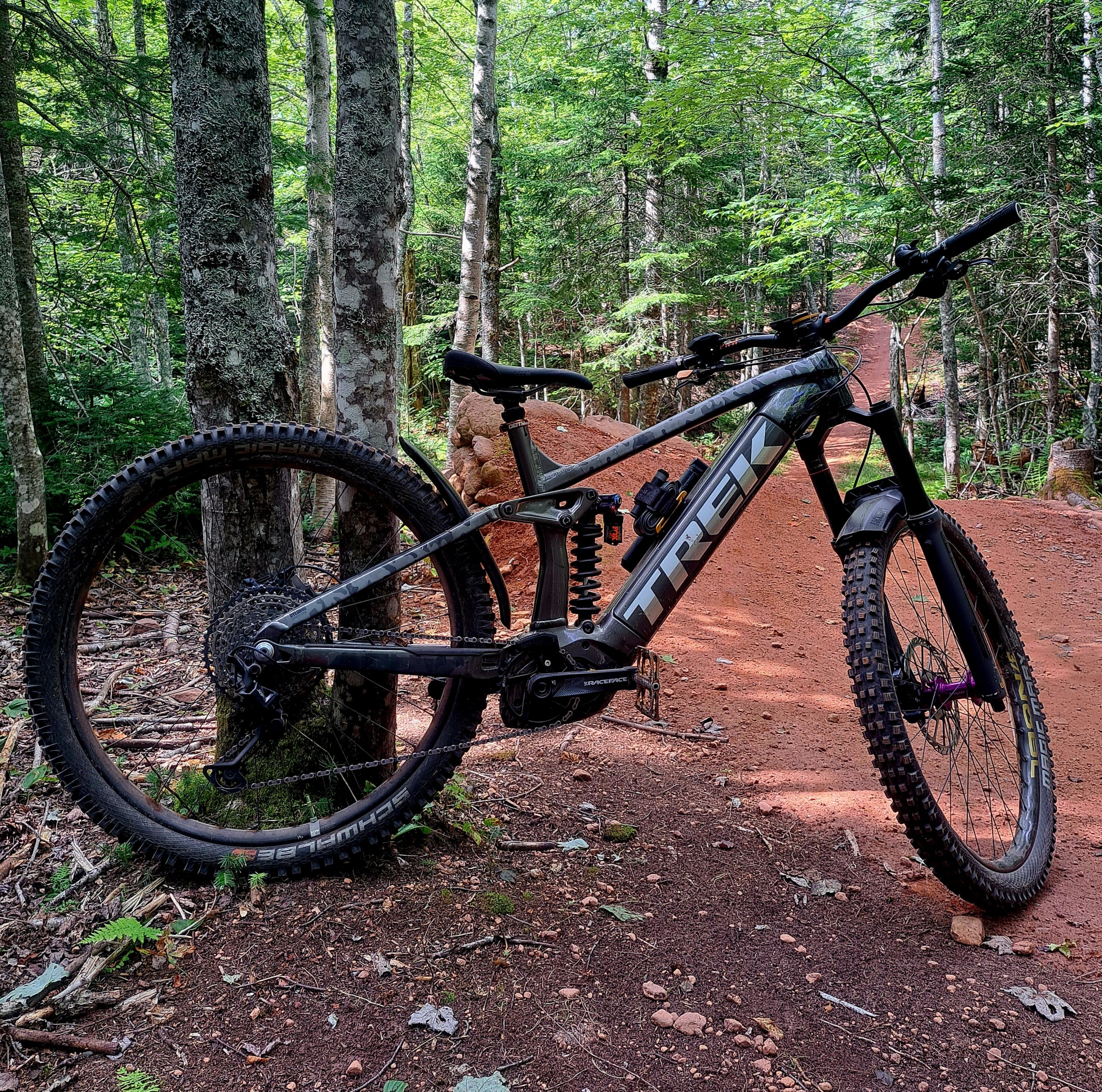

I have a 22 Gen 2 Rail 7. I had the same issue, I originally purchased a DHX (long story) and the reservoir hit the downtube. I replaced it with a DHX2 and its great. Same stroke and eye to eye as stock. No change in travel. I love it. This bike loves tech, absolutely savage in the loamers. Just make sure to account for the weight of the motor and battery when calculating your coil spring weight.
Click to expand...


BadboyTroy said:
Hey gentlemen, looking for some insight on my rear shock. I have read all 23 pages on this forum and.l have not found a solution.
Current bike:
2020 Trek Rail 7 aluminum 230x57.5

I purchased a fox Float x with hopes it would fit.

Unfortunately the piggyback makes contact with the downtube at full compression.

My question has anyone with this year trek rail had success with any shock? I think through my reading the carbon and aluminum grams fit different.

Thanks in advance

View attachment 154222
Click to expand...
The Öhlins TTX22M fits also.

HeyHey said:
The Öhlins TTX22M fits also.
Click to expand...
@BadboyTroy There are multiple posts of Ohlins coil shocks with fitting tips throughout this thread, don't know how you missed them ;)

As already said in this thread, have Ohlins TTX22m.2 coil shocks on our 2022 alloy Rail 5's, mine is Large and wife's is Medium.

Last edited:
irie said:
@BadboyTroy There are multiple posts of Ohlins coil shocks with fitting tips throughout this thread, don't know how you missed them ;)

As already said in this thread, have Ohlins TTX22m.2 coil shocks on our 2022 alloy Rail 5's, mine is Large and wife's is Medium.
Click to expand...
Did you answer the right fellow? I wrote that it fits, I even have one myself :)
