ELyte EVO 2025
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

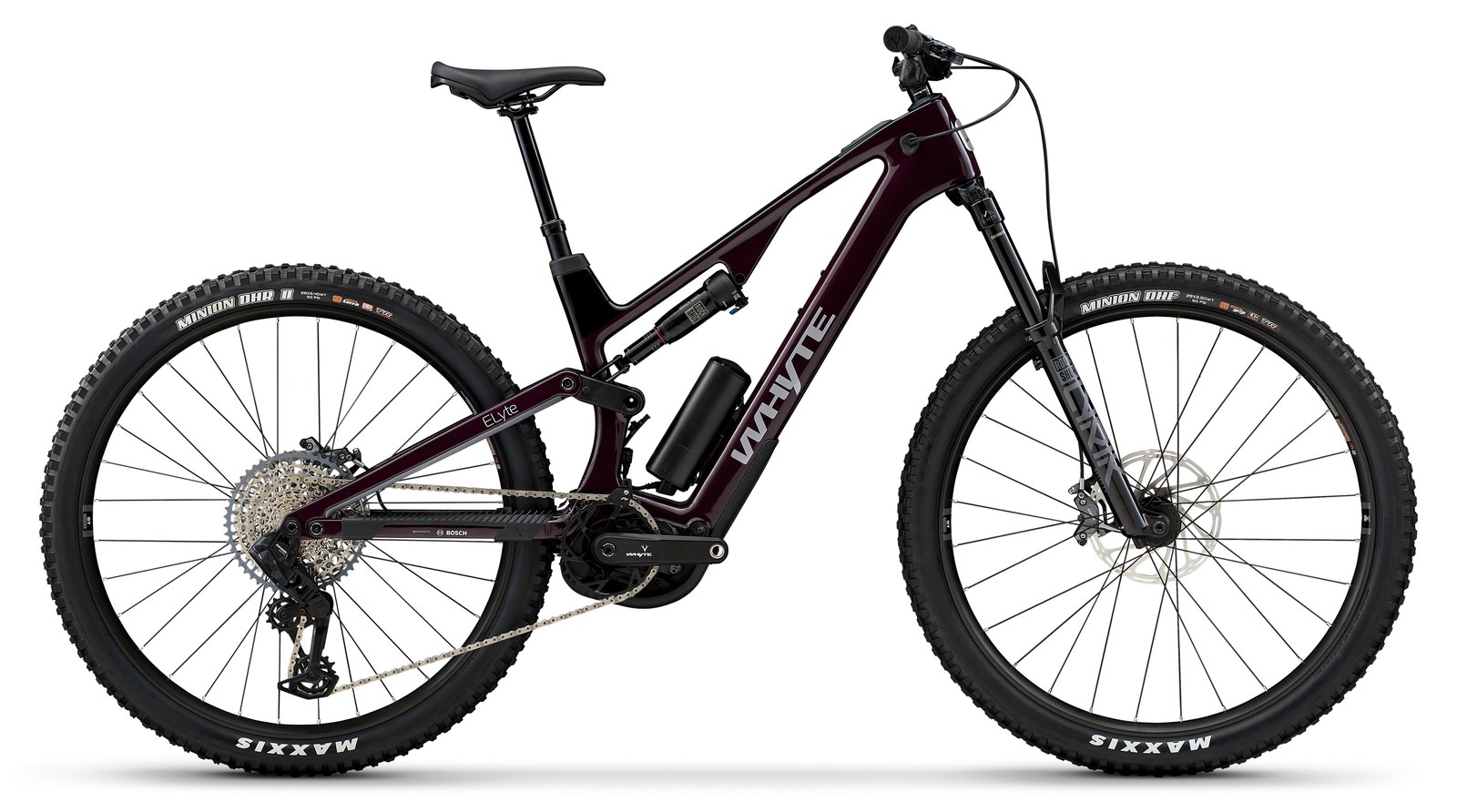

The ELyte EVO is Whyte's answer to the full-power-but-light brief: the new Bosch Performance Line CX (Smart System) motor and a compact 400Wh internal battery in a full carbon frame that comes in at 20.8 to 20.9kg claimed. The clever bit is the included 250Wh PowerMore range extender, which mounts in the lower bottle boss position just above the motor, so you can run a 650Wh combined capacity for big days or strip back to 400Wh for shorter blasts. Whyte makes much of the resulting centre of gravity, quoting 505.07mm on the 29er RS and 492.28mm on the MX Stag Works, its lowest ever.
The two builds split cleanly. The RS at £7,250 runs RockShox Lyrik Select+ and Deluxe Select+ suspension, SRAM S1000 T-Type AXS shifting and Code Bronze Stealth brakes on 29in wheels front and rear, and it is the obvious value pick. The £9,999 Stag Works goes mixed-wheel with Fox Factory 36 and Float X, SRAM XO T-Type AXS, Hope Tech4 V4 brakes, Hope cranks and hubs, DT HX531 rims and a Race Face ERA carbon bar, a genuinely boutique parts list for the money.
Geometry is shared across both: 150mm front and 142mm rear travel, a 64.6 degree head angle (64 in the low Shape.it Link setting), 481mm reach on a Large and long 450.4mm rear centres at every size, which points to stability over snap. Every ELyte EVO ships ready for Bosch's free software updates, including the E-MTB+ mode from July 2025 and the 100Nm plus 750W peak uplift from October 2025, so the launch-spec 85Nm/600W figures undersell what the bike runs today.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 431 mm | 456 mm | 481 mm | 506 mm |
| Stack | 628.7 mm | 640.5 mm | 652.3 mm | 663.2 mm |
| Seattube | 395 mm | 420 mm | 445 mm | 470 mm |
| Chainstay | 450.4 mm | 450.4 mm | 450.4 mm | 450.4 mm |
| Headtube Angle | 64.6° | 64.6° | 64.6° | 64.6° |
| Seattube Angle (eff) | 77.5° | 77.3° | 77.1° | 76.9° |
| Wheelbase | 1211.6 mm | 1242.1 mm | 1272.6 mm | 1302.7 mm |
| Headtube | 114 mm | 127 mm | 140 mm | 152 mm |
| BB Height | 341.9 mm | 341.9 mm | 341.9 mm | 341.9 mm |
| Standover | 741 mm | 741 mm | 741 mm | 741 mm |
| Front Centre | 761.2 mm* | 791.7 mm* | 822.2 mm* | 852.3 mm* |
Trims · 2
RS £7,250 | Stag Works £9,999 | |
|---|---|---|
| Motor | Bosch Performance Line CX Gen 5 · 120 Nm · all trims | |
| Battery | Bosch CompactTube 400 · 400 Wh · all trims | |
| Travel F/R | 150/142 mm · all trims | |
| Frame | Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts · all trims | |
| Fork | RockShox Lyrik Select+, 150mm travel, DebonAir+, Charger 3.1 Damper, Fast Black coating, tapered steerer, 110 x 15mm Boost | Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip X2 damper, tapered steerer, 110m x 15mm Kabolt axle |
| Shock | RockShox Deluxe Select + RT, DebonAir, Fast Black coating, adjustable rebound and two position compression adjustment, custom tuned for Whyte | Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm, custom tuned for Whyte |
| Headset | FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) cartridge bearings, with side entry internal routing · all trims | |
| Stem | Whyte Trail full CNC, 32mm extension, 35mm bar bore · all trims | |
| Handlebar | Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide | Race Face ERA Carbon, 20mm rise, 35mm bar bore, 800mm wide |
| Grips | Whyte Enduro lock-on · all trims | |
| Saddle | Whyte custom | Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail |
| Seatpost | TranzX +RAD 30.9mm, Adjustable, 125 drop (S), 150 drop (M), 170mm drop (L), 200mm drop (XL) | Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever |
| Brakes | SRAM Code Bronze Stealth, four piston hydraulic, 200mm diameter disc rotors front and rear | Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotors front and rear (Hope Tech 4 levers) |
| Rear derailleur | SRAM S1000 T-Type AXS, 12 speed | SRAM XO T-Type AXS, 12 speed |
| Crank | Whyte 155mm ISIS arms, SRAM Direct Mount 36T chainring, T-Type | Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type |
| Shifters | SRAM AXS Pod, right, MMX, 12 speed · all trims | |
| Cassette | SRAM XS 1270, T-Type, 10-52T, 12 speed | SRAM XS 1295, T-Type, 10-52T, 12 speed |
| Chain | SRAM GX T-Type, 12 speed | SRAM XO T-Type, 12 speed |
| Drivetrain | SRAM S1000 T-Type AXS, 12 speed; Whyte 155mm ISIS arms, SRAM Direct Mount 36T chainring, T-Type; SRAM AXS Pod, right, MMX, 12 speed; SRAM XS 1270, T-Type, 10-52T, 12 speed; SRAM GX T-Type, 12 speed | SRAM XO T-Type AXS, 12 speed; Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type; SRAM AXS Pod, right, MMX, 12 speed; SRAM XS 1295, T-Type, 10-52T, 12 speed; SRAM XO T-Type, 12 speed |
| Wheels | WTB ST Tough, 30mm internal width | DT HX531, 30mm Internal (Hope Pro 5 hubs, DT Swiss Elemental spokes) |
| Tyres | Maxxis Minion DHF, EXO TR MaxxGrip 29in x 2.5in front; Maxxis Dissector, EXO+ TR MaxxTerra 29in x 2.4in rear | Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 27.5in x 2.5in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound, rear |
| Weight | 20.9 kg | 20.8 kg |
| Price | £7,250 | £9,999 |
