Canyon

Neuron:ON CF 2023

Discontinued✎Full Power · TrailLegacy · 1/10iFreshness 1/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

Bosch Performance Line CX Gen 4 · 85Nm · 600W↗

Battery

Bosch PowerTube 750 · 750Wh

Travel F/R

140/140mm

Wheels

29F / 29R✎

Frame

Full carbon✎

Weight

22.6 kg

Price

From £4,799

View the Canyon Neuron:ON CF on Canyon’s site

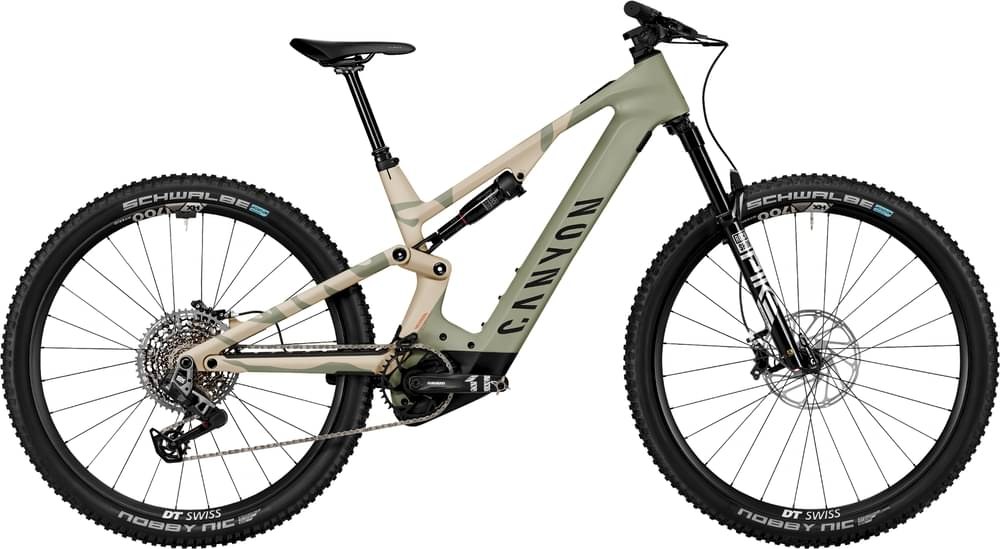

Canyon Neuron:ON CF 2023

From £4,799

The 2023 Canyon Neuron:ON CF was the carbon, Bosch-powered sibling of the alloy Neuron:ON, launched on 13 June 2023 as a genuinely separate platform rather than a trim of the aluminium bike. Where the alloy version ran Shimano STEPS, the CF is built around a full-carbon frame, 140 mm of travel front and rear, and a Bosch Performance Line CX motor (85 Nm, up to 340 per cent assistance) fed by a frame-integrated 750 Wh Bosch PowerTube battery. Canyon pitched it as a do-it-all adventure trail e-MTB, around 2.5 kg lighter than its predecessor.Three UK trims spanned the range. The CF 7 at 4,799 pounds paired a RockShox Pike with a Shimano Deore 1x12 drivetrain; the CF 8 at 5,349 pounds stepped up to a FOX 34 Float Performance fork and a full Shimano XT M8100 group with XT brakes; and the flagship CF 9 at 6,699 pounds added a RockShox Pike Ultimate, SRAM Code RSC brakes and wireless SRAM GX Eagle AXS Transmission shifting. All three rolled on 29in wheels with Schwalbe Nobby Nic tyres and shared a Canyon:ON alloy cockpit and Iridium dropper.Geometry is modern trail rather than aggressive enduro: a slack 65.5 degree head angle, 450 mm chainstays across the board, a 36 mm bottom bracket drop and reach growing from 435 mm on the smallest frame to 510 mm on the XL, with wheelbases stretching from 1203 mm to 1285 mm. Four frame sizes (S to XL) were offered. It is built for stable, all-day trail mileage with plenty of climbing support from the Bosch unit.This model year is now discontinued and the original Canyon product page returns a 404. The Neuron:ON CF carbon platform with its Bosch drive went on to define the upper end of Canyon's Neuron:ON line in later years.

EMTB Forums verdict

The 2023 Canyon Neuron:ON CF was the carbon, Bosch-powered sibling of the alloy Neuron:ON, launched on 13 June 2023 as a genuinely separate platform rather than a trim of the aluminium bike. Where the alloy version ran Shimano STEPS, the CF is built around a full-carbon frame, 140 mm of travel front and rear, and a Bosch Performance Line CX motor (85 Nm, up to 340 per cent assistance) fed by a frame-integrated 750 Wh Bosch PowerTube battery. Canyon pitched it as a do-it-all adventure trail e-MTB, around 2.5 kg lighter than its predecessor.

Three UK trims spanned the range. The CF 7 at 4,799 pounds paired a RockShox Pike with a Shimano Deore 1x12 drivetrain; the CF 8 at 5,349 pounds stepped up to a FOX 34 Float Performance fork and a full Shimano XT M8100 group with XT brakes; and the flagship CF 9 at 6,699 pounds added a RockShox Pike Ultimate, SRAM Code RSC brakes and wireless SRAM GX Eagle AXS Transmission shifting. All three rolled on 29in wheels with Schwalbe Nobby Nic tyres and shared a Canyon:ON alloy cockpit and Iridium dropper.

Geometry is modern trail rather than aggressive enduro: a slack 65.5 degree head angle, 450 mm chainstays across the board, a 36 mm bottom bracket drop and reach growing from 435 mm on the smallest frame to 510 mm on the XL, with wheelbases stretching from 1203 mm to 1285 mm. Four frame sizes (S to XL) were offered. It is built for stable, all-day trail mileage with plenty of climbing support from the Bosch unit.

This model year is now discontinued and the original Canyon product page returns a 404. The Neuron:ON CF carbon platform with its Bosch drive went on to define the upper end of Canyon's Neuron:ON line in later years.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (65.5° head angle, 140mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

Short 450mm rear and a lighter build — easy to pop, manual and throw around.

Size balance

Rear-long with a planted front in L (FC:RC 1.79) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.

Technical climbing

Bosch Performance Line CX Gen 4 and a steep the seat angle seat angle keep the weight planted over the front — a proper winch. 600W of peak power and 85Nm of torque — a strong full-power motor.

Best suited toPlayful trail riding — jumps, pumps and tight, techy singletrack.

Easy to throw around; happiest when you're active on the bike.

Watch out forNo major red flags in the L geometry.

The numbers are well balanced for its category.

How it stacks up vs other Full Power · Trail bikes (from 245 bikes in the database)

Weight22.6 kgabout average weight

Battery750 Whabout average capacity

Motor torque85 Nm13 Nm below average

Value for money50/100from £4,799 · most Bosch Performance Line CX Gen 4 bikes ~£4,799

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

💬 Forum discussion

Canyon Neuron:On / E8000 problem

22 replies · 7.4k views · last reply 62 months ago

Join the discussion →

Geometry · hover a row to highlight the measurement on the bike

	S	M	L	XL
Reach	435 mm	460 mm	485 mm	510 mm
Stack	631 mm	641 mm	650 mm	659 mm
Seattube	420 mm	440 mm	460 mm	480 mm
Chainstay	450 mm	450 mm	450 mm	450 mm
Headtube Angle	65.5°	65.5°	65.5°	65.5°
Wheelbase	1203 mm	1232 mm	1256 mm	1285 mm
Headtube	120 mm	130 mm	140 mm	150 mm
BB Height	338 mm	338 mm	338 mm	338 mm
Standover	773 mm	779 mm	785 mm	790 mm
Front Centre	753 mm*	782 mm*	806 mm*	835 mm*
FC:RC	1.67	1.74	1.79	1.86

Trims · 3

	CF 7 £4,799	CF 8 £5,349	CF 9 £6,699
Motor	Bosch Performance Line CX Gen 4 · 85 Nm · all trims
Battery	Bosch PowerTube 750 · 750 Wh · all trims
Travel F/R	140/140 mm · all trims
Frame	Carbon · all trims
Fork	RockShox Pike, 140 mm travel, 1 1/8"-1.5" steerer	FOX 34 Float Performance GRIP, 140 mm travel, 34 mm stanchions, 44 mm offset, 15x110 mm axle	RockShox Pike Ultimate, 140 mm travel, 1 1/8"-1.5" steerer
Shock	RockShox Deluxe Select R	FOX DPS Performance	RockShox Deluxe Select R
Stem	Canyon:ON ST0031 E-MTB stem, 45 mm length, 35 mm clamp · all trims
Handlebar	Canyon:ON HB0056 Riser, aluminium, 780 mm width, 35 mm clamp, 20 mm rise · all trims
Grips	Canyon Lock-On Grips · all trims
Saddle	Fizik Terra Alpaca X5 · all trims
Seatpost	Iridium Dropper Post, internal routing, 30.9 mm clamp · all trims
Brakes	Shimano Deore M6120 4-piston (front) / Shimano Deore M6100 (rear), 203 mm rotors	Shimano Deore XT M8120 4-piston (front) / Shimano Deore XT M8100 (rear), 203 mm rotors	SRAM Code RSC 4-piston, SRAM Centerline 203 mm rotors
Rear derailleur	Shimano Deore M6100, 1x12, long cage	Shimano Deore XT M8100, 1x12, long cage	SRAM GX Eagle AXS Transmission (T-Type), 1x12 wireless
Crank	FSA 762 Forged Crank (Bosch Gen 4)	FSA 762 Forged Crank (Bosch Gen 4)	SRAM X1
Shifters	Shimano Deore M6100 12-speed	Shimano Deore XT M8100 12-speed	SRAM AXS Pod Ultimate (wireless)
Cassette	Shimano Deore CS-M6100 12-speed, 10-51T	Shimano Deore XT M8100 12-speed, 10-51T	SRAM GX Eagle Transmission XS-1275 12-speed, 10-52T
Chain	Shimano CN-M6100 12-speed	Shimano CN-M6100 12-speed	SRAM GX Eagle Transmission 12-speed
Drivetrain	Shimano Deore M6100, 1x12, long cage; FSA 762 Forged Crank (Bosch Gen 4); Shimano Deore M6100 12-speed; Shimano Deore CS-M6100 12-speed, 10-51T; Shimano CN-M6100 12-speed	Shimano Deore XT M8100, 1x12, long cage; FSA 762 Forged Crank (Bosch Gen 4); Shimano Deore XT M8100 12-speed; Shimano Deore XT M8100 12-speed, 10-51T; Shimano CN-M6100 12-speed	SRAM GX Eagle AXS Transmission (T-Type), 1x12 wireless; SRAM X1; SRAM AXS Pod Ultimate (wireless); SRAM GX Eagle Transmission XS-1275 12-speed, 10-52T; SRAM GX Eagle Transmission 12-speed
Wheels	RODI TRYP30 EVO, Center Lock	DT Swiss HLN350, Center Lock, 30 mm inner width, 15x110 / 12x148 mm	DT Swiss HX1700, IS 6-bolt, 30 mm inner width, 15x110 mm
Tyres	Schwalbe Nobby Nic 29x2.4in BlackSkin · all trims
Weight	22.8 kg	22.6 kg	22.84 kg
Price	£4,799	£5,349	£6,699
