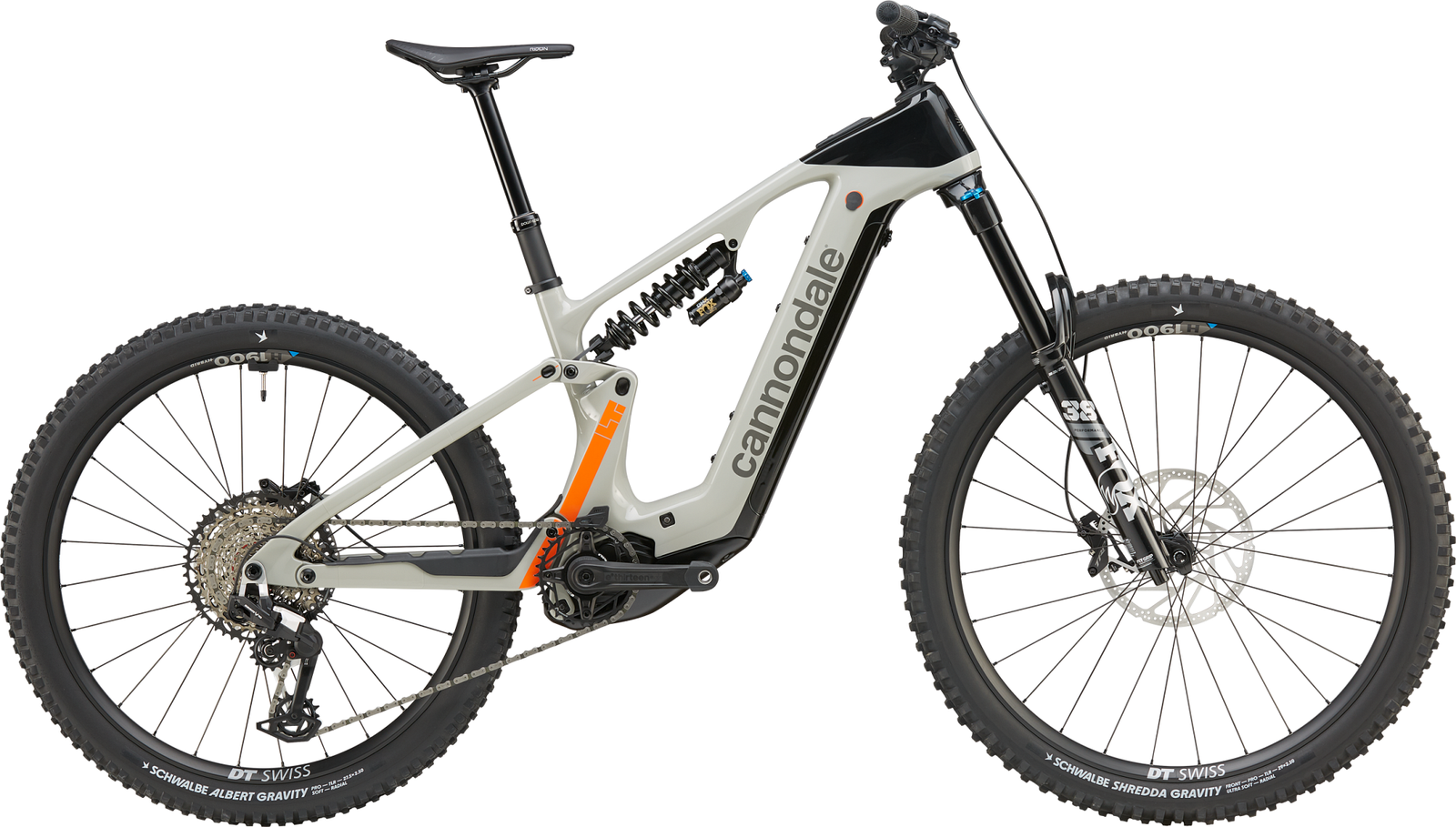

Cannondale Moterra LT
Cannondale

Moterra LT 2026

CurrentFull Power · EnduroCurrent · 8.5/10iFreshness 8.5/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Travel F/R
170/165mm
Wheels
MX (29F / 27.5R)
Frame
Carbon front, aluminium rear
Weight
Price
£6,500
View the Cannondale Moterra LT on Cannondale’s site
Cannondale Moterra LT 2026
From £6,500
EMTB Forums verdict

The Moterra LT is the longest-travel, hardest-hitting model in Cannondale's full-power Moterra range. This new generation moves to a full carbon frame that Cannondale says shaves a kilo off the previous Moterra Neo LT, pairs a 170mm Fox 38 Performance fork with a 165mm Fox DHX coil shock, and runs a dedicated mullet wheel setup. Power comes from the 120Nm Bosch Performance Line CX (Gen 5) with a removable 800Wh PowerTube, swappable down to a 600Wh pack or extendable to 1050Wh with a PowerMore range extender.

The single UK build, the LT 1 at £6,500, is sensibly chosen for enduro abuse rather than showroom appeal: mechanical SRAM Eagle 90/70 T-Type shifting, TRP EVO Pro four-piston brakes on 220/203mm rotors, DT Swiss H 1900 wheels and radial-casing Schwalbe Shredda/Albert tyres. That undercuts the shorter-travel Moterra 1 (£7,500) and the lightweight Moterra SL LAB71 (£11,000) in the same catalogue, although the shorter-travel 150mm Moterra 2 offers the same full carbon frame and Bosch CX/800Wh system for £6,000.

Geometry is properly enduro: 64.4 degree head angle, 77.5 degree effective seat angle, 425 to 510mm reach across four sizes, and Proportional Response size-specific kinematics with chainstays that grow from 445mm to 450mm on the bigger frames. There is no flip chip; the coil shock carries a two-position adjustment instead.

As a newly launched generation there is little owner history on this frame yet, so long-term reliability and ride impressions from the community are still to come.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size
Descending
68

A solid all-round descender (64.4° head angle, 165mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness
35

More planted than poppy — better on steep terrain than tight, fiddly singletrack.

Size balance
84

Balanced front-to-rear in L (FC:RC 1.85) — weight sits evenly between the wheels.

Technical climbing
76

Bosch Performance Line CX Gen 5 and a steep 77.5° seat angle keep the weight planted over the front — a proper winch. 750W of peak power and 120Nm of torque — among the most powerful e-bike motors made.

Best suited toBig-day all-rounders who climb a lot and still descend hard.

Strong up and composed down — a do-it-all, not a specialist.

Watch out forNot a flickable, playful bike — built to plough, not pop.

Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.

How it stacks up vs other Full Power · Enduro bikes (from 136 bikes in the database)

Battery800 Wh68 Wh above average
Motor torque120 Nm17 Nm above average
Value for money55/100from £6,500 · most Bosch Performance Line CX Gen 5 bikes ~£6,730
Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.
Paste into any thread to embed this live, interactive panel.
💬 Forum discussion
Cannondale Moterra 1,2,3 and SE
127 replies · 57k views · last reply 3 months ago
Join the discussion →
“Moterra 3 with a bit of bling. Fully sic bike ?? I bought the base model because they all share the same frame, considerably cheaper, I prefer a lighter 500whr battery, and I had the Fox 36’s from my previous emtb. Absolutely love it,…”
— Davemtb · ♥ 6 · most-liked post

Geometry · hover a row to highlight the measurement on the bike

Bike geometry diagram
SMDLXL
Reach425 mm450 mm475 mm510 mm
Stack647 mm647 mm656 mm665 mm
Seattube380 mm400 mm420 mm460 mm
Chainstay445 mm445 mm450 mm450 mm
Headtube Angle64.4°64.4°64.4°64.4°
Seattube Angle (eff)77.5°77.5°77.5°77.5°
Wheelbase1224 mm1249 mm1283 mm1323 mm
Headtube125 mm125 mm135 mm145 mm
BB Height352 mm352 mm352 mm352 mm
Standover765 mm775 mm788 mm801 mm
Front Centre779 mm*804 mm*833 mm*873 mm*
FC:RC1.751.811.851.94

Trims · 1

LT 1
£6,500
MotorBosch Performance Line CX Gen 5 · 120 Nm
BatteryBosch PowerTube 800 · 800 Wh
Travel F/R170/165 mm
FrameFull carbon (Moterra LT Carbon, alloy skid plate)
ForkFox Float Performance 38, 170mm, Grip Damper 3Pos, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
ShockFox DHX Performance, Coil, 2 pos adj, 230x65mm
HeadsetAcros ICR, 1.5" to 1.8", sealed bearings
StemCannondale 1, 6061 Alloy, 35.0, 40mm, 0°
HandlebarCannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
GripsCannondale TaperRidge
SaddleFizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail
SeatpostCannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
BrakesTRP EVO Pro 4-piston hydraulic disc, 220/203mm rotors, 2.3mm thickness; TRP EVO Pro hydraulic disc levers
Rear derailleurSRAM Eagle 90, T-Type
Cranke*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
ShiftersSRAM Eagle 90, T-Type, 12-speed
CassetteSRAM Eagle 70 T-Type, 10-52, 12-speed
ChainSRAM Eagle 70 T-Type, 12-speed
DrivetrainSRAM Eagle 90, T-Type; e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T; SRAM Eagle 90, T-Type, 12-speed; SRAM Eagle 70 T-Type, 10-52, 12-speed; SRAM Eagle 70 T-Type, 12-speed
WheelsDT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready); DT Swiss Competition straight pull spokes; (F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 LN Ratchet System, 12x148mm thru-axle, 6-bolt hubs
Tyres(F) Schwalbe Shredda Front, 29x2.5", Radial casing, Addix Ultra Soft Foldable, tubeless ready / (R) Schwalbe Albert, 27.5x2.5", Radial casing, Addix Soft Foldable, tubeless ready
Price£6,500
