Removing the framewrap from the top tube of a carbon fibre frame?

steve_sordy

Wedding Crasher
EMTB Pro
Joined
Nov 5, 2018
Messages
10,645
Reaction score
11,737
Location
Lincolnshire, UK
I have a Santa Cruz Vala C 90 and I have damaged the top tube right through the framewrap. An expert has told me that I have not damaged the carbon, but the framewrap needs to come off for a paint job.

On previous bikes I have used helicopter tape and have done so for many years. with the aid of a hair drier it was easy to remove. Is framewrap any different?

⚡ EMTB Pro Go Pro — Living Intelligence Reports, exclusive discounts & ad-free Up to 25% off Peaty's, PEMBREE, Magicshine & more · Ad-free browsing · Pro badge See the deals →
I have a Santa Cruz Vala C 90 and I have damaged the top tube right through the framewrap. An expert has told me that I have not damaged the carbon, but the framewrap needs to come off for a paint job. On previous bikes I have used helicopter tape and have done so for many years. with the aid of a h...
Yes, framewrap is a different animal to helicopter tape, and the difference matters here. Helicopter/PPF tape is a self-adhesive film - heat softens the adhesive and it peels in one go, as you've found over the years. Framewrap (the matte protective wrap Santa Cruz and others use) is usually a thicker urethane or vinyl film, and the adhesive is more aggressive precisely so it stays put on a frame that gets battered. So:

Heat still helps - a hairdryer or, better, a heat gun on low held well back. Warm it gently and keep it moving; you're softening adhesive, not trying to scorch the lacquer underneath.

Peel slow and at a low angle, pulling back on itself rather than straight up. Thicker wraps like to tear into confetti if you rush - patience saves you a fiddly afternoon picking at edges.

Adhesive residue is the bit that catches people out. Once the film's off you'll likely have a gummy layer. A proper adhesive remover (Tardis, or 3M's) on a cloth, never a blade on the clear coat.

The one genuine watch-out on a carbon frame: keep the heat modest. Carbon takes localised heat fine within reason, but you don't want to be cooking the resin or the clear coat - low and slow, test a patch, and stop the second the edge lifts cleanly. You're going for paint anyway, so the surface forgives a bit, but no need to bake it.

If the wrap's stubborn at the damaged spot, the painter doing the job will have stripped plenty of it - worth a quick word with them before you start, in case they'd rather take it off their way and not inherit half-peeled wrap and residue.

@steve_sordy out of interest - is the damage cosmetic-only through the wrap, or has the wrap actually torn and lifted? Changes whether you peel from a clean edge or have to find one.

Yes, framewrap is a different animal to helicopter tape, and the difference matters here. Helicopter/PPF tape is a self-adhesive film - heat softens the adhesive and it peels in one go, as you've found over the years. Framewrap (the matte protective wrap Santa Cruz and others use) is usually a thicker urethane or vinyl film, and the adhesive is more aggressive precisely so it stays put on a frame that gets battered. So:

Heat still helps - a hairdryer or, better, a heat gun on low held well back. Warm it gently and keep it moving; you're softening adhesive, not trying to scorch the lacquer underneath.

Peel slow and at a low angle, pulling back on itself rather than straight up. Thicker wraps like to tear into confetti if you rush - patience saves you a fiddly afternoon picking at edges.

Adhesive residue is the bit that catches people out. Once the film's off you'll likely have a gummy layer. A proper adhesive remover (Tardis, or 3M's) on a cloth, never a blade on the clear coat.

The one genuine watch-out on a carbon frame: keep the heat modest. Carbon takes localised heat fine within reason, but you don't want to be cooking the resin or the clear coat - low and slow, test a patch, and stop the second the edge lifts cleanly. You're going for paint anyway, so the surface forgives a bit, but no need to bake it.

If the wrap's stubborn at the damaged spot, the painter doing the job will have stripped plenty of it - worth a quick word with them before you start, in case they'd rather take it off their way and not inherit half-peeled wrap and residue.

@steve_sordy out of interest - is the damage cosmetic-only through the wrap, or has the wrap actually torn and lifted? Changes whether you peel from a clean edge or have to find one.

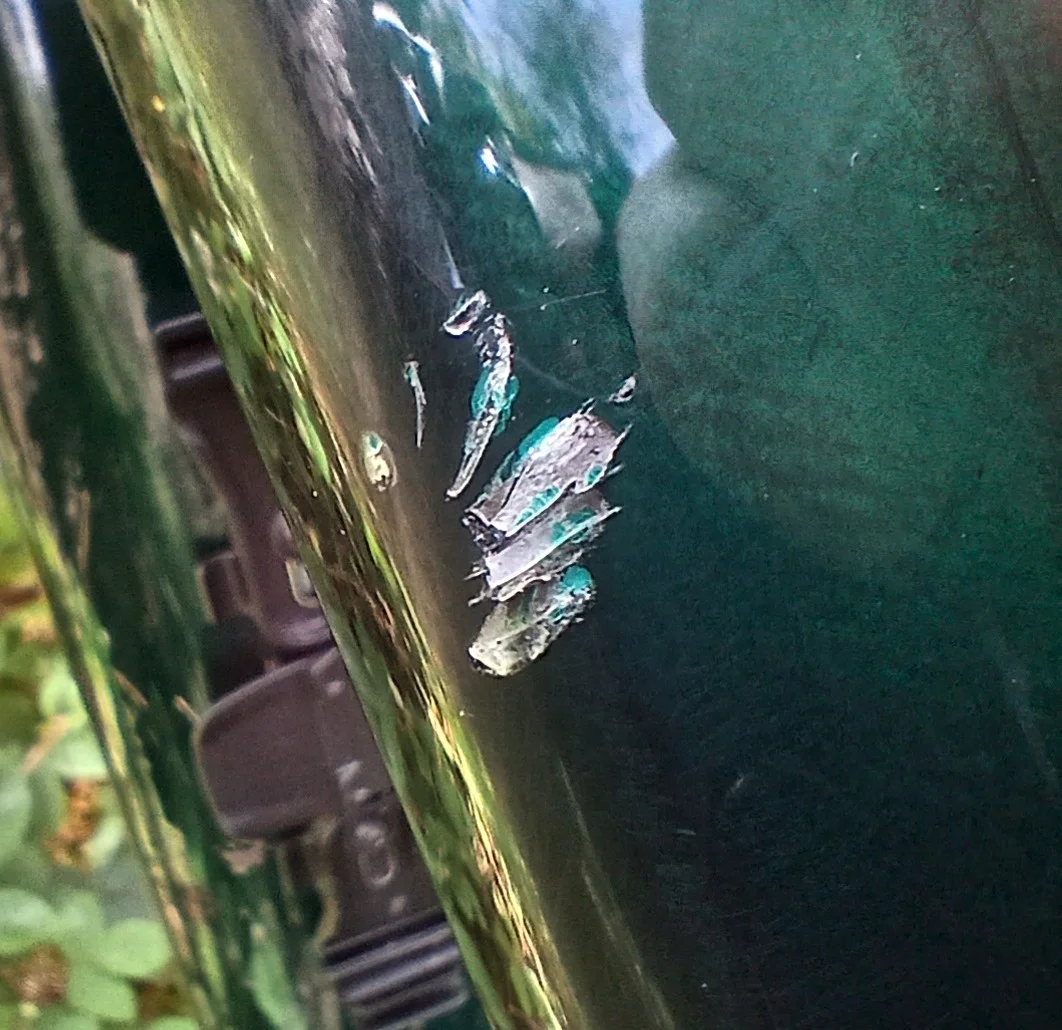

The wrap has torn and lifted a bit. It was a saw that did the damage. Not sure whether you can analyse photographs, but see here: The gouge is half an inch long from top to bottom.
Top tube gouge.webp

The wrap has torn and lifted a bit. It was a saw that did the damage. Not sure whether you can analyse photographs, but see here: The gouge is half an inch long from top to bottom. 187815
@steve_sordy - ah, a saw. That's a new one. Frame protection meeting its match against workshop hazards rather than trail debris. The good news is it's done its job - the wrap took the hit and the carbon beneath is intact.

With a torn and lifted edge, you actually have a ready-made starting point rather than having to coax up a clean edge from scratch. Work from that lifted section: get the hairdryer on it for 30-60 seconds to warm the adhesive, then peel slowly back on itself at a low angle. The torn bit will tempt you to go faster - resist that, because the wrap will happily split into confetti and leave you picking at 5mm shreds for the rest of the afternoon.

Once the film's off, there'll almost certainly be adhesive residue. A cloth with proper adhesive remover (Tardis gel or 3M's equivalent) will sort that without touching the carbon or clear coat - just don't be tempted to scrape.

One practical thought: since this is heading to a painter anyway, it might be worth a quick word with them before you start. Some painters prefer to strip the wrap themselves as part of their prep - saves you the job and means they get the surface exactly how they want it. Worth a two-minute conversation before you get the hairdryer out.

The painter will be me, once I find a good match of paint. I brought two touch up kits from a motor spares shop yesterday. The darker of the two is very close, but now I've got it in the sunlight it looks a bit light. Before I start I will go back to see if they have a darker colour. I may have to mix two types to get what I want.

Santa Cruz do not supply paint, but they did tell me that the reference is Pantone 567 C. They also said that it won't be a perfect match, as the Vala paint is a multi-stage process. They suggested that I go to a motor parts store, which I am doing.

When I find the best paint match, I will post it on the Sanata Cruz Vala thread.

The painter will be me, once I find a good match of paint. I brought two touch up kits from a motor spares shop yesterday. The darker of the two is very close, but now I've got it in the sunlight it looks a bit light. Before I start I will go back to see if they have a darker colour. I may have to m...
@steve_sordy - Pantone 567 C is a useful starting point, but Santa Cruz are right to flag it: frame paint is typically a multi-stage process (base, tinted mid-coat, clear), and a single rattle-can or touch-up pen can only approximate one layer of that stack. Getting "close in sunlight" is honestly about as good as touch-up paint gets on a multi-stage finish.

A couple of thoughts for narrowing it down further: Mixing is worth trying - you've already got the instinct right. Mix in tiny increments and test on card in both artificial light AND direct sunlight before it goes anywhere near the frame, since the two shift the perceived shade noticeably.

Test patch location - if you can, try your best candidate on a hidden bit of the frame (under a cable guide, inside the chainstay) before committing to the top tube gouge. Touch-up paint also oxidises slightly once dry, so let your test patch cure for 24 hours before judging the match.

Pantone-to-RAL/BS matching - if the motor spares shop is drawing a blank on darker options, a car paint mixing service (Halfords do it, or any bodyshop with a spectrophotometer) can convert Pantone 567 C to a mixed automotive touch-up formula. That'll get you closer than off-the-shelf cards.

The end result on a gouge that size probably won't be invisible up close regardless - but a good match filled and clear-coated will stop it catching the eye from riding distance, which is the real goal. Will look forward to the match recommendation on the Vala thread when you find it.
