Orbea Wild SpeedBox 1.2b Install

FlobossX

New Member
Jan 30, 2024
7
9
West Virginia
Received the SpeedBox 1.2b and installed today. Documented the install with a few pictures.

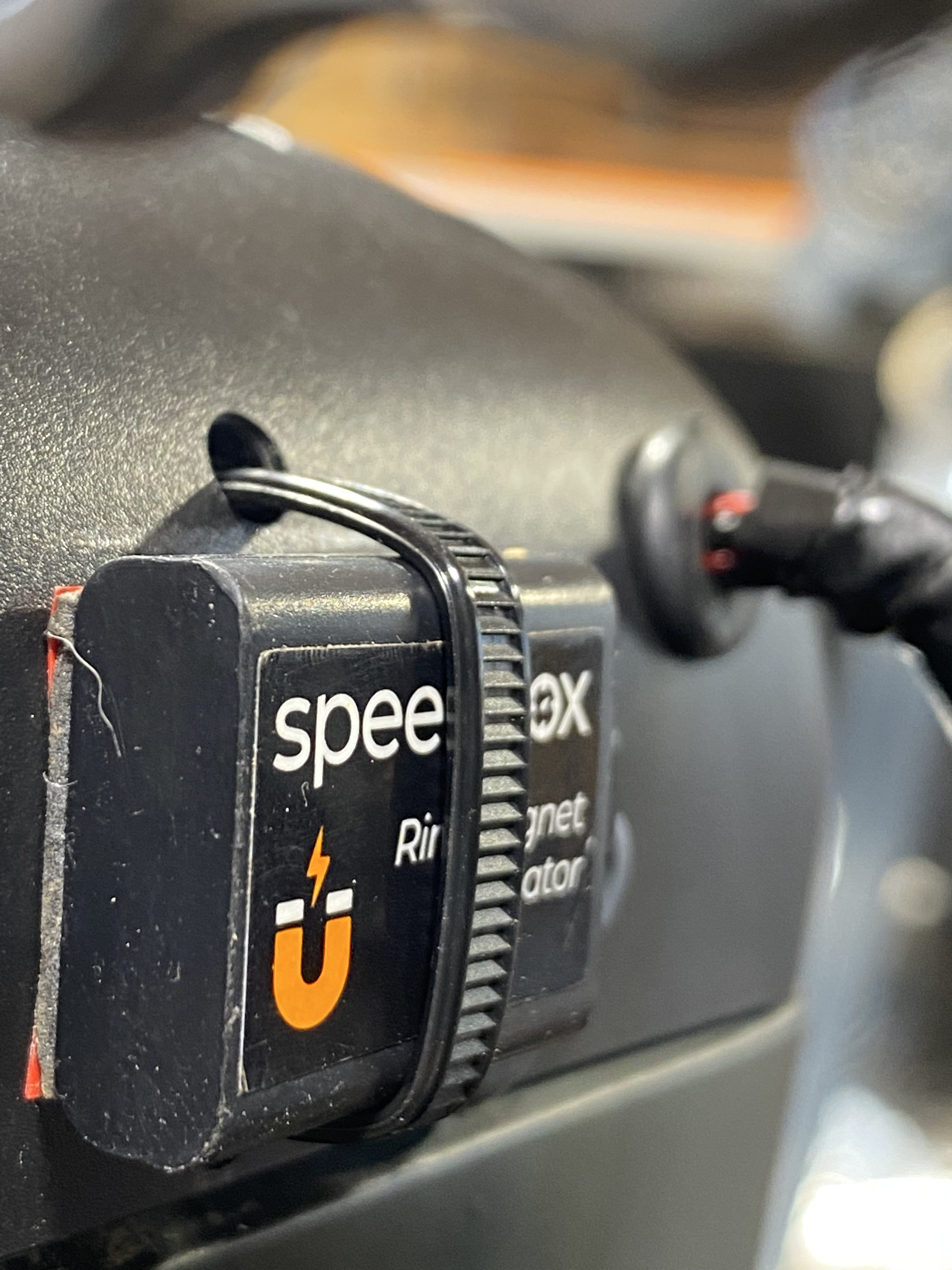

I will say that rear suspension bikes will take some creativity on the install. The wheel magnet sensor wire has to have some play in it to account for the suspension travel. On my install, I couldn’t fit the rim magnet simulator under the motor cover. I ended up mounting on the outside of the cover. (I’m looking to find a removable cover for this, that can be affixed to the factory orbea motor cover.) the rest of the unit fits fairly easy under the motor cover.

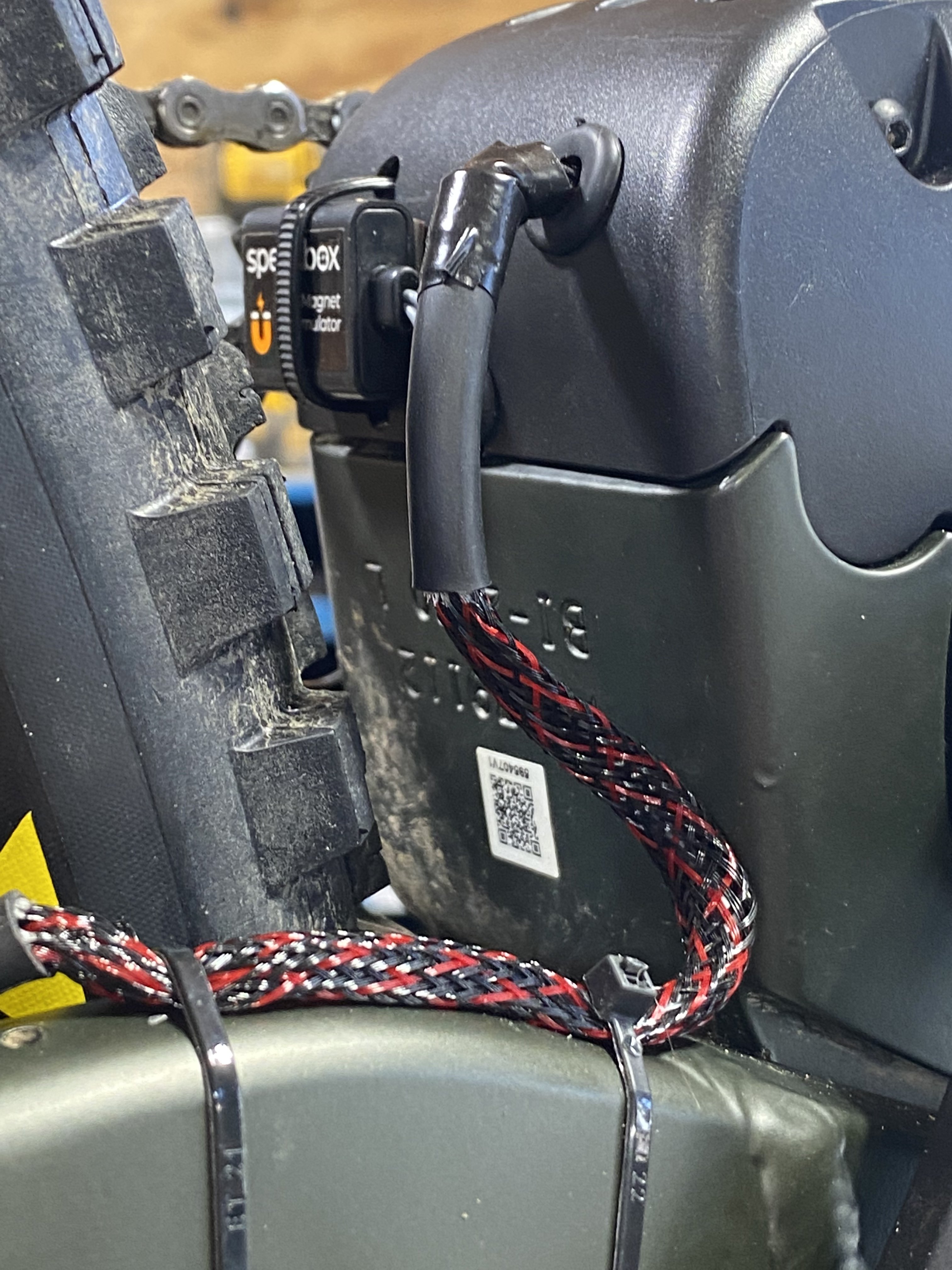

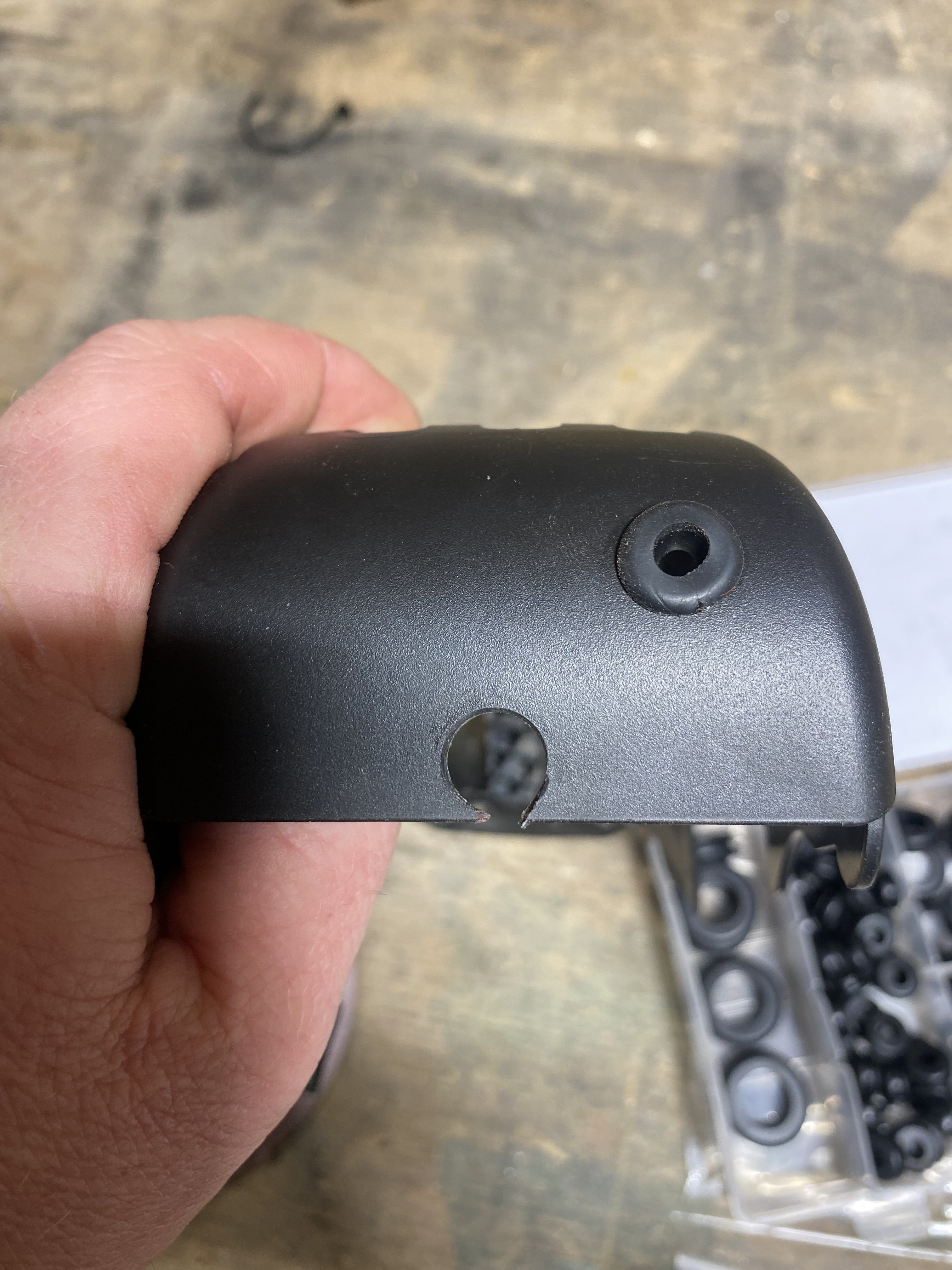

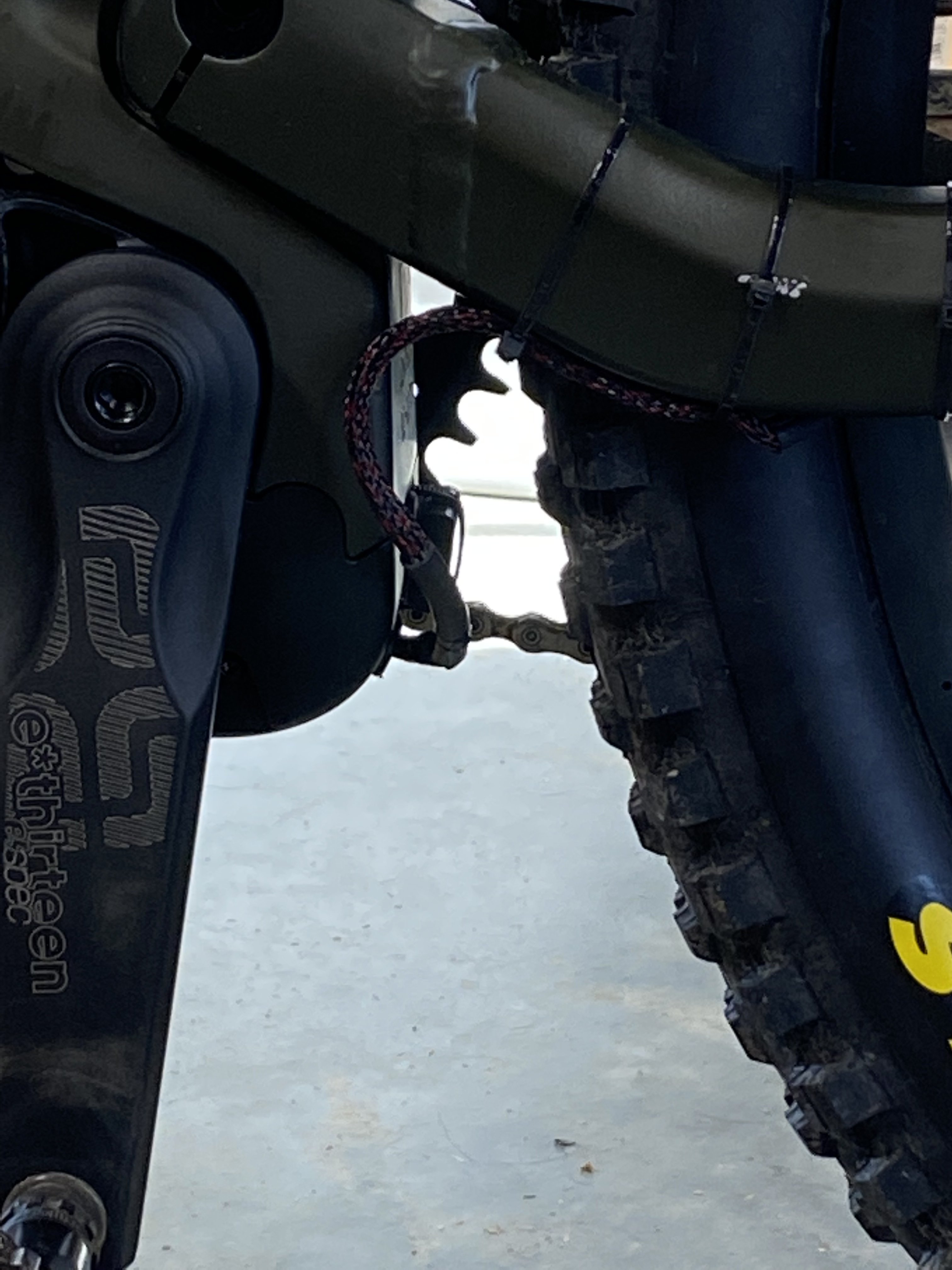

Out of concern for wire wear on the magnet sensor wire, I used rubber grommets to protect the wires entry into the motor cover area. I also used protective wire loom for extra durability on the exposed wiring. It’s not beautiful….

Seems to work as advertised. I think I run outta gear at about 35 or 36 mph without pedaling at a ridiculous cadence. The motor pushed the whole way.

CF437C34-F658-48BA-88DA-095C379129E6.jpeg 40405F30-DDF4-4885-8B1A-F43940F1C9B6.jpeg F59111F1-7F9F-4DEB-A229-1866A5771590.jpeg 4AE36DC8-D1CA-4A3E-AFBA-7815E04FADD7.jpeg


High Rock Ruti

Active member
May 13, 2019
416
327
Massachusetts
Received the SpeedBox 1.2b and installed today. Documented the install with a few pictures.

I will say that rear suspension bikes will take some creativity on the install. The wheel magnet sensor wire has to have some play in it to account for the suspension travel. On my install, I couldn’t fit the rim magnet simulator under the motor cover. I ended up mounting on the outside of the cover. (I’m looking to find a removable cover for this, that can be affixed to the factory orbea motor cover.) the rest of the unit fits fairly easy under the motor cover.

Out of concern for wire wear on the magnet sensor wire, I used rubber grommets to protect the wires entry into the motor cover area. I also used protective wire loom for extra durability on the exposed wiring. It’s not beautiful….

Seems to work as advertised. I think I run outta gear at about 35 or 36 mph without pedaling at a ridiculous cadence. The motor pushed the whole way.

View attachment 133853 View attachment 133854 View attachment 133855 View attachment 133856
High Rock Ruti

Necessity is the mother of invention.

Keep us updated, my 24 wild arrives in a couple of weeks.

Warm Regards Ruti


FlobossX

New Member
Jan 30, 2024
7
9
West Virginia
@FlobossX Is this still working well? Thanks
I’ve been trying to return. Was getting some strange errors. One was battery switch stuck on.. was having issues getting the rim magnet simulator to show speed in the flow app. Also couldn’t physically get the rim mag simulator to fit inside the stock motor cover without some modifications. I ended up mounting on the outside of the cover,(where I ride, the chip
Police are non existent).


Knobby

Active member
Patreon
Jun 13, 2018
68
64
Hampshire, UK

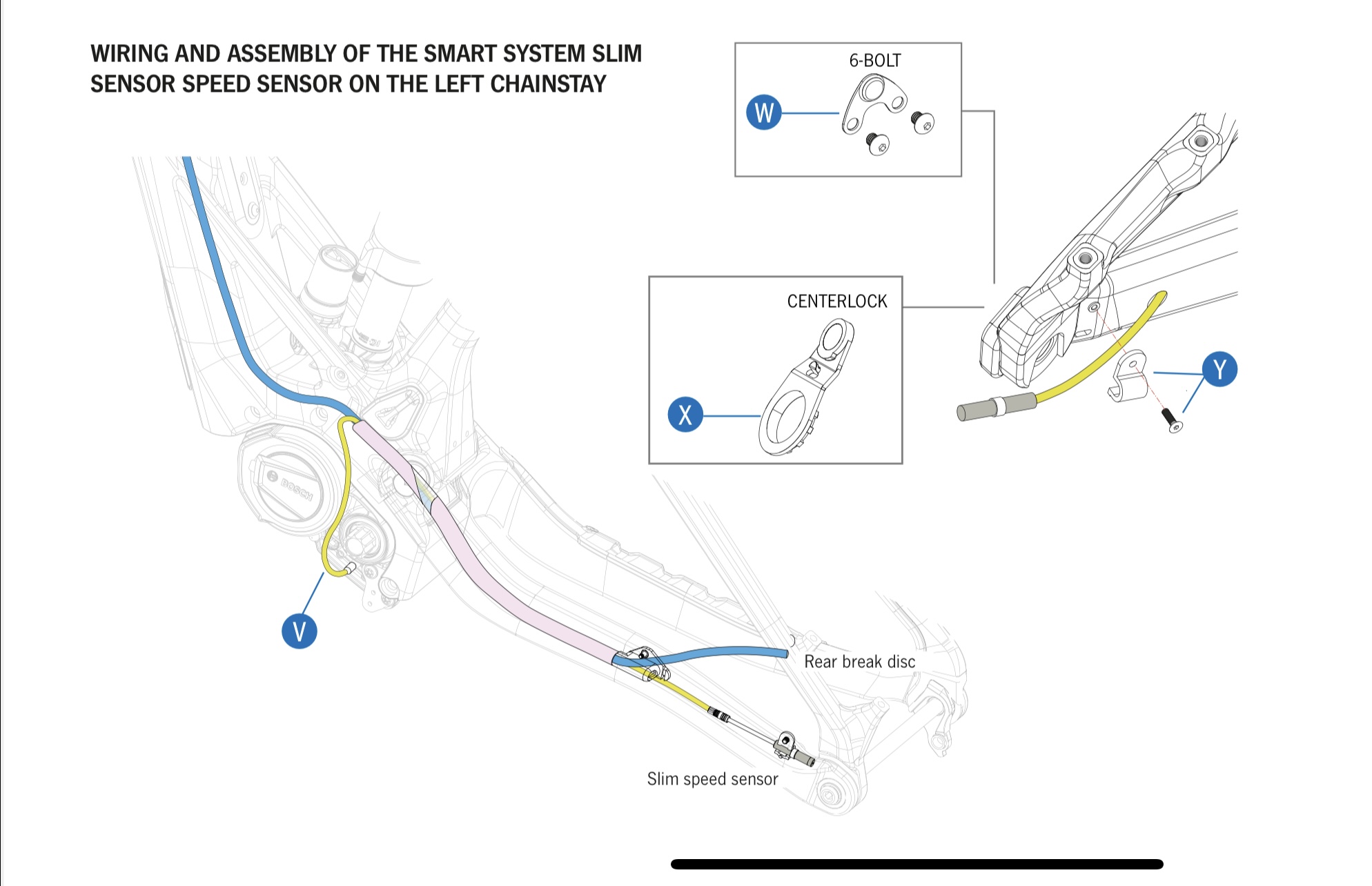

Can I ask why you didn’t get your local bike shop to convert the rim magnet to the Bosch slim sensor speed sensor and then run a normal smart speed box?

It details it’s compatible in the manual.
