Mount drawings / CAD for M600

[Mowgli_Supertramp]

Hi all,

New member here! I'm excited to be designing a new custom frame based around the pending M560. I understand this has the same chassis as the M600 and others. Does anyone know where I can find a drawing of the bolt pattern for either this motor, or the mounting bracket? I've hunted all over and had no luck yet.

Thanks!



[Waynemarlow]

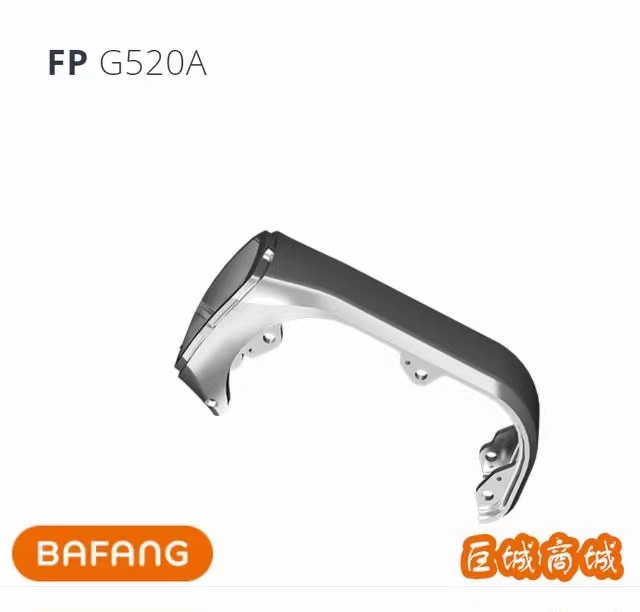

I have an aluminium mount FP G520A for the M600 if you want to experiment with it.

There are drawings out there though, the ones I have maybe good enough but sorry I don't have them as a CAD file.



[Mowgli_Supertramp]

Thanks. I'll see if I can reproduce the geometry from that - don't suppose you have the widths or a bottom elevation? The frame will be Titanium. I expect the frame builder will have a bracket, but I need to design around it.
Cheers,



[BootsDave]

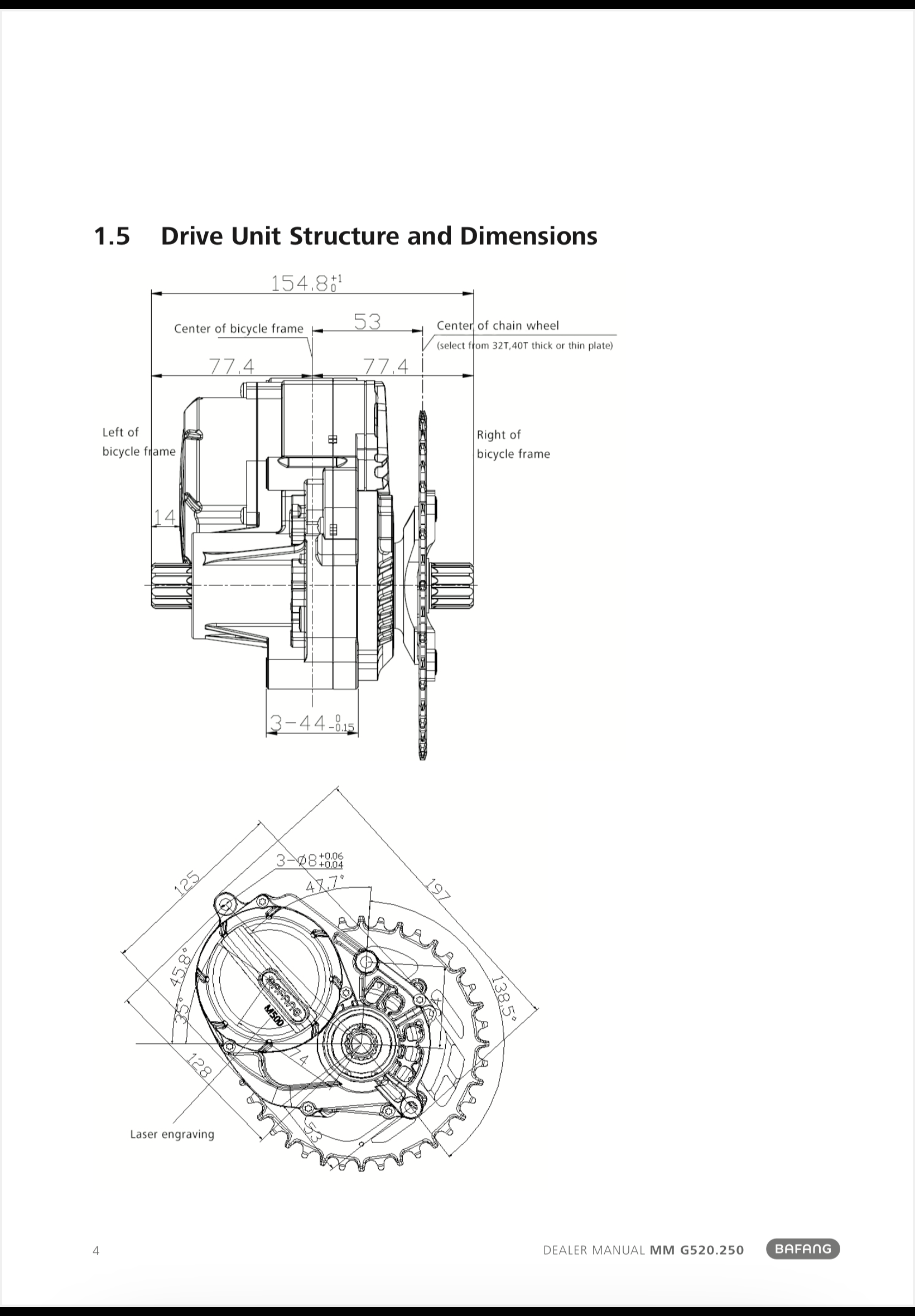

This is the M500 which is basically the same.



[Mowgli_Supertramp]

Brilliant, thanks!
