Pritchi83
Member

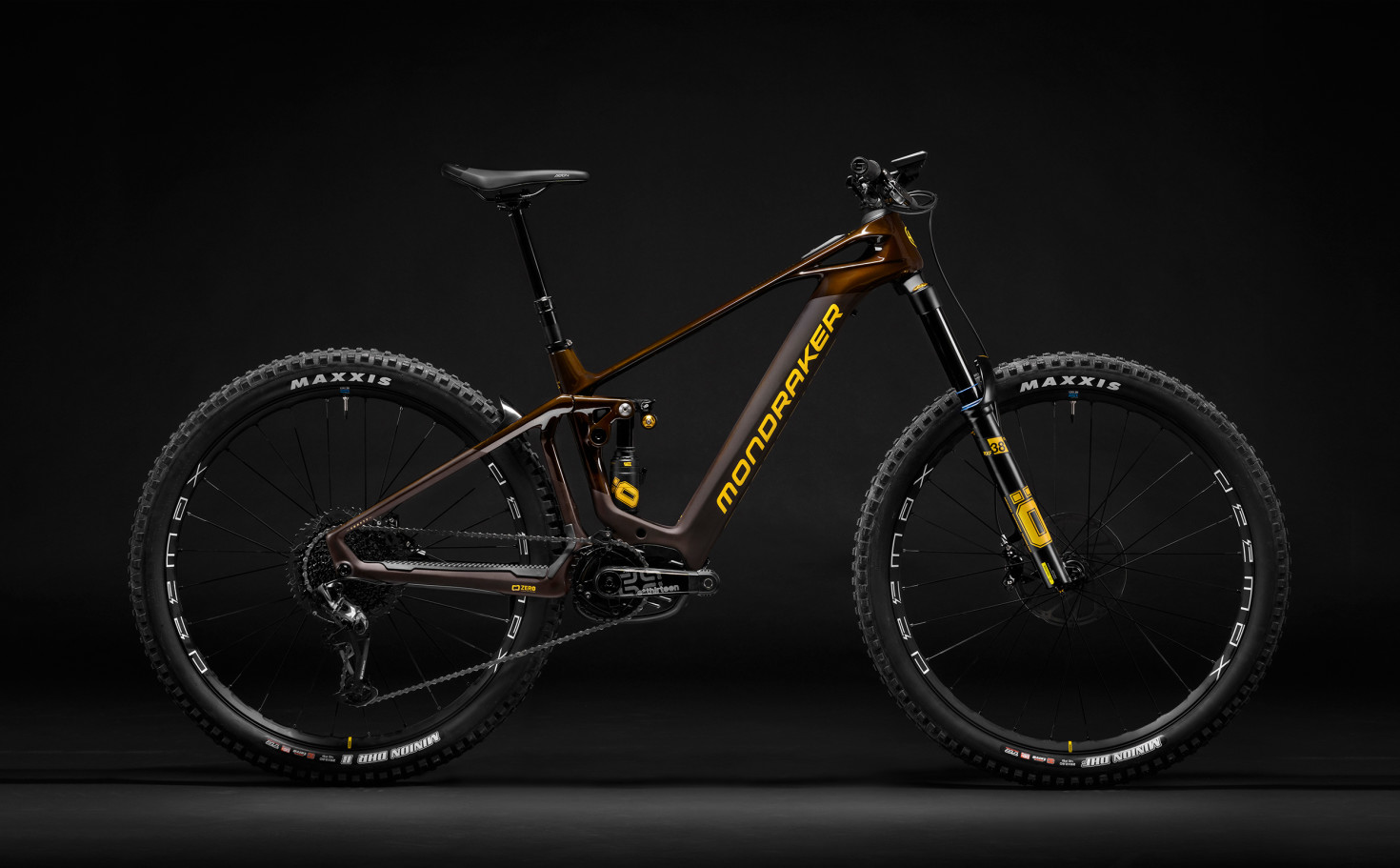

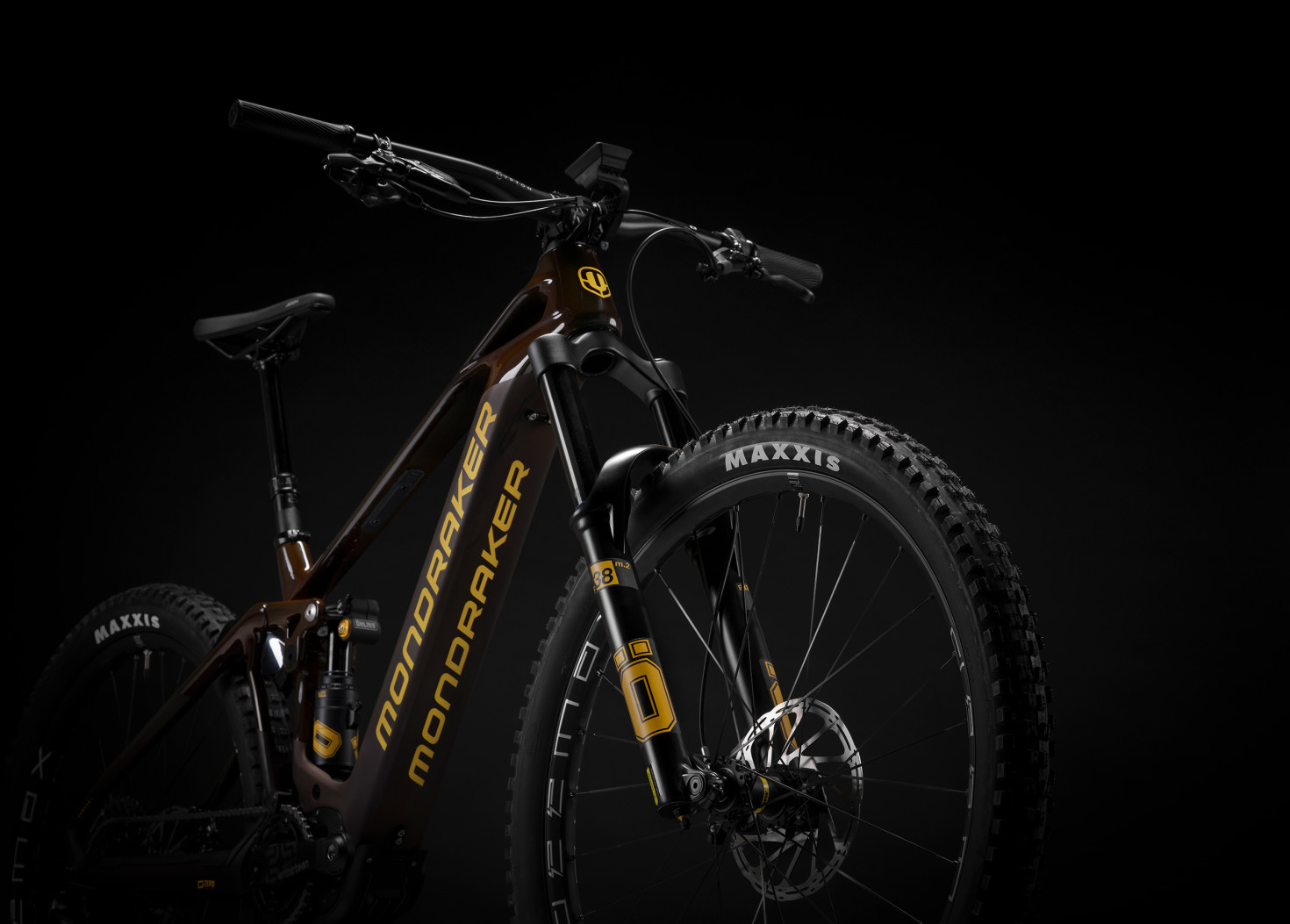

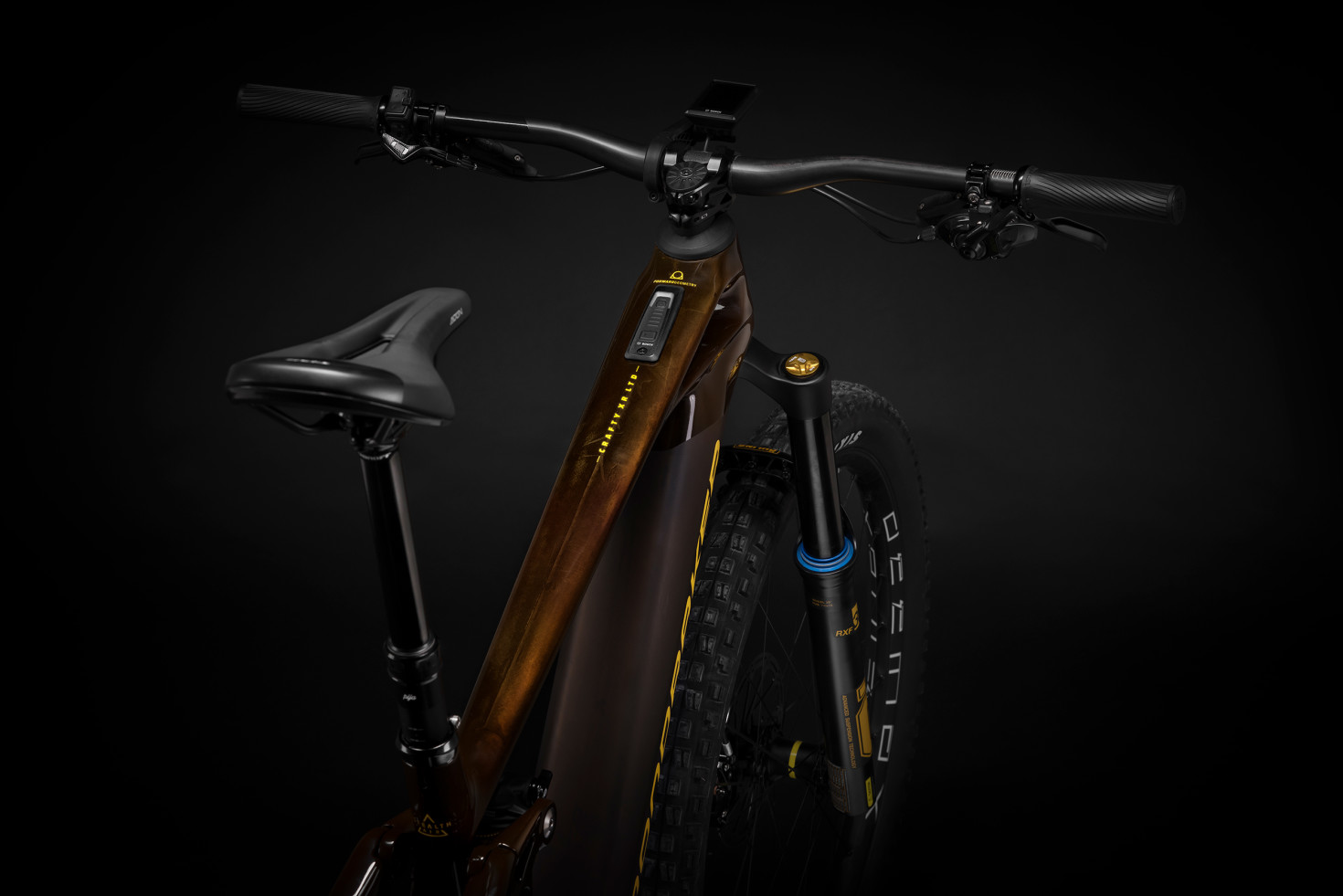

Bike / Product Year: 2023
Manufacturer: Mondraker
Model: Crafty XR Limited was €12,300 now €9800
Size XL
Asking Price: 9500
Location Ireland
Description Get 25% of normal retail price of €12,300. We are offering this beautiful bike for €9800. Comes with Ohlins suspension, Bosch Race motor, carbon cranks, carbon bars, X01 rear mech and more
TECHNICAL SPECS
Frame
Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

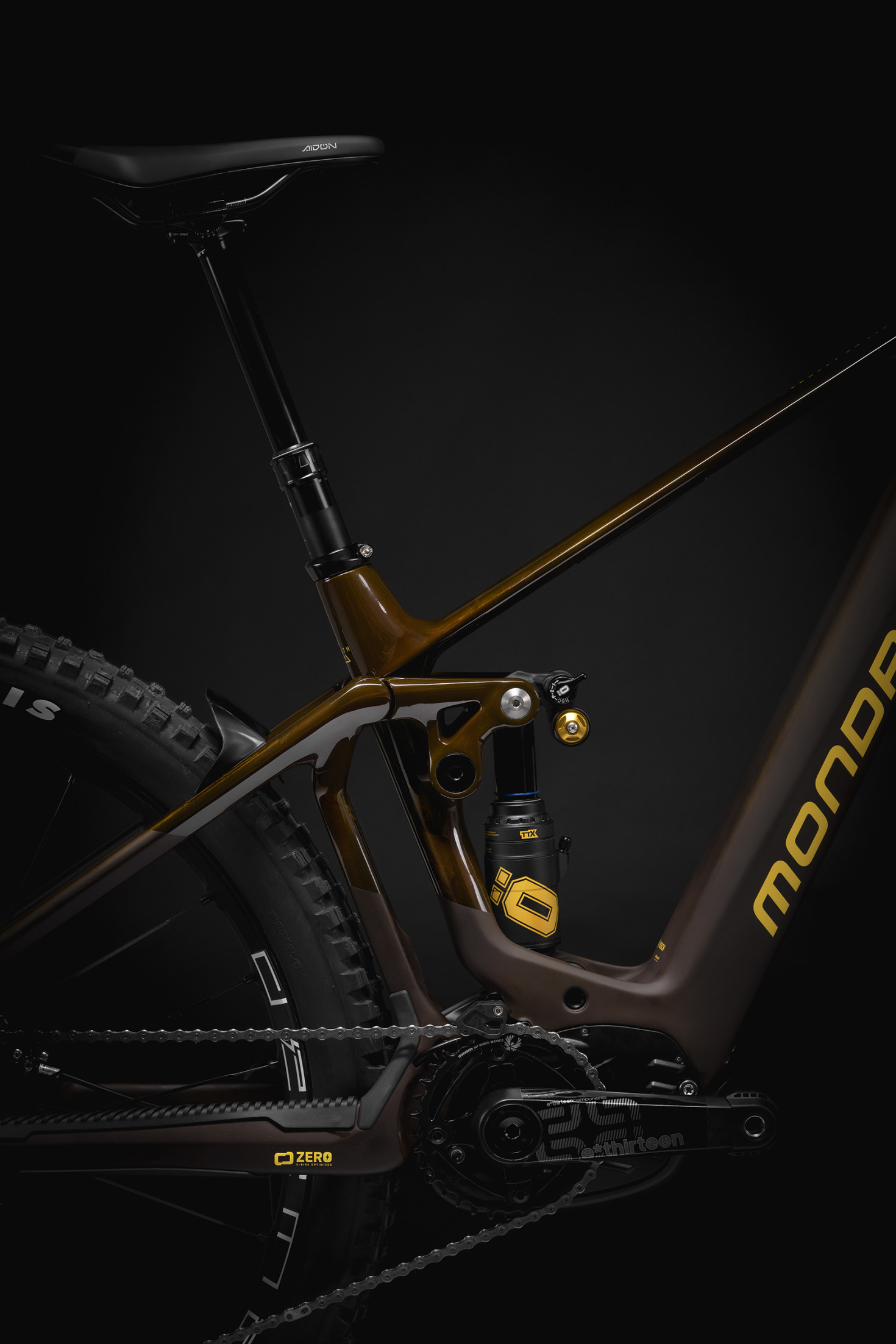

Rear shock
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings
C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)
Fork
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle
FIZIK Terra Aidon X5 145mm
Front brake
Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes
Mavic straight-pull double butted, contactless lacing
Front hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub
Front tire
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset
E.13 TRS Race carbon ebike, 165mm
Rings
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain
Sram NX Eagle, 12s, Powerlock
Rear derrailleur
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers
Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Casette
Sram XG-1275, 10-52T, 12s
Derailleur hanger
SRAM UDH
Weight
23,2 kg
Display
Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller

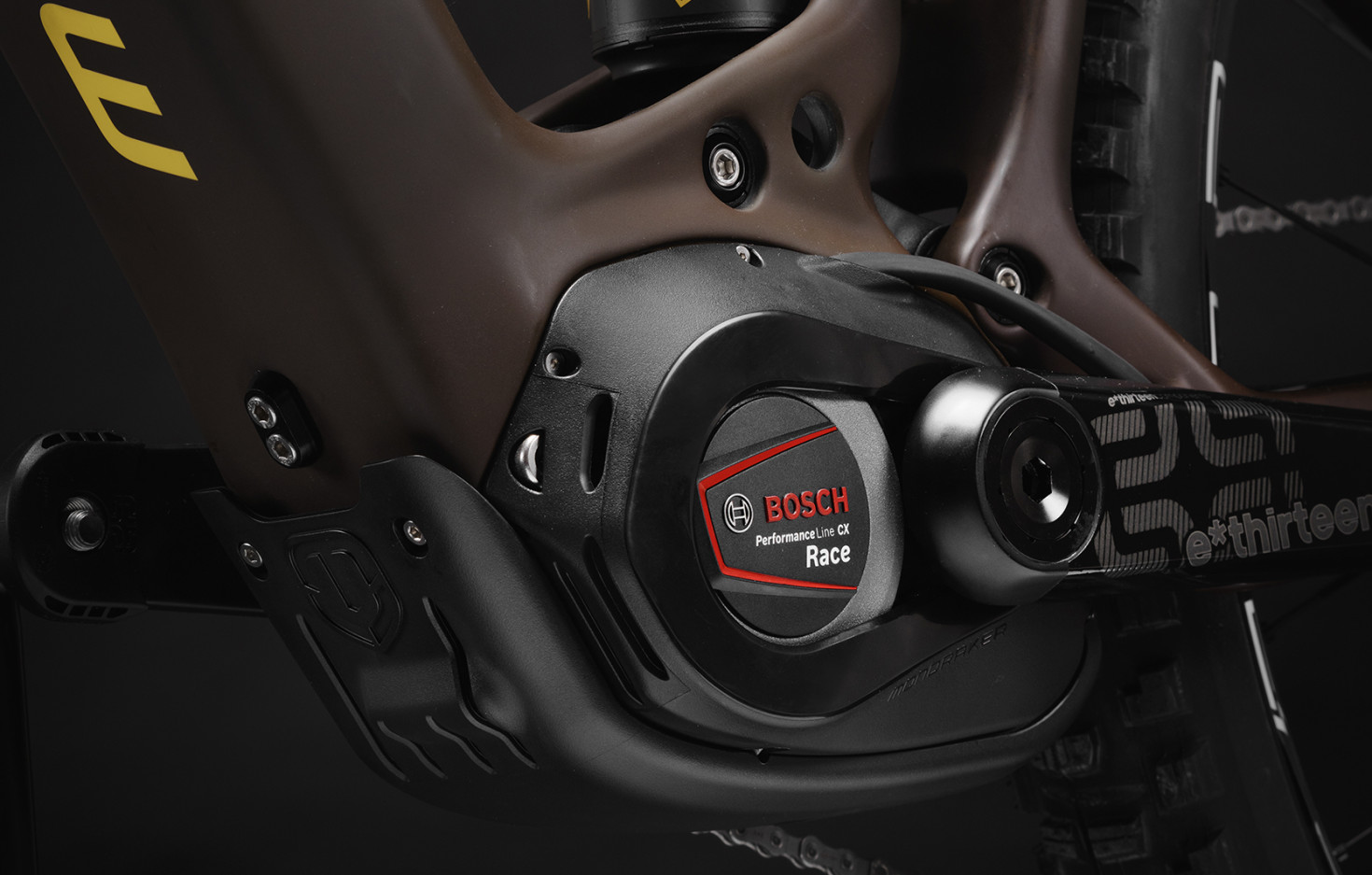

Motor
Bosch Performance Line CX-Race (25Km/h), Smart System
Battery
Bosch Powertube 750Wh
