2022 Giant Reign E+ rear hub bearing replacement

Sparkomatic · Mar 18, 2025

The bearings in my Giant DBL rear hub & freehub require replacement. Does anyone know exactly what hub this is? It's a DT Swiss something, 350?

Is it just a case of punching them out & press new ones in with a suitably sized socket, or will I need a proper bearing extractor & press kit?

Thanks!

Nobrks · Jun 24, 2025

Sparkomatic said:
The bearings in my Giant DBL rear hub & freehub require replacement. Does anyone know exactly what hub this is? It's a DT Swiss something, 350?

Is it just a case of punching them out & press new ones in with a suitably sized socket, or will I need a proper bearing extractor & press kit?

Thanks!
View attachment 156368 View attachment 156369

Hi, did you figure this out?
I am having some issues with how to remove the axle

Sparkomatic · Jun 25, 2025

I ordered a bearing extractor & press kit just yesterday so will be sorting it sometime in the near future, I will take some pics and upload here when I do. I think it's a 370 hub, but I'm still not 100% sure. If it is there's this video on YouTube which may help: DT Swiss H1900 Rear Hub Rebuild

Nobrks · Jun 25, 2025

Knock axle out from driver side. Did finish mine today.
6902 bearings

Bear-uk · Jun 26, 2025

Expect it to put up a fight

Nobrks · Jul 1, 2025

Bear-uk said:
Expect it to put up a fight
View attachment 163152

It is possible to push the bearing through, the ring. I could not loosen mine, even after several attempts with heating the hub

Sparkomatic · Oct 14, 2025

I've finally completed the bearing replacement in both the hub and freehub, just 7 months after first posting.

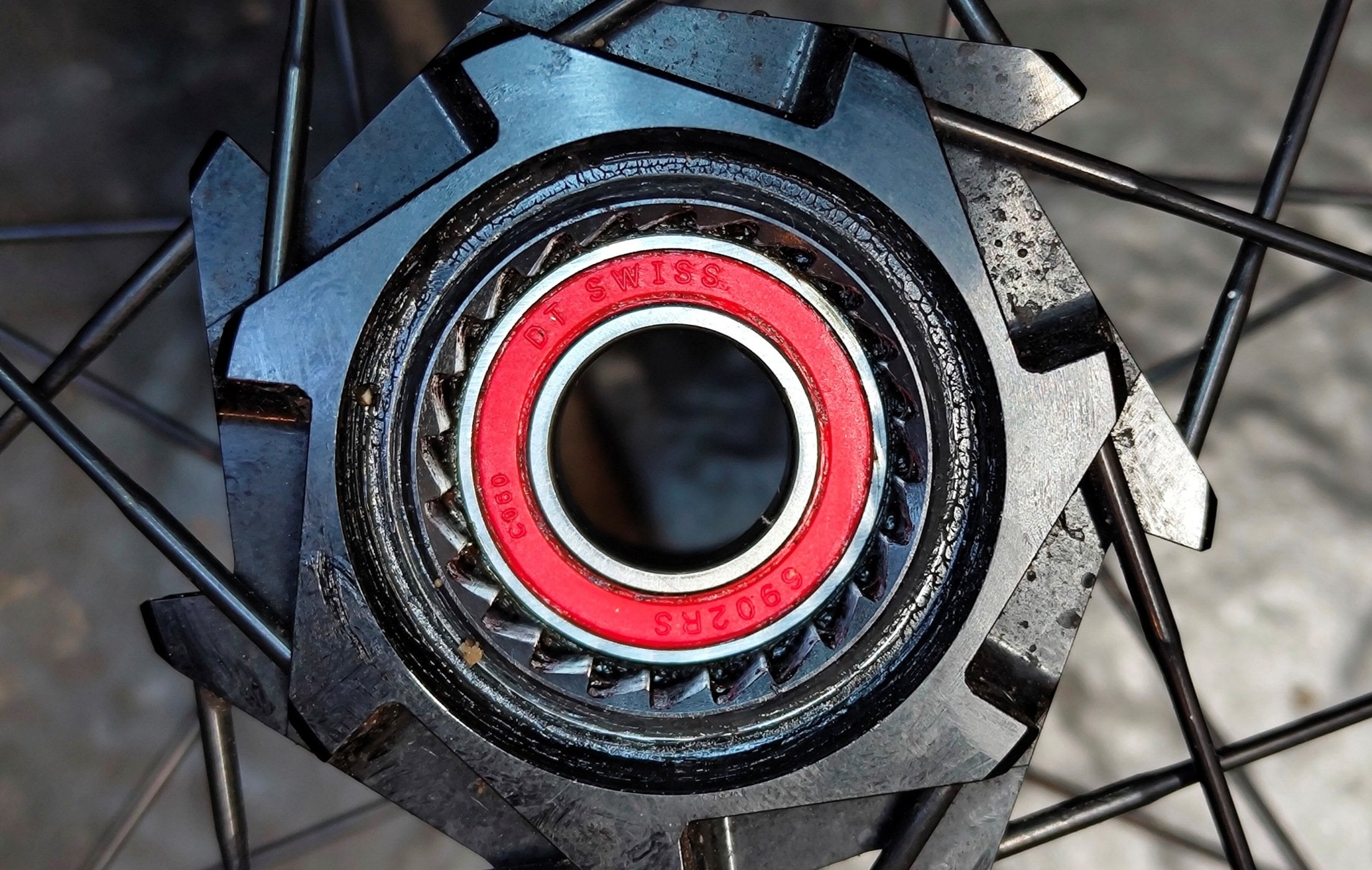

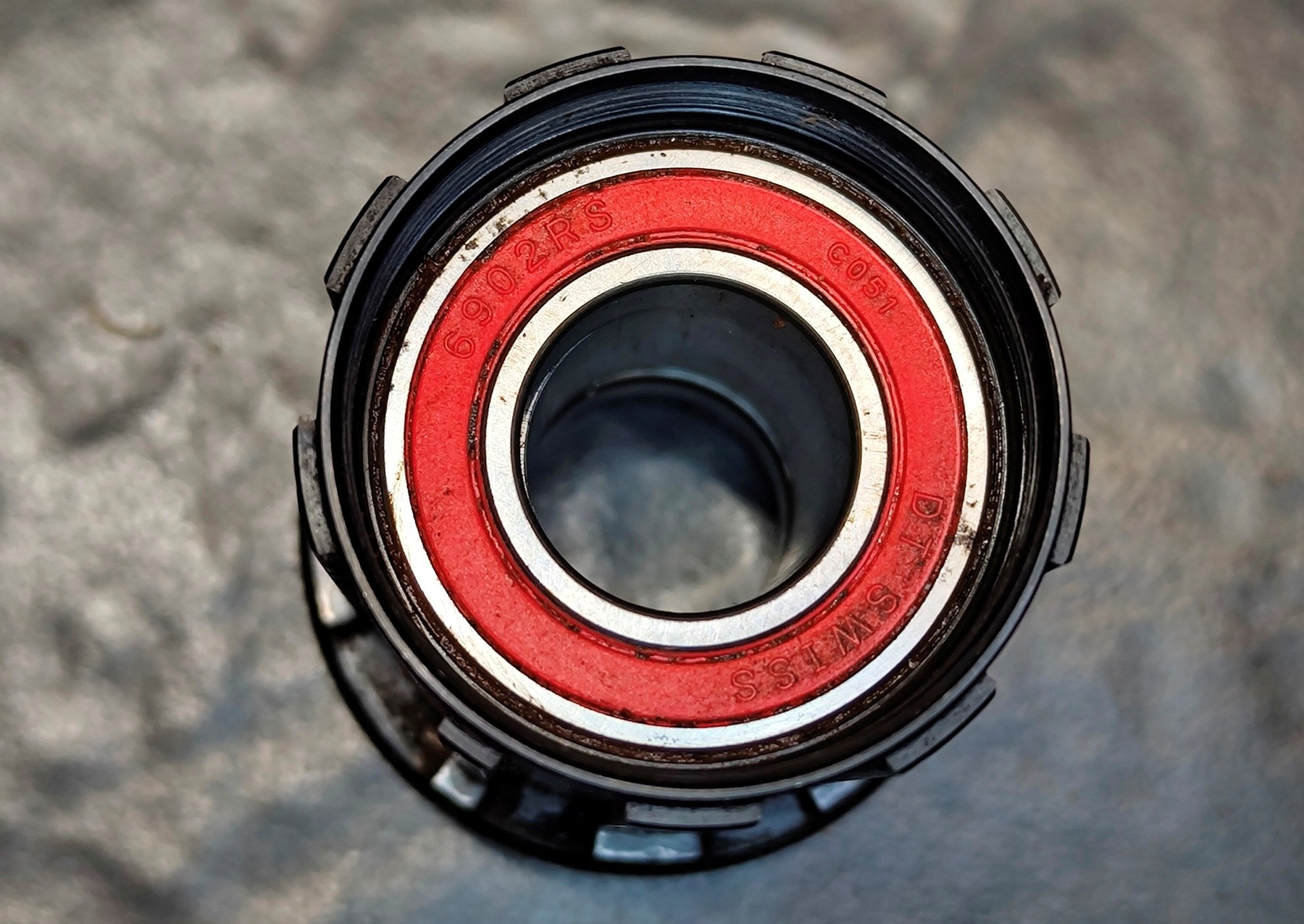

I changed four bearings total, two in the hub & two in the freehub. The main hub & outside freehub bearings are 6902 and the inside freehub bearing is a 6802 with this HG freehub body.

My freehub is a standard pawl (not ratchet) type and the bearing does not fit through, I believe the bearing does fit through a ring for a ratchet drive.

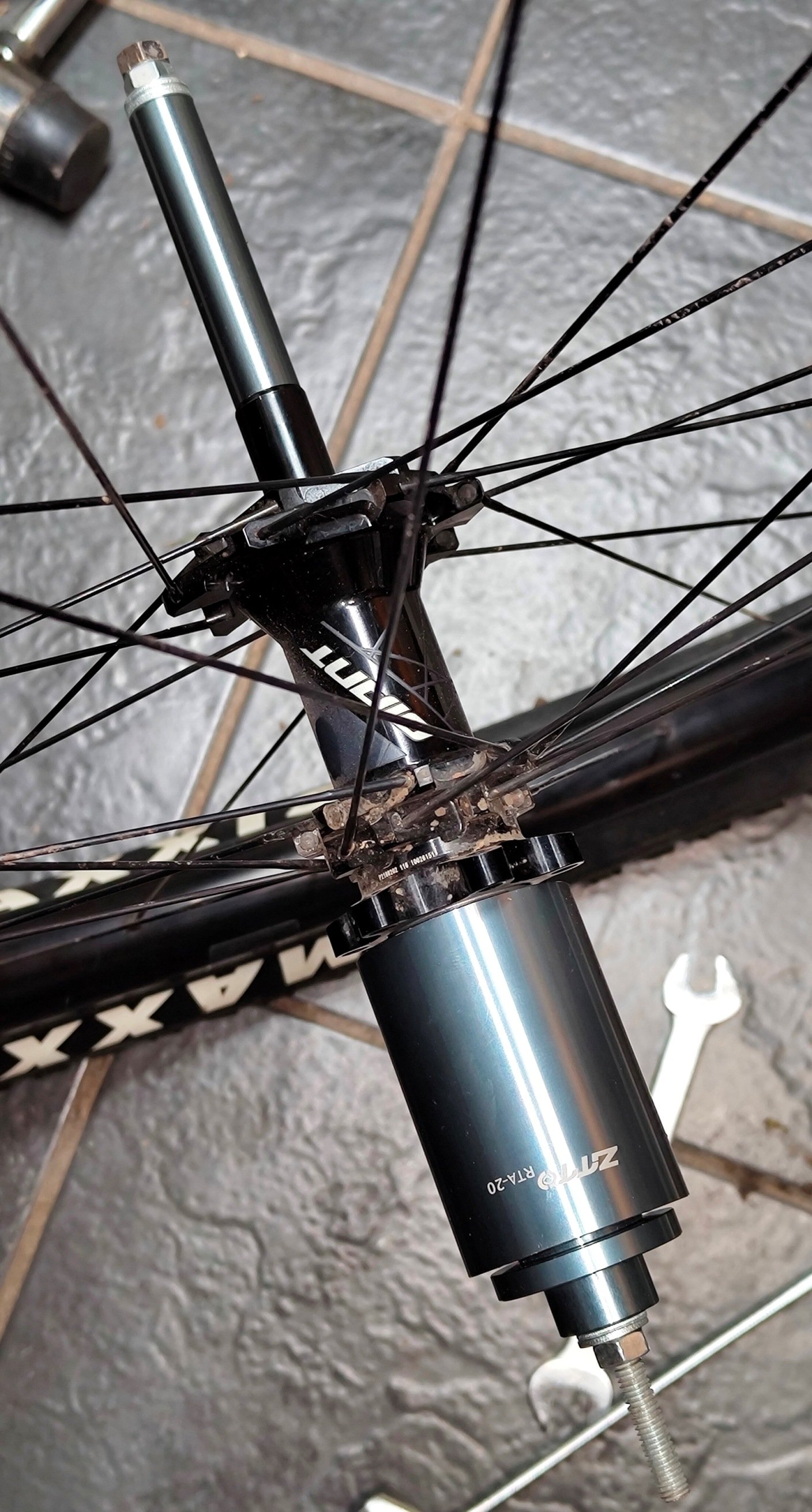

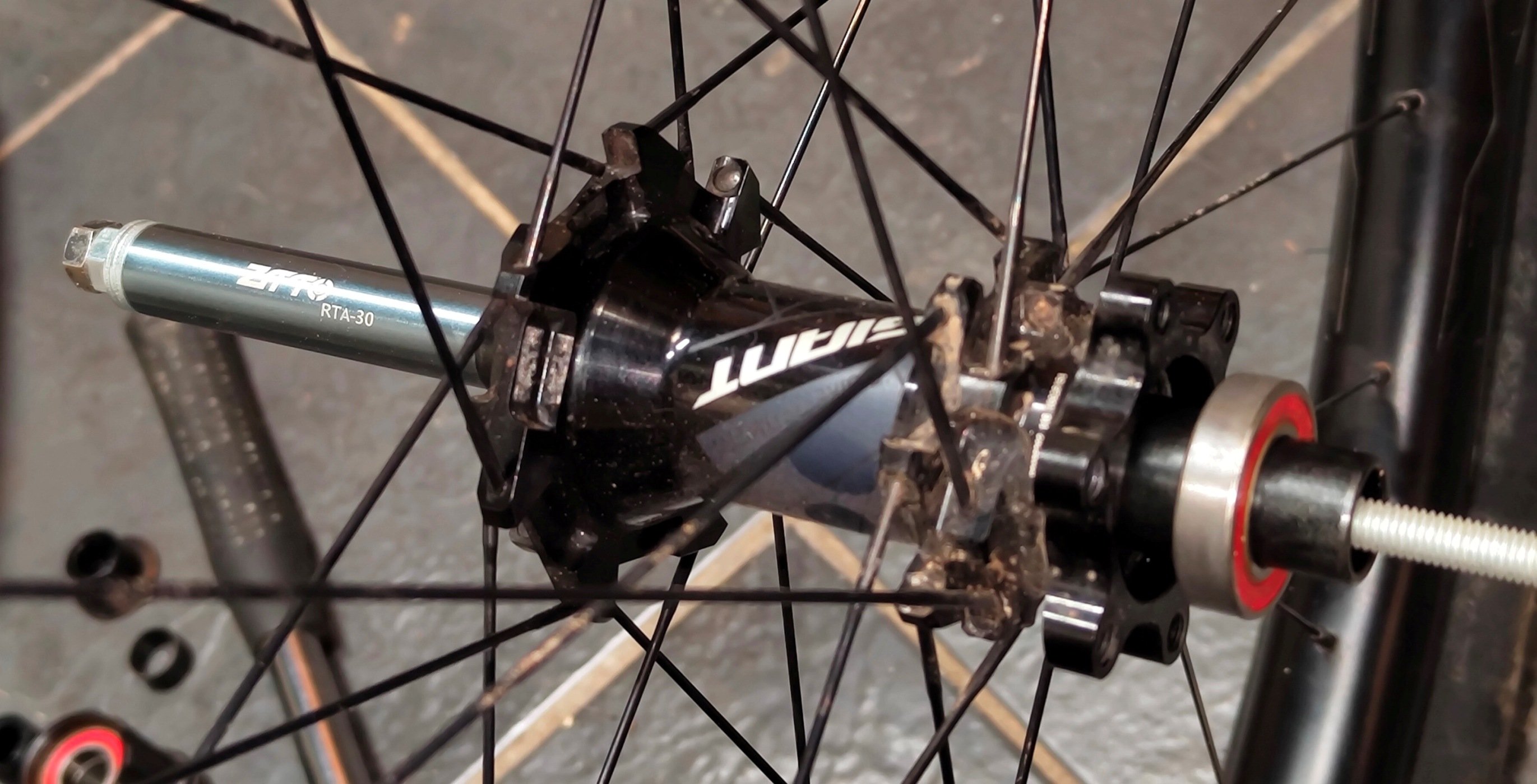

The bearings do come out as per the video I linked to in post #3 & as others have said however the non-driveside bearing in my hub was extremely tight & no way would it knock out without damaging the axle. Had to use a press instead. YMMV. Anyway, hope this helps someone!
