BT-E8016 external battery.

[Richywalker64]

Has anyone upgraded their BT-E8010 external battery to a BT-E8016 on a 2018 Merida e160?
I've noticed some people have on other brands.
It seems as though the BT-E8016 is difficult to get hold of and expensive in the UK.



[Bravestarr]

I'm sure that i have seen a thread showing that it doesn't fit due to rubbing on the shock reservoir.

I almost bought one from the Netherlands but then saw the picture.



[Richywalker64]

Cheers
I guess that rules that out then, it maybe looks with a different shock but that would be an extra cost as well as the battery
Probably cheaper upgrading the bike



[Stanczech]

I'm sure that i have seen a thread showing that it doesn't fit due to rubbing on the shock reservoir.

I almost bought one from the Netherlands but then saw the picture.

View attachment 54671

Hi Bravestarr, would you know any details? For example, the size of the frame on the attached photo?
Thanks.



[Bravestarr]

Hi Stanczech, I don't have any details I'm afraid. Looking at the picture and seeing that it almost fits I had wondered if simply sanding a few mm off the battery case at the contact point would do the trick....



[Stanczech]

Hi Bravestarre, thank you, that's not good, that's a shame.
I'm just deciding to buy a second battery, BT-8010 or BT-8016, and I'd rather have more capacity.
But I ride on an XL frame of size, in which there is a little more free space, a bottle can even fit in the frame.
I couldn't find any more information, so I'll probably have to try it myself ...
Enjoy!

Přeložil G. Překladatel.



[Stanczech]

... so I made some measurements to see if the battery, which is about 17 mm higher, fits in front of the muffler. It looked tight, but I ordered the battery, and it arrived yesterday.
And it turned out well, the 630Wh external battery fits into the XL Merida eONE SIXTY 2019 frame even with a spare.
Enjoy!



[jpaulo.emtb]

Are you guys facing the same quality issues (battery health) on this e8016 model as with other shimano battery models that are reported in the thread below?

Shimano Battery Life Poll

Hi, all. I'm trying to get to the bottom of why remaining capacity deteriorates quickly for some riders and less so for others. Shimano tech support was of little or no help. What I'd ask you all to post is the following three pieces of data (two of which you'll need to get from the...

www.emtbforums.com



[torabora851]

... so I made some measurements to see if the battery, which is about 17 mm higher, fits in front of the muffler. It looked tight, but I ordered the battery, and it arrived yesterday.
And it turned out well, the 630Wh external battery fits into the XL Merida eONE SIXTY 2019 frame even with a spare.
Enjoy!
View attachment 60196View attachment 60197

Does it work good? When the shock is fully compressed?



[Stanczech]

Does it work good? When the shock is fully compressed?

Yes, it works flawlessly, and it's as I described in a previous post: the Shimano 630Wh external battery fits in the XL frame of my Merida eONE SIXTY 2019, and does not come into contact with the shock absorber air chamber at any point along the entire stroke path, but there will always be enough space left. The photo is above.



[Stanczech]

Are you guys facing the same quality issues (battery health) on this e8016 model as with other shimano battery models that are reported in the thread below?

Shimano Battery Life Poll

Hi, all. I'm trying to get to the bottom of why remaining capacity deteriorates quickly for some riders and less so for others. Shimano tech support was of little or no help. What I'd ask you all to post is the following three pieces of data (two of which you'll need to get from the...

www.emtbforums.com

As for possible problems with the 630Wh battery, I haven't noticed any yet. This year, in 2021, I unfortunately had some extra health problems, and I couldn't ride as much as I would like. I use two 503Wh batteries alternately, and this new 630Wh battery, which I have driven so far only 2391 km / 29789 altitude meters / 120.5 hours; battery status: 98% in 15 charging cycles.



[jpaulo.emtb]

As for possible problems with the 630Wh battery, I haven't noticed any yet. This year, in 2021, I unfortunately had some extra health problems, and I couldn't ride as much as I would like. I use two 503Wh batteries alternately, and this new 630Wh battery, which I have driven so far only 2391 km / 29789 altitude meters / 120.5 hours; battery status: 98% in 15 charging cycles.

Uau!!! A ratio of 159km per cycle!!!! With my 504 I have a ratio of 80Km/cycle.



[Stanczech]

Uau!!! A ratio of 159km per cycle!!!! With my 504 I have a ratio of 80Km/cycle.

Yes, the data is pleasant, but it is necessary to take into account that it applies to summer use.
Winter operation will certainly be more demanding in terms of consumption and endurance, so we will only see what it will look like in spring.



[Re-Cycle]

I was wondering if anyone with a frame size S has installed the (external) 630Wh battery? (eOne-Sixty 900 2018, the red one ).
With the OEM Rock Shox Deluxe shock this will cause interference when fully compressed, but are there any piggyback shocks that don't interfere? Or is the only option to solve this problem the RS Ultimate without piggy back reservoir?

I also heard about someone moulding the battery housing a bit but that kills the warranty also... not what I would like.

Does it make a difference which frame size at all, isn't the shock-battery distance the same on all sizes?



[Meridaman]

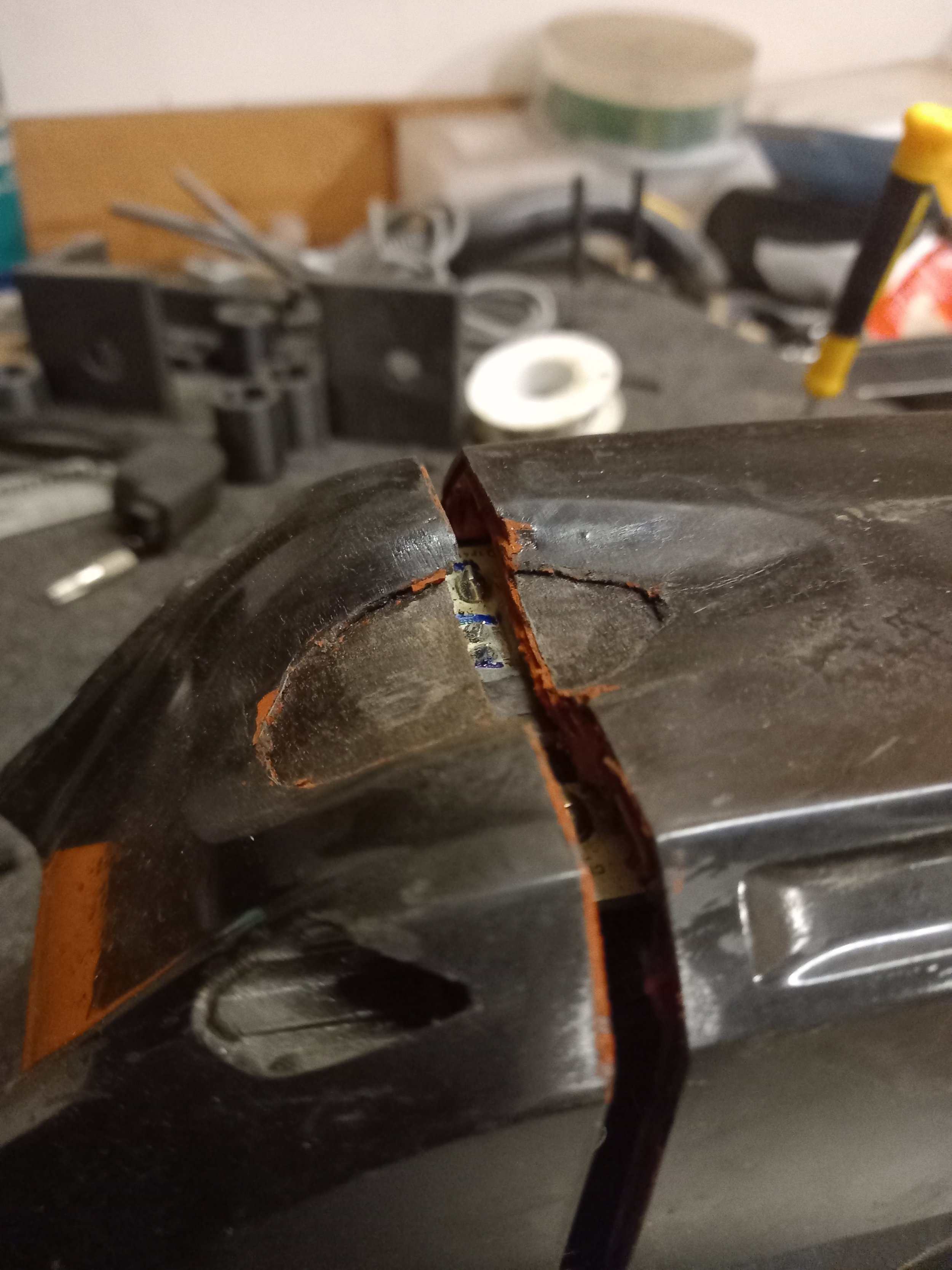

I have merida eonesixty 900e M size. I take a risk to order 630wh battery. It wont fit without modification. It is pretty hard Job to make room to it. After 2 years use ,my battery dropped to floor and it blinks error now. Lights claims that battery is too Hot. I open it and there was little bit water drops also. I dont know how i could get this error off.



[ktm]

Est-il possible de monter la batterie 630 w dans un mérida E one Sixty 900 de 2018 sans changer le support de batterie
Merc



[pafas]

I have merida eonesixty 900e M size. I take a risk to order 630wh battery. It wont fit without modification. It is pretty hard Job to make room to it. After 2 years use ,my battery dropped to floor and it blinks error now. Lights claims that battery is too Hot. I open it and there was little bit water drops also. I dont know how i could get this error off.

View attachment 102218

I'm facing the same problem. I've got a size M 2019 Merida and thinking about upgrading to the 630 battery since the old one is not working. How did you manage to get it working? Would you do it again or simply stick with a new 500 battery?

Thanks in advance
