Bike Finder · Yamaha

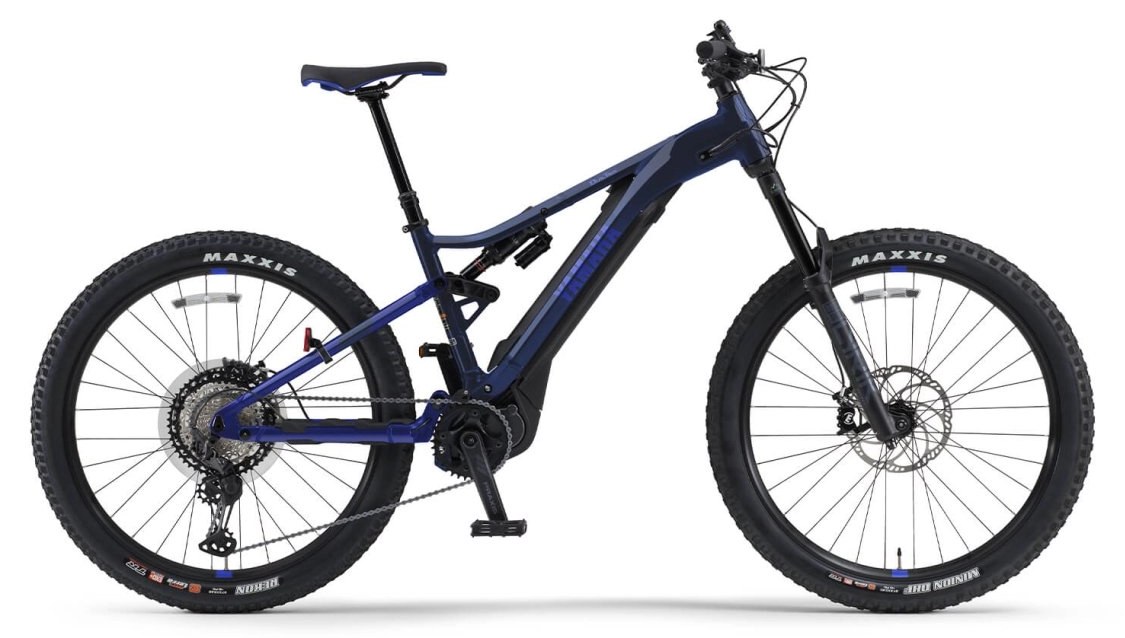

Yamaha YDX-MORO 07
Yamaha

YDX-MORO 07 2024

CurrentFull Power · TrailAgeing · 3/10iFreshness 3/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor
Yamaha PW-X3 · 85Nm · 500W
Battery
Yamaha 500Wh Integrated
Travel F/R
160/150mm
Wheels
27.5F / 27.5R
Frame
Aluminium
Weight
23.3 kg
Price
View the Yamaha YDX-MORO 07 on Yamaha’s site
Yamaha YDX-MORO 07 2024
EMTB Forums verdict

The Yamaha YDX-MORO 07 is the flagship of Yamaha's full-power eMTB line, built around the brand's patented Dual Twin aluminium frame, which uses parallel twin tubes to centralise mass and lower the centre of gravity. For the 2024 model year it runs Yamaha's PW-X3 mid-drive motor, rated at 85Nm of torque with 250W nominal and 500W peak output and a 20mph (Class 1) assist limit, fed by an integrated 500Wh Yamaha battery. Travel is 160mm up front via a RockShox Lyrik Select and 150mm at the rear from a custom-tuned RockShox Super Deluxe Select+.

It is offered as a single build in the US market at 6,399 dollars MSRP, in Dual Blue or Raven Silver, and was never sold in the UK (no GBP price exists). The spec is a serious all-mountain package: Shimano XT 12-speed (10-51T) shifting, a Praxis e-crank with a 36T ring, Magura MT5 four-piston brakes on 203mm rotors front and rear, a Trans-X dropper with size-specific travel, and Maxxis 27.5x2.6-inch tyres (Minion DHF front, Rekon rear) on Yamaha's own 27.5+ alloy wheels. Claimed weight is 51.3lb (around 23.3kg) in Medium.

Geometry is conservative by modern enduro standards: a 66.3 degree head angle across all three sizes, a 70.3 degree seat tube angle, and reach figures of 393mm, 437mm and 482mm for Small, Medium and Large. That, combined with the 27.5+ wheels and a relatively tall front end, points to a stable, planted trail and all-mountain bike rather than an aggressive enduro race weapon.

Note on availability: Yamaha has scaled back its power-assist bicycle business in places, but at the time of writing the 2024 YDX-MORO 07 remains listed and priced on Yamaha's US sites, so it reads as a current US-market model. There is limited recent community ride and reliability feedback on this generation, so long-term ownership impressions are not yet established.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size
Descending
57

A solid all-round descender (66.3° head angle, 150mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness
48

A fair bit of pop, but happiest on flowing trail rather than trials moves.

Size balance
60

Not enough geometry on record to judge size balance.

Technical climbing
35

A workmanlike climber — expect to put in more rider effort on the steep stuff. 500W of peak power and 85Nm of torque — a strong full-power motor.

Best suited toAll-round trail riding across mixed terrain.

No single standout trait — a balanced, versatile bike.

Watch out forClimbing leans on the rider more than the motor.

Lower torque or a slacker seat angle — fine, just don't expect a winch.

How it stacks up vs other Full Power · Trail bikes (from 227 bikes in the database)

Weight23.3 kgabout average weight
Battery500 Wh205 Wh below average
Motor torque85 Nm13 Nm below average
Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.
Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

Bike geometry diagram
SML
Reach393 mm437 mm482 mm
Stack616 mm625 mm629 mm
Headtube Angle66.3°66.3°66.3°
Headtube110 mm120 mm125 mm
Standover741 mm751 mm759 mm

Trims · 1

Base
MotorYamaha PW-X3 · 85 Nm
BatteryYamaha 500Wh Integrated · 500 Wh
Travel F/R160/150 mm
FrameYamaha Dual Twin aluminium (twin-tube, hydroformed + forged)
ForkRockShox Lyrik Select, 160mm travel, 35mm stanchions, Charger RC damper with low-speed compression and rebound adjust, compatible with RockShox premium short fender, upgradeable to new Pressure Relief Valves via RockShox
ShockRockShox Super Deluxe Select+, custom tuned for Yamaha YDX-MORO 07, 150mm travel, 210x55mm DebonAir+ air spring with 15 clicks of rebound adjustment, 2-position compression adjustment
HeadsetIntegrated tapered 1 1/8" - 1 1/2" (30mm of spacers)
StemAlloy 4-bolt faceplate, 35.0mm diameter, 40mm length
HandlebarAlloy, 35.0mm diameter, 780mm width, 30mm rise
GripsVelo Single Ring Lock
SaddleYamaha anti-slip finish with hand rail tail
SeatpostTrans-X dropper post, 30.9mm diameter, travel (S) 125mm / (M) 150mm / (L) 170mm; single-bolt 35.0mm seatpost collar
BrakesMagura MT5 4-piston F/R, 203mm Centerlock rotor (F/R), single-finger lever
Rear derailleurShimano XT RD-M8100-SGS
CrankPraxis e-crank arm, 165mm length; Praxis 36T chainring
ShiftersShimano XT SL-M8100-R
CassetteShimano XT CS-M8100-12, 12-speed (10-51T)
ChainKMC eTURBO EPT, 122 links
DrivetrainShimano XT RD-M8100-SGS; Praxis e-crank arm, 165mm length; Praxis 36T chainring; Shimano XT SL-M8100-R; Shimano XT CS-M8100-12, 12-speed (10-51T); KMC eTURBO EPT, 122 links
WheelsYamaha 27.5+ alloy, tubeless tape installed, width 46mm (outside) / 40mm (inside); 14g alloy SUS304 spokes; anodized alloy Centerlock hubs, 15x110mm BOOST+ (front), 12x148mm MicroSpline freehub
TyresMaxxis 27.5x2.6: (F) Minion DHF / (R) Rekon
Weight23.3 kg
