E-180 2025
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Bosch CX-powered alloy MX e-enduro flagship at £5,499 with Fox Factory suspension and SRAM GX AXS T-Type.

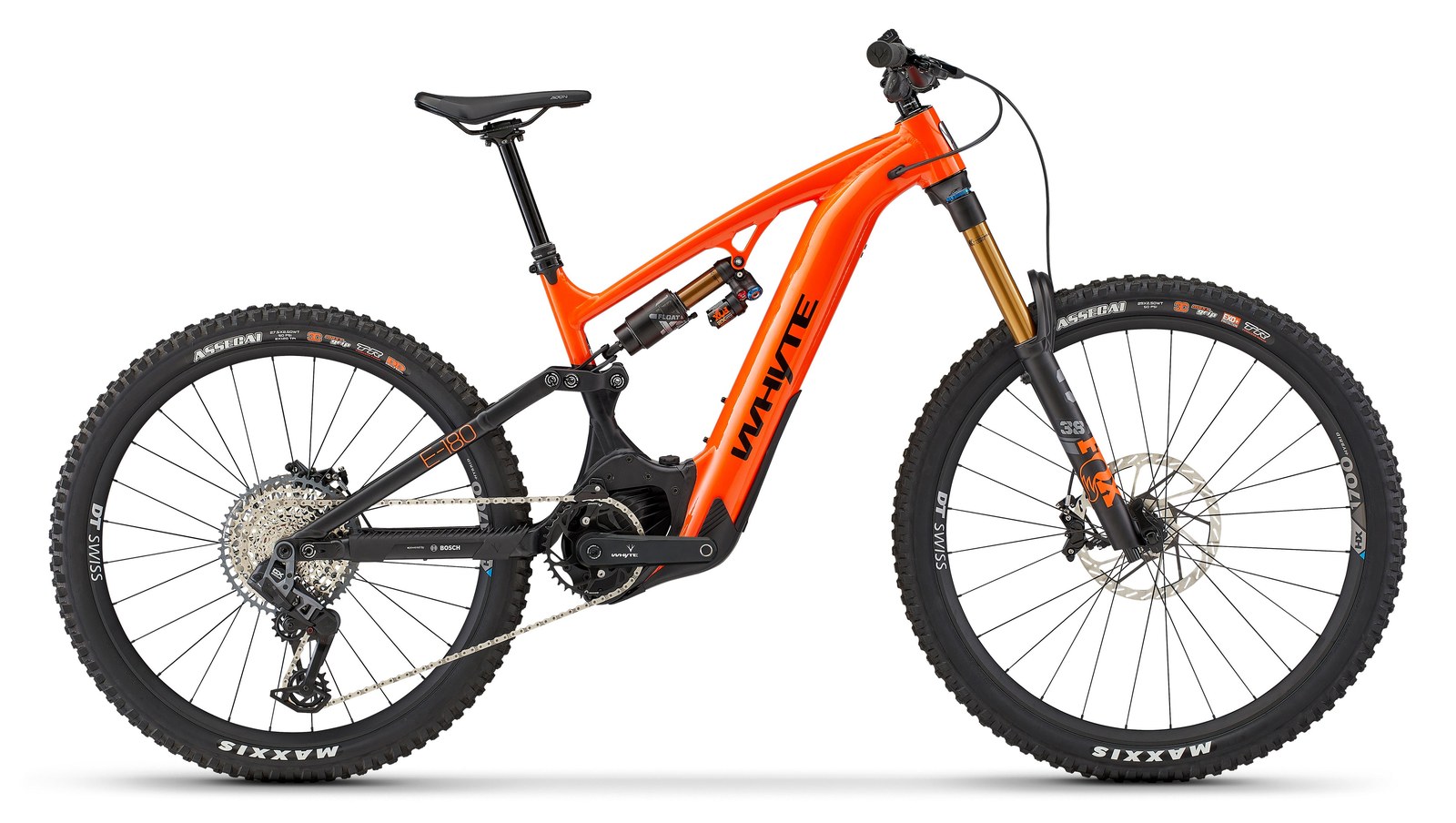

The E-180 is Whyte's full-fat alloy gravity eMTB: 180mm Fox or RockShox fork up front, 170mm out back, a Bosch Performance Line CX Gen 4 motor with the big 750Wh slide-out PowerTube, and MX wheels with DoubleDown-cased Assegais as standard. The tilted-motor, low-slung battery layout is the headline engineering story, pulling the centre of gravity down for bike park and big-mountain duty.
The two 2025 builds are unusually keenly priced. The £5,499 RSX gets Fox Factory 38 and Float X2, SRAM GX AXS T-Type shifting via AXS Pods, Code RSC brakes on 220/200mm rotors and DT Swiss HX1700 wheels, which is a spec many rivals charge well over £7,000 for. The £4,499 S drops to a RockShox ZEB and Super Deluxe Select R with GX AXS Eagle and Code R brakes, but keeps the same frame, motor, 750Wh battery and tyres, so the £1,000 step to the RSX buys suspension and drivetrain rather than anything structural.
Geometry is unapologetically gravity-led: a 63.2 degree head angle (62.7 in the Shape.It low setting), 444mm chainstays across the board and reaches of 455/483/510mm in the three sizes. There is no small frame, and at around 26kg claimed this is a bike specced for descending rather than ferrying itself around mellow trails. The Shape.It flip chip drops the BB a further 8mm for the steepest tracks without altering the kinematics.
Frame
6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link, 12mm x 148mm Boost dropouts
Geometry · hover a row to highlight the measurement on the bike
| M | L | XL | |
|---|---|---|---|
| Reach | 455 mm | 480 mm | 505 mm |
| Stack | 626 mm | 635 mm | 648 mm |
| Seattube | 420 mm | 445 mm | 470 mm |
| Chainstay | 448 mm | 448 mm | 448 mm |
| Headtube Angle | 63.2° | 63.2° | 63.2° |
| Seattube Angle (eff) | 77° | 76.8° | 76.5° |
| Wheelbase | 1265 mm | 1295 mm | 1330 mm |
| Headtube | 100 mm | 115 mm | 130 mm |
| BB Height | 349 mm | 349 mm | 349 mm |
| Standover | 769 mm | 770 mm | 772 mm |
| Front Centre | 817 mm | 847 mm | 882 mm |
Trims · 2
S £4,499 | RSX £5,499 | |
|---|---|---|
| Motor | Bosch Performance Line CX Gen 4 · 85 Nm · all trims | |
| Battery | Bosch PowerTube 750 · 750 Wh · all trims | |
| Travel F/R | 180/170 mm · all trims | |
| Frame | Aluminium (6061 T-6 hydroformed, multi-butted) · all trims | |
| Fork | RockShox ZEB, 180mm travel, 44mm offset, DebonAir+, Rush RC damper, Fast Black coating, 110x15mm Boost Maxle Ultimate | Fox Float 38 Factory 29in, 180mm travel, 44mm offset, Grip 2 damper with custom tune, Kashima coating, 110x15mm Boost |
| Shock | RockShox Super Deluxe Select R, DebonAir, Fast Black coating, adjustable rebound (Whyte custom tune) | Fox Float X2 Factory, independently adjustable compression and rebound damping, Kashima coating |
| Headset | FSA No. 55R/35 Orbit 1.5 ZS, 1.8in lower / 1 1/8in upper sealed cartridge bearings | FSA No. 55/35 Orbit 1.5 ZS, 1.8in lower / 1 1/8in upper sealed cartridge bearings |
| Stem | Whyte Enduro, 35mm extension, 35mm bore | Race Face Atlas, 35mm bore, 35mm extension |
| Handlebar | Whyte Custom 6061 alloy, 30mm rise, 35mm bore, 800mm wide | Race Face Turbine R, 35mm rise, 35mm bore, 800mm wide |
| Grips | Whyte Enduro lock-on | Whyte Lock-on Enduro Grip |
| Saddle | Whyte Custom | Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail |
| Seatpost | Whyte drop.it II Adjust, 30.9mm (M/L 140-170mm travel, XL 170-200mm travel), MMX paddle remote | Crank Brothers High-Line 3, 30.9mm (M/L 150mm travel, XL 170mm travel), remote lever |
| Brakes | SRAM Code R, 4-piston with sintered metal pads (220mm front / 200mm rear rotors) | SRAM Code RSC, 4-piston with sintered metal pads (220mm front / 200mm rear rotors) |
| Rear derailleur | SRAM GX AXS Eagle, 12-speed | SRAM GX AXS T-Type, 12-speed |
| Crank | Whyte forged alloy, 155mm, direct mount 36T chainring | Race Face Affect E-Bike, 165mm, ISIS with T-Type direct mount 36T for Bosch Performance Line CX |
| Shifters | SRAM GX AXS Eagle, two-button MMX, 12-speed | SRAM AXS Pod, 2-button MMX, 12-speed |
| Cassette | SRAM PG-1210 Eagle, 11-50T, 12-speed | SRAM XS-1275 T-Type Eagle, 10-52T, 12-speed |
| Chain | SRAM GX Eagle, 12-speed | SRAM GX T-Type Eagle, 12-speed |
| Drivetrain | 1x12 SRAM GX Eagle AXS wireless electronic | 1x12 SRAM GX AXS T-Type wireless electronic |
| Wheels | DT Swiss Hybrid 30 rims with e-bike specific alloy hubs, MX configuration (29in front / 27.5in rear) | DT Swiss Hybrid HX1700, MX (29in front / 27.5in rear), 15x110mm Boost front and 12x148mm Boost SRAM XD steel rear |
| Tyres | Maxxis Assegai WT TR 29x2.5in 120TPI EXO+ 3C MaxxGrip front; Maxxis Assegai WT TR 27.5x2.5in 120TPI DoubleDown 3C MaxxGrip rear · all trims | |
| Weight | 26.4 kg | 26.1 kg |
| Price | £4,499 | £5,499 |
